Product Type	Compact Refrigerator
Brand	Summit
Model	FF1511
Color	White
Total Capacity	1.6 cu. ft. (45 L)
Dimensions (H x W x D)	19.5 x 18.0 x 17.5 inches
Weight	28 lbs (12.7 kg)
Power Supply	115V AC, 60 Hz
Energy Consumption	130 kWh/year
Refrigerant	R600a
Temperature Range	32°F to 50°F (0°C to 10°C)
Defrost Type	Manual
Shelves	1 adjustable glass shelf
Door Storage	2 door bins
Thermostat Control	Dial (mechanical)
Reversible Door	Yes
Safety Certifications	UL listed
Interior Light	Incandescent bulb
Legs	2 front leveling legs
Clean-up	Wipe with damp cloth; avoid abrasive cleaners
Spare Parts Availability	Contact Summit Customer Service
Manual Download	PDF available on manufacturer's website

Frequently Asked Questions - FF1511 Summit

How do I adjust the temperature on my Summit FF1511 refrigerator?

Turn the thermostat dial located inside the refrigerator compartment. The dial has multiple settings (usually 1-7) with higher numbers for colder temperatures. Start at a mid setting and adjust as needed.

Does the Summit FF1511 have a freezer compartment?

No, the FF1511 is a compact refrigerator only. It does not include a freezer section. It is designed for chilling beverages and perishables.

How do I defrost my Summit FF1511 refrigerator?

To defrost, unplug the refrigerator, remove all items, and leave the door open until ice melts. Do not use sharp objects to scrape ice. Use a towel or sponge to absorb water. Cleaning after defrosting is recommended.

What are the dimensions and capacity of the Summit FF1511?

The FF1511 measures approximately 19.5 inches high, 18 inches wide, and 17.5 inches deep. It has a total capacity of 1.6 cubic feet (45 liters), suitable for a small dorm room or office.

Can I reverse the door swing on the Summit FF1511?

Yes, the door is reversible. The manual provides instructions for switching the door hinge to open from the left or right side. You will need a screwdriver and some basic DIY skills.

Is the Summit FF1511 Energy Star certified?

The FF1511 is not specifically listed as Energy Star certified, but it is designed to be energy efficient with an estimated 130 kWh annual consumption. Check the manual for exact efficiency ratings.

How do I clean the condenser coils on the Summit FF1511?

Unplug the refrigerator, locate the coils at the back or bottom, and gently vacuum or brush away dust every few months. Keeping coils clean ensures optimal performance and energy efficiency.

What type of refrigerant does the Summit FF1511 use?

The FF1511 uses R600a (isobutane) refrigerant, which is environmentally friendly and efficient. This refrigerant is flammable, so always follow safety guidelines in the manual.

Why is my Summit FF1511 running constantly?

If the refrigerator runs non-stop, check the thermostat setting, ensure the door is fully closed, and clean the condenser coils. Also, verify there is enough ventilation space around the unit. If the issue persists, contact Summit support.

Where can I find spare parts or service for my Summit FF1511?

For genuine spare parts and authorized service, visit the Summit Appliance website or call their customer service. Keep your model number and serial number ready. Many parts are also available through online retailers.

USER MANUAL FF1511 Summit

Illustration of a sundae dessert in a glass bowl with a cherry on top (no text or symbols)

Please read this user manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you hand over the product to someone else, give the user manual as well.

The user manual will help you use the product in a fast and safe way.

• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.

Remember that this user manual is also applicable for several other models.

Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

	Important information or useful hints.
	Risk of injury and damage to property.
	Risk of electric shock.
	Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Contents

1 Important instructions for safety and environment 3

2 Your appliance 7

3 Installation 8

3.1. Appropriate installation location 8
3.2. Adjusting the feet 9
3.3. Electrical connection ..... 9
3.4. Connecting the water hose to the refrigerator .....10
3.5. Connecting the water line to the water supply....10

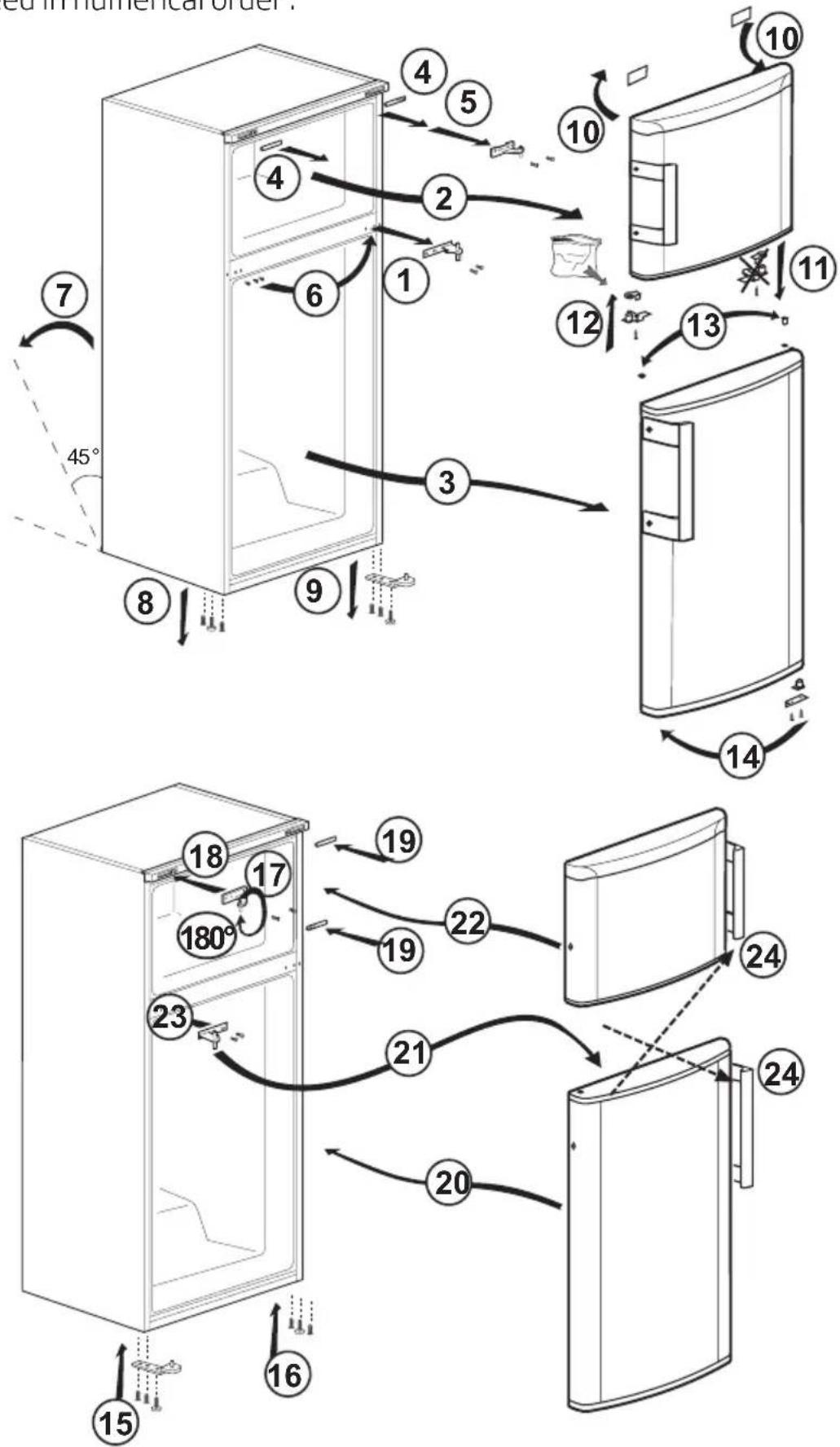

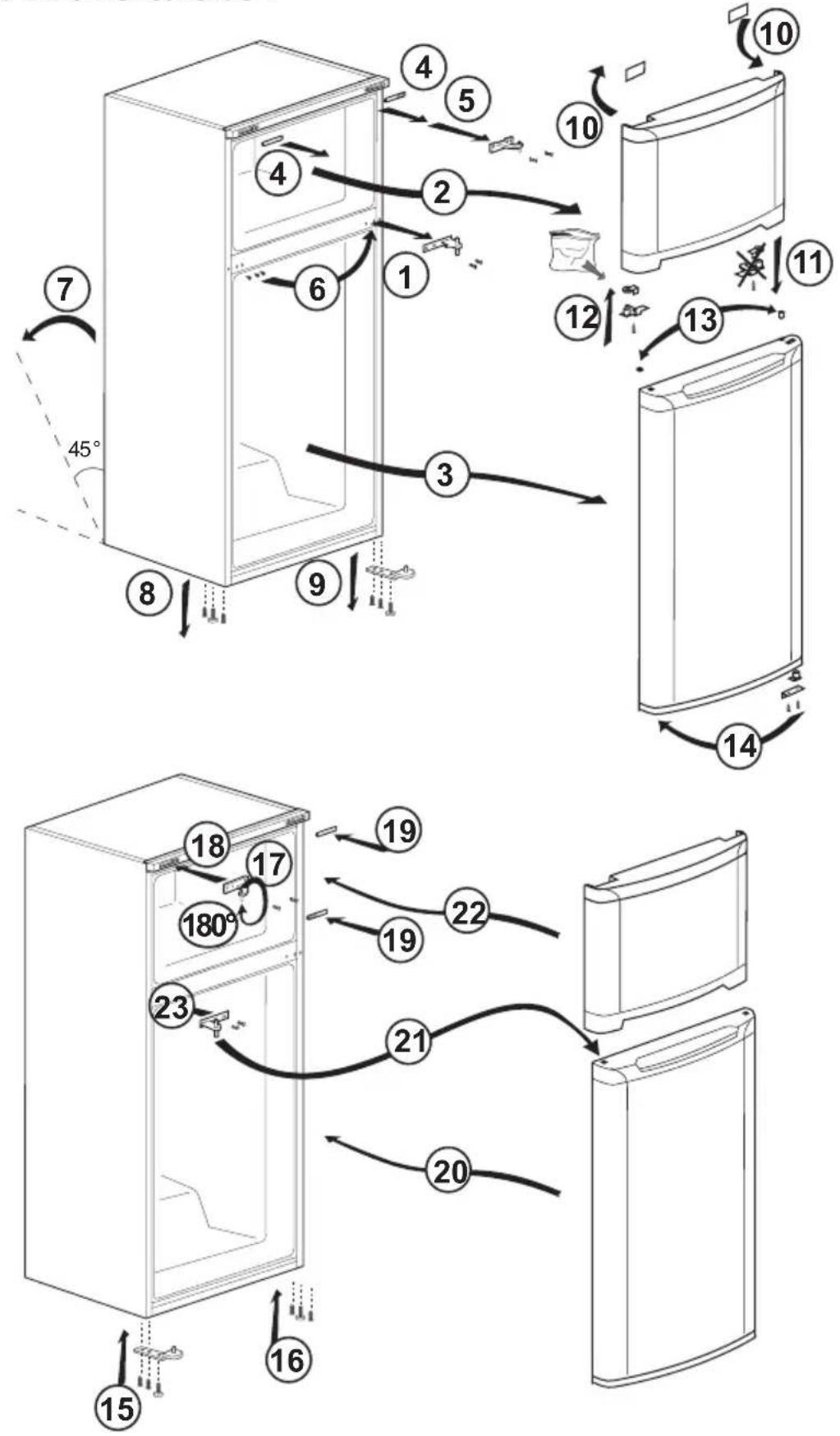

3.6. Reversing the doors ..... 12
3.7. Reversing the doors .....13

4 Preparation 14

4.1. Things to be done for energy saving....14
4.2. Initial use ..... 14

5 Operating the product 15

5.1. Temperature setting button ... 15
5.2.Fast freeze 15
5.3. Vacation function .....16
5.4. Indicator panel....17
5.5.Egg holder....19
5.6. Fan....19
5.7. Crisper .....19
5.8. Chiller compartment.....19
5.9. Auto Icematic .....20
5.10.Freezing fresh food 21
5.11. Recommendations for preserving frozen food .....22
5.12 Deep-freeze information.....22
5.13.Placing the food .....22
5.14. Door open warning....23
5.15.Changing the door opening direction .....23
5.16.Illumination lamp .....23

6 Maintenance and cleaning 24

6.1. Avoiding bad odors .....24
6.2. Protecting the plastic surfaces 24
6.3. Door Glass .....24

7 Troubleshooting 26

8 LIMITED WARRANTY 29

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

• This product can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities are not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children must not play with the product. Cleaning and maintenance should not be performed by children unless they are supervised by someone.
• Unplug the product if a failure occurs while it is in use.
• If the product has a failure, it should not be operated unless it is repaired by the Authorized Service Agent. There is the risk of electric shock!
• Connect the product to a grounded outlet protected by a fuse complying with the values in the rating plate. Have the grounding installation made by a qualified electrician. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.
• Unplug the product when not in use.
• Never wash the product by spreading or pouring water onto it! There is the risk of electric shock!
• Never touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
• It is recommended to clean the tip of the plug regularly with a dry cloth.

Diagram of a refrigerator interior with a wall-mounted fan and electrical plug, showing a lightning bolt striking the front panel (no text or symbols)

• Do not plug the refrigerator if the wall outlet is loose.
• Never connect your refrigerator to electricity-saving systems. Such systems are harmful for the product.
• Unplug the product during installation, maintenance, cleaning and repairing procedures.
• Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
• Do not eat ice cream and ice cubes immediately after you take them out of the freezer compartment! This may cause frostbite in your mouth!
• Do not touch frozen food by hand! They may stick to your hand!
• Do not put bottled and canned liquid beverages in the freezer compartment. They may burst!
• Never use steam and steam assisted cleaning materials to clean or defrost the refrigerator. Steam will cause short circuit or electric shock since it would get into contact with the electrical parts in the refrigerator!
• Do not use mechanical devices or other methods to accelerate the defrosting process, other than those recommended by the manufacturer.
• Never use the parts on your refrigerator such as the door and drawer as a means of support or step. This will cause the product to tip over or parts of it get damaged.

Instructions for safety and environment

• Do not damage the cooling circuit, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured may cause skin irritations and eye injuries.
• Do not cover or block the ventilation holes on the refrigerator with any material.
• Keep bottled beverages with high alcohol content tightly closed and vertical.
• Do not use gaseous sprays near the product since there is the risk of fire or explosion!
• Flammable Items or products that contain flammable gases (e.g. spray) as well as explosive materials should never be kept in the appliance.
• Do not place containers filled with liquid on top of the product. Spilling water on an electrical component may cause electric shocks or risk of fire.
• Do not store products (vaccines, heat-sensitive medicines, scientific materials, etc.) that require a precise temperature control in the refrigerator.
• If you will not operate the product for a long period of time, unplug and unload the food in it.
• If the product is equipped with blue light, do not look at the blue light with optical tools.
• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

• In products with mechanical control (thermostat), wait for minimum 5 minutes to plug in the product again after unplugging it.

• Do not overload the product. It may fall when the door is opened, and cause injury or damage. Similar problems may occur in case of putting things on top of the product.

• If the product's door is equipped with a handle, do not pull by the handle when moving the product. Handle may get loose.
• Be careful not to let your hand or any part of your body be caught by moving parts inside the refrigerator.

1.1.1 HC warning

- If your product's cooling system contains R600a:

This gas is flammable. Therefore, be careful not to damage the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product to catch fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

	If the product is equipped with a cooling system containing R134a gas, ignore this warning.
	You can learn the gas used in production of your product on the rating plate located on the left inner part of it.
	WARNING: Never dispose of the product in fire.

Instructions for safety and environment

1.1.2 For products with a water dispenser

• Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• If there is risk of water hammer effect in your installation, always use a water hammer prevention device in your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.
• Do not install on the hot water inlet. Take precautions against the risk of freezing of the hoses. Water temperature operating interval shall be 33^ F ( 0.6^ C) minimum and 100^ F ( 38^ C) maximum.
• Use only potable water.

1.2 Intended use

• This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Product must be used only for storing food.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of your product is 10 years. During this period, original spare parts will be available to operate the appliance properly.

1.3 Children's safety

• If the door has a lock, the key should be kept away from reach of children.
• Children must be supervised to prevent them from tampering with the product.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.

1.4 Compliance with WEEE Directive and Disposing of the Waste Product:

Pure electrical circuit lines without any symbols

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Instructions for safety and environment

1.5 Compliance with RoHS Directive:

- The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6 Package information

- Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

DANGER: Risk Of Fire or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical Devices To Defrost Refrigerator. Do Not Puncture Refrigerant Tubing".

DANGER: Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing".

CAUTION : Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner's Guide Before Attempting To Service This Product. All Safety Precautions Must be Followed.

CAUTION : Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With Federal Or Local Regulations. Flammable Refrigerant Used.

CAUTION : Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant Used".

2 Your appliance

1. Freezer - compartment door shelf
2. Temperature setting button

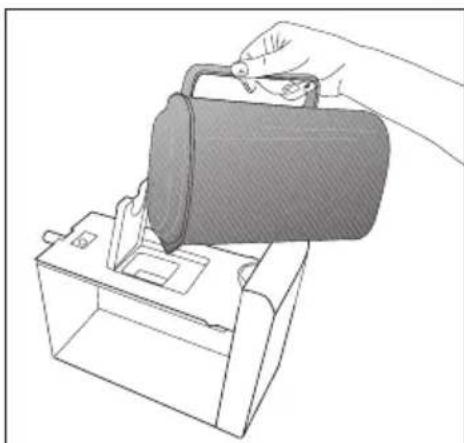

3. Water dispenser filling tank
4. Egg section
5. Water dispenser reservoir
6. Storage container under the door shelf
7. Movable door shelf
8. Adjustable feet

9. Crisper

10. Chiller compartment

11. Lock and key
12. Bottle shelf
13. Fridge - compartment glass shelf

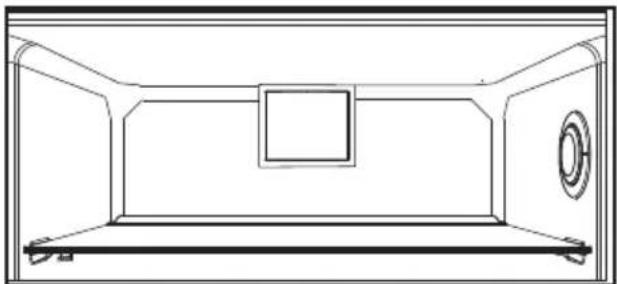

14. Fan
15. Freezer compartment shelf
16. Icebox / Ice-making compartment
17. Freezer compartment
18. Fridge compartment

*optional:Figures in this user manual are given as an example and may not match the product exactly. If the relevant parts are not available in the product you purchased, the figure applies to other models.

3 Installation

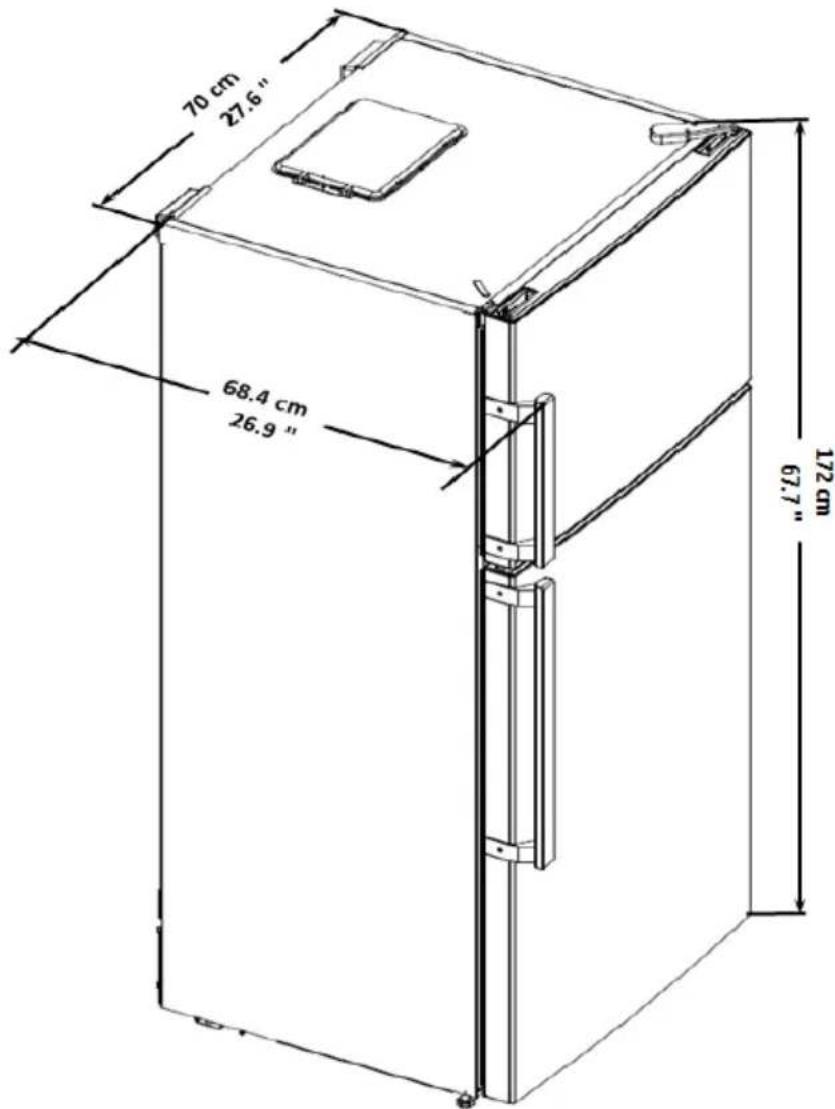

3.1. Appropriate installation location

Contact an Authorized Service for the installation of the product. In order to prepare the product for use, refer to the information in the user manual and ensure that electrical installation and water installation are appropriate. If not, call a qualified electrician and technician to have any necessary arrangements carried out.

	WARNING: Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
	WARNING: Product must not be plugged in during installation. Otherwise, there is the risk of death or serious injury!
	WARNING: If the door clearance of the room where the product will be placed is so tight as to prevent passing of the product, remove the door of the room and pass the product through the door by turning it to its side; if this does not work, contact the authorized service.

• Place the product on an even floor surface to prevent jolts.
  • Install the product at least 12 inches away from heat sources such as radiators and stoves and at least 2 inches away from electrical ovens.
• Product must not be subjected to direct sun light and kept in humid places.
• Place the product on an even floor surface to prevent jolts.
  • Install the product at least 12 inches away from heat sources such as radiators and stoves and at least 2 inches away from electrical ovens.

• Product must not be subjected to direct sun light and kept in humid places.

• Appropriate air ventilation must be provided around your product in order to achieve an efficient operation. If the product is to be placed in a recess in the wall, pay attention to leave at least 2 inches distance from the ceiling and side walls. Also allow 2" at the back

• Do not install the product in places where the temperature falls below 23^ (-5°C).

Installation

3.2. Adjusting the feet

If the product stands unbalanced after installation, adjust the feet on the front by rotating them to the right or left.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

3.3. Electrical connection

WARNING: Do not make connections via extension cables or multi-plugs.

WARNING: Damaged power cable must be replaced by the Authorized Service Agent.

If two coolers are to be installed side by side, there should be at least 112 inches distance between them.

• Our company shall not be liable for any damages that will arise when the product is used without grounding and electrical connection in accordance with the national regulations.
• Power cable plug must be within easy reach after installation.
• Connect your refrigerator to a grounded outlet rated for a voltage value of 110-120V/60 Hz. Outlet shall have 10 to 16A fuse.
• Do not extension cords or cordless multiple outlets between your product and the wall outlet.

Installation

3.4. Connecting the water hose to the refrigerator

Connect the water line to a water supply valve. If a valve is not present or you are not sure, consult a qualified plumber.

3.5. Connecting the water line to the water supply

1. Slip the union (B) onto the water hose (A).
2. Push the water hose downwards firmly to slip it onto the water inlet valve (C).
3. Tighten the union (C) by hand to secure it onto the water inlet valve.
   Normally, you are not required to tighten the union with a tool.
   However, you can use a wrench or pliers to tighten the union if there is a leakage.

Installation

Height (cm/inch) unpacked	172 -67 23/32”
Width (cm/inch) unpacked	70.4 -27 23/32”
Depth (cm/inch) unpacked	68.7 - 27 3/64”

Height (cm/inch)packed	178.8-70 25/64”
Width (cm/inch)packed	74.5 - 29 21/64”
Depth (cm/inch) packed	68.4-26 59/64”
Gross Weight (Kg) / lbs	78 - 172
Net Weight (Kg) / lbs	72 - 158.7

Installation

3.6. Reversing the doors

Proceed in numerical order.

Installation

3.7. Reversing the doors

Proceed in numerical order .

4 Preparation

4.1. Things to be done for energy saving

Connecting the product to electric energy saving systems is risky as it may cause damage to the product.

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload the refrigerator, cooling capacity will fall when the air circulation inside is hindered.
• In order to store maximum amount of food in the freezer compartment, the icematic, available in the freezer compartment and easily removable by hand, should be taken out. Net volume and energy consumption values declared on the power data plate of your refrigerator are measured and tested by removing the icematic. Do not remove the shelves inside the freezer compartment and on the door of freezer compartment. They should always be used. They provide ease of use and efficiency in energy consumption.
• Airflow should not be blocked by placing foods on the sides of the freezer compartment fan. A minimum distance of 3 cm (1.2") shall be provided on the sides of protective fan cover.
• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.
• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.
• Depending on the features of your product, thawing frozen food in fridge compartment will both provide

energy saving and preserve the food quality.

Line drawing of a hand pointing at a small electronic component on a cabinet (no text or symbols)

- Do not allow contact of the food with the fridge compartment temperature sensor shown in the figure above.

4.2. Initial use

Before starting to use your refrigerator, ensure that all preparations are made in accordance with the instructions in sections "Instructions for safety and environment" and "Installation".

- Run the product without putting any food for 6 hours and do not open its door unless required.

You will hear a noise when the compressor starts up. The liquids and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

Front edges of the product may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or any key is pressed.

5 Operating the product

5.1. Temperature setting button

The interior temperature of your refrigerator changes for the following reasons;

• Seasonal temperatures,
• Frequent opening of the door and leaving the door open for long periods,
• Food put into the refrigerator without cooling down to the room temperature,
• The location of the refrigerator in the room (e.g. exposing to sunlight).
• You may adjust the varying interior temperature due to such reasons by using the setting button.

The numbers around the control knob indicate the temperature values in "°C". If the ambient temperature is 25°C, we recommend you to use the temperature control knob of your refrigerator at 4°C. This value may be increased or decreased as required in other ambient temperatures.

Line drawing of a hand holding a circular device with numbered parts (no text or symbols)

5.2. Fast freeze

If large amounts of fresh food are going to be frozen, adjust the temperature control knob to ( ✉ max. 24 hours before putting the fresh food in the fast freeze compartment.

It is strongly recommended to keep the knob at this position at least 24 hours to freeze maximum amount of fresh food declared as freezing capacity. Take special care not to mix frozen food and fresh food.

Remember to turn the temperature control knob back to its previous position once food has frozen.

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

*optional: Figures in this user manual are given as an example and may not match the product exactly. If the relevant parts are not available in the product you purchased, the figure applies to other models.

Operating the product

5.3. Vacation function

If the doors of the product are not opened for 12 hours after the temperature control knob is switched to the hottest position, then the vacation function will be activated automatically.

To cancel the function, change the knob setting.

It is not recommended to store food in cooler compartment when the vacation function is active.

- When the setting operation is completed, you may press the temperature control knob and have it hidden.

Abstract concentric oval shapes with a small 'r' mark in the center (no text or symbols beyond the label)

Operating the product

5.4. Indicator panel

Indicator panels may vary according to the product model.

Audio - visual functions on the indicator panel help you in using your product.

1. Automatic Ice Machine Off/On indicator
2. Fridge Compartment Indicator
3. Error Status Indicator
4. Temperature Indicator
5. Vacation Button
6. Temperature Setting Button
7. Ice Cancel Button
8. Compartment Selection Button
9. Freezer Compartment Indicator
10. Economy Mode Indicator

*optional:Figures in this user manual are given as an example and may not match the product exactly. If the relevant parts are not available in the product you purchased, the figure applies to other models.

Operating the product

1. Automatic Ice Machine Off/On indicator

This symbol appears on the display when Ice Off function is activated.

2. Fridge Compartment Indicator

Fridge compartment light illuminates when adjusting the fridge compartment temperature.

3. Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display "e" and Fridge Compartment Temperature Indicator will display numbers such as "1,2,3...". These numbers on the indicator provide information about the error to the service personnel.

4. Temperature Indicator

Indicates the temperatures of fridge, freezer compartment.

5. Vacation Button

Press and hold this button for 3 sec. to activate the Vacation function. Press this button again to deactivate the selected function.

6. Temperature Setting Button

Changes the temperature of the relevant compartment between -5^/21^ and +46^/8^ .

7. Ice Cancel Button

Refrigerator stops ice production when you press selection button for 3 seconds.

8. Refrigerator Compartment Selection Button Press

Refrigerator Compartment Selection Button to switch between fridge and freezer compartments.

9. Freezer Compartment Indicator

Freezer compartment light illuminates when adjusting the freezer compartment temperature.

10. Economy Mode Indicator

This indicates that the refrigerator is running in energy-efficient mode. This indicator will be active if the Freezer Compartment temperature is set to +5°F/-15 °C.

Operating the product

5.5. Egg holder

You can install the egg holder to the desired door or body shelf. If it will be placed on body shelves then the lower cooler shelves are recommended.

Never place the egg holder in the freezer compartment

5.6. Fan

Fan is designed to ensure homogeneous distribution and circulation of the cold air inside your refrigerator. Operation time of the fan may vary depending on the properties of your product.

While the fan works only with the compressor in some products, the control system determines its operation time in some products in accordance with the cooling requirement.

Line drawing of a cabinet interior with front panel, door, and window (no text or symbols)

5.7. Crisper

Crisper of the product is designed specially to keep the vegetables fresh without losing their humidity. For this purpose, cool air circulation is intensified around the crisper in general.

Line drawing of an open refrigerator with a drawer and shelf (no text or symbols)

5.8. Chiller compartment

(This feature is optional)

Use this compartment to store delicatessen that should be stored at a lower temperature or meat products that you will consume in a short time. Chiller compartment is the coolest place in your refrigerator where you can keep dairy products, meat, fish and poultry under ideal storage conditions. Fruits and vegetables should not be stored in this compartment.

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Operating the product

5.9. Auto Icematic

Model FF1511SS does not include the Auto Icematic feature.

(This feature is optional)

The Auto Icematic allows you to make ice in the fridge easily.

Remove the water tank in the fridge compartment, fill it with water and install it back to obtain ice from the Icematic.

First ice cubes will be ready in approximately 2 hours in the Icematic drawer located in the freezer compartment.

If you fill the water tank completely, you will be able to obtain approximately 60-70 ice cubes.

Change the water in water tank if it has been there for 2-3 weeks.

For the products having automatic Icematic, sound may be heard during ice pouring.

This sound is normal and does not signal any error.

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand using a bag to lift a box (no text or symbols)

Operating the product

5.10. Freezing fresh food

• In order to preserve the quality of the food, it should be frozen as quickly as possible when it is placed in the freezer compartment. Use the fast freezing feature for this purpose.
• You may store the foods longer in freezer compartment when you freeze them while they are fresh.
• Pack the food to be frozen and close the packing so that it will be air-tight.
• Ensure that you wrap your foods well before putting them in the freezer. Use freezer containers, foils and moisture-proof papers, plastic bags and other packing materials instead of traditional packing papers.

- Label each packet of food by adding the date before freezing. You may distinguish the freshness of each food packet in this way when you open your freezer each time. Store the foods frozen previously toward the front of compartment to ensure that they are used first.

The freezer compartment defrosts automatically.

• Frozen foods must be used immediately after they are thawed and they should not be re-frozen.
• Do not freeze too large quantities of food at one time.

Freezer Compartment Setting	Fridge compartment Setting	Remarks
-18°C/4°F 4°C/4	0°F This is the normal recommended setting.
-20/-4°F,-22/-6°F or -24°C/-11°F	4°C/40°F	These settings are recommended when the ambient temperature exceeds 30°C/86°F.
Quick Freeze 4°C/40°F		Use when you wish to freeze your food in a short time. Your product will return to its previous mode when the process is over.
-18°C/4°F or colder	2°C/37°F	Use these settings if you think that your fridge compartment is not cold enough because of the hot ambient conditions or frequent opening and closing of the door.

Recommended Using Temperature: FF: 4°C/40°F Frz: -18°C/4°F

Operating the product

5.11. Recommendations for preserving frozen food

Compartment no higher than -18°C.

1. Put packages in the freezer as quickly as possible after purchase without allowing them to thaw.
2. Check whether the "Use By" and "Best Before" dates on the packaging are expired or not before freezing.
3. Ensure that the food package is not damaged.

5.12. Deep-freeze information

According to IEC 62552 standards, the product shall freeze at least 4.5 kg(9.9 lbs) of food at 32°C ambient temperature to -18°C or lower within 24 hours for every 100-litres (3.5 cubic feet) of freezer volume.

It is possible to preserve the food for a long time only at -18^ C or lower temperatures.

You can keep the freshness of food for many months (at -18^ C or lower temperatures in the deep freeze).

Foods to be frozen should not be allowed to come in contact with the previously frozen items to prevent them from getting thawed partially. Boil the vegetables and drain their water in order to store vegetables for a longer time as frozen. After draining their water, put them in air-proof packages and place them inside the freezer. Food such as bananas, tomatoes, lettuce, celery, boiled eggs, potatoes are not suitable for freezing. When these foods are frozen, their nutritional value and taste may be negatively affected. This could create a risk to human health.

5.13. Placing the food

Freezer compartment shelves	Various frozen foods such as meat, fish, ice cream, vegetables and etc.
Refrigerator compartment shelves	Food in pans, covered plates and closed containers, eggs (in closed container)
Door shelves of fridge compartment	Small and packaged food or beverage
Crisper Vegetables	and fruits

Operating the product

Fresh zone compartment

Delicatessen (breakfast food, meat products that will be consumed in a short time)

5.14. Door open warning

(This feature is optional)

An audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

Door open warning is given to user both visually and acoustically. If the warning continues for 10 minutes, interior lights will be turned off.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

5.15. Changing the door opening direction

Door opening direction of your refrigerator can be changed according to the place you are using it. If this is necessary, please call your nearest Authorized Service.

Above description is a general statement. For information on changing the opening direction of the door, you must refer to the warning label located on the inner side of the door.

5.16. Illumination lamp

LED lamps are used as illumination lamps. Contact authorized service in case of any problem with this type of light.

6 Maintenance and cleaning

Service life of the product is increased if it is regularly cleaned

WARNING: First unplug the product before cleaning your refrigerator.

• Never use any sharp or abrasive tools, soap, household cleaners, detergent and wax polish for cleaning.
• Dissolve one teaspoon of baking soda in a half-quart of water. Soak a cloth with the solution and wring it out thoroughly. Wipe the interior of the appliance with this cloth and then dry thoroughly.
• Make sure that no water enters the lamp housing and other electrical items.
• Clean the door with a damp cloth. To remove door and body shelves, remove all of its contents. Remove door shelves by moving them upwards. After cleaning, slide them from top to bottom to install.
• Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.
• Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to remove fingerprints on the plastic parts. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

6.1. Avoiding bad odors

Materials that may cause odor are not used in the production of our appliances. However, inappropriate food preserving conditions and not cleaning the inner surface of the appliance as required can bring forth the problem of odor. Therefore, clean the refrigerator with baking soda dissolved in water every 15 days.

• Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odors.

- Never keep foods that have expired Best Before dates and spoiled in the refrigerator.

6.2. Protecting the plastic surfaces

Clean with warm water immediately as oil may damage plastic surfaces.

6.3. Door Glass

Remove the protective foil on the glass. There is a coating on the surface of the glass. This coating minimizes the stain build-up and helps to remove the possible stains and dirt easily. Glass that is not protected with such a coating may be subject to persistent binding of air or water based organic or inorganic dirt such as limescale, mineral salts, unburned hydrocarbons, metal oxides and silicones that can easily and quickly cause stains or material damage. Keeping the glass clean becomes too difficult despite regular cleaning. Consequently, the appearance and the transparency of the glass deteriorates. Harsh and corrosive cleaning methods and compounds will intensify these defects and speed up the deterioration process. Water-based cleaning products that are not alkaline and corrosive must be used for regular cleaning purposes.

Maintenance and cleaning

Non-alkaline and non-corrosive materials must be used for cleaning so that the service life of this coating lasts for a long time.

This glass is tempered to increase its durability against impacts and breaking.

A safety film is also applied to its rear surface as an extra safety measure to prevent damage to its surroundings in case of a breakage.

7 Troubleshooting

Check this list before calling for service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully seated. >>> Plug it in to seat completely into the socket.
• The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The environment is too cold. >> Do not install the product in environments with temperatures below -5°C.
• The door is opened too frequently >>> Take care not to open the product's door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed containers. >>> Keep the foods containing liquids in sealed containers.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

• In case of sudden power failure or pulling the power plug out and putting back in, the gas pressure in the product's cooling system is not balanced, which triggers the compressor's thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.
• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
  • The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>> The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

Troubleshooting

• The new product may be larger than your previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.
• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.
• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to too low a temperature. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door gasket may be dirty, worn out, broken or not properly settled. >>> Clean or replace the gasket. Damaged / torn door gasket will cause the product to run for longer periods to preserve the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature is set to a very high degree. >>> Cooler compartment temperature setting has an effect on the freezer compartment temperature. Change the temperature of the cooler or freezer compartment and wait until the temperature of the related compartments come to the adequate level.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.
  • The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

Troubleshooting

• The floor is not level or firm. >>> If the product is vibrating, adjust the stands to balance the product. Also make sure the floor is firm enough to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.
  • The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and baking soda.
• Certain containers and packaging materials may cause odor. >>> Use odor-free containers and packaging materials.
• The foods were placed in unsealed holders. >>> Keep the foods in sealed containers. Microorganisms may spread out of unsealed food items and cause unpleasant odors.
• Remove any expired or spoiled foods from the product.

The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.
• The floor is not level or firm. >>> Make sure the floor is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

WARNING: If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Do not try to repair the product.

8 LIMITED WARRANTY

LIMITED WARRANTY

ONE-YEAR LIMITED WARRANTY

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards, and are not covered from damage during handling or breakage.

5-YEARS COMPRESSOR WARRANTY

1. The compressor is covered for 5 years.
2. Replacement does not include labor.

ITEMS WARRANTOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES - LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

WARNING! This product may contain chemicals known to the state of California to cause cancer or birth defects or other reproductive harm. For more information, visit: www.summitappliance.com/prop65

Chemicals known by the manufacturer to be present in this product in concentrations higher than threshold limits: NONE.

FELIX STORCH, INC.

770 Garrison Avenue

Bronx, NY 10474

Phone: [phone]

Fax: [phone]

www.summitappliance.com

For parts and accessory ordering, troubleshooting and helpful hints, visit:

www.summitappliance.com/support

SUMMIT

es

Illustration of a sundae dessert in a glass bowl with a cherry on top (no text or symbols)

Diagram of a refrigerator interior with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion (no text or symbols)

Line drawing of a hand interacting with a wall-mounted device (no text or symbols)

Line drawing of a hand pressing down on a circular device with numbered parts (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Abstract concentric oval shapes with a small 'r' mark in the center (no text or symbols beyond the label)

Line drawing of a simple room interior with a window and door (no text or symbols)

Line drawing of an open refrigerator with a drawer and side shelf (no text or symbols)

5.8. Compartimento de enfriamiento

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Diagram of two stacked storage tanks with directional arrows indicating flow or movement (no text or symbols)

Line drawing of a hand using a device to press or install a cylindrical object into a rectangular base (no text or symbols)

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards, and are not covered from damage during handling or breakage.

5-YEARS COMPRESSOR WARRANTY

1. The compressor is covered for 5 years.
2. Replacement does not include labor.

ITEMS WARRANTOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES - LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

WARNING! This product may contain chemicals known to the state of California to cause cancer or birth defects or other reproductive harm. For more information, visit: www.summitappliance.com/prop65

Chemicals known by the manufacturer to be present in this product in concentrations higher than threshold limits: NONE.

FELIX STORCH, INC.

770 Garrison Avenue

Bronx, NY 10474

Phone: [phone]

Fax: [phone]

www.summitappliance.com

For parts and accessory ordering, troubleshooting and helpful hints, visit:

www.summitappliance.com/support

57 6496 0000/AE

EN-ES
