ZH510Te - Projector OPTOMA - Free user manual and instructions

Product type	DLP laser projector
Brand	OPTOMA
Model	ZH510Te
Native resolution	WUXGA (1920 x 1200)
Brightness	5000 ANSI lumens
Light source	Phosphor laser
Light source lifespan	20,000 hours
Contrast ratio	300,000:1
Keystone correction	Vertical and horizontal
Lens shift	Vertical up to ±60%, horizontal up to ±10%
Video inputs	2x HDMI 1.4a, 1x VGA, 1x DisplayPort
Connectivity	USB-A, USB-B, Ethernet RJ45, RS232, 12V trigger
Dimensions (W x D x H)	400 x 300 x 150 mm
Weight	10 kg
Power supply	100-240 V AC, 50/60 Hz
Power consumption	350 W (normal mode), 250 W (eco mode)
Noise level	28 dB (eco mode)
Main features	Scaling, PIP/PBP, keystone correction, lens shift, customizable startup screen
Maintenance and cleaning	Regular air filter cleaning every 500 hours
Security	Kensington lock, startup password, locked menu
Spare parts and repairability	Laser light source not field replaceable, replaceable electronic board
General information	3-year manufacturer warranty, suitable for fixed installation

Frequently Asked Questions - ZH510Te OPTOMA

How to connect an HDMI source to the ZH510Te projector?

Connect the HDMI cable to one of the HDMI inputs on the back of the projector. Make sure the projector is on and select the corresponding HDMI source using the 'Source' button on the remote control or control panel.

What is the lifespan of the laser light source?

The laser source of the ZH510Te has a nominal lifespan of 20,000 hours in normal mode. In eco mode, it can reach 30,000 hours. This reduces maintenance and replacement costs.

How to clean the projector's air filter?

Turn off the projector and unplug it. Open the filter cover on the side. Remove the filter and clean it with a soft vacuum or rinse it with lukewarm water (let it dry completely before reinstalling). Replace it every 6 months or after 500 hours of use.

Can I use the projector with 4K resolution?

The ZH510Te has a native resolution of WUXGA (1920x1200). It can accept a 4K signal via HDMI but will downscale it to its native resolution. For optimal quality, use a WUXGA source.

How to correct a distorted image (keystone)?

Use the remote control or OSD menu: go to 'Display Settings' > 'Keystone Correction'. Adjust the vertical and horizontal sliders until the image is rectangular. You can also use lens shift to move the image without distortion.

The projector does not turn on, what to do?

Check the power cable connection and make sure the outlet works. If the power indicator blinks, refer to the error code in the manual. Wait for the lamp to cool if it overheated. If the problem persists, contact technical support.

How to connect the projector to an Ethernet network?

Connect an RJ45 cable from the projector's Ethernet port to your network. Access the 'Network' menu in the OSD to configure the IP address as DHCP or manual. You can then control the projector remotely via a web browser.

Can I use the projector for 3D?

Yes, the ZH510Te supports 3D via HDMI with compatible active shutter glasses (frame sequential format). Enable 3D mode in the 'Display' menu and synchronize the glasses with the built-in infrared emitter.

How to reset the projector to factory settings?

Go to the OSD menu, select 'System Settings' > 'Reset All'. Confirm the operation. All settings will be erased, including any password. The projector will restart.

Where to find spare parts for the ZH510Te?

Spare parts such as the remote control, air filter, or power supply are available from authorized OPTOMA dealers. Contact OPTOMA customer service or visit the official website for part numbers. The laser module is not field replaceable.

USER MANUAL ZH510Te OPTOMA

Line drawing of a projector with ventilation slots and a control panel (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ ....3

LASER RADIATION DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT WAVE LENGTH: 450-460 nm / MAX OUTPUT: 15.9 mW / PULSE DURATION: 1.25 ms IEC 60825-1:2014 CLASS 1 LASER PRODUCT / RISK GROUP 2 Possibly hazardous optical radiation emitted from this product. Do not stare into the beam, May be harmful to the eyes.

COMPLIES WITH 21 CFR 1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE No. 50, DATED JUNE 24, 2007. IEC/EN 60825-1:2007

AVERTISSEMENT

Illustration of a projector with a camera lens and label 'Projecteur' below (no other text or symbols)

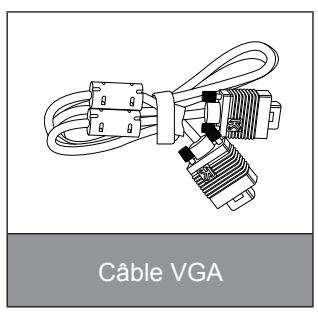

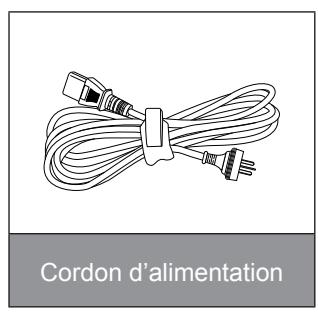

Diagram of a cable VGA connector with coiled cable and connectors (no text or symbols on the diagram itself)
