Product Type	Video Projector
Brand	Viewsonic
Model	PJ506ED
Display Technology	DLP
Native Resolution	XGA (1024 x 768)
Brightness	2000 ANSI Lumens
Contrast Ratio	2000:1
Lamp Type	UHP
Lamp Life	2000 hours (Standard), 3000 hours (Eco)
Lens	Manual Zoom/Manual Focus
Keystone Correction	Vertical ±30°
Inputs	VGA, Composite, S-Video, Audio In (3.5mm)
Outputs	Audio Out (3.5mm), RS-232
Speaker	1 x 2W Mono
Remote Control	Included (IR)
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	250W (Max)
Noise Level	32 dB (Standard Mode)
Dimensions (W x D x H)	300 x 220 x 90 mm
Weight	2.5 kg
Maintenance	Clean air filter every 100 hours; replace lamp when indicator lights
Safety	Do not look into lens; ensure proper ventilation around projector

Frequently Asked Questions - PJ506ED VIEWSONIC

How do I connect my laptop to the Viewsonic PJ506ED?

Use a VGA cable (or HDMI if available via adapter) to connect your laptop to the projector's VGA input. Select the correct input source using the Source button on the remote or projector.

What is the lamp life and how do I replace it?

The lamp lasts about 2000 hours in standard mode and 3000 hours in eco mode. To replace, turn off the projector, unplug it, wait for cooling, then open the lamp cover on the side and remove the old lamp. Insert a new Viewsonic replacement lamp and secure the cover.

Why is the projector showing a blank or blue screen?

Check that the input source is correctly selected (e.g., VGA, Composite). Ensure your device is powered on and the cable is securely connected. If using a laptop, try pressing the Fn + F4 (or similar) key to enable external display.

Can I use the projector without a screen?

Yes, you can project onto any flat, light-colored wall. For best image quality, use a projection screen to improve brightness and contrast.

How do I clean the air filter?

Turn off the projector and unplug it. Remove the filter cover and gently clean the air filter with a soft brush or vacuum. Reinstall every 100 hours of use.

What does the 'Temp' indicator mean?

The Temp LED indicates an overheating issue. Ensure the projector has adequate ventilation and that the air filter is clean. If the problem persists, let the projector cool down and restart.

How do I adjust the image size?

Use the zoom ring on the lens to adjust image size. Move the projector closer or farther from the screen to change size, then use focus ring to sharpen the image.

Can I play audio through the projector?

Yes, the projector has a built-in 2W speaker. Connect your audio source to the Audio In port. For better sound, connect external speakers to the Audio Out port.

Why is the image flickering?

Flickering may be caused by a loose cable, incompatible refresh rate, or a failing lamp. Try a different cable, set your source to 60 Hz, or check the lamp status.

How do I reset the lamp timer?

After replacing the lamp, go to the Setup menu (press Menu on remote), navigate to Lamp Reset, and select Yes to reset the timer.

USER MANUAL PJ506ED VIEWSONIC

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

For Canada

CE Conformity for European Countries

The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility”, and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.”

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Important Safety Instructions

1. Read these instructions completely before using the equipment.
2. Keep these instructions in a safe place.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this equipment near water. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
6. Clean with a soft, dry cloth. If further cleaning is required, see "Cleaning the Display" in this guide for further instructions.
7. Do not block any ventilation openings. Install the equipment in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat.
9. Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for your safety. If the plug does not fit into your outlet, consult an electrician for replacement of the outlet.

10. Protect the power cord from being tread upon or pinched, particularly at the plug, and the point where if emerges from the equipment. Be sure that the power outlet is located near the equipment so that it is easily accessible.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the equipment. When a cart is used, use caution when moving the cart/equipment combination to avoid injury from tipping over.

13. Unplug this equipment when it will be unused for long periods of time.

14. Refer all servicing to qualified service personnel. Service is required when the unit has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped.

Declaration of RoHS Compliance

This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium ( Cr^6+ ) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% <	0.1%
Polybrominated diphenyl ethers (PBDE)	0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below:

Examples of exempted components are:

1. Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other lamps not specifically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and electronic ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.

Copyright Information

Copyright © ViewSonic® Corporation, 2007. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic, the three birds' logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA.

PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation.

Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic Wizard CD-ROM also provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic.

For Your Records

Product Name: PJ506ED

ViewSonic DLP Projector

Model Number: VS11452

Document Number: PJ506ED-1_UG_ENG Rev. 1A 03-12-07

Serial Number:

Purchase Date:

The lamp in this product contains mercury.

Please dispose of in accordance with local, state or federal laws.

Safety Instructions

Read all of these instructions before you operate your projector and save for future reference.

1. Check that the operating voltage of your unit is identical with the voltage of your local power supply.
2. Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by the qualified personnel before operating it further.
3. Do not attempt to service this product yourself, as opening or removing covers may damage the components inside and will void your warranty.
4. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.
5. Unplug the unit from the wall socket if it is not to be used for several days. To disconnect the cord, pull it out by the plug. Never pull the cord itself.
6. The wall socket should be near the unit and easily accessible.
7. Do not place the projector where the cord can be stepped on as this may result in fraying or damage to the lead or the plug. Be alert to tripping hazards.
8. Never look into the projector lens when the lamp is switched on as the bright light can damage your eyes. Never let children look into the lens when it is on.
9. Do not place your hand or objects near the ventilation holes. The air coming out is hot.
10. Never open any covers on the projector except the lamp cover. Dangerous electrical voltages inside the projector can cause severe injury. Except as specifically directed in this User's Manual, do not attempt to service this product yourself. Refer all servicing to qualified service personnel.
11. Unplug the projector from the wall socket before cleaning. Use a damp cloth for cleaning the projector housing. Do not use liquid or aerosol cleaners.

12. Keep the plastic packing materials (from the projector, accessories and optional parts) out of the reach of children as these bags may result in death by suffocation. Be particularly careful around the small children.

13. For ventilation reasons, the fan continues to operate after the projector has been powered off. Please do not unplug the power cord until the fan stops.

14. The projector is equipped with ventilation holes (intake) and ventilation holes (exhaust). Do not block or place anything near these slots, or internal heat build-up may occur, causing picture degradation or damage to the projector.
15. When you replace the projector lamp, never touch the new bulb with your bare hands. The invisible residue left by the oil on your hands may shorten the bulb life. Use lint-free gloves or finger cots are recommended.
16. The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
17. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

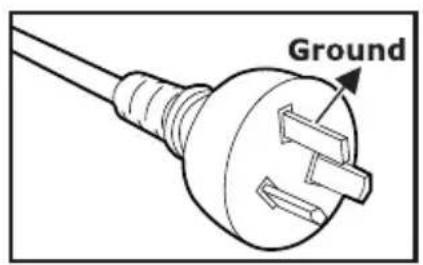

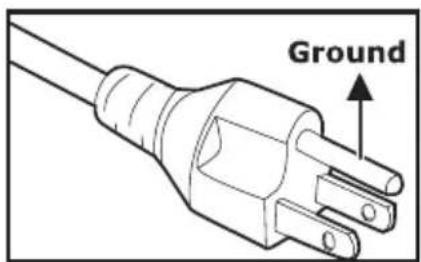

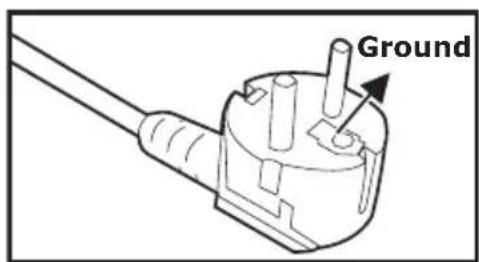

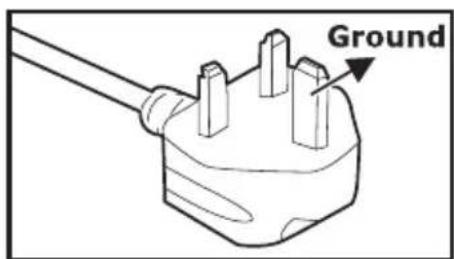

Notes on AC Power Cord

AC Power Cord must meet requirement of country where you use a projector. Confirm an AC plug type with graphics below and proper AC Power Cord must be used. If supplied AC Power Cord does not match your AC outlet, contact your sales dealer. This projector is equipped with a grounding type AC line plug. Make sure that your outlet fits the plug. Do not defeat the safety purpose of this grounding type plug. We highly recommend using a video source device also equipped with a grounding type AC line plug to prevent from signal interference due to voltage fluctuation.

For Australia and Mainland China

For the U.S.A. and Canada

For Continental Europe

For the U.K.

CONTENTS

Introduction......5

Projector Features ....5

Package Contents ....6

Projector Overview ....7

Using the Product ....9

Control Panel....9

Connection Ports ....10

Remote Control 11

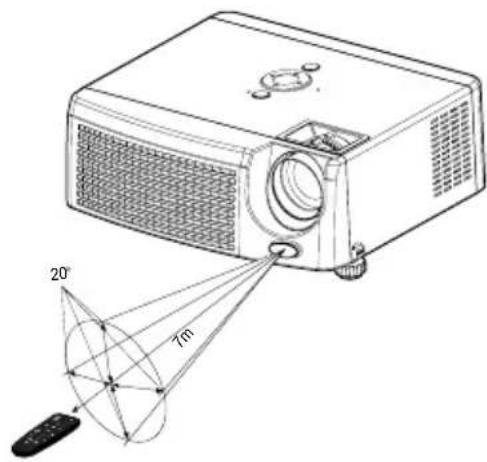

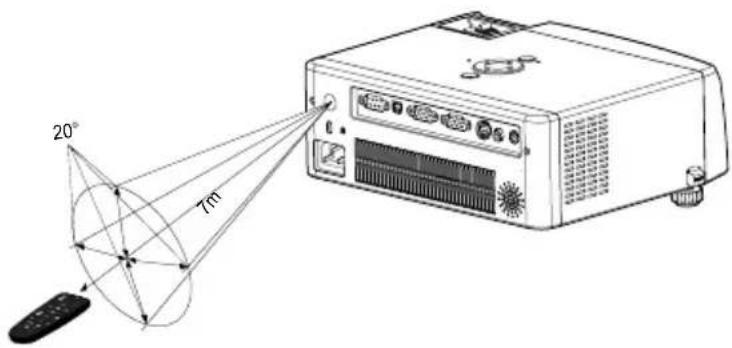

Remote Control Operation ....13

Installation....14

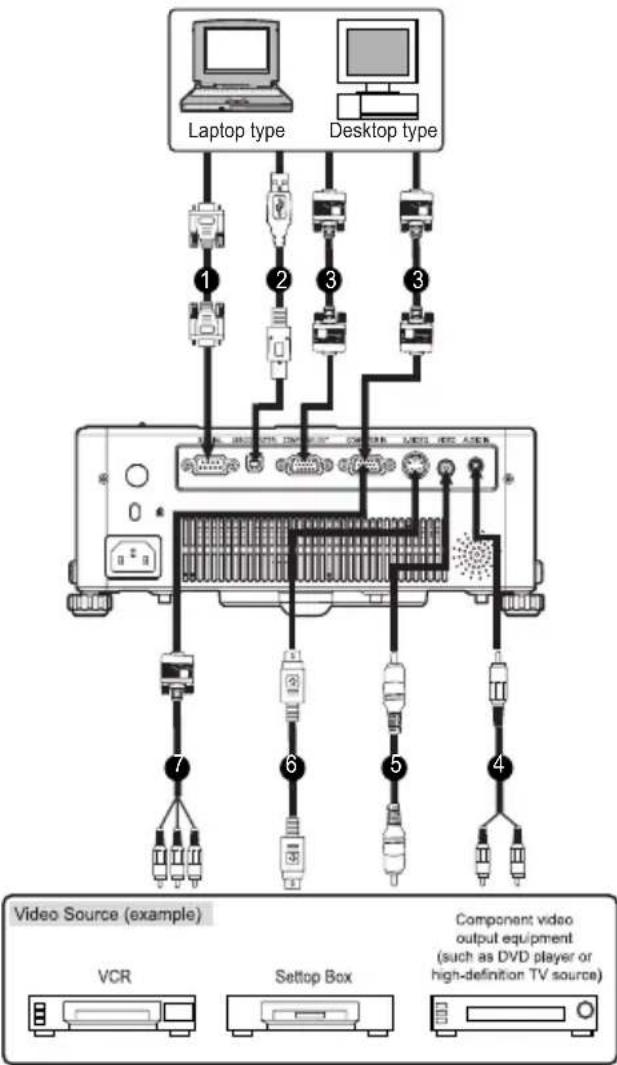

Connecting the Projector ....14

Powering On/Off the Projector 15

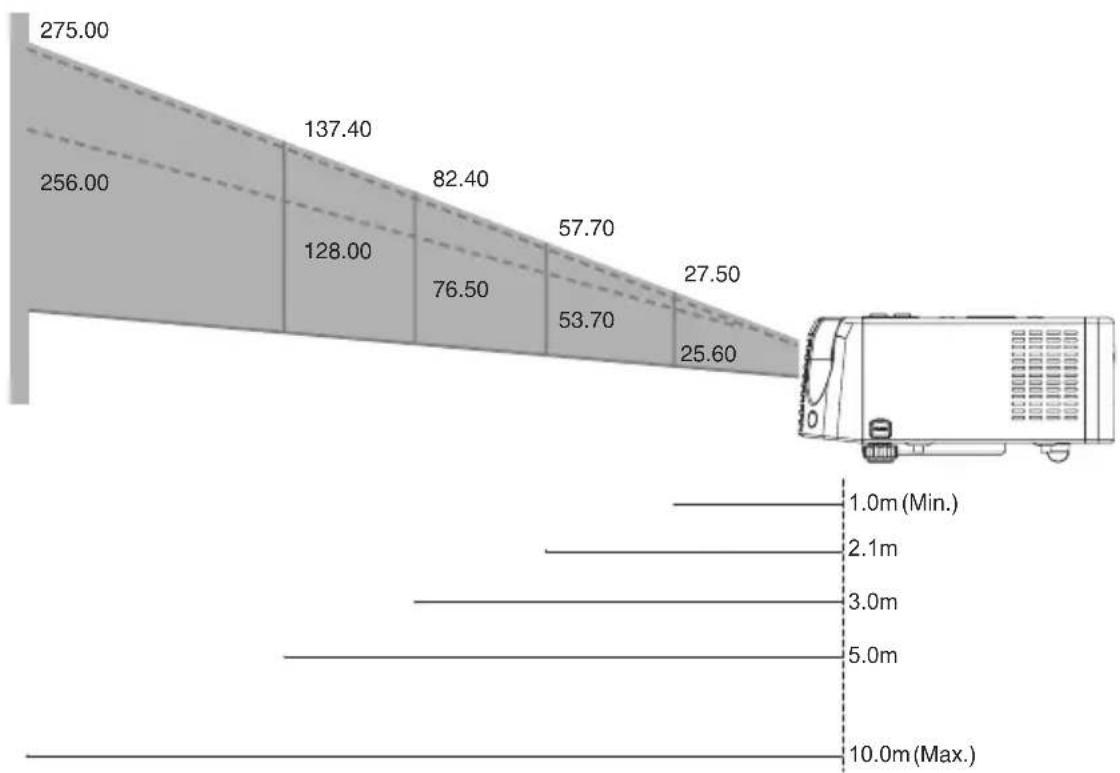

Adjusting the Projected Image 16

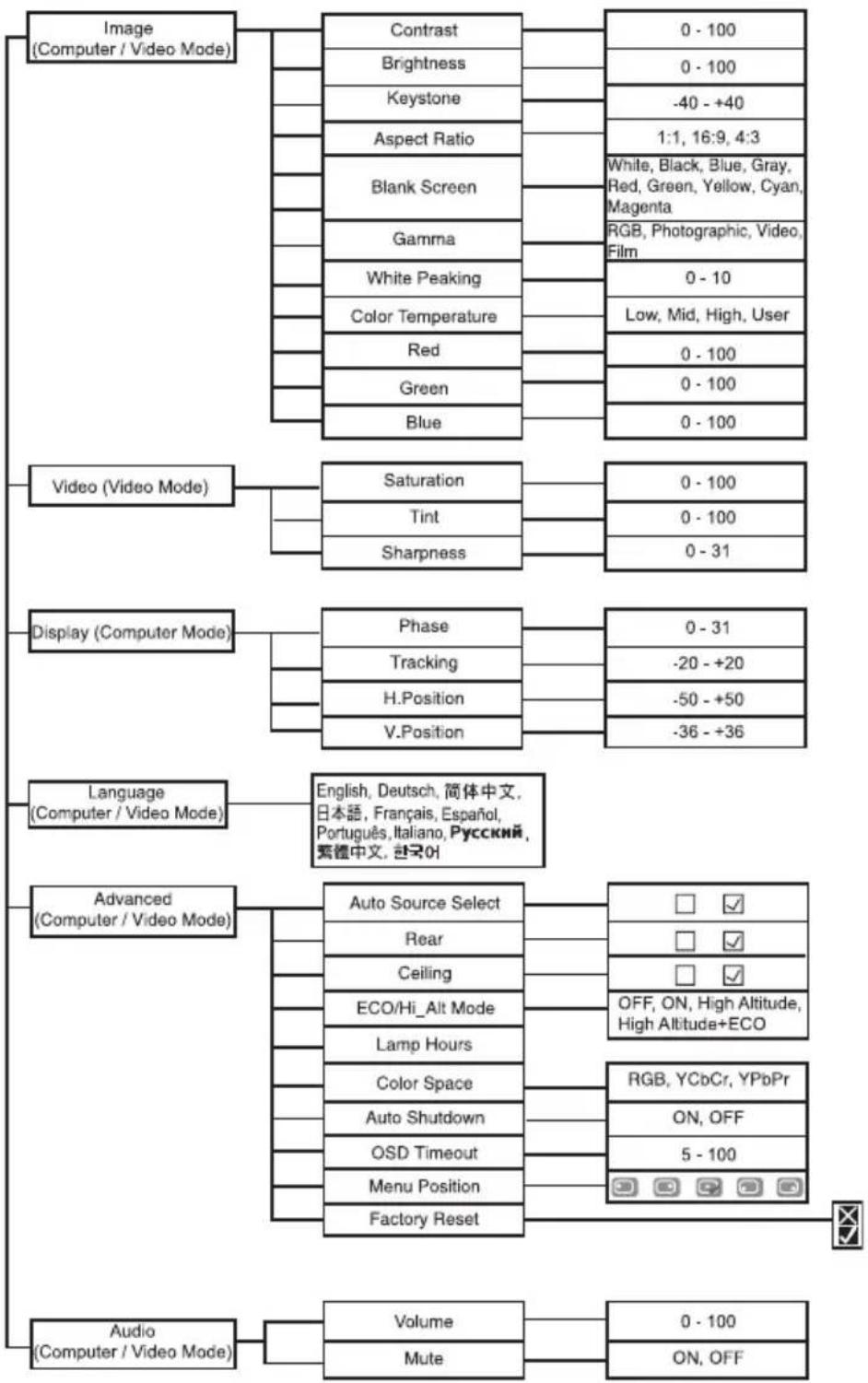

Menu Operation ....19

Image (Computer / Video Mode) 21

Video (Video Mode) 22

Display (Computer Mode) 22

Language (Computer / Video Mode) 23

Advanced (Computer / Video Mode) 23

Audio (Computer / Video Mode) 23

Maintenance 24

Cleaning the Lens 24

Cleaning the Projector Housing....24

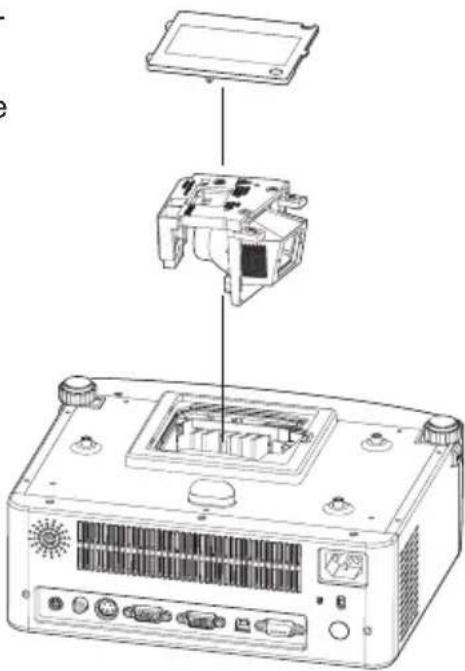

Replacing the Lamp 25

Specifications 27

Appendix 28

LED Indicator Messages ....28

Compatibility Modes ......29

Troubleshooting 30

Introduction

Projector Features

The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use.

The projector offers the following features:

■ Single chip 0.55" Texas Instruments DLP ^® technology
■ SVGA (800 x 600 pixels)
■ 1.1X manual zoom lens
■ Auto image re-sizing (Auto-Sync.) to 800 x 600 full screen with scaling compression compatibility for VGA, SVGA, XGA and SXGA*
■ Compatibility with Macintosh ^® computers
■ Compatibility with NTSC, PAL, SECAM, and HDTV
■ Multi-function remote control
■ D-Sub 15-pin terminal for analog video connectivity
■ User-friendly, multi-language on-screen display (OSD)
■ Advanced electronic keystone correction

* means compressed.

Package Contents

When you unpack the projector, make sure you have all these components:

Line drawing of a projector with ventilation grilles and a small circular component (no text or symbols)

Line drawing of a coiled electrical plug with three terminal connectors (no text or symbols)

Line drawing of a multi-pin cable with connectors (no text or symbols)

Projector with Lens Cap AC Power Cord VGA Cable (D-SUB to D-SUB)

S-Video Cable

Composite Video Cable

Audio Cable

Remote Control (IR) with Lithium battery

Line drawing of a simple rectangular box with handle and side panel (no text or symbols)

Projector Carrying Case

User's Manual

Quick Start Guide

Optional Accessory:

Line drawing of a multi-pin cable with three connectors (no text or symbols)

VGA (D-SUB) to HDTV (RCA) Cable

RS232 Cable

USB Cable

■ Save the original shipping carton and packing material; they will come in handy if you ever to ship your unit. For maximum protection, repack your unit as it was originally packed at the factory.
■ Accessories and components may vary by retailer and region.

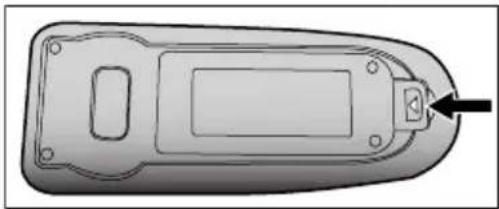

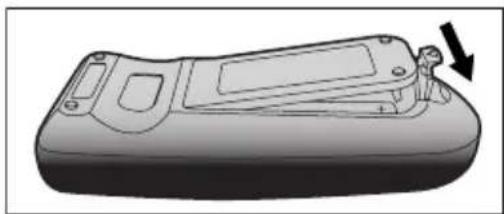

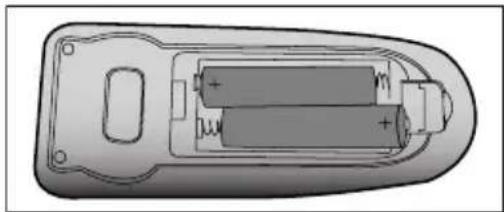

■ Lithium battery is loaded in the remote control. Remove the transparent insulation tape by pulling it before use.

Projector Overview

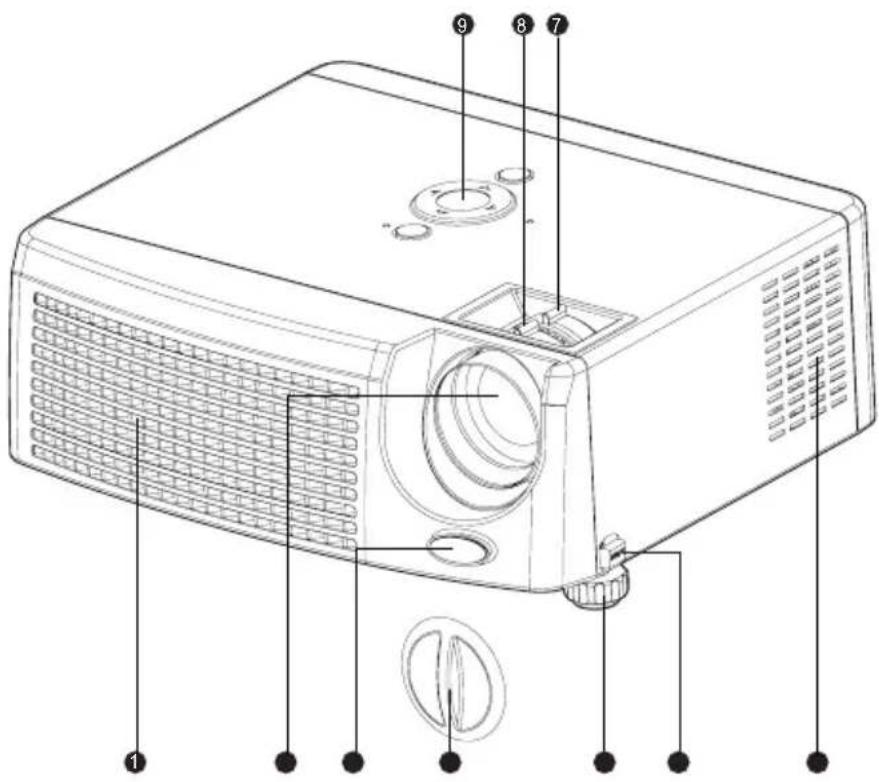

Front View

① Ventilation holes
② Projection lens
3 Front IR remote control sensor
4 Lens cap

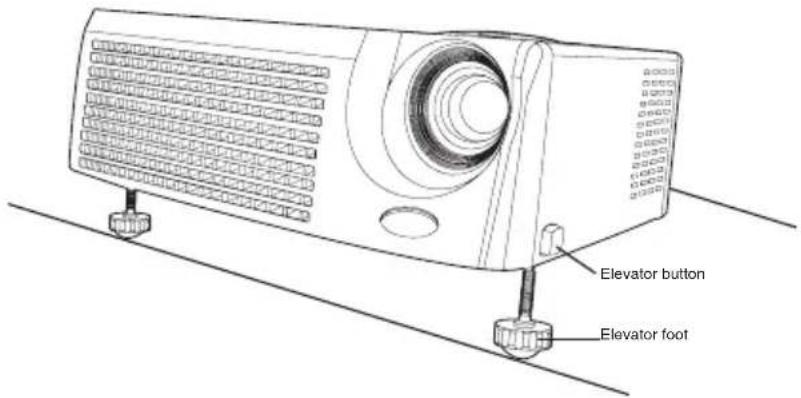

⑤ Elevator foot

⑥ Elevator button

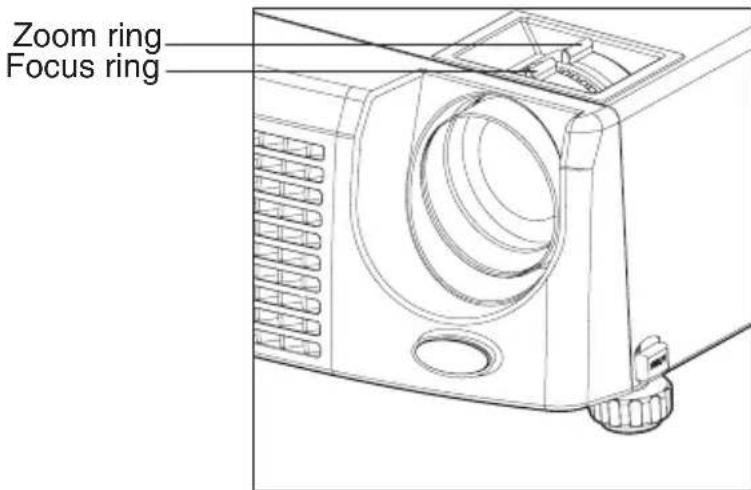

⑦ Zoom ring
8 Focus ring
9 Control panel

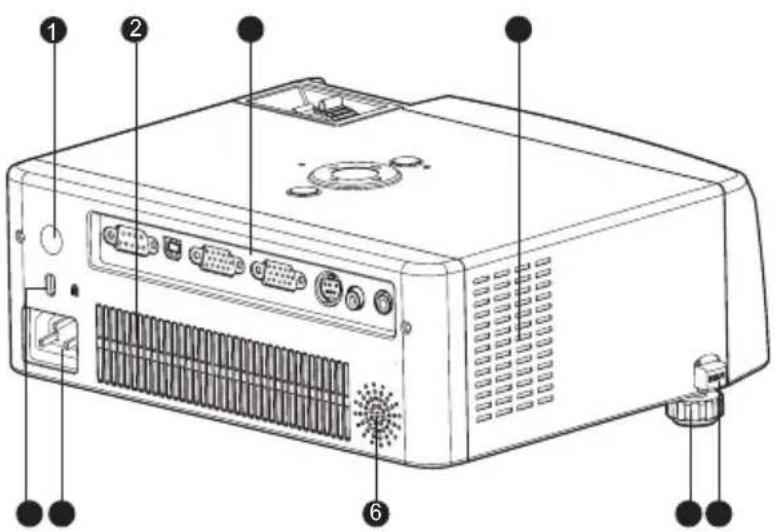

Rear View

1 Rear IR remote control sensor
② Ventilation holes
③ Connection ports
4 Elevator button
5 Elevator foot
6 Speaker
⑦ AC power socket
8 Kensington lock

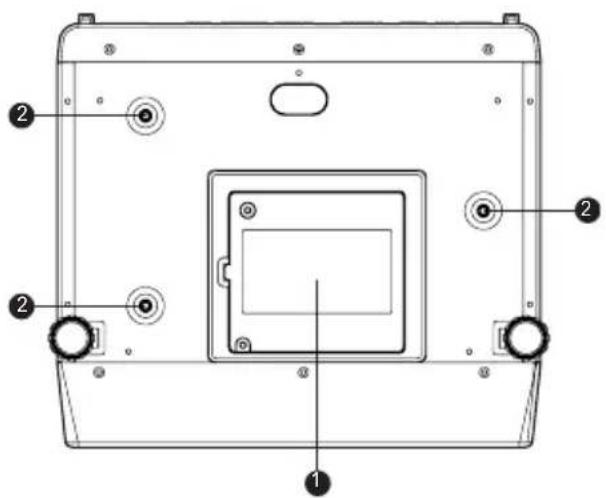

Bottom View

① Lamp cover
2 Ceiling mount

This projector can be used with a ceiling mount for support. The ceiling mount is not included in the package.

Using the Product

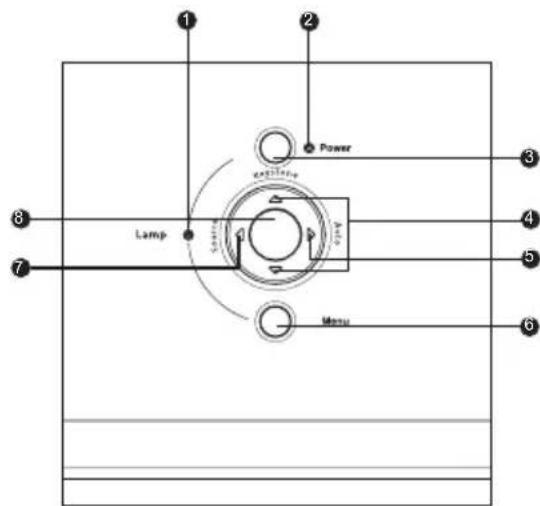

Control Panel

LED

1 Lamp LED indicator Refer to "LED Indicator Messages".
② Power LED indicator Refer to "LED Indicator Messages".

Button Function

③ Power

Turns the projector on or off.

4 Keystone ▲/▼

Adjusts image distortion caused by tilting the projector.

5 Auto ▶

Automatically adjusts frequency and phase. This function is available for computer mode only.

6 Menu

Displays or exits the on-screen display menus.

7 Source

Manually selects an input source.

8 Four directional buttons

Use four directional buttons to select items or make adjustments to your selection.

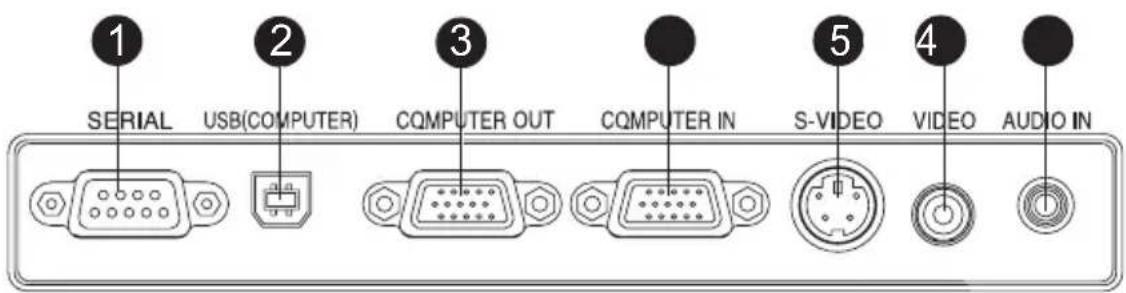

Connection Ports

1 SERIAL

When operating the projector via a computer, connect this to the controlling computer's RS-232C port.

② USB (COMPUTER)

This connector is for page up & down mouse control function and firmware update.

③ COMPUTER OUT

Connects to a computer display, etc.

4 COMPUTER IN

Connects image input signal (analog) to this jack.

5 S-VIDEO

Connects S-Video output from video equipment to this jack.

6 VIDEO

Connects composite video output from video equipment to this jack.

7 AUDIO IN

Connects an audio output from video equipment to this jack.

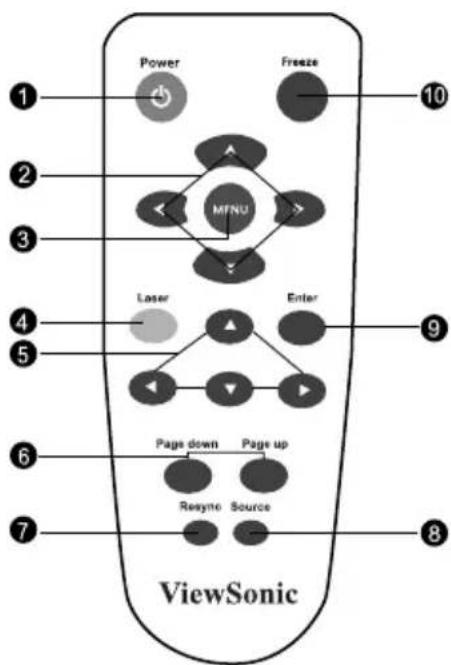

Remote Control

1. Power

Turns the projector on or off.

2. Four directional buttons

Use four directional buttons to select items or make adjustments to your selection.

3. MENU

Displays or exits the on-screen display menus.

4. Laser

Aim the remote at the viewing screen, press and hold this button to activate the laser pointer.

5. Mouse control buttons (Computer mode only)

These buttons have same function as a PC mouse.

This function is only available when the projector is connected to a computer via a USB cable.

6. Page down/Page up (Computer mode only)

This button has same function as Page Down/Page Up button in a PC keyboard. This function is only available when the projector is connected to a computer via a USB cable.

7. Resync

Automatically adjusts frequency and phase. This function is available for computer mode only.

8. Source

Manually selects an input source.

9. Enter (Computer mode only)

This button has same function as Enter button in a PC keyboard. This function is only available when the projector is connected to a computer via a USB cable.

10. Freeze

Press "Freeze" to pause the screen image. Press again to cancel the Freeze function.

Battery Replacement

1. Open the battery cover in the direction shown.

Illustration of a handheld electronic device with a black arrow pointing to its internal component (no text or symbols)

1. Install batteries as indicated by the diagram inside the compartment.

Cross-sectional diagram of a remote control panel showing battery and motor casing (no text or labels)

1. Close the battery cover into position.

3D rendering of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

• Keep the batteries out of the reach of children. There is a danger of death by accidentally swallowing the battery.
  ■ Remove batteries from remote control when not using for extended periods.
  ■ Do not dispose of the used battery along with household waste. Dispose of used batteries according to local regulations.
  ■ Danger of explosion may happen if batteries are incorrectly replaced. Replace all the batteries with new ones.

Remote Control Operation

Point the remote control at the infrared remote sensor and press a button.

■ Operating the projector from the front

■ Operating the projector from the rear

• Do not point the laser pointer directly to the people's eyes (especially small children). There is a danger of injury to the eyes.
  ■ The remote control may not operate when there is sunlight or other strong light such as a fluorescent lamp shining on the remote sensor.
  ■ Operate the remote control from a position where the remote sensor is visible.
  ■ Do not drop the remote control or jolt it.
• Keep the remote control out of locations with excessively high temperature or humidity.
  ■ Do not get water on the remote control or place wet objects on it.
  ■ Do not disassemble the remote control.

Installation

Connecting the Projector

① RS232 Cable

Composite Video Cable

② USB Cable

S-Video Cable

③ VGA Cable (D-Sub to D-Sub)

VGA (D-Sub) to HDTV (RCA) Cable

4 Audio Cable

■ When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet.

■ The figure above is a sample connection. This does not mean that all of these devices can or must be connected simultaneously.

■ The cables that come with the projector may differ from the above illustration. The included cables are based on actual shipment delivery.

Powering On/Off the Projector

Powering on the projector:

1. Remove the projector lens cap.
2. Complete the AC power cord and peripheral signal cable(s) connections.
3. Press ⏻ button to turn on the projector.
4. Turn on your source (computer, notebook, DVD, etc.). The projector automatically detects your source.

When searching message appears on the screen, ensure that the appropriate signal cable(s) are securely connected.

The signal message will appear on the screen when the source is detected.

■ If you are connecting multiple sources to the projector simultaneously, press Source button.

Warning:

Remove the lens cap first before powering on.

Never look into the lens when the lamp is on. This can damage your eyes. It is especially important that children are not allowed to look into the lens.

Powering Off the Projector:

1. Press Button to turn off the projector lamp. You will see a message "Power Off? Press Power again" appear on the screen.
2. Press button again to confirm.
3. The cooling fans continue to operate for cooling cycle and the Lamp LED goes out.

When the Power LED begins flashing, the projector has entered standby mode.

If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode.

Once in standby mode, simply press button to restart the projector.

1. Disconnect the power cord from the electrical outlet and the projector.
2. Do not turn on the projector immediately following a power off procedure.

■ Please wait until the fan motor and the Lamp LED turn off before removing the AC power cord from the projector.

Adjusting the Projected Image

Adjusting the Projector Height

The projector is equipped with an elevator foot to adjust the image height.

To raise the image:

1. Press the elevator button.
2. Raise the image to the desired height angle, then release the button to lock the elevator foot into position.

To lower the image:

1. Press the elevator button.
2. Lower the image, then release the button to lock the elevator foot into position.

■ To avoid damaging the projector, make sure that the elevator foot is fully retracted before placing the projector in its carrying case.

Adjusting the Projector Zoom and Focus

1. Focus the image by rotating the focus ring. A still image is recommended for focusing.

2. Adjust the image by rotating the zoom ring. Rotate to the right to reduce the image.

Rotate to the left to enlarge the image.

Adjusting Projection Image Size

Refer to the graphic and table below to determine the screen size and projection distance.

PROJECTION DISTANCE (METER)		1.0	2.1	3.0	5.0	10.0
4:3 SCREEN SIZE-DIAGONAL (INCH)	Wide	27.50	57.70	82.40	137.4	275.00
	Tele	25.60	53.70	76.50	128.0	256.00

■ Position the projector in a horizontal position; other positions can cause heat build-up and damage to the projector.
■ Make sure the heat ventilation holes are not blocked.
■ Do not use the projector in a smoky environment. Smoke residue may cause buildup on critical parts.

Menu Operation

The projector has multilingual On Screen Display menus that allow you to make image adjustments and change a variety of settings.

    M["Video (Video Mode)"] --> N["Saturation"]
    M --> O["Tint"]
    M --> P["Sharpness"]

    Q["Display (Computer Mode)"] --> R["Phase"]
    Q --> S["Tracking"]
    Q --> T["H.Position"]
    Q --> U["V.Position"]

    V["Language (Computer / Video Mode)"] --> W["English, Deutsch, 简体中文, 日本語, Français, Español, Português, Italiano, Русский, 紫體中文, 한국어"]

    X["Advanced (Computer / Video Mode)"] --> Y["Auto Source Select"]
    X --> Z["Rear"]
    X --> AA["Ceiling"]
    X --> AB["ECO/Hi_Alt Mode"]
    X --> AC["Lamp Hours"]
    X --> AD["Color Space"]
    X --> AE["Auto Shutdown"]
    X --> AF["OSD Timeout"]
    X --> AG["Menu Position"]
    X --> AH["Factory Reset"]

    AI["Audio (Computer / Video Mode)"] --> AJ["Volume"]
    AI --> AK["Mute"]

    B --> AL["0 - 100"]
    C --> AM["0 - 100"]
    D --> AN["-40 - +40"]
    E --> AO["1:1, 16:9, 4:3"]
    F --> AP["RGB, Photographic, Video, Film"]
    I --> AQ["0 - 10"]
    R --> AR["Low, Mid, High, User"]
    S --> AS["0 - 100"]
    T --> AT["0 - 100"]
    U --> AU["0 - 100"]

    W --> AV["0 - 100"]
    W --> AW["0 - 100"]
    W --> AX["0 - 31"]

    Y --> AY["0 - 31"]
    Y --> AZ["-20 - +20"]
    Y --> BA["-50 - +50"]
    Y --> BB["-36 - +36"]

    Z --> BC["OFF, ON, High Altitude, High Altitude+ECO"]

    AA --> BD["RGB, YCbCr, YPbPr"]
    AA --> BE["ON, OFF"]

    AB --> BF["5 - 100"]

    AC --> BG["ON, OFF"]

How to operate

1. Press Menu button to open the OSD menu.
2. When OSD is displayed, use ◀ / ▶ buttons to select any feature in the main menu. After selecting the desired main menu feature, press ▼ button to enter sub-menu for feature setting.
3. Adjust the settings with ◀ / ▶ buttons.
4. To return to the main menu, toggle ▲ button.
5. To exit OSD, press Menu button. The OSD menu will close and the projector will automatically save the new settings.

Image (Computer / Video Mode)

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

• Press ◀ to decrease the contrast.
• Press ▶ to increase the contrast.

Brightness

Adjusts brightness of the image.

• Press ◀ to darken the image.
• Press ▶ to lighten the image.

Keystone

Adjusts image distortion caused by tilting the projector.

Aspect Ratio

Use this function to choose your desired image size.

● 1:1: Keep the image with original width-height ratio.
● 16:9: The input source will be scaled to fit the width of the screen.
● 4:3: The input source will be scaled to fit the projection screen.

Blank Screen

Blanks the screen temporarily, and selects the screen color when this function is active.

Gamma

Selects Gamma mode.

• RGB: Computer text mode
  ● Photographic: Computer photo mode
  ● Video: Common video mode
  ● Film: Dark video image mode

White Peaking

The white peaking control adjusts the white peaking level of the DMD chip. 0 stands for minimal segment, and 10 stands for maximum segment. If you prefer a stronger image, adjust towards the maximum setting. For a smooth and more natural image, adjust towards the minimum setting.

Color Temperature

Adjusts color temperature. At higher temperature, the screen looks colder; at lower temperature, the screen looks warmer. If you select "User", "Red", "Green" and "Blue" can be adjusted.

Red

Manually adjusts red.

Green

Manually adjusts green.

Blue

Manually adjusts blue.

Video (Video Mode)

Saturation

Adjusts a video image from black and white to fully saturated color.

- Press ◀ to decrease the amount of color in the image.

- Press ▶ to increase the amount of color in the image.

Tint

Adjusts the color balance of red and green.

- Press ◀ to increase the amount of green in the image.

- Press ▶ to increase the amount of red in the image.

Sharpness

Adjusts the sharpness of the image.

- Press ◀ to decrease the image.

- Press ▶ to increase the image.

Display (Computer Mode)

Phase

“Phase” synchronizes the signal timing of the display with that of the graphic card. If you experience an unstable or flickering image, use the phase function to correct it.

Tracking

“Tracking” changes the display data frequency to match the frequency of your computer graphic card. If you experience a vertical flickering bar, use the tracking function to make an adjustment.

H.Position (Horizontal Position)

- Press ◀ to move the image left.

- Press ▶ to move the image right.

V.Position (Vertical Position)

- Press ◀ to move the image down.

- Press ▶ to move the image up.

Language (Computer / Video Mode)

Choose the multilingual OSD menu. Use ▲ / ▼ to select your preferred language. Press

◀ / ▶ to finalize the selection.

Advanced (Computer / Video Mode)

Auto Source Select

Automatically scans the input source. Press “◀ / ▶” to confirm or cancel the selection.

Rear

The image is reversed horizontally. Press “◀ / ▶” to confirm or cancel the selection.

Ceiling

The image is inverted vertically. Press “◀ / ▶” to confirm or cancel the selection.

ECO Mode

Use this function to dim the projector lamp light output which will lower power consumption and increase lamp life, or/and turning on High Altitude mode operates the fans at full speed continuously to allow for proper high altitude cooling of the projector.

Lamp Hours

Displays Hour the lamp's elapsed operating time (in hours).

Color Space

Manually selects signal type.

RGB
- YCbCr
- YPbPr

Auto Shutdown

Uses this function to automatically turn off the lamp if the projector does not detect an input signal for specified time period (30 minutes).

OSD Timeout

Duration OSD menu stays active (at idle state by second).

Menu Position

Choose the menu position on the display screen.

Factory Reset

Press “◀ / ▶” to enter its menu. Use ▲ / ▼ to choose “√” and press “◀ / ▶” to return the display parameters on all menus to the factory default settings.

Audio (Computer / Video Mode)

Volume

• Press ◀ to decrease the volume.
• Press ▶ to increase the volume.

Mute

• Choose "ON" to turn mute on.
• Choose "OFF" to turn mute off.

Maintenance

The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need replacing, contact your dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first.

Warning:

Never open any of the covers on the projector. Dangerous electrical voltages inside the projector can cause severe injury. Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

Cleaning the Lens

Gently wipe the lens with lens cleaning paper. Do not touch the lens with your hands.

Cleaning the Projector Housing

Gently wipe with a soft cloth. If dirt and stains are not easily removed, use a soft cloth damped with water, or water and neutral detergent, and wipe dry with a soft, dry cloth.

■ Turn off the projector and remove the AC power cord from the power outlet before beginning maintenance work.
■ Make sure the lens is cool before cleaning.
■ Do not use detergents or chemicals other than those noted above. Do not use benzene or thinners.
■ Do not use chemical sprays.
■ Use a soft cloth or lens paper only.

Replacing the Lamp

Projector lamps have a finite life. Replace the lamp when:

■ The image becomes darker and hues become weaker after a lamp has been for a long period of time.
■ The projector lamp LED indicator turns into amber. Refer to section titled “LED Indicator Messages” for further details.

The lamp becomes high temperature after turning off the projector with the power button. If you touch the lamp, you may scald your finger. When you replace the lamp, wait for at least 45 minutes for the lamp to cool down.
■ Do not touch the lamp glass at any time. The lamp may explode due to improper handling, including the touching of the lamp glass.
Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.
A lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.
■ Wear protective gloves and eyeglasses when fixing or detaching the lamp.
■ Faster on-off-cycles will damage the lamp and reduce lamp life. Wait at least for 5 minutes to turn off the projector after powering on.
- Do not operate the lamp in proximity to paper, cloth, or other combustible material nor cover it with such materials. Otherwise it could cause a fire.
■ Do not operate the lamp in an atmosphere containing an inflammable substance, such as thinner. Otherwise it could cause a fire or explosion.
■ Thoroughly ventilate the area or the room when operating the lamp in an oxygen atmosphere (in the air). If ozone is inhaled, it could cause headaches, nausea, dizziness, etc.
The inorganic mercury is involved in the lamp. If the lamp bursts, the mercury inside the lamp will go out of the projector. Leave the area immediately if the lamp shatters while being operated and ventilate the area for at least 30 minutes in order to avoid the inhalation of mercury fumes. Otherwise it could be harmful to user's health.

1. Turn off the projector and unplug the AC power cord.

2. Place a protective sheet (cloth) beneath the projector. Turn the projector over so you can access the lamp cover.

3. Loosen the access panel screws and open the panel.

4. Loosen the screws on the bottom of the lamp assembly.

5. Grasp the lamp handle and pull the lamp assembly directly out of the projector.

6. Replace with the new lamp.

7. Tighten the screws on the bottom of lamp assembly.

8. Tighten the screws on the lamp cover.

Line drawing of an electronic device with a component inserted into a housing (no text or symbols)

■ Dispose of the used lamp according to local regulations.

■ Ensure that screws are tightened properly. Screws not tightened fully may result in injury or accidents.

■ Since the lamp is made of glass, do not drop the unit and do not scratch the glass.

■ Do not reuse the old lamp. This could cause the lamp to explode.

■ Be sure to turn off the projector and unplug the AC power cord before replacing the lamp.

■ Do not use the projector with the lamp cover removed.

Specifications

Display Type Single 0.55” DLP panel
Resolution (Pixels) 800 x 600
Lens Manual Zoom (1.1X)
Aspect Ratio 4:3 (Default)
Lamp 200W
Projection Type Front, Rear, Ceiling
Video Compatibility NTSC4.43
PAL-60, PAL-M,N,(B,D,G,H,I)
SECAM
Input Source D-Sub 15 pin, S-Video, Composite Video, Stereo
Phone Jack, RS232, USB
Scanning Frequency Horizontal Frequency 31 - 79 KHz Vertical Frequency 56 - 85 Hz
Digital Keystone Correction	Vertical + / - 15°
Integrated Speaker	1 x 1W
Remote Control	Multifunctional
OSD Language Multilanguage
Storage Temperature	-20 - + 60°C
Operation Temperature	0 - + 40°C
Operation Humidity 30% - 85% maximum
Power Requirement	AC 100 – 240V, 50 / 60 Hz
Power Consumption	280W
Dimension (W x D x H)	255.5 x 223 x 101.5
Weight	3.0kg (6.6lb)

Note: Design and Specifications are subject to change without prior notice.

Appendix

LED Indicator Messages

Projector Status	LED Type				Meaning
	Power LED Lamp LED
	Color	Status	Color Status
Standby	Green	Flashing	Off	-	The projector is powered and ready.
Lamp ignition failure	Amber	Solid	Off	-	The projector system has some problems with its fan, so the projector cannot start up.
Power on	Amber	Solid	Green	Solid	The projector is in good condition and is projecting at maximum brightness.
Lamp life warning	Amber	Solid	Amber	Solid	The lamp has reached its end of life and must be changed soon. The lamp will continue to operate until it fails. Change the lamp. If the lamp is off, then the ballast will become malfunction.
Power off	Amber	Solid	Green	Flashing	The projector is shutting down. The fan motor is cooling the lamp for shutdown. Do not unplug the power cord or turn the power switch off before the lamp LED turns off. The fan motor will turn off when the lamp has cooled.
Over temperature	Amber	Solid	Amber	Flashing	Temperature is too high. The lamp will turn off.

Compatibility Modes

Computer:

Mode Resolution fH (kHz) fV (Hz) Timing
480P	640 x 480	31.46	59.9	60Hz
VGA	640 x 480	37.86	72.8	60Hz
VGA	640 x 480	37.5	75.0	75Hz
VGA	640 x 480	43.2	85.0	85Hz
VGA	720 x 400	31.5	70.0	60Hz
VGA	720 x 400	37.9	85.0	85Hz
SVGA	800 x 600	35.1	56.2	56Hz
SVGA	800 x 600	37.8	60.3	60Hz
SVGA	800 x 600	48.0	72.1	72Hz
SVGA	800	x 600	46.8	75.0	75Hz
XGA	1024	x 768	48.3	60.0	60Hz
XGA	1024	x 768	56.4	70.0	70Hz
XGA	1024	x 768	60.0	75.0	75Hz
XGA	1024	x 768	68.8	84.9	85Hz
Mac16"	832 x	624		49.7	74.5	60Hz
SXGA	1280	x 1024		63.98	60.0	60Hz
SXGA	1280	x 1024		79.9	75.0	75Hz
720P	1280	x 720	45.0	60.0	60Hz
XGA	1024	x 768	48.3	60.0	60Hz
XGA	1024	x 768	60.2	75.0	60Hz
SXGA	1152	x 870		68.6	75.0	75Hz
SXGA	1152	x 864		67.5	75.0	75Hz
Mac 480-66A		640 x 480		35.0	66.7	66Hz

Video:

Signals	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
480p	31.5 kHz	60 Hz
720p	45.0 kHz	60 Hz
1080i	33.7 kHz	30 Hz

Troubleshooting

Refer to the symptoms and measures listed below before sending the projector for repairs. If the problem persists, contact your local reseller or service center.

Please refer to "LED Indicator Messages" as well.

	Cause
No power.	The AC power cord is not plugged in.	Plug in the AC power card.
	The AC power cord is not connected to the projector.	Connect the AC power cord to the projector correctly.
	The lamp cover is loose.	Tighten the screws on the lamp cover.
Power goes out during use.	The temperature is too high.	Unplug the AC power cord and wait for a short while, then turn the power back on.
	The ventilation holes are blocked.	Place the projector so that the ventilation holes are not blocked.
No image appears on screen.	The projector is not turned on.	Turn the projector on.
	The connections setup is not correctly.	Check that all connections are setup correctly.
	The connected devices are not functioning properly.	Check that all connected devices are functioning properly.
	Lens cap is not removed.	Remove the lens cap and turn the projector on.
Partial, scrolling or incorrectly displayed image.	The input signal is not supported by the projector.	Press remote control's "Resync" button.
Image is unstable or flickering.	The signal timing of the display does not synchronize with the graphic card.	Use "Phase" to correct it. Refer to Picture section.
		Change the monitor color setting from your computer.
Image has vertical flickering bar.	The display data frequency does not match the frequency of your computer's graphic card.	Use "Tracking" to make an adjustment. Refer to Picture section.
		Check and reconfigure the display mode of your graphic card to make it compatible with the product.
Image is out of focus.	The lens focus is not adjusted optimally.	Adjust the focus with the focus ring.
	The projection distance is not within the projector's supported range.	Place the projector within the supported range.
Symptom	Cause	Solution
Remote control doesn’t work.	The battery could be weak.	Replace with a new battery.
	The remote control is not being used within the effective range.	Use the remote control within the effective range.
	There are some obstructions between the remote control and projector.	Check that there are not obstructions between the remote control and projector.
	There are some fluorescent or other bright lights shining at the projector’s infrared remote sensor.	Check that there are not any fluorescent or other bright lights shining at the projector’s infrared remote sensor.

Customer Support

For technical support or product service, see the table below or contact your reseller.

Note : You will need the product serial number.

Country/Region	Web Site	T=TelephoneF=Fax	E-mail
United States	www.viewsonic.com	T=800 688 6688F=909 468 1202	[e-mail]
Canada www.viewsonic.com		T=866 463 4775F=909 468 5814	[e-mail]
Latin America (Mexico/Chile)	www.viewsonic.com/la/	T=866 323 8056F=909 444 5655	[e-mail]
United Kingdom	www.viewsoniceurope.com/uk	www.viewsoniceurope.com/uk/Support/Calldesk.htm
Europe/Middle East/Baltic countries/North Africa	www.viewsoniceurope.com Contact your reseller
Australia and New Zealand	www.viewsonic.com.au	AUS=1800 880 818NZ=0800 008 822	[e-mail]
Singapore/Malaysia/Thailand	www.ap.viewsonic.com T=65 64616044 [e-mail]
South Africa/Other countries	www.ap.viewsonic.com	T=886 2 2246 3456F=886 2 2249 1751	[e-mail]
Hong Kong www.hk.viewsonic.com T=852 3102 2900 [e-mail]
Macau www.hk.viewsonic.com T=853 700 303 [e-mail]
Korea www.kr.viewsonic.com T=080 265 9080 [e-mail]

Limited Warranty

VIEWSONIC® PROJECTOR

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

North and South America: 3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase.

Europe: 3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase.

Other regions or countries: Please check with your local dealer or local ViewSonic office for the warranty information.

Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer's installed lamp only.

All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electric power fluctuations or failure.
f. Use of supplies or parts not meeting ViewSonic's specifications.
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.

1. Any product exhibiting a condition commonly known as "image built-in" which results when a static image is displayed on the product for an extended period of time.
2. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to Customer Support page). You will need to provide your product's serial number.

2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damaged based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by other party.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer.

The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

4.3: Projector Warranty PRJ_LW01 Rev. 1g 06-30-06
