Product type	DLP laser projector
Display technology	DLP by Texas Instruments
Native resolution	WUXGA (1920 x 1200)
Brightness	5,500 ANSI lumens
Contrast ratio	300,000:1 (DCR)
Light source	Phosphor laser, lifespan up to 20,000 hours
Lens	Motorized zoom 1.6x, motorized vertical lens shift
Image size	From 30 to 300 inches
Projection distance	1.2 to 10 meters (depending on zoom)
Keystone correction	Vertical and horizontal (+/- 30°)
Video inputs	2x HDMI (1 with HDCP 2.2), 1x VGA, 1x Composite
Audio inputs	1x 3.5mm jack
Audio output	1x 3.5mm jack
Control ports	1x RS-232, 1x USB-A (for service), 1x Ethernet
Built-in speaker	Yes, 10W mono
Power supply	100-240 V AC, 50/60 Hz
Power consumption	350W (max), standby < 0.5W
Dimensions (W x D x H)	396 x 316 x 142 mm
Weight	5.8 kg
Noise level	29 dB (eco mode), 35 dB (normal mode)
Operating temperature	0°C to 40°C
Maintenance and cleaning	Clean the air filter every 500 hours (or as needed). Use a soft, dry cloth for the optics.
Security	Kensington lock, security password
Spare parts and repairability	Repairability index 7.8/10 (according to French standard). Available parts: laser module, fan, power supply board.

Frequently Asked Questions - ZH506 OPTOMA

What is the lifespan of the ZH506's light source?

The phosphor laser source of the ZH506 has a typical lifespan of 20,000 hours in normal mode, significantly reducing maintenance needs.

How to clean the projector's air filter?

Turn off and unplug the projector. Remove the filter located on the side, gently vacuum it or rinse it with lukewarm water. Make sure it is completely dry before reinstalling.

Can I use the ZH506 for presentations in daylight?

With 5,500 lumens, the ZH506 offers sufficient brightness for well-lit rooms, but for optimal comfort, dim direct light.

What connections are available on this projector?

It has 2 HDMI inputs (one with HDCP 2.2), a VGA input, a composite input, an audio jack output, and RS-232 and Ethernet ports for control.

Does the projector support 3D?

Yes, the ZH506 supports DLP Link 3D via HDMI. You will need compatible active 3D glasses and appropriate 3D content.

What is the maximum supported resolution?

The native resolution is WUXGA (1920 x 1200). It can accept signals up to 4K (3840 x 2160) via HDMI, but will display them in WUXGA.

How to adjust image sharpness?

Use the focus ring on the lens or the remote control. For fine adjustment, go to the 'Image' menu then 'Sharpness'.

Can I install the projector on the ceiling?

Yes, the ZH506 is compatible with a ceiling mount. Make sure to use an approved mounting kit and follow the safety instructions in the manual.

What to do if the remote control does not work?

Check the batteries, the IR sensor (do not obstruct), and the distance (max 10 m). If the problem persists, reset the remote by removing the batteries for 30 seconds.

How to reset the projector to factory settings?

Go to the 'Setup' menu > 'Settings' > 'Reset' > 'Reset All'. Confirm with 'Yes'. The projector will restart.

USER MANUAL ZH506 OPTOMA

Line drawing of a projector unit with ventilation slots and control panel (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ 4

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019. IEC 60825-1:2014 等級1雷射產品RG2危險等級 IEC 60825-1:2014 1类激光产品RG2危险等级

This Class B digital apparatus complies with Canadian ICES-003.

Illustration of a projector with projection screen and front panel, labeled 'Projecteur' below (no other text or symbols)

Diagram of a cable VGA connector with two connectors and wiring (no text or symbols on the diagram itself)

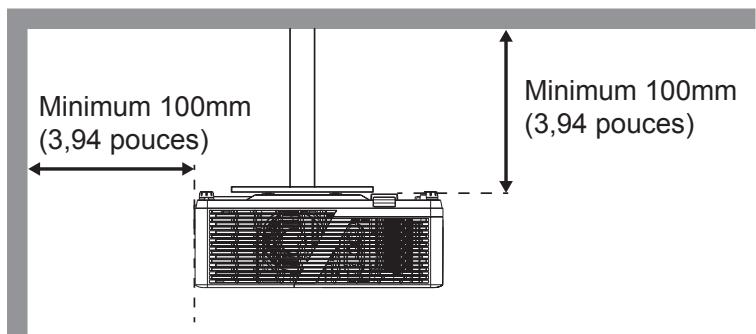

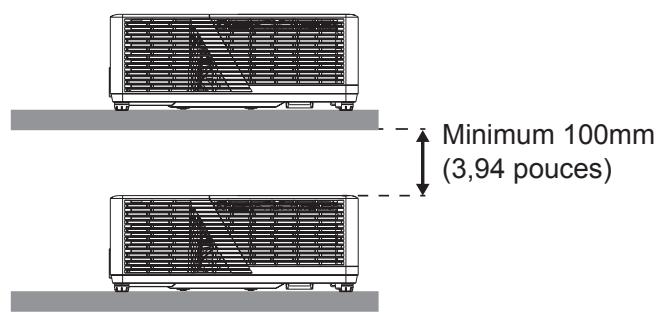

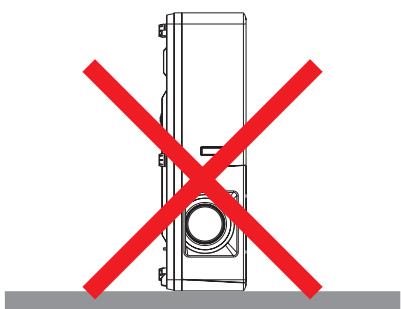

Remarque :

Line drawing of a person sitting in a chair watching a television on a desk (no text or symbols present)

Line drawing of a person sitting in a chair facing a projector mounted on a wall, with no text or symbols present.

Line drawing of a person sitting in a chair watching a projector screen (no text or symbols)

Illustration of a person sitting in a chair viewing a projector mounted on a wall, with no visible text or symbols.

Simple line drawing of a projector with red prohibition symbol (no text or labels)

Pure diagram of a refrigerator with red X marks indicating no text or symbols

Illustration of a double boiler with red prohibition symbol (no text or labels)

UTILISER LE PROJECTEUR

UTILISER LE PROJECTEUR

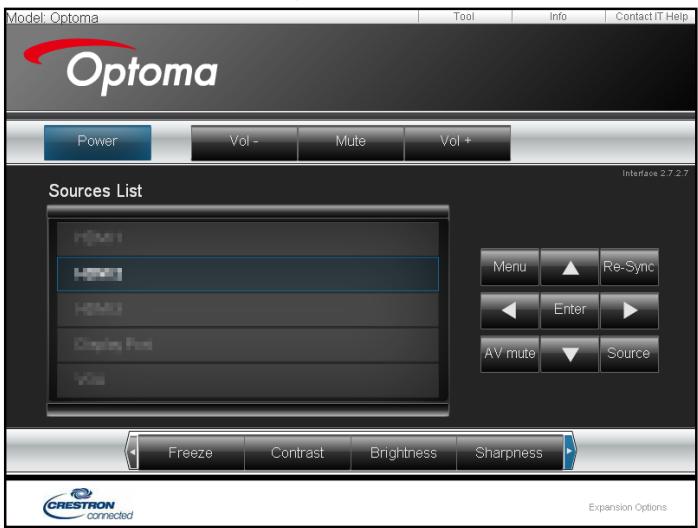

Page principale

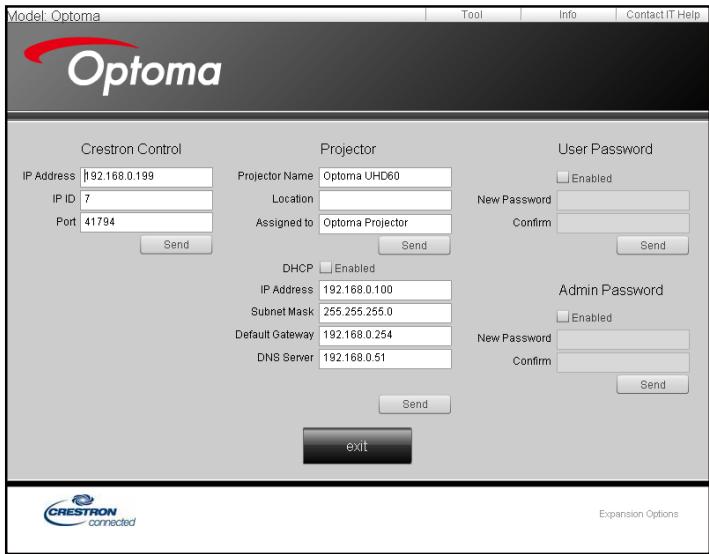

Page Outils

UTILISER LE PROJECTEUR

INFORMATIONS SUPPLÉMENTAIRES
