ZH462 - Projector OPTOMA - Free user manual and instructions

Product type	DLP laser projector
Native resolution	WUXGA (1920 x 1200)
Brightness	4500 ANSI lumens
Contrast ratio	300,000:1
Light source	Laser, lifespan up to 20,000 hours
Projection distance	1.2 m to 10.1 m (1.6x zoom)
Image size	30 to 300 inches (diagonal)
Keystone correction	Vertical ±30°, horizontal ±30°
Dimensions (W x D x H)	33.7 x 26.1 x 12.8 cm
Weight	4.2 kg
Power supply	100-240 V AC, 50/60 Hz
Power consumption	260 W (max), 0.5 W standby
Maintenance and cleaning	Clean the lens with a soft, lint-free cloth; replace the air filter every 5,000 hours of use
Security	Auto power off, password lock, Kensington security slot
Spare parts and reparability	Remote control, power cable, HDMI cable (optional); repair by authorized technician
General information	Brand OPTOMA, model ZH462, 2-year warranty

Frequently Asked Questions - ZH462 OPTOMA

How to turn on the ZH462 projector?

Plug in the power cable, press the Power button on the top of the device or on the remote control.

What is the maximum supported resolution?

The projector has a native resolution of WUXGA (1920x1200) and can accept signals up to 4K (via scaling).

Can I use the projector with an HDMI device?

Yes, it has two HDMI 1.4a ports compatible with most sources (PC, consoles, set-top boxes).

How to clean the air filter?

Turn off and unplug the device. Remove the filter on the side, vacuum or wash it with warm soapy water. Let it dry completely before reinstalling. Replace it every 5000 hours.

What to do if the image is blurry?

Rotate the focus ring around the lens until the image is sharp. Also check the projection distance.

Does the projector heat up a lot?

It is normal for it to heat up, especially during prolonged use. Ensure the air intakes are not blocked and the fan is working.

How to adjust the image size?

Use the zoom ring on the lens or move the projector closer or farther from the screen. The size ranges from 30 to 300 inches.

What does the flashing red light mean?

A flashing red light indicates a fault (excessive temperature, lamp, etc.). Consult the manual to identify the specific error code.

Can I project in portrait mode?

Yes, the ZH462 supports portrait projection (at 90°). Ensure the projector is properly oriented and adjust settings in the menu.

How to use keystone correction?

Press the Keystone button on the remote control, then use the arrow keys to correct vertical and horizontal distortions.

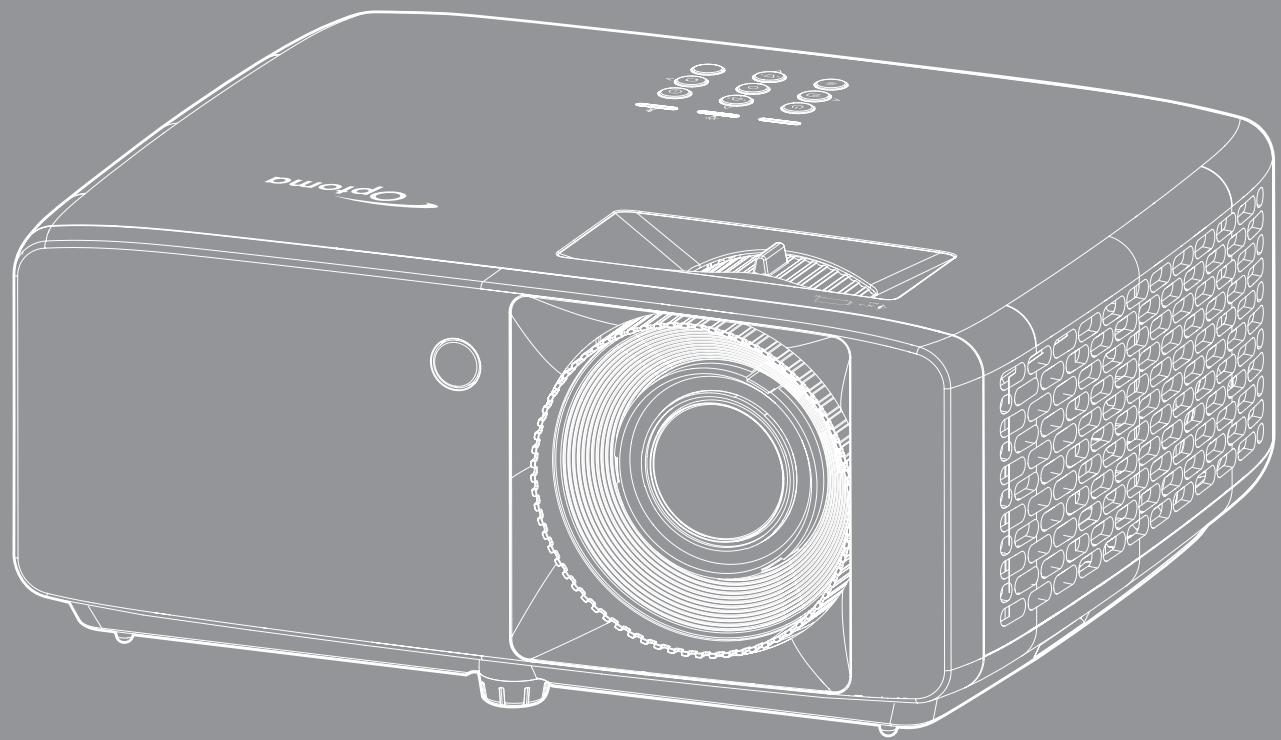

USER MANUAL ZH462 OPTOMA

Line drawing of a projector with front panel and internal vent (no text or symbols)

Line drawing of a projector with visible internal components and ventilation grille (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019.

IEC 60825-1:2014 等級1雷射產品RG2危險等級

IEC 60825-1:2014 1类激光产品RG2危险等级

"WARNING: MOUNT ABOVE THE HEADS OF CHILDREN."

Additional warning against eye exposure for close exposures less than 1 m.

"AVERTISSEMENT : INSTALLER AU-DESSUS DE LA TÊTE DES ENFANTS."

This Class B digital apparatus complies with Canadian ICES-003.

https://www.optoma.com/support/download

INTRODUCTION

Line drawing of a person sitting in a chair watching a small screen on a desk (no text or symbols present)

Line drawing of a person sitting in a chair facing a wall-mounted device, no text or symbols present

Line drawing of a person sitting in a chair watching a projector screen, with no text or symbols present.

Line drawing of a person sitting in a chair watching a wall-mounted screen (no text or symbols)

Pure diagram of a multi-tiered device with red X marks, no text or symbols present

CONFIGURATION ET INSTALLATION

Illustration of a hand using a tool to adjust or install a small object, with red arrows indicating direction (no text or symbols present)

Marche

CONFIGURATION ET INSTALLATION

CONFIGURATION ET INSTALLATION

CONFIGURATION ET INSTALLATION

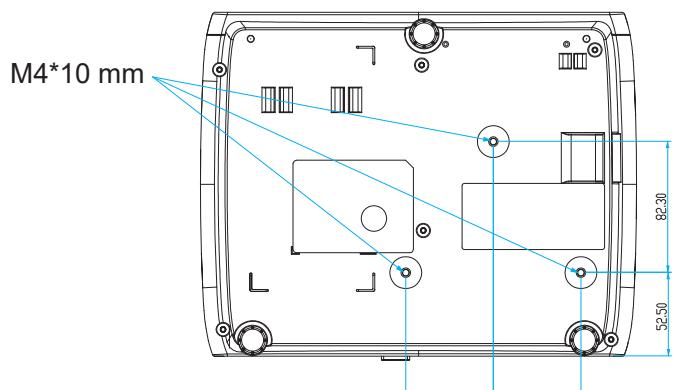

Technical line drawing of a mechanical component with symmetrical slots and mounting brackets (no text or symbols)

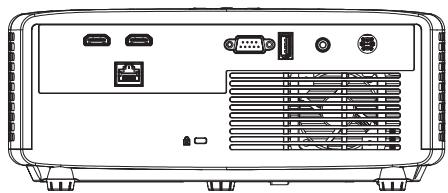

Front view of a projector rear panel with ports and connectors (no text or symbols visible)

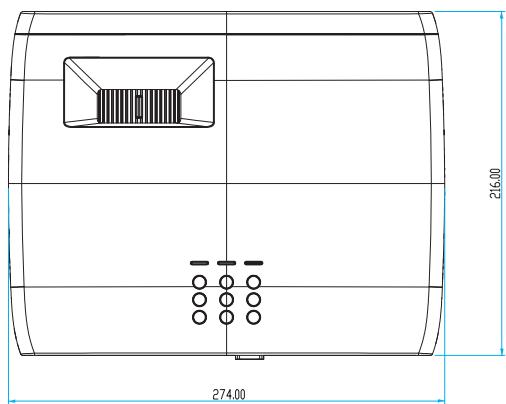

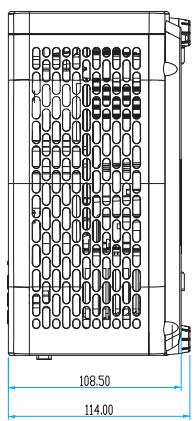

Unité : mm
