ZH451 - Projector OPTOMA - Free user manual and instructions

Product type	DLP projector
Technology	DLP
Native resolution	WUXGA (1920 x 1200)
Brightness	4,500 lumens
Contrast ratio	300,000:1
Light source	Laser
Light source life	Up to 30,000 hours
Dimensions (W x D x H)	393 x 243 x 124 mm
Weight	5.5 kg
Power supply	100-240V, 50/60 Hz
Power consumption	260 W (max)
Main features	Vertical/horizontal keystone correction, 1.6x zoom, remote projection, 3D compatibility
Maintenance and cleaning	Air filter cleaning every 500 hours
Security	Password lock, Kensington slot
Spare parts and repairability	Repairability index: 7/10; replaceable filters and fans
General information	Brand: Optoma; Model: ZH451; Category: Projector

Frequently Asked Questions - ZH451 OPTOMA

How to turn on the Optoma ZH451?

Press the Power button on the top of the projector or on the remote control.

What is the maximum supported resolution?

The native resolution is WUXGA (1920 x 1200), but it accepts signals up to 4K.

How to clean the air filter?

Turn off the projector, unplug it, remove the filter on the side, clean it with compressed air or soapy water, then dry it before reinstalling.

Is the laser lamp replaceable?

The laser light source is designed to last up to 30,000 hours and is not user-replaceable; contact an authorized technician.

Why is the image distorted?

Use the keystone correction (vertical/horizontal) via the OSD menu to straighten the image.

Can I connect an external speaker?

Yes, via the 3.5 mm audio output or the SPDIF output if available.

How to activate 3D mode?

Go to the OSD menu, 3D section, enable the mode and synchronize with DLP-Link glasses.

What to do if the projector overheats?

Check that the ventilation grilles are not obstructed and clean the air filter. If the problem persists, turn off the device and contact customer service.

How to reset to factory settings?

Go to the Settings menu and select 'Reset all'; confirm with the OK button.

Where to find the full manual?

Download the PDF manual on our site notice-facile.com for the model ZH451 Optoma.

USER MANUAL ZH451 OPTOMA

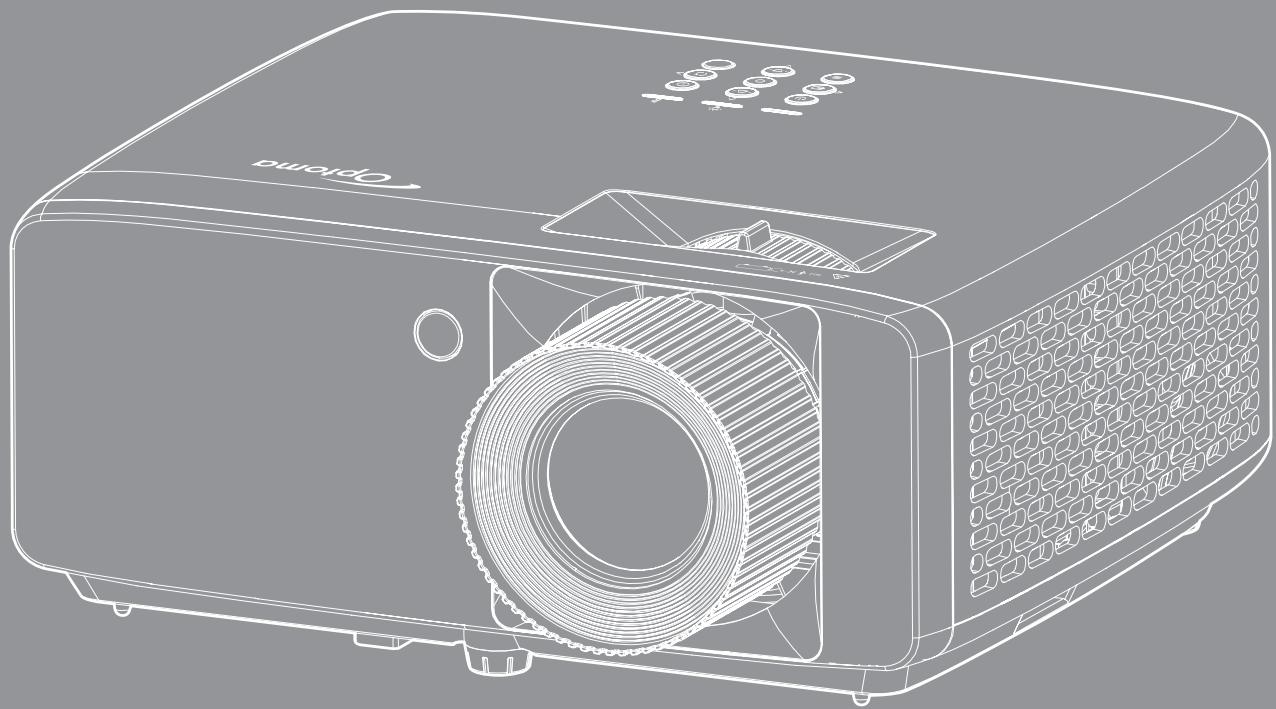

Line drawing of a projector with front panel and screen (no text or symbols)

Line drawing of a projector with visible lens and ventilation slots (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019.

IEC 60825-1:2014 等級1雷射產品RG2危險等級 IEC 60825-1:2014 1类激光产品RG2危险等级

WARNING: MOUNT ABOVE THE HEADS OF CHILDREN! Do not look into the beam less than 1m. No direct eye exposure to the beam is permitted.

This Class B digital apparatus complies with Canadian ICES-003.

Two projected projector devices shown from different angles, labeled 'Projecteur' below (no text on devices themselves)

Line drawing of a person sitting in a chair watching television on a desk (no text or symbols present)

Line drawing of a person sitting in a chair facing a wall-mounted device, no text or symbols present

Line drawing of a person sitting in a chair watching a projector screen, no text or symbols present

Line drawing of a person sitting in a chair watching a wall-mounted projector (no text or symbols)

Pure red X symbol on white background with no text or symbols

https://www.amx.com/

UTILISER LE PROJECTEUR

UTILISER LE PROJECTEUR

État du système

UTILISER LE PROJECTEUR

UTILISER LE PROJECTEUR

INFORMATIONS SUPPLÉMENTAIRES

INFORMATIONS SUPPLÉMENTAIRES

INFORMATIONS SUPPLÉMENTAIRES
