Product Type	Ultra Short Throw Laser Projector 4K UHD
Brand	Optoma
Model	ZH430UST
Native Resolution	3840 x 2160 (4K UHD)
Brightness	4,000 ANSI lumens
Light Source	Laser (lifespan up to 30,000 hours)
Contrast Ratio	2,500,000:1 (Dynamic)
Throw Ratio	0.25:1 (ultra short throw)
Image Size (Diagonal)	90 to 120 inches
Projection Distance	From 0 cm (placed on a stand)
Keystone Correction	Vertical and horizontal, digital
Video Inputs	2x HDMI 2.0 (HDCP 2.2), 1x VGA, 1x composite
Audio Inputs	1x 3.5 mm jack
Audio Outputs	1x 3.5 mm jack, 1x S/PDIF optical
USB	1x USB-A (power 1.5A), 1x USB-B (service)
Network Connectivity	Ethernet RJ45, Wi-Fi (optional with adapter)
Built-in Speaker	1x 15W
Power Supply	100-240 VAC, 50-60 Hz
Power Consumption (Standby)	< 0.5 W
Dimensions (W x D x H)	534 x 338 x 104 mm (without feet)
Weight	11 kg
Operating Temperature	5°C to 40°C
Noise Level (Economic Mode)	28 dB
Maintenance and Cleaning	Clean the air filter every 1,000 hours; dust the lens with a microfiber cloth
Security	Kensington lock, automatic shutdown in case of overheating
Spare Parts and Repairability	Light source not user-replaceable; parts available via Optoma authorized service
Warranty	2 years (depending on country)

Frequently Asked Questions - ZH430UST OPTOMA

How to clean the air filter of the projector?

Turn off the device and unplug it. Open the filter cover on the side, remove the filter and clean it with a vacuum cleaner or soapy water. Rinse and let it dry completely before reinstalling. Replace the filter every 6 months.

What is the lifespan of the laser light source?

The laser source of the Optoma ZH430UST has a nominal lifespan of 30,000 hours in standard mode, which represents about 10 years of daily use of 8 hours.

Can I install the projector on the ceiling?

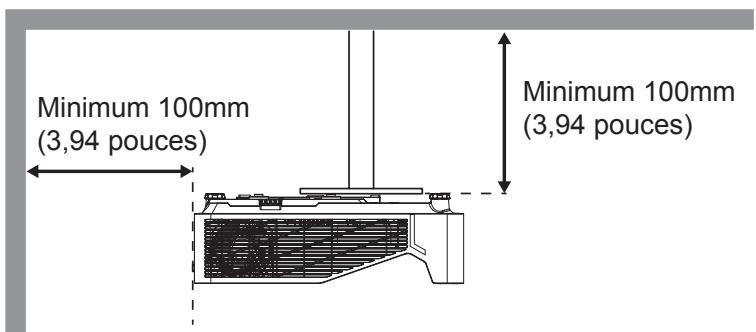

Yes, the device can be ceiling mounted using a compatible mount. Make sure the mount supports the weight of 11 kg and respect the safety distances for ventilation.

How to connect a device via HDMI?

Connect an HDMI cable between the source (computer, console, etc.) and one of the HDMI inputs of the projector. Select the corresponding input in the Source menu. The ZH430UST supports HDMI 2.0 with HDCP 2.2 for protected 4K content.

Does the projector automatically display a rectangular image?

The projector features automatic digital keystone correction in vertical and horizontal directions. It can also automatically adjust focus and framing thanks to the Auto Geometry function.

Can I use the projector with a 120-inch screen?

Yes, the ultra short throw ratio of 0.25:1 allows projecting a 120-inch diagonal image by placing the device about 30 cm from the screen.

What to do if the image is blurry?

First check the focus by turning the manual focus ring or using the Auto Focus function. Also ensure the device is perpendicular to the screen and the projection distance is correct. Clean the lens if necessary.

How to reduce fan noise?

Use the Economic mode (Eco) in the lamp settings menu. This reduces brightness to about 70% and lowers noise level to 28 dB, which is very quiet for a projector.

Does the projector support HDR content?

Yes, the ZH430UST is compatible with HDR10 and HLG. It automatically adapts dynamic rendering for HDR content. Make sure to use an HDMI 2.0 cable and a compatible source.

How to reset factory settings?

Go to the Settings menu, then select 'Reset Settings'. Confirm to restore all default settings. A full reset can be done via the Advanced Options menu.

USER MANUAL ZH430UST OPTOMA

Line drawing of an Optoma device with wheels and control buttons (no text or symbols on the device itself)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019.

IEC 60825-1:2014 等級1雷射產品RG2危險等級

IEC 60825-1:2014 1类激光产品RG2危险等级

Do not look into the beam within 1 m.

Direct eye exposure to the beam is not permitted.

This Class B digital apparatus complies with Canadian ICES-003.

Illustration of a projected refrigerator with front panel and side legs (no text or symbols on the device itself)

Line drawing of a person sitting in a chair watching a television from a desk, with no text or symbols present.

Line drawing of a person sitting in a chair facing a projector mounted on a wall, with no text or symbols present.

Line drawing of a person sitting in a chair watching a projector on a TV, with no text or symbols present.

Line drawing of a person sitting in a chair facing a wall-mounted device, no text or symbols present

Diagram of a double-chamber refrigerator with red prohibition symbols (no text or labels)

CONFIGURATION ET INSTALLATION

Illustration of a hand using a tool to adjust eyeglasses with red arrows indicating movement (no text or symbols)

Marche

UTILISER LE PROJECTEUR

UTILISER LE PROJECTEUR

INFORMATIONS SUPPLÉMENTAIRES

Modèle 1080p

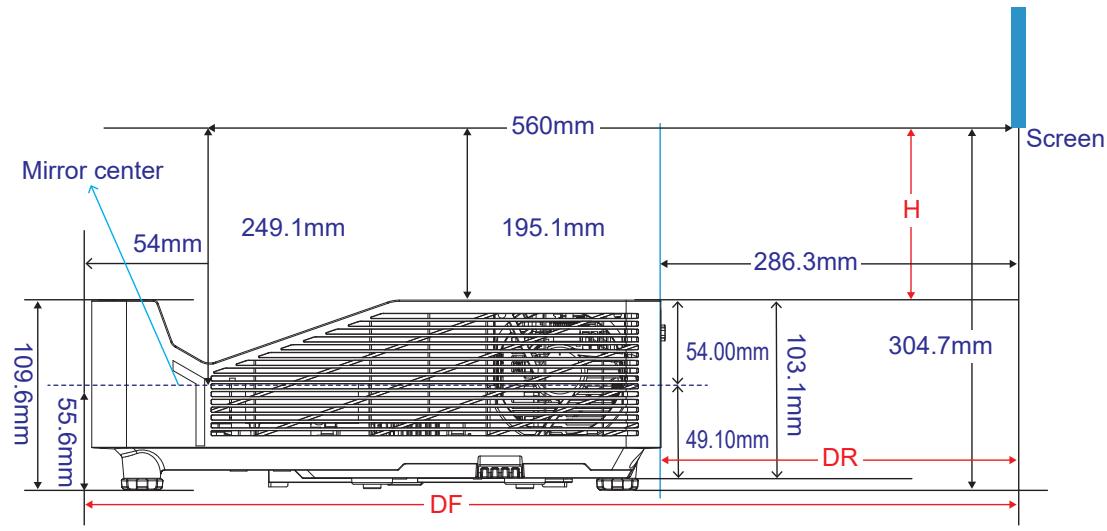

Taille d'image (pouces)	Taille de l'image (L x H)				DF (±5%)		DR (±14%)		Décalage H= 121% ~ 131%
	Largeur (m)	Hauteur (m)	Largeur (pouce)	Hauteur (pouce)	m	pouce	m	pouce	m	pouce
85"	1,77	1	69,73	39,22	0,53	20,87	0,20	7,96	0,105 ~ 0,211	4,125 ~ 8,292
90"	1,99	1,12	78,44	44,12	0,56	21,97	0,23	9,07	0,114 ~ 0,226	4,493 ~ 8,905
100"	2,21	1,25	87,16	49,03	0,61	24,18	0,29	11,27	0,133 ~ 0,257	5,228 ~ 10,131
110"	2,44	1,37	95,87	53,93	0,67	26,38	0,34	13,48	0,151 ~ 0,342	5,963 ~ 13,482
120"	2,66	1,49	104,59	58,83	0,73	28,59	0,40	15,68	0,17 ~ 0,374	6,699 ~ 14,708

INFORMATIONS SUPPLÉMENTAIRES

Technical line drawing of a mechanical component with internal grid structure (no text or symbols)

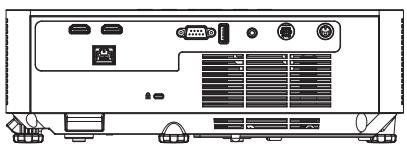

Front view of a computer monitor with ports and ventilation slots (no text or symbols visible)

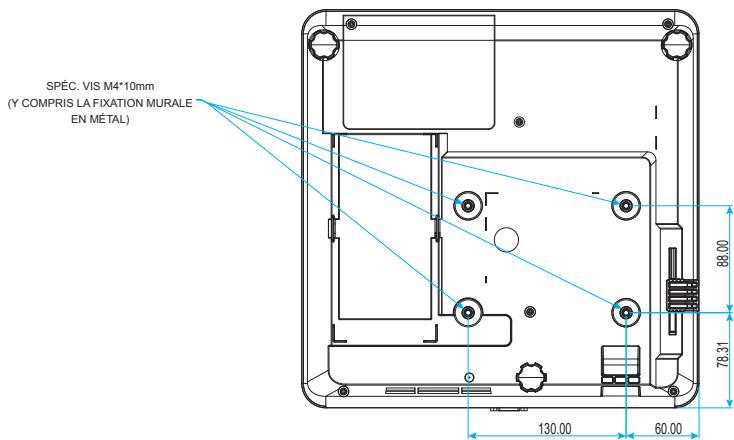

Unité : mm
