ZH420 - Projector OPTOMA - Free user manual and instructions

Product Type	DLP Projector
Brand	OPTOMA
Model	ZH420
Display Technology	DLP
Native Resolution	1080p (1920 x 1080)
Brightness	4000 lumens ANSI
Contrast	300,000:1 (dynamic)
Light Source	Laser Phosphor
Light Source Life	30,000 hours (Eco mode)
Keystone Correction	Vertical & Horizontal ±30°
Zoom	1.1x manual
Dimensions (W x D x H)	316 x 243 x 115 mm
Weight	3.5 kg
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	250 W (max), 0.5 W (standby)
Video Inputs	2x HDMI 1.4a, 1x VGA, 1x Composite
Audio Outputs	1x 3.5mm headphone jack, built-in 10W speaker
Connectivity	USB-A (5V/1.5A power), RS-232
Noise Level	28 dB (Eco mode)
Maintenance and Cleaning	Clean the air filter every 500 hours with a soft vacuum. Wipe the lens with a dry microfiber cloth.
Security	Kensington lock, user password, automatic shutdown in case of overheating.
Spare Parts and Repairability	Spare parts available through authorized service. Light source not user-replaceable. Typical life of 30,000 hours.

Frequently Asked Questions - ZH420 OPTOMA

How to clean the projector lens?

Use a clean, dry microfiber cloth. For stubborn stains, slightly dampen the cloth with optical lens cleaner. Never use abrasive products or solvents.

What is the lifespan of the light source?

The ZH420's laser light source has a nominal lifespan of 30,000 hours in Eco mode, reducing maintenance costs.

Can I replace the lamp myself?

The ZH420 uses an integrated laser light source. It is not user-replaceable. At end of life, contact an authorized service for replacement.

How to clean the air filter?

Turn off and unplug the device. Open the filter compartment (located on the side). Remove the filter and vacuum it with a low-power vacuum cleaner. Replace it after drying. Perform this operation every 500 hours of use.

Why is the image blurry?

First check the focus by turning the focus ring. Make sure the projection distance is appropriate. If blurriness persists, clean the lens with a soft cloth.

How to correct a distorted image (keystone)?

Use the keystone correction in the OSD (On-Screen Display) menu. The ZH420 offers vertical and horizontal correction of ±30 degrees.

Which cables are included in the box?

The projector comes with a power cable, a HDMI cable, and a VGA cable. The user manual is provided in digital format.

Can I connect a Bluetooth speaker?

No, the ZH420 does not have Bluetooth. You can use the 3.5mm audio output to connect wired external speakers or use an external Bluetooth adapter.

What is the power consumption in standby?

Standby consumption is less than 0.5 watt, compliant with energy-saving standards.

How to reset to factory settings?

Go to the Configuration menu (Settings), then select Reset. Confirm with the OK button. The device will restart with the original settings.

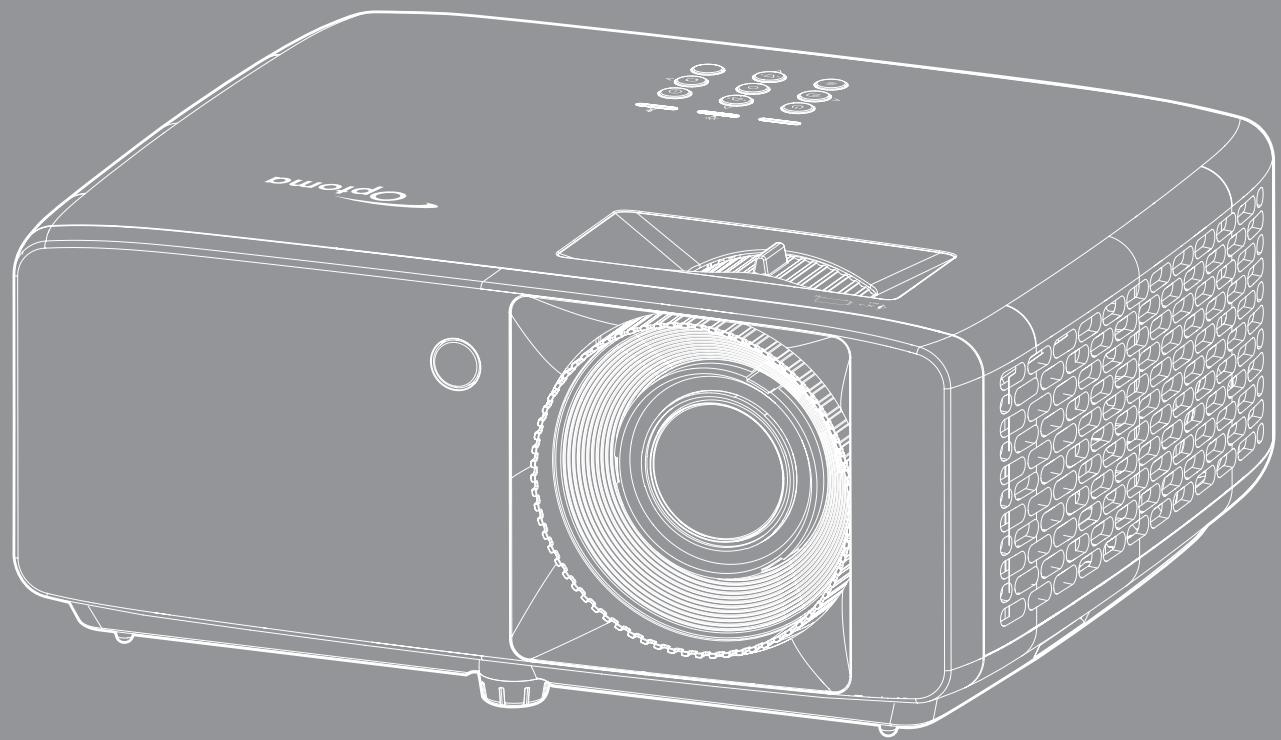

USER MANUAL ZH420 OPTOMA

Line drawing of a projector with front panel and internal vent (no text or symbols)

Line drawing of a projector with visible internal components and ventilation grille (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019. IEC 60825-1:2014 等級1雷射產品RG2危險等級 IEC 60825-1:2014 1类激光产品RG2危险等级

"WARNING: MOUNT ABOVE THE HEADS OF CHILDREN." Additional warning against eye exposure for close exposures less than 1 m.

This Class B digital apparatus complies with Canadian ICES-003.

https://www.optoma.com/support/download

INTRODUCTION

Line drawing of a person sitting in a chair watching a small screen on a desk (no text or symbols present)

Line drawing of a person sitting in a chair facing a wall-mounted device, no text or symbols present

Line drawing of a person sitting in a chair watching a projector screen, with no text or symbols present.

Line drawing of a person sitting in a chair watching a wall-mounted screen (no text or symbols)

Pure diagram of a multi-tiered device with red X marks, no text or symbols present

CONFIGURATION ET INSTALLATION

Illustration of a hand using a tool to adjust or install a small object, with red arrows indicating direction (no text or symbols present)

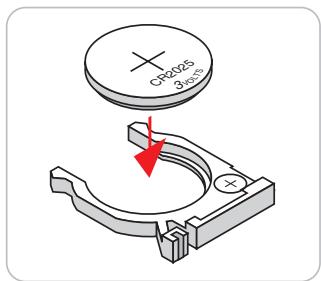

CONFIGURATION ET INSTALLATION

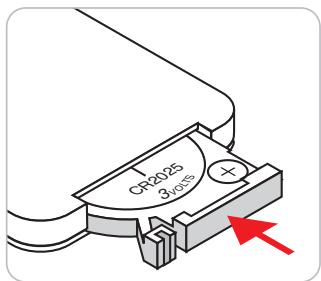

CONFIGURATION ET INSTALLATION

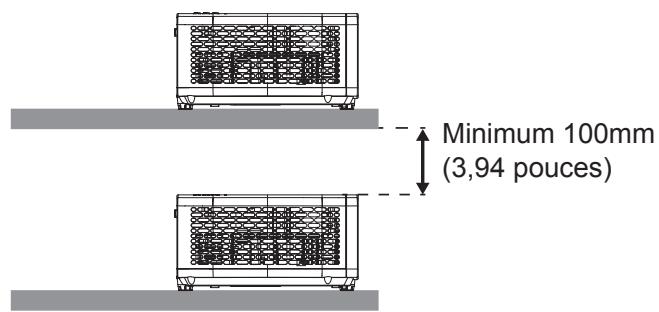

CONFIGURATION ET INSTALLATION

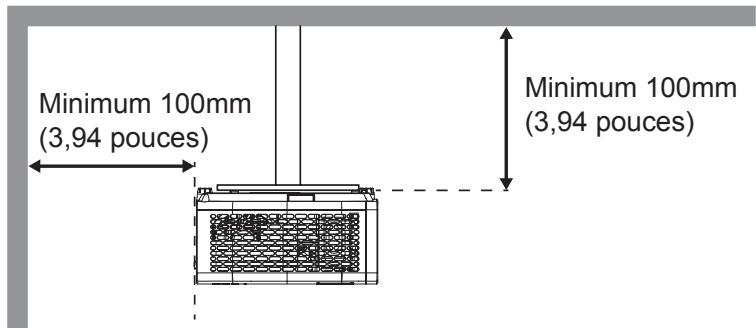

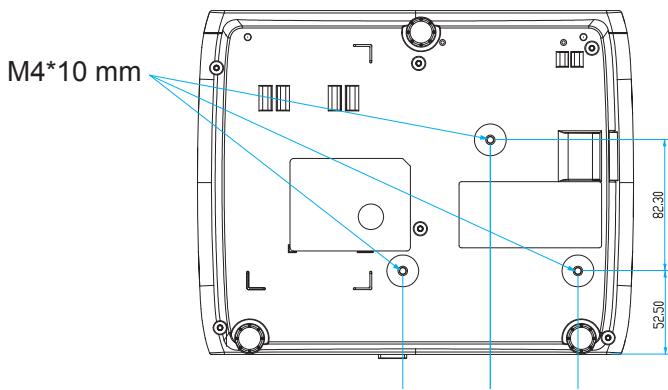

Technical line drawing of a mechanical component with symmetrical slots and mounting brackets (no text or symbols)

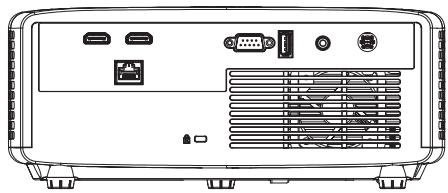

Front view of a projector case with ports, connectors, and ventilation slots (no text or symbols visible)

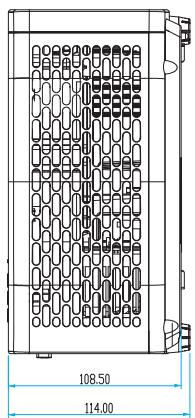

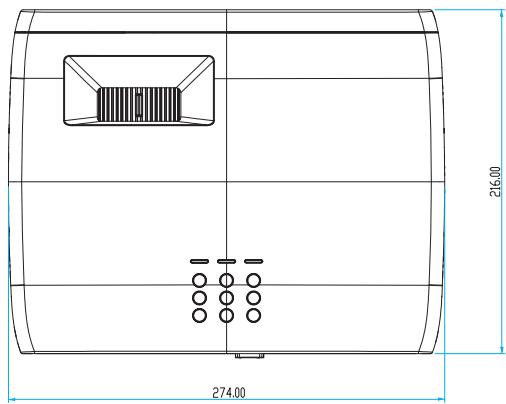

Unité : mm
