ZH401e - Projector OPTOMA - Free user manual and instructions

Product Type	DLP Projector
Brand	OPTOMA
Model	ZH401e
Native Resolution	1920 x 1080 (Full HD)
Brightness	4000 ANSI Lumens
Contrast Ratio	20,000:1
Light Source	Laser (lifespan up to 30,000 hours)
Power Supply	100-240 V AC, 50/60 Hz, max power consumption 300 W
Dimensions (W x D x H)	337 x 265 x 108 mm
Weight	3.5 kg
Video Inputs	HDMI x2, VGA, USB, RJ45 (HDBaseT)
Audio Input	3.5 mm Mini-jack
Audio Output	3.5 mm Mini-jack, built-in speaker 10W
Keystone Correction	Vertical ±30°, Horizontal ±30°
Main Features	Large screen projection, 3D compatible, Eco mode, quick start
Maintenance and Cleaning	Clean the air filter every 500 hours; use a dry soft cloth for the lens
Security	Security vents, user password, Kensington lock
Spare parts and repairability	Parts available via authorized service; repairability index not communicated
General Information	2-year warranty; user manual included

Frequently Asked Questions - ZH401e OPTOMA

How to connect a computer to the ZH401e projector?

Use an HDMI or VGA cable to connect the computer to the corresponding input on the projector. Then select the appropriate source via the menu or remote control.

How to clean the projector air filter?

Turn off the projector and unplug it. Open the filter cover, remove the filter, and tap it to remove dust. You can also use a vacuum cleaner. Replace the filter every 500 hours of use.

What to do if the image is distorted or tilted?

Use Keystone correction via the OSD menu or dedicated buttons on the remote control. Adjust the vertical and horizontal values until the image is rectangular.

How to replace the laser light source?

The laser source is designed to last up to 30,000 hours. In case of failure, contact an authorized OPTOMA service center. Do not attempt to replace the module yourself.

The projector does not turn on, what to do?

Check that the power cable is properly connected and the power outlet works. Make sure the power button is pressed. If the indicator flashes red, refer to the error codes section in the manual.

Can I use the projector with a mobile device?

Yes, you can connect a smartphone or tablet via an HDMI adapter or using a wireless dongle (not included). Refer to the manual for wireless connectivity options.

How to adjust the image sharpness?

Turn the focus ring located around the lens until the image is sharp. You can also display a test pattern in the menu to assist with adjustment.

Does the projector heat up normally?

Yes, the projector generates heat during operation. Ensure the vents are not blocked and the device is placed in a well-ventilated area. If the temperature becomes excessive, the projector will shut down automatically.

How to activate Eco mode to save energy?

Press the 'Mode' or 'Eco' button on the remote control. You can also go to the 'Settings' menu > 'Lamp Mode' and select 'Eco'. This reduces brightness and extends the lifespan of the light source.

Where to find the projector serial number?

The serial number is located on a label under the projector or on the back near the connectors. It will be required for any technical support or warranty requests.

USER MANUAL ZH401e OPTOMA

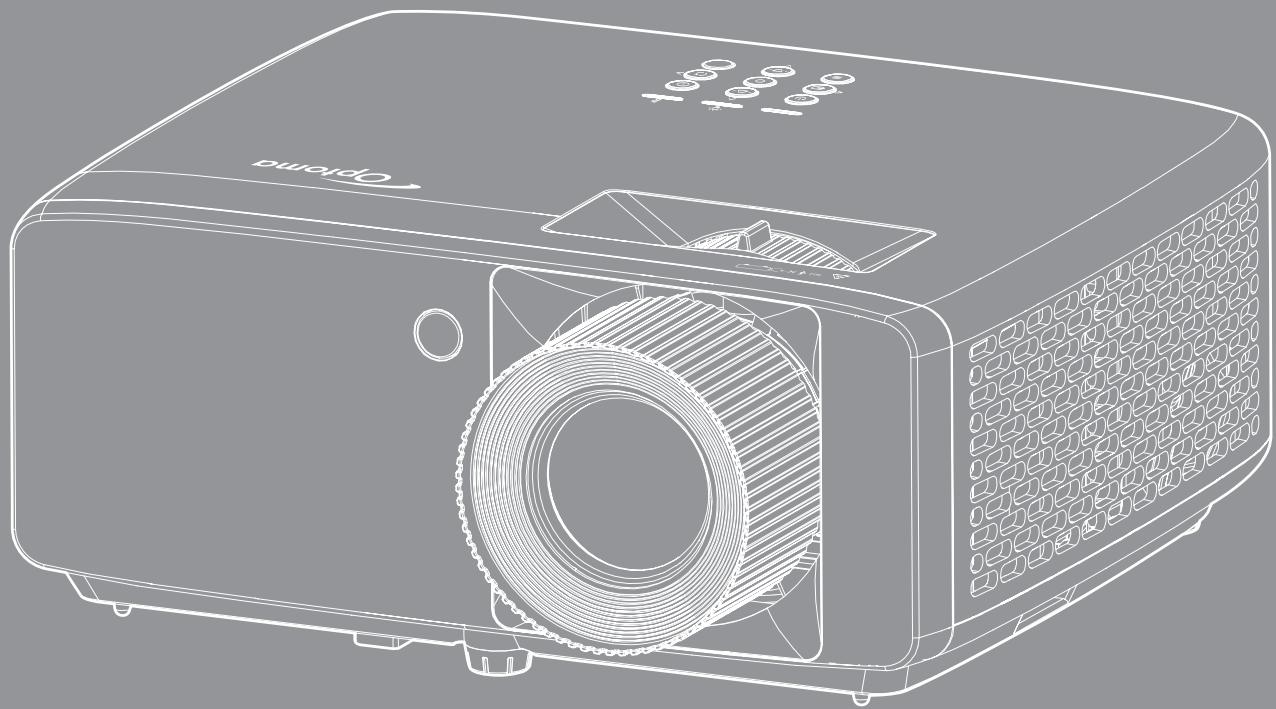

Line drawing of a projector with front panel and side panel (no text or symbols)

Line drawing of a projector with visible lens and ventilation slots (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019.

IEC 60825-1:2014 等級1雷射產品RG2危險等級 IEC 60825-1:2014 1类激光产品RG2危险等级

WARNING: MOUNT ABOVE THE HEADS OF CHILDREN! Do not look into the beam less than 1m. No direct eye exposure to the beam is permitted.

This Class B digital apparatus complies with Canadian ICES-003.

Two projected projector devices shown from different angles, labeled 'Projecteur' below (no text on devices themselves)

Line drawing of a person sitting in a chair watching television on a desk (no text or symbols present)

Line drawing of a person sitting in a chair facing a wall-mounted device, no text or symbols present

Line drawing of a person sitting in a chair watching a projector screen, with no text or symbols present.

Line drawing of a person sitting in a chair watching a wall-mounted projector (no text or symbols)

Pure diagram of a container with two rows and one column, crossed by a red 'X' symbol (no text or labels)

https://www.amx.com/

UTILISER LE PROJECTEUR

UTILISER LE PROJECTEUR

État du système

UTILISER LE PROJECTEUR

UTILISER LE PROJECTEUR

INFORMATIONS SUPPLÉMENTAIRES

INFORMATIONS SUPPLÉMENTAIRES

INFORMATIONS SUPPLÉMENTAIRES

Optoma Technology, Inc.

47697 Westinghouse Drive.

Fremont, Ca 94539

888-289-6786

510-897-8601

[e-mail]

Canada

Optoma Technology, Inc.

47697 Westinghouse Drive.

Fremont, Ca 94539

888-289-6786

510-897-8601

[e-mail]

Amérique Latine

Optoma Technology, Inc.

47697 Westinghouse Drive.

Fremont, Ca 94539

888-289-6786

510-897-8601

[e-mail]

Europe

Unit 1, Network 41, Bourne End Mills

Hemel Hempstead, Herts,

HP1 2UJ, United Kingdom

www.optoma.eu

[e-mail]

Benelux BV

Randstad 22--123

1316 BW Almere

Les Pays-Bas

www.optoma.nl

[phone]

[phone]

France

Bâtiment E

81-83 avenue Edouard Vaillant

92100 Boulogne Billancourt, France

[phone]

[phone]

[e-mail]

Espagne

C/ José Hierro,36 Of. 1C

28522 Rivas VaciaMadrid,

Espagne

[phone]

[phone]

Allemagne

Am Nordpark 3

41069 Mönchengladbach

Germany (Allemagne)

[phone]

https://www.optoma.com/kr/

Japon

https://www.optoma.com/jp/

Taiwan

https://www.optoma.com/tw/

Chine

Room 701, 7F, Building 1,

No.1388 Kaixuan Road,

Changning District

Shanghai, 200052, Chine

Australie

https://www.optoma.com/au/

[phone]

[phone]

www.optoma.com.cn
