X605e - Projector OPTOMA - Free user manual and instructions

Product type	DLP projector
Brand	OPTOMA
Model	X605e
Native resolution	XGA (1024 x 768)
Brightness	4,000 ANSI lumens
Contrast ratio	15,000:1
Lamp life	Up to 5,000 hours (eco mode)
Power supply	100-240 V AC, 50/60 Hz
Power consumption	310 W (normal mode)
Dimensions (L x D x H)	315 x 224 x 110 mm
Weight	3.2 kg
Video inputs	HDMI, VGA, Composite, S-Video
Audio output	Built-in speaker 10 W
Key features	Keystone correction, digital zoom, eco mode
Maintenance and cleaning	Clean the air filter every 100 hours; use a soft, dry cloth
Security	Kensington lock, auto-off after 30 minutes of inactivity
Spare parts and repairability	User-replaceable lamp and air filter
Operating temperature	5°C to 40°C
Included accessories	Power cord, VGA cable, remote control, batteries, user manual

Frequently Asked Questions - X605e OPTOMA

How to replace the lamp on the OPTOMA X605e projector?

Turn off the projector and unplug it. Let it cool for 30 minutes. Remove the lamp cover using a screwdriver, unscrew the old lamp, insert the new one and screw it back. Replace the cover and reset the lamp counter via the menu.

Why is the projected image blurry?

Use the focus ring on the lens. Also check that the projection distance is appropriate and that the keystone correction settings are correct.

How to clean the air filter?

Turn off the projector and unplug it. Open the filter compartment, remove the filter, clean it with a vacuum cleaner or rinse with warm water (mild soap) and dry completely before reinstalling.

The projector won't turn on, what should I do?

Make sure the power cord is properly connected and the outlet works. Ensure the lamp is correctly installed. If the indicator light flashes, refer to the manual for the error code.

How to connect a computer to the projector?

Use a VGA or HDMI cable depending on available outputs. Connect the cable to the projector and the computer, then select the corresponding source via the Source button on the remote control or control panel.

What is the lamp life?

In normal mode, about 3,500 hours. In eco mode, up to 5,000 hours. Remember to check the lamp counter in the menu to schedule replacement.

How to adjust the image size?

Use the zoom ring to enlarge or reduce the image. Move the projector closer or farther from the screen to adjust size. Refer to the projection distance table in the manual.

What if the image is upside down?

Access the OSD menu, go to Display Settings > Projection and choose the appropriate mode: front, rear, ceiling front, ceiling rear.

Can I use the projector without the remote control?

Yes, the control panel on the projector allows access to most functions: power on, source selection, menu navigation.

How to reset to factory settings?

In the OSD menu, go to Settings > Reset All. Confirm with Enter. The projector will restart with default settings.

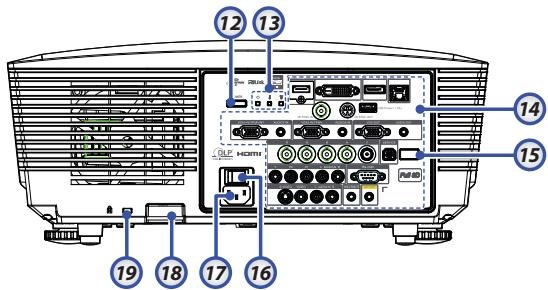

USER MANUAL X605e OPTOMA

Symbolic image of a computer monitor with a red X mark and eye, enclosed in a circle (no text or numbers present)

UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA

Illustration of a projector with lens and viewing lens (no text or symbols)

Line drawing of two connected U8V connectors (no text or symbols)

Pure diagram of a USB cable with connector pins (no text or symbols)

Illustration of a projector with a magnified view showing internal components (no text or symbols)

Illustration of a projector with a hand operating the button (no text or symbols visible)

Illustration of a projector with a blue arrow indicating direction (no text or symbols present)

Illustration of a projector with a hand pressing down on its side panel (no text or symbols present)

Technical line drawing of a projector housing with mounting base and internal components (no text or symbols)

Technical illustration of a circular component with internal mesh structure, showing fluid flow direction (no text or symbols)

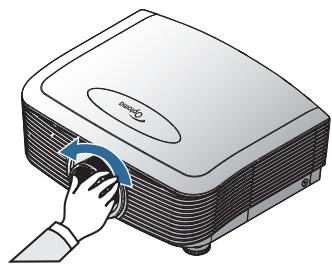

Bague de zoom

Marche directe

Activer ou désactiver Marche directe.

The projector will automatically shutdown after 60 sec.

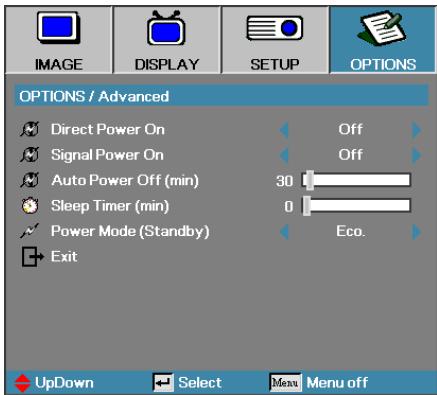

Options | Avancé

Mode Veille (min)

The projector will automatically shutdown after 60 sec.

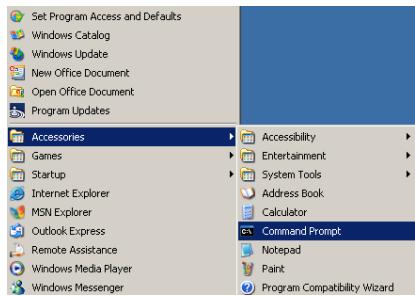

1. Démarrer => Tous les programmes => Accessoires => Invite de commandes.

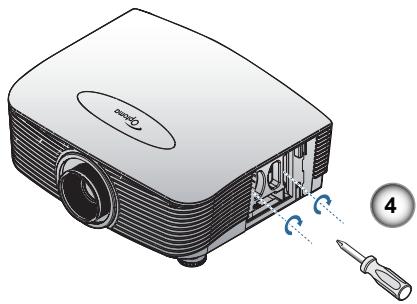

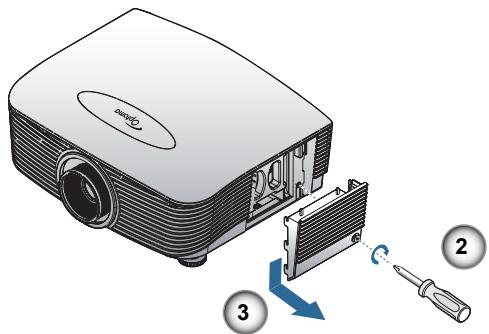

Illustration of a projector with screwdriver and ventilation slots, no text or symbols present

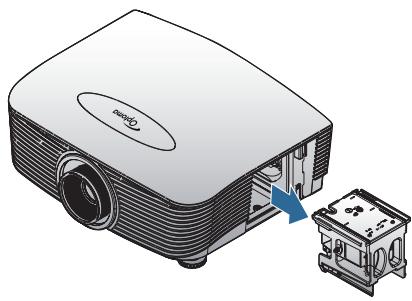

Illustration of a projector with an internal component and a separate mechanical housing (no text or symbols)

Projector Return (Pass): P

Projector Return (Fail): F

Note : There is a after all ASCII commands

0D is the HEX code for in ASCII code

XX=01-99, projector's ID, XX=00 is for all projectors

SEND to projector

232 ASCII Code	HEX Code	Function	Description
~XX00 1	7E 30 30 30 30 20 31 0D	Power ON
~XX00 0	7E 30 30 30 30 20 30 0D	Power OFF	(0/2 for backward compatible)
~XX00 1-nnnn	7E 30 30 30 30 20 31 20 a ODPower ON with Password	~nnnn = ~0000 (a=7E 30 30 30 30)
~XX01 1	7E 30 30 30 31 20 31 0D	Resync
~XX02 1	7E 30 30 30 32 20 31 0D	AV Mute	On
~XX02 0	7E 30 30 30 32 20 30 0D
~XX03 1	7E 30 30 30 33 20 31 0D	Mute	On
~XX03 0	7E 30 30 30 33 20 30 0D
~XX04 1	7E 30 30 30 34 20 31 0D	Freeze
~XX04 0	7E 30 30 30 34 20 30 0D	Unfreeze
~XX05 1	7E 30 30 30 35 20 31 0D	Zoom Plus
~XX06 1	7E 30 30 30 36 20 31 0D	Zoom Minus
~XX12 1	7E 30 30 31 32 20 31 0D	Direct Source Commands	HDMI
~XX12 2	7E 30 30 31 32 20 32 0D
~XX12 4	7E 30 30 31 32 20 34 0D
~XX12 5	7E 30 30 31 32 20 35 0D		VGA1 Component
~XX12 6	7E 30 30 31 32 20 36 0D		VGA2 Component
~XX12 8	7E 30 30 31 32 20 38 0D		S-Video
~XX12 9	7E 30 30 31 32 20 39 0D		Video
~XX12 10	7E 30 30 31 32 20 31 30 0D		VGA 2 Component
~XX12 13	7E 30 30 31 32 20 31 33 0D		Component
~XX12 14	7E 30 30 31 32 20 31 34 0D
~XX12 20	7E 30 30 31 32 20 32 30 0D
			DisplayPort
~XX20 1	7E 30 30 32 30 20 31 0D	Display Mode	Presentation
~XX20 2	7E 30 30 32 30 20 32 0D		Bright
~XX20 3	7E 30 30 32 30 20 33 0D		Movie
~XX20 4	7E 30 30 32 30 20 34 0D		sRGB
~XX20 5	7E 30 30 32 30 20 35 0D		User
~XX20 7	7E 30 30 32 30 20 37 0D		Blackboard
~XX20 13	7E 30 30 32 30 21 33 0D		DICOM SIM.
~XX20 9	7E 30 30 32 30 20 39 0D		3D
~XX21 n	7E 30 30 32 31 20 a 0D	Brightness	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX22 n	7E 30 30 32 32 20 a 0D	Contrast	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX23 n	7E 30 30 32 33 20 a 0D	Sharpness	n = 1 (a=31) ~ 15 (a=31 35)
~XX44 n	7E 30 30 34 34 20 a 0D	Tint	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX45 n	7E 30 30 34 35 20 a 0D	Color	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX327 n	7E 58 58 33 32 37 20 a 0D	Color Matching	Red Hue
~XX328 n	7E 58 58 33 32 38 20 a 0D		Green Hue
~XX329 n	7E 58 58 33 32 39 20 a 0D		Blue Hue
~XX330 n	7E 58 58 33 33 30 20 a 0D		Cyan Hue
~XX331 n	7E 58 58 33 33 31 20 a 0D		Yellow Hue
~XX332 n	7E 58 58 33 33 32 20 a 0D		Magenta Hue
~XX333 n	7E 58 58 33 33 33 20 a 0D		Cyan Hue
~XX333 n	7E 58 58 33 33 33 20 a 0D		Red Satitlon
~XX334 n	7E 58 58 33 33 34 20 a 0D		Green Saturation
~XX335 n	7E 58 58 33 33 35 20 a 0		Blue Saturation
~XX336 n	7E 58 58 33 33 36 20 a 0D		Cyan Saturation
~XX337 n	7E 58 58 33 33 37 20 a 0D		Yellow Saturation
~XX338 n	7E 58 58 33 33 38 20 a 0D		Magenta Saturationn
~XX339 n	7E 58 58 33 33 39 20 a 0D		Red Gain
~XX340 n	7E 58 58 33 34 30 20 a 0D		Green Gain
~XX341 n	7E 58 58 33 34 31 20 a 0D		Blue Gain
~XX342 n	7E 58 58 33 34 32 20 a 0D		Cyan Gain
~XX343 n	7E 58 58 33 34 33 20 a 0D		Yellow Gain
~XX344 n	7E 58 58 33 34 34 20 a 0D		Magenta Gain
~XX345 n	7E 58 58 33 34 35 20 a 0D		White/R
~XX346 n	7E 58 58 33 34 36 20 a 0D		White/G
~XX347 n	7E 58 58 33 34 37 20 a 0D		White/B
~XX215 1	7E 30 30 32 31 35 20 31 0D		Reset
~XX24 n	7E 30 30 32 34 20 a 0D	RGB Gain/Bias	Red Gain
~XX25 n	7E 30 30 32 35 20 a 0D		Green Gain
~XX26 n	7E 30 30 32 36 20 a 0D		Blue Gain
~XX27 n	7E 30 30 32 37 20 a 0D		Red Bias
~XX28 n	7E 30 30 32 38 20 a 0D		Green Bias
~XX29 n	7E 30 30 32 39 20 a 0D		Blue Bias
~XX33 n	7E 30 30 33 33 20 a 0D		Reset
~XX34 n	7E 30 30 33 34 20 a 0D	BrilliantColorTM
~XX196 n	7E 30 30 31 39 36 20 a 0D	Noise Reduction
~XX35 1	7E 30 30 33 35 20 31 0D	Gamma	Film
~XX35 3	7E 30 30 33 35 20 33 0D		Graphics
~XX35 5	7E 30 30 33 35 20 35 0D		1.8
~XX35 6	7E 30 30 33 35 20 36 0D		2.0
~XX35 7	7E 30 30 33 35 20 37 0D		2.2

(5 minutes for each step).

~XX107 n	7E 30 30 31 30 37 20 a 0D	Sleep Timer (min)	n = 0 (a=30) ~ 995 (a=39 39 35)
(30 minutes for each step).
~XX114 1	7E 30 30 31 31 34 20 31 0D	Power Mode(Standby)	Active (<=0.5W)
~XX114 0	7E 30 30 31 31 34 20 30 0D		Eco. (0/2 for backward compatible)
~XX109 1	7E 30 30 31 30 39 20 31 0D	Lamp Reminder	On
~XX109 0	7E 30 30 31 30 39 20 30 0D		Off (0/2 for backward compatible)
~XX110 1	7E 30 30 31 31 30 20 31 0D	Brightness Mode	Bright
~XX110 2	7E 30 30 31 31 30 20 32 0D		Eco
~XX110 5	7E 30 30 31 31 30 20 35 0D	Power
~XX326 n	7E 30 30 33 32 36 20 a 0D	Power	350W/340W/330W/320W/310W/300W/290W/280W(n=0/n=1/n=2/n=3/n=4/n=5/n=6/n=7/n=8)
~XX111 1	7E 30 30 31 31 31 20 31 0D	Lamp Reset	Yes
~XX111 0	7E 30 30 31 31 31 20 30 0D		No (0/2 for backward compatible)

\~XX112 1 7E 30 30 31 31 32 20 31 0D Reset

~XX99 1	7E 30 30 39 39 20 31 0D	RS232 Alert Reset	Reset	System Alert
~XX210 n	7E 30 30 32 30 30 20 n 0D	Display message on the OSD			n: 1-30 charact	ers
SEND to emulate Remote
~XX140 10	7E 30 30 31 34 30 20 31 30 0D				Up
~XX140 11	7E 30 30 31 34 30 20 31 31 0D				Left
~XX140 12	7E 30 30 31 34 30 20 31 32 0D				Enter (for projection MENU)
~XX140 13	7E 30 30 31 34 30 20 31 33 0D				Right
~XX140 14	7E 30 30 31 34 30 20 31 34 0D				Down
~XX140 15	7E 30 30 31 34 30 20 31 35 0D				Keystone +
~XX140 16	7E 30 30 31 34 30 20 31 36 0D				Keystone –
~XX140 17	7E 30 30 31 34 30 20 31 37 0D				Volume –
~XX140 18	7E 30 30 31 34 30 20 31 38 0D				Volume +
~XX140 19	7E 30 30 31 34 30 20 31 39 0D				Brightness
~XX140 20	7E 30 30 31 34 30 20 32 30 0D				Menu
~XX140 21	7E 30 30 31 34 30 20 32 31 0D				Zoom
~XX140 28	7E 30 30 31 34 30 20 32 38 0D				Contrast
~XX140 47	7E 30 30 31 34 30 20 34 37 0D				Source

SEND from projector automatically

232 ASCII Code	HEX Code	Function	Projector Return	Description
when Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open
			INFOn	n : 0/1/2/3/4/6/7/8/ = Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open

READ from projector

232 ASCII Code	HEX Code	Function	Projector Return	Description
~XX121 1	7E 30 30 31 32 31 20 31 0D	Input Source Commands	OKn	n: 0/1/2/3/4/5/7/10/15 = None/DVI/VGA1/VGA2/S-Video/Video/BNC/HDMI/Component/DisplayPort
~XX122 1	7E 30 30 31 32 32 20 31 0D	Software Version	Okddd	dddd: FW version
~XX123 1	7E 30 30 31 32 33 20 31 0D	Display Mode	OKn	n: 0/1/2/3/4/7/9/12
None/Presentation/Bright/Movie/sRGB/Blackboard/DICOM SIM./3D
~XX124 1	7E 30 30 31 32 34 20 31 0D	Power State	OKn	n: 0/1 = Off/On
~XX125 1	7E 30 30 31 32 35 20 31 0D	Brightness	OKn
~XX126 1	7E 30 30 31 32 36 20 31 0D	Contrast	OKn
~XX127 1	7E 30 30 31 32 37 20 31 0D	Format	OKn	n: 1/2/3/5/6/7 =4:3/16:9/16:10/LBX/Native/Auto
*16:9 or 16:10 depend on Screen Type setting
~XX128 1	7E 30 30 31 32 38 20 31 0D	Color Temperature	OKn	n: 3/0/1/2 = Warm/Standard/Cool/Cold
~XX129 1	7E 30 30 31 32 39 20 31 0D	Projection Mode	OKn	n: 0/1/2/3 = Front-Desktop/ Rear-Desktop/ Front-Ceiling/ Rear-Ceiling
~XX150 1	7E 30 30 31 35 30 20 31 0D	Information	OKabbbbccddde
				a: 0/1 = Off/On
				bbbb: LampHour
				cc: source 00/01/02/03/04/05/07/10/15 =
None/DVI/VGA1/VGA2/S-Video/Video/BNC/HDMI/Component/DisplayPort
					dddd: FW version
					e: Display mode 0/1/2/3/4/7/9/10=
					None/Presentation/Bright/Movie/sRGB/Blackboard/3D/DICOM.
~XX151 1	7E 30 30 31 35 31 20 31 0D	Model name	OKn	n: 1/2/3=X605/W505/EH505
~XX108 1	7E 30 30 31 30 38 20 31 0D	Lamp Hours	OKbbb	bbbb: LampHour
~XX108 2	7E 30 30 31 30 38 20 31 0D	Cumulative Lamp Hours	OKbbb	bbbb: (5 digits) Total Lamp Hours
~XX87 1	7E 30 30 38 37 20 31 0D	Network Status		Okn n =0/1
Disconnected/Connected
~XX87 3	7E 30 30 38 37 20 33 0D	IP Address		Okaaa_bbb_ccc_ddd

Commandes Telnet

Lead Code	Projector ID		Command ID			Space	Variable	Carriage Return
~	X	X	X	X	X		n	CR
Fix code One Digit~	00		Defined by Optoma 2 or 3 Digit. See the Follow content			One Digit	Per item Definition	Fix code One Digit

Command	Description	Remark (Parameter)
Device-UUID	MAC address (Hex value without'':' separator)	12 digits
Device-SKDClass	The Duet DeviceSdk class name	VideoProjector
Device-Make	Maker name	MakerPXLW
Device-Model	Model name	Projector
Config-URL	Device's IP addressLAN IP address is shown up if LAN IP address is valid.Wireless LAN IP address is shown up if Wireless LAN IP address is valid.	http://xxx.xxx.xxx.xxx/index.html
Revision	The revision must follow a major.minor.micro scheme. The revision is only increased if the command protocol is modified.	1.0.0

Command	Description	Remark (Parameter)
POWR	Power control	0 = Standby
		1 = Power on
POWR?	Inquiry about the power state	0 = Standby
		1 = Power on
		2 = Cooling down
		3 = Warming up
INPT	INPT Input switching	11 = VGA1

Command	Description	Remark (Parameter)
INPT?	Inquiry about input switching	12 = VGA2
		13 = Component
		14 = BNC
		21 = VIDEO
		22 = S-VIDEO
		31 = HDMI 1
		32 = HDMI 2
AVMT	Mute control	30 = Video and audio mute disable
AVMT?	Inquiry about the mute state	31 = Video and audio mute enable
ERST?	Inquiry about the error state	1st byte: Fan error, 0 or 2
		2nd byte: Lamp error, 0 to 2
		3rd byte: Temperature error, 0 or 2
		4th byte: Cover open error, 0 or 2
		5th byte: Filter error, 0 or 2
		6th byte: Other error, 0 or 2
		0 to 2 mean as follows:0 = No error detected, 1 = Warning, 2 = Error
LAMP?	Inquiry about the lamp state	1st value (1 to 5 digits):Cumulative LAMP operating time (This item shows a lamp operating time (hour) calculated based on that LAMP MODE is LOW.)
		2nd value: 0 = Lamp off, 1 = Lamp on
INST?	Inquiry about the available inputs	The following value is returned.“11 12 21 22 31 32”
NAME?	Inquiry about the projector name	The projector name set on the NETWORK menu or the ProjectorViewSetup window is returned
INF1?	Inquiry about the manufacturer name	“Optoma” is returned.
INF2?	Inquiry about the model name	“EH7700” is returned.
INF0?	Inquiry about other information	No other information is available. No parameter is returned.
CLSS?	Inquiry about the class information	“1” is returned.

Trademarks

▶ DLP is trademarks of Texas Instruments.
IBM is a trademark or registered trademark of International Business Machines Corporation.
Macintosh, Mac OS X, iMac, and PowerBook are trademarks of Apple Inc., registered in the U.S. and other countries.
Microsoft, Windows, Windows Vista, Internet Explorer and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
AMX Device Discovery

The projector is monitored and controlDEL by the control system of AMX.

Crestron RoomView Connected™

The projector is monitored and controlDEL by the control system and software of Crestron Electronics, Inc.

PJLink™

PJLink trademark is a trademark applied for registration or is already registered in Japan, the United States of America and other countries and areas.

This projector supports standard protocol PJLink ^™ for projector control and you can control and monitor projector's operations using the same application among projectors of different models and different manufacturers.

Other product and company names mentioned in this user's manual may be the trademarks or registered trademarks of their respective holders.
About Crestron RoomView Connected™

Electronics, Inc. to facilitate configuration of the control system of Crestron and its target devices.

For details, see the website of Crestron Electronics, Inc.

URL http://www.crestron.com

URL http://www.crestron.com/getroomview/

2420 Meadowpine Blvd., Suite #105

Mississauga, ON, L5N 6S2, Canada

Tel: [phone]

Unit 1, Network 41, Bourne End Mills,

Hemel Hempstead, Herts, HP1 2UJ, UK

www.optomausa.com.br Service: www.optomausa.com.mx

Corée

WOOMI TECH.CO.,LTD

4F, Minu Bldg.3.tw3-14, Kangnam-Ku, seoul, 135-815, KOREA

Tél : +82+2+34430004 Télécopie : +82+2+34430005

Japon

東京都足立区綾瀬3-25-18

株式会社オーエスエム

E-mail: [e-mail] www.os-worldwide.com

Taiwan

Unit A, 27/F Dragon Centre, 79 Wing Hong Street,

Cheung Sha Wan, Kowloon, Hong Kong

5F, No. 1205, Kaixuan Rd., Changning District

Shanghai, 200052, China

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
