| Product Type | Single-chip DLP Projector |
| Brand | OPTOMA |
| Model | X605 |
| Native Resolution | XGA (1024 x 768) |
| Brightness | Variable depending on mode (up to 370 W) |
| Display Technology | Texas Instruments DLP |
| Keystone Correction | Digital vertical (±30°) |
| Lens Shift | Vertical: +50% to -10% (XGA), Horizontal: ±5% |
| Zoom and Focus | Manual (zoom and focus ring) |
| Video Inputs | HDMI, DVI-D, VGA (2), BNC, YPbPr, S-Video, Composite Video, DisplayPort |
| Audio Inputs | 3.5mm jack, RCA (L/R) |
| Outputs | VGA (output), 3.5mm audio, 12V relay, RS-232, RJ45, USB (charge) |
| Built-in Speaker | Yes (internal) |
| 3D Functions | DLP Link, VESA 3D, SBS, top/bottom, sequential frame formats |
| Network Control | LAN RJ45, compatible with Crestron, Extron, AMX, PJLink, Telnet |
| Lamp | Replaceable, variable lifespan, adjustable power (280-370 W) |
| Power Supply | AC mains (100-240 V AC, 50/60 Hz) |
| Power Consumption | Up to 370 W (bright mode), <0.5 W in eco standby |
| Operating Temperature | 5 °C to 40 °C |
| Relative Humidity | 10% to 85% (non-condensing) |
| Included Accessories | IR remote with batteries, power cord, USB cable, documentation |
| Maintenance | Clean lens with soft cloth and optical cleaner; wipe casing with damp cloth |
| Safety | Do not look into the lens; replace lamp after cooling down |
| Spare Parts | Replacement lamp, optional lenses (short, standard, long throw) |
| Repairability | Refer to qualified technician; do not open the casing |
Frequently Asked Questions - X605 OPTOMA
How to replace the lamp of the OPTOMA X605 projector?
Turn off the projector, unplug it and wait at least 30 minutes for it to cool down. Unlock the lamp cover, remove the module screws, then take out the old lamp. Insert the new lamp without touching the glass surface, screw it back and close the cover. Then reset the lamp counter via the menu Options > Lamp Settings > Lamp Reset.
The projector does not turn on, what should I do?
Check that the power cord is properly plugged in and the main switch is on. Make sure the lens cap is removed. If the power LED blinks red, consult the manual for error codes. If the lamp is at the end of its life, replace it before turning on again.
How to correct image distortion (keystone)?
Use the Keystone +/- buttons on the remote or control panel to adjust vertical distortion. You can also access the menu Display > Keystone V in the OSD for precise adjustment.
How to connect a computer to the projector?
Use a VGA cable to connect the computer output to the projector's VGA 1 or VGA 2 port. For digital signal, use an HDMI or DVI-D cable. Ensure the computer is set to the appropriate output mode (e.g., [Fn]+[F4] on some models).
How to activate 3D mode?
Make sure the 3D source is connected (e.g., HDMI 1.4). Press the 3D button on the remote to activate the 3D menu. In the menu Display > Three Dimensions, select the appropriate mode (DLP Link or VESA 3D) and format (SBS, top/bottom, etc.). Wear compatible 3D glasses.
What is the lamp life?
The lamp life depends on the mode used. In Eco mode, it can reach approximately 3000 hours, while in Brightness mode it is about 2000 hours. The projector displays a reminder when the lamp approaches the end of its life.
How to clean the projector lens?
Turn off and unplug the projector. Use a soft, clean cloth slightly dampened with optical cleaner. Wipe the lens in circular motions without pressing. Never use abrasive products or solvents.
The projector displays an error message, what does it mean?
The LAMP LED and TEMP LED indicate problems. If LAMP LED is solid red, the lamp is defective. If TEMP LED blinks red, the fan is faulty. In both cases, contact a qualified technician. Refer to the Projector status indication section in the manual for more details.
How to adjust the projected image position?
Use the lens shift knobs on top of the projector to move the image vertically and horizontally. Before adjusting, loosen the locking screw, then adjust and tighten. For precise adjustment, refer to the shift range diagram in the manual.
Can I use the projector for ceiling installation?
Yes, the projector supports ceiling installation. Use a UL-certified mounting kit with M4 screws (length 9-11 mm). In the Menu > Projection, select Front Ceiling or Rear Ceiling according to your setup. Ensure at least 10 cm distance between projector and ceiling for ventilation.
User questions about X605 OPTOMA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Projector in PDF format for free! Find your manual X605 - OPTOMA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. X605 by OPTOMA.
USER MANUAL X605 OPTOMA
Commandes Telnet....95
Commandes AMX Device Discovery 95
Commandes PJLink™ prises en charge....96
Trademarks....98
UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA
Line drawing of two connected D-subscribers (no text or symbols)Câble VGA 1,8m
Illustration of a projector with a blue arrow indicating compression or disassembly (no text or symbols present)natural_image
Illustration of a projector with a hand pressing a button (no text or symbols)natural_image

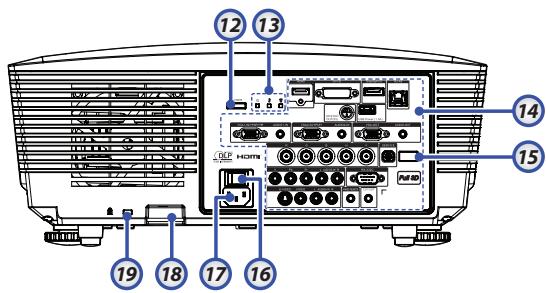

Technical line drawing of a projector with labeled components (no text or symbols present)other
| Dimension | Percentage (%) | | :--- | :--- | | W | | | H5 | | | H50 | | | H15 | | WXGA / WUXGAnatural_image

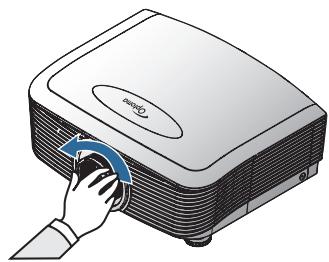

Technical illustration of a circular component with internal mesh structure, showing fluid flow direction (no text or symbols)Bague de zoom

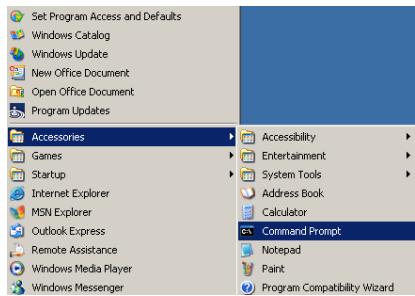

- Démarrer => Tous les programmes => Accessoires => Invite de commandes.


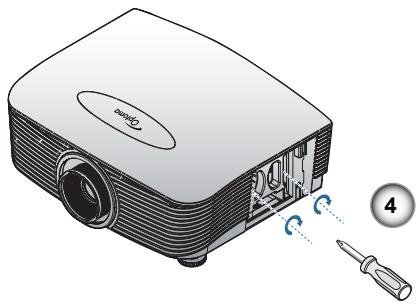

Illustration of a projector with screwdriver and ventilation slots, no text or symbols present


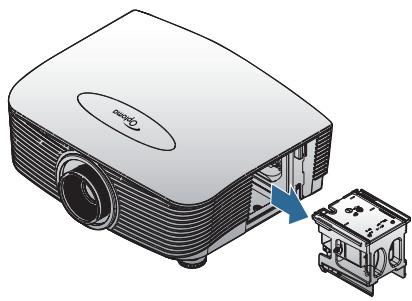

Illustration of a projector with an internal component and a separate mechanical housing (no text or symbols)Projector Return (Pass):
Projector Return (Fail): F
Note : There is a
0D is the HEX code for
XX=01-99, projector's ID, XX=00 is for all projectors
SEND to projector
| 232 ASCII Code | HEX Code | Function | Description |
| ~XX00 1 | 7E 30 30 30 30 20 31 0D | Power ON | |
| ~XX00 0 | 7E 30 30 30 30 20 30 0D | Power OFF | (0/2 for backward compatible) |
| ~XX00 1 ~nnnn | 7E 30 30 30 30 20 31 20 a 0DPower ON with Password | ~nnnn = ~0000 (a=7E 30 30 30 30) | |
| ~9999 (a=7E 39 39 39 39) | |||
| ~XX01 1 | 7E 30 30 30 31 20 31 0D | Resync | |
| ~XX02 1 | 7E 30 30 30 32 20 31 0D | AV Mute | On |
| ~XX02 0 | 7E 30 30 30 32 20 30 0D | ||
| ~XX03 1 | 7E 30 30 30 33 20 31 0D | Mute | On |
| ~XX03 0 | 7E 30 30 30 33 20 30 0D | ||
| ~XX04 1 | 7E 30 30 30 34 20 31 0D | Freeze | |
| ~XX04 0 | 7E 30 30 30 34 20 30 0D | Unfreeze | |
| ~XX05 1 | 7E 30 30 30 35 20 31 0D | Zoom Plus | |
| ~XX06 1 | 7E 30 30 30 36 20 31 0D | Zoom Minus | |
| ~XX12 1 | 7E 30 30 31 32 20 31 0D | Direct Source Commands | HDMI |
| ~XX12 2 | 7E 30 30 31 32 20 32 0D | ||
| ~XX12 4 | 7E 30 30 31 32 20 34 0D | ||
| ~XX12 5 | 7E 30 30 31 32 20 35 0D | VGA1 | |
| ~XX12 6 | 7E 30 30 31 32 20 36 0D | VGA 2 | |
| ~XX12 8 | 7E 30 30 31 32 20 38 0D | VGA1 Component | |
| ~XX12 9 | 7E 30 30 31 32 20 39 0D | S-Video | |
| ~XX12 10 | 7E 30 30 31 32 20 31 30 0D | Video | |
| ~XX12 13 | 7E 30 30 31 32 20 31 33 0D | VGA 2 Component | |
| ~XX12 14 | 7E 30 30 31 32 20 31 34 0D | Component | |
| ~XX12 20 | 7E 30 30 31 32 20 32 30 0D | ||
| DisplayPort | |||
| ~XX20 1 | 7E 30 30 32 30 20 31 0D | Display Mode | Presentation |
| ~XX20 2 | 7E 30 30 32 30 20 32 0D | Bright | |
| ~XX20 3 | 7E 30 30 32 30 20 33 0D | Movie | |
| ~XX20 4 | 7E 30 30 32 30 20 34 0D | sRGB | |
| ~XX20 5 | 7E 30 30 32 30 20 35 0D | User | |
| ~XX20 7 | 7E 30 30 32 30 20 37 0D | Blackboard | |
| ~XX20 13 | 7E 30 30 32 30 21 33 0D | DICOM SIM. | |
| ~XX20 9 | 7E 30 30 32 30 20 39 0D | 3D | |
| ~XX21 n | 7E 30 30 32 31 20 a 0D | Brightness | n = -50 (a=2D 35 30) ~ 50 (a=35 30) |
| ~XX22 n | 7E 30 30 32 32 20 a 0D | Contrast | n = -50 (a=2D 35 30) ~ 50 (a=35 30) |
| ~XX23 n | 7E 30 30 32 33 20 a 0D | Sharpness | n = 1 (a=31) ~ 15 (a=31 35) |
| ~XX44 n | 7E 30 30 34 34 20 a 0D | Tint | n = -50 (a=2D 35 30) ~ 50 (a=35 30) |
| ~XX45 n | 7E 30 30 34 35 20 a 0D | Color | n = -50 (a=2D 35 30) ~ 50 (a=35 30) |
| ~XX327 n | 7E 58 58 33 32 37 20 a 0D | Color Matching Red Hue | n=-127(a=2d 31 32 37)~127(a=31 32 37) |
| ~XX328 n | 7E 58 58 33 32 38 20 a 0D | Green Hue | |
| ~XX329 n | 7E 58 58 33 32 39 20 a 0D | Blue Hue | |
| ~XX330 n | 7E 58 58 33 33 30 20 a 0D | Cyan Hu | |
| ~XX331 n | 7E 58 58 33 33 31 20 a 0D | Yellow Hue | |
| ~XX332 n | 7E 58 58 33 33 32 20 a 0D | Magenta Hue | |
| ~XX333 n | 7E 58 58 33 33 33 20 a 0D | Cyan Hue | |
| ~XX333 n | 7E 58 58 33 33 33 20 a 0D | Red Saturation | |
| ~XX334 n | 7E 58 58 33 33 34 20 a 0D | Green Saturation | |
| ~XX335 n | 7E 58 58 33 33 35 20 a 0D | Blue Saturation | |
| ~XX336 n | 7E 58 58 33 33 36 20 a 0D | Cyan Saturation | |
| ~XX337 n | 7E 58 58 33 33 37 20 a 0D | Yellow Saturation | |
| ~XX338 n | 7E 58 58 33 33 38 20 a 0D | Magenta Saturation | |
| ~XX339 n | 7E 58 58 33 33 39 20 a 0D | Red Gain | |
| ~XX340 n | 7E 58 58 33 34 30 20 a 0D | Green Gain | |
| ~XX341 n | 7E 58 58 33 34 31 20 a 0D | Blue Gain | |
| ~XX342 n | 7E 58 58 33 34 32 20 a 0D | Cyan Gain | |
| ~XX343 n | 7E 58 58 33 34 33 20 a 0D | Yellow Gain | |
| ~XX344 n | 7E 58 58 33 34 34 20 a 0D | Magenta Gain | |
| ~XX345 n | 7E 58 58 33 34 35 20 a 0D | White/R | |
| ~XX346 n | 7E 58 58 33 34 36 20 a 0D | White/G | |
| ~XX347 n | 7E 58 58 33 34 37 20 a 0D | White/B | |
| ~XX215 1 | 7E 58 58 32 31 35 20 a 0D | Reset | |
| ~XX24 n | 7E 30 30 32 34 20 a 0D | RGB Gain/Bias | Red Gain |
| ~XX25 n | 7E 30 30 32 35 20 a 0D | Green Gain | |
| ~XX26 n | 7E 30 30 32 36 20 a 0D | Blue Gain | |
| ~XX27 n | 7E 30 30 32 37 20 a 0D | Red Bias | |
| ~XX28 n | 7E 30 30 32 38 20 a 0D | Green Bias | |
| ~XX29 n | 7E 30 30 32 39 20 a 0D | Blue Bias | |
| ~XX33 n | 7E 30 30 33 33 20 a 0D | Reset | |
| n = -50 (a=2D 35 30) ~ 50 (a=35 30) | |||
| ~XX34 n | 7E 30 30 33 34 20 a 0D | BrilliantColorTM | |
| ~XX196 n | 7E 30 30 31 39 36 20 a 0D | Noise Reduction | |
| ~XX35 1 | 7E 30 30 33 35 20 31 0D | Gamma | Film |
| ~XX35 3 | 7E 30 30 33 35 20 33 0D | Graphics | |
| ~XX35 5 | 7E 30 30 33 35 20 35 0D | 1.8 | |
| ~XX35 6 | 7E 30 30 33 35 20 36 0D | 2.0 | |
| ~XX35 7 | 7E 30 30 33 35 20 37 0D | 2.2 |
(5 minutes for each step).
| ~XX107 n | 7E 30 30 31 30 37 20 a 0D | Sleep Timer (min) | n = 0 (a=30) ~ 995 (a=39 39 35) | |
| (30 minutes for each step). | ||||
| ~XX114 1 | 7E 30 30 31 31 34 20 31 0D | Power Mode(Standby) | Active (<=0.5W) | |
| ~XX114 0 | 7E 30 30 31 31 34 20 30 0D | Eco. (0/2 for backward compatible) | ||
| ~XX109 1 | 7E 30 30 31 30 39 20 31 0D | Lamp Reminder | On | |
| ~XX109 0 | 7E 30 30 31 30 39 20 30 0D | Off (0/2 for backward compatible) | ||
| ~XX110 1 | 7E 30 30 31 31 30 20 31 0D | Brightness Mode | Bright | |
| ~XX110 2 | 7E 30 30 31 31 30 20 32 0D | Eco | ||
| ~XX110 5 | 7E 30 30 31 31 30 20 35 0D | Power | ||
| ~XX326 n | 7E 30 30 33 32 36 20 a 0D | Power | 350W/340W/330W/320W/310W/300W/290W/280W(n=0/n=1/n=2/n=3/n=4/n=5/n=6/n=7/n=8) | |
| ~XX111 1 | 7E 30 30 31 31 31 20 31 0D | Lamp Reset | Yes | |
| ~XX111 0 | 7E 30 30 31 31 31 20 30 0D | No (0/2 for backward compatible) | ||
| ~XX112 1 | 7E 30 30 31 31 32 20 31 0D Reset | Yes |
| ~XX99 1 | 7E 30 30 39 39 20 31 0D | RS232 Alert Reset | Reset | System Alert |
| ~XX210 n | 7E 30 30 32 30 30 20 n 0D | Display message on the OSD | ||
SEND to emulate Remote
| ~XX140 10 | 7E 30 30 31 34 30 20 31 30 OD | Up |
| ~XX140 11 | 7E 30 30 31 34 30 20 31 31 OD | Left |
| ~XX140 12 | 7E 30 30 31 34 30 20 31 32 OD | Enter (for projection MENU) |
| ~XX140 13 | 7E 30 30 31 34 30 20 31 33 OD | Right |
| ~XX140 14 | 7E 30 30 31 34 30 20 31 34 OD | Down |
| ~XX140 15 | 7E 30 30 31 34 30 20 31 35 OD | Keystone + |
| ~XX140 16 | 7E 30 30 31 34 30 20 31 36 OD | Keystone – |
| ~XX140 17 | 7E 30 30 31 34 30 20 31 37 OD | Volume – |
| ~XX140 18 | 7E 30 30 31 34 30 20 31 38 OD | Volume + |
| ~XX140 19 | 7E 30 30 31 34 30 20 31 39 OD | Brightness |
| ~XX140 20 | 7E 30 30 31 34 30 20 32 30 OD | Menu |
| ~XX140 21 | 7E 30 30 31 34 30 20 32 32 OD | Zoom |
| ~XX140 28 | 7E 30 30 31 34 30 20 32 38 OD | Contrast |
| ~XX140 47 | 7E 30 30 31 34 30 20 34 37 OD | Source |
SEND from projector automatically
| 232 ASCII Code | HEX Code | Function | Projector Return | Description |
when Standby/Warming/Cooling/Out of
Range/Lamp fail/Fan Lock/Over Temperature/
Lamp Hours Running Out/Cover Open
INFOn n:0/1/2/3/4/6/7/8/=
Standby/Warming/Cooling/Out
of Range/Lamp fail/Fan
Lock/Over Temperature/Lamp Hours Running Out/Cover Open
READ from projector
| 232 ASCII Code | HEX Code | Function | Projector Return | Description |
| ~XX121 1 | 7E 30 30 31 32 31 20 31 0D | Input Source Commands | OKn | n: 0/1/2/3/4/5/7/10/15 = None/DVI/VGA1/VGA2/S-Video/Video/BNC/HDMI/Component/DisplayPort |
| ~XX122 1 | 7E 30 30 31 32 32 20 31 0D | Software Version | OKddd | dddd: FW version |
| ~XX123 1 | 7E 30 30 31 32 33 20 31 0D | Display Mode | OKn | n : 0/1/2/3/4/7/9/12 |
| None/Presentation/Bright/Movie/sRGB/Blackboard/DICOM SIM./3D | ||||
| ~XX124 1 | 7E 30 30 31 32 34 20 31 0D | Power State | OKn | n : 0/1 = Off/On |
| ~XX125 1 | 7E 30 30 31 32 35 20 31 0D | Brightness | OKn | |
| ~XX126 1 | 7E 30 30 31 32 36 20 31 0D | Contrast | OKn | |
| ~XX127 1 | 7E 30 30 31 32 37 20 31 0D Format | OKn | n: 1/2/3/5/6/7 =4:3/16:9/16:10/LBX/Native/Auto | |
| *16:9 or 16:10 depend on Screen Type setting | ||||
| ~XX128 1 | 7E 30 30 31 32 38 20 31 0D | Color Temperature | OKn | n : 3/0/1/2 = Warm/Standard/Cool/Cold |
| ~XX129 1 | 7E 30 30 31 32 39 20 31 0D | Projection Mode | OKn | n : 0/1/2/3 = Front-Desktop/ Rear-Desktop/ Front-Ceiling/ Rear-Ceiling |
| ~XX150 1 | 7E 30 30 31 35 30 20 31 0D Information | OKabbbbccddde | ||
Commandes Telnet
| Lead Code | Projector ID | Command ID | Space | Variable | Carriage Return | |||
| ~ | X | X | X | X | X | n | CR | |
| Fix code One Digit~ | 00 | Defined by Optoma 2 or 3 Digit. See the Follow content | One Digit | Per item Definition | Fix code One Digit | |||
| Command | Description | Remark (Parameter) |
| Device-UUID | MAC address (Hex value without'':' separator) | 12 digits |
| Device-SKDClass | The Duet DeviceSdk class name | VideoProjector |
| Device-Make | Maker name | MakerPXLW |
| Device-Model | Model name | Projector |
| Config-URL | Device's IP addressLAN IP address is shown up if LAN IP address is valid.Wireless LAN IP address is shown up if Wireless LAN IP address is valid. | http://xxx.xxx.xxx.xxx/index.html |
| Revision | The revision must follow a major.minor.micro scheme. The revision is only increased if the command protocol is modified. | 1.0.0 |
| Command | Description | Remark (Parameter) |
| POWR | Power control | 0 = Standby |
| 1 = Power on | ||
| POWR? | Inquiry about the power state | 0 = Standby |
| 1 = Power on | ||
| 2 = Cooling down | ||
| 3 = Warming up | ||
| INPT | INPT Input switching | 11 = VGA1 |
| Command | Description | Remark (Parameter) |
| INPT? | Inquiry about input switching | 12 = VGA2 |
| 13 = Component | ||
| 14 = BNC | ||
| 21 = VIDEO | ||
| 22 = S-VIDEO | ||
| 31 = HDMI 1 | ||
| 32 = HDMI 2 | ||
| AVMT | Mute control | 30 = Video and audio mute disable |
| AVMT? | Inquiry about the mute state | 31 = Video and audio mute enable |
| ERST? | Inquiry about the error state | 1st byte: Fan error, 0 or 2 |
| 2nd byte: Lamp error, 0 to 2 | ||
| 3rd byte: Temperature error, 0 or 2 | ||
| 4th byte: Cover open error, 0 or 2 | ||
| 5th byte: Filter error, 0 or 2 | ||
| 6th byte: Other error, 0 or 2 | ||
| 0 to 2 mean as follows:0 = No error detected, 1 = Warning, 2 = Error | ||
| LAMP? | Inquiry about the lamp state | 1st value (1 to 5 digits):Cumulative LAMP operating time (This item shows a lamp operating time (hour) calculated based on that LAMP MODE is LOW.) |
| 2nd value: 0 = Lamp off, 1 = Lamp on | ||
| INST? | Inquiry about the available inputs | The following value is returned.“11 12 21 22 31 32” |
| NAME? | Inquiry about the projector name | The projector name set on the NETWORK menu or the ProjectorViewSetup window is returned |
| INF1? | Inquiry about the manufacturer name | “Optoma” is returned. |
| INF2? | Inquiry about the model name | “EH7700” is returned. |
| INF0? | Inquiry about other information | No other information is available. No parameter is returned. |
| CLSS? | Inquiry about the class information | “1” is returned. |
Trademarks
▶ DLP is trademarks of Texas Instruments.
IBM is a trademark or registered trademark of International Business Machines Corporation.
Macintosh, Mac OS X, iMac, and PowerBook are trademarks of Apple Inc., registered in the U.S. and other countries.
Microsoft, Windows, Windows Vista, Internet Explorer and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
AMX Device Discovery
The projector is monitored and controlDEL by the control system of AMX.
Crestron RoomView Connected™
The projector is monitored and controlDEL by the control system and software of Crestron Electronics, Inc.
PJLink™
PJLink trademark is a trademark applied for registration or is already registered in Japan, the United States of America and other countries and areas.
This projector supports standard protocol PJLink ^™ for projector control and you can control and monitor projector's operations using the same application among projectors of different models and different manufacturers.
Other product and company names mentioned in this user's manual may be the trademarks or registered trademarks of their respective holders.
About Crestron RoomView Connected™
Electronics, Inc. to facilitate configuration of the control system of Crestron and its target devices.
For details, see the website of Crestron Electronics, Inc.
URL http://www.crestron.com
URL http://www.crestron.com/getroomview/
2420 Meadowpine Blvd., Suite #105
Mississauga, ON, L5N 6S2, Canada
Tel: 888-289-6786
42 Caxton Way, The Watford Business Park
Watford, Hertfordshire, WD18 8QZ, UK
www.optomausa.com.br Service: www.optomausa.com.mx
Corée
WOOMI TECH.CO.,LTD
4F, Minu Bldg.3.tw3-14, Kangnam-Ku, seoul, 135-815, KOREA
Tél : +82+2+34430004 Télécopie : +82+2+34430005
Japon
東京都足立区綾瀬3-25-18
株式会社オーエスエム
E-mail: info@osscreen.com www.os-worldwide.com
Taiwan
Unit A, 27/F Dragon Centre, 79 Wing Hong Street,
Cheung Sha Wan, Kowloon, Hong Kong
5F, No. 1205, Kaixuan Rd., Changning District
Shanghai, 200052, China
Table of contents
Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information
Brand : OPTOMA
Model : X605
Category : Projector
