X501 - Projector OPTOMA - Free user manual and instructions

Product Type	DLP Projector
Brand	OPTOMA
Model	X501
Brightness	5000 ANSI Lumens
Native Resolution	XGA (1024 x 768)
Contrast Ratio	15,000:1
Lamp Life	Up to 4000 hours (Normal mode)
Power Supply	100-240 V, 50/60 Hz
Power Consumption	350 W (Normal mode)
Dimensions (L x W x H)	42.4 x 33.8 x 14.1 cm
Weight	5.4 kg
Video Inputs	HDMI, VGA, S-Video, Composite
Audio Output	3.5 mm headphone jack
Built-in Speaker	Yes, 2 x 5 W
Noise Level	29 dB (Eco mode)
Main Features	Long throw projection, vertical and horizontal keystone correction, 1.6x zoom
Maintenance and Cleaning	Clean the air filter regularly with a vacuum cleaner; use a soft, dry cloth for the lens
Security	Kensington lock slot, security password
Spare Parts and Repairability	Replacement lamp available, replaceable air filter
General Information	Professional projector suitable for meeting rooms and classrooms

Frequently Asked Questions - X501 OPTOMA

How to turn on and off the OPTOMA X501 projector?

Press the Power button on the control panel or remote control. To turn off, press the Power button twice. The LED indicator flashes then turns off.

What is the native resolution of the X501 projector?

The native resolution is XGA (1024 x 768). It supports resolutions up to WUXGA (1920 x 1200).

How to adjust image sharpness?

Turn the focus ring on the lens until the image is sharp. Also use the zoom ring to resize.

The projector displays a distorted image, what to do?

Use the keystone correction (menu or Keystone button) to straighten the image horizontally or vertically. Also adjust the projection angle if necessary.

How to connect a computer to the projector?

Connect the VGA or HDMI cable from the computer to the corresponding input on the projector. Then select the appropriate source via the Source menu.

What does the flashing LED indicator mean?

A flashing TEMP indicator indicates overheating; a flashing LAMP indicator signals a lamp problem. Refer to the manual for detailed codes.

How to replace the projector lamp?

Turn off the projector and unplug it. Leave it to cool for 45 minutes. Open the lamp compartment, remove the old lamp and install the new one. Reset the lamp counter in the menu.

Can the projector be used without the remote control?

Yes, all settings are accessible via the control panel on top of the projector. The remote control is optional.

How to clean the air filter?

Turn off the projector and unplug it. Remove the air filter, clean it with a vacuum cleaner or warm soapy water. Dry it completely before reinstalling.

Where to find the complete manual for the X501?

The complete manual is available for free download in PDF format at notice-facile.com. You can also request a translation in your language.

USER MANUAL X501 OPTOMA

Line drawing of a projector with visible lens and control buttons (no text or symbols)

Projecteur

Line drawing of a cord with three leads tied together (no text or symbols)

Line drawing of a multi-pin electrical connector with terminal blocks (no text or symbols)

Line drawing of a portable backpack with a strap and front panel (no text or symbols)

① Trapèze (▼/▲)

13 AUDIO-IN 1/AUDIO-IN 2

Illustration of a mechanical component with a red arrow indicating direction (no text or symbols)

Illustration of a remote control casing with two batteries and a handle (no text or symbols)

Diagram of a remote control device with a red arrow pointing to the handle (no text or symbols present)

Attention

Technical line drawing of an electronic device casing with mounting brackets and a control panel (no text or symbols)

Pieds de réglage

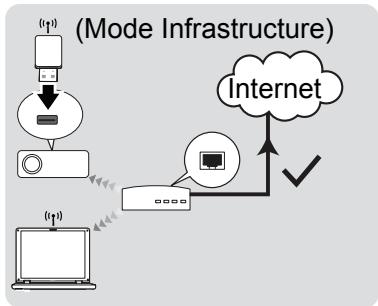

Simple line drawing of a laptop with a signal icon above it (no text or symbols on the device itself)

Important

roomview_connected_embedded_projectors_devices/resources.asp

Close-up photo of a koala with visible eye and mouth, no text or symbols present

Remarque

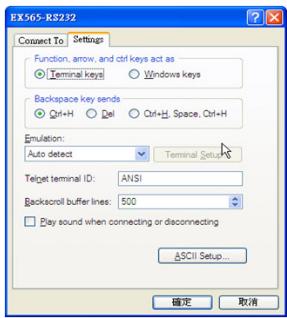

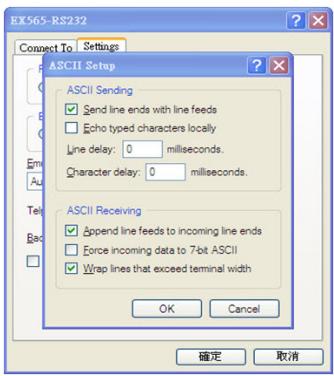

Commandes PJLink

SEND from projector automatically

232 ASCII Code

HEX Code

Function

Projector Return

Description

when Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open

INFOn n : 0/1/2/3/4/6/7/8/ = Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open

READ from projector

232 ASCII Code	HEX Code	Function	Projector Return	Description
~XX121 1	7E 30 30 31 32 31 20 31 0D	Input Source Commands	OKn	n: 0/1/2/3/4/5/6/7/8/9 = None/VGA1/VGA2/Video/S-Video/HDMI/DVI/Flash drive/Network display/USB display
~XX122 1	7E 30 30 31 32 32 20 31 0D	Software Version	OKddd	dddd: FW version
~XX123 1	7E 30 30 31 32 33 20 31 0D	Display Mode	OKn	n: 0/1/2/3/4/5/6/7/8/
None/Presentation/Bright/Movie/sRGB/User/Blackboard/DICOM SIM./3D
~XX124 1	7E 30 30 31 32 34 20 31 0D	Power State	OKn	n: 0/1 = Off/On
~XX125 1	7E 30 30 31 32 35 20 31 0D	Brightness	OKn
~XX126 1	7E 30 30 31 32 36 20 31 0D	Contrast	OKn
~XX127 1	7E 30 30 31 32 37 20 31 0D	Format	Okn	(W501) n: 0/1/2/3/4/5 = 4:3/16:9/16:10/LBX/Native/AUTO(EH501) n: 0/1/2/3/4 =4:3/16:9/LBX/Native/AUTO(X501) n: 0/1/2/3 =4:3/16:9/Native/AUTO
*16:9 or 16:10 depend on Screen Type setting
~XX128 1	7E 30 30 31 32 38 20 31 0D	Color Temperature	OKn	n: 0/1/2 = Warm/Medium/Cold
~XX129 1	7E 30 30 31 32 39 20 31 0D	Projection Mode	OKn	n: 0/1/2/3 = Front-Desktop/ Rear-Desktop/ Front-Ceiling/
Rear-Ceiling
~XX150 1	7E 30 30 31 35 30 20 31 0D	Information	OKabbbbccddddea: 0/1 = Off/Onbbb: LampHourcc: source 00/01/02/03/04/05/06/07/08/09 = dddd: FW versione: Display mode 0/1/2/3/4/5/6/7/8/None/Presentation/Bright/Movie/sRGB/User/ Blackboard/ DICOM SIM /3D
~XX151 1	7E 30 30 31 35 31 20 31 0D	Model name	OKn	n:1/2/3=X501/W501/EH501
~XX108 1	7E 30 30 31 30 38 20 31 0D	Lamp Hours	OKbbb	bbbb: LampHour
~XX108 2	7E 30 30 31 30 38 20 31 0D		Cumulative Lamp Hours OKbbbb bbbb: (5 digits) Total Lamp
Hours
~XX321 1	7E 30 30 33 32 31 20 31 0D		Filter Usage Hours OKbbb bbbb: Filter Usage Hours
~XX87 1	7E 30 30 38 37 20 31 0D	Network Status	Okn	n=0/1 Disconnected/Connected
~XX87 3	7E 30 30 38 37 20 33 0D	IP Address	Okaaa_bbb_ccc_ddd
~XX451 1	7E 30 30 34 35 31 20 31 0D	WLAN Network Status	Okn	n=0/1 Disconnected/Connected
~XX451 2	7E 30 30 34 35 31 20 32 0D	WLAN IP Address	Okaaa_bbb_ccc_ddd
~XX451 3	7E 30 30 34 35 31 20 33 0D	SSID	Okaaaaaaaaaaaaaaaaaaa
