Brand	OPTOMA
Model	X341
Product Type	DLP Projector
Display Technology	DLP 0.55"
Native Resolution	XGA (1024 x 768)
Brightness	3 000 ANSI lumens
Contrast Ratio	15 000:1
Lamp Life (Normal Mode)	5 000 hours
Lamp Life (Eco Mode)	8 000 hours
Power Supply	AC 100-240V, 50/60Hz
Power Consumption (Normal Mode)	225 W
Power Consumption (Standby)	< 0.5 W
Dimensions (W x D x H)	316 x 243 x 108 mm
Weight	2.7 kg
Keystone Correction	Vertical ±40°, Horizontal ±40°
Zoom	1.1x manual
Video Inputs	HDMI, VGA, S-Video, Composite
Built-in Speaker	2W Mono
Filter Cleaning	Recommended interval: 100 hours
Security	Password lock, auto power off
Available Spare Parts	Replacement lamp, air filter

Frequently Asked Questions - X341 OPTOMA

How to connect my computer to the OPTOMA X341 projector?

Use a VGA or HDMI cable depending on your source. Connect one end to the projector and the other to your computer. Select the corresponding input via the Source menu.

What to do if the image is blurry?

Turn the focus ring on the lens until you get a sharp image. Also ensure that the projection distance is appropriate.

How to clean the air filter?

Turn off the projector and unplug it. Remove the filter, clean it with a vacuum or lukewarm water (mild soap). Let it dry completely before reinstalling.

When should the lamp be replaced?

A warning message appears when the lamp nears end of life. Use a certified OPTOMA replacement lamp. Refer to the manual for replacement procedure.

The projector does not turn on, what to do?

Check the power cable and outlet. If the indicator blinks, consult the error code table in the manual. Wait 5 minutes before attempting to power on again.

How to use the standby function?

Press the Power button to turn off the projector, then a second time to confirm. In standby mode, consumption is less than 0.5 W.

Can I install the projector on the ceiling?

Yes, the projector is compatible with a ceiling mount. Use a suitable mounting kit and follow safety instructions. Remember to flip the image in the Settings menu.

How to adjust keystone?

Go to the Display menu, select Keystone Correction, and adjust using the directional keys to correct image distortion.

What does the blinking red light mean?

A blinking red light indicates a lamp or temperature issue. Turn off the projector, let it cool, check the filter and lamp. If the problem persists, contact technical support.

How to reset to factory settings?

Go to the Settings menu, select System Settings, then choose Reset. Confirm to restore default values.

USER MANUAL X341 OPTOMA

Line drawing of a projector with visible ports and control buttons (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ 4

Avis: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Diagram of a cable VGA connector with two connectors and cables (no text or symbols on the diagram itself)

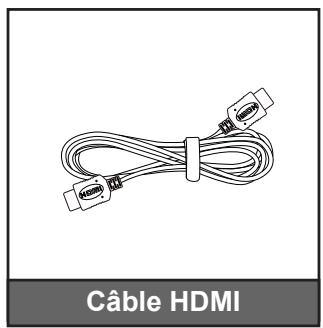

Coiled cable with two connectors, labeled 'Câble HDMI' below (no other text or symbols)

CONFIGURATION ET INSTALLATION

Line drawing of a person sitting in a chair watching a projector on a table (no text or symbols)

Line drawing of a person sitting in a chair watching a projector projection (no text or symbols)

Line drawing of a person sitting in a chair watching a projector on a screen (no text or symbols)

Line drawing of a person sitting in a chair watching a projector screen, with no text or symbols present.

Illustration of hands using a tool to adjust or install a component, with red arrows indicating direction (no text or symbols present)

Illustration of a projector with internal components and a separate heat sink component (no text or symbols)
