X340 - Projector OPTOMA - Free user manual and instructions

Product Type	DLP Projector
Brand	OPTOMA
Model	X340
Native Resolution	XGA (1024 x 768)
Brightness	3400 ANSI lumens
Contrast Ratio	20,000:1
Display Technology	DLP
Lamp Life (Normal Mode)	5000 hours
Lamp Life (Eco Mode)	10,000 hours
Keystone Correction	Vertical +/- 40°
Zoom	1.1x
Projection Distance	1.0 - 12.0 meters
Image Size	27 - 300 inches
Video Inputs	HDMI, VGA, Composite
Audio Ports	3.5mm audio input, 3.5mm audio output
Built-in Speaker	1 x 2W mono
Dimensions (W x D x H)	314 x 224 x 88 mm
Weight	2.5 kg
Power Supply	100-240 V, 50/60 Hz
Power Consumption	225W (Normal Mode), < 0.5W standby
Noise Level	29 dB (Eco Mode)
Main Features	Eco mode, keystone correction, digital zoom, PC-less presentation
Maintenance and Cleaning	Clean air filter every 1000 hours, use a soft cloth for optics
Security	Kensington lock, user password
Spare Parts and Repairability	Replacement lamp (model BL-FG220A), air filter

Frequently Asked Questions - X340 OPTOMA

How to replace the lamp of the OPTOMA X340 projector?

Turn off the projector and unplug it. Let cool for 30 minutes. Open the lamp compartment on the side, unscrew the old lamp and replace it with a new one (model BL-FG220A). Close and reset the lamp counter in the menu.

How to clean the air filter?

Turn off and unplug the projector. Locate the filter on the side, remove it and gently vacuum the dust with a vacuum cleaner. If very dirty, wash with warm soapy water, rinse and dry completely before reinstalling.

My projector displays a blurry image, what should I do?

Check focus by turning the focus ring on the lens. Also ensure that the projection distance is correct and that the lens is clean.

How to connect my computer to the projector?

Use an HDMI or VGA cable. Connect one end to the computer and the other to the corresponding input on the projector. Select the correct source using the Source button on the remote control.

The projector does not turn on, standby light flashes?

Check that the power cord is properly plugged in and that the lamp is correctly installed. If the light flashes rapidly, it may indicate overheating: let it cool down and clean the air filter.

How to use keystone correction?

Press the Keystone button on the remote control. Use the up/down arrows to adjust vertical distortion until you get a rectangular image.

What is the lamp life?

In normal mode, about 5000 hours; in eco mode, up to 10,000 hours. Replace the lamp when the image becomes dim or a message is displayed.

Can I project without a video cable?

Yes, the projector supports PC-less presentation via a USB port: insert a USB drive containing images or a compatible PDF file, then select the USB source in the menu.

How to reset the lamp counter?

Go to the OSD menu, Settings section, then Lamp Counter. Select 'Reset' after changing the lamp. Confirm the operation.

No sound from the built-in speaker, what should I do?

Check that the volume is not set to zero in the audio menu. Confirm that the audio source is connected to the audio input (if using VGA). If using HDMI, audio is included.

USER MANUAL X340 OPTOMA

Line drawing of a projector with visible ports and control buttons (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ 4

Avis: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Diagram of a cable VGA connector with two connectors and cables (no text or symbols on the diagram itself)

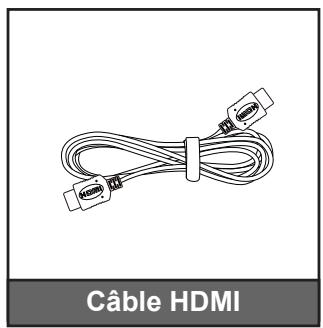

Coiled cable with two connectors, labeled 'Câble HDMI' below (no other text or symbols)

CONFIGURATION ET INSTALLATION

Line drawing of a person sitting in a chair watching a projector on a small table (no text or symbols)

Line drawing of a person sitting in a chair watching a projector projection (no text or symbols)

Line drawing of a person sitting in a chair watching a projector on a screen (no text or symbols)

Line drawing of a person sitting in a chair watching a projector screen, with no text or symbols present.

Illustration of hands using a tool to adjust or install a component, with red arrows indicating direction (no text or symbols present)

UTILISER LE PROJECTEUR

Illustration of a projector with internal components and a separate heat sink component (no text or symbols)
