X310 - Projector OPTOMA - Free user manual and instructions

Product type	DLP projector
Brand	OPTOMA
Model	X310
Native resolution	XGA (1024 × 768)
Brightness	3500 ANSI lumens
Contrast	20,000:1
Lamp life	Up to 10,000 hours (Eco mode)
Keystone correction	Vertical ±40°, horizontal ±30°
Zoom	Manual, 1.1x
Built-in speaker	10 watts mono
Connectivity	HDMI (x2), VGA, USB, audio
Power supply	100-240 V, 50/60 Hz
Power consumption	230 W (max), < 0.5 W standby
Dimensions (W × D × H)	27.0 × 21.0 × 9.0 cm
Weight	2.5 kg
Maintenance and cleaning	Clean the air filter every 500 hours
Security	Auto shutdown, password lock
Spare parts and repairability	Replacement lamp (model OPTOMA BL-FP240A), filter
Included accessories	Power adapter, VGA cable, remote control

Frequently Asked Questions - X310 OPTOMA

What is the brightness of the OPTOMA X310 projector?

The OPTOMA X310 projector offers a brightness of 3500 ANSI lumens, suitable for meeting rooms and home cinemas.

What is the native resolution of the X310?

The native resolution is XGA (1024 × 768), compatible with HD signals via HDMI.

How to clean the projector air filter?

Turn off the projector, unplug it, remove the filter cover, clean the filter with a vacuum or lukewarm water, then dry it completely before replacing.

What is the lamp life?

The lamp lasts up to 10,000 hours in Eco mode and 5,000 hours in standard mode.

Does the projector have keystone correction?

Yes, it has vertical keystone correction of ±40° and horizontal of ±30°.

Can I connect a USB drive to the projector?

Yes, the USB port allows reading image and video files directly from a USB drive.

How to replace the lamp of the OPTOMA X310?

Unplug the projector, remove the lamp cover, unscrew the screws, remove the old lamp, insert the new one (model BL-FP240A) and screw back.

Does the projector have a built-in speaker?

Yes, it includes a 10-watt mono speaker for basic sound.

What cables are provided with the projector?

The box contains a power adapter, a VGA cable, and a remote control.

How to reset the lock password?

Contact OPTOMA support to obtain the reset procedure, as it requires a specific code.

USER MANUAL X310 OPTOMA

Line drawing of a projector with a circular lens and ventilation slots (no text or symbols)

Projecteur

Line drawing of a cord with three leads tied together (no text or symbols)

Line drawing of a multi-pin electrical connector with terminal connectors (no text or symbols)

Coiled cable with two connectors, no text or symbols visible

*Câble HDMI

Illustration of a black remote control with two batteries shown beside it (no text or symbols on the device itself)

Line drawing of a closed box with a curved lid and handle (no text or symbols)

*Sacoche de transport

*Filtre à poussière

Technical line drawing of a device casing with internal components and mounting bracket (no text or symbols)

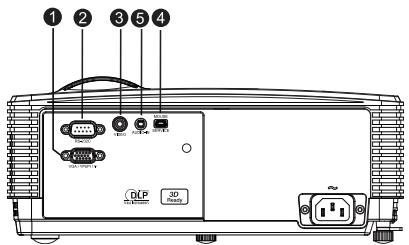

(Type 1-SVGA)

(Type 2-XGA)

① VGA/YPbPr/ ^(1)

1 Alimentation

Illustration of a mechanical component with a red arrow indicating direction (no text or symbols)

Illustration of a remote control casing with two batteries and a handle (no text or symbols)

Diagram of a remote control device with a red arrow pointing to the handle (no text or symbols present)

Attention ■ Pisque d

Remarque

Arrangements audio (Type2/3/4)

Muet

Diagram showing two projector units with a red arrow indicating transformation (no text or symbols present)

Illustration of a projector with a red arrow indicating direction (no text or symbols)

Remarque

SEND from projector automatically

232 ASCII Code	HEX Code	Function	Projector Return	Description
when Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open
			INFOn	n : 0/1/2/3/4/6/7/8/9 = Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open/Lamp SPA mode

READ from projector

232 ASCII Code		HEX Code	Function	Projector Return		Description
~XX121 1		7E 30 30 31 32 31 20 31 0D	Input Source Commands	OKn	n: 0/1/2/3/4 =
None/VGA/Video/HDMI1/HDMI2/
~XX122 1		7E 30 30 31 32 32 20 31 0D	Software Version	OKddd	dddd: FW version
~XX123 1		7E 30 30 31 32 33 20 31 0D	Display Mode	OKn	n : 0/1/2/3/4/5/6/7/8/9 =
None/Cinema/Reference/Vivid/ Bright/Game/3D/User/ISF Day/ISF Night
~XX124 1		7E 30 30 31 32 34 20 31 0D	Power State	OKn	n : 0/1 = Off/On
~XX125 1		7E 30 30 31 32 35 20 31 0D	Brightness	OKn
~XX126 1		7E 30 30 31 32 36 20 31 0D	Contrast	OKn
~XX127 1		7E 30 30 31 32 37 20 31 0D Aspect Ratio		OKn
					n: 0/1/2/3/4/5 = 4:3/16:9/16:10 /LBX/Native/AUTO
					n: 0/1/2/3/4 =4:3/16:9/LBX/Native/AUTO*16:9 or 16:10 depend on Screen Type setting
~XX128 1		7E 30 30 31 32 38 20 31 0D	Color Temperature	OKn	n : 0/1/2/3/ = Standard/Cool/Cold/Warm
~XX129 1		7E 30 30 31 32 39 20 31 0D	Projection Mode	OKn	n : 0/1/2/3 = Front-Desktop/ Rear-
Desktop/ Front-Ceiling/ Rear-Ceiling
~XX150 1		7E 30 30 31 35 30 20 31 0D	Information	OKabbbbccdddde a : 0/1 = Off/On bbbb: LampHour cc: source 00/01/02/03/04 = None/VGA/Video/HDMI1/HDMI2/ dddd: FW version e : Display mode 0/1/2/3/4/5/7/9/ = None/Presentation/Bright/Movie/sRGB/User/Blackboard /3D
~XX151 1		7E 30 30 31 35 31 20 31 0D	Model name	OKn	n:1/2/3/4= DAESSGZ/DAESSGG/DAEXSGZ/VDHDGGG
~XX108 1		7E 30 30 31 30 38 20 31 0D	Lamp Hours	OKbbb	bbb: LampHour
~XX108 2		7E 30 30 31 30 38 20 31 0D	Cumulative Lamp H	OKbbb	bbbb: (5 digits) Total Lamp Hours
