X302 - Projector OPTOMA - Free user manual and instructions

Product type	DLP projector
Brand	OPTOMA
Model	X302
Display technology	DLP 0,55" Texas Instruments
Native resolution	XGA (1024 x 768)
Brightness	3000 ANSI lumens (estimated)
Contrast ratio	2000:1 (estimated)
Lamp life	Up to 3500 hours (Standard mode), up to 5000 hours (Eco+ mode)
Keystone correction	Electronic vertical (+/- 40°)
Built-in speaker	Yes, monophonic

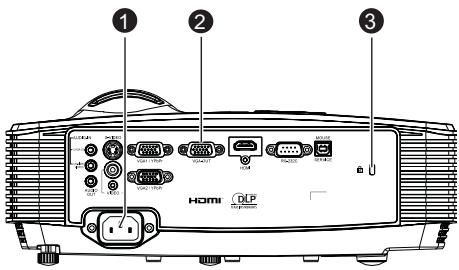

Connectivity	2x VGA (input), 1x VGA (output), 1x HDMI, 1x S-Video, 1x Composite Video, 1x RS-232, 1x USB (service/mouse), 2x Audio Inputs, 1x Audio Output
3D	Yes, compatible with DLP Link and IR, formats Side-by-Side, Top-Bottom, Frame Sequential
Weight	Approximately 2,5 kg (estimated)
Power supply	100-240 V AC, 50/60 Hz
Power consumption	Standby < 0,5 W (Eco mode)
Ceiling mount	Possible, optional kit
Dust filter	Optional, cleaning recommended every 500 hours
Security	Kensington lock, password, security timer
Maintenance and cleaning	Clean the casing with a damp cloth; replace the lamp and filter as indicated

Frequently Asked Questions - X302 OPTOMA

How to turn the projector on and off?

To turn on, press the Power button (⏻) on the projector or remote control. To turn off, press once, a confirmation message appears, press again. The fans continue to run until fully cooled.

Why is the image blurry?

Turn the focus ring on the lens. Make sure the projection distance is appropriate. If the image remains blurry, clean the lens with a soft cloth.

How to correct keystone effect?

Use the vertical keystone correction via the menu DISPLAY > V-Keystone or with the dedicated keys on the remote control (Keystone +/-). Adjust the image until it is rectangular.

The remote control does not work, what to do?

Check the batteries (replace if necessary). Make sure the IR sensor on the front of the projector is not obstructed and that the remote is pointed at it. Avoid direct sunlight or neon light.

How to use 3D mode?

Enable 3D function via the menu DISPLAY > 3D or the dedicated key. Choose the mode (DLP Link or IR) and format (SBS, Top/Bottom, etc.). Wear compatible 3D glasses.

What does the red lamp indicator mean?

The solid red LAMP indicator indicates a lamp problem (malfunction or end of life). Consult the manual for replacement. Wait 45 minutes after turning off to cool down.

How to reset the lamp counter?

After replacing the lamp, go to OPTIONS > Lamp Settings > Lamp Reset and select Yes. This resets the hour counter.

Can I connect a laptop?

Yes, use a VGA cable (supplied) between the laptop's VGA output and the projector's VGA1 or VGA2 input. On some laptops, press a key combination (e.g., FN+F3) to activate the external output.

How to lock the projector keypad?

Go to OPTIONS > Keypad Lock and select On. To unlock, press the ENTER key on the projector for 5 seconds.

What to do if no signal is detected?

Check that the source is turned on and the cable is properly connected. Press the SOURCE key to cycle through inputs. If the problem persists, test with another cable or source.

USER MANUAL X302 OPTOMA

Illustration of a projector with a circular component and a separate ring (no text or symbols)

Line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

Line drawing of a multi-core cable with terminal connectors (no text or symbols)

Retro-style remote control with two batteries shown beside it (no text or symbols on the device itself)

Simple line drawing of a closed bag with a handle and front panel (no text or symbols)

Line drawing of three screws and three washers with separate washers (no text or symbols)

Modèles sans HDMI

Modèles avec HDMI

Illustration of a mechanical component with a red arrow indicating direction (no text or symbols)

Illustration of a remote control casing with two batteries and a battery inside (no text or symbols)

Diagram of a remote control device with a red arrow pointing to a cable or cable (no text or symbols present)

Attention

Line drawing of a projector with control panel and display (no text or symbols)

Remarque

SEND from projector automatically

232 ASCII Code	HEX Code	Function	Projector Return	Description
when Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open
			INFOn	n : 0/1/2/3/4/6/7/8/ = Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open

READ from projector

232 ASCII Code	HEX Code	Function	Projector Return	Description
~XX121 1	7E 30 30 31 32 31 20 31 0D	Input Source Commands	OKn	n: 0/1/2/3/4/5=None/VGA1/VGA2/Video/S-Video/HDMI
~XX122 1	7E 30 30 31 32 32 20 31 0D	Software Version	OKddd	dddd: FW version
~XX123 1	7E 30 30 31 32 33 20 31 0D	Display Mode	OKn	n : 0/1/2/3/4/5/6/7/
None/Presentation/Bright/Movie/sRGB/User/Blackboard /3D
~XX124 1	7E 30 30 31 32 34 20 31 0D	Power State	OKn	n : 0/1 = Off/On
~XX125 1	7E 30 30 31 32 35 20 31 0D	Brightness	OKn
~XX126 1	7E 30 30 31 32 36 20 31 0D	Contrast	OKn
~XX127 1	7E 30 30 31 32 37 20 31 0D	Aspect Ratio	OKn(WXGA)	n: 0/1/2/3/4 = 4:3/16:9 or16:10/LBX/Native/AUTO
			(SVGA/XGA)	n: 0/1/2/3/4 =4:3/16:9/LBX/Native/AUTO
*16:9 or 16:10 depend on Screen Type setting
~XX128 1	7E 30 30 31 32 38 20 31 0D	Color Temperature	OKn	n : 0/1/2 = Warm/Medium/Cold
~XX129 1	7E 30 30 31 32 39 20 31 0D	Projection Mode	OKn	n : 0/1/2/3 = Front-Desktop/ Rear-
Desktop/ Front-Ceiling/ Rear-Ceiling
~XX150 1	7E 30 30 31 35 30 20 31 0D	Information	OKabbbbccddddea : 0/1 = Off/Onbbb: LampHourcc: source= None/VGA1/VGA2/Video/S-Video/HDMIddd: FW versione : Display mode 0/1/2/3/4/5/6/7
00/01/02/03/04/05/
None/Presentation/Bright/Movie/sRGB/User/Blackboard/3D
~XX151 1	7E 30 30 31 35 31 20 31 0D	Model name	OKn	n:1/2/3/4/5=
S2010/S2015/X2010/X2015/W2015
~XX108 1	7E 30 30 31 30 38 20 31 0D	Lamp Hours	OKbbbb	bbbb: LampHour
~XX108 2	7E 30 30 31 30 38 20 31 0D	Cumulative Lamp Hours	OKbbbb	bbbb: (5 digits) Total Lamp Hours
~XX321 1	7E 30 30 33 32 31 20 31 0D	Filter Usage Hours	OKbbbb	bbbb: Filter Usage Hours

Dépannage
