SC-287 - Vacuum Cleaner Scarlett - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Scarlett
Model	SC-287
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1400 W
Dust Capacity	1.5 L
Filtration System	Cyclonic with HEPA filter
Noise Level	78 dB(A)
Cord Length	5 m
Weight	4.5 kg
Dimensions (L x W x H)	250 x 250 x 400 mm
Accessories Included	Crevice tool, dusting brush, upholstery nozzle
Type of Vacuum	Cylinder canister
Suction Power Control	Mechanical slider on handle
Dust Indicator	Full indicator light
Cable Rewind	Automatic with foot pedal
Filter Maintenance	Washable HEPA filter
Product Color	Black and red
Manufacturer Warranty	2 years

Frequently Asked Questions - SC-287 Scarlett

How do I empty the dust container?

Press the release button on top of the dust container and pull it out. Hold it over a trash bin and press the bottom lid release to empty.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3-4 months by rinsing it under lukewarm water and letting it dry completely for 24 hours before reinserting.

What should I do if suction power decreases?

Check for blockages in the hose, wand, or nozzle. Empty the dust container and clean the HEPA filter. Also ensure the filter is properly seated.

Can I use the vacuum on hardwood floors?

Yes, the SC-287 comes with a combined floor nozzle suitable for both carpets and hard floors. For delicate surfaces, use the brush accessory.

How do I rewind the power cord?

Press the foot pedal on top of the vacuum body. The cord will retract automatically. Guide it with your hand to prevent whipping.

What accessories are included?

The package includes a crevice tool, a dusting brush, and an upholstery nozzle. These can be stored on the vacuum body.

How do I replace the HEPA filter?

Open the filter cover, remove the old filter, insert a new one (model SC-287-compatible), and close the cover. Replace every 6-12 months.

The vacuum suddenly stopped working. What could be the reason?

Check if the thermal protection has activated due to overheating. Unplug the vacuum, let it cool for 30 minutes, and check for blockages. If it still doesn't work, consult a service center.

Can I use extension cords?

It is not recommended to use extension cords as they may reduce performance and pose a safety risk. Use a long enough cord or reposition the vacuum.

Is the vacuum bagless?

Yes, the SC-287 is a bagless cyclonic vacuum with a transparent dust container for easy monitoring of fill level.

USER MANUAL SC-287 Scarlett

KZ TYRMBYCTBk SAH COPFbIbbl 14

SL VYSÀVAČ 15

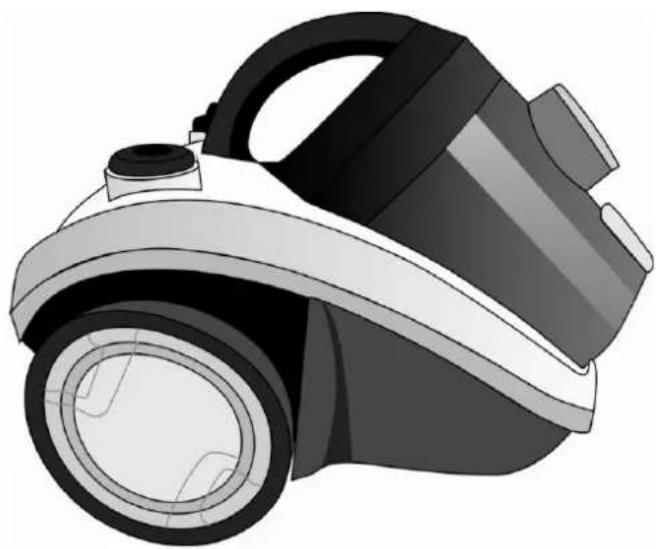

Illustration of a modern vacuum cleaner with black handle and gray body (no text or symbols)

www.scarlett.ru

АЯ46

002

010

GB DESCRIPTION

1. Wheel
2. Dust collector
3. Dust collector handle
4. Dust collector cover
5. Sucking inlet
6. Dust collector bottom release button
7. Dust collector bottom
8. Dust collector lock button
9. ON/OFF button
10. Power cord winding button
11. Power level selector
12. Outlet filter
13. Main filter
14. Filter sponge
15. FLOOR/CARPET nozzle
16. FURNITURE nozzle
17. SLOT nozzle
18. Retractable tube
19. Retractable tube length adjuster
20. Hose
21. Hose locks
22. Hose base
23. Hose air flow control switch
24. Power cord and plug

GB INSTRUCTION MANUAL

IMPORTANT SAFEGUARDS

• Read this instruction manual carefully to prevent any unit damage or injure when using.
• When using this appliance, basic precautions should always be followed:
• Before the first use of the appliance check that the voltage indicated on the rating label corresponds to the mains voltage in your home.

- For home use only. Do not use for industrial purposes.

- To reduce the risk of electric shock, do not use outdoors or on wet surfaces. Do not immerse unit or cord in any liquids.

- Do not handle the plug with wet hands. Never switch off the appliance by pulling the cord.

- Do not let the cord hang over sharp edges or touch hot surfaces.

- Always unplug the appliance from the power supply when not in use and before servicing.

- Do not use appliance with damaged cord or other defects. Do not attempt to repair the appliance, adjust or replace any parts. In case of malfunction, contact the authorized service center for examination, repair, electrical or mechanical adjustment.

- To avoid deforming of plastic components of the appliance or fire accident, never leave the appliance exposed to direct sun light or near any heater.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- To avoid damage of the flexible hose, do not fold or pull it strongly.

- Do not put any object into air outlets. Do not use with outlet blocked. Keep free of dust, hair and anything that may reduce airflow.

- Be careful when cleaning on stairs.

- Before you start using the vacuum cleaner, please remove all large or sharp objects from the floor in order to prevent damage of the unit.

- CAUTION: To avoid voltage overload do not plug the unit and other powerful electrical appliances to the power supply at the same time.

- Never use the vacuum cleaner without filters.

- Do not use the appliance on wet surfaces. This unit does not absorb water.

- If you have cleaned the carpet with liquid detergent, let the carpet dry up completely before vacuuming it.

- Never use the appliance without dust bin. Replace the dust bin without delay if it is damaged.

- If the product has been exposed to temperatures below 0€C for some time it should be kept at room temperature for at least 2 hours before turning it on.

- The manufacturer reserves the right to introduce minor changes into the product design without prior notice, unless such changes influence significantly the product safety, performance, and functions.

PREPARATION

• Unpack the device and remove the sticker from the body.
• In order to connect the hose to the vacuum cleaner insert hose base into sucking inlet and press gently until it clicks. In order to disconnect the hose press two locks located at hose base sides.

- Pull out the retractable tube until the necessary length is reached. For this purpose move the retractable tube length adjuster and pull out the tube end.

- Insert the hose into the tube.

- Attach one of the nozzles to the tube:

- The "FLOOR/CARPET" combined nozzle is designed for carpet mats and similar floor coatings, and for flat surfaces;

• The "FURNITURE" nozzle is designed for cleaning upholstered furniture, curtains and decorative surfaces.
• The "SLOT" nozzle is designed for cleaning in areas, which are not easily accessible, such as corners or narrow slots.

INSTRUCTION FOR USE

- Before starting, unwind the cord to sufficient length and insert the plug into the power supply. The yellow mark on the cord shows optimal cord length. Do not unwind the cord beyond the red mark.

- Press On/Off button to switch the unit on and press again to stop it.

- You can adjust the air flow using the air flow regulator on the flexible hose handle:

– Decrease flow for cleaning curtains, books, furniture, etc.

– Increase flow for cleaning bare floor.

- You can adjust the vacuum cleaner power using the power control on the housing.

- To rewind the cord, press the rewind button and guide the cord with hand to ensure that it does not whip causing damage.

- To prevent motor overheating do not work continuously longer than 30 minutes and obligatory stop the vacuum cleaner for no less than 15 min.

CARE AND CLEANING

- Switch off the appliance and pull the plug from the power supply.

- Clean the appliance outside surface with soft cloth using mild non-abrasive detergent.

- Vacuum cleaner or cord should never be immersed into water or any liquids.

DUST COLLECTOR CLEANING

- Disconnect the vacuum cleaner from the mains.

- Detach the dust collector. For this purpose press the dust collector lock button.

- Empty the dust collector. For this purpose press the dust collector release button.

CLEANING OF FILTERS

- Clean the filters at least once a year. In case if the vacuum cleaner is used frequently, wash the filters after each 3 to 5 dust collector cleaning operations.

- Disconnect the vacuum cleaner from the mains.

- Open the dust collector cover and remove the main filter.

- Wash all plastic parts and sponge of the filter with warm running water, and then dry them thoroughly.

- After cleaning insert the filter into place. Close the dust collector cover rotating it clockwise.

- Remove the rear grill and take out the outlet filter.

- Wash the filter with running water and dry it thoroughly.

• After cleaning insert the filter into place.

- WARNING! Do not use the vacuum cleaner with no filters attached! This may lead to damage of the electric motor.

- Do not wash the filters in washing machine and do not dry them with hair drier.

STORAGE

- Place the appliance vertically.

- Insert the tube into special holder on the body.
