Product type	Freestanding washing machine
Brand	Zoppas
Model	PX43T
Capacity	7 kg
Maximum spin speed	1400 rpm
Energy efficiency class	A+++
Dimensions (H x W x D)	85 cm x 60 cm x 55 cm
Weight	70 kg
Voltage / Frequency	220-240 V / 50 Hz
Rated power	2000 W
Water connection	Cold water only
Programs	Cotton, Synthetics, Delicates, Wool, Quick 30', Eco, Rinse & Spin
Display	LED digital
Delay start	Up to 24 hours
Child lock	Yes
Noise level (washing / spinning)	56 dB / 76 dB
Drum material	Stainless steel
Self-cleaning	Drum clean program
Spare parts availability	At least 10 years
Manual languages	English, French, German, Italian, Spanish (PDF download)

Frequently Asked Questions - PX43T Zoppas

How do I install the washing machine?

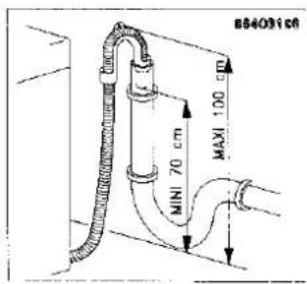

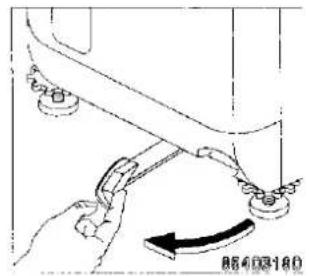

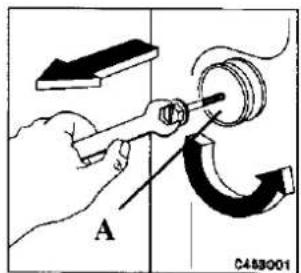

Remove all packaging and transport bolts. Level the machine using the adjustable feet. Connect the water inlet hose to a cold water tap and the drain hose to a standpipe or sink. Plug in and run a short empty cycle before first use.

What is the maximum load capacity?

The maximum dry load capacity is 7 kg. Do not overload to ensure proper washing and avoid damage.

How do I clean the detergent drawer?

Press the release button inside the drawer to remove it. Wash with warm water and a soft brush. Wipe dry and reinsert. Clean regularly to prevent buildup.

What should I do if the machine does not start?

Check that the door is closed properly, the water supply is on, and the machine is plugged in. Ensure the child lock is not activated. If the problem persists, consult the manual's error codes section.

How often should I run the drum cleaning program?

Run the Drum Clean program once a month to remove residue and maintain hygiene. You can also wipe the door seal after each wash.

Can I wash wool and silk in this machine?

Yes, use the Wool and Delicates programs respectively. Always check garment care labels and use appropriate detergents.

How do I reset the machine after a power cut?

If the cycle was interrupted, turn the dial to Off, wait a few minutes, then select the desired program and press Start/Pause to resume or restart.

What does the child lock feature do?

It locks the buttons and door to prevent children from interrupting the cycle. To activate, press and hold the Child Lock button for 3 seconds. Repeat to deactivate.

Where can I find spare parts if needed?

Parts such as belts, pumps, and filters are available from authorized Zoppas service centers or online. Ensure you quote the model PX43T for compatibility.

How do I clean the drain pump filter?

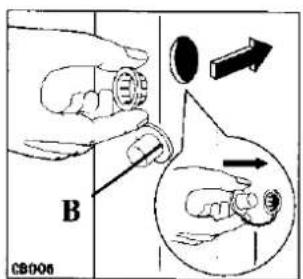

Unplug the machine and wait for water to cool. Open the bottom flap, place a container, unscrew the filter cap, and remove debris. Clean and reassemble. Check monthly.

USER MANUAL PX43T Zoppas

Line drawing of a rectangular electronic device casing with mounting holes and a lid (no text or symbols)

LIBRETTO ISTRUZIONI

i

LA VOSTRA NUOVA MACCHINA

Diagram of an electronic device rear panel with ports and connectors (no text or symbols)

Line drawing of a hand holding a mechanical component, no text or symbols present

Diagram of a device with arrows indicating motion or force, no readable text or symbols present

fig.2

Illustration of hands using a tool to apply or install a component, no text or symbols present

fig.3

Hand holding a switch connected to an electrical panel (no text or symbols visible)

fig.4

fig.5

Illustration of hands holding a small object with a circular inset, no text or symbols present

fig.6

fig.7

fig.8

Mechanical assembly diagram showing a rotating component with directional arrows indicating motion (no text or symbols)

Fig. 1

Line drawing of an open laboratory or storage unit with internal compartments and a tray (no text or symbols)

Fig. 2

Fig 3

Fig 4

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Fig 5

Posizionamento

Illustration of hands holding a mechanical component with two curved arrows indicating rotation or movement (no text or symbols)

Mechanical diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols)

Fig. 1

Fig. 2

Fig. 3

Fig.4

Diagram of a faucet with an arched pipe and handle, no text or symbols present

Fig 6
