P712D - Washing machine Zoppas - Free user manual and instructions

Brand	Zoppas
Model	P712D
Product Type	Washing Machine
Width	60 cm
Height	85 cm
Depth	60 cm (Overall 63 cm)
Maximum Load (Cotton)	7 kg
Maximum Spin Speed	1200 rpm
Water Supply Pressure	0.05 - 0.8 MPa
Energy Consumption (Cotton 60°C)	1.40 kWh
Water Consumption (Cotton 60°C)	60 L
Programme Duration (Cotton 60°C)	120 min
Wash Programmes	Cottons, Synthetics, Delicates, Wool/Hand Wash, Curtains, Duvet, Jeans, Sport, Gym Shoes, Rinse, Spin, Drain
Options	Spin Reduction, Prewash, Easy Iron, Extra Rinse, Delay Start (up to 20h), Child Lock, Acoustic Signals
Detergent Drawer Compartments	Prewash, Main Wash (powder/liquid), Fabric Softener, Bleach
Door Lock	Electronic with child safety feature (rotating button inside door)
Noise Level	Unusual noise due to inverter motor (normal)
Installation	Free-standing, adjustable feet, leveling required
Electrical Connection	See rating plate on door edge; connect to earthed socket
Water Connection	Cold water only, 3/4" thread
Drain Hose	Max height 90 cm, min 60 cm
Care & Cleaning	Descaling, external cleaning, drawer cleaning, drain pump filter cleaning, inlet filter cleaning
Safety Features	Child lock, door lock indicator, overfill protection, unbalanced load detection, frost precautions
Spare Parts	Genuine parts available from Service Centre
Reparability	Repairs by qualified personnel only; user replaceable items: filters, hose

Frequently Asked Questions - P712D Zoppas

How do I activate the child lock feature?

Rotate the button inside the door (without pressing it) clockwise until the groove is horizontal. Use a coin if needed. To disable, rotate anti-clockwise until vertical.

What should I do if the machine does not start?

Ensure the door is closed firmly, the plug is inserted, the fuse is intact, and the programme dial is correctly positioned. Check if a delayed start is set. If alarm codes appear (E40, E10, E20), resolve the issue and press button 7 to restart.

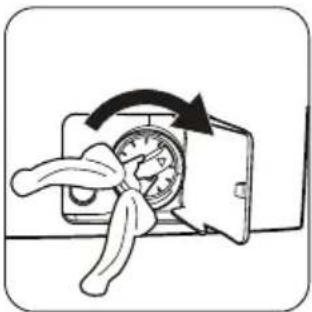

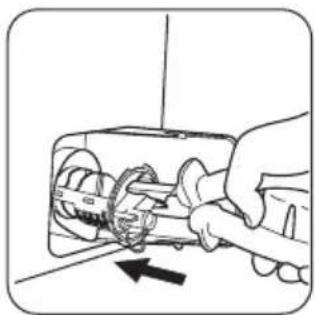

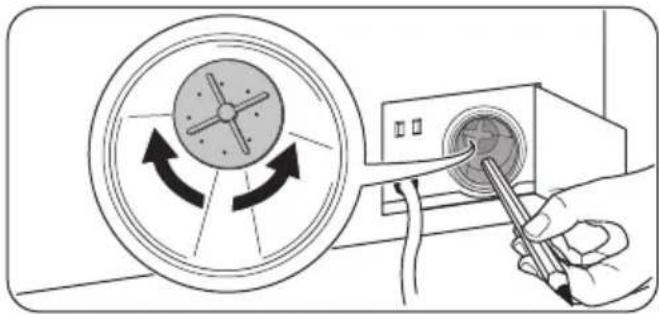

How do I clean the drain pump filter?

Unplug the appliance. Open the pump door using a coin. Place a bowl underneath, remove the emergency emptying cap, then unscrew the pump cover. Clean the filter under a tap, remove foreign bodies, and reassemble securely.

Can I use liquid detergent?

Yes, if using liquid detergent, flip the flap in the detergent drawer down. Do not use with prewash programmes or if the wash does not start immediately. Pour liquid detergent into the main wash compartment without exceeding the limit.

What does the display show when an error occurs?

Alarm codes such as E10 (water supply), E20 (draining), E40 (door open) appear. The red pilot light of button 7 blinks and acoustic signals sound every 20 seconds. After fixing, press button 7 to restart.

How do I prevent creasing and make ironing easier?

Select the 'Easy Iron' option (Stiro Facile) which reduces spin speed and adds rinses. Alternatively, use 'Antipiega' (anti-crease) which leaves the final rinse water in the drum to prevent creases.

What is the maximum load for different fabrics?

Cotton: 7 kg (reduced 3.5 kg with short cycle). Synthetics: 3.5 kg. Delicates: 3.5 kg. Wool: 2 kg. Curtains: 2 kg. Duvet: 2 kg. Jeans: 3.5 kg. Sport: 3 kg. Gym shoes: 1 pair.

How do I set a delayed start?

Select the programme and options, then press button 8 repeatedly to choose delay from 30 min up to 20 hours. Press button 7 to start the countdown. To cancel, pause the machine by pressing button 7, then press button 8 once to see '0' and press button 7 again.

What should I do if the machine vibrates excessively?

Ensure transit bolts are removed, the machine is level (adjust feet), and the floor is stable. Redistribute the laundry evenly. A small load may cause imbalance; add more items or select a spin programme.

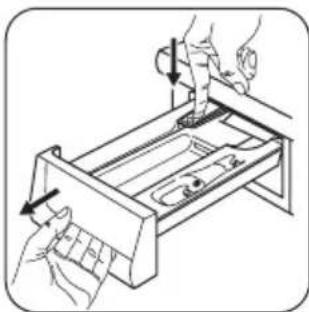

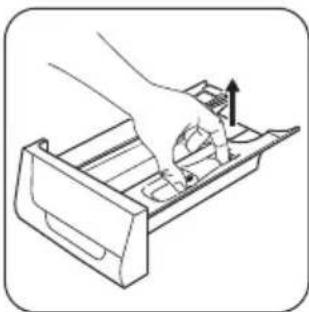

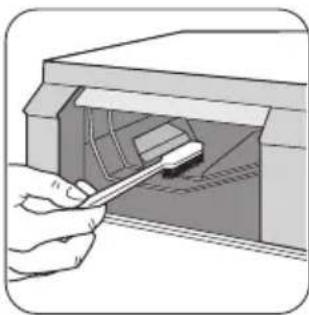

How do I clean the detergent drawer?

Remove the drawer by pressing the catch downwards and pulling out. Flush under a tap. Remove the top part of the additive compartment for thorough cleaning. Clean the recess with a small brush. Replace drawer and run a rinse cycle without laundry.

USER MANUAL P712D Zoppas

What to do if ... 13
Technical data 16
Consumption values 16
Care and cleaning 16
Installation 19
Electrical connection ____ 21
Environment concerns ____ 21

Subject to change without notice

Safety information

Important! Read carefully & keep for future reference.

• The safety of Your appliance complies with the industry standards and with legal requirements on the safety of appliances. However, as manufacturers, we feel it is our duty to provide the following safety notes.
• It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.
• You MUST read them carefully before installing or using the appliance.
• Before first starting up, check the appliance for any damage incurred during transport. Never connect up a damaged appliance. If parts are damaged, contact your supplier.
• If the appliance is delivered in the winter months when there are minus temperatures. Store it at room temperature for 24 hours before using for the first time.

General safety

• It is dangerous to alter the specifications or attempt to modify this product in any way.
• During high temperature wash programmes the door glass may get hot. Do not touch it!
• Make sure that small pets and children do not climb into the drum. To avoid this, please check into the drum before using.
• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.

• Only use the advised quantities of fabric softener and detergent. Damage to the fabric can ensue if you over-fill. Refer to the manufacturer's recommendations of quantities.

• Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum.

• Do not use your washing machine to wash articles with whalebones, material without hems or torn material.
• Always unplug the appliance and turn off the water supply after use, cleaning and maintenance.
• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced people may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.

Installation

• This appliance is heavy. Care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

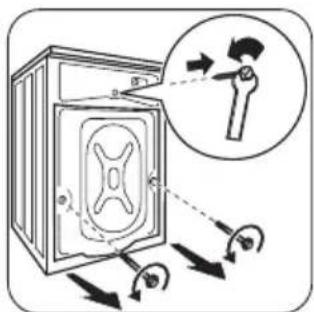

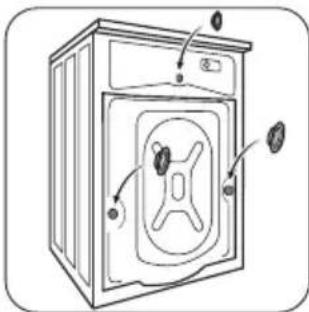

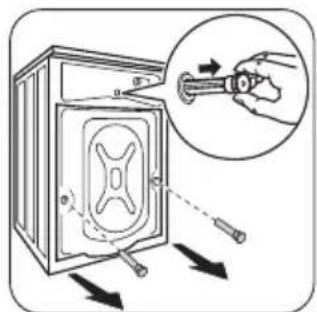

• All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.
  • After having installed the appliance, check that it is not standing on the inlet and drain hose and the worktop is not pressing the electrical supply cable against the wall.
• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely under the appliance.
  • Always be sure, that there is no water leakage from hoses and their connections after the installation.
• If the appliance is installed in a location subject to frost, please read the “dangers of freezing” chapter.
• Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.

- Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.

- Do not overload the appliance. See the Washing Programme Table.

- Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing frayed or torn articles and treat stains such as paint, ink, rust, and grass before washing. Underwired bras must NOT be machine washed.

- Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.

- Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.

- Never use the appliance if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the washing machine is accessible.

Child safety

- This appliance is not intended for use by person (including children) with reduced physical sensory or mental ca-

pabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
- The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children's reach
- Keep all detergents in a safe place out of children's reach.
• Make sure that children or pets do not climb into the drum. To prevent children and pets becoming trapped inside the drum this machine incorporates a special feature.

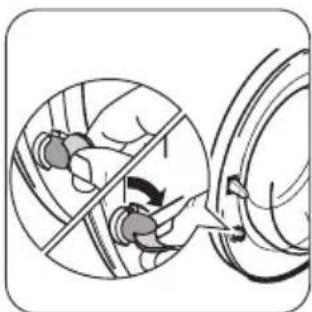

Illustration of a hand using a tool to adjust or install a mechanical component, showing no text or symbols.

To activate this device, rotate the button (without pressing it) inside the door clockwise until the groove is horizontal. If necessary use a coin.

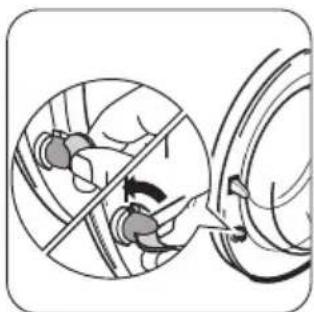

Illustration of a hand using a tool to adjust or install a mechanical component, showing no text or symbols.

To disable this device and restore the possibility of closing the door, rotate the button anti-clockwise until the groove is vertical.

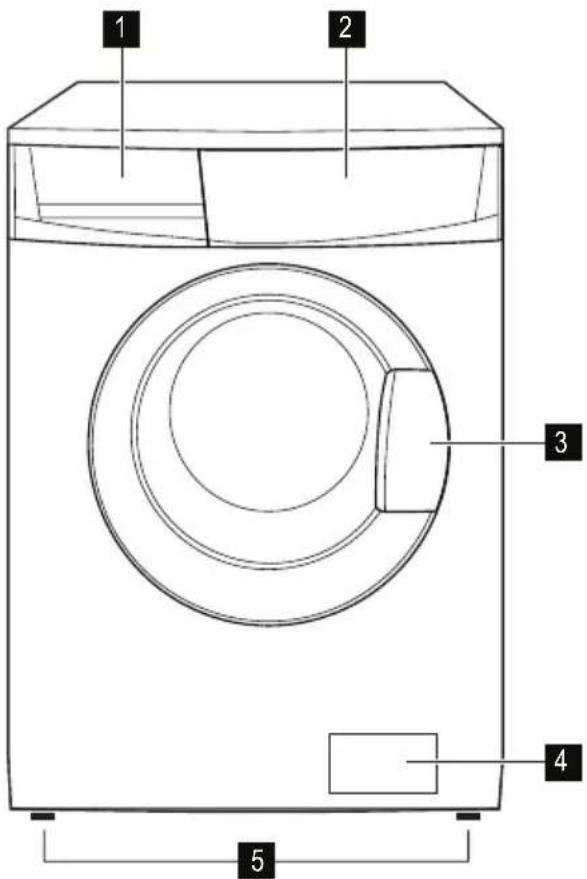

Product description

1 Detergent dispenser drawer
2 Control panel
3 Door opening handle
4 Rating plate
5 Drain pump
6 Adjustable feet

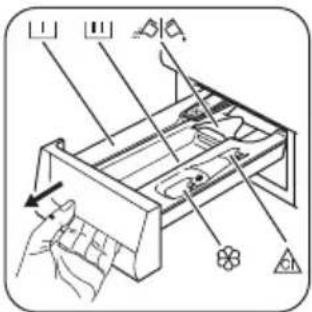

Detergent dispenser drawer

U Compartment for detergent used for prewash and soak phase or for stain remover used during the stain action phase (if available). The prewash and soak detergent is added at the beginning of the wash programme. The stain remover is added during the stain action phase.

Compartment for powder or liquid detergent used for main wash. If using liquid detergent pour it just before starting the programme.

Compartment for liquid additives (fabric softener, starch).

Compartment for bleaching agent. It must be placed just before starting the washing programme. We suggest you to use it only with white cotton items. Follow the product manufacturer's recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer. Any fabric softener or starching additives must be poured into the compartment before starting the wash programme.

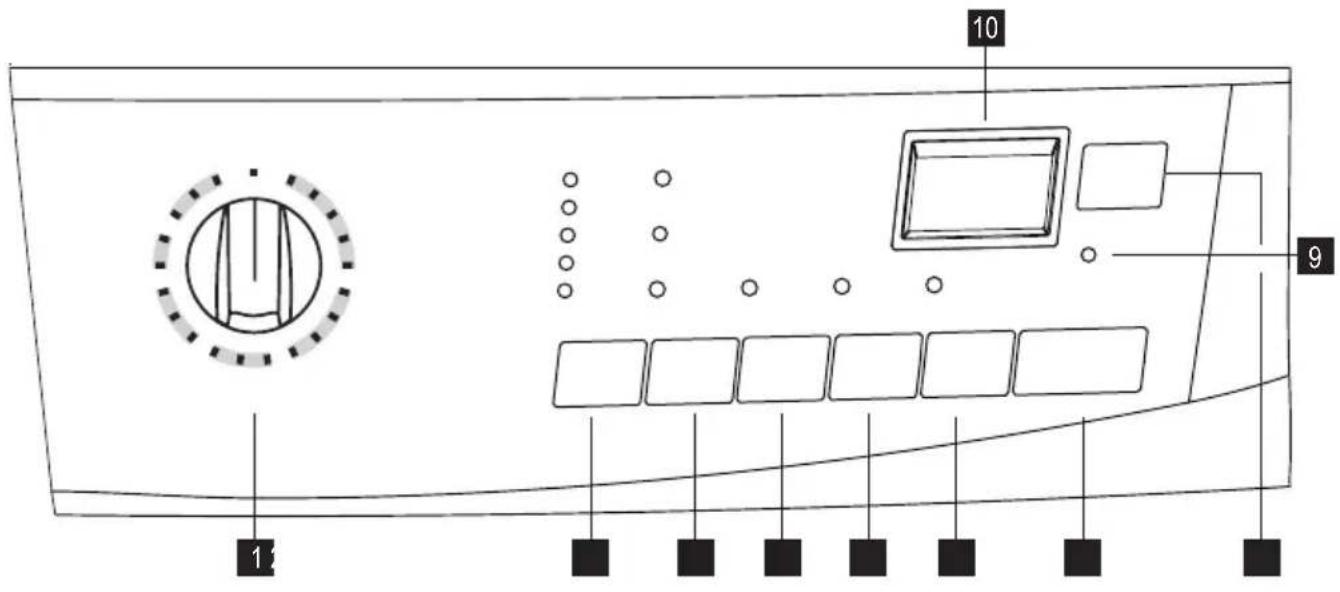

Control panel

On the following page there is a picture of the control panel. It shows the programme selector dial as well as the buttons, pilot lights and the display. These are presented by relevant numbers on the following pages.

1 Programme selector dial
2 Spin reduction button (CENTRIFUGA)
3 OPTIONS button (OPZIONI)
4 PREWASH button (PRELAVAGGIO)
5 EASY IRON button (STIRO FACILE)

Table of symbols

Programme and temperature selector dials, spin speed button and available options

Programme Selector Dial

It allows you to switch the appliance on/off and/or to select a programme.

Available options:

Spin reduction button (Centrifuga)

Press the spin reduction button to change the spin speed of the selected programme or to select «Antipiega» or «Esclusione Centrifuga» option.

Esclusione Centrifuga

By selecting this option, all spinning phases are suppressed and replaced by a drain, so as not to wrinkle the laundry. Recommended for extremely delicate fabrics. On some programmes the rinses will be performed with more water.

Antipiega

By selecting this function the water of the last rinse is not emptied out to prevent the fabrics from creasing. Before opening the door it will be necessary to empty out the water. To empty out the water, please read the paragraph «At the end of the programme».

Ciclo A+A

Only for cottons and synthetic items lightly or normally soiled at a temperature of 40^ C or higher. The washing time will be prolonged and the washing temperature will be reduced. You can use this option if you want to wash normally soiled laundry and at the same time save energy.

Quotidiano

A cycle to be used for daily soiled cotton, synthetic or delicate items in order to obtain good washing performance in a short time.

Breve

Short cycle for lightly soiled items or for laundry which needs only freshening up. We recommend you to reduce the fabrics loading.

Prelavaggio

By selecting this option the machine performs a prewash cycle before the main wash phase. The washing time will be prolonged. This option is recommended for heavily soiled laundry.

Stiro facile

By selecting this option the laundry is gently washed and spun to avoid any creasing. In this way ironing is easier. Furthermore the machine will perform some additional rinses in some programmes. On cotton programmes the maximum spin speed is reduced automatically.

This appliance is designed for saving energy. If it necessary to rinse the laundry using an extra quantity of water select this option. Some additional rinses will be performed. This option is recommended for people who are allergic to detergents, and in areas where the water is very soft.

Avvio/Pausa

This button allows you to start or to interrupt the selected programme.

The programme can be delayed from 30 min - 60 min - 90 min, 2 hours and then by 1 hour up to a maximum of 20 hours by means of this button.

Door light

The pilot light 9 illuminates when the programme starts and indicates if the door can be opened:

- light on: the door cannot be opened. The machine is working or has stopped with water left in the tub.

- light off: the door can be opened. The programme is finished or the water has been emptied out.

- light blinking: the door is opening in a few minutes.

Display (10)

The display shows the following information:

10.1: Child safety lock

This device permits you to leave the appliance unattended during it's functioning.

10.2:

• Duration of the selected programme

After selecting a programme, the duration is displayed in hours and minutes (for example 2.05). The duration is calculated automatically on the basis of the maximum recommended load for each type of fabric. After the programme has started, the time remaining is updated every minute.

- Delayed start

The Selected delay set by pressing the relevant button appears on the display for a few seconds, then the duration of the selected programme is displayed again. The delay time value decreases by one unit every hour and then, when 1 hour remains, every minute.

- Alarm codes

In the event of operating problems, some alarm codes can be displayed, for example E20 (see paragraph «What to do if...»).

- Incorrect option selection

If an option which is not compatible with the set wash programme is selected, the message Err is displayed at the bottom of the display for a few seconds and the integrated red light of button 7 start flashing.

• End of programme

When the programme has finished the flashing zero (0) is displayed, the pilot light 9 and the pilot light of button 7 go out and the door can be opened.

First use

- Ensure that the electrical and water connections comply with the installation instructions.

• Remove the polystyrene block and any material from the drum.
• Pour 2 litres of water into the main wash compartment ☐ of the detergent drawer in order to activate the ECO

valve. Then run a cotton cycle at the highest temperature without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the main wash compartment and start the machine.

Personalisation

Acoustic signals

The machine is provided with an acoustic device, which sounds in the following cases:

• By turning the selector dial.

• By pressing the buttons.
  • In case of wrong selection.

• At the end of the cycle.

• If there is a fault.

By pressing the 4 and 5 buttons simultaneously for about 6 seconds, the acoustic signal is deactivated (except if there is a fault). By pressing these 2 buttons again, the acoustic signal is reactivated.

Daily use

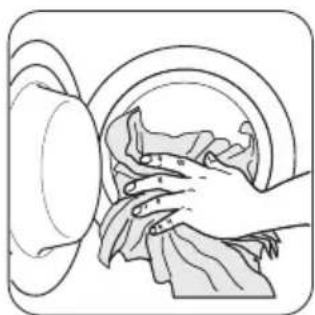

Load the laundry

Illustration of hands cleaning a circular object with a cloth (no text or symbols)

Open the door by carefully pulling the door handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. Close the door.

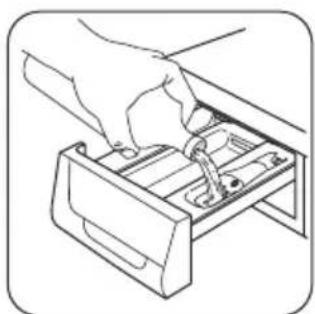

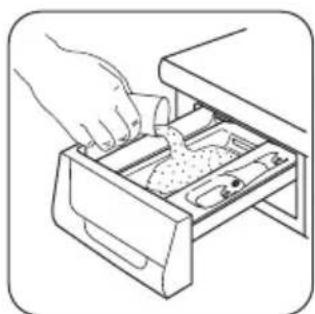

Measure out the detergent and the fabric softener

Line drawing of a hand placing food into a drawer with a tool (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component inside a drawer (no text or symbols)

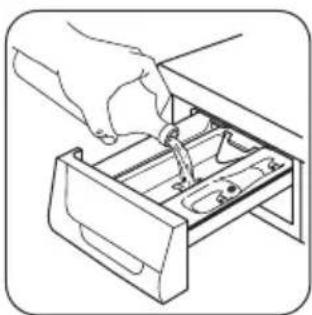

Pull out the dispenser drawer until it stops. Measure out the amount of detergent required, pour it into the main wash compartment ⏚ or in the appropriate compartment if the selected programme/option it requires (see more details in "Detergent dispenser drawer").

If required, pour fabric softener into the compartment marked ⚙ and the bleach agent into the compartment marked ⚠ (the amount used must not exceed the «MAX» mark in the drawer). Close the drawer gently.

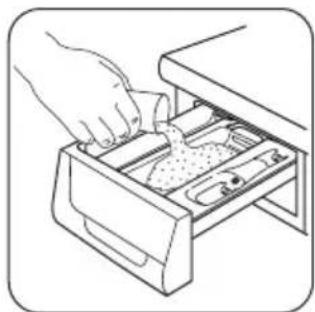

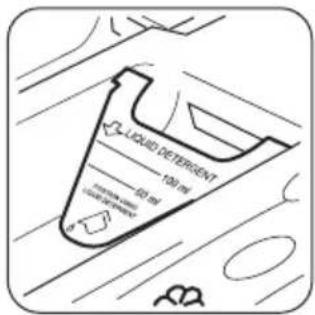

Flap for powder or liquid detergent

UP- The flap position if using POWDER detergent

DOWN - The flap position if using LIQUID detergent during main wash

If the flap is not in the desired position:

Illustration of a hand inserting a device into a drawer (no text or symbols)

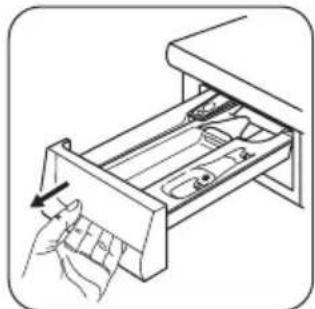

- Pull out the dispenser drawer until it stops.

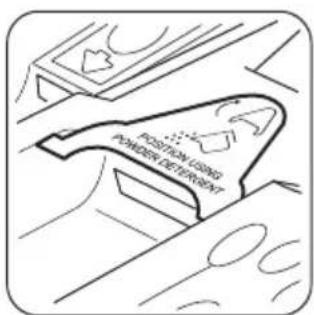

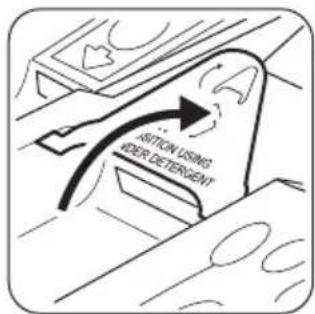

The flap is down and you wish to use powder detergent:

- Turn the flap up.

Line drawing of a hand placing food into a drawer with a tool (no text or symbols)

• Measure out the detergent.

- Pour the powder detergent into the main wash compartment ⏚.

- Remove the remaining powder form the flap.

- There is remaining powder detergent in the main wash compartment at the end of a washing programme. Check if the flap is in the right position.

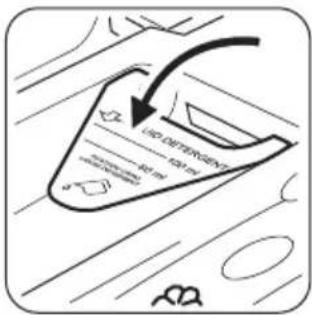

The flap is up and you wish to use liquid detergent:

- Turn the flap down.

Line drawing of a hand inserting a component into a drawer (no text or symbols)

• Measure out the detergent.

For the quantity of detergent, refer always to what is written on the product packing and ensure that the detergent can be poured in the drawer.

- Pour the liquid detergent in the compartment ☐ without exceeding the limit indicated in the flap.

- Close the dispenser drawer.

Warning! Do not use the flap in "DOWN" position with:

• Gelatinous detergent or thick detergent.

• Powder detergent.
• With programmes with prewash.
• Do not use liquid detergent if the washing programme doesn't start immediately.

In these cases, use the flap in "UP" position.

Select the required programme by means of the programme selector dial (1)

Turn the programme selector dial to the required programme. The green pilot light of button 7 starts to flash. The selector dial can be turned either clockwise or anticlockwise.

Turn the selector dial to position ○ to reset the programme/ to switch the machine OFF.

At the end of the programme the selector dial must be turned to position ○, to switch the machine off.

Important! If you turn the programme selector dial to another programme when the machine is working, the red pilot light of button 7 will blink 3 times and the message Err is displayed to indicate a wrong selection. The machine will not perform the new selected programme.

Select the spin speed by pressing button 2

When selecting a programme, the appliance proposes automatically the maximum spin speed provided for that pro-

gramme. (See "Washing programmes" for the maximum allowed spin speed).

Press this button repeatedly to change the spin speed, if you want your laundry to be spun at a different speed. The relevant pilot light illuminates.

Select the available options by means of buttons 3, 4, 5 and 6

Depending on the programme, different options can be combined. These must be selected after choosing the desired programme and before starting the programme. When these buttons are pressed, the corresponding pilot lights illuminate. When they are pressed again, the pilot lights go out. If an incorrect option is selected, the integrated red pilot light of the button 7 flashes 3 times and the message Err is displayed.

For the compatibility among the washing programmes and the options see chapter «Washing programmes».

Start the programme by pressing button 7

To start the selected programme, press this button; the corresponding green pilot light stops blinking.

The pilot light 9 illuminates to indicate that the appliance starts operating and the door is locked.

If you have chosen a delayed start, the machine will begin the countdown.

Important! If an incorrect option is selected, the message Err is displayed for a few seconds and the red pilot light of this button blinks 3 times.

Select the Delay Start by pressing button 8

Before you start the programme, if you wish to delay the start, press this button to select the desired delay.

The selected delay time value will appear on the display for a few seconds, then the duration of the programme will appear again.

You must select this option after you have set the programme and before you start the programme.

You can cancel or modify the delay time at any moment, before you press button 7.

Selecting the delay start :

1. Select the programme and the required options.
2. Select the delay start by pressing button 8.
3. Press button 7 :

- the machine starts its hourly countdown.

- the programme will start after the selected delay has expired.

Cancelling the Delay Start after having started the programme:

1. Set the washing machine to PAUSE by pressing button 7.
2. Press button 8 once. On the display will appear ☐'.
3. Press button 7 again to start the programme.

Important!

• The selected delay can be changed only after selecting the washing programme again.
• The door will be locked throughout the delay time. If you need to open the door, you must first set the washing machine to PAUSE by pressing button 7 and wait a few minutes before opening the door. After you have closed the door, press the same button again.

Important! The Delay Start cannot be selected with the draining programme.

Altering an option or a running programme

It is possible to change some options before the programme carries them out.

Before you make any change, you must pause the washing machine by pressing button 7.

Changing a running programme is possible only by resetting it. Turn the programme selector dial to ○ and then to the new programme position. Start the new programme by pressing button 7 again.

The washing water in the tub will be not emptied out.

Interrupting a programme

Press the button 7 to interrupt a programme which is running, the corresponding pilot light starts blinking. Press the button again to restart the programme.

Cancelling a programme

Turn the selector dial to ☐ to cancel a programme which is running. Now you can select a new programme.

Opening the door after the programme has started

First set the machine to pause by pressing the button 7. If the pilot light 9 blinks and after a few minutes goes off, the door can be opened.

If the pilot light 9 remains lit, this means that the machine is already heating or that the water level is too high. In any case, do not try to force the door open!

If you cannot open the door but you need to open it, you have to switch the machine off by turning the selector dial to

○. After a few minutes the door can be opened.

(Pay attention to the water level and temperature!).

After closing the door, it is necessary to select the programme and options again and to press button 7.

At the end of the programme

The machine stops automatically. Some acoustic signals sound and a blinking ☐ appears on the display, the pilot light of button 7 and the pilot light 9 go off.

If a programme or an option that ends with water left in the tub has been selected, the pilot light 9 remains on and the

door is locked to indicate that the water must be emptied out before opening the door.

Follow the below instructions to empty out the water:

1. Turn the programme selector dial to ○.
2. Select the draining or spinning programme.
3. Reduce the spin speed if needed, by pressing the relevant button.
4. Press button 7.

At the end of the programme, the door is released and can be opened. Turn the programme selector dial to ○ to switch the machine off.

Remove the laundry from the drum and carefully check that the drum is empty. If you do not intend to carry out another wash, close the water tap. Leave the door open to prevent the formation of mildew and unpleasant smells.

Stand by : once the programme has finished after a few minutes the energy saving system will be enabled. The bright-

ness of the display is reduced. By pressing any button the appliance will come out of the energy saving status.

Helpful hints and tips

Sorting out the laundry

Follow the wash code symbols on each garment label and the manufacturer's washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens.

Before loading the laundry

Never wash whites and coloureds together. Whites may lose their «whiteness» in the wash.

New coloured items may run in the first wash; they should therefore be washed separately the first time.

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

Remove persistent stains before washing.

Rub particularly soiled areas with a special detergent or detergent paste.

Treat curtains with special care. Remove hooks or tie them up in a bag or net.

Removing stains

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Ball point pen and glue: moisten with acetone ^1) , lay the garment on a soft cloth and dab the stain.

Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Treat any residual marks with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach.

Ink: depending on the type of ink, moisten the fabric first with acetone ^1) , then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste.

Detergents and additives

Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment.

Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature.

The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling.

All commonly available washing machine detergents may be used in this appliance:

• powder detergents for all types of fabric
• powder detergents for delicate fabrics (60°C max) and woollens
• liquid detergents, preferably for low temperature wash programmes (60°C max) for all types of fabric, or special for woollens only.

The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme.

If using liquid detergents, a programme without prewash must be selected.

Your appliance incorporates a recirculation system which allows an optimal use of the concentrated detergent.

1) do not use acetone on artificial silk

Follow the product manufacturer's recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer.

Quantity of detergent to be used

The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.

Follow the product manufacturers' instructions on quantities to use.

Use less detergent if:

- you are washing a small load

• the laundry is lightly soiled
• large amounts of foam form during washing.

Degrees of water hardness

Water hardness is classified in so-called "degrees" of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority. If the water hardness degree is medium or high we suggest you to add a water softener following always the manufacturer's instructions. When the degree of hardness is soft, readjust the quantity of the detergent.

Washing programmes

Programme - Maximum and Minimum Temperature - Cycle Description - Maximum Spin Speed - Maximum Fabrics Load - Type of Laundry	Options Detergent Compartment
COTONE - LINO90° - ColdMain wash - RinsesMaximum spin speed at 1200 rpmMaximum load 7 kg; Reduced load 3,5 kg^1) White and coloured cotton (heavily soiled items).	CENTRIFUGAANTIPIEGAESCLUSIONE CENTRI-FUGACICLO A+A ^2) QUOTIDIANOBREVEPRELAVAGGIOSTIRO FACILEMORBIDEZZA 5 RIS-CIACQUI
SINTETICI60° - ColdMain wash - RinsesMaximum spin speed at 900 rpmMaximum load 3,5 kg; Reduced load 2 kg^1) Quick wash cycle forSynthetic or mixed fabrics normally or slightly soiled items).	CENTRIFUGAANTIPIEGAESCLUSIONE CENTRI-FUGACICLO A+A ^2) QUOTIDIANOBREVEPRELAVAGGIOSTIRO FACILEMORBIDEZZA 5 RIS-CIACQUI
DELICATI40° - 30°Main wash - RinsesMaximum spin speed at 700 rpmMaximum load 3,5 kg; Reduced load 2 kg^1) Delicate fabrics: acrylics, viscose, polyester.	CENTRIFUGAANTIPIEGAESCLUSIONE CENTRI-FUGAQUOTIDIANOBREVEPRELAVAGGIOMORBIDEZZA 5 RIS-CIACQUI
LANA - LAVAGGIO A MANO30°Main wash - RinsesMaximum spin speed at 900 rpmMaximum load 2 kgWashing programme for machine washable wool as well as for hand washable woollens and delicate fabrics. Note : A single or bulky item may cause imbalance. If the appliance doesn't perform the final spin phase, add more items, redistribute the load manually and then select the spinning programme.	CENTRIFUGAANTIPIEGAESCLUSIONE CENTRI-FUGA
TENDE30°Prewash - Main wash - RinsesMaximum spin speed at 700 rpmMaximum load 2 kgWith this programme it is possible to wash curtains with an extra water load. We suggest that you do not put any detergent into the prewash compartment.	CENTRIFUGAANTIPIEGAESCLUSIONE CENTRI-FUGAMORBIDEZZA 5 RIS-CIACQUI	(6ZZS)
PIUMONI30°Main wash - RinsesMaximum spin speed at 700 rpmMaximum load 2 kgWashing programme for a single synthetic blanket, bed-spread.	CENTRIFUGAESCLUSIONE CENTRI-FUGA	[45SX]
JEANS40°Main wash - RinsesMaximum spin speed at 1200 rpmMaximum load 3,5 kgWith this programme it is possible to wash items like pants, shirts or jackets in denim tissue and also jersey realized with hi-tech materials. Note! The Extra Rinse option will be activated automatically).	CENTRIFUGAANTIPIEGAESCLUSIONE CENTRI-FUGAPRELAVAGGIOSTIRO FACILE	[5GWZ]
SPORT30°Prewash - Main wash - RinsesMaximum spin speed at 900 rpmMaximum load 3 kgThis programme is suitable for washing heavily soiled sport items. The machine will add automatically a prewash phase before the main wash to eliminate mud stains. (For this phase we recommend that you do not put detergent in the appropriate compartment to rinse clothing with only water).	CENTRIFUGAANTIPIEGAESCLUSIONE CENTRI-FUGAMORBIDEZZA 5 RIS-CIACQUI	(SZGH)
GYM40°Main wash - RinsesMaximum spin speed at 900 rpmMaximum load: 1 pair of shoesWith this programme it is possible to wash one pair of sport shoes (or 2 pairs if they are small). The shoes would be gently washed and spun. Note! Don't wash your sport shoes together with laundry.	CENTRIFUGAANTIPIEGAESCLUSIONE CENTRI-FUGAPRELAVAGGIOMORBIDEZZA 5 RIS-CIACQUI	3)
RISCIACQUORinsesMaximum spin speed at 1200 rpmMaximum load 7 kgWith this programme it is possible to rinse and spincot-ton garments which have been washed by hand. The machine performs 3 rinses, followed by a final long spin. The spin speed can be reduced by pressing the relevant button.	CENTRIFUGAANTIPIEGAESCLUSIONE CENTRI-FUGASTIRO FACILEMORBIDEZZA 5 RIS-CIACQUI	cl
SCARICODraining of waterFor emptying out the water of the last rinse in programmes with the ANTIPIEGA or ESCLUSIONE CENTRI-FUGA option.
CENTRIFUGADrain - Long spinMaximum spin speed at 1200 rpmMaximum load 7 kgSeparate spin for hand washed cotton garments and after programmes with the ANTIPIEGA or ESCLUSIONE CENTRIFUGA option. You can choose the spin speed by pressing the relevant button to adapt it to the fabrics to be spun.	CENTRIFUGA
O = OFFFor cancelling the programme which is running or to switch the machine off .

1) If you select the BREVE option by pressing the button 3, we recommend that you reduce the maximum load as indicated. Full loading is possible however with somewhat reduced cleaning results.
2) Available at 40^ C or higher temperatures only.
3) If using liquid detergents, a programme without PRELAVAGGIO must be selected.

What to do if ...

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.

During machine operation it is possible that the red pilot light of button 7 blinks, one of the following alarm codes appears on the display and some acoustic signals sound every 20 seconds to indicate that the machine is not working:

• E10: problem with the water supply.
• E20: problem with the water draining.
• E40 : door open.

Once the problem has been eliminated, press the button 7 to restart the programme. If after all checks, the problem persists, contact your local Service Centre.

Problem Possible cause/Solution
The machine does not start:	The door has not been closed.E40Close the door firmly.The plug is not properly inserted in the power socket.Insert the plug into the power socket.There is no power at the socket.Please check your domestic electrical installation.The main fuse has blown.Replace the fuse.The selector dial is not correctly positioned and the button 7 has not been pressed.Please turn the selector dial and press the button 7 again.The delay start has been selected.If the laundry are to be washed immediately, cancel the delay start.
The machine does not fill:	The water tap is closed.E10Open the water tap.The inlet hose is squashed or kinked.E10Check the inlet hose connection.The filter in the inlet hose or the inlet valve filter are blocked.E10Clean the water inlet filters. (See "Cleaning the water inlet filters" for more details).The door is not properly closed.E40Close the door firmly.
The machine does not empty and/or does not spin:	The drain hose is squashed or kinked.E20Check the drain hose connection.The drain filter is clogged.E20Clean the drain filter.An option or a programme that ends with the water still in the tub or a that eliminates all the spinning phases has been selected.Select the draining or spinning programme.The laundry is not evenly distributed in the drum.Redistribute the laundry.
There is water on the floor:	Too much detergent or unsuitable detergent (creates too much foam) has been used.Reduce the detergent quantity or use another one.Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.Check the water inlet hose connection.The drain or inlet hose is damaged.Replace it with a new one.The cap on the emergency emptying hose has not been replaced or the filter has not been properly screwed in after cleaning action.Refit the cap on the emergency emptying hose or screw the filter fully in.
Unsatisfactory washing results:	Too little detergent or unsuitable detergent has been used.Increase the detergent quantity or use another one.Stubborn stains have not been treated prior to washing.Use commercial products to treat the stubborn stains.The correct temperature was not selected.Check if you have selected the correct temperature.Excessive laundry load.Reduce the laundry load.
The door will not open:	The programme is still running.Wait the end of washing cycle.The door lock has not been released.Wait until the pilot light 9 goes off.There is water in the drum.Select drain or spin programme to empty out the water.
The machine vibrates is noisy:	The transit bolts and packing have not been removed.Check the correct installation of the appliance.The support feet have not been adjustedCheck the correct levelling of the appliance.The laundry is not evenly distributed in the drum.Redistribute the laundry.Maybe there is very little laundry in the drum.Load more laundry.
Spinning starts late or the machine does not spin:	The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and select the spin programme.Redistribute the laundry.The load is too small.Add more items, redistribute the load manually and then select the spinning programme.
The machine makes an unusual noise:	The machine is fitted with a type of motor which makes an unusual noise compared with other traditional motors. This new motor ensures a softer start and more even distribution of the laundry in the drum when spinning, as well as increased stability of the machine.
No water is visible in the drum:	Machines based on modern technology operate very economically using very little water without affecting performance.

If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

Technical data

Dimensions Width		60 cm
	Height	85 cm
	Depth	60 cm
	Depth (Overall dimensions)	63 cm
Electrical connection Voltage - Overall power - Fuse	Information on the electrical connection is given on the rating plate, on the inner edge of the appliance door.
Water supply pressure Minimum	Maximum	0,05 MPa0,8 MPa
Maximum Load Cotton 7 kg
Spin Speed Maximum 1200 rpm

Consumption values

Programme Energy consumption (KWh)	Water consumption (litres)	Programme duration (Minutes)
COTONI 90° 2.10 65 145
COTONI 60° 1.40 60 120
CICLO DI RISPARMIO EN-ERGIA 60° 1)	1.19 59 155
COTONI 40° 0.77 60 120
SINTETICI 40° 0.60 54 85
DELICATI 40° 0.60 63 70
LANA / A MANO 30°	0.25 55 55

1) This programme at 60^ C with a load of 7 kg is the reference programme for the data entered in the energy label, in compliance with EEC 92/75 standards.

The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature.

Care and cleaning

Warning! You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work.

Descaling

The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine.

Do this separately from any laundry washing, and according to the softening powder manufacturer's instructions. This will help to prevent the formation of lime deposits.

External cleaning

Clean the exterior cabinet of the appliance with soap and water only, and then dry thoroughly.

Cleaning the dispenser drawer

The washing powder and additive dispenser drawer should be cleaned regularly.

Illustration of hands operating a mechanical device with a tool, no text or symbols present

Remove the drawer by pressing the catch downwards and by pulling it out. Flush it out under a tap, to remove any traces of accumulated powder.

Line drawing of a hand using a tool to press or adjust a mechanical component (no text or symbols present)

To aid cleaning, the top part of the additive compartment should be removed.

Cleaning the drawer recess

Illustration of a hand using a tool to cut or remove a rectangular object, no text or symbols present

Having removed the drawer, use a small brush to clean the recess, ensuring that all washing powder residue is removed from the upper and lower part of the recess.

Replace the drawer and run the rinse programme without any clothes in the drum.

Drain pump

The pump should be inspected regularly and particularly if:

• the appliance does not empty and/or spin;
- the appliance makes an unusual noise during draining due to objects such as safety pins, coins etc. blocking the pump;
- a problem with water draining is detected (see chapter "What to do if..." for more details).

Warning! Before opening the pump door, switch the appliance off and remove the mains plug from the socket.

Proceed as follows:

• Unplug the appliance.
• If it is necessary, wait until the water has cooled down.

Open the pump door levering on the groove with a coin (or with the suitable tool, that you can find in the bag containing the instruction booklet, depending on the model).

Line drawing of a mechanical device with a dial and base plate (no text or symbols)

Place a bowl with a small edge close to the pump to collect any spillage.

Line drawing of a hand using a tool to cut or install a component on a flat surface (no text or symbols)

Pull out the emergency emptying cap from the pump cover, using pliers.

When no more water comes out, unscrew the pump cover, using pliers, and remove the filter. Always keep a rag nearby to dry up any water spillages when removing the cover.

Clean the filter under a tap, to remove any traces of fluff.

Illustration of a hand using a device to cut a circular object with weights, showing mechanical components (no text or symbols)

Remove foreign bodies and fluff from the filter seat and from the pump impeller.

Illustration of a hand using a tool to switch a circular component with directional arrows (no text or symbols)

Check carefully whether the pump impeller rotates (it rotates jerkily). If it doesn't rotate, please contact your Service Centre.

Hand operating a mechanical device with gears and a handle (no text or symbols visible)

Illustration of a hand turning a device into a box with an arrow indicating rotation (no text or symbols)

Replace the filter into the pump by inserting it correctly into the special guides. Screw the pump cover firmly by turning it clockwise.

Hand holding a mechanical component with an arrow indicating direction (no text or symbols)

Replace the emergency emptying cap into the pump cover and fix it firmly.

Hand holding a small rectangular object with an arrow pointing to it, against a plain background (no text or symbols)

Close the pump door.

Warning! When the appliance is in use and depending on the programme selected there can be hot water in the pump.

Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When refitting the pump cover, ensure it is securely re-tightened so as to stop leaks and young children being able to remove it.

Cleaning the water inlet filters

Important! If the appliance doesn't fill, takes long to fill with water, the starting button blinks yellow or the display (if available) shows the relevant alarm (see chapter "What to do if..." for more details), check if the water inlet filters are blocked.

To clean the water inlet filters:

Illustration of hands using a tool to adjust or install a valve, with no text or symbols present.

- Turn off the water tap.

- Unscrew the hose from the tap.

- Clean the filter in the hose with a stiff brush.

- Screw the hose back onto the tap. Make sure the connection is tight.

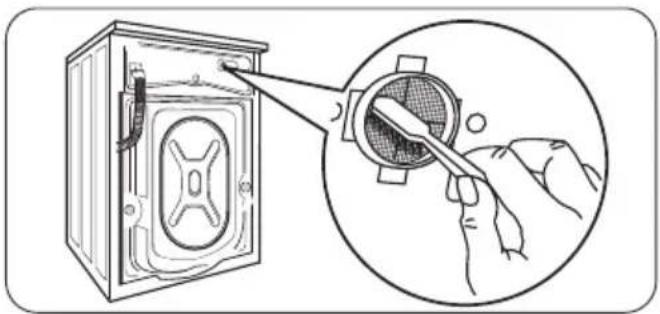

Illustration of a washing machine with a close-up view showing hand holding a tool inside the cover (no text or symbols)

• Unscrew the hose from the machine. Keep a rag nearby because some water may flow.
• Clean the filter in the valve with a stiff brush or with the piece of cloth.

• Screw the hose back to the machine and make sure the connection is tight.
• Turn on the water tap.

Frost precaution

If the machine is exposed to temperatures below 0^ C, certain precautions should be taken.

• Turn off the water tap.
• Unscrew the inlet hose.

• Place the end of the inlet hose in a bowl placed on the floor, open the emergency emptying cap of the filter and let water drain out.

• Refit the emergency emptying cap into the filter and screw the water inlet hose back.

• When you intend to start the machine up again, make sure that the room temperature is above 0^ C .

Emergency emptying out

If the water is not discharged, proceed as follows to empty out the machine:

• pull out the plug from the power socket;
• close the water tap;
• if necessary, wait until the water has cooled down;
• open the pump door;
• place a bowl on the floor. Remove the emergency emptying cap from the filter. The water should drain by gravity into the bowl. When the bowl is full, refit the emergency emptying cap into the filter. Empty the bowl. Repeat the procedure until water stops flowing out;
• clean the pump if necessary as previously described;
• screw the pump cover again and close the door.

Important! Every time you drain the water through the emergency emptying hose you must pour 2 litres of water into the main wash compartment of the detergent drawer and then run the drain programme. This will activate the ECO Valve device avoiding that part of the detergent remains unused at next washing.

Installation

Unpacking

All transit bolts and packing must be removed before using the appliance.

You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.

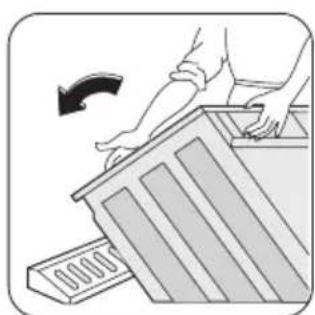

Illustration of hands using a tool to lift a wooden plank, with an arrow indicating rotation (no text or symbols)

After removing all the packaging, carefully lay machine on it's back to remove the polystyrene base from the bottom.

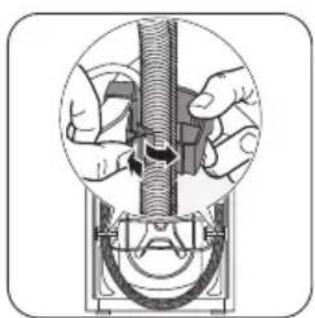

Mechanical assembly diagram showing hands operating a threaded component with a spring (no text or labels)

Remove the power supply cable and the hoses from the hose holders on the rear of the appliance.

Unscrew the three bolts. Slide out the relevant plastic spacers.

Line drawing of a washing machine with door, vent, and buttons (no text or symbols)

Fill the smaller upper hole and the two large ones with the corresponding plastic plug caps supplied in the bag containing the instruction booklet.

Positioning

Install the machine on a flat hard floor. Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units. Level the washing machine by raising or lowering the feet. The feet may be tight to adjust as they incorporate a self locking nut, but the machine MUST be level and stable.

Any necessary adjustment can be made with a spanner. Accurate levelling prevents vibration, noise and displacement of the machine during operation. Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor.

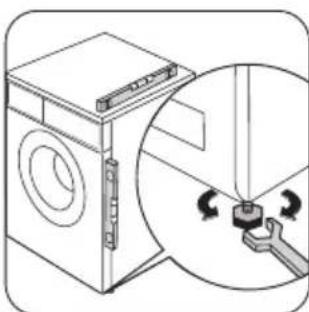

Line drawing of a washing machine with a magnified inset showing a hand adjusting the switch (no text or symbols)

If necessary, check the setting with a spirit level.

Water inlet

Warning! This appliance must be connected to a cold water supply

Caution! Before connecting up the appliance to new pipework or to pipework that has not been used for some time, run off a reasonable amount of water to flush out any debris that may have collected

Caution! Do not use the hose from your previous appliance to connect to water supply.

Illustration of a hand holding a tap wrench and cap, with a faucet above (no text or symbols)

Connect the hose to a tap with a 3/4" thread. Always use the hose supplied with the appliance.

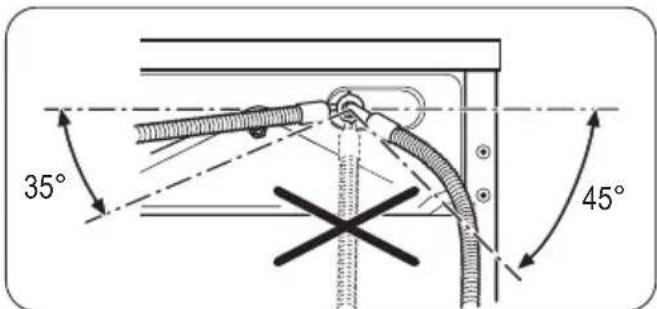

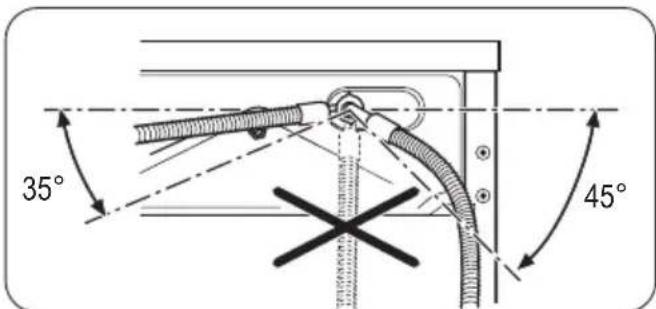

The other end of the inlet hose which connects to the appliance can be turned as showed in the picture.

Do not place the inlet hose downwards. Angle the hose to the left or right depending on the position of your water tap. Set the hose correctly by loosening the ring nut. After positioning the inlet hose, be sure to tighten the ring nut again to prevent leaks.

Caution! The inlet hose must not be lengthened. If it is too short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use.

Water drainage

The end of the drain hose can be positioned in three ways:

Diagram of a pipe fitting with a connector, showing tubing and a valve (no text or symbols)

Hooked over the edge of a sink using the plastic hose guide supplied with the machine.

In this case, make sure the end cannot come un-hooked when the machine is emptying. This could be done by tying it to the tap with a piece of string or attaching it to the wall.

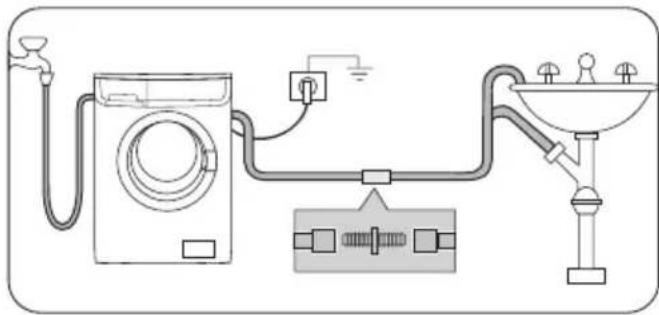

Diagram of a washing machine connected to a sink with a switch and power outlet (no text or labels)

In a sink drain pipe branch. This branch must be above the trap so that the bend is at least 60 cm above the ground.

Directly into a drain pipe at a height of not less than 60 cm and not more than 90 cm. The end of the drain hose must always be ventilated, i.e. the inside diameter of the drain pipe must be larger than the outside diameter of the drain hose. The drain hose must not be kinked.

Electrical connection

Information on the electrical connection is given on the rating plate on the inner edge of the appliance door.

Check that your domestic electrical installation can take the maximum load required, also taking into account any other appliances in use.

Caution! Connect the machine to an earthed socket.

Caution! The manufacturer does not accept any responsibility for damage or injury through failure to comply with the above safety precaution.

Environment concerns

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials marked with the symbol are recyclable. >PE<=polyethylene

Caution! The power supply cable must be easily accessible after installing the machine.
Caution! Should the appliance power supply cable need to be replaced, this must be carried out by a Service Centre.

PS<=polystyrene

PP<=polypropylene

This means that they can be recycled by disposing of them properly in appropriate collection containers.

Ecological hints

To save water, energy and to help protect the environment, we recommend that you follow these tips:

• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).
  • The machine works more economically if it is fully loaded.
• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.

- Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.

www.electrolux.com/shop
