WM84KD - Washing machine Campomatic - Free user manual and instructions

Brand	Campomatic
Model	WM84KD
Type	Front-loading washing machine
Capacity (max dry clothes)	8.0 kg
Dimensions (W x D x H)	595 x 634 x 850 mm
Net Weight	54 kg
Gross Weight	58 kg
Standard Water Consumption	52 L
Spin Speeds	400, 800, 1000, 1400 RPM
Operating Water Pressure	0.03 MPa ~ 0.8 MPa
Programs	Cotton, Eco, Synthetic, Delicate, Wool, Hand Wash, Quick 30, Spin Only
Temperature Settings	Cold, 30°C, 40°C, 60°C, 95°C (depending on program)
Special Features	Economic wash, Low noise, Child Lock, Nano-silver sterilization (option), Air bubble washing (option), Time Save, Time Delay, Rinse+, Crease Care, Pre-Wash
Safety Features	Child Lock, grounded electrical requirement
Maintenance	Drain filter cleaning, inlet filter cleaning, detergent case cleaning
Accessories Included	Inlet hose, manual, cap holders (3 EA)
Voltage (estimated)	220-240 V ~ 50 Hz

Frequently Asked Questions - WM84KD Campomatic

How to remove transit bolts?

Unscrew the 3 bolts with a 10mm hex wrench or spanner. Keep the bolts for future transport. Close the holes with the supplied cap holders.

What is the Child Lock feature and how to use it?

Child Lock prevents children from changing the program during operation. To activate, press the Time Save and Time Delay buttons simultaneously. To deactivate, press the same buttons again.

What are the washing programs available?

Programs include Cotton, Eco, Synthetic, Delicate, Wool, Hand Wash, Quick 30, and Spin Only. Each has preset temperature and spin settings.

How to clean the drain filter?

Open the lower cover with a coin, pull out the cap hose, drain water into a vessel. Turn the pump filter open to remove foreign materials. Clean and reassemble. Clean every 10 uses.

What does the error code IE mean?

IE indicates a water supply issue. Check if the inlet hose is connected and the water tap is open, or if the inlet hose filter is blocked.

How to use the Time Delay function?

Select a program, press Time Delay to set a delay from 2 to 12 hours. Each press advances by one hour. The machine will start automatically to finish at the set time.

What is the maximum spin speed?

The maximum spin speed is 1400 RPM. Spin speed can be adjusted to 400, 800, 1000, or 1400 RPM depending on the program.

How to winterize the washing machine?

Turn off water, disconnect and drain inlet hoses. Run a drain/spin cycle for 1 minute. Unplug the power cord. Store in a frost-free area.

Can I wash wool in this machine?

Yes, use the Wool program. It uses cold water, low spin (400 rpm), and special detergent for wool. Maximum load is 2.0 kg.

How to clean the detergent case?

Remove the case by pressing the catch downwards and pulling it out. Clean with running water. The softener compartment can be removed for easier cleaning. Reassemble and run a rinse cycle.

USER MANUAL WM84KD Campomatic

Washing Machine Instruction Manual

WM84KD's

INSTRUCTION MANUAL

■ Economic wash system

Using artificial intelligence, the washer uses minimum energy and water by selecting optimal water level and washing time.

■ Low noise system

The washer minimizes the washing and spinning noises by sensing the amount of laundry.

Child-Lock

The Child-Lock system has been used to prevent children from pressing any button to change the program during operation.

■ Nano-silver sterilization washing(Option)

By applying very fine silver particles on essential parts inside, the washer sterilizes up to 99.9% as is done by boiling wash.

■ Air bubble washing(Option)

This is an advanced technology that generates millions of air bubbles inside the drum on washing sequence, and the bubbles dissolve the detergent particles completely and cleanse all the soil in clothes gently and neatly.

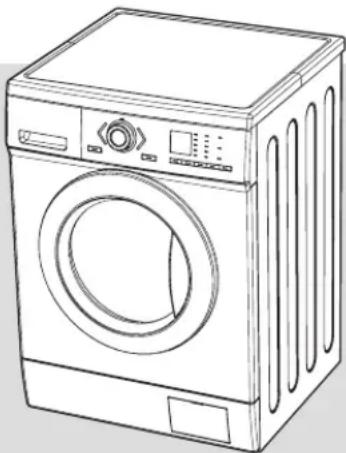

Line drawing of a front-loading washing machine (no text or symbols)

CONTENTS Page

PARTS AND FEATURES....2

WASHER SAFETY....3

INSTALLATION INSTRUCTIONS....4

INLET HOSE CONNECTION ....5

ELECTRICAL REQUIREMENTS 6

OPERATING YOUR WASHER....7

THE FUNCTIONS OF THE CONTROL PANEL....9

WASHING PROCEDURE AND PROGRAM SELECTION....10

MAINTENANCE 19

HOW TO CLEAN THE FILTER....20

REMOVING STAINS....21

TROUBLE SHOOTING 22

SPECIFICATION 23

A NOTE TO YOU

Thank you for buying a CAMPOMATIC appliance.

CAMPOMATIC washers are easy to use, save time, and help you manage your home better.

This manual contains valuable information about how to operate and maintain your washer properly and safely.

Please read it carefully.

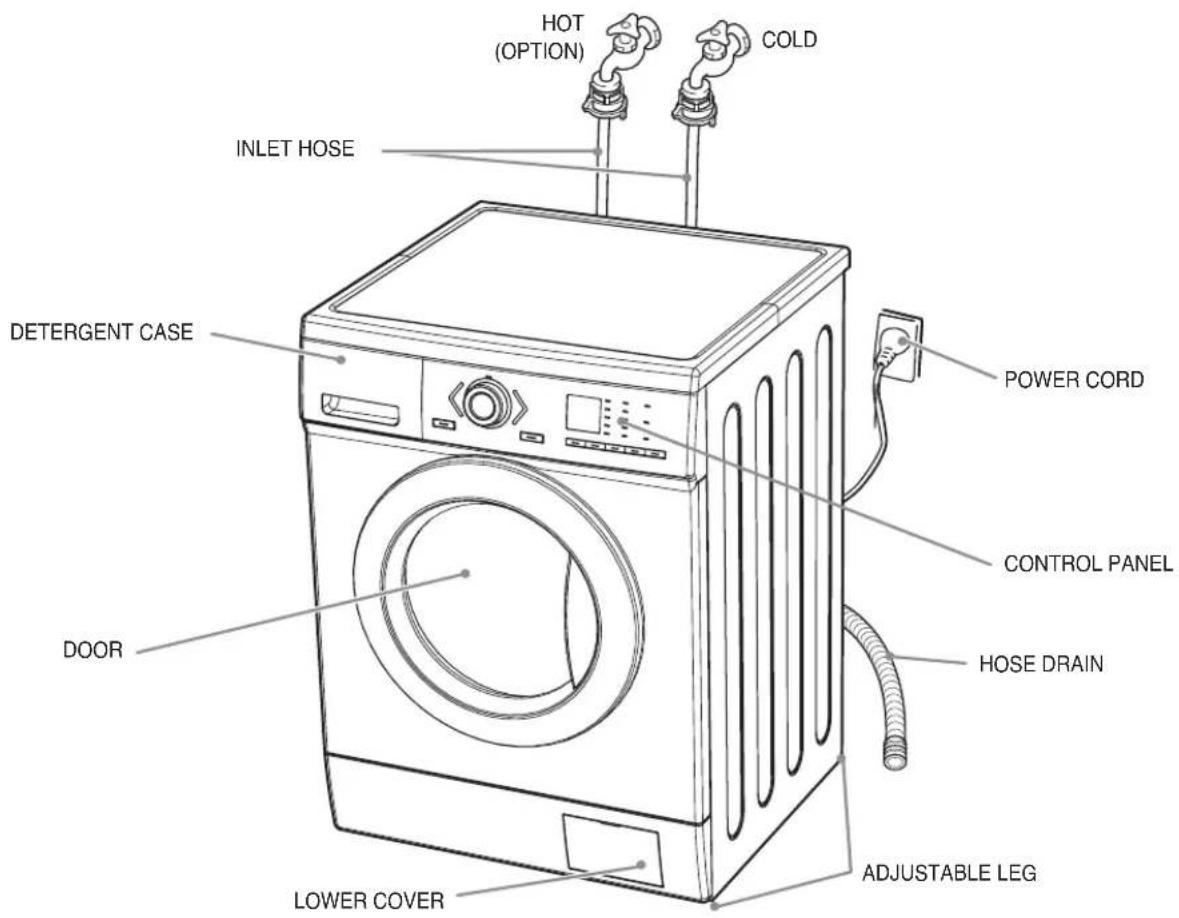

The parts and features of your washer are illustrated on the page. Become familiar with all parts and features before using your washer.

NOTE

The drawings in the book may vary from your washer model.

They are designed to show the different features of all models covered by this book.

Your model may not include all features.

Accessories

Inlet hose Manual Cap holder(3EA)

Save these instructions

Your safety is important to us.

To reduce the risk of fire, electrical shock, or injury when using your washer adhere to the following basic precautions.

Read all instructions before using your washer

Flammable fluids (dry-cleaning solvents, kerosene, gasoline, etc.) should not be used or stored in or near your washer.Do not add flammable fluids to your wash water. These substances give off vapors that can create a fire hazard or explosion.After starting a cycle, do not reach into the washer until all motions stop.Do not tamper with the controls.The appliance is not intended for use by young children or infirm persons without supervision.If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent or a similarly qualified person in order to avoid a hazard.If the appliance is supplied from a cord extension set or electrical portable outlet device it should be positioned so that it is not subjected to splashing or ingress of moisture.

Please ...Have only a qualified person install, repair, or replace parts on washer.Maintain washer properly.Protect washer from the weather and keep it where the temperature will not fall below freezing.Do not install the washer at a place of extremely high humidity. It could cause an electric shock or a short circuit.Connect washer to the correct outlet, electrical supply, water supply, and drain supply.

Understanding your responsibilities

• Do not use chlorine bleach and ammonia or acid(such as vinegar or rust remover) in the same wash. Hazardous fumes can form.
• Unplug power supply cord before attempting to service your washer.
• Do not wash fiberglass material.

Small particles can stick to fabrics washed in following loads and cause skin irritation.

- Do not spray water on the control panel of the washer.

It could cause fire or an electric shock.

• In case of the dual valve model, if you connect only one water inlet valve, there can be water leakage from unconnected water inlet valve.
  • This appliance must be grounded.

To avoid electrical shock, use a metal pipe for the ground connection.

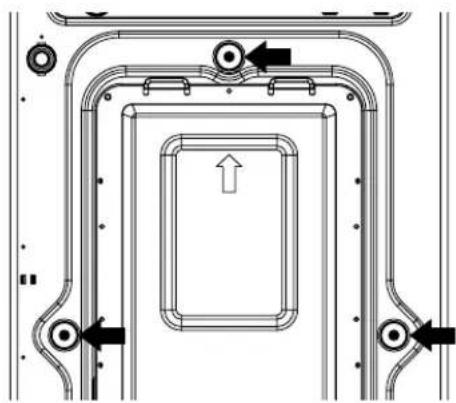

Removing transit bolts

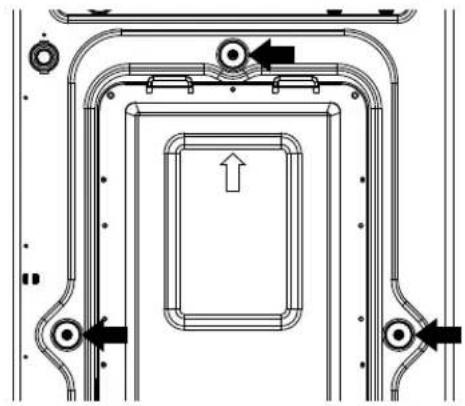

1. Before operating the washer, remove the transit bolts(3ea) along with the rubber.

- If the bolts are not removed, it may cause heavy vibration, noise and malfunction.

Technical diagram of a mechanical assembly with no visible text, numbers, or symbols

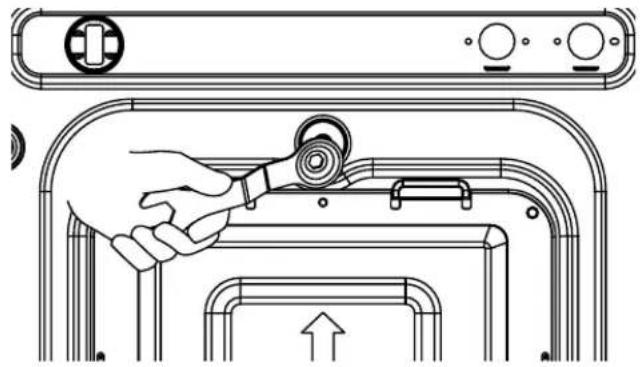

1. Unscrew the 3 bolts with the 10mm hex wrench or spanner or cross-tip screwdriver. Keep the 3 bolts for a later time.

- When the appliance is transported, transit bolts will be re-used.

Line drawing of a hand adjusting a component inside a device casing (no text or symbols)

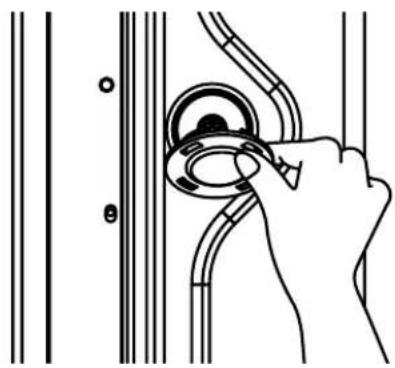

1. Close the holes with the cap holders supplied.

Hand holding a circular component attached to a pipe, with vertical lines and mounting holes visible (no text or symbols)

Location of washer

• Check location where the washer will be installed. Make sure you have everything necessary for correct installation.
• Do not place or store your washer below 0^ (32°F) to avoid any damage from freezing.
• Do not place or store laundry products on top of washer at any times.
  • Install the washer on the horizontal solid floor.

If the washer is installed on an unsuitable floor, it could make considerable noise, vibrate severely and cause a malfunction. If the washer is not level, adjust leg up or down for horizontal installation.

• Ventilation openings must not be obstructed by carpeting when the washer is installed on a carpeted floor.
• Leave some space (right & left : 2cm, rear : 10cm).
• In case of built-in installation, the distance between top of the washer and bottom of upper plate should be at least 3mm.

The washer should be connected to the water mains using new hose sets and old hose sets should not be reused.

In using only one water tap or in case of only one water inlet valve, connect the inlet hose to the cold water inlet valve.

Option : Be careful not to confuse hot water inlet and cold water inlet.

For Ordinary Tap

1Pull down the collar of the inlet hose to separate it from the water tap adapter.	2Loosen the four screws properly in fitting into water tap.	3Fit the water tap adapter into the water tap and tighten the four screws evenly while pushing up the adapter so that the rubber packing can attach to the water tap tightly.
4Remove the tape, and screw connector B into connector A tightly.	5Connect the inlet hose to the water tap adapter by pulling down the collar of the hose end.	6Connect the inlet hose adapter of the hose to the water inlet of the washing machine by turning it clockwise to be fixed tightly.• Please check the rubber packing inside the inlet hose adapter of the hose.

For Screw-Shaped Tap

1Connect the inlet hose to the water tap by screwing the connector tightly.

2Connect the connector-inlet supplied if necessary.

3Insert the inlet hose adapter into the water inlet of a washing machine and turn it to be fixed* Cheek the packing in the inlet

ELECTRICAL REQUIREMENTS

WARNING	Electrical shock hazard : Failure to follow these instructions could result in death or serious injury.
• Electrical earth is required on this washer.• If it does not fit the outlet, have a proper outlet installed by a qualified electrician.		• Don’t earth to a gas pipe.• Don’t change the power supply cord plug.• Check with a qualified electrician if you are not sure the washer is properly earthed.
Recommended earthing method
	For your personal safety, this washer must be earthed.This washer is equipped with a power supply cord ‘A’ having a earthing plug ‘B’.To minimize possible shock hazard, the cord must be plugged into a mating earthing-type wall receptacle ‘C’. If a mating wall receptacle is not available,it is the personal responsibility and obligation of the customer to have the proper earthed wall receptacle installed by a qualified electrician.

Drain system

• Never forget to install drain hose before operating your washer.
• Open the packing box, and there is a drain hose inside the drum.
• Connect the drain hose to the drain outlet at the back side of the washer.

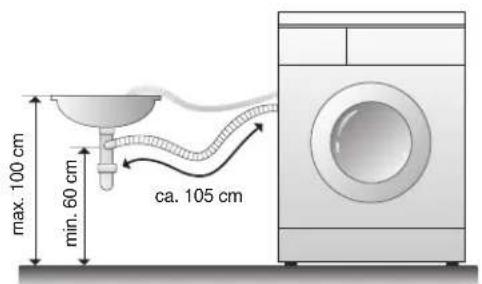

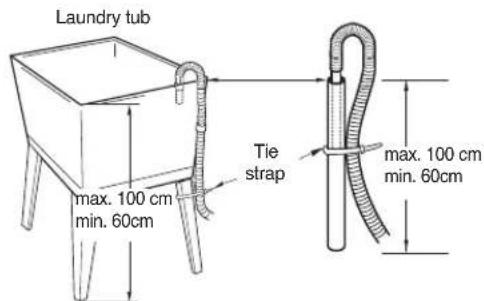

• Top of laundry tub must be at least 60cm high and no higher than 100cm from bottom of washer.

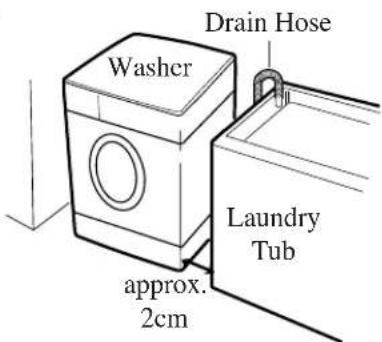

• When installing the drain hose to tub(sink), secure it tightly with a string.
• Proper securing of the drain hose will protect the floor from damage due to water leakage.
• When the drain hose is too long, do not force it back into the washer.

This will cause abnormal noise.

Level adjustment

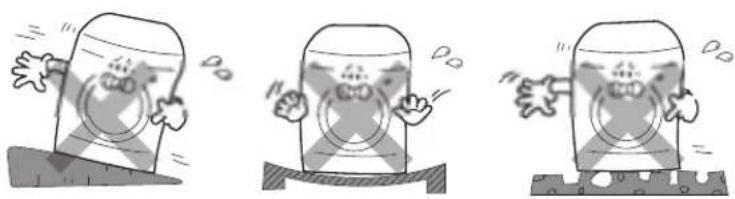

①If the washer is installed on an unsuitable floor, it could make considerable noise, vibrate and cause a malfunction.

Three cartoon illustrations of a smiling capsule-shaped object with arms and legs, appearing to change (no text or symbols present)

②Adjust the level of washer using adjustable legs.

• Please check if there is any gap between the four adjustable legs and the floor.
• Adjust the level of washer by turning adjustable legs. And make it sure that there is no swaying of washer.
  • After the adjustment is finished, turn the fixing nuts up tightly so that the washer maintains the adjustment.

③Make it sure that the washer does not sway when you press down the four corners of the washer's top plate.

NOTE

There should be no swaying of washer and all the adjustable legs should stick to the floor closely.

Line drawing of a hand opening the front side of a washing machine (no text or symbols present)

To obtain the best washing results, you must operate your washer properly. This section gives you this important information.

Preparing clothes for washing
Close zippers, snaps, and hooks to avoid snagging other items.Remove pin, buckles, and other hard objects to avoid scratching the washer interior.Empty pockets and pull them inside out.	Turn down cuffs and turn synthetic knits inside out to avoid pilling.Tie strings and sashes to avoid tangling.Treat spots and stains.(See ‘Removing stains’ on page 21)

Illustration of two clothing items: a jacket and an apron (no text or symbols)

Simple line drawing of a T-shirt with a magnifying glass and textured marks (no text or symbols)

Sorting

Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together.Separate dark colors from light colors, colorfast items from non-colorfast item.

Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.Color (White, Lights, Darks) Separate white clothes from colored clothes.Lint (Lint producers, Collectors) Wash lint producers and lint collectors separately.

Loading

· Drop items into washer loosely. Items should move easily through wash water for best cleaning and wrinkle-free results.· Load washer properly and select correct load size setting.Overloading and selecting a setting too small for the wash load can :- Cause poor cleaning- Increase wrinkling- Create excessive lint- Wear out items faster (because of pilling)

· Mix large and small items in each load. Load evenly to maintain washer balance.An unbalanced load can make the washer vibrate during spin.· Reduce wash time when using a small load size setting. Load with only a few small items needs less wash time.· Use a large load size setting to reduce wrinkling with permanent press clothes and some synthetic knits. These items should have more room to move in the water than heavy items. (towels, jeans)

Adding detergent

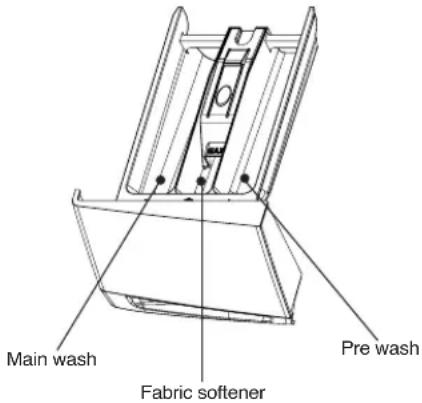

1Detergent case 2Adding fabric softener	·If desired, add measured liquid fabric softener to the softener inlet.·Pour liquid fabric softener into the dispenser using the amount recommended on the package.·Do not exceed the maximum fill line.Overfilling can cause early dispensing of the fabric softener which could stain clothes.·Do not open the detergent case when water is supplied.·Avoid pouring fabric softener directly on the clothes.
·Please use only the powder detergent for the front loader washing machine.·Please use the proper amount of detergent in conformity with the instruction of the detergent manufacturer.·A use of a large amount of detergent more than the recommended amount can cause many soapsuds and the overload to the motor. In addition to, this will deteriorate the washing and rinse performance.

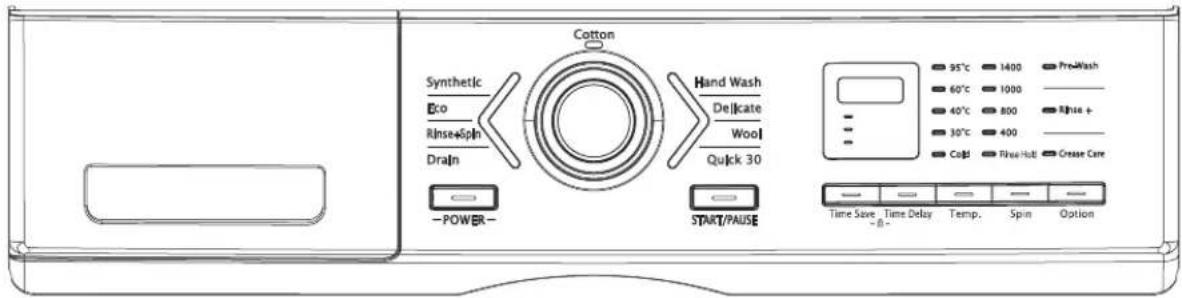

THE FUNCTIONS OF THE CONTROL PANEL

	Press this switch to turn the power on or off.
	Operation and temporary stop is repeated as it is pressed.When you want to change program in operating;press the 'Start/Pause' button → Select the program that you want to change → press the 'Start/Pause' button again.
	You can select the course you want, and each lamp is turned on when that course is selected.For the more detailed information, please refer to the page 11~18.
	It can be used to adjust temperature of water according to types of the load to be washed.As the button is pressed, temperature of water is selected byCold → 30°C → 40°C → 60°C → 95°C
	By pressing the spin button, the spin speed can be chosen.Rinse Hold · Is selected by pressing the spin button repeatedly. This function leaves clothes in the machine; suspended in the water after a rinse without entering into spin.To proceed through to a drain or spin, after the Rinse Hold function is completed, use spin button.Spin only ·If you want only spin, you can operate spin only(See page 18).
	Crease Care · If you want to prevent crease, select this button with spin speed.Rinse+ · Is used to add a rinse, which may assist in removing traces of detergent residue.By selecting Rinse+ function, the rinse time and the rinse water are increased.Pre-Wash · The washer operates one additional wash and spin before the main wash.If the laundry is heavily soiled, Pre-Wash course is effective.Pre-Wash is available in Cotton and Synthetic programs.
	All courses have pre-set washing times, but Time Save decreases it to 10 minutes.Each time this button is pressed the watch icon is repeated on and off. When it is on, the Time Save function is set. Time Save is available in Cotton, Eco and Synthetic programs.
	It can be used to pre-engage time for wash.
	Use this function when you want to protect any accident occurring from handling of washer by a child.During an operation of washer, press 'Time Save' and 'Time Delay' buttons simultaneously.In Child Lock mode, no button functions except Power button.In Child Lock mode, press 'Time Save' and 'Time Delay' buttons simultaneously like setting Child Lock and Child Lock is cancelled.To change to the desired program, while in Child Lock mode:1. Press both the Time save and Time delay buttons together once again.2. Press the Start/Pause button.3. Select the desired programand press the Start/Pausebutton again.* The Child Lock will be cancelled when power is off.

1. COTTON IS AUTOMATICALLY SELECTED UPON POWER ON

• Press the Power button to start.
• Press the Start/Pause button.
• Initial condition;
• Program : Cotton
• Wash : main wash
• Rinse : 3 times
• Spin : 800 rpm
• Water temperature : 40°C

2. MANUAL SELECTING

• Press the Power button to start.
• Select the conditions which you want to use by turning the program dial and pressing each button.
• Press the Start/Pause button.

3. RESERVED WASHING

- Reservation can be made from 2 hours to 12 hours. example) To make reservation to complete washing in 8 hours.

- Procedure to press the button.

* Each pressing of the button advances time delay by one hour.
- Now the reservation is made.
- If you want to check the selected program, press the 'Start/Pause' button again.
- Preparing washing before starting 'Time Delay';
- Turn on the water tap
- Load laundry and close the door
- Place the detergent and fabric softener in the detergent case.
- To cancel the time delay, press the Power button.

4. FUNCTION

- Recommended programs according to the laundry type

Program	Fabirc Type	Proper Temp.	Option	Maximum Load
Cotton	First check if laundry is machine washable.(white cotton, linen towel and sheets..)	60°C (95°C)	Pre Wash Rinse+ Crease Care	Rating
	Colorfast garments (shirts, night dresses, pajamas..) and lightly soiled white cottons (underwear..)	40°C (Cold, 30°C, 60°C)	Pre Wash Rinse+ Crease Care	Rating
Eco	Laundry type is the same as Cotton.	60°C	Rinse+ Crease Care	Rating
Synthetic	Polyamide, Acrylic, Polyester	40°C (Cold, 30°C, 60°C)	Pre Wash Rinse+ Crease Care	Less than 2.0kg
Delicate	Delicate laundry easily damaged (silk, curtains..)	Cold (30°C, 40°C)	Rinse+ Crease Care	Less than 2.0kg
Wool	Machine washable woolens with pure new wool only.	Cold (30°C, 40°C)	Rinse+ Crease Care	Less than 2.0kg
Hand Wash	‘Hand wash’ marked delicate and wool laundry	Cold (30°C)	Rinse+ Crease Care	Less than 2.0kg
Quick 30	Colored laundry which is lightly soiled fast.	30°C (Cold, 40°C)	Rinse+ Crease Care	Less than 2.0kg

- Pre Wash : If the laundry is heavily soiled, "Pre Wash" program is recommended.

Pre Wash is available in Cotton and Synthetic programs.

- Rinse+ : Used to introduce an additional rinse, which may assist in removing traces of detergent residue.

- Eco : By selecting Eco function, the water temperature is lowered and washing time is increased.

So you can economize your consumption of heating energy.

- Quick : "THE QUICK CYCLE" option has a very short cycle time. Recommended uses include Small amount of the laundry, a relatively clean laundry, Frequently-used clothes.

* COTTON PROGRAM

1	Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’ level. Put detergent into the pre wash compartment only if you want to add prewash. When you want to use bleach, put it into the main wash compartment with detergent.
2	Press the Power button. The LED shows only ‘---’ and all Program Lights turn on.
3	Select the ‘Cotton’ program using program selection dial. If you press Start/Pause button after power button without selecting program, the ‘Cotton’ program is selected as default program. Washing temperature ‘40’ °C, spin ‘800’ rpm and rinse ‘3’ times are selected automatically. If you want to change washing temperature, the spin velocity or add wash options (Prewash, Rinse+, Crease Care), press each button.
4	Press Start/Pause button. The Door is locked. By sensing the weight of laundry and supplying wash water, The appliance starts washing.

Note

• If you want to change the setting during operation, press the Start/Pause button to hold the operation and press the button you want.
  • 'Cold', '30' °C, '40' °C, '60' °C and '95' °C washing temperatures are selectable with Cotton program.
• 'Prewash', 'Rinse+', and 'Crease Care' wash options are selectable with Cotton program.

Caution!

- If you select washing temperature '95' °C, some cold water is supplied before the drain of main wash. This is to protect the user from the hazard of burn injury by lowering the temperature of hot wash water instead of directly draining it. Therefore this is not a malfunction.

(Be careful with the draining water, since it can be still hot although the temperature is lowered.)

* ECO PROGRAM

1	Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’ level. Put detergent into the pre wash compartment only if you want to add prewash. When you want to use bleach, put it into the main wash compartment with detergent.
2	Press the Power button. The LED shows only ‘---’ and all Program Lights turn on.
3	Select the ‘Eco’ program using program selection dial. Washing temperature ‘60’ °C, spin ‘800’ rpm and rinse ‘3’ times are selected automatically. If you want to change the spin velocity or add wash options (Rinse+, Crease Care), press each button.
4	Press Start/Pause button. The Door is locked. By sensing the weight of laundry and supplying wash water, The appliance starts washing.

Note

• If you want to change the setting during operation, press the Start/Pause button to hold the operation and press the button you want.
• Only '60' °C washing temperature is selectable with Eco program.
• Only ‘Rinse+’ and ‘Crease Care’ of all wash options are selectable with Eco program.

* SYNTHETIC PROGRAM

1	Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door.· Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’ level.· Put detergent into the pre wash compartment only if you want to add prewash.· When you want to use bleach, put it into the main wash compartment with detergent.
2	Press the Power button.· The LED shows only ‘---’ and all Program Lights turn on.
3	Select the ‘Synthetic’ program using program selection dial.· Washing temperature ‘40’ °C, spin ‘800’ rpm and rinse ‘3’ times are selected automatically.· If you want to change washing temperature, the spin velocity or add wash options (Prewash, Rinse+, Crease Care), press each button.
4	Press Start/Pause button.· The Door is locked. By sensing the weight of laundry and supplying wash water, The appliance starts washing.

Note

• If you want to change the setting during operation, press the Start/Pause button to hold the operation and press the button you want.
• Only 'Cold', '30°C, '40°C and '60' °C washing temperatures are selectable with Synthetic program.
• More than 1200rpm of spin speed is not selectable with Synthetic program in order to protect laundry from the damage.
• 'Prewash', 'Rinse+', and 'Crease Care' wash options are selectable with Synthetic program.
• The appropriate amount of laundry for Synthetic program is below 2.0kg.

* DELICATE PROGRAM

1	Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’ level. Put detergent into the pre wash compartment only if you want to add prewash. When you want to use bleach, put it into the main wash compartment with detergent.
2	Press the Power button. The LED shows only ‘---’ and all Program Lights turn on.
3	Select the ‘Delicate’ program using program selection dial. Washing temperature ‘Cold’, spin ‘400’ rpm and rinse ‘2’ times are selected automatically. If you want to change the spin velocity or add wash options (Rinse+, Crease Care), press each button.
4	Press Start/Pause button. The Door is locked. By sensing the weight of laundry and supplying wash water, The appliance starts washing.

Note

• If you want to change the setting during operation, press the Start/Pause button to hold the operation and press the button you want.
• Only 'Cold', '30°C' and '40°C' of washing temperature is selectable with Delicate program.
• More than 1000rpm of spin velocity is not selectable with Deliate program.
• Only ‘Rinse+’ and ‘Crease Care’ wash options are selectable with Delicate program.
• The appropriate amount of laundry for Delicate program is below 2.0kg.

* WOOL PROGRAM

1	Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’ level. Put detergent into the pre wash compartment only if you want to add prewash. When you want to use bleach, put it into the main wash compartment with detergent.
2	Press the Power button. The LED shows only ‘---’ and all Program Lights turn on.
3	Select the ‘Wool’ program using program selection dial. Washing temperature ‘Cold’, spin ‘400’ rpm and rinse ‘2’ times are selected automatically. If you want to change the spin velocity or add wash options (Rinse+, Crease Care), press each button.
4	Press Start/Pause button. The Door is locked. By sensing the weight of laundry and supplying wash water, The appliance starts washing.

Note

• If you want to change the setting during operation, press the Start/Pause button to hold the operation and press the button you want.
• Only 'Cold', '30°C', and '40°C' washing temperature is selectable with Wool program.
• More than 1000rpm of spin velocity is not selectable with Wool program in order to protect damage on laundry.
• Only ‘Rinse+’ and ‘Crease Care’ wash options are selectable with Wool program.
• The appropriate amount of laundry for Wool program is below 2.0kg.
• Use only special detergent for wool.

(Since special neutral detergent for wool creates a lot of bubbles, use appropriate amount).

* HAND WASH

1	Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door.· Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’ level.· Put detergent into the pre wash compartment only if you want to add prewash.· When you want to use bleach, put it into the main wash compartment with detergent.
2	Press the Power button.· The LED shows only ‘---’ and all Program Lights turn on.
3	Select the ‘Hand Wash’ program using program selection dial.· Washing temperature ‘Cold’, spin ‘400’ rpm and rinse ‘3’ times are selected automatically.· If you want to change the washing temperature, spin velocity or add wash options (Rinse+, Crease Care), press each button.
4	Press Start/Pause button.· The Door is locked. By sensing the weight of laundry and supplying wash water, The appliance starts washing.

Note

• If you want to change the setting during operation, press the Start/Pause button to hold the operation and press the button you want.
• Only ‘Cold’ and ‘30’ °C washing temperatures are selectable with Hand Wash program.
• More than 1000rpm of spin velocity is not selectable with Hand Wash program.
• Only ‘Rinse+’ and ‘Crease Care’ wash options are selectable with Hand Wash program.
• Use Hand Wash program for the laundry that is marked 'Hand wash' in the care label.
• The appropriate amount of laundry for Hand Wash Program is below 2.0kg.

* QUICK 30

1	Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door.·Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’ level.·Put detergent into the pre wash compartment only if you want to add prewash.·When you want to use bleach, put it into the main wash compartment with detergent.
2	Press the Power button.·The LED shows only ‘---’ and all Program Lights turn on.
3	Select the ‘Quick’ program using program selection dial.·Washing temperature ‘30’ °C, spin ‘800’ rpm and rinse ‘2’ times are selected automatically.·If you want to change the washing temperature, spin velocity or add wash options (Rinse+, Crease Care), press each button.
4	Press Start/Pause button.·The Door is locked. By sensing the weight of laundry and supplying wash water, The appliance starts washing.

Note

• If you want to change the setting during operation, press the Start/Pause button to hold the operation and press the button you want.
• Only 'Cold', '30' °C and '40' °C washing temperatures are selectable with Quick 30 program.
• Only ‘Rinse+’ and ‘Crease Care’ wash options are selectable with Quick 30 program.
• The appropriate amount of laundry for Quick 30 Program is below 2.0kg.

* SPIN ONLY

1	Put the laundry in the drum. Then close the door.
2	Press the Power button.• The LED shows only ‘--’and all Program Lights turn on.
3	Select the spin speed by pressing Spin button.
4	Press the Start/Pause button.• The washing machine will start operating by locking the door.

Proper care of your washer can extend its life. This section explains how to care for your washer properly and safely.

Cleaning your washer

Exterior Interior
Wipe up detergent, bleach, and other spills with a soft, damp cloth or sponge as they occur. Occasionally wipe the outside of the washer to keep its looking like new one.	Clean interior with 250ml of chlorine bleach mixed with 500ml of detergent.Run washer through a complete cycle.Repeat this process if necessary.
Do not put sharp or metal object in your washer, or they can damage the finish. Check all pockets for pins, clips, money, bolts, nuts, etc.Do not lay these objects in your washer after emptying pockets.

Winter storage or moving care

Install and store your washer where it will not freeze. Because some water may stay in the hoses, freezing can damage your washer.

If you store or move your washer during freezing weather, winterize it.

To winterize washer To use washer again
Turn off water faucet.Disconnect and drain water inlet hoses.Run washer on a drain and spin setting (see page 10) for 1 minute.Unplug the power supply cord.	Flush water pipes and hoses.Reconnect water inlet hoses.Turn on water faucet.Reconnect power supply cord.

Non-use or vacation care

Operate your washer only when you are at home.

If you are on vacation or don't use your washer for an extended period of time, you should:

• Unplug the power supply cord or turn off electrical power to the washer.
• Turn off the water supplier to the washer.

This helps avoid accidental flooding (due to a water pressure surge) while you are away.

Cleaning the water inlet filter

- Clean the filter when water leaks from the water inlet.

1Pull the power plug out before cleaning it.

2Turn off the water supply to the washer and separate the inlet base

3Pull the inlet filter out.

4Remove the dirt from the inlet filter with a brush.

Cleaning the drain filter

- This drain filter is used to screen the foreign stuffs such as threads, coins, pins, buttons etc.. - If the drain filter is not cleaned at proper time(every 10 times of use), drain problem could be caused.

CAUTION : Be careful when draining if the water is hot.

1. Open the lower cover(1) by using a coin. Turn the cap hose(2) to pull out the hose.Pull out the hose maximally.(About 13~14cm.)	2. Unplug the cap hose(2), allowing the water to flow out. At this time use a vessel to prevent water flowing on to the floor. When water does not flow any more, turn the pump filter(3) open to the left.	3. Remove any foreign material from the pump filter(3). After cleaning, turn the pump filter clockwise and insert the cap hose(2) to the original place.Close the lower cover.

Cleaning the detergent case

*After a while detergent and fabric softeners leave a deposit in the case;

• It should be cleaned from time to time with a jet of running water.
• If necessary it can be removed completely from the machine by pressing the catch downwards and by pulling it out.
• To facilitate cleaning, the upper part of the fabric softener compartment can be removed.

*Detergent can also accumulate inside the recess which should be cleaned occasionally with a brush.
*Once you have finished cleaning, replace the case and run a rinse cycle without laundry.

Stained, heavily-soiled, or greasy items may need to be prewashed or soaked for best results. Soaking helps remove protein-type stains like blood, milk or grass. Prewashing helps loosen soil before washing.

Stain removal rules

• Use warm water for soaking or prewashing stained laundry. Hot water can set stains.
• Most stains are easier to remove when they are fresh.
• Before treating any stain, find out what kind of stain it is, how old the stain is, what kind of fabric it is, and whether the fabric is colorfast(Check the care label).
• Washing and drying can set some stains.
• Start with cold or warm water. Hot water can set some stains.
• When bleach is recommended, use a bleach that is safe for the fabric.
• Put the stained area face down on a paper towel or white cloth. Apply the stain remover to the back of the stain. This forces the stain off fabric instead of through it.

Stain removal guide

STAIN TO REMOVE
Blood	Rinse immediately in COLD water.If stain remains, soak in cold water with an enzyme prewash.
Chewing gum	Use ice in plastic bag to harden the gum.Scrape off what you can and the sponge with white spirits.
Cocoa, Chocolate	Sponge with COLD water and soak in an enzyme prewash.If stains persist, rub in a little detergent and rinse in cold water.
Coffee	Blot up quickly and rinse out in COLD water.Rub in a little detergent and wash in the maximum temperature allowed for the fabric type.
Cream/MilkIce cream	Rinse in COLD water and wash normally.If stain is still apparent, sponge with white spirits.
Deodorant	Rub affected area with white vinegar and then rinse out in COLD water.Sponge with white spirits.Treat stiffened areas with enzyme prewash.
Egg	Soak in a COLD enzyme prewash, rinse and wash normally.
Fabric/Softener	Rub affected area with bar soap and wash normally.
Fruit stains	Treat as soon as possible by sponging with COLD water.Rub a little detergent on the stain and wash normally.
Grass	Sponge with white spirits.Rub in an enzyme prewash and wash as normally.
Grease and oil	Lay the affected area face down on an absorbent cloth and work from the back.Sponge with white spirits or dry cleaning fluid. Wash normally.
Iron or rust	Apply lemon juice and salt and place in the sun. Wash normally.
Lipstick	Sponge with white methylated spirits and wash normally.
Mildew	Wash in WARM water and detergent.Moisten area with lemon juice, dry in the sun and wash normally.If stain persists and the fabric allows, use a bleach.
Mud	Brush off any dry mud. Rinse in cold water.If stain persists rub in a little detergent and wash normally.
Paint-oil based	Scrape off any fresh paint and sponge with a non flammable dry cleaning fluid and wash normally.
Paint-water based	Treat while still wet, rinse in WARM water and wash normally.
Scorch marks	Dampen a cloth with hydrogen peroxide, lay it over the affected area and press with a fairly hot iron.

Most problems are easily solved if you understand the cause.

Check the following list for problem before calling for service.

If the error mode such as IE, OE, UE were displayed on the control part, in order to solve these problem, first turn off the power of the washing machine and then turn on the power pressing Power button.

If PFE error mode was displayed on the control part, in order to solve this problem, first turn off the power of the washing machine, second turn on the power pressing Power button, third press SPIN button and last press Start/Pause button.

PROBLEM CHECK	POINT
·The washer will not operate at all.	·Is there a power failure?·Is the power cord correctly connected to an electric outlet?·Did you turn on the power?·Did you press Start/Pause button?·Is there correct amount of laundry in the washer?
·Water is not suppliedError display IE	·Did you connect the inlet hose and open the water tap?·Is the inlet hose or the water tap frozen?·Is the water supply shut off?·Is there any foreign matter blocking up the inlet hose filter?
·The washer will not drainError display OE	·Is the drain hose frozen or blocked up by dirt?·Is the drain hose kinked or deformed?·Is the end of the drain hose immersed in water?·Is there excessive dirt inside the drain filter?
·The washer will not spinError display UE	·Is the clothes in the drum collected on one side?·Is the washer installed on an uneven floor or is the vibration serious?·Is the door open? (The lamp “LE vill light up in this case.)
·The washer will stop during spinning .·Spinning is insufficient.Error display PFE	·Is the filter of the drain pump clogged?·Is the drain pump operated?·Did you use the proper amount of detergent?·Is the drain hose placed higher than 1m above floor?
·Vibrating and too noisy	·Is the washer installed on an uneven floor?·Have all the transit bolts removed?

These cases are not malfunctions;

- The sound "wing" heard during water supply is the operating sound made by the water inlet valve.

SPECIFICATION

MODEL WM84KD's
Dimension (mm)	595 X 634 X 850(W X D X H)
Maximum mass of dry close (kg)	8.0
Unit Weight (kg)	54(Net) / 58(Gross)
Standard Water Consumption	52 l
Spin Speed (RPM)	400/800/1000/1400
Operating Water Pressure	0.03MPa ~ 0.8MPa (0.3kgf/cm2 ~ 8kgf/cm2)

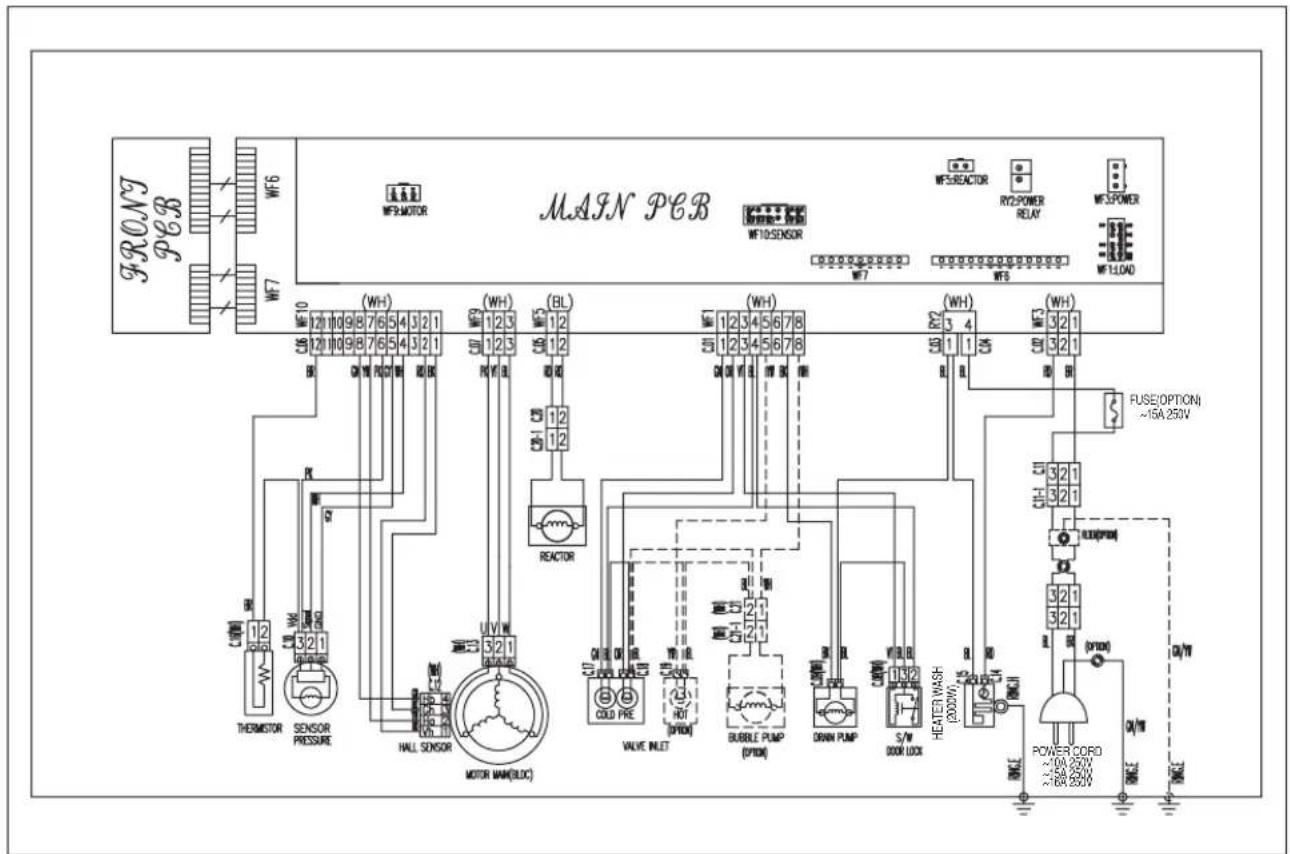

WIRING DIAGRAM

Line drawing of a washing machine with front panel and side vent (no text or symbols)

الصفحة

المحتويات

القطع والميزات

1. سلامة المستخدم

٤ تعليمات التركيب

وصل خرطوم الدخل

Line drawing of a hand adjusting a component inside a device casing (no text or symbols)

Technical schematic of a mechanical assembly with no visible text or symbols

Line drawing of a hand adjusting a circular component with tubing (no text or symbols)

موقع الغسالة

		[QED]العربية الحرفية
خطر صعقة كهربائية: إن عدم اtbاع التعليمات التالية أو عدم القدرة على اtbاعها youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth, youth
	المناسب بمساعدة كهربائي مختصر. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Youth. Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2019(1) - Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2019 (in millions) - Total youth in 2020 (in millions) - Total youth in 2020 (in millions) - Total youth in 2020 (in millions) - Total youth in 2020 (in millions) - Total youth in 2020 (in millions) - Total youth in 2020 (in millions) - Total youth in 2020 (in millions) - Total youth in 2020 (in millions) - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth in all years - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth- Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth -Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total youth - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young- Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young -Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total young - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger- Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger -Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total younger - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer - Total newer

نظام تفريع الماء

Cartoon illustration of a smiling character standing on a slope, with arms and legs in motion (no text or symbols)

Cartoon character resembling a computer with a smiling face and limbs, standing on a puzzle piece (no text or symbols)

ضبط المستوى

Line drawing of a hand operating the front panel of a washing machine (no text or symbols present)

(Prewash, Rinse, Crease
