USER MANUAL TL10T Campomatic

Line drawing of a rectangular electronic device with lid and mounting holes (no text or symbols)

Made in China

Contents

Safety and precautions.... 2

Installation of the washer.... 5

Preparation before washing....7

Parts identification of the washer....8

Instruction of the washer operation panel....9

Quick start.... 11

The main wash.... 12

Special features.... 13

About the procedure of full automatic wash program.... 14

Cleaning and Maintenance of the washing machine.... 16

Identify usual trouble of washer....17

Malfunction display and solutions.... 18

Technical specifications.... 18

Observe the following items in order to prevent from injuring yourself, others and the damage of property:

Warning

This indicates serious injury or death to human being may be caused.

Caution

This will remind you that injury to people and damage to property may occur.

Please observe following contents of graphics.

This graphics represents [cause attention], and detailed cautions will be displayed inside the graphics. △

This graphics represents [operation prohibited], and detailed prohibitive items will be displayed inside the graphics.

This graphic represents [compulsory execution], and detailed forcible execution items will be displayed inside the graphics.

Warning

Please do not disassembly and assembly the machine without authorization.

No dismantling

Line drawing of a hand holding a small electronic device (no text or symbols)

Please do not insert your hand and take out clothes inside the

spin barrel before it is fully stopped.

No touching

Simple line drawing of a washing machine with a thought bubble showing a small object (no text or symbols)

Please do not install the machine in damp and raining environment to avoid electric shocking, catching fire, faults

and distortion accidents.

No dampness

Illustration of a washing machine placed near a window with a grid-patterned wall (no text or symbols)

Please do not directly rinse the machine with water when cleaning.

No rinsing

Line drawing of a washing machine with a hand pulling the air (no text or symbols)

Warning

Please do not let children climb the machine or peer into the rotating spin barrel to avoid accidents.

Prohibited

Simple line drawing of a baby peeking out of a circular frame (no text or symbols)

It is prohibited to wash the clothes touching with kerosene, gasoline, alcohol and other flammable materials.

Prohibited

Illustration of a person in uniform with a thought bubble showing two containers (no text or symbols present)

Please do not damage power flexible cord and power plug to avoid electric shocking, short circuit and catching fire.

Prohibited

Hand holding a plug with a magnified inset showing a cable being inserted (no text or symbols)

Regularly clean the power plug to remove dust and dirt to avoid contact failure.

Line drawing of two hands holding a thin, elongated object (no text or symbols)

Please pull out plug from the socket if the machine is not in use.

Pull out the plug

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

Please well connect the earth line of socket to avoid electric shocking by accidental leakage. ( earthing )

Earthing

Simple line drawing of a portable air conditioner unit connected to a wall-mounted pressure gauge (no text or symbols)

Please insert the power plug tightly.

Hand holding a plug inserted into an electrical socket (no text or symbols visible)

Please do not place on the washer burning candle, mosquito-repellent incense, cigarette and other flammable things, as well as electric stove, air heating fan and other

heating sources.

Smoke and fire prohibited

Please use correct power source.

Please do not pull out or insert the plug with wet hands to avoid electric shocking.

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Wet hands are prohibited

Caution

Please ensure that the water inlet pipe is connected and the tap is opened

before washing clothes.

Illustration of a faucet with directional arrows indicating flow or movement (no text or symbols)

The water temperature shall not exceed

50°C when washing with warm water.

Prohibited

Line drawing of a washing machine with a hand pouring liquid into it (no text or symbols)

Customers are not allowed to change the power line without permission.

Prohibited

Electrical outlet diagram showing a plug connected to a power outlet, with an inset close-up of the plug (no text or symbols)

It is strictly prohibited to place

children or lay weights on the washer.

Prohibited

Simple line drawing of a person jumping on top of a refrigerator (no text or symbols)

Please do not pull the electric cord when pulling out the

plug.

Please do not wash down jacket, raincoat, fishing coat and similar

clothes in the washer.

Prohibited

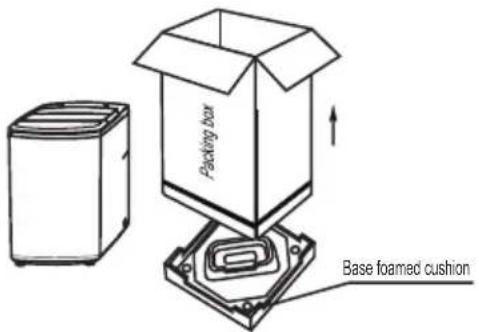

Remove package

• Remove package and take out the bottom board of the cabinet on the foam cover.
• Open the lid of washer's door and take out accessories.
• A trial operation or washing on the foamed cushion is strictly forbidden.

Packing box Base foamed cushion

Installation of drain hose

Diagram of a coiled spring with a loop and rope, no text or symbols present

Mechanical assembly diagram showing two stages of a moving component with arrows indicating motion direction (no text or symbols)

• Completely sleeve the drain hose over the sewer.
• Fix and tighten it with a hoop. ( As shown in the figure )

Placement of water drain hose

Under3m

If the water drain hose shall be extended, its length shall not exceed 3 meters, otherwise it will affect the water discharging time.

Under 15cm

The placed height of water drain hose shall not exceed 15cm.

Simple line drawing of a container with a handle and a curved arm, no text or symbols present

Do not bend the water drain hose and place it under the washer.

Installation of water inlet hose

Simple line drawing of a device with a bulb and a magnified inset showing a microphone (no text or symbols)

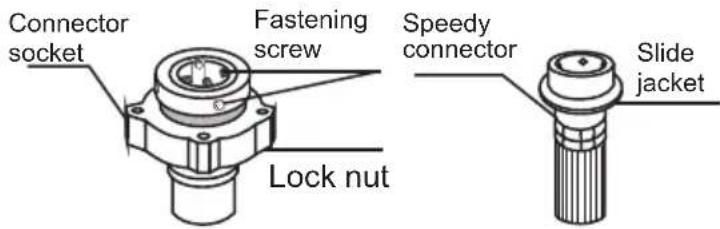

Water inlet adapter

The water inlet consists of connection socket and speedy connector.

Connector socket Fastening screw Lock nut Speedy connector Slide jacket

Placement of upper water drain hose

The height of drain hose ("a") should between 86-100 cm. Diameter of "b" should not less than 3 cm, and flow capacity not less than 40 L/Min.

a 86~100 cm b

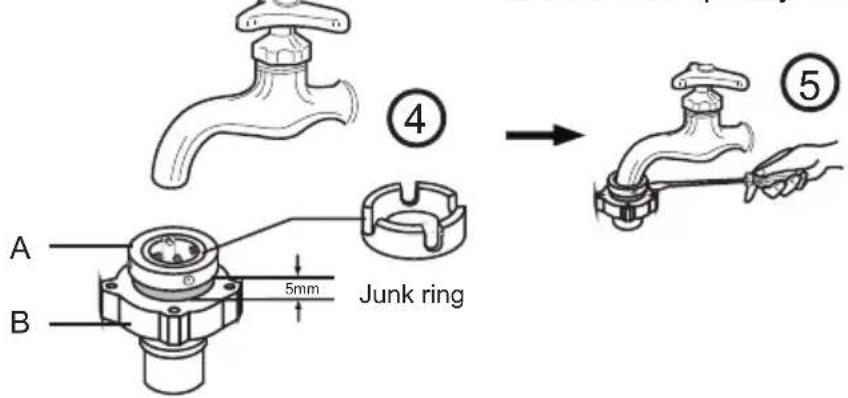

Installation of water inlet pipe ① ② Small ball Push down the slide jacket to expose the small balls and enable separation of connector socket from speedy connector. ③

A B 5mm Junk ring ④ ⑤

Unscrew four screws of part A and sleeve part A horizontally over the mouth at the end of water tap (the mouth at the end of water tap must be flat and smooth. Flatten it by filing if it is not flat) and push it upward with force making the rubber washer firmly press the plane center of water tap mouth. Then tighten the screw sequentially.

After that, tightly screw on part B.

The connection socket consists of A and B two parts. Before installation, A and B two parts must be unscrewed about 5mm, or directly disconnected. If the bore of water tap is larger, remove the plastic junk ring of part A.

Illustration of a faucet with directional arrows indicating flow or movement (no text or symbols)

Connect

Connect: Push down the slide jacket of speedy connector (4 small balls must be exposed), insert it into the connection socket and then push upward Release the connection of water tap with speedy connector completed. If it is required to feed water, simply open the water tap.

Separate: Close the water tap, push down the slide jacket of speedy connector and pull out the speedy connector.

Line drawing of a faucet with a handle and base, no text or symbols present

Separate

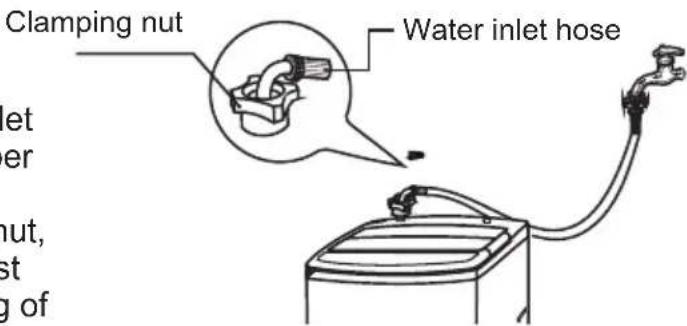

Tightly screw another end of water inlet hose on water inlet valve. (with rubber seal ring inside).

Note: When tightening the clamping nut, evenly apply the force and do not twist the water inlet valve to avoid breaking of water inlet valve joint.

Clamping nut Water inlet hose

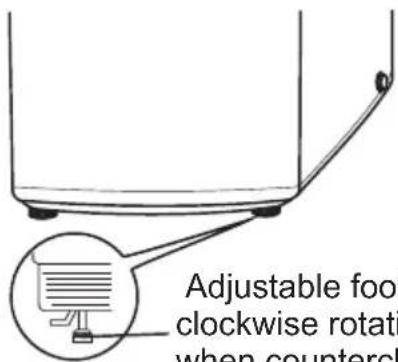

1 Adjust the adjustable foot to make the washer be placed stable.

Adjustable foot clockwise rotati when countercl

Adjustable foot (extend when clockwise rotating and shorten when counterclockwise rotating) (Slightly incline the washer first and loosen the adjustable foot knob. Adjust the adjustable foot so as to ensure four corners of washer be steadily contacted with the ground. Then tighten the adjustable foot knob and lock it. If the ground is obviously not flat, correction should be made on the ground surface, otherwise the washer barrel will incline and knock the cabinet)

2 Install the water inlet hose.

For one inlet hose

ne inlet hose

For two inlet hoses

Simple line drawing of a device with two connectors on top (no text or symbols)

3 Connect with to power source.

Simple line drawing of a plug inserted into a socket (no text or symbols)

5 Put down the drain house.

Gravity drain

ain

4 Turn on the water supply.

Illustration of a faucet with directional arrows indicating flow or movement (no text or symbols)

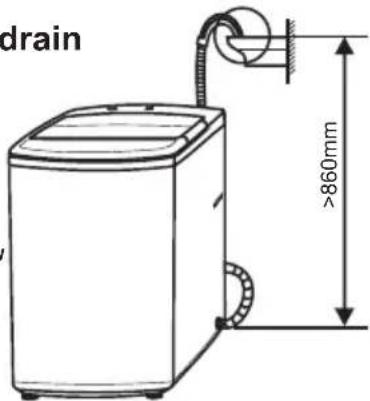

Upper drain
Note: The water will overflow when the height of the drain hose under 860mm.

drain >860mm

6 Put in clothes and suitable amount of washing powder.

NOTICE

Before washing, please do take out coins, keys and other hard goods, and zip up clothes tightly to prevent them and barrel from damage.

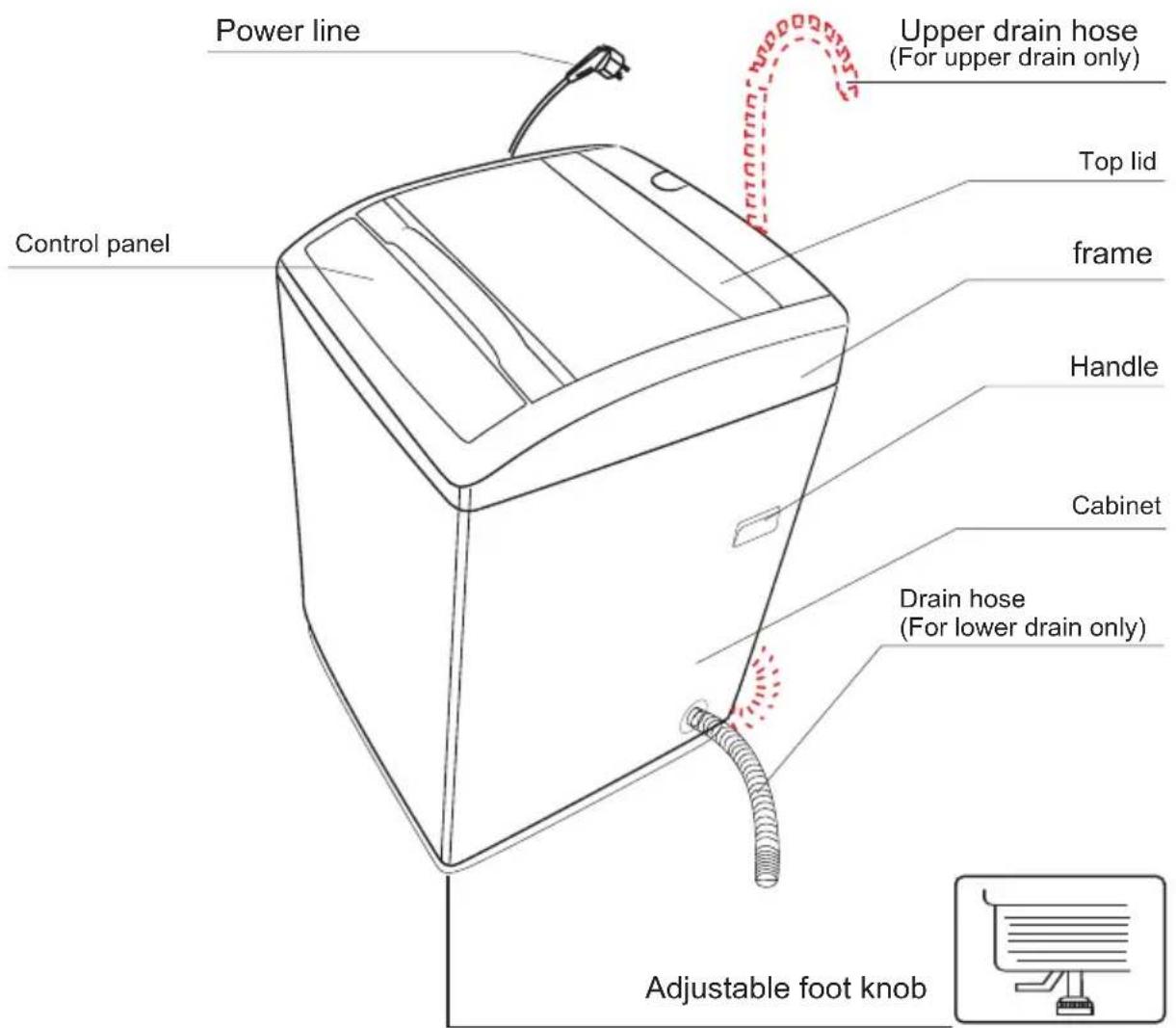

Power line Control panel Upper drain hose (For upper drain only) Top lid frame Handle Cabinet Drain hose (For lower drain only) Adjustable foot knob

Accessories
Fixing ring (1) is used for the fixing in time of the installation of the lower drain hose.	Universal connectorWater inlet hose assembly	Water inlet hose assembly	Self-tapping screwBase cover
Only for lower drain hose	Only for model with single screw thread water inlet pipe	Only for model with double screw thread water inlet pipe	Only for models including base cover

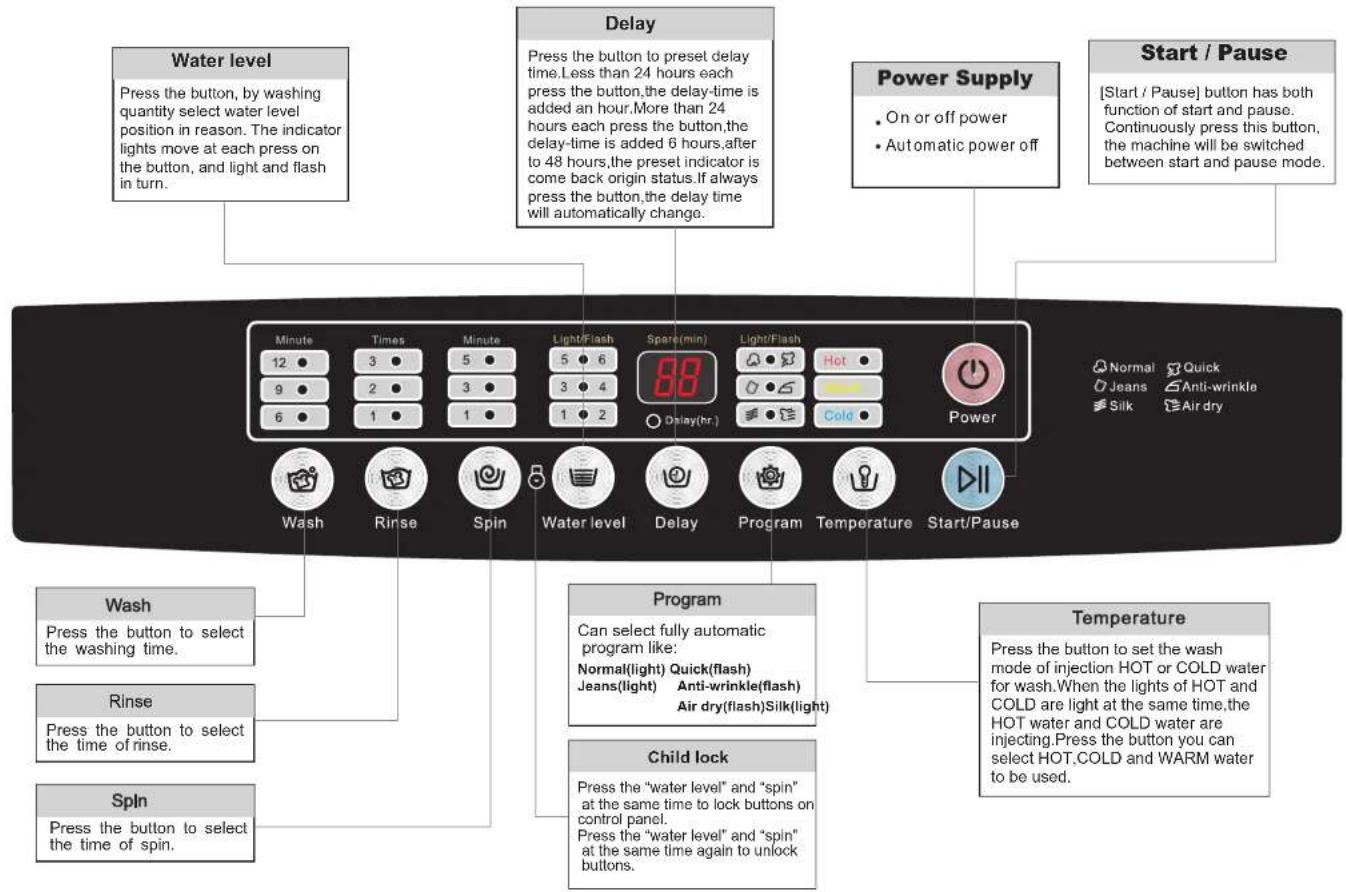

Instruction of the washer operation panel

Water level Press the button, by washing quantity select water level position in reason. The indicator lights move at each press on the button, and light and flash in turn. Delay Press the button to preset delay time. Less than 24 hours each press the button, the delay-time is added an hour. More than 24 hours each press the button, the delay-time is added 6 hours, after to 48 hours, the preset indicator is come back origin status. If always press the button, the delay time will automatically change. Power Supply • On or off power • Automatic power off Start / Pause [Start / Pause] button has both function of start and pause. Continuously press this button, the machine will be switched between start and pause mode. Minute 12 • 9 • 6 • Times 3 • 2 • 1 • Minute 5 • 3 • 1 • Light/Flash 5 • 6 3 • 4 1 • 2 Spare(min) 88 Delay(hr.) Light/Flash Hot Cold Power Normal Quick Jeans Anti-wrinkle Silk Air dry Wash Press the button to select the washing time. Program Can select fully automatic program like: Normal(light) Quick(flash) Jeans(light) Anti-wrinkle(flash) Air dry(flash)Silk(light) Temperature Press the button to set the wash mode of injection HOT or COLD water for wash. When the lights of HOT and COLD are light at the same time, the HOT water and COLD water are injecting. Press the button you can select HOT, COLD and WARM water to be used. Rinse Press the button to select the time of rinse. Child lock Press the "water level" and "spin" at the same time to lock buttons on control panel. Press the "water level" and "spin" at the same time again to unlock buttons. Spin Press the button to select the time of spin.

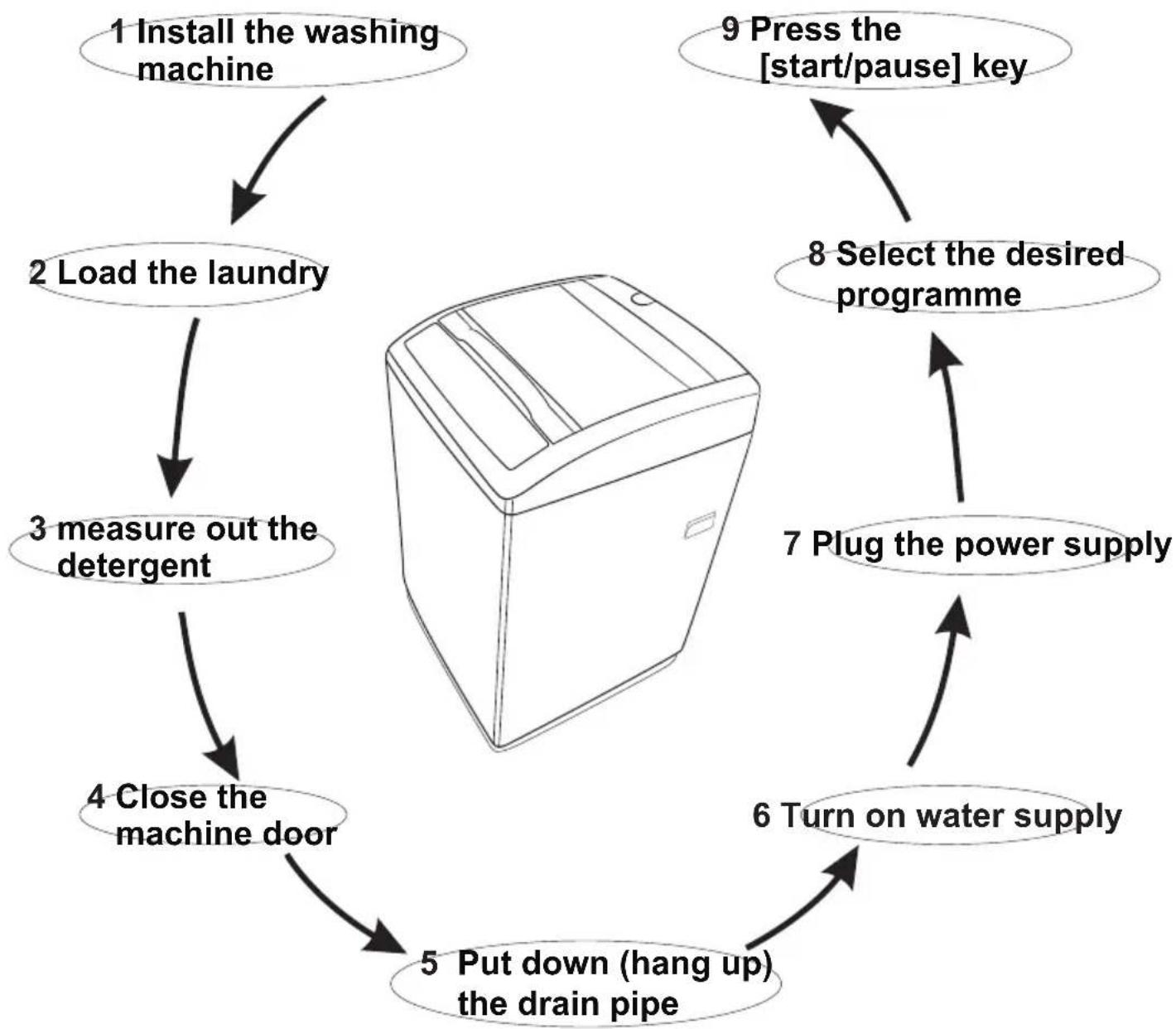


Programme selection

1 Press the POWER button.
2 Select the proper water level and other attached functions.
3 press the start/pause key.

The wash stops

• When the wash stops, the buzzer will buzz continuously for 6 times and then the power will be automatically cut off.
• Turn off the water tap.
• Although the power can be cut off automatically, the power plug must be pull out for the safety.

Instruction of the NORMAL program

1.[Normal] wash program is the easiest, most convenient and most common washing program. When the user press the power switch and then press [Start/Pause] button, the normal washing program will start to work.
2. When the washer start to work, the digital tube show the remain time. The indicator light which stand for remaining time is flickering.

Steps in details

1. Press the power switch.
2. According to the washing amount choose the proper water level.
3. Press START/PAUSE button.

Instruction to single wash procedure

1. User may freely select any single procedure, or any combination of procedures among WASH, RINSE and SPIN according to the actual requirements. It is only required to turn off any one or two of these three indicators that not needed by the user. And keep the indicator be on showing the process needed by the user.
2. Single wash -- after switching on the power, turn off RINSE and SPIN two indicators by pressing these two keys. The operation for single rinse and single spin is similar.
3. Single wash-spin - after switching on the power, turn off RINSE indicator by pressing that key. The operation for single rinse-spin and single wash-rinse is similar.

Use the cleaning solution for twice

1. Put the laundry in the first batch and wash powder and press "Function" button to set single "wash" to run.
2. Take out the laundry in the first batch after hearing the buzzing sound.
3. put in the laundry in the second batch, and run "Wash", "Rinse", "Spin".
4. Take out the laundry in the second batch after hearing the buzzing sound.
5. Put in the laundry in the first batch and press "Function" button to run "Rinse" and "Spin".

NOTICE

1. Close the lid of the door when machine is running, otherwise, it will automatically stop working during spin process and send out abnormal warning.
2. The washer will not work when the filled water does not reach the set water level.
3. The selection of rinse water level: the level is equal to wash water level.
   Press [Rinse Level] button, the indicator light which stand for rinse level flickered. User can select the rinse water level according to needs. Rinse level exceed that wash level all the time. It shows the wash level if not press this button. And only show rinse level when rinseing.
4. After pressing down [ Power Switch ], if the [Start / Pause ] button is not pressed, the power will be automatically cut off in 10 minutes.

Delay time program

Delay time means the preset beginning time of washing.

1.Switch on the power.
2.Open the tap and lay the drain hose.
3. Put in the laundry and detergent.
4. Select the propre water level according to the quantity of clothes.
5. Select the functions and programs.
6. Press "DELAY" button to select the beginning time of washing.
7. close the lid and press "START/PAUSE" button

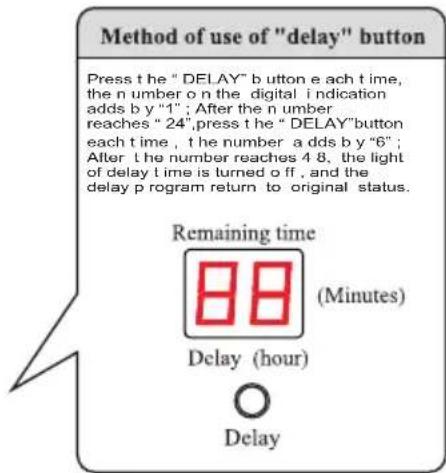

Method of use of "delay" button Press t he " DELAY" button e ach t ime, the n umber o n the digital i ndication adds b y "1"; After the n umber reaches " 24",press t he " DELAY"button each t ime , t the number a dds b y "6"; After t he number reaches 4 8, the light of delay t ime is turned o ff , and the delay p rogram return to original status. Remaining time (Minutes) Delay (hour) Delay

Confirmation of the delay and inspection

1. After the delay function is started, the corresponding delay light will flash, and other lights are turned off.
2. After the delay function is started, press "Delay" button continuously, you may inspect the preset program and function. Loose the button, the program return to delay status.

Cancel the delay time, or alternate the delay time

1. Press "Power" button to cancel the delay time.
2. To change the delay time, cancel the delay time first, and then press "Delay" button to reset.

Quick

Wash time is short. Suitable to wash light stained clothes and clothes in summer.

Silk

Delicate wash, especially for silk fabrics.

Jeans

High wash ability, suitable to wash heavy or serious stained clothes.

Air dry

As for not easily fading, deforming, and non-waterproof clothes, can use the function to dry clothes without heating, and to reach the result of being dried in a room.

Anti-wrinkle

The wash time is short, rinses many time with high water level, thoroughly wash away the garment.

Function of automatic power shut off

1. If the machine do not start to work within 10 minutes after powered on, it will power off automatically.
2. After end of operation and the buzzer sounding 6 times, it will power off automatically.

Function of adjusting for imbalance

1. If the laundry is placed uneven before spinning, it is likely to cause vibration during spinning. The washing machine has a function of adjusting imbalance. When working, the washing machine always inspects operation state automatically. If the spinning vibration is too great, the washing machine automatically starts the adjusting program to balance.
2. When the machine adjusts imbalance, rinse light will flash, and the machine will start to inject water to set water level. The machine adjusts imbalance automatically for about 1 minute, then drains water, returns to original spinning state. If the washing machine can adjust the imbalance twice. If the adjustment has no function, it will alarm.

Fuzzy control function

Standard procedures default implementation fuzzy control function. After startup, such as water level before starting the keys will be cancelled automatically according to the fuzzy control functions; In addition, the fuzzy measure before, if there is no water, tub fuzzy measurement, the water level directly as the default file namely 6 gear levels.

Fuzzy control function is at boot automatically after the determination of cloth is measured, decide the water level. In fuzzy testing process, water circulation flashing lights display, digital pipe display "--".

Power failure memory function

If the power supply becomes off suddenly during operation, the machine remembers the current operation state. When power is on, the machine returns to former operation state automatically.

Only for washers having these two functions

Program	Wash time Rinse	times	Spin time	Total time
Normal	12 minutes	two times	5 minutes	64 minutes
Quick	6 minutes	one time	3 minutes	23 minutes
Silk	Soak 10 minutesWash 12 minutes	two times	5 minutes	60 minutes
Jeans	Soak 54 minutesWash 12 minutes	two times	6 minutes	109 minutes(display is "H9")
Anti-wrinkle	9 minutes	two times	1 minute	41 minutes
Air dry			55 minutes	60 minutes

Cleaning and Maintenance of the washing machine

End of program		Maintenance
The washing machine will send off the sound of"dou-dou at the end of any program operation to remind you to take out the laundry or operate it again.After the sound ,the washing machine returns to its power-off state with no display and all lights off.Please shut off the tap, pull out the plug when not in use to avoid water leakage or the fire accidents.		Use gentle clothing to wipe off the water and dirt on the surface each time after using the washing machine.Detergent , propellant and other chemicals are not allowed to use so as to avoid any damage to the plastic accessories.
Clean the water inlet Clean Of the filter
After long time use, the water inlet mesh bag may be blocked with smudginess, and should be cleaned according to the following steps:1. Switch on the power, followed by shutting off the tap .2. Let the washer works for 5 seconds so that water flows into the tub through the water inlet hose. then turn off the power.3. Unload the water inlet hose and clean the mesh bag, then restore the water inlet assembly.		After using the washing machine for a period, please clean it according to the following steps:1. Take out the lint filter.2.Open the filter and wash it clean in the water.3. Restore it and fix it.(only for magic filter)
		After using the washing machine for a period, clean it according to the following steps:1. Take off the lint filter.2. Turn over the mesh bag and wash it clean in the water.3. Restore and fix it.(only for normal filter)
Clean the lint filter in the drain pump (only for having drain filter)
1. Drain the water out of the pump,under which use a container to collect.	2. Loosen the pump cover anticlockwise.	3. Take out the lint filter.
4. Clean the filter.	5. Restore it and adjust the convex place to align at the pump hole.	6. Tighten the pump cover clockwise.

Notes:

If the drain filter is not cleaned at proper time (every 10 times of use), Drain problem could be caused.

When the washer is in trouble, please contact local service office or the sales service department of our company and the customer should not dismantle the machine without permission.

If the washer can not work normally, or appear abnormality or alarms, please check and correct as follows.

List of faults and inspection

Faults	Inspection Items
No water flows in	If the power is off or the fuse is burned out.If the water supply is cut off or the water pressure is too low.If the inlet hose is properly connected and the water tap is opened.If the filtering screen of inlet valve is blocked by dirt.If the coil of inlet valve is damaged. (The slight electromagnetic sound is normal phenomenon when the inlet valve is switched on)If the "Start / Pause" button is pressed after the power switch is pressed.
No washing	If the power is off or the fuse is burned out.If the power supply voltage is too low.If the water amount reaches to the required water level.(The washer will not work if the water amount does not reach the required water level)If it is set to "Delay" washing mode. (It will only start to work until the reservation time reached)
Abnormal draining	If the water drain hose is placed very high.If the end of water drain hose is sealed in pond.If the internal rubber ring of drain valve is blocked by dirt.
Abnormal spin	If the door lid is closed.If all clothing piled largely at one side of barrel or the clothing is excessively placed.If the washer is not placed in stable condition or it is placed in inclination state. (The ground is not flat).If the motor belt is loosened.

Note: During the de spin process, if washing are piled at one side of the spin barrel, it will cause unbalance of spin barrel resulting in striking. At this moment, the computer inside the washer will feel this unbalance phenomenon and will automatically correct it (fill in water Washing). However, if unbalance situation is not removed after continuous three corrections, which means the computer auto-correction can not resolve the problem. Then the user has to manually and evenly place the clothing inside the barrel to solve the problem.

When the washer is in trouble, please contact local service office or the sales service department of our company and the customer should not dismantle the machine without permission.

If the washer can not work normally, and the abnormal indication is shown in the nixie tube window or the machine alarms, please check and correct as follows.

Fault	Cause of fault	Indication	Alarm of the buzzing sound	Stopping alarm
Alarm for water inlet	Water injection for about 16 minutes, but do not reach preset water level	“E1” flares	The buzzer goes on buzzing for 10 seconds. If the fault is not solved, buzzes again for 10 seconds in every 16 minutes.	Open the lid to deal with faults, then close the lid to stop the alarm.
Alarm for opening lid	Open the lid after starting the delay time. Open the lid when the washer is spinning. Open the lid when entering into the child lock state.	“E2” flares
Imbalance alarm	Checked imbalance for the third time.	“E3” flares
Drain alarm	Drain off water ten minutes not arrive at empty water level.	“E4” flares
Overflow alarm	After the water reaching the preset water level, water injection doesn’t cease.	“E5” flares

Technical specifications

Size (mm)	601X625X1015	Weight of the product	45Kg
Rated inp power	600W	Rated capacit of wash and spinning	10.0kg (dry clothes)
Rated voltage	220V~	Maximum water pressure permitted in the water inlet	0.6Mpa
Rated frequency	60Hz	Minimum water pressure permitted in the water inlet	0.1Mpa

Fold three times in the same direction

Fold in two by the long side

حجم الغسيل والمنظمة

Grounding wire

Slot 45° Base cover

Tap CONNECTOR

Cabinet Inner hose Fixing ring Drain hose Leading ring

تركيب خرطوم الصرف

Nut Adjustable leg Screw in Screw out

Air bubble Gradienter

Base foam

Names of respective parts 1 2 3 4 5 6 7 8 9

أسམاء الأجزاء:

Simple line drawing of a rectangular object with rounded edges and small circular markings at the bottom (no text or symbols)

Simple line drawing of a coiled tube or hose with two connectors (no text or symbols)

Line drawing of a rectangular electronic device with lid and front panel (no text or symbols)

صنع في الصين

كتيب التعليمات
