SVTE100A3 - Water heater SVAN - Free user manual and instructions

Type	Water heater
Brand	SVAN
Model	SVTE100A3
Capacity	100 liters
Dimensions (H x W x D)	900 x 450 x 450 mm
Weight (empty)	25 kg
Power rating	2000 W
Voltage	230 V ~ 50 Hz
Energy efficiency class	C
Maximum temperature	75 °C
Adjustable thermostat	Yes
Maximum pressure	8 bar
Safety valve	Included (pressure relief)
Inner tank material	Enameled steel
Insulation	Polyurethane foam
Installation type	Wall-mounted, vertical
Water connections	G 1/2 inch
Heating time (full tank)	Approx. 2.5 hours
Standby energy consumption	< 1 kWh/24h
Maintenance	Replace magnesium anode annually

Frequently Asked Questions - SVTE100A3 SVAN

How do I adjust the water temperature on my SVAN SVTE100A3?

Turn the thermostat dial on the front panel. The recommended setting is between 55 and 65 °C for optimal energy efficiency and safety. Wait 10–15 minutes for the temperature to stabilize.

What is the proper installation procedure for this water heater?

Installation must be performed by a qualified professional. The heater must be wall-mounted vertically on a solid wall. Connect cold water inlet (blue) and hot water outlet (red) using G 1/2 fittings. Ensure the safety valve is installed on the cold water line. Fill the tank before powering on.

How often should I descale the SVTE100A3?

Descaling frequency depends on water hardness. In hard water areas, perform descaling every 6 months. Use a descaling agent suitable for enameled tanks. Follow the instructions in the manual to avoid damaging the heating element.

Why is my water heater not producing hot water?

Check if the appliance is powered and the thermostat is set correctly. If the thermostat is set too low (below 40 °C), increase it. Also check if the thermal cut-out has tripped; if so, press the reset button (located behind the front cover). If the problem persists, the heating element may be faulty.

Water is leaking from the pressure relief valve. Is this normal?

A small amount of water dripping from the pressure relief valve during heating is normal due to thermal expansion. However, continuous or heavy leaking indicates excessive pressure or a faulty valve. Check the expansion vessel (if installed) or replace the relief valve.

How do I replace the magnesium anode rod?

The anode rod should be inspected annually and replaced when heavily corroded. Turn off power and water supply, drain the tank, unscrew the old anode (usually located on top), install the new one with PTFE tape on threads, and refill the tank. Use a compatible SVAN anode.

What energy-saving tips can I follow with this water heater?

Set the thermostat to 60 °C (not higher). Insulate hot water pipes. Use hot water wisely, e.g., take shorter showers. Install a timer to heat only during off-peak hours. Activate the eco mode if available.

What is the warranty period for the SVAN SVTE100A3?

The warranty is 2 years from the date of purchase for the entire appliance. The inner tank is covered by a separate 5-year warranty against corrosion. Keep your purchase receipt and register the product online.

Can I install the water heater outdoors or in an unheated space?

The SVTE100A3 is designed for indoor installation only. Install it in a frost-free room with temperature above 0 °C. If installed in a garage or basement, ensure adequate frost protection to prevent freezing.

How do I reset the thermal cut-out (safety thermostat)?

First, disconnect the heater from the power supply. Remove the front cover to access the control panel. Locate the small red reset button on the thermal cut-out device. Press it firmly until you hear a click. Reassemble and restore power. If it trips again, contact a technician.

USER MANUAL SVTE100A3 SVAN

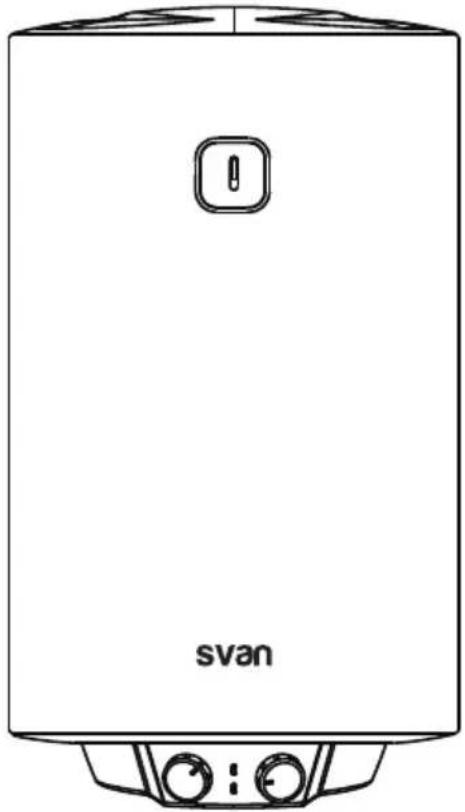

Line drawing of a white electric water heater with labeled 'svan' and control knobs (no additional text or symbols)

SVTE30A3

SVTE50A3

SVTE80A3

SVTE100A3

Diagram of a mechanical component with hatched fill and dashed lines indicating internal structure (no text or symbols)

Sealed Storage Electric Water Heater

Line drawing of a white electric water heater with labeled 'svan' and control knobs (no additional text or symbols)

SVTE30A3

SVTE50A3

SVTE80A3

SVTE100A3

Sincerely thank you for selecting our electrical water heater. Please read this manual carefully before use; correctly grasp the methods for installation and use of this electrical water heater, to make full use of its excellent performances.

Special advise

Before installing this water heater, check and confirm the earth electrode on the socket is reliably grounded, without electricity. Otherwise, the electrical water heater can not be installed and used.
- No use of mobile sockets.
- Incorrect installation and use of this electrical water heater may result in serious injuries to human bodies and losses of property.

Contents

• Performance characteristics....(1)
- Specifications.... (2)
- Brief introduction of product structure....(2)
• Methods of installation....(2)
• Methods of use....(4)
• Cautions....(4)
- Maintenance....(6)
- Failures and treatment....(7)
- Wiring diagram.... (7)

▶ Performance characteristics

1. Completely automatic control: automatic addition of cold water, automatic heating.
2. Four-fold safety protection: multiple safety protection devices, such as dry heating protection, extra-temperature protection, electric leakage protection, high hydraulic pressure protection, etc., safe and reliable.
3. Sapphire enamel inner container: manufactured by using advanced electrostatic dry method enamel technique, antirust, corrosion-proof, incrustation-resistant, leak-prevention, with longer lifetime.
4. Heating pipes designed with low thermal load: safe and reliable, with longer lifetime.
5. Equipped with corrosion-proof and incrustation-retardant equipment: durable products.
6. Thickened urethane integral foaming: good thermal insulation effect, energy efficient and electricity saving.
7. Imported temperature controller: accurate and reliable control of temperature.
8. Adjustable range of water temperature from 30 to 75°C.
9. Simple operation and easy use.

Specifications

Model	Volume (L)	Rated powerl (W)	Rated voltage (ACV)	Pated pressure (MPa)	Max of water temperature (°C)	Electric type	Waterproof grade
SVTE30A3	28	1500	220-240	0.75	75	Type I	IPX4
SVTE50A3	47	1500	220-240	0.75	75	Type I	IPX4
SVTE80A3	73	1500	220-240	0.75	75	Type I	IPX4
SVTE100A3	92	1500	220-240	0.75	75	Type I	IPX4

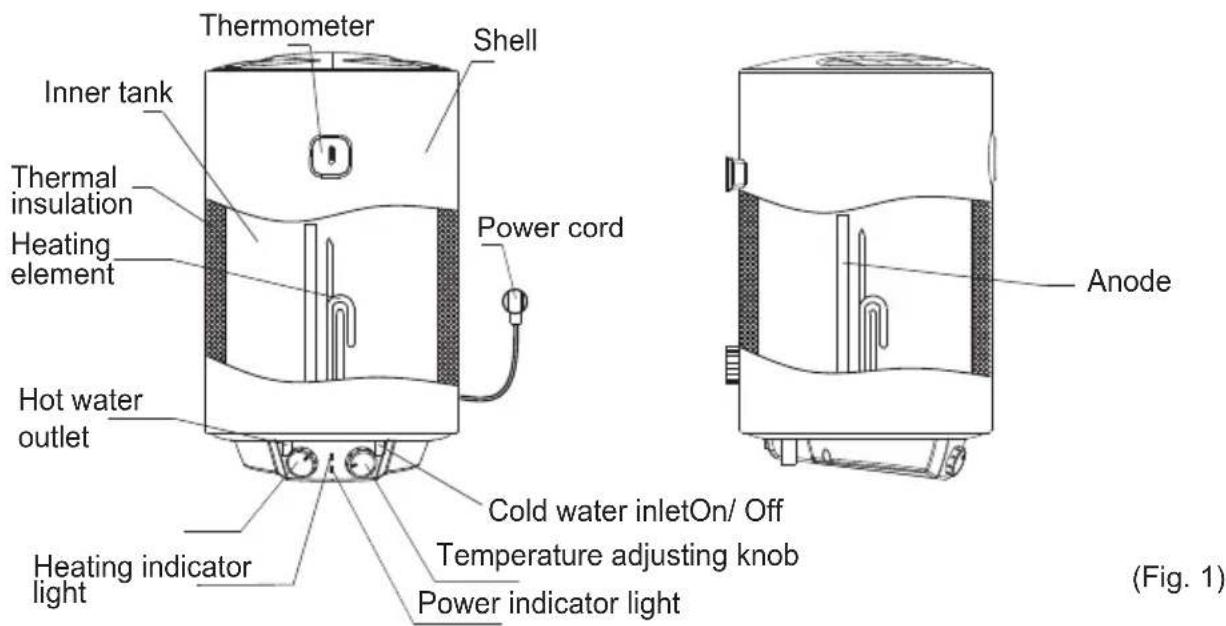

Brief introduction of product structure

Methods of installation

Note: Please be sure to use the accessories provided by our company to install this electrical water heater. This electrical water heater can not be hung on the support until it has been confirmed to be firm and reliable. Otherwise, the electrical water heater may drop off from the wall, resulting in damage of the heater, even serious accidents of injury. When determining the locations of the bolt holes, it shall be ensured that there is a clearance not less than 0.2m on the right side of the electrical heater, to convenient the maintenance of the heater, if necessary.

1. Installation of the main machine

1.1 This electrical water heater shall be installed in the solid wall. If the strength of the wall can not bear the load equal to two times of the total weight of the heater filled fully with water, it is necessary to install a special support.

1.2 After selecting a proper location, determine the positions of the two install holes used for expansion bolts with hook (200mm). Make two holes in the wall with the corresponding depth by using a chopping bit with the size matching the expansion bolts attached with the machine, insert the screws, make the hook upwards, tighten the nuts to fix firmly, and then hang the electrical water heater on it (see Fig.2).

Expansion de bolt (with hook)

Volume (L)	28 47		73 92
Distance between holes (mm)	200

(Fig.2)

1.3 Install the supply socket in the wall. The requirements for the socket are as follows: 250V/10A, single phase, three electrodes. It is recommended to place the socket on the right above the heater. The height of the socket to the ground shall not be less than 1.8m (see Fig.3).

1.4 If the bathroom is too small, the heater can be installed at another place without sun-scorched and rain-drenched. However, in order to reduce the pipeline heat losses, the installation position of the heater shall be closed to the location for use of water as near as possible.

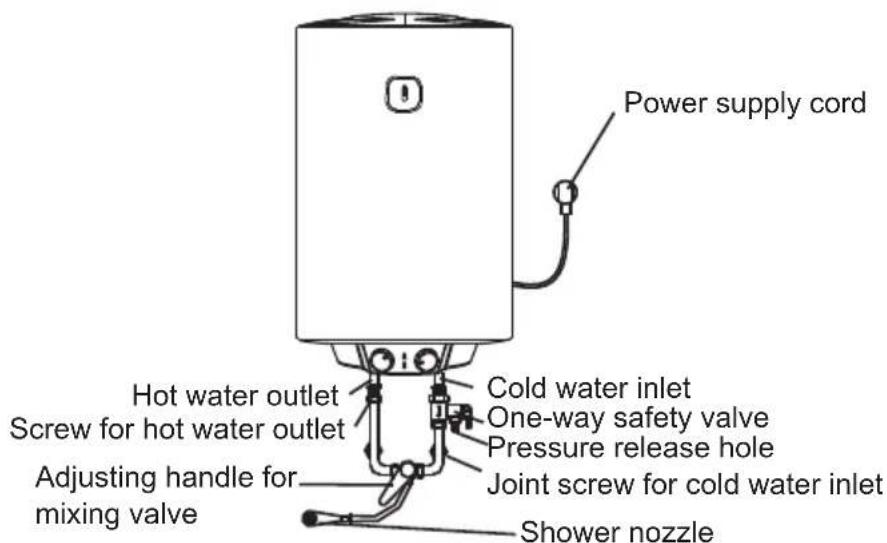

2. Connection of pipelines

2.1 The dimension of each pipe part is G1/2.
2.2 Connection of one-way safety valve: install the one-way safety valve attached with the machine at the water inlet of the main machine. (Pay attention to keep the installed drainage flexible pipes of the safety valve sloping downward and connected with the atmosphere.)
2.3 In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with the machine must be added at the end of the threads (see Fig.3).

(Fig.3)

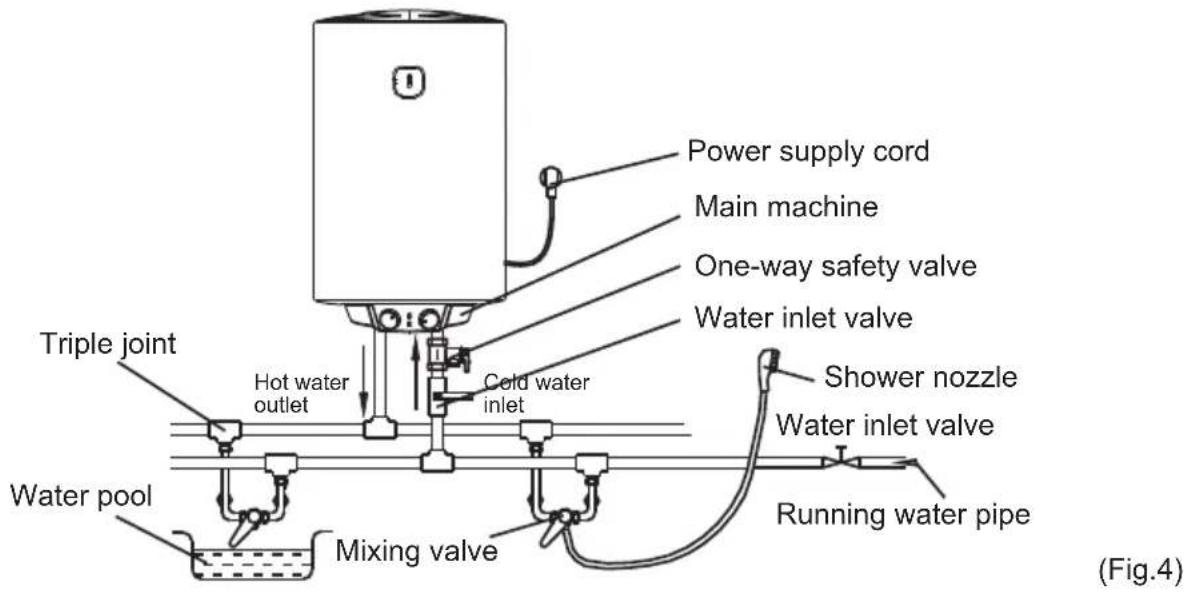

2.4 If the users want to realize a multi-way supply system, refer to the method shown in Fig.4 for connection of the pipelines.

Methods of use

1. First, open any one of the outlet valves at the outlet of the water heater, then, open the inlet valve. The electrical water heater begins to be filled with water. When there is water coming out of the outlet valve normally, it implies that the heater has been filled fully with water, and the outlet valve can be closed.

Note: During normal operation, the inlet valve shall be set in the status of "open".

1. Insert the supply plug into the socket, the two indicator lights are on at this time.
2. This machine can automatically control the temperature. When the water temperature inside the machine has reached the set temperature (It is set to 75^ C), it will be turned off automatically, and step into the status of thermal insulation; when the water temperature is decreased to a certain point, it will be turned on automatically to restore the heating, and the use of hot water will not be interrupted. When the heater is switched off automatically, the heating indicator will turn off.

Cautions

1. The supply socket must be earthed reliably. The rated current of the socket shall not be lower than 10A. The socket and plug shall be kept dry to prevent electrical leakage. Inspect frequently whether the plugs contact well with the socket. Inspect method is as follows: insert the power supply plug into socket, after using for half an hour, shut down the unit and pull the plug out, and inspect the plug whether it scalds hand. If it scalds (over 50°C), please change another well-contacted socket to avoid the plug being damaged, fire or other personnel accidents result from bad-contacting.

2. For the places or the wall where the water may splash, the installation height of the socket shall not be lower than 1.8m.

3. The wall in which the electrical water heater is installed shall be able to bear the load more than two times of the heater filled fully with water without distortion and cracks. Otherwise, other strengthening measures shall be adopted.
4. The one-way safety valve attached with the machine must be installed at the cold water inlet of this machine (see Fig.5). and make sure it is not exposed in the foggy. The water may be outflowed from one-way safety valve, so the outflow pipe must open wide in the air; The one-way safety valve need to be checked and cleaned regularly, so as to make sure it will not be blocked.

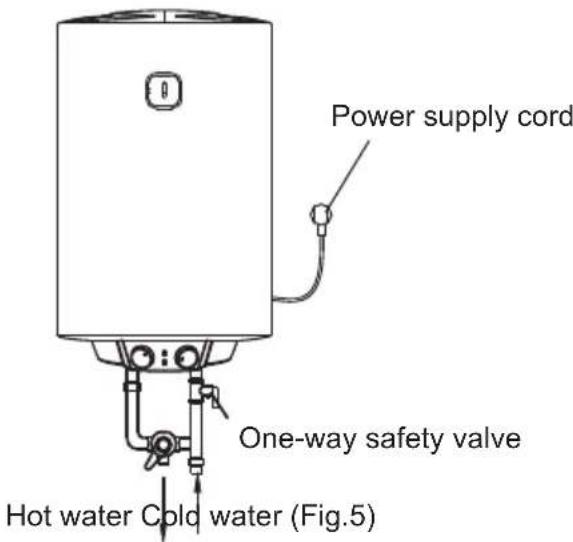

1. For the use of the first time (or the first use after maintenance or clean), the heater can not be switched on until it has been filled fully with water. When filling the water, at least one of the outlet valves at the outlet of the heater must be opened to exhaust the air. This valve can be closed after the heater has been filled fully with water.

2. During heating, there may be drops of water dripping from the pressure release hole of the one-way safety valve. This is a normal phenomenon. If there is a large amount of water leaked, please contact with the professional maintenance personnel for repair. This pressure release hole shall, under no circumstances, be blocked; otherwise, the heater may be damaged, even resulting in safety accidents.

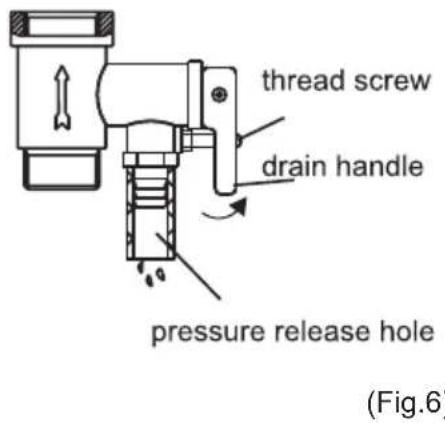

1. The drainage pipe connected to the pressure release hole must be kept sloping downwards.

2. Since the water temperature inside the heater can reach up to 75^ C, the hot water must not be exposed to human bodies when it is initially used. Adjust the water temperature to a proper point to avoid scald.

3. In order to drain away the water inside the inner container, it can be drained away from the exit port (Twist the thread screw of the exit port off), and it also can be drained away from the one-way safety valve (Twist the thread screw off the one-way safety valve, and lift the drain handle upwards). (See Fig. 7)

4. If the flexible power supply cord is damaged, the special supply cord provided by the manufacturer must be selected, and replaced by the professional maintenance personnel.
5. If any parts and components of this electrical water heater are damaged, please contact with the professional maintenance personnel for repair, and use the special spare parts and components provided by our company.

Maintenance

1. Check the power supply plug and socket frequently to make sure that they have good, reliable contact and are well grounded without overheat phenomenon.
2. If the heater will not be used for a long time, especially in the regions with low atmospheric temperature (lower than 0^ C), in order to prevent the heater to be damaged due to freeze of the water in the inner container, the water inside the heater shall be drained away (refer to Item 9, Cautions of this manual for the method to drain away the water inside the inner container).
3. In order to ensure that the water heater can operate efficiently for long term, it is recommended to clean periodically the inner container and the deposits on the electrical heating components of the electrical water heater.
4. Suggest to examine the anode protection materials every half a year or so. If all the materials have been consumed, please replace with the new materials.

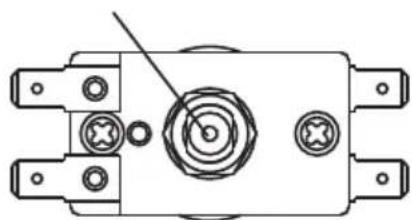

5. Temperature limiter cut off electricity if water heater is overheated or thermostat damages. Manual resetting is needed. Ressetting knob is as follows (see Fig.7).

Manual reset button

Technical line drawing of a mechanical component with mounting holes and a central threaded feature (no text or symbols)

(Fig.7)

! WARNING

Non-professionals are not allowed to disassemble temperature limiter to reset. Please contact professionals to maintain. Otherwise our company will not take responsibility if any quality accident happens because of this.

Failures and treatment

Failures	Reasons	Treatment
The heating indicator light is off.	1. Failures of the temperature controller.	Contact with the professional personnel for repair.
No water coming out of the hot water outlet.	1. The running water supply is cut off.2. The hydraulic pressure is too low.3. The inlet valve of running water is not open.	1. Wait for restoration of running water supply.2. Use the heater again when the hydraulic pressure is increased.3. Open the inlet valve of running water.
The water temperature is too high.	1. Failures of the temperature control system.	Contact with the professional personnel for repair.
Water leak	Seal problem of the joint of each pipe.	Seal up the joints.

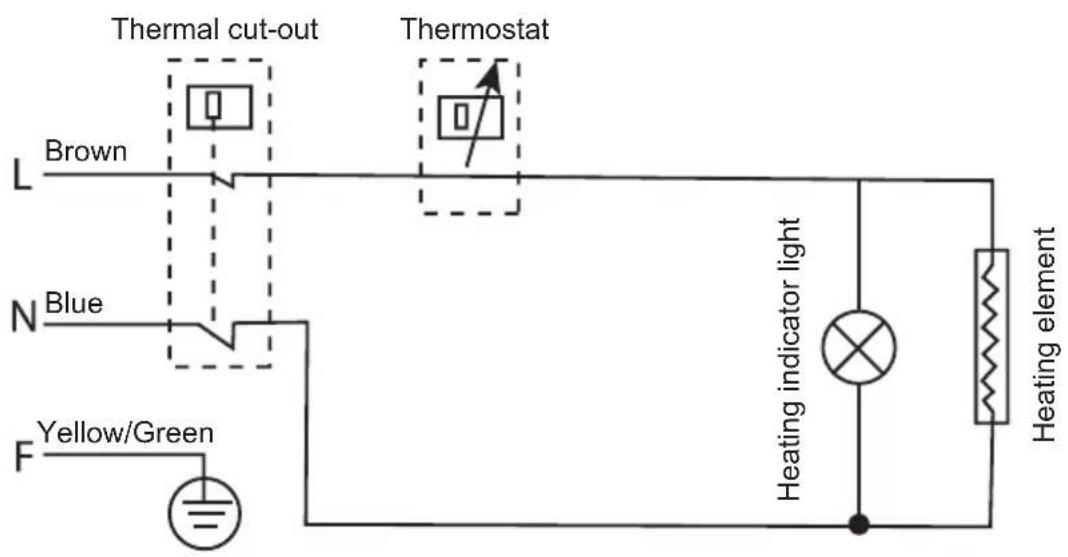

Wiring Diagram

Produce information with EU regulation

The electrical storage water heater SVTE30A3 of the company SVAN Ltd. was tested with a declared load profile of the sizes"

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of _wh = 33%

that correspond to the water heating efficiency classC"

In accordance with Annex II Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report with respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec , water heating energy efficiency _wh and mixed water at 40°C (V40)

Description Parameter Value Unit
k-Value k		0.23
Smart control compliance smart		0
Smart control factor SCF		0
Conversion coefficient CC		2.5
Ambient correction term Q	cor	-0.323	kWh
Referenct energy	Q_ref	2.1	kWh
Useful energy content Q	H2O	2.791	kWh
Correction ratio of reference and useful energy Q	ref/Q_H2O	0.753	kWh
Daily electricity consumption (measured) Q	test_elec	3.562	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	75.3	°C
Water temperature at the end of the 24h measurement cycle	T5	76	°C
Storage volume M	act	28.6	kg
Storage volume C	act	28.6	L
Daily electricity consumption (corrected) Q	elec	2.663	kWh
Water heating energy efficiency	n_wh	33.2	%
Annual Electricity Consumption	AEC	556	kWh
Water heating energy efficiency class		C
Water temperature without tapping	T_set	75.5	°C
Average water temperature of outlet warm water	θ_p'	66.3	°C
Average water temperature of inlet cold water	θ_c	10.5	°C
Normalised value of the average temperature	θ_p	66.2	°C
Volume that delivered water of at least 40°C	V_40exp	25.7	L
Calculated volume that delivered hot water of at least 40°C	V_40	48	L
