MW-4FT - Audio Visual Accessory Middle Atlantic - Free user manual and instructions

Product Type	Rack Enclosure Top Panel
Model	MW-4FT
Brand	Middle Atlantic
Materials	Aluminum top with removable aluminum access panel
Access Panel	Two-space (3.5 in / 88.9 mm) removable panel for cable access
Panel Drilling	Removable panel allows easy field drilling
Panel Bonding Screws	Two 6/32 x 5/16 star screws (T-10 star wrench) for panel bonding
Bonding Stud	Factory installed bonding stud on top for bonding to enclosure
Installation Hardware	Five grommet nuts and screws (included)
Required Tools	#2 Phillips driver, T-10 star wrench (for bonding panel)
Dimensions (Approx.)	Width: 19 in (483 mm), Depth: 30 in (762 mm), Height: 1.75 in (44 mm)
Weight (Approx.)	5 lb (2.3 kg)
Warranty	3 years limited warranty on materials and workmanship
Compliance	ISO 9001 and ISO 14001 registered
Maintenance	Periodic inspection and cleaning with a dry cloth; avoid abrasive cleaners
Spare Parts	Contact Middle Atlantic for replacement screws, grommets, or panels
Repairability	Field-replaceable access panel; bonding components can be replaced

Frequently Asked Questions - MW-4FT Middle Atlantic

What tools are required for installing the MW-4FT top?

You will need a #2 Phillips driver for the mounting screws and a T-10 star wrench for bonding the two-space panel to the top.

How do I bond the MW top to the enclosure?

The MW top has a factory installed bonding stud (see Figure A in the manual). You can bond the top using this stud with appropriate bonding conductors.

How do I bond the two-space panel to the top?

Use the two provided 6/32 x 5/16 star screws with a T-10 star wrench as shown in Figure B of the manual.

Can I drill holes in the top panel?

Yes, the removable aluminum access panel is designed for easy field drilling to accommodate custom cable entries or mounts.

What is the warranty period for the MW-4FT?

The product is covered by a 3-year limited warranty against defects in material or workmanship under normal use and conditions.

Where is Middle Atlantic located?

Corporate headquarters is in the USA with phone [phone]. They also have offices in Canada and distribution centers in NJ, CA, IL (USA) and ON, BC (Canada).

How should I clean the MW-4FT top?

Clean with a dry cloth. Avoid abrasive cleaners or solvents that may damage the finish.

Are replacement parts available for the MW-4FT?

Yes, contact Middle Atlantic directly for replacement screws, grommets, or panels.

What is the purpose of the removable two-space panel?

It allows top removal without disturbing cabling and provides easy access for cable management.

What are the approximate dimensions of the MW-4FT?

The top panel is approximately 19 in (483 mm) wide and 30 in (762 mm) deep, with a height of about 1.75 in (44 mm) (one rack unit). Weight is about 5 lb (2.3 kg).

USER MANUAL MW-4FT Middle Atlantic

Thank you for purchasing the MW Series Top. Please read these instructions thoroughly before installing this product.

PRODUCT FEATURES

• Two space removable aluminum access panel allows for top removal without disturbing cabling.
• Removable aluminum panel allows for easy field drilling.

TOOLS REQUIRED: #2 Phillips Driver

INSTALLATION

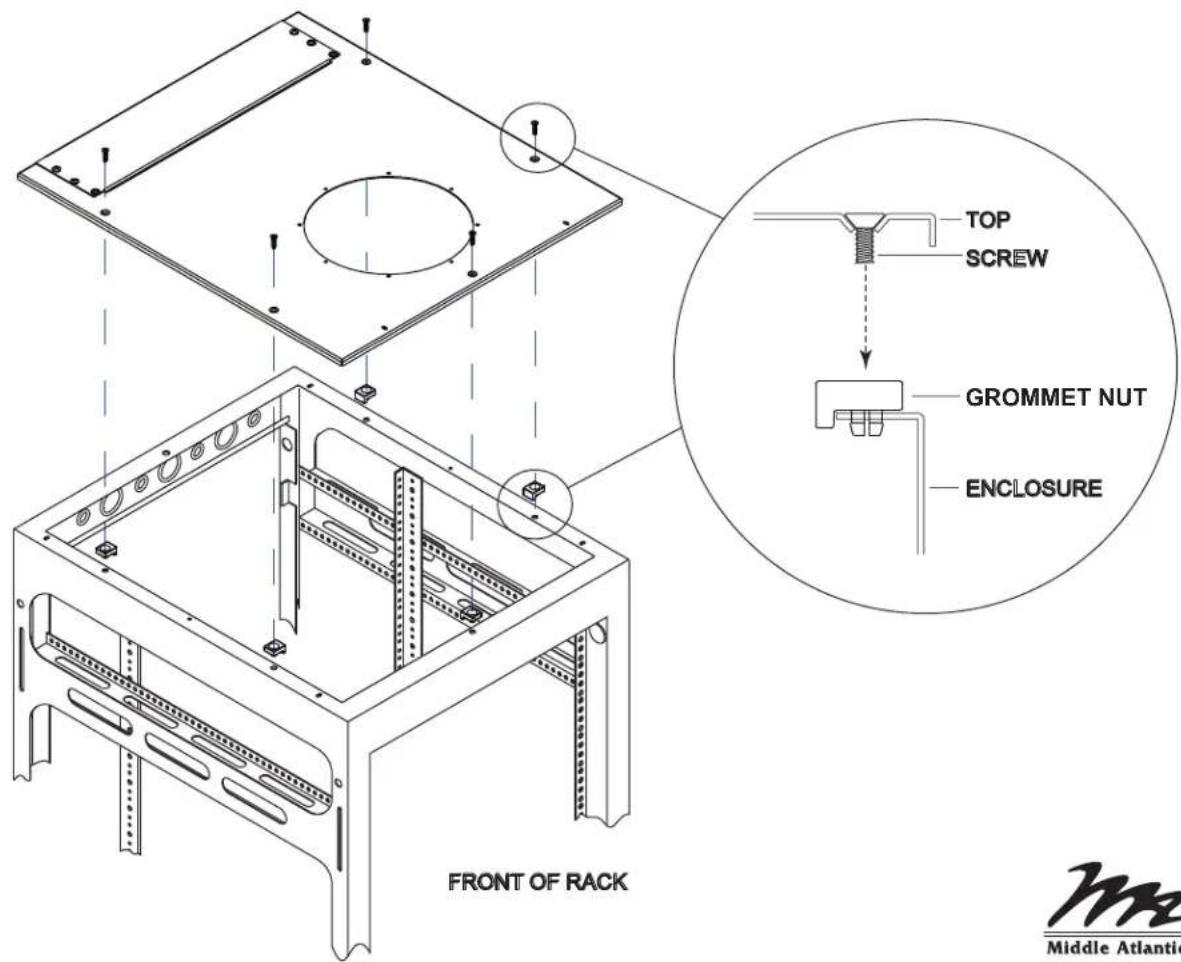

1) Install the grommet nut into the five (5) holes in the enclosure as shown.
2) Position the top as required. Thread all screws evenly then tighten the screws securely - DO NOT OVERTIGHTEN.

NOTE: For MW Series Top bonding, and bonding of the two space panel to the MW top, see page 2.

BONDING OF MW TOP

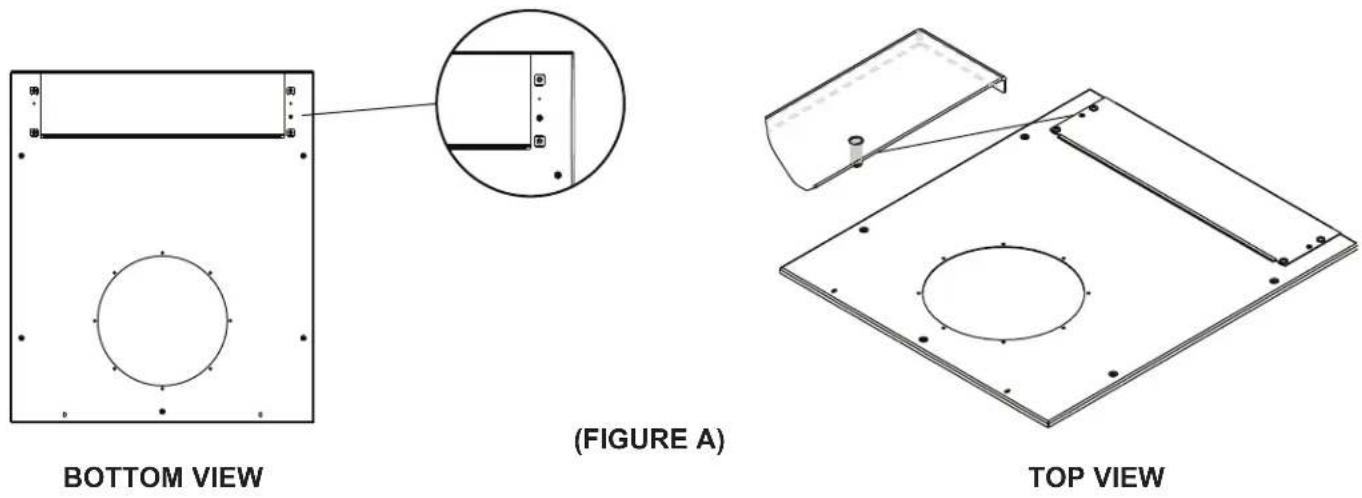

- The MW top can be bonded with the factory installed bonding stud. (FIGURE A)

BONDING THE TWO SPACE PANEL

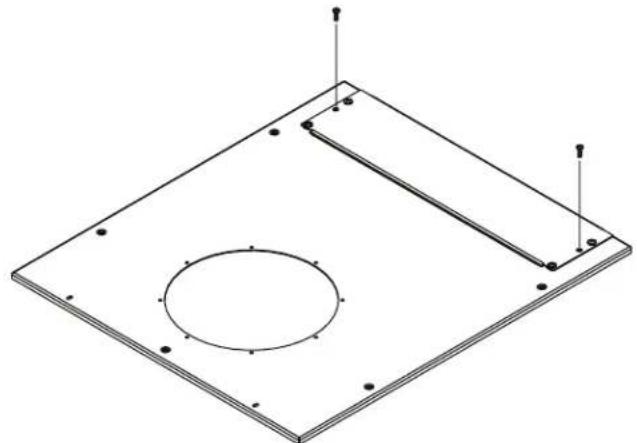

- The two space panel can be bonded to the top using the two provided 6/32 X 5/16 star screws using a T-10 star wrench. (FIGURE B)

Isometric technical drawing of a square plate with a circular cutout and mounting holes (no text or symbols)

(FIGURE B)
