USER MANUAL SRSR-2-20 Middle Atlantic

Black metal shelving unit with a circular arrow indicating rotation (no text or symbols)

THANK YOU

Thank you for purchasing the SRSR Series Rotating Sliding Rail System. Please read these instructions thoroughly before assembling this product.

PRODUCT FEATURES

• Provides easy access to rear equipment connections
• Ideal for millwork, cabinets and flush in-wall installations
• Rack frame removes for in-shop integration and on-site installation

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to a situation that could result in serious personal injury or death.

CAUTION: A CAUTION alerts you to a situation that may result in minor personal injury or damage to the product and /or property.

IMPORTANT WARNINGS AND CAUTIONS!

WARNING! Failure to read, understand and follow the following information can result in serious personal injury, damage to the equipment or voiding of the warranty. It is the responsibility of the Installer/User to ensure that this product is loaded according to specifications.

HARDWARE KIT INCLUDES

QTY DESCRIPTION

1 1/8" Hex Key

14 5/16" - 18 Flange Nuts

4 #10 - 32 x 1/2" Hex Head Screws

26 #10 - 32 Rack Screws

TOOLS REQUIRED

2 Phillips Head Screwdriver

1/2" Wrench

Drill

Tape Measure

ASSEMBLY

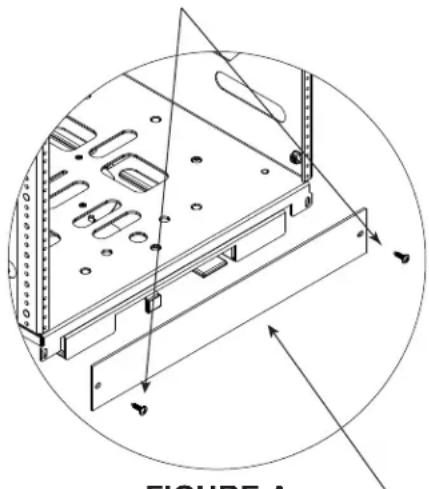

1) Remove two (2) #10-32 rack screws securing locking trim panel to SRSR base and set aside. (FIGURE A)

2) Extend the sliding carriage on the SRSR base.

RACK SCREWS #10-32 (2)

Technical line drawing of a server rack with mounting holes and ventilation ducts, shown in isometric view (no text or symbols)

FIGURE A
LOCKING
TRIM PANEL

ASSEMBLY (CONTINUED)

CABLE MANAGEMENT SUPPORTS (2) LACER BAR HEX HEAD SCREWS #10-32 x 1/2" (2 PER SIDE) SRSR BASE FLANGE NUTS 5/16"-18 (1 PER SIDE) FIGURE B

3) Install both cable management supports to SRSR base using one (1) 5/16-18 flange nut and two (2) #10-32 x 1/2" hex head screws per side. (FIGURE B)

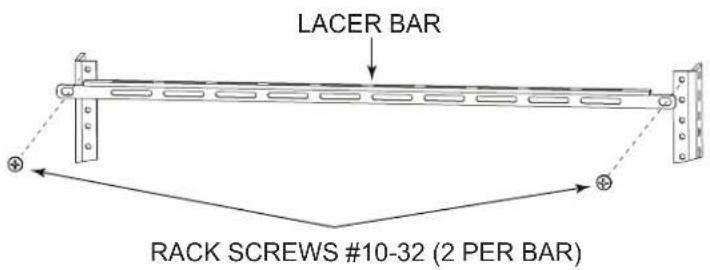

4) Using provided #10-32 rack screws, install lacer bars as desired to cable management supports with flat side facing up and edges on outside of supports. (FIGURE C)

LACER BAR RACK SCREWS #10-32 (2 PER BAR)

FIGURE C

5) Observe rackrail labels for proper orientation and install front and rear rackrail pairs to rack frame using two (2) 5/16"-18 flange nuts per rail. (FIGURE D)

NOTE: Hand-tighten only.

REAR RACKRAIL (2) FLANGE NUTS 5/16"-18 (2 PER RAIL) RACK FRAME FRONT RACKRAIL (2) FIGURE D

ASSEMBLY (CONTINUED)

6) Install squaring panels one third of the way down from top of front and rear rackrail using four (4) #10-32 rack screws per panel. (FIGURE E)

NOTE: Load equipment before removing squaring panels.

7) SRSR'S WITH 25 SPACES OR MORE: Install front-to-rear braces to rackrails as shown using two (2) 5/16"-18 flange nuts per brace. (FIGURE F)

FLANGE NUTS 5/16"-18 (2 PER BRACE) FRONT TO REAR BRACES (2) FIGURE F

8) Fully tighten front and rear rackrails to rack frame.
9) Remove four (4) wing nuts beneath the sliding carriage to release the rack frame. (FIGURE G)
10) Lift the rack frame off sliding carriage using the provided handles. (FIGURE G)
11) Position and center the SRSR base in millwork to desired setback. Please refer to Middle Atlantic Products A & E spec sheet # 96-985 for complete millwork dimensions. Maximum suggested functional setback is 2" (more setback reduces usable depth).

SQUARING PANEL FIGURE E RACK SCREWS #10-32 (4)

HANDLES RACK FRAME SLIDING CARRIAGE WING NUTS (4) SRSR BASE

FIGURE G

ASSEMBLY (CONTINUED)

12) Extend sliding carriage forward to reveal rear preliminary mounting hole in SRSR base. (FIGURE H)
13) Insert fastener (not supplied) through rear preliminary mounting hole to secure rear of SRSR base to millwork. (FIGURE H)
14) Extend sliding carriage further forward to reveal front preliminary mounting hole in SRSR base. (FIGURE H)
15) Insert fastener (not supplied) through front preliminary mounting hole to secure front of SRSR base to millwork. (FIGURE H)
16) Verify setback clearances and complete attachment of SRSR base to millwork using mounting points shown on (FIGURE J) on page 7.
17) Verify setback clearances and complete attachment of SRSR base to millwork using mounting points shown on (FIGURE J) on page 7.

CAUTION! Failure to install all required hardware may result in damage to the equipment and possible injury to the user.

18) Place rack frame on sliding carriage using provided handles. (FIGURE G)
NOTE: Mounting studs on underside of rack frame must be inserted into mounting holes in sliding carriage.
19) Re-install the rack frame to the sliding carriage using four (4) wing nuts. (FIGURE G)
20) Depress the lockout lever on the front of the sliding carriage and push the rack frame into the millwork. (FIGURE I)
21) Retract the sliding carriage on the SRSR base. (FIGURE G)
22) Replace two (2) #10-32 rack screws (from step #1) to secure locking trim panel to SRSR base. (FIGURE G)

REAR PRELIMINARY MOUNTING HOLE

FRONT PRELIMINARY MOUNTING HOLE

FIGURE H

LOCKOUT LEVER FIGURE 1

FIGURE I

SRSR MOUNTING POINT LOCATIONS

SRSR-2, SRSR-4

18.125 [460] 12.125 [308] * Preliminary Mounting Holes 17.34 [440] 15.78 [401] 13.97 [355] .281 dia. [7] 11.0 [279] 8.0 [203] 19.23 [488] 2.78 [71] 1.59 [40] 0.00 [0] (from trim) * 3.78 [96] 9.59 [244] 19.19 [487] FRONT (12 Additional mounting holes as shown) FIGURE 1

FIGURE J

SRSR-X 18.125 [460] 12.125 [308] 22.34 [567] 18.97 [482] .281 dia. [7] 15.78 [401] 2.78 [71] 1.59 [40] 0.00 [0] (from trim) 9.59 [244] 19.19 [487] 11.0 [279] 8.0 [203] 3.78 [96] 23.23 [590] * Preliminary Mounting Holes FRONT (12 Additional mounting holes as shown) All dimensions in inches [dimensions in brackets are millimeters]

SRSR ROTATING SLIDING RAIL SYSTEM

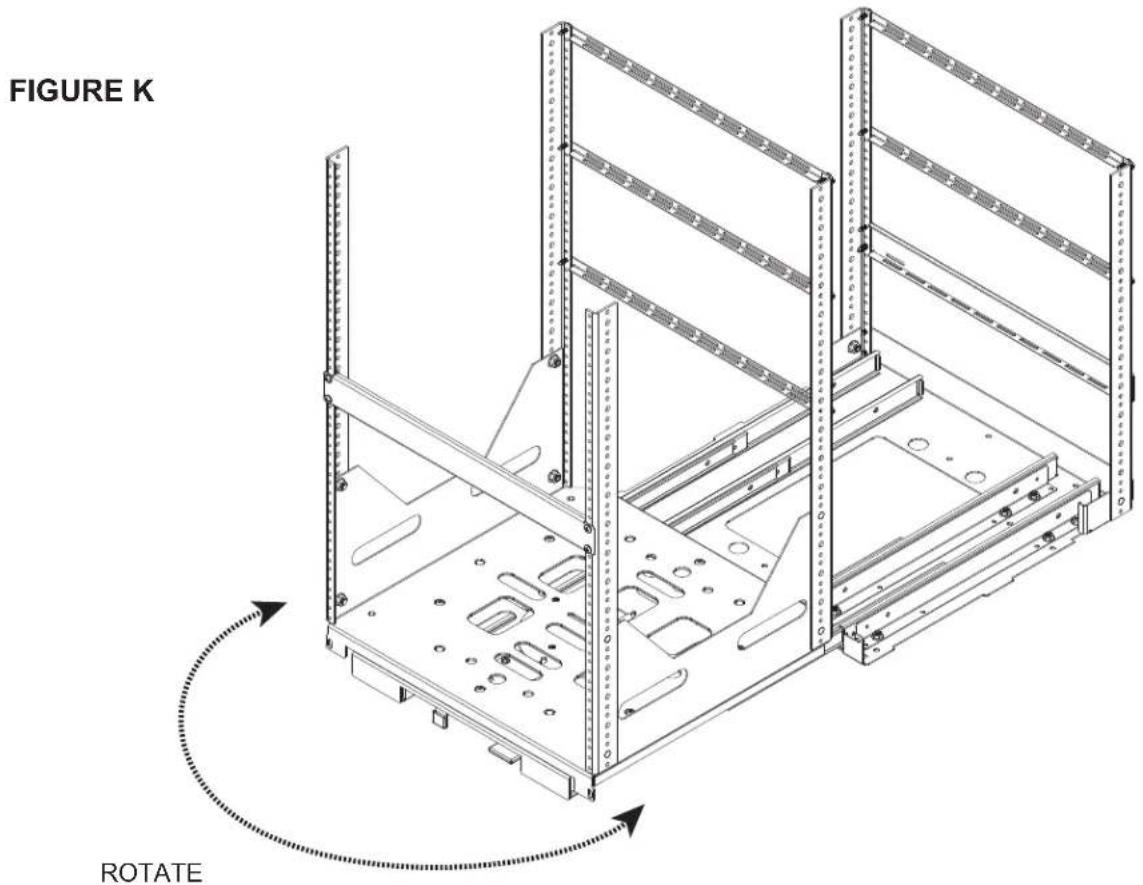

To rotate the sliding carriage, pull rotating tab as shown below. (FIGURE K) The sliding carriage conveniently locks in the 60° and 90° positions for servicing. The the 0° position locks for closure.

ROTATING TAB LOCKOUT LEVER

FIGURE K ROTATE

CABLE MANAGEMENT TIPS

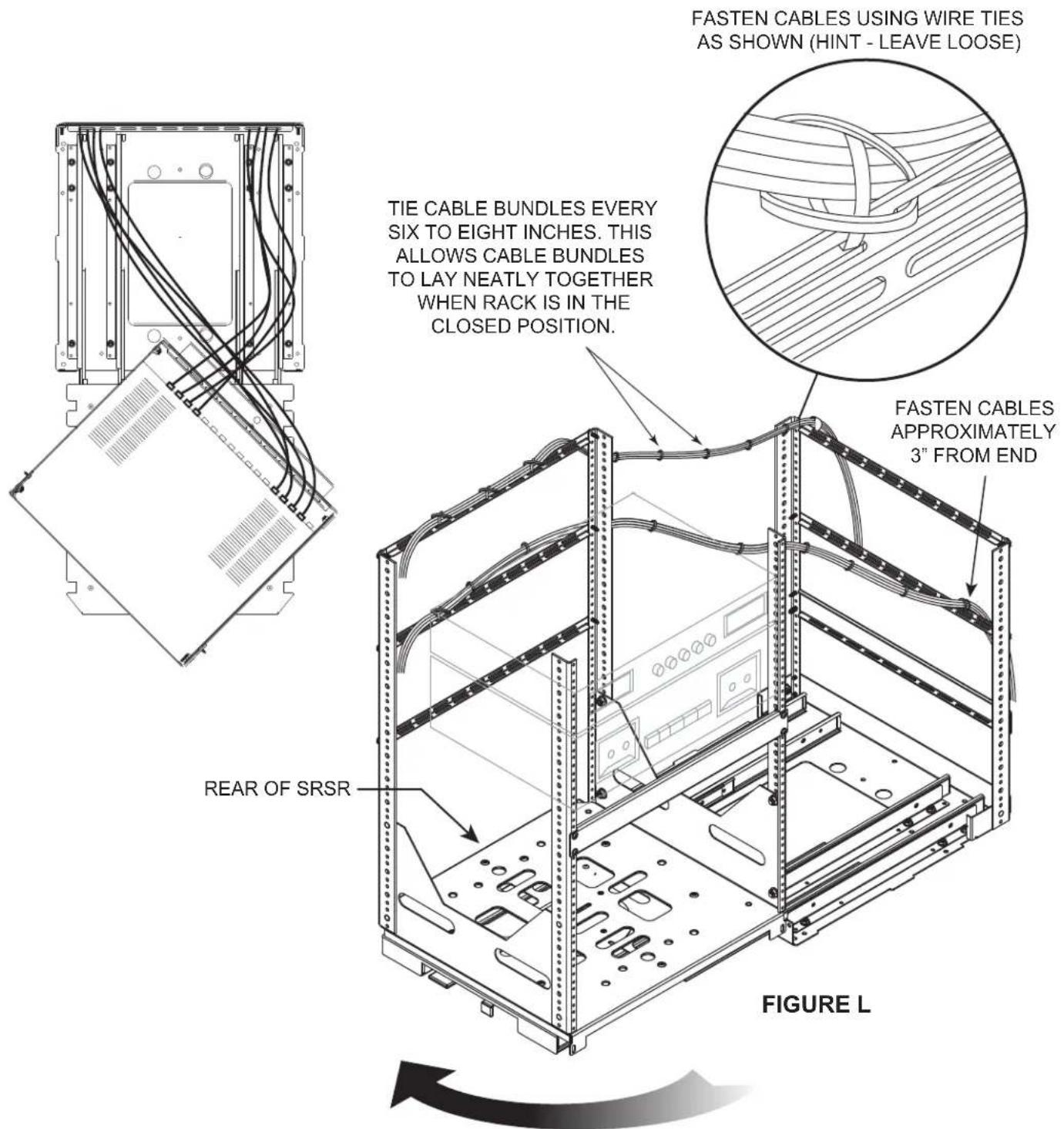

• Route cables in the direction of the rack rotation as shown. (FIGURE L)
• Select one side of rack for signal cables, and the opposite side for power cables.
• Lace cables as shown, ensuring cables are fairly taut. This ensures that the service loop will be the correct length and not be pinched when closing the rack.

FASTEN CABLES USING WIRE TIES AS SHOWN (HINT - LEAVE LOOSE) TIE CABLE BUNDLES EVERY SIX TO EIGHT INCHES. THIS ALLows CABLE BUNDLES TO LAY NEATLY TOGETHER WHEN RACK IS IN THE CLOSED POSITION. FASTEN CABLES APPROXIMATELY 3" FROM END REAR OF SRSR FIGURE L

ROTATE RACK IN THE DIRECTION OF CABLE ROUTING.

INSTALLING OPTIONAL GASKET MODEL # BG17

IMPORTANT NOTE: WHEN USING THE GASKET, THE MINIMUM MILLWORK ROUGH OPENING WIDTH IS 19-5/8"

1) Remove dust and debris from rack surface with included wipes.
2) While removing paper backing, gently pull self-adhesive gasket from bottom to top of rack.
3) Align and adhere gasket at top of rackrail and continue across top (if applicable). Repeat for opposite rackrail.

NOTE: Press firmly along length of gasket.

4) Trim excess length.

HINT: If gasket is needed across the top of the rack, the top space will require a flanged panel or a component with a flat top.

CLEAN ALONG THESE SURFACES GASKET ALKRAIL . sket. top of the ed panel GASKET ALIGN GASKET TO EDGE OF FLAT SURFACE GASKET (ON SIDES OF RACK AND TOP OF FLANGED PANEL)

WARRANTY

Middle Atlantic Products (the "Company") warrants the SRSR SERIES ROTATING SLIDING RAIL SYSTEM to be free from defects in material or workmanship under normal use and conditions for a period of (3) three years from date of shipment by the Company.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
