Product Type	Rack Shelf
Brand	Middle Atlantic
Model	RC-2
Category	Audio Visual Accessory
Width	19 inches (standard rack width)
Depth	12 inches
Height	1U (1.75 inches)
Weight Capacity	Up to 50 lbs (22.7 kg)
Material	Steel with black powder coat finish
Mounting Type	Front and rear rack rails
Primary Function	Holds and supports AV equipment in a standard 19-inch rack
Cable Management	Open design for easy cable routing
Installation	Requires standard rack screws (not included)
Compatibility	Works with any EIA-310 standard 19-inch rack
Ventilation	Perforated or open design to allow airflow
Cleaning Instructions	Wipe with a dry, lint-free cloth
Safety Notes	Do not exceed weight limit; secure to rack rails properly
Spare Parts Availability	Contact Middle Atlantic customer service for replacement screws or brackets
Warranty	Limited lifetime warranty (subject to terms)

Frequently Asked Questions - RC-2 Middle Atlantic

What is the weight capacity of the Middle Atlantic RC-2 rack shelf?

The RC-2 has a weight capacity of up to 50 lbs (22.7 kg) when properly mounted.

What are the dimensions of the RC-2?

The RC-2 is a standard 19-inch wide rack shelf with a depth of 12 inches and a height of 1U (1.75 inches).

What material is the RC-2 made of?

It is constructed from steel with a black powder coat finish for durability.

How do I install the RC-2 in my rack?

Align the shelf with the rack rails and secure it using standard rack screws (not included) at both front and rear mounting points.

Is the RC-2 compatible with all racks?

Yes, it is compatible with any EIA-310 standard 19-inch rack.

Can the RC-2 be used for cable management?

Yes, its open design allows for easy routing and management of cables.

Does the RC-2 require any tools for installation?

You will need a Phillips screwdriver or hex key to tighten the rack screws.

How should I clean the RC-2?

Wipe it with a dry, lint-free cloth. Avoid using liquids or abrasive cleaners.

What safety precautions should I take when using the RC-2?

Do not exceed the 50 lb weight capacity and ensure all mounting screws are fully tightened to prevent tipping.

Where can I find replacement screws for the RC-2?

Contact Middle Atlantic customer service or check the product page for compatible screw kits.

USER MANUAL RC-2 Middle Atlantic

CLAMPING RACKSHELVES

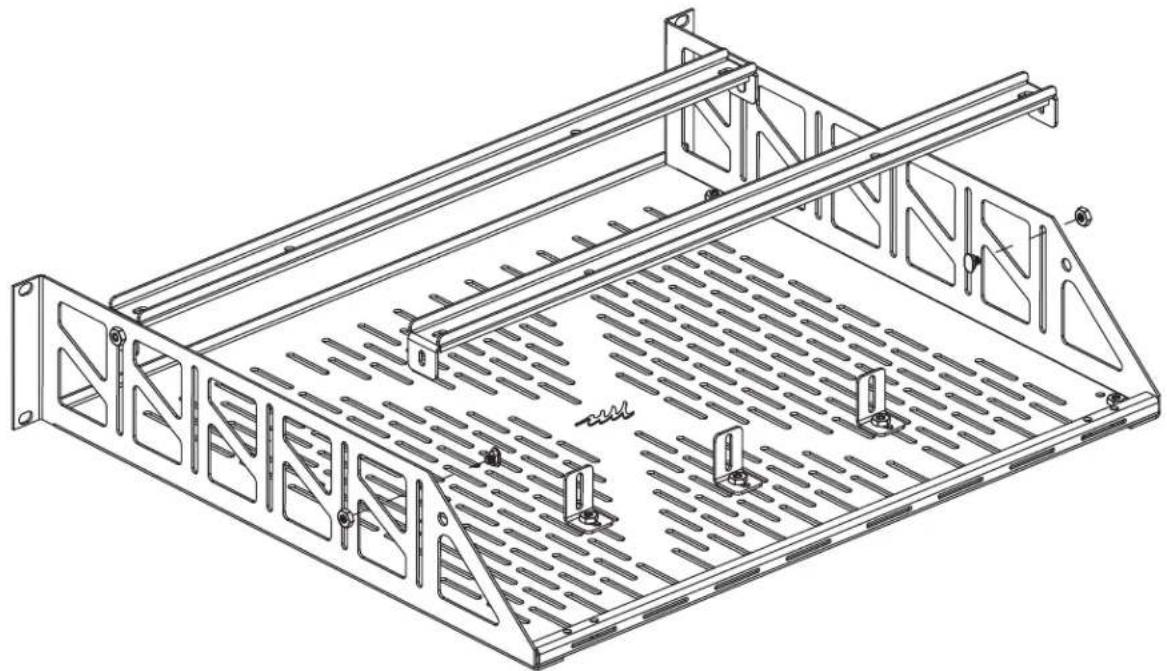

ASSEMBLY

NOTE: Rackshelf ships with clamp bars installed.

1) Remove clamp bars as required and position equipment on shelf.
2) Position and install rear brackets. Install nuts on top of bracket. (FIGURE A)
3) Install clamp bars as shown. Apply light downward pressure on the clamps and tighten hardware.

Technical line drawing of a metal frame structure with internal compartments and mounting points (no text or symbols)

Three (3) Rear Brackets are provided to prevent unit from sliding back.

(Here are four ways brackets can be mounted)

Weight Capacity

RC-2 50 lbs.

RC-3 70 lbs.

RC-4 85 lbs.

Line drawings of four different L-shaped metal bracket assemblies, labeled 'FIGURE' (no text or symbols on the brackets themselves)

FIGURE A

Middle Atlantic Products

I-1504 Rev K

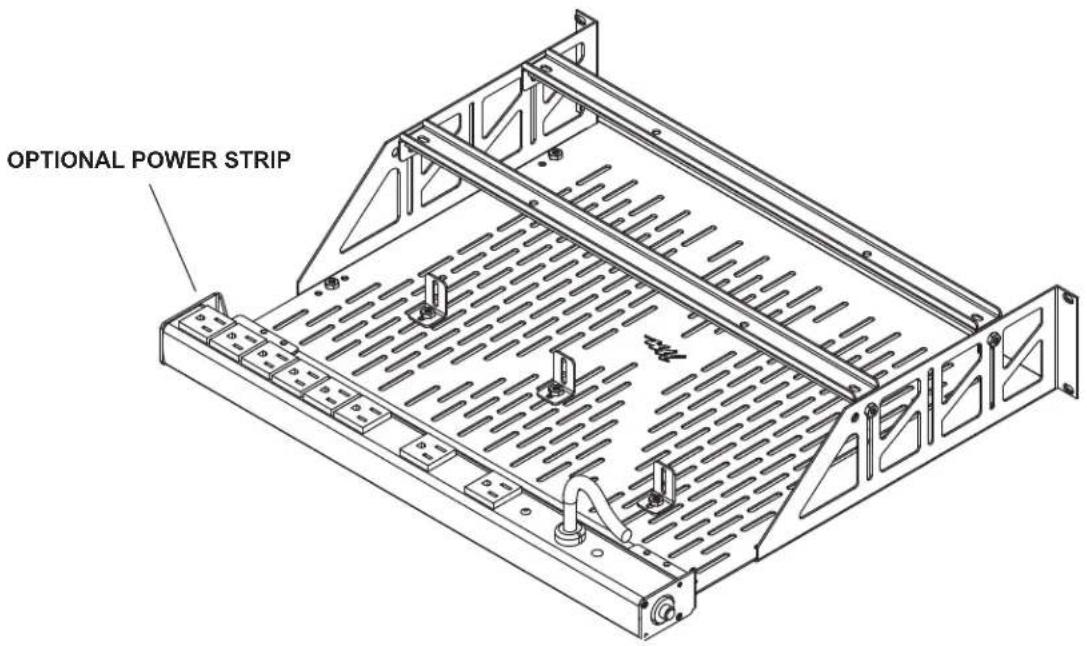

OPTIONS (Sold Separately)

- 15 Amp 8 Outlet Slim Surge-Protected Power Strip with Tool-Less, Two-Position Mounting Bracket Available. Part Number, PD-815SC-PBSH.

WARRANTY

Middle Atlantic Products (the "Company") warrants the RC Series Clamping Rackshelves to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
