Product Type	Large Format Display (Digital Signage)
Brand	Sharp
Model	PN-V701
Screen Size	70 inches (177.8 cm) diagonal
Resolution	1920 x 1080 (Full HD)
Panel Type	LCD with LED backlight
Brightness	500 cd/m²
Contrast Ratio	4000:1 (dynamic)
Response Time	8 ms (G-to-G)
Viewing Angle (Horizontal/Vertical)	178° / 178°
Input Connectors	HDMI (2), DVI-D, VGA, DisplayPort, RS-232C, USB
Output Connectors	DVI-D (loop out), RS-232C
Audio	Built-in speakers (2 x 10 W)
Power Consumption	250 W (typical), 0.5 W (standby)
Power Supply	AC 100-240 V, 50/60 Hz
Dimensions (W x H x D)	1560 x 900 x 100 mm (without stand)
Weight	Approx. 50 kg (without stand)
VESA Mounting Pattern	400 x 400 mm
Operating Temperature	0°C to 40°C
Features	24/7 operation, daisy chain support, OSD controls
Cleaning Instructions	Wipe with a soft, dry cloth; do not use liquid cleaners

Frequently Asked Questions - PN-V701 SHARP

How do I connect a PC to the Sharp PN-V701?

Use an HDMI, DVI, or VGA cable to connect your PC to the corresponding input on the display. Ensure the correct input source is selected via the remote or OSD menu.

Can the PN-V701 be mounted on a wall?

Yes, the display supports a VESA 400x400 mm mounting pattern. Use a compatible wall mount rated for the weight (approx. 50 kg).

How do I clean the screen?

Turn off the display and unplug it. Use a soft, lint-free cloth slightly dampened with water (or a specialized screen cleaner) to gently wipe the surface. Do not use abrasive cleaners or spray liquid directly onto the screen.

What is the recommended resolution for the PN-V701?

The native resolution is 1920x1080 (Full HD). For best picture quality, set your source device to output 1920x1080 at 60 Hz.

Does the PN-V701 have built-in speakers?

Yes, it has two built-in speakers rated at 10 W each. If you need higher audio output, you can connect external speakers via the headphone jack or use an external audio system.

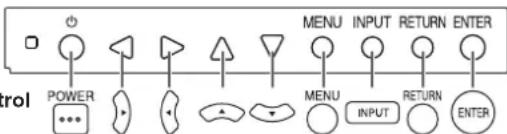

How do I access the on-screen display (OSD) menu?

Press the MENU button on the remote control or on the display bezel. Use the arrow keys to navigate and adjust settings like brightness, contrast, input source, and more.

The display shows 'No Signal'. What should I do?

Check that the connected device is powered on and the cable is securely attached. Cycle through the input sources using the INPUT button on the remote. If the problem persists, try a different cable or port.

Can I use the PN-V701 for 24/7 digital signage?

Yes, this display is designed for 24/7 operation when properly ventilated. Ensure ambient temperature stays within 0°C to 40°C and allow adequate airflow around the unit.

How do I daisy chain multiple PN-V701 displays?

Connect the DVI-D output of the first display to the DVI-D input of the next display. You can also use RS-232C for remote control. Set each display's ID in the OSD for individual addressing.

Where can I download the user manual?

Visit the Sharp support website or the page where you found this listing. The manual is available in PDF format for free download. You may also request a translated version via email.

USER MANUAL PN-V701 SHARP

Information on the Disposal of this Equipment and its Batteries

IF YOU WISH TO DISPOSE OF THIS EQUIPMENT OR ITS BATTERIES, DO NOT USE THE ORDINARY WASTE BIN, AND DO NOT PUT THEM INTO A FIREPLACE!

Used electrical and electronic equipment and batteries should always be collected and treated SEPARATELY in accordance with local law.

Separate collection promotes an environment-friendly treatment, recycling of materials, and minimizing final disposal of waste. IMPROPER DISPOSAL can be harmful to human health and the environment due to certain substances! Take USED EQUIPMENT to a local, usually municipal, collection facility, where available.

Remove USED BATTERIES from equipment, and take them to a battery collection facility; usually a place where new batteries are sold.

If in doubt about disposal, contact your local authorities or dealer and ask for the correct method of disposal.

ONLY FOR USERS IN THE EUROPEAN UNION, AND SOME OTHER COUNTRIES; FOR INSTANCE NORWAY AND SWITZERLAND: Your participation in separate collection is requested by law.

The symbol shown above appears on electrical and electronic equipment and batteries (or the packaging) to remind users of this. If 'Hg' or 'Pb' appears below the symbol, this means that the battery contains traces of mercury (Hg) or lead (Pb), respectively.

Users from PRIVATE HOUSEHOLDS are requested to use existing return facilities for used equipment and batteries.

Batteries are collected at points of sale. Return is free of charge.

If the equipment has been used for BUSINESS PURPOSES, please contact your SHARP dealer who will inform you about take-back. You might be charged for the costs arising from take-back. Small equipment (and small quantities) might be taken back by your local collection facility. For Spain: Please contact the established collection system or your local authority for take-back of your used products.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within a triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

FOR CUSTOMERS IN U.K.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW:

Earth

BLUE:

Neutral

BROWN:

Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.
• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

Ensure that your equipment is connected correctly. If you are in any doubt, consult a qualified electrician.

WARNING: THIS APPARATUS MUST BE EARTHED.

Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product.

SAFETY PRECAUTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.

1. Read instructions — All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future reference.
3. Observe warnings — All warnings on the product and in the instructions must be observed closely.
4. Follow instructions — All operating instructions must be followed.
5. Cleaning — Unplug the power cord from the power outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. Do not use dirty cloths. Doing so may damage the product.
6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.
7. Water and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto it. Be careful of equipment which drains water such as an air-conditioner.
8. Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings. Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.
9. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them.
10. The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.
11. Overloading — Do not overload power outlets or extension cords. Overloading can cause fire or electric shock.
12. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.
13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
14. Repair — If any of the following conditions occurs, unplug the power cord from the power outlet, and request a qualified service person to perform repairs. a. When the power cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.
15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
16. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.
17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer.
18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).
19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:
20. Use the specified batteries only.
21. Install the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the instructions in the compartment.
22. Do not mix old and new batteries.
23. Do not mix batteries of different types. Voltage specifications of batteries of the same shape may vary.
24. Replace an exhausted battery with a new one promptly.
25. If you will not use the remote control for a long time, remove the batteries.

- If leaked battery fluid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your eye well rather than rubbing and seek medical treatment immediately. Leaked battery fluid that gets into your eye or your clothing may cause a skin irritation or damage your eye.

1. Usage of the monitor must not be accompanied by fatal risks or dangers that could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.
2. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns.
3. Do not modify this product.

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

An apparatus with CLASS I construction shall be connected to a MAIN socket outlet with a protective earthing connection.

To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: HDMI input terminal, D-sub input terminal, RS-232C input/output terminals, DVI-D input terminal and DisplayPort input/output terminals.

If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using fixing devices like wall mount brackets recommended by the manufacturer.
• Only using furniture that can safely support the monitor.
• Ensuring the monitor is not overhanging the edge of the supporting furniture.
• Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.
• Not standing the monitors on cloth or other materials placed between the monitor and supporting furniture. • Educating children about the dangers of climbing on furniture to reach the monitor or its controls.
• This equipment is not suitable for use in locations where children are likely to be present unsupervised.

Especially for child safety

• Don't allow children to climb on or play with the monitor.
• Don't place the monitor on furniture that can easily be used as steps, such as a chest of drawers.
• Remember that children can become excited while watching a program, especially on a “larger than life” monitor. Care should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down.
• Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children.

- The TFT color LCD panel used in this monitor is made with the application of high precision technology. However, there may be minute points on the screen where pixels never light or are permanently lit. Also, if the screen is viewed from an acute angle there may be uneven colors or brightness. Please note that these are not malfunctions but common phenomena of LCDs and will not affect the performance of the monitor.

- Do not display a still picture for a long period, as this could cause a residual image.

- Never rub or tap the monitor with hard objects.

- Please understand that SHARP CORPORATION bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognized under law.

- This monitor and its accessories may be upgraded without advance notice.

- Do not use the monitor where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam. Do not use in an environment where there are corrosive gases (sulfur dioxide, hydrogen sulfide, nitrogen dioxide, chlorine, ammonia, ozone, etc.). As this could lead to fire.

- Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock.

- Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to receive strong shocks or to strongly vibrate. Causing the monitor to fall or topple over may damage it.

- Do not use the monitor near heating equipment or in places where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.

- Do not use the monitor in places where it may be exposed to direct sunlight. Risk of cabinet deformation and failure if the monitor is used in direct sunlight.

- If the monitor is installed in a location exposed to sunlight such as next to a window, measures to reduce ultraviolet and infrared radiation and temperature measures are required. For details, consult your dealer.

- Please be sure to constantly remove dust and garbage that has attached to the ventilation opening. If dust collects in the ventilation opening, it may lead to excessive heat, outbreak of fire, or malfunction.

- As a standard, clean the inside of the monitor once every year. If dust collects inside the monitor, it may lead to excessive heat, outbreak of fire, or malfunction. Please request a cleaning of the inside of the monitor from an authorized SHARP servicing dealer or service center.

- Images cannot be rotated on this monitor. When using in portrait orientation, you will need to prepare appropriately orientated content in advance.

- The power outlet shall be installed near the equipment and shall be easily accessible.

The Power Cord

• Use only the power cord supplied with the monitor.
• Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.
• Do not use the power cord with a power tap. Adding an extension cord may lead to fire as a result of overheating.
• Do not remove or insert the power plug with wet hands. Doing so could result in electric shock.
• Unplug the power cord if it is not used for a long time.
• Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service representative.

Manual Scope

• Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
• DisplayPort is a registered trademark of Video Electronics Standards Association.
• Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
• RoomView, Crestron RoomView and Crestron Connected are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries.
• All other brand and product names are trademarks or registered trademarks of their respective holders.
• Language of OSD menu used in this manual is English by way of example.
• Illustrations in this manual may not exactly represent the actual product or display.
• This manual assumes use in landscape orientation, except where specifically noted.
• This manual assumes that this product will be used with the remote control unit buttons, except where specifically noted. Operation by using the buttons on the rear side of the product will perform the same functions.

* For operation with the remote control unit, the PN-ZR02 control kit (optional) is required.

LED Backlight

• The LED backlight in this product has a limited lifetime. If the screen gets dark or does not turn on, it may be necessary to replace the LED backlight. This LED backlight is exclusive to this product and must be replaced by an authorized SHARP servicing dealer or service center. Please contact an authorized SHARP servicing dealer or service center for assistance.

Fan

• The fan in this product has a limited lifetime.
• Please contact an authorized SHARP servicing dealer or service center for assistance with fan replacement.

• This product is for use indoors. - A VESA-compliant mounting bracket is required. - Since the monitor is heavy, consult your dealer before installing, removing or moving the monitor. - Mounting the monitor on the wall requires special expertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling. - Use the monitor with the surface perpendicular to a level surface. - This monitor should be used at an ambient temperature between 32°F (0°C) and 104°F (40°C). - Be careful of high temperatures in the surrounding area. If it is difficult to provide sufficient space for any reason such as the installation of the monitor inside a housing, or if the ambient temperature may be outside of the range of 32°F (0°C) to 104°F (40°C), install a fan or take other measures to keep the ambient temperature within the required range. - Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments. - Do not block any ventilation openings. If the temperature inside the monitor rises, this could lead to a malfunction. - Do not place the monitor on a device which generates heat.

• Adhere to the following when installing the monitor in its portrait orientation. Failing to adhere to the following may cause malfunctions.
• To install in landscape orientation, rotate the monitor 90 degrees to the right.
• Set the PORTRAIT/LANDSCAPE INSTALL on the MONITOR menu to PORTRAIT. (See page 30.)
• Be sure to clamp the power cord (supplied) onto the cable clamp attachment using the supplied cable clamp. When clamping the power cord, take care not to stress the terminal of the power cord. Do not bend the power cord excessively.

- A video wall should be only be composed of identical models. Do not use this monitor as part of a video wall that includes another model.

Contents

IMPORTANT INFORMATION......3

DEAR SHARP CUSTOMER....4

SAFETY PRECAUTIONS......4

TIPS AND SAFETY INSTRUCTIONS....6

MOUNTING PRECAUTIONS....7

Supplied Components....8

Part Names....9

Connecting Peripheral Equipment....11

Multiple monitor connection ....13

Connecting the Power Cord ....15

Binding Cables....16

Preparing the Remote Control Unit....17

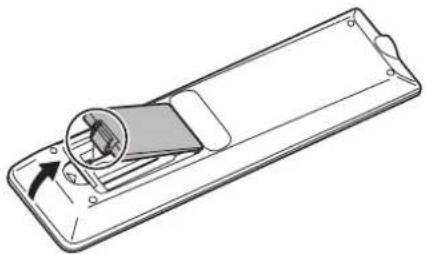

Installing the batteries ....17

Remote control operation range....17

Turning Power On/Off....18

Turning on the main power....18

Turning power on/off 18

Disabling power on/off operations....19

Basic Operation 20

Remote Control Mode 23

Menu Items....24

Displaying the menu screen....24

Menu item details....25

Adjustments for computer screen display ....36

Initialization (Reset)/Functional Restriction Setting

(FUNCTION)....37

Controlling the Monitor with a computer (RS-232C)...38

Computer connection....38

Communication conditions....38

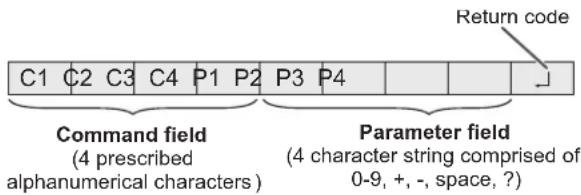

Communication procedure....38

Setting of the GAMMA user data....41

RS-232C command table....42

Controlling the Monitor with a computer (LAN)....51

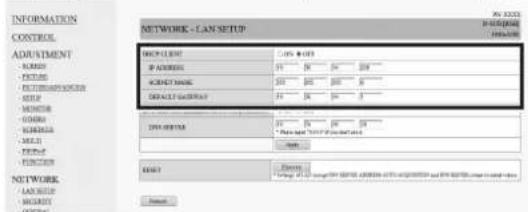

Settings to connect to a LAN....51

Controlling with a computer....53

[Advanced operation] Command-based control....60

Troubleshooting....61

Specifications 63

Mounting Precautions

(For SHARP dealers and service engineers)....69

Supplied Components

If any components are missing, please contact your dealer.

☐ Liquid Crystal Display Monitor: 1 □ Cable clamp: 4 ☐ Cable clamp (insertion type): 2 □ Power cord ☐ CD-ROM (Utility Disk for Windows): 1 □ Setup Manual: 1 ☐ Remote control sensor box mounting hole concealing sticker: 2

* The remote control unit is supplied with the PN-ZR02 control kit (optional). * SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission. * For environmental protection!

Do not dispose of batteries in household waste. Follow the disposal instructions for your area.

Part Names

■Front view

1. LCD panel
2. Power LED
3. POWER button
4. Cursor control (▶) button
5. Cursor control (◀) button
6. Cursor control (▲) button
7. Cursor control (▼) button
8. MENU button
9. INPUT button

RETURN button

1. ENTER button

Rear view

Caution

• Consult your SHARP dealer for attachment/detachment of optional parts.
• Do not block the fan cover.
• Handles, Fan/Fan Cover, Vents
• AC input terminal (See page 15.)
• Main power switch (See page 18.)
• DisplayPort output terminal (See page 11.)
• HDMI1 input terminal (See page 11.)
• HDMI2 input terminal (See page 11.)
• DisplayPort input terminal (See page 11.)
• DVI-D input terminal (See page 12.)
• D-sub input terminal (See page 12.)
• Audio input terminal (See page 12.)
• Audio output terminal (See page 12.) 25. Optional terminal

This terminal is provided for possible future (optional) function expansion. Offering of this terminal is not a guarantee that future expanded functionality will be provided.

1. RS-232C input terminal (See page 12.)
2. RS-232C output terminal (See page 12.) 28. LAN terminal (See page 12.)
3. Control kit terminal (See page 12.) 30. Expansion slot

This section is used to connect optional hardware for function expansion. Offering this attachment location is not a guarantee that future compatible hardware attachments will be released.

■Remote control unit (Supplied with the PN-ZR02 (optional))

1. Signal transmitter
2. Operation buttons (See pages 20 and 21.)

■Remote control sensor box (Supplied with the PN-ZR02 (optional))

1. Remote control sensor
2. Connection cable
3. Mounting bracket

Connecting Peripheral Equipment

!Caution

• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and the other problems.
• Do not use any cable that has a damaged or deformed terminal. Using such cables may cause malfunctions.
• Do not forcibly bend or apply force to cables. Doing so may result in wire breakage or other damage.

TIPS

• Images may not be displayed properly depending on the computer (video card) to be connected.
• Use the automatic screen adjustment when a computer screen is displayed for the first time using D-SUB[RGB] or when the setting of the computer is changed. The screen is adjusted automatically when SELF ADJUST in the MONITOR menu is set to ON.
• If the audio output from the playback device is connected directly to speakers or other devices, the video on the monitor may appear delayed from the audio portion. Audio should be played through this monitor by connecting the playback device to the monitor's audio input, and connecting the monitor's audio output to the speakers or other devices.
• The audio input terminals used in each input mode are factory-set as follows.

Input mode	Audio input terminal (Factory setting)
DVI-D Audio input terminal
DisplayPort DisplayPort input	terminal
HDMI1 HDMI1 input terminal
HDMI2 HDMI2 input terminal
D-SUB[RGB], D-SUB[COMPONENT]	Audio input terminal
OPTION * Expansion slot

* When you have used the expansion slot to expand the functions.

1. DisplayPort output terminal

• The video of the current input mode can be output to an external device.
• Use a commercially available DisplayPort cable that supports 4K.
• Outputting HDCP-encrypted video requires an external device which supports HDCP.
• This terminal can be used to make a daisy chain connection* by connecting these monitors to each other through the DisplayPort input terminal of each monitor.

*: Up to 25 monitors.

Up to 4 monitors when the video signal is encrypted by HDCP. Up to 4 monitors when the first monitor's input mode is D-SUB[COMPONENT]. Up to 2 monitors when the first monitor's input mode is DisplayPort (MST).

TIPS

• The length of the signal cables or surrounding environment may affect the image quality.
• The output screen may not be displayed properly. In this case, turn off the power to all the monitors connected in a daisy chain and then turn the power on again.
• When connecting monitors in a daisy chain, set NO SIGNAL AUTO INPUT SEL. to OFF. Video output is disabled in the following cases: when the power is turned off, or when the monitor is in input signal waiting mode.

2. HDMI1 input terminal

3. HDMI2 input terminal

• Use a commercially available HDMI cable (conforming to the HDMI standard).
• Select the audio input terminal to be used in HDMI1 or HDMI2 of AUDIO SELECT on the SETUP menu. When HDMI is selected, it is not necessary to connect an audio cable to the audio input terminal.

4. DisplayPort input terminal

• Use a commercially available DisplayPort cable that supports 4K.
• Select the audio input terminal to be used in DisplayPort of AUDIO SELECT on the SETUP menu. When DisplayPort is selected, it is not necessary to connect an audio cable to the audio input terminal.

Connecting Peripheral Equipment

5. DVI-D input terminal

Use a commercially available signal cable (DVI-D 24 pin).

6. D-sub input terminal

Set D-SUB of INPUT SELECT on the SETUP menu according to the device to be connected.

7. Audio input terminal

• Use an audio cable without resistance.
• Set the audio input terminal to be used in each input mode in AUDIO SELECT on the SETUP menu.

8. Audio output terminal

• The output sound varies depending on the input mode.
• The volume of the output sound can be fixed by setting AUDIO OUTPUT on the SETUP menu.

9. RS-232C input terminal

10. RS-232C output terminal

- You can control the monitor from a computer by connecting a commercially available RS-232 straight cable between these terminals and the computer.

11. LAN terminal

- You can control the monitor from a computer on a network by connecting a commercially available LAN cable between this terminal and a network.

12. Control kit terminal

- Connects the remote control sensor box of the PN-ZR02 control kit (optional). (See page 14.)

Multiple monitor connection

The monitors can be aligned and used as a large screen. [Example]

Remote control sensor box (Supplied with the PN-ZR02 (optional))

Second monitorSecondary(Expansion unit)ID No.: 2	First monitorPrimary(Main unit)ID No.: 1
Third monitorSecondary(Expansion unit)ID No.: 3	Fourth monitorSecondary(Expansion unit)ID No.: 4

TIPS

• Connect the RS-232 cables in order, starting with the first monitor (primary monitor). If monitors are connected in a different order they may not be operable. • Always install the remote control sensor box on the primary monitor.

■Connection with video cable

Up to 25 monitors* can be connected in a daisy chain.

*: Up to 4 monitors when the video signal is encrypted by HDCP. Up to 4 monitors when the first monitor's input mode is D-SUB[COMPONENT]. Up to 2 monitors when the first monitor's input mode is DisplayPort (MST).

■Connection with RS-232 cable

If you connect the monitor in a daisy chain using RS-232 cables, settings are copied from the primary (main unit) to the secondary (expansion unit) and operation from the primary can perform operation for all monitors. Setting each ID No. in the monitor is required.

1. Connect the monitors in order.

Connect the RS-232C output terminal of the first monitor (primary) and the RS-232C input terminal of the second monitor (secondary) together using RS-232 cable (straight). Connect in the same way to the third and subsequent monitors.

Up to 25 monitors can be connected. (Depending on the length of the cable used and the surrounding environment.)

2. Set the ID No.

Perform operation with the rear side buttons on the primary monitor. To automatically assign ID numbers in order from the primary, set AUTO ASSIGN ID No. to ON in ID SETTING on the SETUP menu. (See page 29.) (If you attach PN-ZR02 the control kit (optional), you can perform operation of the monitors with the remote control unit.)

■Mounting the control kit (optional) on the monitor

If performing operation of the monitor with the remote control unit, the PN-ZR02 control kit (optional) is required.

• Can perform operation of an arbitrary monitor or all monitors with the remote control unit of the first monitor.
• Can perform operation of up to 25 monitors.
• Connect the monitors together in a daisy chain with RS-232 cable.

Attach the remote control sensor box as shown in the following illustration.

For the monitor in landscape orientation

For the monitor in portrait orientation

1. Insert the remote control sensor box connection cable into the control kit terminal.

!Caution

• When attaching the remote control sensor box, turn the main power switch OFF.
• Except for the remote control sensor box connection cable, do not insert any other cable into the control kit terminal. Also, do not connect any connection cables that have been extended with commercially available cables.

Caution

- When attaching the remote control sensor box, turn the main power switch OFF.

1. Peel off the sticker (☐) that has been affixed to the monitor's remote control sensor box mounting hole.
2. Secure the mounting bracket by inserting the mounting screw into the monitor's remote control sensor box mounting hole.
3. Adjust the angle of the remote control sensor box, and secure it with the fixing screw, so that it may accurately receive signals from the remote control unit.

TIPS

- To conceal the remote control sensor box mounting hole, affix an included sticker over the hole.

Connecting the Power Cord

! Caution

- Use only the power cord supplied with the monitor.

1. Turn off the main power switch.
2. Plug the power cord (supplied) into the AC input terminal.
3. Plug the power cord (supplied) into the power outlet.

Binding Cables

The cables connected to the terminals on the rear of the monitor can be fastened with the cable clamp.

Insert the cable clamp into the cable clamp attachment on the rear of the monitor and fasten the cables.

Preparing the Remote Control Unit

Installing the batteries

1. Place your finger on the part marked with the ▲, and then pull the cover off.

1. See the instructions in the compartment and put in the batteries (R-03 ("AAA" size) x 2) (supplied with the PN-ZR02 (optional)) with their plus (+) and minus (-) sides oriented correctly.
2. Close the cover.

TIPS

• When the batteries become exhausted, replace them with new (commercially available) batteries.
• The supplied batteries (R-03 ("AAA" size) x 2) may become exhausted quickly depending on how they are stored.
• If you will not be using the remote control for a long time, remove the batteries. • Use manganese or alkaline batteries only.

Remote control operation range

The operation range of the PN-ZR02 (optional) remote control unit is approx. 23 feet (7 m) from the remote control sensor, and approx 16.4 feet (5 m) at an angle of approx 10 degrees from the center to the top/bottom/right/left of the remote control sensor.

Remote control sensor

TIPS

• Do not expose the remote control unit to shock by dropping or stepping on it. This could lead to a malfunction.
• Do not expose the remote control unit to liquids, and do not place it in an area with high humidity.
• The remote control unit may not work properly if the remote control sensor is under direct sunlight or strong lighting.
• Objects between the remote control unit and the remote control sensor may prevent proper operation.
• Replace the batteries when they run low as this may shorten the remote control's operation range.
• If a fluorescent light is illuminated near the remote control unit, it may interfere with proper operation.
• Do not use it with the remote control of other equipment such as air conditioner, stereo components, etc.
• Adjust the angle of the PN-ZR02 (optional) remote control sensor and have it face the area where operation with the remote control unit will take place.

Turning Power On/Off

! Caution

• Turn on the monitor first before turning on the computer or playback device.
• When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds. A short interval may result in a malfunction.

Turning on the main power

! Caution

• The main power must be turned on/off with the main power switch. Do not connect/disconnect the power cord or turn the breaker on/off while the main power switch is on.
• For a complete electrical disconnection, pull out the main plug.

Turning power on/off

Press the POWER button to turn the power ON/OFF. You can also turn the power ON/OFF by pressing the MONITOR ON button/MONITOR OFF button on the remote control unit.

Status Status of the monitor
Green lit Power on
Orange lit Power off (Standby mode)
Green flashing Input signal waiting mode

TIPS

• When the main power switch is off, the monitor cannot be turned on.
• If the monitor is in the input signal waiting mode and you press the POWER button, the monitor enters standby mode.
• Setting the SCHEDULE flashes the power LED alternately in red and orange in standby mode.
• To disable the logo screen from displaying when turning the power ON, set LOGO SCREEN to OFF on the OTHERS menu. (See page 32.)
• If you change the remote control mode to ALL MONITORS, power can be turned ON/OFF for all secondary monitors connected with RS-232 cable. (For operation with the monitor buttons, use the buttons on the primary monitor.)

■Mode setting

When the monitor is turned on for the first time after being shipped from the factory, the mode setting screen will be displayed.

(1) Press the ◀ or ▶ button to select YES or NO.

(2) Press the ENTER button.

YES:

• OPERATION MODE is set to MODE1. - OFF IF NO OPERATION is set to ON, and POWER SAVE MODE is set to ON. (These settings cannot be changed.) - If there is no operation for 4 hours or more, the monitor automatically enters standby mode. - Compared to when POWER SAVE MODE is set to OFF, the current consumption is reduced while the monitor is in standby mode, but the startup time from standby mode becomes longer. - While the monitor is in standby mode, control via LAN will be disabled. - While the monitor is in standby mode, only certain RS-232C commands can be used. - While the monitor is in standby mode, the remote control unit cannot be used to operate the display of the secondary unit.

NO:

• OPERATION MODE is set to MODE2. - OFF IF NO OPERATION is set to OFF, and POWER SAVE MODE is set to OFF. (These settings can be changed.) - Compared to when POWER SAVE MODE is set to ON, the startup time from standby mode is reduced, but more power will be consumed in standby mode.

Even after being set, changes can be made using OPERATION MODE, located in MONITOR menu. (See page 30.)

■Date/time setting

- If the time has yet to be set when the monitor is first turned on, the date/time setting screen appears. Set the date and time.

1. Press the ▲ button to select the date and time, and press the ▲ or ▼ button to change the numerical values.
2. Press the ENTER button.
3. Be sure to set the date and time.
4. The date/time setting screen will close automatically if no operation is performed for about 15 seconds. The date and time can be set using DATE/TIME SETTING from the SETUP menu when the date/time setting screen disappears.

TIPS

• Set the date in "Day/Month/Year" order.
• Set the time on a 24-hour basis.
• The clock is maintained by the internal battery.
• If you already set the time but the date/time setting screen appears when the power is turned on, the internal battery may be exhausted. Please contact an authorized SHARP servicing dealer or service center for assistance with battery replacement. • Estimated service life of the internal battery: About 5 years (depending on monitor operation)
• The initial battery was inserted at the factory when the monitor was shipped, so it may run out of power before its expected operation life.

Disabling power on/off operations

Power on/power off operations can be disabled in order to protect the monitor from an accidental power off. Set the ADJUSTMENT LOCK in FUNCTION menu to "ON 2". (See page 37.)

Basic Operation

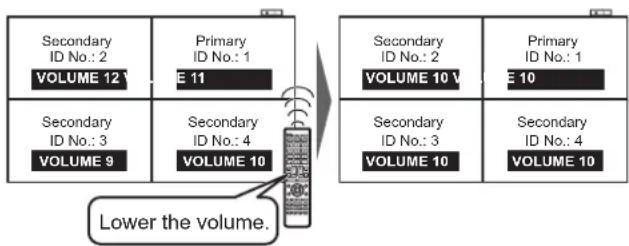

When operating multiple monitors with the remote control unit, first set the remote control unit to the appropriate remote control mode (see page 23).

TIPS

• You can operate the monitor using the rear buttons. Use the buttons on the monitor you wish to operate. • Operation using the buttons on the rear of the product performs the same functions.

Rear side buttons

1. HDMI

Switch the input mode to HDMI1 or HDMI2.

2. Numeric input buttons

When HDMI CEC LINK is set to AUTO, use these buttons to operate the device connected via the HDMI interface. 0 to 9 are also used in conjunction with the ID SET button.

3. MUTE

Temporarily turns off the volume. Press the MUTE button again to restore the sound to the previous level. If using the monitor buttons, either hold both the MENU button and ▼ button simultaneously or select MUTE AUDIO from the OTHERS menu.

4. MODE (Color mode selection)

Each time you press this button, the color mode changes in the following order:

STD (Standard) → VIVID → sRGB → HIGH ILLUMINANCE → STD...

• HIGH ILLUMINANCE is a display with colors suited to bright locations.
• sRGB cannot be used when the input mode is D-SUB[COMPONENT]. sRGB is the international standard for color representation specified by IEC (International Electrotechnical Commission). Color conversion is performed taking into account the liquid crystal's characteristics and represents color tone close to the original image.
• If using the monitor buttons, select COLOR MODE from the COLOR ADJUSTMENT of the PICTURE menu.
• You can press for about 5 seconds to change the remote control mode. (See page 23.)

5. VOLUME +/- (Volume adjustment)

Pressing + or - displays the VOLUME menu.

VOLUME 15

Press + or - to adjust the volume.

If using the monitor buttons, select VOLUME from the OTHERS menu.

* If you do not press any buttons for about 4 seconds, the VOLUME menu automatically disappears.

6. INFORMATION

Displays monitor information.

The display changes from INFORMATION1 →

INFORMATION2 → INFORMATION3 → clear display, and so on every time you press this button.

When displaying INFORMATION, the display changes from INFORMATION1 → INFORMATION2 → INFORMATION3

→ INFORMATION1, and so on every time you press the ▶ button. Pressing the RETURN button disappears the display.

• INFORMATION3 shows the information when you have used the expansion slot to expand the functions. - The display disappears automatically after about 15 seconds. • LAN is displayed during LAN communication. - If LAN is displayed in red, there is a duplicate IP address. - If using the monitor buttons, select INFORMATION from the OTHERS menu.

7. FUNCTION

Use this to display the FUNCTION menu. (See page 37.)

8. ENTER

Confirms the setting.

9. FREEZE

This is not used with this monitor.

10. Buttons for operating the HDMI-connected device

When HDMI CEC LINK is set to AUTO, use these buttons to operate the device connected through the HDMI interface.

11. ID SET

Set a number on the remote control unit. (See page 36.)

12. OPTION

Switch the input mode to OPTION.

14. SIZE (Screen size selection)

The menu is displayed.

Press the ▲ or ▼ button to select the screen size. (See page 22.)

If using the monitor buttons, select SIZE from the SCREEN menu.

15. PIP/PbyP

Each time you press the button, PIP MODES switches in the following order: OFF → PIP → PbyP → PbyP2 → OFF.

16. BRIGHT +/- (Brightness adjustment)

Pressing + or - displays the BRIGHT menu.

BRIGHT 15

Press + or - to adjust the brightness.

* If you do not press any buttons for about 4 seconds, the BRIGHT menu automatically disappears.

17. INPUT (Input mode selection)

The menu is displayed. Press the ▲ or ▼ button to select the input mode, and press the ENTER button to enter.

* You can select the input mode by pressing the INPUT button of the monitor.

Input mode Video	Audio
DVI-D DVI-D input terminal		Audio input terminal
DisplayPort DisplayPort input terminal		*3
HDMI1 HDMI1 input terminal
HDMI2 HDMI2 input terminal
D-SUB[RGB]	D-sub input terminal*2	Audio input terminal
D-SUB[COMPONENT]
OPTION*1	Expansion slot	*3

*1 This is displayed when you have used the expansion slot to expand the functions.

*2 Select the input mode to be used for D-SUB of INPUT SELECT. (See page 28.)

*3 Select the terminal for AUDIO SELECT which is used for audio input. (See page 28.)

18. MENU

Displays and turns off the menu screen. (See page 24.)

19. Cursor

These buttons are used to perform operations such as selecting items, changing adjustment values, and moving the cursor.

20. RETURN

Returns to the previous screen.

■Switching the screen size

Even when the screen size is changed, the display may remain the same depending on the input signal.

WIDE		Displays image so it fills the entire screen.
ZOOM 1		The image is enlarged to fill the entire screen without changing the aspect ratio. The edges of the image may be cut off.
ZOOM 2		Use this size if ZOOM 1 cuts off the subtitles.
NORMAL		Displays the image so it fills the screen without changing the aspect ratio.
Dot by Dot		Displays the dots of the input signals as the corresponding dots on the screen.

TIPS

• Using this monitor's screen-size switching or dual-screen display functions to compress or expand the screen for commercial or public viewing in establishments like cafes or hotels may infringe on the rights of the creators, as protected by Copyright Law, so please be careful.
• When "Enlarge" is set, the screen size is fixed to "WIDE" mode.
• When dual-screen display is selected, the screen size cannot be changed.
• The appearance of the original video may change if you select a screen size with a different aspect ratio than the original image (e.g. TV broadcast or video input from external equipment).
• When 4:3 video is viewed with the whole screen using the screen-size switching function of this monitor, the edge of the video may be lost or appear distorted. If you wish to respect the creator's intentions, set the screen size to NORMAL.
• When playing commercial software, parts of the image (like subtitles) may be cropped. In this case select the optimal screen size using the screen-size switching function of this monitor. With some software, there may be noise or distortion at the edges of the screen. This is due to the characteristics of the software, and is not a malfunction.
• Depending on the original image size, black bands may remain at the edges of the screen.

Remote Control Mode

With the remote control unit, it is possible to perform operations on...

• The primary monitor • Monitors with a specified ID No. • All primary/secondary monitors

It is necessary to specify which type of operation will be performed in advance.

1. If using the remote control unit, press the MODE button for approximately 5 seconds. If using the monitor buttons, hold both the MENU button and ▲ button at the same time on the primary.

1. Press the ◀ or ▶ button, select the mode, then perform settings.

THIS MONITOR ONLY

Performs operation of only the primary using the remote control unit.

[Example] If the volume is lowered, the volume of the primary will lower.

SPECIFIED MONITOR

Performs operation of a monitor with a specified ID No. using the remote control unit.

Press the ▲ or ▼ button to select ID No., then press the ◀ or ▶ button to select the ID No. of the monitor that you will operate.

* When it receives signals from the remote control unit, "Operating specified monitor." will be displayed on the primary screen.

[Example] If ID No. is set to 3 and the volume is lowered, the volume of the monitor for ID No.: 3 will lower.

When you would like to confirm the ID No. that is set to the monitor, press the ▲ or ▼ button to select ID No. DISPLAY, then press the ENTER button. The ID No. will be displayed on the screen.

ALL MONITORS

Performs operation of all primary/secondary monitors.

* ALL [EXPAND ITEM:OFF] will be displayed on the menu of the primary.

* When it receives signals from the remote control unit, "Operating all monitors." will be displayed on the secondary screen. (Excluding power and input mode selection operation)

* Settings may not be reflected depending on the state of the connected monitors.

[Example] If the power for the primary is turned ON, the power for all the monitors will be turned ON.

Press the ▲ or ▼ button to select EXPAND ITEM, and press the ◀ or ▶ button to select to perform this action or not.

OFF ......For all monitors, only power, input mode selection, and product information display operations will be recognized.

ON......For all monitors, all operations will be recognized.

After returning to the normal screen with procedure 3, when 5 minutes have passed from the end of operation, it will automatically return to OFF.

* ALL [EXPAND ITEM:ON] will be displayed on the menu of the primary.

* Even when REMOTE CONTROL MODE is set to ALL MONITORS, certain settings such as LAN settings and ID No. settings will not be reflected on the other monitors.

1. Press the ▲ or ▼ button to select OK, then press the ENTER button and return to the normal screen.
2. Perform operation.

Caution

- When the remote control mode is set to ALL MONITORS and EXPAND ITEM is set to ON, performing remote control operations that change adjustment values will result in the secondary adjustment values being the same as the primary adjustment values.

Be careful of this when adjusting individual displays.

TIPS

• You can copy the setting values of the primary to other monitors with COPY SETTING VALUE. (See page 29.)
• The buttons on the monitor itself (primary) are also effective in remote control mode.

Menu Items

Displaying the menu screen

Video adjustment and settings of various functions are enabled. This section describes how to use the menu items. See pages 25 to 36 for details of each menu items.

Caution

- Do not turn the main power switch off while the menu items are being displayed. Doing so may initialize the settings.

■Example of operation

(Adjusting CONTRAST in the PICTURE menu)

1. Press the MENU button to display the menu screen.

1. Press the ▲ or ▼ button to select PICTURE, and press the ENTER button.
2. Press the ▲ or ▼ button to select CONTRAST.

1. Press the ◄ or ► button to adjust the setting.

For items that have the ENTER button, make settings and then press the RETURN button.

1. Press the MENU button to close the menu screen.

TIPS

• The menu will differ depending on the input mode.
• The menu screen will close automatically if no operation is performed for about 15 seconds. (DATE/TIME SETTING, SCHEDULE and LAN SETUP screens will close in about 4 minutes.)

■Menu screen display

1 Name of the menu 2 Input mode 3 An item being selected (highlighted) 4 Screen resolution of input signal, and other data.

TIPS

- Items that cannot be selected appear in gray. (e.g. Function not supported by the current input signal)

Menu item details

The menu will differ depending on the input mode.

■SCREEN

You can move the menu screen display position each time the INFORMATION button is pressed.

AUTO (D-SUB[RGB])

The CLOCK, PHASE, H-POS, and V-POS are automatically adjusted.

Pressing the ENTER button performs adjustment. Use this automatic adjustment when you use the D-SUB[RGB] to display a computer screen for the first time or when you change the setting of the computer. (See page 36.)

CLOCK (D-SUB[RGB])

Adjusts frequency for sampling clock for applicable video.

Adjust when there is flickering in the form of vertical stripes.

When using the adjustment pattern (see page 36), make adjustments so that no vertical stripe noise appears in it.

PHASE (D-SUB[RGB])

Adjusts sampling clock phase for applicable video. Useful when small characters appear with low contrast and/or there are flickers at corners. When using the adjustment pattern (see page 36), make adjustments so that no horizontal stripe noise appears in it.

Adjustments to PHASE should be made only after CLOCK has been correctly set.

H-POS

Adjust the horizontal position of the image.

V-POS

Adjust the vertical position of the image.

H-SIZE

Adjust the horizontal size of the image.

V-SIZE

Adjust the vertical size of the image.

SIZE

Selects screen size. (See page 22.)

RESOLUTION SETTING (D-SUB[RGB])

H-RESOLUTION

Sets proper horizontal resolution when the resolution of input signals is not recognized properly. (Adjustment may be impossible with some signals.)

V-RESOLUTION

Sets proper vertical resolution when the resolution of input signals is not recognized properly. (Adjustment may be impossible with some signals.)

INPUT SIGNAL (D-SUB[RGB])

If a computer connected to the D-SUB[RGB] outputs any of the following resolutions, make a selection from the following options.

480 LINES ...... AUTO, 640x480 or 848x480

768 LINES ....AUTO, 1024x768, 1280x768, or 1360x768

1050 LINES .....1400x1050 or 1680x1050

ZOOM2 SPECIAL SETTING (See page 35.)

RESET

Resets the values of the SCREEN menu items to the factory preset values. Select ON and then press the ENTER button.

Menu Items

■PICTURE

You can move the menu screen display position each time the INFORMATION button is pressed.

BRIGHT

Adjusts the backlight brightness.

CONTRAST

Adjusts the difference between the bright and dark portions of the image.

BLACK LEVEL

Adjusts the entire brightness of the video signals.

TINT

Adjusts the hue. Selecting + changes the color towards green, and selecting - changes it towards magenta.

COLORS

Adjusts the color intensity.

SHARPNESS

Adjusts the sharpness of the image.

COLOR ADJUSTMENT

COLOR MODE

Changes the color mode on the screen. The color mode on the screen can also be changed using a remote control unit. (See page 20.)

sRGB cannot be used when input mode is D-SUB[COMPONENT]. See page 20 for details.

WHITE BALANCE

THRU ...... Displays the input signal level as is.

PRESET......Selects the color temperature using PRESET.

USER....Adjusts R-/G-/B-CONTRAST and R-/G-/B-OFFSET respectively using USER.

ADJUST UNIFORMITY .....Adjusts UNIFORMITY, R-/G-/B-CONTRAST, R-/G-/B-OFFSET, and BRIGHTNESS VALUE respectively using ADJUST UNIFORMITY.

PRESET

Selects the color temperature when the WHITE BALANCE is set to PRESET.

The setting values are shown for reference. The color temperature of the screen varies over time. This function is not intended to keep the color temperature constant.

USER

Adjusts each item when the WHITE BALANCE is set to USER.

R-CONTRAST....Adjusts bright-toned red component.

G-CONTRAST ... Adjusts bright-toned green component.

B-CONTRAST ....Adjusts bright-toned blue component.

R-OFFSET ...... Adjusts dark-toned red component.

G-OFFSET ...... Adjusts dark-toned green component.

B-OFFSET ...... Adjusts dark-toned blue component.

ADJUST UNIFORMITY

Adjusts each item when the WHITE BALANCE is set to ADJUST UNIFORMITY.

UNIFORMITY....Sets the discoloration correction level. (See page 27.)

R-CONTRAST....Adjusts bright-toned red component.

G-CONTRAST .... Adjusts bright-toned green component.

B-CONTRAST....Adjusts bright-toned blue component.

R-OFFSET ....Adjusts dark-toned red component.

G-OFFSET ....Adjusts dark-toned green component.

B-OFFSET .... Adjusts dark-toned blue component.

BRIGHTNESS VALUE ...... Adjusts the screen brightness.

COPY TO USER

Copies the value of white set for PRESET to the USER setting.

Select ON and then press the ENTER button.

(In the case other than white, color tone may differ from the PRESET.)

GAMMA

Selects the gamma. USER sets the gamma to the sent value. (See page 41.)

FLESH TONE

Adjust the hue control.

C.M.S.-HUE

Adjusts color tone with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).

C.M.S.-SATURATION

Adjusts color vividness with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).

ADVANCED

AUTO (D-SUB[RGB])

The ANALOG GAIN and ANALOG OFFSET are automatically adjusted.

Pressing the ENTER button performs adjustment.

ANALOG GAIN (D-SUB[RGB])

Adjusts the bright portions of the video input signal.

ANALOG OFFSET (D-SUB[RGB])

Adjusts the dark portions of the video input signal.

NR

Reduce the image noise.

Setting a higher level reduces more noise. However, it may cause blurring on an image.

RGB INPUT RANGE (DVI-D/HDMI/D-SUB[RGB]/DisplayPort/OPTION)

Sets the RGB input signal range.

When using HDMI, DisplayPort, or OPTION set to AUTO, the RGB input signal is detected automatically. Use AUTO normally.

If the RGB input signal range cannot be set appropriately even when using AUTO, set it according to the image. When the

setting is different, images will be displayed with washed out blacks and compressed gradients.

DISPLAY COLOR PATTERN

Displays a color pattern. It can be displayed while the menu screen is shown, so you can refer to the pattern while adjusting the image. When WHITE, RED, GREEN, or BLUE is displayed, you can set the level in the range of 0 to 255.

OFF......No pattern display.

WHITE.....White single color pattern display.

RED......Red single color pattern display.

GREEN......Green single color pattern display.

BLUE......Blue single color pattern display.

USER....Red/green/blue mixed color pattern display. When USER is selected, set each color's level.

UNIFORMITY

Sets the LCD panel's discoloration correction level.

OFF......Discoloration will not be corrected.

MODE1 to MODE3...... The effect of the discoloration correction will increase from MODE1<MODE2<MODE3.

However, brightness and contrast will also decrease from MODE1<MODE2<MODE3.

RESET

Resets the values of the PICTURE menu items to the factory preset values.

Select ON and then press the ENTER button.

Menu Items

SETUP

DATE/TIME SETTING

Set the date and time. Press the ◀ or ▶ button to select the date and time, and press the ▶ button to change the numerical values.

Set the date in "Day/Month/Year" order.

Set the time on a 24-hour basis. (Factory default)

DATE/TIME FORMAT

Sets the date/time display format.

DATE ....MM/DD/YYYY, DD/MM/YYYY, YYYY/MM/DD (YYYY: Year, MM: Month, DD: Day)

TIME......Select 12- or 24-hour time.

SCHEDULE (See page 35.)

You can turn the power on/off and change the screen brightness at a specified time.

LANGUAGE

Sets the display language for the menu screen.

INPUT SELECT

D-SUB

Select the input mode to be used in D-sub input terminal.

HDMI CEC LINK

AUTO .....Use the HDMI CEC function.

If the device connected to the HDMI input terminal supports CEC, the input mode of the monitor changes to HDMI when playback starts on the device.

OFF......HDMI CEC function is not used.

AUTO POWER ON

This can be set when HDMI CEC LINK is set to AUTO.

If the device connected to the HDMI input terminal supports CEC, you can specify whether or not the monitor power turns on when the device power is turned on.

HDMI AUTO VIEW

When ON is selected, the screen size is adjusted automatically according to the screen size control signal included in the video signal input from the HDMI1 and HDMI2 input terminals or the expansion slot (when the expansion function is used).

HOT PLUG CONTROL

Sets whether to use hot plug control for the DVI-D, HDMI1 and HDMI2 input terminals, and the expansion slot (when the expansion function is used).

DisplayPort STREAM

Selecting MST (Multi Stream Transport) allows different images to be displayed when daisy chaining two devices through the monitor's DisplayPort. Image may not be displayed properly depending on the computer (video card) to be connected.

DisplayPort SETTING

Sets FILTER SETTING, GAIN, and OFFSET for the signal from the DisplayPort input terminal.

AUDIO SELECT

Selects the terminal used to input audio signals in each input mode.

AUDIO OUTPUT

Sets the volume of sound output from the audio output terminal.

VARIABLE ...... You can adjust the volume from the audio output terminal by using VOLUME.

FIXED ...... Fixes the volume from the audio output terminal. Adjust the volume by using an external device.

START INPUT MODE

You can set the input mode that will be in effect when the power is turned on.

When set to LAST INPUT MODE, the input mode that was active when the power was last turned off will be restored.

COMMUNICATION SETTING

RS-232C/LAN SELECT

Selects the method for controlling the monitor from a computer.

BAUD RATE

Selects the communication speed for RS-232C communication.

LAN SETUP

Configures settings to control the monitor from a computer via LAN. (See page 51.)

AUTO ASSIGN FIXED IP ADDR.

Can be enabled when RS-232C/LAN SELECT is set to LAN and DHCP CLIENT is OFF.

Set DHCP CLIENT to OFF for the monitor connected to the RS-232C output terminal and the daisy chain of connected monitors that follows. Fixed IP addresses are automatically allocated.

If the IP address is a duplicate with a network device other than a monitor, individually change the IP address.

Crestron Connected

Select this when using a Crestron device. When this function is set to ON, the monitor can be controlled via network using equipment and application software of Crestron Electronics, Inc.

This monitor supports application software RoomView from Crestron Electronics, Inc.

This is a function to connect a system developed by Crestron Electronics, Inc. which manages and controls multiple system devices connected to the network.

For details of Crestron Connected, refer to the Crestron Electronics, Inc. website. (Provided only in English.) http://www.crestron.com/

For the download of RoomView Express, refer to the Crestron Electronics, Inc. website. (Provided only in English.) http://www.crestron.com/getroomview

ID SETTING

ID No. SET

Assigns ID numbers to monitors connected in a daisy chain (see page 38), using the RS-232 cables.

The numbers 1 to 255 are available for ID numbers.

If "0" is set, the system regards this as the state where no ID number is set.

AUTO ASSIGN ID No.

ID No. to be used will be automatically assigned when multiple monitors are connected with RS-232C.

Select ON, then press the ENTER button.

Perform operations using the first monitor in the daisy chain.

REMOTE No.

Sets the number of the remote control unit. (See page 36.)

COPY SETTING VALUE

When the monitor has been connected to multiple monitors by RS-232C, the settings in the monitor can be copied to the monitor connected to the RS-232C output terminal and to the daisy chain of connected monitors that follows.

Selects the settings to copy with COPY SETTING VALUE TARGET.

"PICTURE" ONLY ..... Copies the PICTURE menu settings.*

ALL ...... Copies all the settings.*

Select the ID No. of the monitor that you would like copy to with COPY TO ID No., then select COPY and press the ENTER button. If you select ALL, settings will be copied to all monitors.

When you would like to confirm the ID No. that is set to the monitor, select ID No. DISPLAY and press the ENTER button. The ID No. will be displayed on the screen.

* Certain setting details such as ANALOG GAIN, ANALOG OFFSET, and DISPLAY COLOR PATTERN cannot be copied.

Menu Items

■MONITOR

PORTRAIT/LANDSCAPE INSTALL

LANDSCAPE......Landscape orientationPORTRAIT ......Portrait orientation

ROTATE 180°If video is upside down when the monitor is installed in portrait orientation, you can rotate the video 180 degrees.Interlaced signals may not be displayed properly.

INVERSE SCAN

INVERSE SCANNormally this is set to OFF. To perform inverse scan, set to ON.When ROTATE 180° is set to ON, cannot perform inverse scan.

PICTURE FLIPWhen INVERSE SCAN is set to ON, the picture can be flipped vertically.In portrait orientation, the picture is flipped horizontally.

OSD H-POSITIONAdjusts the horizontal display position of menu screen.

OSD V-POSITIONAdjusts the vertical display position of menu screen.

OPERATION MODE

MODE1......OFF IF NO OPERATION is set to ON, and POWER SAVE MODE is set to ON.(These settings can not be changed.)MODE2......Will perform standard operation. OFF IF NO OPERATION is set to OFF, and POWER SAVE MODE is set to OFF.These settings can be changed.

POWER SAVE MODE

When OFF is selected, startup time from standby mode is reduced. Note, however that, more power will be consumed in standby mode.When ON is selected, current consumption is reduced while the monitor is in standby mode. Note, however, that the startup time from standby mode becomes longer.If set to ON, certain RS-232C commands cannot be used in standby mode, and control via LAN will be disabled. (See pages 38 and 51.)

OFF IF NO OPERATION

Determines whether or not to set the monitor to go into standby mode when there is no operation from the remote control unit, RS-232C commands, or LAN.When the setting is ON, set the time until standby mode is entered in TIME.

POWER ON DELAY

When ON is set, you can delay the screen display after the monitor is turned on.When ON is selected, set the delay time with INTERVAL (interval can be set up to 60 seconds in units of 1 second).When this function is activated, the power LED flashes (at approx. 0.5 second interval) in green.

SELF ADJUST

On a D-SUB[RGB] screen, specify whether to perform screen adjustment automatically or not.When ON is selected, the screen is automatically adjusted when its resolution is 800 x 600 or higher and the timing of input signals changes. “ADJUSTING” appears on the screen during the adjustment.If SELF ADJUST is set to ON, set the time it takes to start the SELF ADJUST function in START TIMING.For images with black edges, etc., depending on the signal, adjustment may not be possible. In this case select OFF. (Perform manual adjustment of the screen.)

■MULTI/PIP

MULTI

ENLARGE (See page 34.)

Sets whether or not to use the enlarge function.

ADVANCED (ENLARGE)

ENLARGE H / ENLARGE V ......Sets the number of screen splits (number of monitors) in the horizontal/vertical direction used for the enlargement.

ENLARGE-POS

Specify the split screen to be displayed when the enlargement function is used.

H-POS / V-POS

Adjust the horizontal/vertical position of the enlarged screen.

BEZEL ADJUST

Sets whether or not to use the frame correction function.

ADVANCED (BEZEL ADJUST)

BEZEL ADJUST (TOP) / BEZEL ADJUST (BOTTOM) / BEZEL ADJUST (RIGHT) / BEZEL ADJUST (LEFT) Adjusts so that the top/bottom/left/right connecting joints of grouped units will be displayed smoothly when a group of monitors are aligned in multiples to display a single image.

BEZEL (TOP) / BEZEL (BOTTOM) / BEZEL (RIGHT) / BEZEL (LEFT)

Sets the frame width of the display.

PIP/PbyP

PIP MODES

Sets the display method.

OFF - Displays one screen.

PIP - Displays a sub screen inside a main screen.

PbyP......Displays a main screen and a sub screen in a line.

PbyP2.....Displays a main screen which measures 1280 pixels in the longest direction and a sub screen in a line.

PIP SIZE

Sets the size of the sub screen in PIP mode.

PIP H-POS

Adjusts the horizontal position of the sub screen in PIP mode.

PIP V-POS

Adjusts the vertical position of the sub screen in PIP mode.

PIP BLEND

In PIP mode, use this menu item to display the sub screen transparently.

PIP SOURCE

Selects the input signal of the sub screen in PIP, PbyP, or PbyP2 mode.

SOUND CHANGE

Sets the sound which is output in PIP, PbyP, or PbyP2 mode.

MAIN POS

Sets the position of the main screen in PbyP or PbyP2 mode.

PbyP2 POS

Sets the position of the sub screen in PbyP2 mode.

OTHERS

SCREEN MOTION

PATTERN

Residual images are reduced by moving the screen.

OFF ...... SCREEN MOTION function is disabled.

PATTERN1..... The whole screen moves vertically and horizontally.

PATTERN2......A black screen spreads from the bottom of the screen and then shrinks to the bottom of the screen. If the monitor is installed in the portrait orientation, a black screen spreads from the left end of the screen and then shrinks to the left end of the screen.

PATTERN3......A black bar moves from the left end to the right end of the screen. If the monitor is installed in the portrait orientation, a black bar moves from the top to the bottom of the screen.

PATTERN4......Black screens appear from both sides of the screen, and the displayed image is compressed into the central field. If the monitor is installed in the portrait orientation, the screen is compressed from the top and bottom ends.

PATTERN1PATTERN2

PATTERN4PATTERN3

MOTION TIME 1

Specify a time period (operating interval) until SCREEN MOTION starts.

MOTION TIME 2

Specify a time period during which SCREEN MOTION operates (time period during which the screen will move).

POWER MANAGEMENT

POWER MANAGEMENT determines whether or not to switch modes from no signal to the input signal waiting mode.

CONNECT AUTO INPUT SELECT

Sets whether the input into the input terminal automatically changes when a video signal is input into that terminal. The input via the expansion slot is ignored.

(With some input signals, the input may not change.)

NO SIGNAL AUTO INPUT SEL.

Specify whether to change inputs automatically. When ON is selected and no signal is present in the selected input mode, the monitor automatically changes the selected mode to another mode where a video signal is present.

When there are video signals in multiple input modes, switching takes place according to the order of priority set in AUTO INPUT SELECT PRIORITY.

AUTO INPUT SELECT PRIORITY

Sets the order of input terminal priority for NO SIGNAL AUTO INPUT SEL..

When an option that supports this function is connected to the expansion slot, you can set the order in OPTION.

(If the option does not support this function, "OPTION" will not appear.)

Input does not change automatically for terminals without a priority setting.

LOGO SCREEN

Sets whether or not to display the logo screen.

SCAN MODE (HDMI1 / HDMI2 / D-SUB[COMPONENT] / OPTION)

Sets the scan mode used for video input.

MODE1......Over-scan display.

MODE2......Under-scan display.

MODE3......Under-scan display when the input signal is 1080i/p. Otherwise, over-scan display.

* Even when MODE1 is selected, under-scan display is used when the input signal is 1080i/p and the screen size is Dot by Dot.

VOLUME

Adjusts the volume.

MUTE AUDIO

Can temporarily turn off the volume.

INFORMATION

Displays monitor information. (See page 21.)

TIPS

• When WHITE BALANCE is set to THRU, BLACK LEVEL, CONTRAST, TINT, COLORS, GAMMA, PRESET, USER, COPY TO USER, FLESH TONE, C.M.S. and ADJUST UNIFORMITY cannot be set.
• If COLOR MODE is set to sRGB, the following items cannot be set: PRESET, USER, COPY TO USER, and GAMMA.
• When the COLOR MODE is set to VIVID or HIGH ILLUMINANCE, GAMMA cannot be adjusted.
• When displaying the color pattern, it is possible to adjust certain items of the PICTURE menu. Non-adjustable items cannot be selected.
• CONNECT AUTO INPUT SELECT and NO SIGNAL AUTO INPUT SEL. do not work for the Sync-on-green signal of D-SUB[RGB] or the signals of D-SUB[COMPONENT].

■ Dual screen display

You can display two screens simultaneously.

Set this function with PIP MODES of PIP/PbyP in the MULTI/PIP menu.

PIP		A sub screen is displayed inside a main screen.
PbyP		A main screen and a sub screen are displayed in a line.
PbyP2		Displays a main screen which measures 1280 pixels in the longest direction and a sub screen in a line.

* The currently selected input signal is displayed on the main screen. * The following combinations are available for display:

DisplayPort - DVI-D

DisplayPort - HDMI1 or HDMI2

DisplayPort - D-SUB[RGB]

DisplayPort - D-SUB[COMPONENT]

DisplayPort - OPTION

DVI-D - D-SUB[RGB]

DVI-D - D-SUB[COMPONENT]

HDMI1 or HDMI2 - D-SUB[RGB]

HDMI1 or HDMI2 - D-SUB[COMPONENT]

D-SUB[RGB] or D-SUB[COMPONENT] - OPTION

TIPS

• You might infringe on a copyright of the author which is protected by copyright law when you display the images of the computer screen and television/VCR simultaneously for profit-making or to show the image to the public.
• The screen size for dual-screen display is the same as the screen size for single-screen display. The Dot by Dot screen is displayed in NORMAL size except when it is set as the PIP main screen.
• When dual-screen display is selected, the SCREEN MOTION function is disabled.
• When dual-screen display is selected, the CONNECT AUTO INPUT SELECT function and NO SIGNAL AUTO INPUT SEL. function are disabled.
• When dual-screen display is selected, the screen cannot be enlarged.
• When dual-screen display is selected, D-SUB of the INPUT SELECT options cannot be set.
• When dual-screen display is selected and an interlaced signal (1080i, 480i) is input to the main or sub screen, the image is not displayed properly.
• When a signal of 3840×2160 or 4096×2160 is input to the sub screen, the sub screen does not display an image.
• In the following cases, you cannot set PIP MODES to PIP, PbyP, or PbyP2.

- When DisplayPort STREAM is set to MST.

- When ROTATE 180° is set to ON.

- When PICTURE FLIP is set to ON.

- When HDMI CEC LINK is set to AUTO, SOUND CHANGE on the PIP/PbyP may be changed to MAIN due to the switching of the monitor's input or due to the operation of the HDMI-connected device.

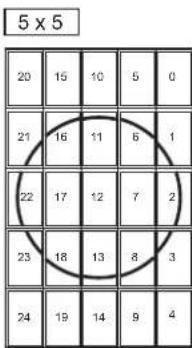

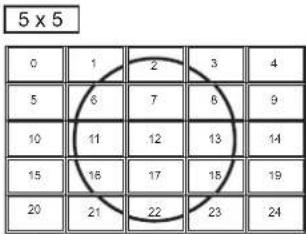

■Enlarge

• You can align several monitors and integrate them into a single large screen to display.
• Up to 5 monitors can be aligned in both the horizontal and vertical directions. • Each monitor displays enlarged views of separated images. (Example)

Horizontal direction: 2 monitors

Vertical direction: 2 monitors

Horizontal direction: 3 monitors

Vertical direction: 2 monitors

Setting procedure

Set using MULTI in the MULTI/PIP menu.

1. Set ENLARGE to ON.
2. Select ADVANCED (ENLARGE).
3. Set the number of monitors aligned in the horizontal direction in ENLARGE H.
4. Set the number of monitors aligned in the vertical direction in ENLARGE V.
5. Set the section of the separated image to be displayed on each monitor in ENLARGE-POS.

1) Press the ENTER button. 2) Press the ▲, ▼, or ⬆ button to select the position, then press the MENU button.

TIPS

• When Enlarge is used, the SCREEN MOTION function is disabled.
• When Enlarge is used, the CONNECT AUTO INPUT SELECT function and NO SIGNAL AUTO INPUT SEL. function are disabled.
• When Enlarge is used, the HDMI AUTO VIEW function is disabled.

If you connect a laptop computer with any of the following screen resolutions and black bands appear around the screen, set ZOOM2 SPECIAL SETTING of INPUT SIGNAL on the SCREEN menu to ON and then select ZOOM2 in the SIZE setting.

This displays the area inside the black band.

Laptop computer resolution	Corresponding signal*1
1280x800 1280x1024, 1280x960, 1400x1050*	2
1280x600 1280x720
1024x600 1024x768

*1: This setting is effective only when the screen resolution, including the black band, is one of the resolutions listed above. *2: Use the automatic screen adjustment.

■SCHEDULE

You can set the time to switch the monitor on and off. Set this function with SCHEDULE in the SETUP menu. (See page 28.)

1. Press the ▲ or ▼ button to select the SCHEDULE number, and press the ▶ button.
2. Set the SCHEDULE. (See the description below.) Press the ◀ or ▶ button to select items, and press the ▲ or ▼ button to change the setting.
3. Press the ENTER button. SCHEDULE becomes effective.

(1)

•: SCHEDULE effective -: SCHEDULE not effective

(2) POWER

ON : Switches the monitor on at the specified time. OFF : Switches the monitor off at the specified time and puts the monitor in standby mode.

(3) DAY OF THE WEEK

Specifies the day of the week to execute the SCHEDULE.

0:ONLY ONCE

Executes the SCHEDULE once on the specified day. Specify the day of the week to execute the SCHEDULE.

1: EVERY WEEK

Executes the SCHEDULE on the specified day of the week every week. Specify the day of the week to execute the SCHEDULE.

Periodic setting such as "Monday through Friday" is also possible.

2:EVERY DAY

Executes the SCHEDULE every day regardless of the day of the week.

(4) TIME

Specifies the time to execute the SCHEDULE. Set the time on a 24-hour basis. (Factory default) Can be entered as 12-hour time using the TIME setting in DATE/TIME FORMAT.

(5) INPUT

Specifies the input mode at power-on. If you don't specify this, the input active at the last power-off will appear. When START INPUT MODE is set to a value other than LAST INPUT MODE, the input mode configured for START INPUT MODE will be set. Input modes displayed on D-SUB will depend upon the INPUT SELECT settings.

(6) BRIGHT

Sets the brightness when changing the screen brightness at a specified time.

Caution

• Do not switch off the main power after setting the SCHEDULE.
• Specify the correct date and time. (See page 28.) SCHEDULE does not function unless the date and time are specified.
• Check regularly that the set date and time are correct.
• When a temperature abnormality occurs and the backlight brightness is reduced, the brightness is not changed even if a schedule set to BRIGHT is executed.

TIPS

• Up to 8 SCHEDULE items can be registered.
• Setting the SCHEDULE flashes the power LED alternately in red and orange in standby mode.
• A SCHEDULE that has a large number has precedence over that of a small number when schedules overlap.

■About remote control numbers

If there is another monitor nearby, you can change the remote control number to prevent the other monitor from being operated by the remote control unit.

Set the same number in the monitor and in the remote control unit.

TIPS

• You can set remote control numbers to values from 0 to 9.
• When the remote control unit batteries become exhausted and when you replace the batteries, the number on the remote control unit may be reset to 0.

Changing the remote control number on the monitor

* Set this on a monitor (primary) with a remote control sensor box (provided with the PN-ZR02 (optional)) connected. Use REMOTE No. on the SETUP menu to set the number. (See page 29.)

1. Use the ◀ or ▶ button to select the remote control number.
2. Select ON and press the ENTER button.

The remote control number is set on the monitor.

Changing the remote control number on the remote control unit

1. While holding down the ID SET button, hold down the number that corresponds to the remote control number set on the monitor for 5 seconds or more, and then release these buttons.

The remote control number is set on the remote control unit.

Checking the remote controller number

* Perform these steps on the remote control unit. (The monitor buttons cannot be used to check the number.)

1. Press the INFORMATION button to display INFORMATION1.
2. Check that REMOTE No. is the remote control number that you have set in the above procedure.
3. Press the RETURN button to close the monitor INFORMATION screen.

TIPS

• If the remote control numbers on the monitor and remote control unit are different, they will both be displayed on INFORMATION1. On this screen, you can press the ENTER button to match the number on the monitor with the number on the remote control unit.
• Even if the remote control numbers are different, you can use the remote control unit to display the INFORMATION screen.

Adjustments for computer screen display

■Automatic adjustment

When you use the D-SUB[RGB] to display a computer screen for the first time, or when you change the setting of the computer, use the automatic screen adjustment.

1. Switch the input to D-SUB[RGB] and display the adjustment pattern. (See the description below.)
2. Press the MENU button and use the ▲ or ▼ button to display the SCREEN menu.
3. Press the ENTER button and select "AUTO".
4. Press the ENTER button.

The automatic adjustment is complete in several seconds.

1. Press the MENU button to close the menu screen.

TIPS

- If the screen cannot be adjusted properly with one automatic adjustment, repeat the automatic adjustment two or three times. Try manual adjustment if necessary.

■Screen display for adjustment

Before making adjustments in the SCREEN menu or PICTURE menu, display an image to brighten the entire screen. If you are using a Windows computer, use the adjustment pattern on the supplied CD-ROM.

Opening the adjustment pattern

The following example is performed in Windows 7.

1. Load the supplied CD-ROM into the computer's CD-ROM drive.
2. Open [CD Drive] in [Computer].
3. Double-click [Adj_uty.exe].

The adjustment pattern will appear.

Adjust the screen automatically or manually.

1. When adjustment is finished, press the [Esc] on the computer's keyboard to quit the adjustment program.
2. Eject the CD-ROM from the CD-ROM drive.

TIPS

- If the display mode on the computer you are using is 65000 colors, the color levels in the color pattern may appear differently or grayscale may appear to be colored. (This is due to the specifications of the input signal and is not a malfunction.)

Initialization (Reset)/Functional Restriction Setting (FUNCTION)

You can return the settings to their factory-preset values and restrict operations.

1. If using the remote control unit:

Press the FUNCTION button, and then press the MENU button within 10 seconds.

If using the monitor buttons:

Press the MENU button and INPUT button at the same time until "F" is displayed in the upper left area of the screen, then while "F" is being displayed, press the MENU button.

2. Select and set the items.

ALL RESET

Resets the settings to the factory default settings.

Press the ENTER button, select the resetting method, and then press the ENTER button.

After initialization, turn the main power switch off and then back on.

ALL RESET1 .... Resets all the settings to the factory default settings.

ALL RESET2 ....Returns all settings to the factory default settings except for the following items: LAN SETUP, RS-232C/LAN SELECT, ID No. SET, REMOTE No., BAUD RATE, NETWORK, MAIL, SERVICE & SUPPORT, and SNMP (See page 29, and pages 55 to 58.)

ADJUSTMENT LOCK

You can disable operations on the monitor and the remote control unit that use buttons.

OFF ...Enables operation.

ON 1 ..Disables all operations other than turning power on/off and FUNCTION.

ON 2 .. Only the FUNCTION operation is enabled. Disables all operations other than FUNCTION (not even power on/off).

ADJUSTMENT LOCK TARGET

Sets the target to prohibit operation of with ADJUSTMENT LOCK.

REMOTE CONTROL.....Prohibits remote control operation

MONITOR BUTTONS ... Prohibits monitor button operation

BOTH....Prohibits remote control and monitor button operation

RS-232C/LAN

Specifies whether to allow control via RS-232C or LAN (see pages 38 and 51).

OSD DISPLAY

Shows/hides the menu, modes and messages.

The FUNCTION and REMOTE CONTROL MODE screens cannot be hidden.

ON 1 ...... Shows all menus, modes and messages.

ON 2 ...... Hides messages automatically displayed by the display. Shows messages during operation.

OFF ...... Hides all menus, modes and messages.

LED

Specifies whether to light the power LED.

TEMPERATURE ALERT

Selects the notification method for an abnormal temperature.

OFF .... Do not notify about an abnormal temperature.

OSD & LED .. When an abnormal temperature is detected, the power LED flashes in red and green alternately and the screen displays a message: TEMPERATURE.

LED...... When an abnormal temperature is detected, the power LED flashes in red and green alternately.

STATUS ALERT

Selects the notification method for a hardware error.

OFF ...... Do not notify about the error.

OSD & LED .. When a hardware error is detected, the power LED flashes in red and the screen displays a message: STATUS [xxxx].

LED...... When a hardware error is detected, the power LED flashes in red.

POWER BUTTON

Normally, leave this setting as MONITOR.

When using an optional part, if instruction appears, change the setting accordingly.

EXTERNAL CONTROLLER INPUT

Normally, you do not need to change this setting.

When using an optional part, if instruction appears, change the setting accordingly.

SIGNAL RESPONSE LEVEL

Normally, you do not need to change this setting. Use this option to set the level of response to signal changes.

3. Press the RETURN button to return to the normal screen.

TIPS

• When both abnormal temperature and hardware error are detected, the hardware error notification overrides.
• If TEMPERATURE ALERT or STATUS ALERT is set to OSD&LED, alert messages will appear even if the OSD DISPLAY is set to ON 2 or OFF.
• If TEMPERATURE ALERT or STATUS ALERT is set to LED or OSD & LED, the LED lights even if the LED function is set to OFF.

Controlling the Monitor with a computer (RS-232C)

You can control this monitor from a computer via RS-232C (COM port) on the computer.

You can also connect multiple monitors via a daisy chain by using a computer. By assigning ID numbers to each monitor (see page 39), you can make input mode selection/adjustment or can check the status of a specific monitor.

TIPS

• To control the monitor via RS-232C, set RS-232C/LAN SELECT to RS-232C.
• You cannot use RS-232C and LAN control simultaneously.

Computer connection

■One-to-one connection with a computer

Connect with RS-232 straight cable between the computer's COM port (RS-232C connector) and the RS-232C input terminal on the monitor.

■Daisy chain connection... Advanced operation

Connect with RS-232 straight cable between the computer's COM port (RS-232C connector) and the RS-232C input terminal on the first monitor.

Next, connect RS-232 straight cable to the first monitor's RS-232C output terminal and to the second monitor's RS-232C input terminal. Connect in the same way to the third and subsequent monitors.

Up to 25 monitors can be connected. (Depending on the length of the cable used and the surrounding environment.)

Communication conditions

Set the RS-232C communication settings on the computer to match the monitor's communication settings as follows:

Baud rate *
Data length 8 bits Flow cont
Parity bit None

Stop bit	1 bit
None

* Set to the same baud rate as the BAUD RATE setting of SETUP menu. (Initial setting: 38400 bps) * When connecting multiple monitors in a daisy chain, set all monitors to the same BAUD RATE.

Communication procedure

■Command format

When a command is sent from the computer to the monitor, the monitor operates according to the received command and sends a response message to the computer.

Example: VOLM0030 VOLM _ 30

* Be sure to input 4 characters for the parameter. Pad with spaces (“□”) if necessary. (“□” is a return code (0DH, 0AH or 0DH)) Wrong : VOLM30 Right : VOLM__30

When inputting a negative value, specify a numerical value in three digits.

Example: OFSR-005

Do not use spaces for MPOS, DATE, and SC01 through SC08. Specify parameters using a specified number of characters.

Example: MPOS010097

If a command has "R" listed for "Direction" in the "RS-232C command table" on page 42, the current value can be returned by using "?" as the parameter.

Example:

VOLM ? ? ? ?

←

From computer to monitor (How much is current volume setting?).

30

From monitor to computer (Current volume setting: 30).

* If an ID number (see page 39) has been assigned (For example, ID number = 1).

VOLM ____?

←

From computer to monitor.

30 001

←

From monitor to computer.

■Response code format

When a command has been executed correctly

A response is returned after a command is executed.

* If an ID number has been assigned

When a command has not been executed

* If an ID number has been assigned

TIPS

• "ERR" is returned when there is no relevant command or when the command cannot be used in the current state of the monitor.
• If communication has not been established for reasons such as a bad connection between the computer and monitor, nothing is returned (not even ERR).
• "ERR" may be returned when a command cannot be received correctly due to interference from the surrounding environment.

Please ensure that the system or software retries the command if this occurs.

- If no monitor has been assigned the designated ID number (e.g., if the command IDSL0002 is used, but no monitor with ID number 2 is found), no response is returned.

If execution of the command is taking some time,

When the following commands are used, "WAIT" is returned. In this case, a value will be returned if you wait a while. Do not send any command during this period.

No ID number is attached to the WAIT response.

- Commands which return WAIT:

1. When repeater control is used
2. When an IDSL or IDLK command is used
3. When one of the following commands is used: RSET, INPS, ASNC, WIDE, EMAG, EPOS, PXSL, POWR, AGIN, MWIN, MWIP, MWPP, ESTG, EMHV, EPHV, ESHV, ENLG, DPST, LCUF

When control via RS-232C is locked (see page 37)

When RS-232C/LAN SELECT is set to LAN

■Communication interval

- After OK or ERR is returned, you must send the following commands.

To set a timeout for the command response, specify 10 seconds or longer.

When connecting multiple monitors in a daisy chain, set the timeout to at least the product of the monitor's position from the computer multiplied by 10 seconds.

Example) third monitor from computer: 30 seconds or longer.

- Provide an interval of 100 ms or more between the command response and the transmission of the next command.

TIPS

• When executing ALL RESET, set the timeout period to 30 seconds or longer.
• When turning the power on while the POWER ON DELAY function is in use, set the timeout period to the POWER ON DELAY period + 10 seconds or longer.

Advanced operation

This section explains commands for daisy chain connection. The basic communication procedure is the same as in the "One-to-one connection with a computer" section.

ID numbers

You can assign a unique ID number to each monitor (see page 29). This allows you to control a particular monitor in a daisy chain of monitors.

You can assign ID numbers either from the menu screen or from the computer using RS-232 cable.

[Example]

If monitors are connected as shown above, you can execute commands like "Set the volume of the monitor with ID 4 to 20".

When designating ID numbers for a set of monitors linked in a daisy chain, you should basically avoid any duplication of ID numbers.

ID numbers do not have to be assigned in ascending order starting from the computer. They can also be connected as shown below.

[Example]

■Commands for ID control

The command examples shown on this page assume the following connection and ID number set up.

ID number: 1 ID number: 2 ID number: 3 ID number: 4

IDST ...... A monitor receiving this command sets its own ID number in the parameter field.

Example:

IDST0001

OK 001 ← The ID number of this monitor is set to 1.

TIPS

You can automatically assign ID numbers by using the IDST command with the Repeater control (see "Repeater control" on page 41).

For example, using the command "IDST001+" automatically sets the ID numbers, as shown below.

[Example]

ID number: 1 ID number: 2 ID number: 3 ID number:

4

IDST001 + ←

ID setting command with repeater control

WAIT

"OK" response from ID number: 1

"OK" response from ID number: 2

"OK" response from ID number: 3

"OK" response from ID number: 4 (End)

IDSL ......The parameter of this command sets the ID number of the monitor. The monitor is subject to the next command.

Example:

IDSL0002 ←

The next command is for the monitor with ID number: 2.

WAIT ←

Searching for monitor with ID number: 2

OK_002 ←

Found monitor with ID number: 2

VOLM0030 ←

Sets volume of monitor with ID number: 2 to 30.

WAIT ←

Processing

OK_002 ←

OK response from monitor with ID number: 2

VOLM0020 ←

Sets volume to 20.

OK_001 ←

The volume of the monitor with ID number: 1 (the one directly connected to the computer) is set to 20.*

* The IDSL command is effective only once, for the immediately succeeding command.

IDLK......The parameter of this command sets the ID number of the monitor. The monitor is subject to all subsequent commands.

Example:

IDLK0002 ←

Following commands are for the monitor with ID number: 2.

WAIT ←

Searching for monitor with ID number: 2

OK 002 ←

Found monitor with ID number: 2

VOLM0030 ←

Sets volume of monitor with ID number: 2 to 30.*

WAIT ←

Processing

OK_002

VOLM0020 ←

Sets volume of monitor with ID number: 2 to 20.*

WAIT

OK 002

IDLK0000 ←

Canceling fixed ID number setting

WAIT ←

Canceling IDLK

OK 002 ←

Cancelation complete

VOLM0010

OK 001 ←

The volume of the monitor with ID number: 1 (the one directly connected to the computer) is set to 10. (IDLK is canceled.)

* The IDLK command remains effective until it is canceled, or power is shut off.

IDCK......Provides screen display of the ID number currently assigned to a monitor, and the ID number currently set for IDLK (if any).

Example:

(After executing IDLK0002)

IDCK0000

← (Parameter has no meaning.)

ID:001

Returned response. The ID number is also displayed on the monitor screen.

IDCK000 +

← Repeater control. (If a command is used with repeater control, ID designation using IDSL or IDLK is canceled.)

WAIT

ID:001

IDLK:000

ID:002

IDLK:000

ID:003

IDLK:000

ID:004

IDLK:000

■ Repeater control

This system has a function to allow setting of multiple monitors connected in a daisy chain using a single command. This function is called repeater control. You can use the Repeater control function without assigning ID numbers.

[Example]

* If monitors are connected as shown above, you can execute a command like "Set all monitors' input settings to D-SUB[RGB]".

■Repeater control command

Repeater control is achieved by setting the FOURTH CHARACTER of the parameter to “+”.

Example:

VOLM030 + ←

Sets volume of all monitors to 30.

In repeater control, responses are returned by all the connected monitors.

If you want to determine that a value has been returned by a specific set, assign ID numbers to each monitor in advance. When some monitors do not return their responses, the probable cause is that the monitors could not receive the command or command processing is not complete. Do not send a new command.

Example: (When 4 monitors are connected, and assigned ID numbers: 1 through 4)

VOLM030 +

WAIT

OK 001

OK 002

OK 003

OK 004 ← If 4 monitors are connected in a chain, reliable operation can be ensured by sending a new command only after a reply has been returned by 4th (last) monitor.

Repeater control can also be used for reading settings.

Example:

VOLM ? ? ? +

WAIT

10 001

20 002

30 003

30 004

Volume settings for all monitors are returned.

TIPS

- If repeater control is used during ID designation (IDSL, IDLK), the ID designation is canceled.

Setting of the GAMMA user data

■To transfer the GAMMA user data

Use the user data transfer commands (UGRW, UGGW and UGBW). For each of the R, G and B colors, divide the total 512 pieces of user data into 16 blocks, and transfer 32 pieces of data with each command.

Example: To transfer the data of block 1 (0 to 31 levels) of red (R) data

* If data is less than 4 digits, add a "0" (zero) to make it 4 digits. * The checksum field is the character string (ASCII) data of lower-order one byte which indicates the sum of the block number and 32 pieces of data in hexadecimal (0 to F).

■Saving the GAMMA user data

Use the user data save command (UGSV) to save the transferred user data in the monitor. If the data is not saved, it will be cleared when:

• The main power switch is off. - POWER SAVE MODE is ON and the monitor enters standby mode.

■Activating the GAMMA user data

To activate the transferred user data, select USER for GAMMA of the PICTURE menu, or send the corresponding RS-232C command.

■Checking the GAMMA user data

Use the user data read commands (UGRR, UGGR and UGBR) to return 512 pieces of user data for each of the R, G and B colors. Divide the data into 16 blocks and return 32 pieces of data with each command. The value to be returned is not the value stored in the monitor, but the value in the temporary memory for display. (These values are the same when the user data save command (UGSV) above has been sent.)

TIPS

- The user data is not initialized by RESET of the PICTURE menu. To initialize the user data, use ALL RESET of the FUNCTION menu.

The GAMMA user data initialize command (UGRS) allows the initialization of the user data only.

RS-232C command table

How to read the command table

Command: Command field (See page 38.)

Direction: W When the "Parameter" is set in the parameter field (see page 38), the command functions as described under "Control/Response Contents".

The returned value indicated under "Reply" can be obtained by setting "????", "(repeater control) in the parameter field. (See page 38.)

____?" or "???+"

Parameter: Parameter field (See page 38.)

Reply: Response (Returned value)

* : When POWER SAVE MODE is set to OFF:

“●/○”： Indicates a command which can be used in standby mode or when the power is on. “-”：Indicates a command which can be used when the power is on. Cannot be used in standby mode.

When POWER SAVE MODE is set to ON:

“●”：Indicates a command which can be used in standby mode or when the power is on. “o/-” : Indicates a command which can be used when the power is on. Cannot be used in standby mode.

Power control/Input mode selection

Function	Command Direction		Parameter Reply Control/Response contents *
POWER CONTROL	POWR	W	0		Switches to standby mode.
			1		Returns from standby mode.
		R		0	Standby mode
				1	Normal mode
				2	Input signal waiting mode
INPUT MODE SELECTION	INPS	W	0		Toggle change for input mode. Terminals not selected in INPUT SELECT cannot be selected.
			1		DVI-D
			2		D-SUB[RGB] "ERR" when other than RGB is selected for D-SUB of INPUT SELECT.
			3		D-SUB[COMPONENT] "ERR" when other than COMPONENT is selected for D-SUB of INPUT SELECT.
			10		HDMI1
			13		HDMI2
			14		DisplayPort
			21		OPTION "ERR" when nothing is attached in the expansion slot.
		R		1	DVI-D
				2	D-SUB[RGB]
				3	D-SUB[COMPONENT]
				10	HDMI1
				13	HDMI2
				14	DisplayPort
				21	OPTION

SCREEN menu

Function		Command Direction		Parameter Reply Control/Response contents *
AUTO ASNC W 1 When the input mode is D-SUB[RGB].							-
CLOCK CLK WR 0-1200 0-1200 When the input mode is D-SUB[RGB].						Varies depending on the signal.
PHASE PHSE WR 0-63		0-63 When the input mode is D-SUB[RGB].
POSITIONING	POSITION OF THE LONGEST DIRECTION	HPOS	WR	0-100	0-100	0-800 on D-SUB[RGB].Varies depending on the signal.
	POSITION OF THE SHORTEST DIRECTION	VPOS WR		0-100	0-100 0-200	on D-SUB[RGB].Varies depending on the signal.
SIZE	SIZE OF THE LONGEST DIRECTION	HSIZ	WR	0-100	0-100
	SIZE OF THE SHORTEST DIRECTION	VSIZ	WR	0-100	0-100
SIZE (SCREEN SIZE)		WIDE	WR	1-5	1-5	1: WIDE, 2: NORMAL, 3: Dot by Dot, 4: ZOOM1, 5: ZOOM2	○
RESOLUTION SETTING	LONGEST DIRECTION RESOLUTION	HRES WR		300-1920	300-1920 When	the input mode is D-SUB[RGB].Only even numbers are valid for parameters.Varies depending on the signal.	-
	SHORTEST DIRECTION RESOLUTION	VRES WR		200-1200	200-1200
INPUT SIGNAL (D-SUB[RGB])		PXSL	WR	1	1	768) 1360 x 768
				2 2 768) 1280 x 768
				3 3 768) 1024 x 768
				5 5 480) 848 x 480
				6 6 480) 640 x 480
				7 7 1050) 1680 x 1050
				8 8 1050) 1400 x 1050
				9 9 768) AUTO
				10	10 480) AUTO
Check the resolution (other than D-SUB[COMPONENT])		PXCK R			- Returns current resolution in the form of hhh, wv.
Check the resolution (HDMI1, HDMI2, D-SUB[COMPONENT], OPTION (When you have used the expansion slot to expand the functions.))		RESO	R		- 480i, 480p, 1080i, 720p, 1080p, VGA , etc.
ZOOM2 SPECIAL SETTING (D-SUB[RGB])		Z2SP	WR	0-1	0-1 0: OFF, 1: ON		○
RESET		ARST W 1					-

PICTURE menu

Function			Command	Direction	Parameter	Reply Control/Response contents *
BRIGHT VLMP WR 0-31 0-31
CONTRAST CONT WR 0-60 0-60
BLACK LEVEL BLVL WR 0-60 0-60
TINT TINT WR 0-60 0-60
COLORS COLR WR 0-60 0-60
SHARPNESS			SHRP	WR 0-24 0-24
COLOR ADJUSTMENT	COLOR MODE		BMOD	WR	0	0	STD
					2	2	VIVID
					3	3	sRGB (sRGB cannot be used when input mode is D-SUB[COMPONENT]).
					4	4	HIGH ILLUMINANCE
	WHITE BALANCE		WHBL	WR	0-3	0-3	0:THRU, 1:PRESET, 2:USER, 3:ADJUST UNIFORMITY
	PRESET		CTMP WR	1-28 1-28			From 1: approximately 3,000K to 15: approximately 10,000K (500K steps)16: approximately 5,600K, 17: approximately 9,300K, 18: approximately 3,200KFrom 19: approximately 10,500K to 28: approximately 15,000K (500K steps)"ERR" when WHBL is not set to 1.
	USER	R-CONTRAST	CRTR	WR	0-256	0-256	"ERR" when WHBL is not set to 2.
		G-CONTRAST	CRTG	WR	0-256	0-256
		B-CONTRAST CRT	TB WR		0-256	0-256
		R-OFFSET	OFSR	WR	-127-127	-127-127
		G-OFFSET	OFSG WR		-127-127	-127-127
		B-OFFSET	OFSB WR		-127-127	-127-127
	ADJUST UNIFORMITY	R-CONTRAST	CRTR	WR	0-256	0-256	"ERR" when WHBL is not set to 3.
		G-CONTRAST	CRTG	WR	0-256	0-256
		B-CONTRAST CRT	TB WR		0-256	0-256
		R-OFFSET	OFSR	WR	-127-127	-127-127
		G-OFFSET	OFSG WR		-127-127	-127-127
		B-OFFSET	OFSB WR		-127-127	-127-127
		BRIGHTNESS VALUE	BCLB	WR	0-255	0-255
	COPY TO USER		CPTU	W	0		Copies a preset value to the user setting.
	GAMMA		GAMM	WR	0-9	0-9	0: 1.8, 1: 2.2, 2: 2.4, 3: DICOM SIMULATION, 4:USER, 5:2.0, 6:STD, 7:LIGHT 2,8:LIGHT 1, 9:DARK
	FLESH TONE		FLES	WR	0-2	0-2	0: OFF, 1: LOW, 2: HIGH
	C.M.S.-HUE		CMHR	WR	-10-10	-10-10	R
			CMHY				Y
			CMHG				G
			CMHC				C
			CMHB				B
			CMHM				M
			CRST W		1	Resets the hue.
	C.M.S.-SATURATION		CMSR	WR	-10-10	-10-10	R
			CMSY				Y
			CMSG				G
			CMSC				C
			CMSB				B
			CMSM				M
			CRST W		2	Resets the saturation.

Function		Command	Direction	Parameter	Reply Control/Response contents *
ADVANCED AUTO		AGIN W 1	When the input mode is D-SUB[RGB].				-
	ANALOG GAIN	ANGA WR	0-127 0-127	When the input mode is D-SUB[RGB].			○
	ANALOG OFFSET	ANOF WR	0-127 0-127	When the input mode is D-SUB[RGB].
	NR TDNR WR 0-2	0-2 0: OFF	1: LOW, 2: HIGH
	RGB INPUT RANGE	INPR	WR	0-2	0-2	0: AUTO, 1: FULL, 2: LIMITED"ERR" when the input mode is D-SUB[COMPONENT].When the input mode is DVI-D, or D-SUB[RGB] the value 0 is invalid.
	DISPLAY COLOR PATTERN PTDF	WR	0	0	0	No pattern display.	-
			1	1	White single color pattern display.
			2	2	Red single color pattern display.
			3	3	Green single color pattern display.
			4	4	Blue single color pattern display.
			99	99	Red/green/blue mixed color pattern display.Set each color's level with PTDR, PTDG, PTDB.
	DISPLAY COLOR PATTERN (R)	PTDR	WR 0-255	0-255 Set the R	G, and B levels	of the mixed color pattern."ERR" when PTDF is not set to 99.
	DISPLAY COLOR PATTERN (G)	PTDG WR	0-255 0-255
	DISPLAY COLOR PATTERN (B)	PTDB	WR 0-255	0-255
	DISPLAY COLOR PATTERN (LEVEL)	PTDL	WR 0-255	0-255 Set the white, red, green,	and blue levels of the single color pattern."ERR" when the DISPLAY COLOR PATTERN is set to a color other than white, red, green, or blue.
UNIFORMITY		LCUF	WR 0-3	0-3 0: OFF, 1: MODE1	2: MODE2, 3: MODE3		○
RESET		ARST	W 2				-

SETUP menu

Function		Command Direction		Parameter Reply		Control/Response contents *
DATE/TIME SETTING		DATE	WR	AABBCCDDEE	AABBCCDDEE	AA: Year, BB: Month, CC: Day, DD: Hour, EE: Minute	○
DATE FORMAT		DTFT	WR	0-2	0-2	0: YYYY/MM/DD, 1: MM/DD/YYYY, 2: DD/MM/YYYYYYYY: Year, MM: Month, DD: Day
TIME FORMAT		TMFT	WR	0-1	0-1	0: 24-HOUR TIME, 1: 12-HOUR TIME
SCHEDULE		SC01-SC08	WR	ABCDEFFGGH	ABCDEFFGGH	Schedule of a specified numberA: Schedule 0= Not effective, 1 = EffectiveB: Power 0 = OFF, 1 = ONC: Day of the week 1 0 = Only once, 1 = Every week, 2 = Every dayD: Day of the week 2 0 = Sunday, 1 = Monday through 6 = Saturday,9 = Not existE: Day of the week 3 0 = Sunday, 1 = Monday through 6 = Saturday,9 = Not existF: Hour 00-23G: Minute 00-59H: Input 0 = Not specified, 1= HDMI1, 2= HDMI2, 4=D-SUB,6=DisplayPort, 7=DVI-D, 8=OPTION(valid when anoption is attached)
SCHEDULE BRIGHTNESS		SB01-SB08	WR	0-31	0-31	$creen brightness to change
				99	99	Disable brightness setting
LANGUAGE		LANG	WR	14	14	ENGLISH
				1	1	DEUTSCH
				2	2	FRANÇAIS
				3	3	ITALIANO
				4	4	ESPAÑOL
				5	5	РУССКИЙ
				6	6	日本語
				7	7	中文
INPUT SELECT	D-SUB	SLDS	WR	0-1	0-1	0:RGB, 1:COMPONENT
	HDMI CEC LINK	CELK	WR 0-1	0-1 0:	OFF, 1: AUTO
	AUTO POWER ON	ATPO	WR 0-1	0-1 0:	OFF, 1: ON
	HDMI AUTO VIEW (HDMI1)	HDAW	WR 0-1	0-1 0:	OFF, 1: ON
	HDMI AUTO VIEW (HDMI2)	H2AW	WR 0-1	0-1 0:	OFF, 1: ON
	HDMI AUTO VIEW (OPTION)	OPAW	WR	0-1	0-1	0: OFF, 1: ON(valid when you have used the expansion slot to expand the functions)
	HOT PLUG CONTROL (DVI-D)	HPCT	WR 0-1	0-1 0:	OFF, 1: ON
	HOT PLUG CONTROL (HDMI1)	HPCH WR	0-1	0-1 0: OFF,	1: ON
	HOT PLUG CONTROL (HDMI2)	HPH2	WR 0-1	0-1 0:	OFF, 1: ON
	HOT PLUG CONTROL (OPTION)	HPOP WR	0-1	0-1 0: OFF,	1: ON	(valid when you have used the expansion slot to expand the functions)
	DisplayPort STREAM	DPST	WR	0-1	0-1	0: SST, 1: MST"ERR" when PIP MODES is a value other than OFF.	-

Controlling the Monitor with a computer (RS-232C)

Function		Command Direction		Parameter Reply Control/Response contentsa
DisplayPort SETTING	HIGH-FREQUENCY GAIN	DPHG WR	0-31 0-31				-
	LOW-FREQUENCY GAIN	DPLG WR	0-31 0-31
	FILTER SETTING DPFL	L WR 0-15	0-15
	OFFSET DPOF WR 0-15	15 0-15
	RESET DPRS W 1
AUDIO SELECT HDM1	1	ASHP WR	0-1	0-1		0: HDMI, 1: AUDIO	○
	HDMI2	AH2P	WR 0-1	0-1		0: HDMI, 1: AUDIO
	DisplayPort	ASDI	WR	1, 3	1, 3	1: AUDIO, 3: DisplayPort
	OPTION	ASOP WR	0-1	0-1		0: OPTION, 1: AUDIO (valid when you have used the expansion slot to expand the functions)
AUDIO OUTPUT		AOUT WR	0-1	0-1		0: VARIABLE, 1: FIXED
START INPUT MODE		SUIM	WR	1-4, 6-7, 10	1-4, 6-7, 10	1: LAST INPUT MODE, 2: DisplayPort, 3: HDMI1, 4: HDMI2, 6: DVI-D, 7: D-SUB, 10: OPTION (valid when you have used the expansion slot to expand the functions)
COMMUNICATION SETTING	RS-232C/LAN SELECT	CTLS WR	0-1	0-1 0: RS-232C, 1: LAN			●
	BAUD RATE	BAUD WR	0-2	0-2 0: 960	0bps, 1: 19200bps, 2: 38400bps		○
	Crestron Connected	CRCN WR	0-1	0-1 0: OFF, 1: ON
ID SETTING	ID No.SET	IDST	W	0-255		Sets the monitor's ID number. ("0" means "no ID number".)
			R		0-255	Returns the monitor's ID number.
	ID NO. SETTING (ONCE)	IDSL	W 1-255 Set a monitor's ID		number to send a command. This ID number is only effective for the command immediately after this command.
	ID NO. SETTING (SUBSEQUENT)	IDLK	W 1-255 Set a monitor's ID		number to send a command. This ID number is effective for the next and all subsequent commands after this command.
	ID CHECK	IDCK	W	0	ID : xxx IDLK : yyy	Displays monitor's own ID number and the selected ID number on the screen.
	ID DISPLAY	IDDP	W	0-2		0: OFF, 1: ON, 2: ON (turns OFF after 4 sec.) (The IP address and MAC address are both displayed.)	-
REMOTE No.		RCNO	WR	0-9	0-9	Sets the number of the remote control unit.	○
COPY SETTING VALUE	COPY TO ID No.	CPMD	WR	0	0	Copy to all monitors.
				1-255	1-255	Copy to the monitor with the set ID number.
	COPY SETTING VALUE TARGET	CPTG	WR	0	0	Copies the PICTURE menu settings.
				1	1	Copies all the settings.

MONITOR menu

Function		Command Direction		Parameter Reply Control/Response contents *
PORTRAIT/LANDSCAPE INSTALL STDR WR		0-1 0-1 0: LANDSCAPE, 1: PORTRAIT					○
ROTATE 180°/PICTURE FLIP PFIL WR 0, 2, 3		0, 2, 3 0: ROTATE 180" Is set to OFF. PICTURE FLIP				is set to OFF.2: ROTATE 180° is set to OFF. PICTURE FLIP is set to ON.3: ROTATE 180° is set to ON. PICTURE FLIP is set to OFF."ERR" when PIP MODES is a value other than OFF.When INVERSE SCAN is set to ON, can not set to 3 "ERR".When INVERSE SCAN is set to OFF, can not set to 2 "ERR".
INVERSE SCAN INVV WR 0-1 0-1 0: OFF, 1: ON
OSD H-POSITION		OSDH	WR	0-100	0-100	"ERR" when PORTRAIT/LANDSCAPE INSTALL is set to PORTRAIT.
OSD V-POSITION		OSDV	WR	0-100	0-100
OPERATION MODE		FNCM	WR 0-1 0-1 0: MODE1, 1: MODE2
POWER SAVE MODE		STBM	WR 0-1 0-1 0: OFF, 1: ON
OFF IF NO OPERATION		ATOF	WR	0-1	0-1	0: OFF, 1: ON
		TIME	AOFT	WR	1-12	1-12	1-12: 1-12 hours
POWER ON DELAY		PODS	WR 0-1 0-1 0: OFF, 1: ON
		INTERVAL	PWOD	WR	1-60	1-60	1-60: 1-60 seconds
SELF ADJUST		AADJ	WR 0-1 0-1 0: OFF, 1: ON
		START TIMING	AADD	WR	10-200	10-200	10: 1 second through 200: 20 seconds

Controlling the Monitor with a computer (RS-232C)

MULTI/PIP menu

Function		Command Direction		Parameter Reply Control/Response contents *
ENLARGE ENLG WR 0-1 0-1 0: OFF, 1: ON						○
ENLARGE MODE EMAG WR 1-4 1-4 1: 2 x 2, 2: 3 x 3, 3: 4 x 4, 4: 5 x 5
				EMHV WR	12(21)-55		12(21)-55 1 x 2 (2 x) to 5 x 5 ("m x n") is expressed as "mn", where m and n are the numbers of monitors specified for the longest direction and the shortest direction respectively.)
IMAGE POSITION (M x N)		EPHV	WR	11-55	11-55	Specifies values in the order of IMAGE POSITION IN LONGEST/ SHORTEST DIRECTION.
IMAGE POSITION (2 x 2)		EPOS	WR 0-3 0-3	See the description below.
IMAGE POSITION (3 x 3)		EPOS	WR 0-8 0-8
IMAGE POSITION (4 x 4)		EPOS	WR	0-15	0-15
IMAGE POSITION (5 x 5)		EPOS	WR	0-24	0-24
ENLARGED SCREEN POSITIONING	THE LONGEST DIRECTION	EPSH	WR	-999-999	-999-999	The setting range depends on the ENLARGE MODE setting and the IMAGE POSITION.
	THE SHORTEST DIRECTION	EPSV	WR	-999-999	-999-999
BEZEL ADJUST		BZCO	WR	0-1	0-1	0: OFF, 1: ON
BEZEL ADJUST	TOP	BZCT	WR	0-1	0-1	0: OFF, 1: ON
	BOTTOM	BZCB	WR 0-1 0-1	0: OFF, 1: ON
	RIGHT	BZCR	WR 0-1 0-1	0: OFF, 1: ON
	LEFT BZCL	WR 0-1 0-1 0: OFF, 1: ON
BEZEL WIDTH	TOP	BZWT	WR	0-100	0-100
	BOTTOM	BZWB WR		0-100	0-100
	RIGHT	BZWR WR		0-100	0-100
	LEFT BZWL	WR	0-100	0-100
ENLARGE/IMAGE POSITION SETTING		ESTG	WR	XXYY	XXYY	XX: ENLARGE MODE (Same as EMAG), YY: IMAGE POSITION (Same as EPOS)
		ESHV	WR	XXYY	XXYY	XX: ENLARGE MODE (Same as EMHV), YY: IMAGE POSITION (Same as EPHV)

• IMAGE POSITION (EPOS) setting in landscape orientation

In portrait orientation

Function		Command Direction		Parameter Reply Control/Response contents *
PIP MODES MWIN WR 0-3 0-3 0: OFF, 1: PIP, 2: PbyP, 3: PbyP2							○
PIP SIZE MPSZ WR 1-64 1-64
PIP POS THE LONGEST		MHPS W 0-100
PIP POS LD+SD BATCH		MPOS	W	0-100,0-100		Specify the position in MPOSxxxxyy format.(xxx: Longer side, yyy: Shorter side position)
			R		0-100,0-100	Returns a response in (xxx,yyy) format.(xxx: Longer side, yyy: Shorter side position)
PIP BLEND		MWBL	WR 0-7 0-7
PIP SOURCE		MWIP	WR	1	1	DVI-D
				2	2 D-SUB[RGB]
				3	3 D-SUB[COMPONENT]
				10	10 HDMI1
				13	13 HDMI2
				14	14 DisplayPort
				21	21 OPTION (valid when you have used the expansion slot to expand the functions)
SOUND CHANGE		MWAD	WR 1-2 1-2	1: MAIN, 2: SUB
MAIN POS (Main screen)		MWPP	WR 0-1 0-1	0: POS1, 1: POS2
PbyP2 POS (Sub screen)		MW2P	WR 0-2 0-2	0: POS1, 1: POS2, 2: POS3

OTHERS menu

Function		Command Direction		Parameter	Reply	Control/Response contents	*
SCREEN MOTION	PATTERN	SCSV	WR	0-4	0-4	0: OFF, 1-4: PATTERN1-4	○
	MOTION TIME1	MTIM	WR	0-20	0-20
	MOTION TIME2 (PATTERN1)	MINT	WR	10-990	10-990	Per 10 seconds
	MOTION TIME2 (PATTERN2-4)	MINT	WR	5-20	5-20	Per second
POWER MANAGEMENT		PMNG	WR	0-1	0-1	0: OFF, 1: ON
CONNECT AUTO INPUT SELECT		AICO	WR	0-1	0-1	0: OFF, 1: ONThe input via the expansion slot is ignored.
NO SIGNAL AUTO INPUT SEL.		AINO	WR	0-1	0-1	0: OFF, 1: ON
AUTO INPUT SELECT PRIORITY	DisplayPort	APDP	WR	0-10	0-10	0: Not selected by auto input selection, 1-10: Priority setting"ERR" when OFF is selected for NO SIGNAL AUTO INPUT SEL..APOP will result in an error ("ERR") when an optional part that is not a target for this function is connected.All Input terminals cannot be set to 0 simultaneously.
	HDMI1	APH1
	HDMI2	APH2
	DVI-D	APDV
	D-SUB	APD1
	OPTION	APOP
LOGO SCREEN		BTSC	WR	0-1	0-1	0: OFF, 1: ON
SCAN MODE(HDMI1, HDMI2, D-SUB[COMPONENT], OPTION (When you have used the expansion slot to expand the functions.))		SCAN WR		0-2	0-2 0: MODE1, 1: MODE2, 2: MODE3
VOLUME		VOLM	WR	0-31	0-31
MUTE AUDIO		MUTE	WR	0-1	0-1	0: OFF, 1: ON	-
INFORMATION	MODEL INF1 R			Value			●
	SERIAL NO	SRNO R			Value

Initialization/Functional Restriction Setting (FUNCTION) menu

Function	Command	Direction	Parameter	Reply Control/Response contents *
ALL RESET RSET W 0-1 0: ALL RESET 1, 1: ALL RESET	2 -
ADJUSTMENT LOCK ALCK WR 0-2 0-2 0: OFF, 1:ON1, 2: ON2						●
ADJUSTMENT LOCK TARGET	ALTG	WR	0-2	0-2	0: REMOTE CONTROL, 1: MONITOR BUTTONS, 2: BOTH	○
OSD DISPLAY	LOSD	WR 0-2 0-2 0: ON1, 1: OFF, 2: ON2
LED	OFLD WR	0-1 0-1 0: ON, 1: OFF
TEMPERATURE ALERT	TALT	WR	0-2	0-2	0: OFF, 1: OSD & LED, 2: LED
STATUS ALERT	SALT	WR	0-2	0-2	0: OFF, 1: OSD & LED, 2: LED
POWER BUTTON	PBTN WR	0-1 0-1 0: MONITOR, 1: EXT. CONTROLLER
EXTERNAL CONTROLLER INPUT	PCIP	WR	0-4	0-4	0: D-SUB, 1: DisplayPort, 2: HDMI1, 3: HDMI2, 4: DVI-D("ERR" when MONITOR is selected for POWER BUTTON.)
SIGNAL RESPONSE LEVEL	HDUC	WR	1-200	1-200

Others

Function	Command	Direction	Parameter	Reply	Control/Response contents	*
TEMPERATURE SENSOR	DSTA	R		0	Internal temperature normal	●
				1 Internal temperature abnormal has occurred and the monitor is in standby mode
				2 Internal temperature abnormal occurred (To delete the information of temperature abnormal, turn off the main power.)
				3 Internal temperature abnormal has occurred and backlight brightness is dimmed
				4 Temperature sensor abnormal
TEMPERATURE ACQUISITION	ERRT	R		Value	Returns the temperature at the temperature sensors. Indicates a temperature sensor abnormality when "126" is returned.	○
CAUSE OF LAST STANDBY MODE	STCA	W	0		Initialization	●
		R		0 No detectable error has occurred
				1 Standby mode by POWER button
				2 Main power off by the main power switch
				3 Standby mode by RS-232C or LAN
				4 Input signal waiting mode by No Signal
				6 Standby mode by abnormal temperature
				8 Standby mode by SCHEDULE setting
				9 Standby mode by DDC/CI
				10 Standby mode by HDMI CEC
				20 Standby mode by OFF IF NO OPERATION setting

Commands for setting the GAMMA user data

Function	Command Direction		Parameter Reply	Control/Response	contents	*
RED GAMMA DATA TRANSFER	UGRW	W	aaxxxx... xxxxcc(xxxx: 32 pieces)aa: 01-16xxxx: 0000-1023cc: 00-FF		aa: Block numberxxxx: 32 pieces of user datacc: Checksum (ASCII data) of the block number and user data	○
GREEN GAMMA DATA TRANSFER	UGGW	W
BLUE GAMMA DATA TRANSFER	UGBW	W
RED GAMMA DATA READ	UGRR	W	1-16	xxxx ... xxxx(xxxx: 32 pieces)xxxx: 0000-1023	xxxx: User data of 32 pieces
GREEN GAMMA DATA READ	UGGR	W	1-16
BLUE GAMMA DATA READ	UGBR	W	1-16
USER DATA INITIALIZE	UGRS	W	0		Initialize the user data.
USER DATA SAVE	UGSV	W	0		Save the user data in the monitor.

Controlling the Monitor with a computer (LAN)

Your monitor can be connected to a LAN allowing you to control it from a computer on the LAN.

You can also configure the monitor to send e-mail notification when it has a problem.

The connection requires a commercially available LAN cable (UTP cable, Category 5, straight through).

LAN cable (commercially available, straight)

TIPS

• You must assign an IP address to the monitor by following the procedures in "Settings to connect to a LAN". (See the description on the right.)
• Your computer must be installed with the web browser.
• When POWER SAVE MODE is set to ON, control is not possible in standby mode.
• To control the monitor via LAN, set RS-232C/LAN SELECT to LAN. (See page 29.)
• You cannot use RS-232C and LAN control simultaneously.

Initializing personal information

- Personal information such as e-mail addresses can be registered in the monitor. Before transferring or disposing of the monitor, initialize all settings by selecting ALL RESET 1. (See page 37.) Note that ALL RESET 2 will not initialize e-mail addresses and other settings.

Settings to connect to a LAN

Set the monitor's IP address and subnet mask to match the settings of your LAN.

These settings can be made on either the monitor or a computer connected to the monitor.

The settings depend on the configuration of your LAN. Ask your LAN administrator for details.

■To set on the monitor

Set RS-232C/LAN SELECT of COMMUNICATION SETTING on the SETUP menu to LAN, and then set the LAN SETUP options. (See page 29.)

After setting each item, select SET and press the ENTER button.

DHCP CLIENT

If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to ON. To set the address manually, set this to OFF.

IP ADDRESS

If the DHCP CLIENT is set to OFF, specify an IP address.

Press the ◀ or ▶ button to select items, and press the ▲ button to change the values.

SUBNET MASK

If the DHCP CLIENT is set to OFF, specify the subnet mask.

Press the ◀ or ▶ button to select items, and press the ▲ button to change the values.

DEFAULT GATEWAY

If the DHCP CLIENT is set to OFF, specify the default gateway.

If you are not using a default gateway, specify "0.0.0.0". Press the ◀ or ▶ button to select items, and press the ▲▼ button to change the values.

RESET

Resets the values of the LAN settings to the factory preset values.

Select ON and then press the ENTER button.

TIPS

- When the IP address is set manually, the IP addresses of the monitor connected to the RS-232C output terminal and the daisy chain of connected monitors that follows can be assigned automatically. (See page 29.)

Controlling the Monitor with a computer (LAN)

■To set from a computer

When the monitor is connected to a computer, LAN settings can be configured via the computer.

Setup process

(1) Connect your monitor to a computer. (2) Specify the computer's IP address. (3) Configure the monitor's LAN settings.

(1) Connecting your monitor to a computer

Connect a commercially available crossover LAN cable (UTP cable, Category 5) to the LAN port on the computer and this monitor.

(2) Specifying the computer's IP address

To configure the monitor's LAN settings, you must temporarily change the settings on the computer.

This explanation is based on Windows 7.

1. Log on to the computer with an administrator account.
2. Click [Start], and then click "Control Panel".
3. Click "View network status and tasks" in "Network and Internet".

In "Classic View", click "Network and Sharing Center".

1. Click "Local Area Connection" and then "Properties".
2. Click "Internet Protocol Version 4 (TCP/IPv4)" and then "Properties".
3. Make a note of the current IP address, subnet mask, and default gateway settings.

Make sure you write this information down now, as you will be changing the IP address, subnet mask, and default gateway settings back to these settings afterwards.

1. Temporarily change the IP address and subnet mask. To access the monitor as it is shipped from the factory, set as follows.

• IP Address: 192.168.150.1 - Subnet Mask: 255.255.255.0 - Default Gateway: (leave blank)

1. Click [OK] and then reboot the computer.

TIPS

- This monitor is factory preset as shown below. (When DHCP CLIENT is set to OFF) IP Address: 192.168.150.2 Subnet Mask: 255.255.255.0 Default Gateway: 0.0.0.0

(3) Configuring the monitor's LAN settings

Access the monitor using the web browser.

Controlling the monitor

1. Turn the power ON to the monitor.
2. Set RS-232C/LAN SELECT of COMMUNICATION SETTING on the SETUP menu to LAN.
3. Set DHCP CLIENT of LAN SETUP of COMMUNICATION SETTING on the SETUP menu to OFF.

Computer operation

1. Launch the web browser, in the "Address" box type "http://192.168.150.2/" and press the Enter key.

http://192.168.150.2/

1. Enter the USER NAME and PASSWORD. The following values are set in the initial settings. USER NAME: admin, PASSWORD: admin

* To enable security on the monitor, change the user name and password. (See page 55.)

1. Click on "LAN SETUP" under NETWORK.

1. Specify the "DHCP CLIENT", "IP ADDRESS", etc.

DHCP CLIENT

If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to ON. To set the address manually, set this to OFF.

IP ADDRESS

If the DHCP CLIENT is set to OFF, specify an IP address.

SUBNET MASK

If the DHCP CLIENT is set to OFF, specify the subnet mask.

DEFAULT GATEWAY

If the DHCP CLIENT is set to OFF, specify the default gateway. If you are not using a default gateway, specify "0.0.0.0".

1. When the setting is changed, click [Apply].
2. Check the message and click [OK].
3. Exit the web browser.
4. Restore the computer's IP address jotted down in Step 6, "(2) Specifying the computer's IP address".
5. Connect the monitor and the computer to the LAN.

!Caution

• Wait 10 seconds after clicking [OK] before proceeding.
• When operating using the remote control unit or similar, click [Refresh].

TIPS

- When the IP address is set manually, the IP addresses of the monitor connected to the RS-232C output terminal and the daisy chain of connected monitors that follows can be assigned automatically. (See page 29.)

Controlling with a computer

■Basic operation

You use the web browser on a computer on the LAN to control the monitor.

1. Launch the web browser on the computer.
2. In the "Address" box, type "http://" followed by your monitor's IP address followed by "/", then press the Enter key. You can confirm the IP address with the INFORMATION function.

http://192.168.150.2/

When prompted to enter a USER NAME and PASSWORD, type the user name and password that you specified in the SECURITY settings (see page 55), and click [OK]. The following values are set in the initial settings.

USER NAME: admin, PASSWORD: admin

* To enable security on the monitor, change the user name and password. (See page 55.)

1. You can check, control, and change the monitor's status and settings by clicking the menu items on the left side of the screen.

- If you see an [Apply] button next to a setting, click it after you change that setting.

TIPS

• See pages 54 to 58 for details on each setting. - If you click [Refresh] before the screen finishes updating the current display, the "Server Busy Error" will appear. Wait for a moment before operating your monitor again. - You cannot operate the monitor while it is warming up. - If DHCP CLIENT is set to ON, check the monitor's IP address in INFORMATION2. (See page 21.)

Controlling the Monitor with a computer (LAN)

INFORMATION

Information about this monitor appears.

■CONTROL

You can control the operations corresponding to the POWER button, INPUT button, etc. on the remote control unit. (See page 20.)

TIPS

- In standby mode, only Power ON operation is available.

■ADJUSTMENT

You can adjust these settings which are also available on the monitor's menu.

• SCREEN (See page 25.) • PICTURE (See pages 26 to 27.) • PICTURE (ADVANCED) (See page 27.) • SETUP (See pages 28 to 29.) • MONITOR (See page 30.) • OTHERS (See page 32.) • SCHEDULE (See page 35.) • MULTI (See page 31.) • PIP/PbyP (See page 31.) • FUNCTION (See page 37.)

TIPS

• After changing DISPLAY COLOR PATTERN to OFF, click [Refresh] to correctly retrieve the status of the monitor.

■NETWORK (LAN SETUP)

This screen allows you to set the settings necessary when the monitor is connected to a LAN.

DHCP CLIENT

If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to ON. To set the address manually, set this to OFF.

IP ADDRESS

If the DHCP CLIENT is set to OFF, specify an IP address.

SUBNET MASK

If the DHCP CLIENT is set to OFF, specify the subnet mask.

DEFAULT GATEWAY

If the DHCP CLIENT is set to OFF, specify the default gateway. If you are not using a default gateway, specify "0.0.0.0".

DNS SERVER ADDRESS AUTO ACQUISITION

If the DHCP CLIENT is set to ON, specify whether or not to automatically obtain the DNS server address.

DNS SERVER

Specify the DNS server address if the DHCP CLIENT is set to OFF or the DNS SERVER ADDRESS AUTO ACQUISITION is set to OFF. If you are not using a DNS server, specify "0.0.0.0".

RESET

Clicking [Execute] returns all of the LAN SETUP settings to the factory-preset values except for the DNS SERVER ADDRESS AUTO ACQUISITION and DNS SERVER settings.

TIPS

- When the IP address is set manually, the IP addresses of the monitor connected to the RS-232C output terminal and the daisy chain of connected monitors that follows can be assigned automatically. (See page 29.)

■NETWORK (SECURITY)

This screen allows you to specify the security-related settings.

USER NAME / PASSWORD

Sets up a user name and password to restrict access to this monitor.

The following values are set in the initial settings.

USER NAME: admin, PASSWORD: admin

* To enable security on the monitor, change the user name and password.

After entering a user name and password, click [Apply].

USE FOR Telnet CONNECTION

Sets whether to use a user name and password when connecting over TELNET.

ACCEPT IP ADDRESS

You can limit access to this monitor by registering IP addresses of computers that should have access. To limit access, specify the option "From only specific IP addresses". Otherwise, to allow access from any computer, specify "All IP Addresses".

IP ADDRESS 1 to 3

If "ACCEPT IP ADDRESS" is set to "From only specific IP addresses", enter the IP addresses that you want to allow.

TIPS

• The USER NAME and PASSWORD can be up to 8 alphanumeric characters (hyphens and underscores allowed).
• To cancel the user name and/or password after it has been set, make the box empty and click [Apply].

Controlling the Monitor with a computer (LAN)

■NETWORK (GENERAL)

This screen allows you to specify the general LAN settings.

MONITOR NAME

Specify a name for this monitor as it should appear on the web browser screen.

AUTO LOGOUT TIME

Specify the time (in minutes) to elapse before automatically disconnecting this monitor from the network.

Specify in minutes from 1 to 65535. A value of '0' will disable this function.

DATA PORT

Specify the TCP port number to use for exchanging data with the monitor.

Specify a value from 1025 to 65535.

SEARCH PORT

Specify the port number to use when searching for this monitor.

Specify a value from 1025 to 65535.

INSTALLATION INFORMATION (NAME/LOCATION)

Specify the information to display for this monitor in the web browser window.

LINK MODE

Selects the link speed and duplex.

Use AUTO normally.

TIPS

• The MONITOR NAME can be up to 16 alphanumeric characters or symbols.
• Enter up to 50 characters in the NAME field in the INSTALLATION INFORMATION.
• Enter up to 100 characters in the LOCATION field in the INSTALLATION INFORMATION.

■MAIL (ORIGINATOR)

This screen allows you to configure the e-mail sent periodically or when the monitor has an error.

The settings depend on the configuration of your LAN. Ask your LAN administrator for details.

SMTP SERVER

Specify the SMTP server address for sending e-mail.

* When using a domain name, make sure to specify the DNS SERVER as well. (See page 55.)

SMTP PORT

If the "AUTHENTICATION" is "SMTP-AUTH", specify the port number.

ORIGINATOR E-MAIL ADDRESS

Specify the e-mail address for this monitor.

This address becomes the e-mail address of the originator.

ORIGINATOR NAME

Specify the name for the originator.

This name appears in the "Originator Name" field of the e-mail.

AUTHENTICATION

Specify the authentication method to use when sending e-mail.

POP SERVER

If the "AUTHENTICATION" is "POP before SMTP", specify the POP server address.

ACCOUNT NAME / PASSWORD

If the "AUTHENTICATION" is "POP before SMTP" or "SMTP-AUTH", specify the account name and password to connect to the SMTP server.

TIPS

• You can enter up to 64 alphanumeric characters or symbols for the ORIGINATOR E-MAIL ADDRESS, ORIGINATOR NAME, ACCOUNT NAME, and PASSWORD.
• The SMTP SERVER and POP SERVER can be up to 64 characters.

The following characters can be used: a-z, A-Z, 0-9, - , .

■MAIL (RECIPIENT)

This screen allows you to specify the recipients of the e-mail sent periodically or when the monitor has an error.

RECIPIENT E-MAIL ADDRESSES

Specify the e-mail addresses to send error notification e-mail to.

CONDITION

Specify the conditions to send mails.

When you check PERIODICAL, specify the date and time to send the mails in the PERIODICAL setting.

CONFIRMATION

Sends test e-mail.

This allows you to confirm that the e-mail settings are configured properly.

Attach the log file to a TEMPERATURE/HARDWARE error e-mail.

When this option is checked, a log is added to the mail which notifies a temperature or status error.

E-MAIL TRANSMISSION ERROR REPORT

A report of the latest e-mail transmission errors will be displayed.

The error report will be displayed when an e-mail transmission error occurs.

Also, the e-mail transmission errors will be cleared when ALL RESET 1 is executed. (See page 37.)

TIPS

- The RECIPIENT E-MAIL ADDRESSES can be up to 64 alphanumeric characters or symbols.

■MAIL (PERIODICAL)

When PERIODICAL for CONDITION of MAIL (RECIPIENT) is checked, set the date and time to send the mail.

DAY OF THE WEEK

Specify the day of the week to send the periodical mails.

TIME

Specify the time of the day to send the periodical mails.

! Caution

• Do not turn off the main power when you set to send the periodical mails.
• Specify the correct date and time. (See page 28.) If the date and time settings are incorrect, the periodical mail is not sent properly.
• Regularly confirm that the specified date and time is correct.

Controlling the Monitor with a computer (LAN)

SNMP

You can configure settings related to SNMP.

SNMP SETTING

Set whether to enable or disable SNMP.

VERSION

Set the version of the SNMP to be supported.

COMMUNITY NAME 1 to 3

Set the name of the community required for access.

USER 1 to 3

Set the user name, password, authentication method, and other options required for access.

TRAP SETTING

Set whether to enable or disable the trap function.

When this function is enabled, a trap will be sent when the monitor is turned on.

TRAP SETTING OF AUTHENTICATION ERROR

Set whether the trap function sends a notification when authentication fails.

TRAP ADDRESS & PORT

Set the destination address and port number of the notification sent by the trap function.

!Caution

• After you set SNMP, click [Switch the main power of monitor off and on now.] or turn off the monitor and then turn it on again with the main power switch. When the monitor restarts, wait about 30 seconds and then start the next operation.
• If the IP address is changed while the SNMP function is operational, turn off the monitor and then turn it on again with the main power switch.

TIPS

• Depending on the SNMP settings, a short delay may occur before the SNMP is usable. (About 5 minutes)
• Up to 16 alphanumeric letters and symbols can be used for the community name, user name and password.

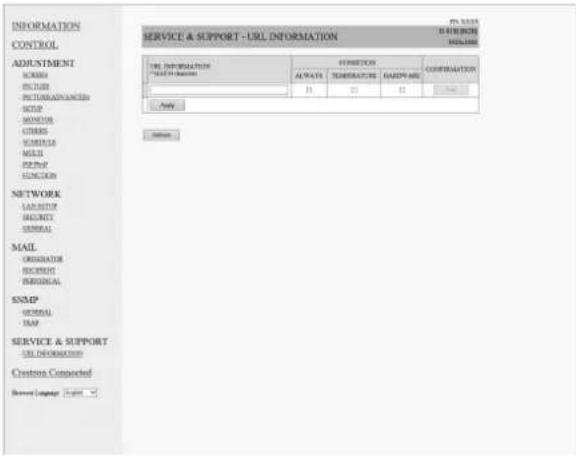

■ SERVICE & SUPPORT (URL INFORMATION)

You can display a specific URL in the URL INFORMATION field on the INFORMATION screen when an error occurs in the monitor. (See page 54.)

URL INFORMATION

Enter the URL to display on the INFORMATION screen when an error occurs on the monitor.

Up to 64 alphanumeric characters or symbols can be used.

CONDITION

Specify the condition to display the URL.

CONFIRMATION

The home page of the specified URL is displayed.

You can check whether the URL you entered is correct.

TIPS

- It is also possible to specify the message text, such as the name of a contact or a telephone number, to be displayed instead of the linked URL.

■ Crestron Connected

Display the Crestron Connected Control Menu.

Control Menu

1. Operate the following functions: • Power.....Turn the power ON/OFF.
2. Mute......Turns off the volume temporarily.
3. Vol-/Vol+ ....Adjust the volume of the sound.
4. Change the input mode.
5. Operate the following functions.
6. Contrast ...... Adjusts the contrast.
7. Black Level ... Adjusts the brightness.
8. Colors ...... Adjusts the color intensity.
9. Sharpness..... Adjusts the sharpness.
10. Operates the menu screen for the monitor.
11. Switches the pages to Tools, Info, Help tab.

Tools

1. Setting for Crestron Control.
2. Setting for monitor network.

• DHCP - IP Address - Subnet Mask - Default Gateway

1. Security Setting.

Sets the password for the user and administrator rights on Control Menu.

Info

1. Display below information.
2. Display Name
3. Mac Address
4. Resolution
5. Display below status.
6. Power Status
7. Input

Help

Sends or receives messages to the administrators who use "Crestron Connected".

[Advanced operation]

Command-based control

You can control the monitor using RS-232C commands (see page 42) via terminal software and other appropriate applications.

In order to use this function, enable a connection to the monitor through the web browser.

Read the manual for the terminal software for detailed instructions.

(1) Connect the computer to the monitor.

1. Specify the IP address and data port number and connect the computer to the monitor. When connection has been established successfully, [☐ Login:] is returned as response.
2. Send the user name set in the SECURITY settings (see page 55).
3. Send [user name] + [ ]
4. If the user name is not set or if USE FOR Telnet CONNECTION is set to OFF, send [☐].
5. When the transmission is successful, [ ☐ Password:] is returned as response.
6. Send the password set in the SECURITY settings (see page 55).
7. Send [password] + [ ]
8. If the password is not set or if USE FOR Telnet CONNECTION is set to OFF, send [☐].
9. When the transmission is successful, [OK ☐] is returned as response.

(2) Send commands to control the monitor.

• The commands used are the same as those for RS-232C. Refer to the communication procedure (see page 38) for operation.
• Usable commands are provided in the RS-232C command table (see page 42).

(3) Disconnect the connection with the monitor and quit the function.

1. Send [BYE] When the transmission is successful, [goodbye] is returned and the connection is disconnected.

TIPS

- Connection is automatically disconnected when the time specified in AUTO LOGOUT TIME elapses over a no-communication period.

Troubleshooting

If you are experiencing any problem with your display, before calling for service, please review the following troubleshooting tips.

There is no picture or sound.

• Is the power cord disconnected? (See page 15.) • Is the main power switch off? (See page 18.)
• Is the monitor in standby mode (the power LED illuminating in orange)? (See page 18.)
• Make sure correct input mode is selected. (See page 21.)
• If any external equipment is connected, make sure the equipment is operating (playing back).

Remote control does not work.

• Are the batteries inserted with polarity (+,-) aligned? (See page 17.)
• Are the batteries exhausted?
• Point the remote control unit toward the remote control sensor. (See page 17.)
• Is the menu display hidden or is operation disabled? (See page 37.)
• Is the PN-ZR02 (optional) remote control sensor box connected properly? (See page 14.)
• If you are using multiple monitors, is the RS-232 cable connected properly? Has the ID No. been set?
• Do the remote control numbers on the remote control unit and on the monitor match?

Check the numbers on INFORMATION. (See page 36.)

The remote control unit's buttons for operating the HDMI-connected device do not work.

• Is HDMI CEC LINK set to AUTO under INPUT SELECT on the SETUP menu?
• Switch to a different input mode, and then try switching the input mode back to HDMI.

Sound from left and right speakers is reversed.

Sound is heard from only one side.

- Are audio cables connected properly?

There is a picture but no sound.

• Is the sound muted? - Make sure the volume is not set to minimum. - Are audio cables connected properly?

Unstable video.

• The signal may be incompatible. - Try the automatic screen adjustment when the D-SUB[RGB] is used.

The video from the HDMI input terminal does not appear properly.

• Is the HDMI cable HDMI standard compliant? The monitor will not work with cables that are not standard compliant.
• Is the input signal compatible with this monitor? (See pages 65 and 66.)

The video from the DVI-D input terminal does not appear properly.

• Is the input signal compatible with this monitor? (See page 65.)
• Turn off the power to the connected equipment and then turn the power on again.

The video from D-Sub input terminal does not appear correctly.

• Is the setting for D-SUB of INPUT SELECT on the SETUP menu correct? (See page 28.)
• Is the input signal compatible with this monitor? (See pages 65 and 66.)

The video from the DisplayPort does not appear properly.

• Does the DisplayPort cable support 4K, and is it DisplayPort standard compliant? The monitor will not work with cables that are not standard compliant.
• Is the input signal compatible with this monitor? (See page 65.)
• If the monitors are connected in a daisy chain, turn off the power to all the monitors connected in a daisy chain and then turn the power on again.

Control buttons do not work.

There is no picture.

- Load noises from outside may be interfering with normal operation. Turn off the main power and turn it on after waiting at least 5 seconds, and then check the operation.

The input mode changes automatically.

- When NO SIGNAL AUTO INPUT SEL. is ON and the current video signal input stops, the input mode automatically changes to the mode of an active video signal.

The input mode may change in the following cases:

• When a computer is in standby mode.
• When video play is stopped with a playback device.

The video does not appear properly even after the DisplayPort STREAM setting is changed.

• Try restarting the monitor and computer.
• Is the video card MST (Multi Stream Transport) compatible? If not, set to SST (Single Stream Transport).

Power LED flashes red.

"STATUS [xxxx]" appears in the corner of the screen.

• Hardware has a problem. Turn off the monitor and request repair from your SHARP dealer. (When STATUS ALERT is set to OSD & LED. This varies depending on the setting.)

When "AUTO DIMMING" is displayed.

• When the internal temperature of the monitor rises excessively, the brightness of the backlight automatically decreases in order to prevent a further temperature rise. If you attempt to adjust the brightness while the monitor is in this state, "AUTO DIMMING" is displayed and you cannot change the brightness.

- Remove the cause of the excessive temperature rise.

The monitor makes a cracking sound.

- You may occasionally hear a cracking sound from the monitor. This happens when the cabinet slightly expands and contracts according to change in temperature. This does not affect the monitor's performance.

Troubleshooting

The Power LED is flashing in red and green alternately. When “TEMPERATURE” is displayed in the corner of the screen.

• When the internal temperature of the monitor rises excessively, the brightness of the backlight decreases automatically in order to prevent high-temperature-related problems. When this occurs, "TEMPERATURE" is displayed on the screen and the Power LED flashes red and green alternately. (When TEMPERATURE ALERT is set to OSD & LED. This varies depending on the setting.)
• If the internal temperature rises further, the monitor automatically enters standby mode. (The Power LED continues flashing red and green alternately.)
• Remove the cause of the excessive temperature rise.

- If the monitor enters standby mode due to a rise in temperature, to return to normal display, turn the power switch off and then back on again. The monitor, however, will enter standby mode again if the cause of the temperature rise is not eliminated. (See page 7.)

• Check whether the monitor is placed at a location where a quick rise in temperature is likely. Internal temperature rises quickly if the vents on the monitor are blocked.
• Internal temperature rises quickly if dust accumulates inside the monitor or around the vents. Remove dust if possible. Ask SHARP dealer about removing internal dust.

Specifications

■Product Specifications

Model PN-V701
LCD component		70" Class [69-1/2 inch (176.6cm) diagonal] TFT LCD
Max. resolution (pixels)		1920 x 1080
Max. colors		Approx. 1.06 billion colors
Pixel pitch		0.802 mm (H) x 0.802 mm (V)
Brightness (typical) *1		700 cd/m2
Contrast ratio (typical) *1		4000 : 1
Viewing angle		178° right/left/up/down (contrast ratio ≥ 10)
Screen active area inch (mm)		60-9/16 (W) x 34-1/16 (H) (1538.9 x 865.6)
Computer input signal		Digital (DVI 1.0 standard-compliant), Analog RGB (0.7 Vp-p) [75 Ω], DisplayPort 1.2, HDMI
Sync signal		Horizontal/vertical separate (TTL: positive/negative), Sync-on-green *2, Composite sync (TTL: positive/negative) *2
Plug and play		VESA DDC2B
Power management		VESA DPMS, DVI DMPM
Input terminals	Video Mini D-sub 15 pin, 3 rows	x 1DVI-D 24 pin (HDCP compatible) x 1HDMI x 2DisplayPort x 1
	Serial (RS-232C)	D-sub 9 pin x 1
	Audio	3.5 mm mini stereo jack x 1
	Control kit x 1
Output terminals	Video DisplayPort x 1
	Serial (RS-232C)	D-sub 9 pin x 1
	Audio	3.5 mm mini stereo jack x 1
LAN terminal 10 BASE-T/100 BASE-TX
Expansion slot 13V, 2.0 A		(power supplied when expanding the functions with an optional part)
Power requirement AC 100 V - 240 V, 4.2 A, 50/60 Hz
Operating temperature *3		32°F to 104°F (0°C to 40°C)
Operating humidity 20% to 80% (no condensation)
Power consumption(Maximum / input signal waiting mode *4*5 / standby mode *4*6)		380 W / 2.5 W / 0.5 W
Dimensions (excluding protrusions) inch (mm)		Approx. 60-3/4 (W) x 4-13/16 (D) x 34-1/4 (H) (1543.7 x 122 x 870.4)
Weight lbs. (kg)		Approx. 81.6 (37)

*1 When UNIFORMITY is set to MODE1. Brightness and contrast ratio will depend on input mode and other picture settings. Brightness level will decrease over time. Due to the nature of the equipment, it is not possible to precisely maintain a constant level of brightness. *2 D-Sub input terminal only. *3 Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments. *4 When the optional part is not installed. *5 When NO SIGNAL AUTO INPUT SEL. is set to OFF. *6 When POWER SAVE MODE is set to ON. When POWER SAVE MODE is set to OFF: 1.0 W

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

■PN-ZR02 (optional) Product Specifications

Model PN-ZR02
Remote control sensor box dimensions inch (mm)	Approx. 1-3/8 (W) x 7/8 (D) x 5-1/8 (H) (34.2 x 23 x 130)
Remote control sensor box weight lbs. (kg)	Approx. 0.220 (0.1)

■Dimensional Drawings

Note that the values shown are approximate values.

When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method. SHARP recommends using M6 screws and tighten the screws.

Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose mounting may cause the product to fall, resulting in serious personal injuries as well as damage to the product. The screw and hole should come together with over 5/16 inch (8 mm) length of thread. Use a bracket which has been approved for UL1678 standard, and which can endure at least 4 times or more the weight of the monitor.

■Power management

This monitor conforms to VESA DPMS and DVI DMPM. Both your video card and computer must support the same standard in order for the monitor's power management function to work.

DPMS: Display Power Management Signaling

DPMS Screen		Power consumption	Hsync V	sync
ON STATE Display 380		W Yes Yes
STANDBY	No display No No	2.5 W *	No Yes
SUSPEND Yes
OFF STATE

* When NO SIGNAL AUTO INPUT SEL. is set to OFF.

DMPM: Digital Monitor Power Management

DMPM	Screen	Power consumption
Monitor ON	Display	380 W
Active OFF No display		2.5 W *

■DDC (plug and play)

The monitor supports the VESA DDC (Display Data Channel) standard.

DDC is a signal standard for plug and play between monitors and computers. Information about resolution and other parameters is exchanged between the two. This function can be used if the computer supports DDC and it has been configured to detect plug-and-play monitors.

There are several types of DDC, depending on the communication method used. This monitor supports DDC2B.

■Compatible signal timing (PC)

Screen resolution Hsync		Vsync Dot frequency			Digital			Analog (D-sub)
					DVI-D	H	DMSplayPort
VESA	640 × 480	31.5kHz	60Hz	25.175MHz	Yes	Yes	Yes	Yes
		37.9kHz	72Hz	31.5MHz	Yes	Yes	Yes	Yes
		37.5kHz	75Hz	31.5MHz	Yes	Yes	Yes	Yes
	800 × 600	35.1kHz	56Hz	36.0MHz	-	-	-	Yes
		37.9kHz	60Hz	40.0MHz	Yes	Yes	Yes	Yes
		48.1kHz	72Hz	50.0MHz	Yes	Yes	Yes	Yes
		46.9kHz	75Hz	49.5MHz	Yes	Yes	Yes	Yes
	848 × 480	31.0kHz	60Hz	33.75MHz	Yes	-	-	Yes
	1024 × 768	48.4kHz	60Hz	65.0MHz	Yes	Yes	Yes	Yes
		56.5kHz	70Hz	75.0MHz	Yes	Yes	Yes	Yes
		60.0kHz	75Hz	78.75MHz	Yes	Yes	Yes	Yes
	1152 × 864	67.5kHz	75Hz	108.0MHz	Yes	Yes	Yes	Yes
	1280 × 768	47.8kHz	60Hz	79.5MHz	Yes	-	Yes	Yes
		60.3kHz	75Hz	102.25MHz	Yes	-	Yes	Yes
	1280 × 800	49.7kHz	60Hz	83.5MHz	Yes	Yes	Yes	Yes
	1280 × 960	60.0kHz	60Hz	108.0MHz	Yes	Yes	Yes	Yes
	1280 × 1024	64.0kHz	60Hz	108.0MHz	Yes	Yes	Yes	Yes
		80.0kHz	75Hz	135.0MHz	Yes	Yes	Yes	Yes
	1360 × 768	47.7kHz	60Hz	85.5MHz	Yes	Yes	Yes	Yes
	1400 × 1050	65.3kHz	60Hz	121.75MHz	Yes	Yes	Yes	Yes
	1440 × 900	55.9kHz	60Hz	106.5MHz	Yes	Yes	Yes	Yes
	1600 × 1200*1	75.0kHz	60Hz	162.0MHz	Yes	Yes	Yes	Yes
	1680 × 1050	65.3kHz	60Hz	146.25MHz	Yes	Yes	Yes	Yes
	1920 × 1200*1	74.0kHz	60Hz	154.0MHz	Yes	Yes	-	Yes
Wide	1280 × 720	44.7kHz	60Hz	74.4MHz	Yes	Yes	Yes	Yes
	1920 × 1080	67.5kHz	60Hz	148.5MHz	Yes	Yes	Yes	Yes
	3840 × 2160*1*2	54.0kHz	24Hz	297.0MHz	-	Yes	Yes	-
		56.3kHz	25Hz	297.0MHz	-	Yes	Yes	-
		67.5kHz	30Hz	297.0MHz	-	Yes	Yes	-
	4096 × 2160*1*2	54.0kHz	24Hz	297.0MHz	-	Yes	-	-
US TEXT	720 × 400	31.5kHz	70Hz	28.3MHz	Yes	Yes	Yes	Yes
Sun	1024 × 768	48.3kHz	60Hz	64.13MHz	-	-	-	Yes
		53.6kHz	66Hz	70.4MHz	-	-	-	Yes
		56.6kHz	70Hz	74.25MHz	-	-	-	Yes
	1152 × 900	61.8kHz	66Hz	94.88MHz	-	-	-	Yes
		71.8kHz	76.2Hz	108.23MHz	-	-	-	Yes
	1280 × 1024	71.7kHz	67.2Hz	117.01MHz	-	-	-	Yes
		81.1kHz	76Hz	134.99MHz	-	-	-	Yes
	1600 × 1000	68.6kHz	66Hz	135.76MHz	-	-	-	Yes

*1 Displays a reduced image, except in Dot by Dot. In Dot by Dot, the image will be cut down to panel size then displayed. *2 Used when ENLARGE is ON. Using a single monitor for this setting causes image quality degradation. The image cannot be displayed on the sub screen. - Depending on the connected computer, images may not be displayed properly even if the compatible signal described above is input. - The frequency values for the Sun are reference values.

■Compatible signal timing (AV)

Screen resolution Frequency HDMI Component
1920 × 1080p 24Hz Yes -
	50Hz Yes Yes
	59.94Hz Yes Yes
	60Hz Yes Yes
1920 × 1080i 50Hz Yes Yes
	59.94Hz Yes Yes
	60Hz Yes Yes
1280 × 720p 50Hz Yes Yes
	59.94Hz Yes Yes
	60Hz Yes Yes
720 × 576p 50Hz Yes Yes
720 × 480p 59.94Hz Yes Yes
	60Hz Yes Yes
640 × 480p(VGA) 59.94Hz Yes -
	60Hz Yes -
720(1440) × 576i 50Hz Yes Yes
720(1440) × 480i	59.94Hz Yes Yes
	60Hz Yes Yes

■HDMI input terminal pins

(HDMI Connector)

No.	Function No. Function
1	TMDS data 2+ 11 TMDS clock	shield
2	TMDS data 2 shield 12 TMDS	clock-
3	TMDS data 2- 13 CEC
4	TMDS data 1+ 14 N.C.
5	TMDS data 1 shield 15 SCL
6	TMDS data 1- 16 SDA
7	TMDS data 0+ 17 DDC/CEC	GND
8	TMDS data 0 shield 18 +5V
9	TMDS data 0- 19 Hot-plug detection
10	TMDS clock+

■ D-sub input terminal pins

(Mini D-sub 15 pin)

No.	Function No. Function
1	Red video signal input 9 +5V
2	Green video signal input 10 GND
3	Blue video signal input 11 N.C.
4	N.C. 12 DDC data
5	GND 13 Hsync signal input
6	GND for red video signal 14 V	sync	signal input
7	GND for green video signal 15	DDC	clock
8	GND for blue video signal

■ DisplayPort input terminal pins

No.	Function No. Function
1	N.C.	6	N.C.
2	Transmitted data	7	N.C.
3	Received data	8	N.C.
4	N.C.	9	N.C.
5	GND

■ DVI-D input terminal pins

(DVI-D 24 pin)

No.	Function No. Function
1	TMDS data 2- 13 N.C.
2	TMDS data 2+ 14 +5V
3	TMDS data 2/4 shield	15 GND
4	N.C. 16 Hot-plug detection
5	N.C. 17 TMDS data 0-
6	DDC clock	18 TMDS data 0+
7	DDC data	19 TMDS data 0/5 shield
8	N.C. 20 N.C.
9	TMDS data 1- 21 N.C.
10	TMDS data 1+ 22 TMDS clock shield
11	TMDS data 1/3 shield	23 TMDS clock+
12	N.C. 24 TMDS clock-

Specifications

■ DisplayPort output terminal pins

No.	Function No. Function
1	N.C. 6 N.C.
2	Received data 7 N.C.
3	Transmitted data 8 N.C.
4	N.C. 9 N.C.
5	GND

Mounting Precautions (For SHARP dealers and service engineers)

• When installing, removing or moving the monitor, ensure that this is carried out by at least 2 people.
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials such as plaster / thin plastic board / wood before starting installation.
• This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor. Install by the most suitable method for the material and the structure.
• To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the thickness of the mounting bracket.

5/16 - 3/8 inch (8-10 mm)

• Do not use an impact driver.
• When moving the monitor, be sure to hold it with the handles. Do not hold the top, bottom, or sides of the monitor. Do not hold the LCD panel. Also, do not orient the monitor so that the LCD panel faces the ground. This may cause product damage, failure, or injury.
• When performing an installation where the monitor is stacked, please install it such that load is not placed on the monitor. • After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than VESA holes for installation.
