Product Type	Canister Vacuum Cleaner
Model	SC41A9
Brand	Samsung
Motor Power	2000 W
Suction Power	400 AW (approx.)
Dust Capacity	2.0 L
Filtration System	HEPA Washable Filter
Bagless	Yes
Cyclone Technology	Yes
Cord Length	8 m
Operating Radius	12 m
Noise Level	78 dB(A)
Weight	5.5 kg
Dimensions (W x D x H)	300 x 400 x 250 mm
Power Cord Auto Rewind	Yes
Suction Control	Electronic on handle
Accessories Included	Crevice tool, dusting brush, upholstery nozzle
Filter Maintenance	Washable HEPA filter; clean every 3 months
Dust Bin Emptying	One-touch empty
Safety Features	Thermal overload protection
Reparability	Spare parts available: filters, hose, nozzles
Energy Class	A (EU rating)

Frequently Asked Questions - SC41A9 SAMSUNG

How do I clean the filter on my Samsung SC41A9?

Turn off and unplug the vacuum. Remove the dust bin and take out the HEPA filter. Rinse it under cold running water until clean. Let it air-dry completely for 24 hours before reinstalling. Do not use detergent or brush.

Why is my vacuum losing suction?

Possible causes include a full dust bin, clogged filter, or blockage in the hose or nozzle. Empty the dust bin, wash the filter, and check for obstructions. Also ensure the hose is not split.

Can I use the vacuum without the filter?

No, operating without the filter can damage the motor and reduce performance. Always use with the HEPA filter installed.

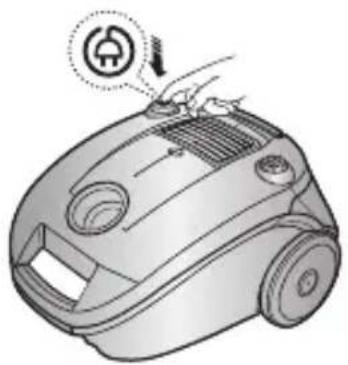

How do I rewind the power cord?

Hold the plug and press the cord rewind button located on the top of the vacuum. Guide the cord gently to avoid whipping.

What accessories come with the SC41A9?

The vacuum includes a crevice tool, dusting brush, and upholstery nozzle. Additional accessories may be purchased separately.

How often should I empty the dust bin?

Empty the dust bin when the dirt level reaches the 'MAX' line, or after each use for optimal performance. Do not overfill.

Is the Samsung SC41A9 bagless?

Yes, it is a bagless vacuum with a transparent dust bin for easy monitoring of the dirt level.

Why does the vacuum turn off suddenly?

The vacuum has a thermal protection feature that shuts off the motor if it overheats. Unplug and let it cool for 30 minutes. Check for blockages or a full dust bin.

Can I wash the dust bin?

Yes, the dust bin can be washed with mild soap and water. Ensure it is completely dry before reinserting.

Where can I find spare parts?

Samsung authorized service centers or online retailers offer replacement filters, hoses, and nozzles. Use genuine parts for best performance.

USER MANUAL SC41A9 SAMSUNG

Vehicle Compartment

2

OPERATING YOUR VACUUM CLEANER

2-1 POWER CORD

2-3 POWER CONTROL (VOLUME TYPE ONLY)

2-5 USING THE BLOWER

3-2 FOR CLOTH BAG (OPTION)

4

3

NOTE:

EN Operating Instructions

SC 4130

SC 4137

SC 4170

SC 41A7

This EEE is compliant with RoHS.

VACUUM CLEANER

Before operating this unit, please read the instructions carefully. For indoor use only.

Register your product at www.samsung.com/register

IMPORTANT SAFEGUARDS

1. Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
2. WARNING: Do not use the vacuum cleaner when rug or floor is wet. Do not use to suck up water.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
4. Do not use the vacuum cleaner without a dust bag. Replace the dust bag before it is full in order to maintain the best efficiency.
5. Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.
6. Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts. Do not stand on the hose assembly. Do not put a weight on the hose. Do not block the suction or the exhaustion part.
7. Switch the vacuum cleaner off at the machine before unplugging from the electrical outlet. Do not pull on the cord to disconnect the plug from the electrical outlet. Ensure that it is disconnected before attending to the filter.
8. The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
9. The use of an extension cord is not recommended.
10. If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
11. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
12. The vacuum cleaner is provided with a self-resetting thermal cut-out which automatically shuts off on over-heating. Overheating can be caused by blockage in the filter, nozzle, tube or hose. After removing the cause and allowing the motor to cool, the vacuum cleaner will automatically restart.

1 ASSEMBLING THE CLEANER

▶ Features may vary according to model.

▶ For storage, park the floor nozzle.

▶ Tool storage

When removing the plug from the socket, please take care to grasp the plug, not the cord in order to avoid undue stress.

2-3 POWER CONTROL (VOLUME TYPE ONLY)

MIN = For delicate fabrics, e.g. net curtains.

MAX = For hard floors and heavily soiled carpets.

2-4 SUCTION CONTROL

To reduce suction for cleaning draperies, small rugs and other light fabrics, slide the air vent until the hole is open.

2-5 USING THE BLOWER

Located on the left rear side of the cleaner.

1) Disconnect the hose from the body of the cleaner. 2) Connect the hose clamper to the blow hole.

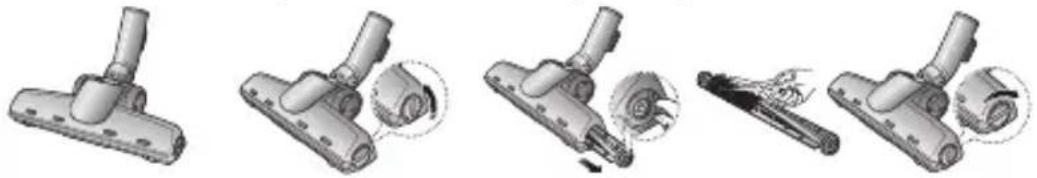

2-6 USING FLOOR TOOLS

OPTION Detach transparent drum cover for easy cleaning.

OPTION

Blanket brush Bedclothes or Blanket Cut off pet hairs or threads surrounding brush by using scissors.

▶ Features may vary according to model.

DUSTING BRUSH CREVICE TOOL

- Dusting brush for furniture. shelves, books, etc.

- Crevice tool for radiators, crevices, corners, between cushions.

- For efficiency. clean Floor Nozzle with Crevice Tool.

3 INDICATOR LIGHTS

When the indicator color has changed Please replace the dust bag.

3-1 CHANGING THE DUST BAG

3-2 FOR CLOTH BAG (OPTION)

After using, if the cloth bag is full of dust, clean the cloth bag and use it again.

WARNING: Please do not attempt to operate the cleaner without a dust bag fitted.

4 CYCLONIC FILTER (ONLY CYCLONIC FILTER TYPES)

You can use a dust bag in your cleaner for a long time thanks to the Cyclonic Filter system and it maintains the maximum cleaning efficiency.

The larger particles of dust filtered from the Cyclonic Filter remain in the Dust Barrel when suctioned air and dust revolve in the Cyclonic Filter. So the dust bag contains only smaller ones.

When the Dust Barrel is filled with dust up to the indicating line, it needs disposing and cleaning. The Dust Barrel can be cleaned in water.

1. Turn the Dust Barrel to the left and pull it.
2. Disconnect the Cyclonic Filter from the extension wand and handle.
3. Remove thread and hair tangled around the net.
4. After cleaning the Dust Barrel and Cyclonic Filter, connect the Cyclonic Filter with the extension wand and handle (washed parts should be dried in the shade thoroughly before assembling).

5. Push and turn the Dust Barrel to the right.

Adjust indicating marks each other carved on Dust Barrel and Cyclonic Filter.

5 CLEANING THE INLET FILTER (OPTION)

1

4

3

NOTE: Do not allow the filter to become clogged as this may cause power reduction or may damage the motor.

• IF YOU HAVE A PROBLEM

PROBLEM CAUSE REMEDY
Motor does not start.	No power supply. Thermal cut-out.	Check cable, plug and socket.Leave to cool.
Suction force is gradually decreasing.	Nozzle, suction hose or tube is blocked.	Remove the object.
Cord does not rewind fully.	Check that the cord is not twisted or wound unevenly.	Pull the cord out 2-3m and push down the cord rewind button.
Vacuum cleaner does not pick up dirt.	Crack or hole in hose.	Check hose and replace if required.

This vacuum cleaner is approved for the following.

EMC Directive: 2004/108/EEC

Low Voltage Safety Directive: 2006/95/EC
