Product Type	Blender
Brand	Jocel
Model	JV004826
Power Consumption	500 W
Capacity	1.5 L
Material	Stainless steel blades, BPA-free plastic pitcher
Speed Settings	2 speeds + pulse
Functions	Blending, mixing, pureeing, ice crushing
Safety Features	Auto shut-off, non-slip feet
Cleaning	Detachable parts dishwasher safe
Dimensions (HxWxD)	40 x 18 x 18 cm
Weight	1.5 kg
Cord Length	1.0 m
Warranty	2 years
Accessories	Measuring cup, recipe book

Frequently Asked Questions - JV004826 Jocel

How do I clean the blender?

Detach the pitcher and lid, wash them with warm soapy water or place them in the dishwasher (top rack). Wipe the motor base with a damp cloth. Do not immerse the base in water.

Can I crush ice with this blender?

Yes, the Jocel JV004826 is designed to crush ice. Use the pulse function for best results and avoid overloading.

What is the maximum capacity?

The pitcher has a maximum capacity of 1.5 liters. Do not fill beyond the max line to avoid spillage.

Is the blender BPA-free?

Yes, all plastic parts that come into contact with food are BPA-free for safe blending.

How do I use the pulse function?

Press the pulse button in short bursts for precise control. This is ideal for chopping or crushing ice.

What should I do if the blender stops working?

Check if it is plugged in and that the pitcher is properly locked onto the base. The safety switch prevents operation if not assembled correctly. If it still doesn't work, let it cool down (motor thermal protection may have activated).

Can I blend hot liquids?

No, do not blend hot liquids as pressure buildup can cause the lid to blow off. Allow liquids to cool to room temperature first.

What is the power consumption?

The blender has a power rating of 500 watts, sufficient for most blending tasks.

Are spare parts available?

Spare parts such as the pitcher, blade assembly, and lid can be ordered from Jocel's customer service or authorized dealers.

How long is the warranty?

The Jocel JV004826 comes with a 2-year warranty covering manufacturing defects. Keep your purchase receipt for warranty claims.

USER MANUAL JV004826 Jocel

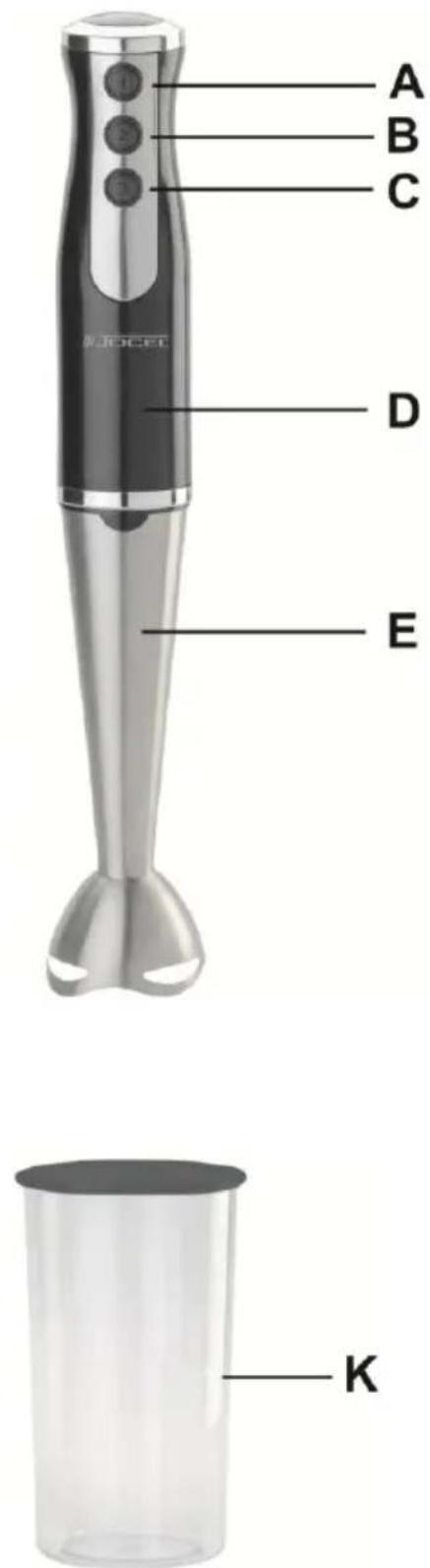

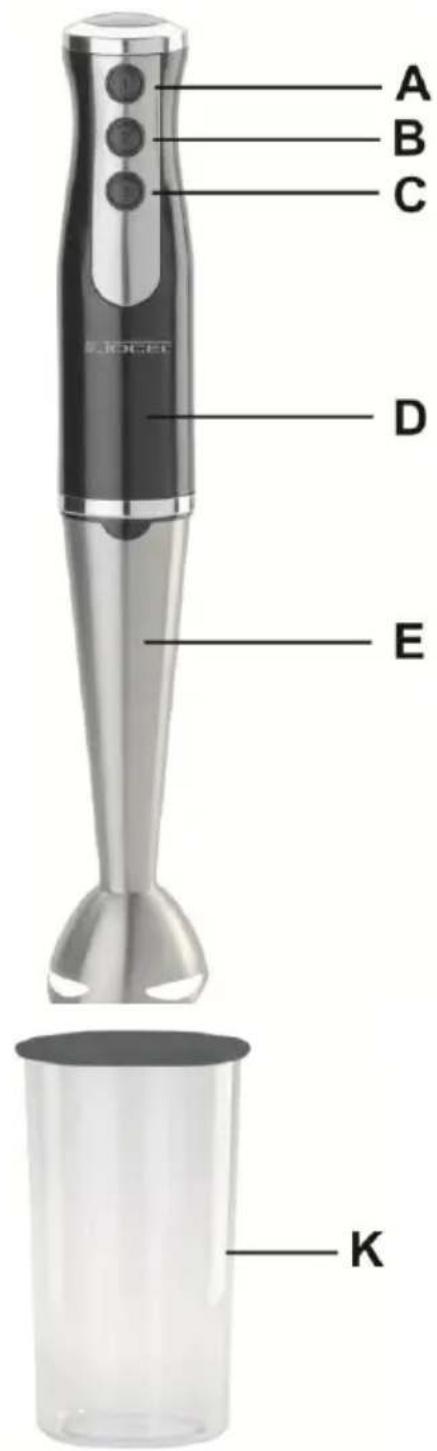

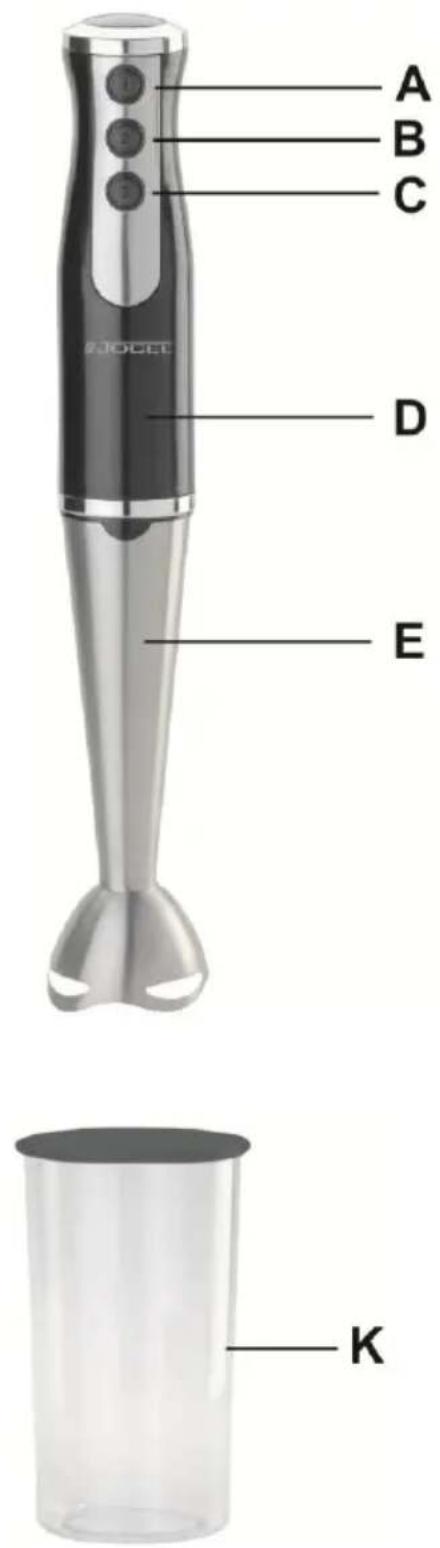

Product display featuring a JOCKE-branded blender, a whisk, and a clear cup with a red '3 EM 1' badge (no readable text or symbols on main objects)

INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL

DESCRIÇÃO:

CUIDADO:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

PRECAUCIÓN:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

CAUTION:

Please read the instructions carefully and completely before using the appliance.

1. Always unplug the appliance before assembling, disassembling, cleaning.
2. Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.
3. Don't plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.
4. Don't allow children to use the blender without supervision.
5. Don't let the motor unit, cord, or plug get wet.
6. Never use a damaged appliance. If it has been damaged, please get it to the approved service centre, checked or repaired.
7. If the supply cord is damaged, it must be replaced by approved service center.
8. Don't let excess cord hang over the edge of the table or worktop or touch hot surface.
9. Don't place the appliance in the hot ingredients.
10. The appliance is constructed to process normal household quantities.
11. Short-time operating. Use the appliance for no longer than 30 seconds, and don't operate hard food for no longer than 10 seconds.
12. Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.
13. It shall warn of potential injury from misuse
14. They shall state that care shall be take when handling the sharp cutting blades, emptying the bowl and during cleaning.
15. Switch off the appliance and disconnected from supply before changing accessories or approaching parts which move in use.
16. This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely.
17. Children should be supervised to ensure that they do not play with the appliance.

BEFORE USING FOR THE FIRST TIME

Unpack the product, removing all packaging materials. Pay attention to the components to find out more about the product.

HOW TO USE THE HAND BLENDER

The blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing and milkshakes.

1. Fix the stainless steel blender foot on the motor unit until it locks.
2. Introduce the blender in the cup. Choose the Speed Switch I, II or III.
3. Move the appliance slowly up and down and in circles to blend the ingredient.
4. Caution: The blade is very sharp!

HOW TO USE THE CHOPPER

Note: The chopper is intended for chopping ingredients such as nuts, meat, onions, hard cheese, boiled eggs, garlic, herbs, dry bread etc.

Attention: The blades are very sharp! So be very careful when handling the blade unit. Be especially careful when you remove the blade unit from the chopper bowl, when you empty the chopper bowl and during cleaning.

1. Put the chopper blade unit in the chopper bowl.
2. Put the ingredients in the chopper bowl.
3. Put the coupling unit on the chopper bowl.
4. Fasten the motor unit onto the chopper bowl.
5. Pressing the speed button.

If the ingredients stick to the wall of the chopper bowl, loosen them by adding liquid or using a spatula.

Always let the appliance cool down after chopping meat.

HOW TO USE THE WHISK

The whisk is intended for whipping cream, whisking egg whites, desserts etc.

1. Connect the whisk to the coupling unit.
2. Connect the coupling unit to the motor unit.
3. Put the ingredients in a large and deep bowl.
4. Immerse the whisk completely in the ingredients. To avoid splashing, start processing at normal speed.

CLEANING

Use only a damp cloth to clean the motor unit. Do not immerse the motor unit in water!

1. Unplug the appliance before cleaning.
2. All other parts can be cleaned in the dish washer. However, after processing very salty food, you should rinse the blades right away.
3. The blades are very sharp, please attention.
4. Dry the accessories and store them.

DISPOSAL

Correct Disposal of this product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its Literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product or their local authority office, for details of where and how they can take this item for environmentally safe recycling.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product HAND BLENDER

Brand JOCEL

Model JV004826

Complies with the following European directives and standards implementation

Low Voltage

2006/95/CE

EN 60335-1: 2012;

EN 62233:2008

EN 60335-2-14:2006+A1:2008

+A11:2012

Electromagnetic Compatibility

2004/108/CE

EN 55014-1:2006+A1:2009

EN 55014-2:1997/+A1:2001/

+A2:2008

EN 61000-3-2:2006/+A1:2009/

+A2:2009

EN 61000-3-3:2008

Food contact materials

Regulation 1935/2004

Country of Origin: R.P.C.
