TL100 - Audio transformer Bogen - Free user manual and instructions

Product Type	Paging Amplifier
Brand	Bogen
Model	TL100
Power Output	100W RMS
Input Voltage	120V AC, 60Hz
Inputs	1 balanced line, 1 unbalanced mic/line
Outputs	25V, 70V, 100V speaker outputs; 4Ω and 8Ω low impedance
Frequency Response	50Hz - 20kHz ±3dB
Dimensions (H x W x D)	3.5 x 19 x 12 inches (rack mountable)
Weight	15 lbs (6.8 kg)
Mounting	Standard 19-inch rack mount
Cooling	Natural convection, no fan
Protection	Short circuit, thermal overload
Functions	Volume control, bass and treble adjustment, priority muting
Compliance	UL, CE, RoHS
Warranty	2 years limited warranty
Included Accessories	Rack ears, power cord, input connector
Recommended Use	Commercial paging, background music

Frequently Asked Questions - TL100 Bogen

How do I connect speakers to the Bogen TL100?

Connect speakers to the screw terminals on the rear panel. Use 25V, 70V, or 100V constant voltage lines or 4Ω/8Ω low impedance outputs. Ensure total speaker wattage does not exceed 100W.

What is the recommended input source?

The TL100 accepts line-level signals from microphones, audio players, or telephone paging systems. Use a balanced input for long cable runs to reduce noise.

How do I adjust the volume and tone?

Use the front panel controls: Master Volume for overall output, Bass and Treble knobs for tonal adjustment. There is also an input level trim for matching source signal.

Can I use the TL100 for emergency paging?

Yes, the amplifier supports priority muting. When a signal is applied to the priority input, it overrides other audio sources, suitable for emergency announcements.

How do I mount the amplifier in a rack?

Attach the included rack ears to the sides of the unit with the provided screws. Then slide the amplifier into a standard 19-inch rack and secure with rack screws.

What should I do if the amplifier overheats?

Ensure adequate ventilation. The TL100 has thermal protection that will shut it off if overheated. Allow it to cool and reduce the load or improve airflow. If the problem persists, contact Bogen support.

How do I clean the unit?

Disconnect power. Wipe the exterior with a dry, soft cloth. Do not use water, solvents, or abrasive cleaners. Avoid moisture entering the vents.

Is a user manual available for download?

Yes, you can download the PDF manual from notice-facile.com or the Bogen website. The manual includes detailed specifications, wiring diagrams, and troubleshooting tips.

What is the warranty period for the TL100?

Bogen provides a 2-year limited warranty covering defects in materials and workmanship. Register your product online to activate warranty support.

Can I repair the amplifier myself?

No user-serviceable parts inside. Opening the unit voids the warranty. For repairs, contact a certified Bogen service center. Always disconnect power before any maintenance.

USER MANUAL TL100 Bogen

Line Input /Line Output Matching Transformer Model WMT1A

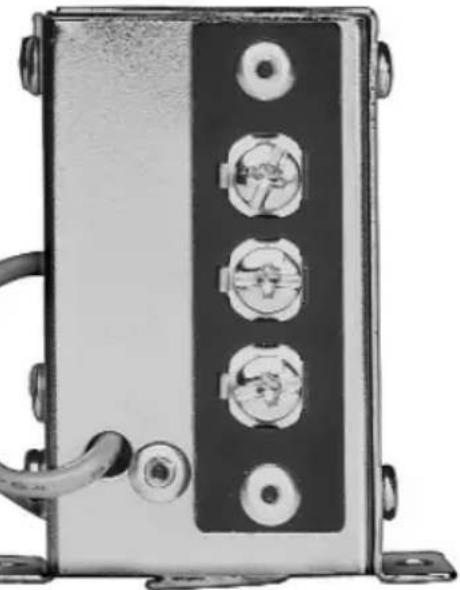

Exterior view of a mechanical device with four circular components mounted on a black panel (no visible text or symbols)

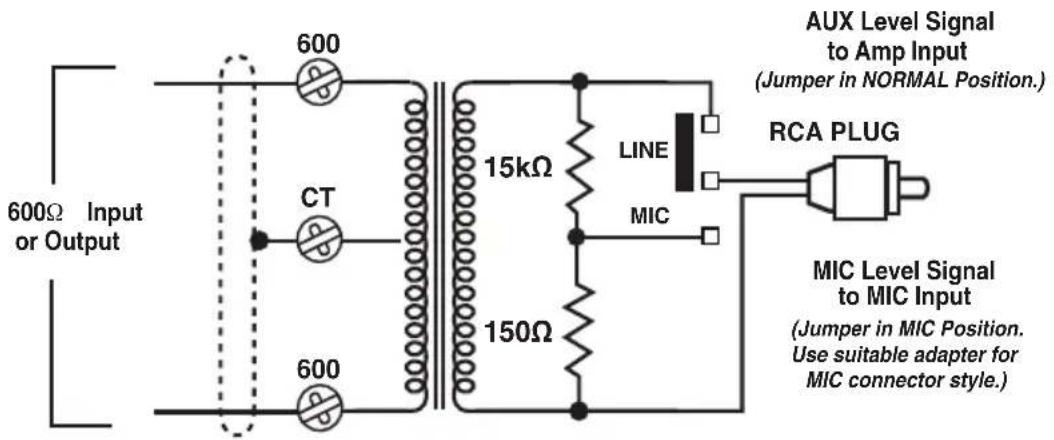

The WMT1A is a balanced and isolated impedance matching transformer. Typical uses are to provide a 600-ohm balanced input adapter for unbalanced AUX inputs. WMT1A can also be used to drive long, balanced, twisted pair cable. This improves noise rejection and the maximum run length. The WMT1A can adapt line-level signals down to levels suitable for MIC inputs. See the drawing below for setting the Operating Modes.

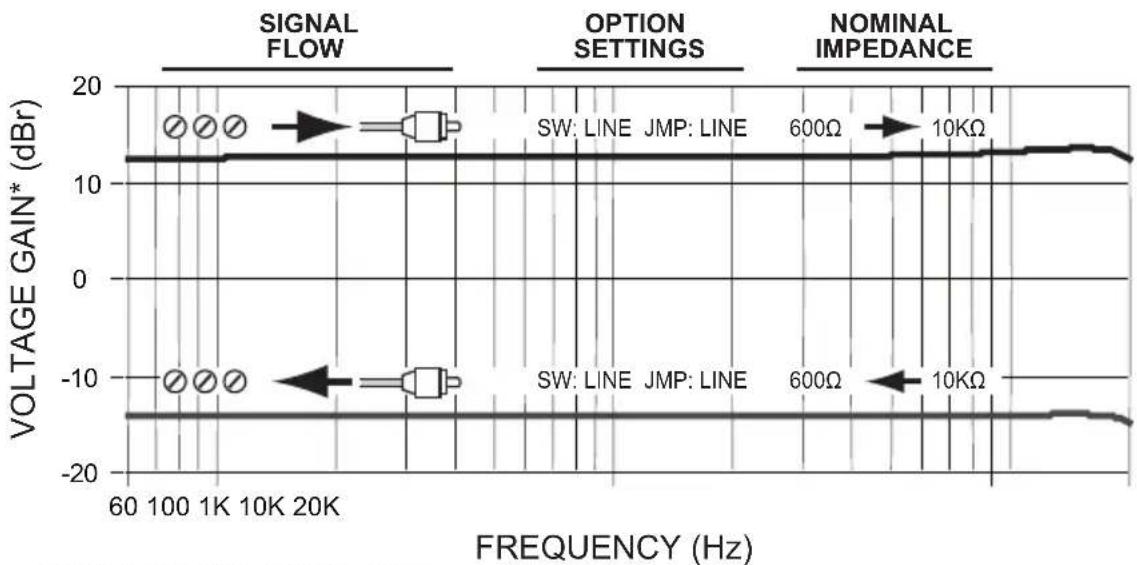

TYPICAL PERFORMANCE

* SOURCE IMP=40Ω, LOAD IMP=100KΩ

LIMITED WARRANTY

The WMT1A is warranted to be free from defects in material or workmanship for two (2) years from the date of sale to the original purchaser. This warranty does not extend to any of our products that have been subjected to abuse, misuse, improper storage, neglect, accident, improper installation or have been modified or repaired or altered in any manner whatsoever, or where the serial number or date code has been removed or defaced.
