Product Type	Cordless Telephone
Brand	GE
Model	28214
Technology	DECT 6.0
Frequency Range	1.92 GHz - 1.93 GHz
Number of Handsets	Up to 4 (expandable)
Caller ID	Yes (stores up to 40 records)
Call Waiting Caller ID	Yes (requires subscription)
Speakerphone	Yes (handset)
Intercom	Yes (between registered handsets)
Room Monitor	Yes (between handsets)
Do Not Disturb	Yes (base button)
Phonebook	50 records per handset
Last Number Redial	Up to 20 digits, last 3 numbers
Ringer Tones	10 melodies
Ringer Volume	Adjustable (5 levels, off)
Key Tone	On/Off
Battery Type	Ni-MH, model 5-2840
Battery Charge Time	16 hours (first use)
Base Power Adapter	Model 5-2812
Display	Backlit LCD with icons
Visual Indicators	Base charge/in use, handset VMWI
Hearing Aid Compatible	Yes (HAC)
Warranty	1 year limited

Frequently Asked Questions - 28214 GE

How do I set the date and time on my GE 28214 phone?

Press mute/menu OK, scroll to INITIAL SETUP, then select DATE and TIME. Enter the date using the number keys (format: YYMMDD) and then the time (HHMM), selecting AM/PM. Press mute/menu OK to save.

How do I register a new handset to the base?

From the handset, go to INITIAL SETUP > REGISTRATION, select YES. Then press and hold the find button on the base until the charge/in use light flashes. Press mute/menu OK on the handset to complete registration.

How do I use the intercom feature?

With the handset off, press delete/int/conf and enter the number of the handset you want to call. A long beep connects you. Press END to finish.

Why is my handset not ringing for incoming calls?

Check that the ringer is turned on by pressing the #pause/ringer shortcut or via SOUND SETUP > RINGER VOLUME. Ensure the handset is within range of the base and the battery is charged.

How do I clear all Caller ID records?

While the phone is off, press caller ID-volume (▼ or ▲) to display any CID record, then press and hold delete/int/conf until DELETE ALL? appears. Press delete/int/conf again to confirm.

Can I use more than one handset with this base?

Yes, the GE 28214 supports up to 4 registered handsets. You can purchase additional handsets (model 5-2830) and register them to the base.

How do I transfer an external call to another handset?

During a call, press delete/int/conf and enter the handset number. When the other handset answers, press END on your handset to transfer the call.

What should I do if the battery needs replacement?

Use only the approved Ni-MH battery model 5-2840. Turn off the handset, remove the battery door, disconnect the old battery, insert the new one, and charge for 16 hours.

How do I reset the phone to factory default settings?

Go to RESET SETTINGS > ALL SETTINGS from the main menu, select YES to restore all settings to defaults. Confirm with mute/menu OK.

Is this phone hearing aid compatible?

Yes, the GE 28214 meets FCC standards for Hearing Aid Compatibility (HAC).

USER MANUAL 28214 GE

Model 28214 Series DECT 6.0 Multi-Handset Speakerphone User's Guide

Abstract circular logo with stylized white 'g' symbol inside a black ring (no text or symbols)

Equipment Approval Information

Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA.

1 Notification to the Local Telephone Company

On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company.

The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.

Notes

• This equipment may not be used on coin service provided by the telephone company.
• Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company.
• Notice must be given to the telephone company upon permanent disconnection of your telephone from your line.
• If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

US Number is located on the cabinet bottom.

REN Number is located on the cabinet bottom.

2 Rights of the Telephone Company

Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations.

The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service.

Interference Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

Privacy of Communications may not be ensured when using this product.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference).
• Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna.
• Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected.

If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, "How To Identify and Resolve Radio/TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies.

Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Hearing Aid Compatibility (HAC)

This telephone system meets FCC standards for Hearing Aid Compatibility.

Licensing

Licensed under US Patent 6,427,009.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with the belt clip supplied with this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

Information for DECT Product

This telephone is compliant with the DECT 6.0 standard which operates in the 1.92GHz to 1.93GHz frequency range. Installation of this equipment is subject to notification and coordination with UTAM. Any relocation of this equipment must be coordinated through and approved by UTAM. UTAM may be contacted at 1-800-429-8826.

Table of Contents

EQUIPMENT APPROVAL INFORMATION ...... 2

INTERFERENCE INFORMATION 3

HEARING AID COMPATIBILITY (HAC) 4

LICENSING 4

FCC RF RADIATION EXPOSURE STATEMENT ...... 4

INFORMATION FOR DECT PRODUCT 4

INTRODUCTION 7

BEFORE YOU BEGIN 7

PARTS CHECKLIST 7

TELEPHONE JACK REQUIREMENTS 7

INSTALLATION 8

DIGITAL SECURITY SYSTEM 8

IMPORTANT INSTALLATION GUIDELINES 9

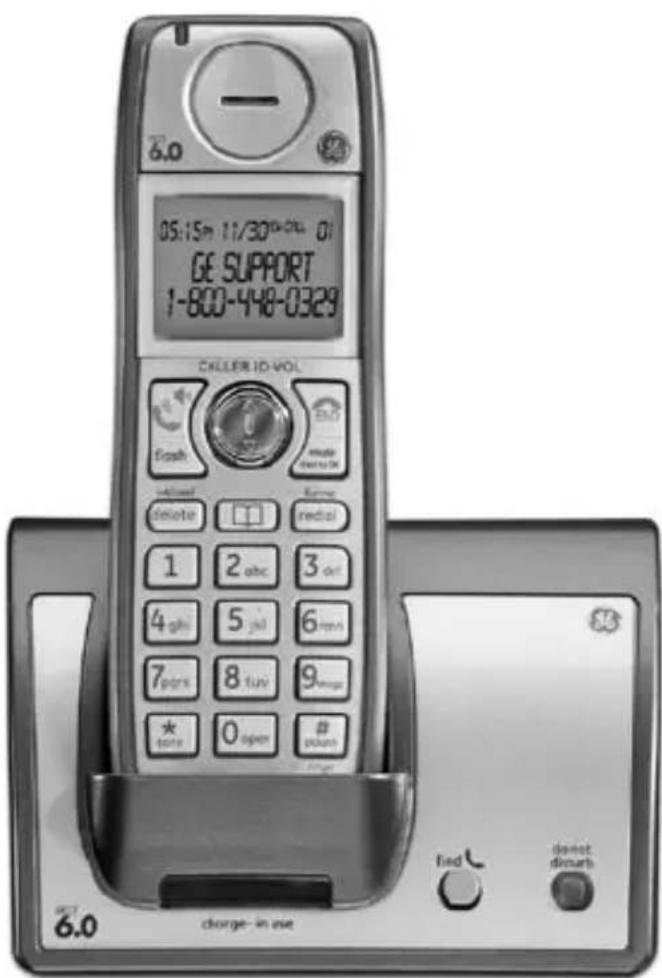

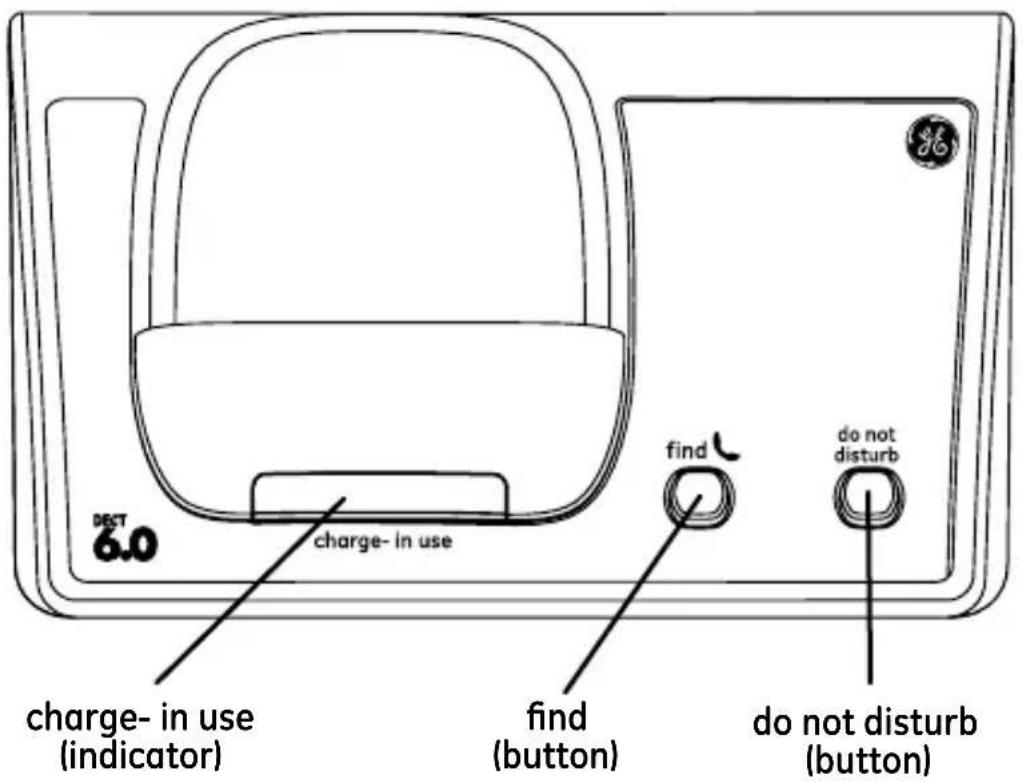

BASE LAYOUT ......10

FRONT VIEW 10

HANDSET LAYOUT 11

DISPLAY ICONS 11

INSTALLING THE PHONE....12

INSTALLING THE HANDSET BATTERY....12

BASE STATION 13

PROGRAMMING THE TELEPHONE 14

STANDBY SCREEN 14

PROGRAMMING FUNCTIONS 14

ROOM MONITOR 14

ALARM CLOCK 15

INITIAL SETUP 16

HANDSET NAME 16

DATE AND TIME 16

AREA CODE 17

TONE/PULSE 17

LANGUAGE 17

AUTO TALK 18

REGISTRATION 18

DE-REGISTRATION 19

GLOBAL DE-REGISTRATION 20

SOUND SETUP 20

RINGER TONE....20

RINGER VOLUME 21

KEY TONE 21

RESET SETTING 21

Voicemail....22

ALL SETTINGS 22

RINGER VOLUME (SHORTCUT)......25

FLASH/CALL WAITING 25

LAST NUMBER REDIAL....26

Exit 26

PAGE 26

PAGING FROM THE BASE/GROUP PAGE....27

MUTE 27

RECEIVER VOLUME CONTROL 27

Do Not Disturb (D-N-D)....27

RECEIVING AN INCOMING CALL DURING AN INTERCOM CALL 28

USING INTERCOM WITH EXTERNAL TELEPHONE CALLS 28

TWO-WAY CALLING....29

THREE-WAY CALLING....29

TRANSFERRING EXTERNAL CALLS TO OTHER HANDSETS....29

CALLER ID (CID) 30

CALL WAITING CALLER ID....30

RECEIVING CID RECORDS 30

STORING CID RECORDS (IN CID MEMORY)......31

REVIEWING CID RECORDS 31

DIALING A CID NUMBER....31

Table of Contents

STORING CID RECORDS IN INTERNAL MEMORY...32

DELETING ALL CID RECORDS....32

PHONEBOOK 33

REVIEW RECORDS 33

ADD RECORDS 33

INSERTING A PAUSE IN THE DIALING SEQUENCE (OF A STORED NUMBER)....34

EDIT RECORDS 34

FROM PHONEBOOK SUB-MENU: 34

DELETE RECORDS 35

DIALING A NUMBER FROM INTERNAL MEMORY....35

CHANGING THE BATTERY 36

BATTERY SAFETY PRECAUTIONS....36

DISPLAY MESSAGES ....37

TROUBLESHOOTING GUIDE ......38

CAUSES OF POOR RECEPTION....40

GENERAL PRODUCT CARE 41

ACCESSORY INFORMATION ....41

WARRANTY ASSISTANCE 42

LIMITED WARRANTY 43

INDEX 46

WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

THE LIGHTNING FLASH AND ARROW HEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF "DANGEROUS VOLTAGE" INSIDE THE PRODUCT.

CAUTION:

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYING THE PRODUCT.

SEE MARKING ON BOTTOM / BACK OF PRODUCT

Introduction

CAUTION: When using telephone equipment, there are basic safety instructions that should always be followed. Refer to the IMPORTANT SAFETY INSTRUCTIONS provided with this product and save them for future reference.

IMPORTANT: Because cordless phones operate on electricity, you should have at least one phone in your home that isn't cordless, in case the power in your home goes out.

Before You Begin

Parts Checklist (for 28214xx1 model)

Make sure your package includes the items shown here.

Line drawing of a portable electronic device with control buttons and a handle (no text or symbols)

Base

Telephone line cord

Battery compartment cover

AC power adaptor

Belt Clip

Handset battery pack

Handset

NOTE: If a speaker box is included in your package, it replaces one set of a handset, belt clip, battery pack and cover.

For Model 28214xx2 there will be ONE additional handset, charge cradle, belt clip, battery pack and cover than shown above.

Telephone Jack Requirements

To use this phone, you need an RJ11C type modular telephone jack, which might look like the one pictured here, installed in your home. If you don't have a modular jack, call your local phone company to find out how to get one installed.

Wall plate

Modular telephone line jack

Diagram of a device with a labeled component (no text or symbols present)

Digital Security System

Your cordless phone uses a digital security system to protect against false ringing, unauthorized access, and charges to your phone line.

INSTALLATION NOTE: Some cordless telephones operate at frequencies that may cause or receive interference with nearby TVs, microwave ovens, and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV, microwave ovens, or VCR. If such interference continues, move the cordless telephone farther away from these appliances.

Certain other communications devices may also use the 1.9GHz DECT frequency for communication, and, if not properly set, these devices may interfere with each other and/or your new telephone. If you are concerned with interference, please refer to the owner's manual for these devices on how to properly set channels to avoid interference. Typical devices that may use the 1.9GHz DECT frequency for communication include wireless audio/video senders, wireless computer networks, multi-handset cordless telephone systems, and some long-range cordless telephone systems.

Important Installation Guidelines

• Avoid sources of noise and heat, such as motors, fluorescent lighting, microwave ovens, heating appliances and direct sunlight.
• Avoid areas of excessive dust, moisture and low temperature.
• Avoid other cordless telephones or personal computers.
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
• Never touch non-insulated telephone wires or terminals, unless the telephone line has been disconnected at the network interface.
• Use caution when installing or modifying telephone lines.

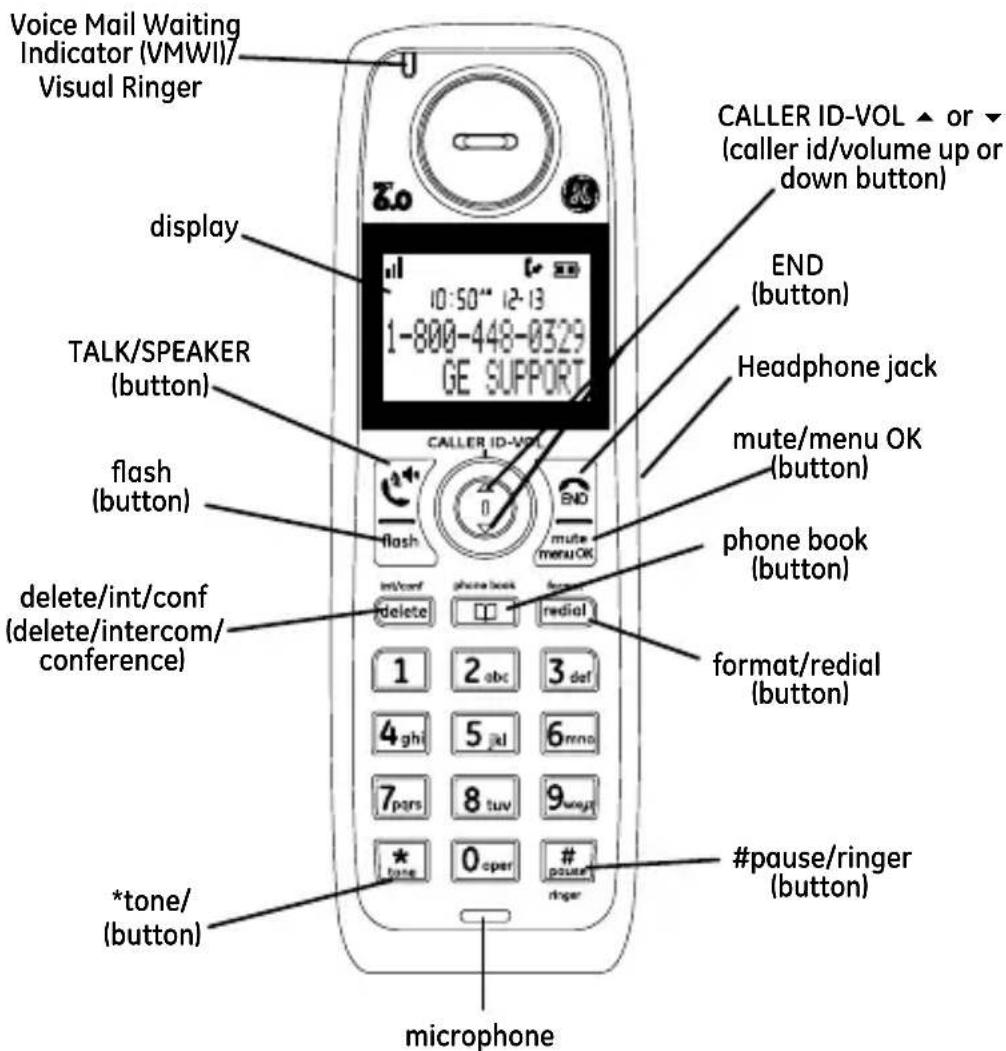

Handset Layout

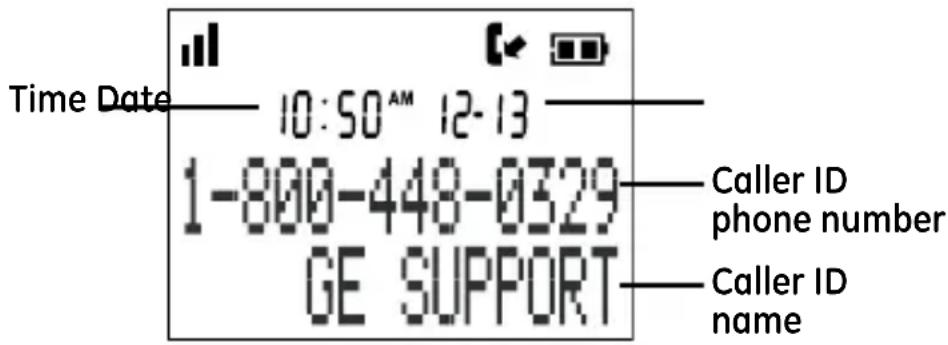

Display Icons

	Signal strength Alarm	ON
	Speakerphone New Call
	Message Battery
	Voicemail	AM	AM
	SMS	PM	PM
	Ringer OFF/DND ON

Installing the Phone

Installing the Handset Battery

NOTE: You must connect the handset battery before use.

CAUTION: To reduce the risk of fire or personal injury, use only the Thomson Inc. approved Nickel-metal Hydride battery (Ni-MH) battery model 5-2840, that is compatible with this unit.

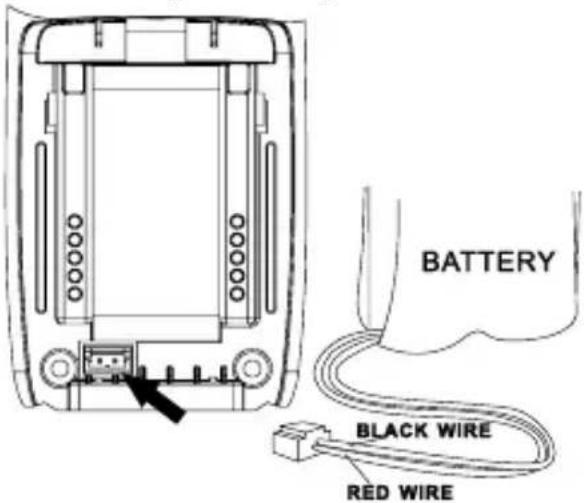

1. Locate battery and battery door which are packaged together inside a plastic bag and are separate from the handset.
2. Locate the battery compartment on the back of the handset.
3. Plug the battery pack cord into the jack inside the compartment.

NOTE: To ensure proper battery installation, the connector is keyed and can be inserted only one way.

1. Insert the battery pack.
2. Close the battery compartment by pushing the door up until it snaps into place.

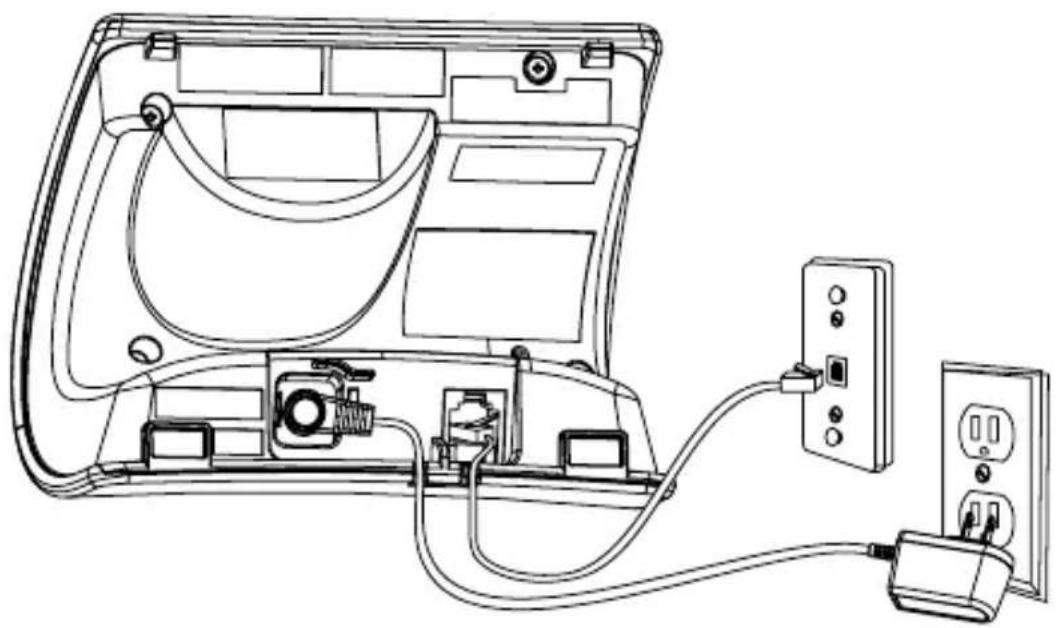

Base Station

1. Choose an area near an electrical outlet and a telephone wall jack (RJ11C), and place your cordless telephone on a level surface, such as a desktop or tabletop.

Line drawing of an open laptop with cable and socket, connected to a power outlet (no text or symbols)

1. Plug one end of the telephone line cord into the TEL LINE jack on the back of the base and the other end into a modular jack.
2. Plug the AC power converter into the electrical outlet and the DC connector into the jack on the back of the base.
3. Place the handset in the base cradle. The charge/in use indicator turns on, verifying the battery is charging.
4. Allow the phone to charge for 16 hours prior to first use. If you don't properly charge the phone, battery performance is compromised.

CAUTION: To reduce risk of personal injury, fire, or damage use only the 5-2812 power adaptor listed in the user's guide. This power adaptor is intended to be correctly orientated in a vertical or floor mount position.

Programming the Telephone

Standby Screen

The handset displays the handset number and user name.

Programming Functions

The system uses a menu structure to give you access to all of the built-in features. You may program the following items in main menu: Phone Book, Room Monitor, Alarm Clock, Initial Setup, Sound Setup, Reset Settings.

Room Monitor (applicable only with additional handsets)

1. Make sure your phone is OFF (not in TALK mode).
2. Press the mute/menu OK button to go to the main menu.
3. Press caller ID-volume (▼ or ▲) button to scroll to ROOM MONITOR.

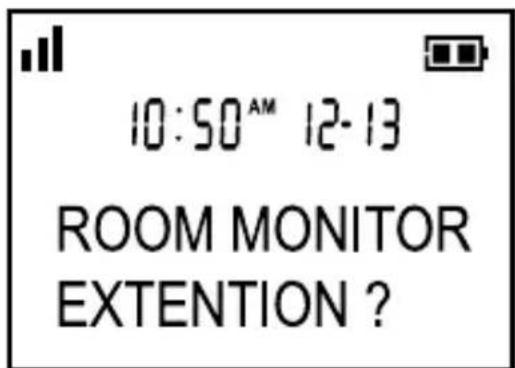

4. Press the mute/menu OK button to enter ROOM MONITOR menu. The screen displays ROOM MONITOR EXTENSION?

1. Use the touch tone pad to enter the handset name/number to be monitored.
2. The receiving handset will turn on the microphone and the originating handset will turn on the speakerphone to monitor sound from the receiving handset.

NOTE: For room monitoring mode to work, the originating handset must NOT be on the cradle.

NOTE: While in room monitoring mode, the handsets will emit an alert tone approximately every 5 seconds if there is an incoming call. You may press the TALK/SPEAKER button to quit room monitor and answer the call.

NOTE: While in room monitoring mode, the originating handset can be switched to monitor by handset earpiece by pressing the TALK/SPEAKER button once. Switch back to speakerphone by pressing the TALK/SPEAKER button once.

NOTE: Press the END button on the handset to exit room monitor mode.

Alarm Clock

1. Make sure your phone is OFF (not in TALK mode)
2. Press the mute/menu OK button to go to the main menu.
3. Use the caller ID-volume (▲ or ▼) button to scroll to ALARM CLOCK.
4. Press mute/menu OK button to enter the menu. The screen displays ON > OFF.
5. Use the caller ID-volume (▲ or ▼) button to select ON or OFF. Press mute/menu OK button to confirm.
6. If ON is selected, then the screen displays SET ALARM TIME. Use the number keys to enter the alarm time (for example, 02:10PM) key in 0210. Use the caller ID-volume (▲ or ▼) button to select AM or PM.
7. Press mute/menu OK button to display >ONCE OR DAILY and select ONCE or DAILY.
8. Press the mute/menu ok button to save selection. You will hear a confirmation tone and return to main menu.

Initial Setup

1. Make sure your phone is OFF (not in TALK mode).
2. Press the mute/menu OK button to go to the main menu.
3. Press caller ID-volume (▼ or ▲) button to scroll to INITIAL SETUP.
4. Press the mute/menu OK button to confirm and you may program the following items: Handset Name, Date and Time, Area Code, Tone/Pulse, Language, Auto Talk, Registration, Deregistration.

NOTE: During programming, you may press the END button at any time to exit the sub-menu and return to the menu.

Handset Name

From the Initial Setup Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the HANDSET NAME sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays HANDSET NAME.
3. Use the touch-tone pad to enter a name (up to 15 characters). More than one letter is stored in each of the number keys. For example, to enter Bill Smith, press the key twice for the letter B. Press the key times for the letter I. Press the 5 key times for the letter L. Press the 5 key times for the second letter L, and press the 1 key to insert a space between the first and last name. Press the 7 key times for the letter S; press the 6 key once for the letter M; press the key times for the letter I; press the 8 key for the letter T; press the key twice for the letter H.

NOTE: If you make a mistake, use the delete/int/conf button to backspace and delete one character at a time.

1. Press the mute/menu OK button to save your name. You will hear a confirmation tone and the handset name shows in the display.

Date and Time

From the Initial Setup Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the DATE and TIME sub-menu.
2. Press mute/menu OK button to enter the menu. Use the number keys to enter the current date, (for example, 31 December, 2007) key in 071231.

3. Press mute/menu OK button to confirm your selection and advance SET TIME sub-menu.

4. Use the number keys to enter the current hour and minute, then use the caller ID-volume (▲ or ▼) to select AM or PM.

5. Press the mute/menu OK button to save your selection. You will hear a confirmation tone and the current time shows in the display.

Area Code

From the Initial Setup Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the AREA CODE sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays SET AREA CODE ---.
3. Use the touch-tone pad to enter your 3-digit area code.
4. Press the mute/menu OK button to confirm. You will hear a confirmation tone and the new area code shows in the display.

NOTE: To restore the default setting to - - -, press and release delete/int/conf when SET AREA CODE shows in the display.

Tone/Pulse

From the Initial Setup Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the TONE/PULSE sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays ▶ TONE PULSE. The default setting is TONE.
3. Use the caller ID-volume (▲ or ▼) to select TONE or PULSE.
4. Press the mute/menu OK button to confirm. You will hear a confirmation tone and your selection shows in the display.

Language

From the Initial Setup Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the LANGUAGE sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays ▶ ENGLISH ESPANOL.
3. Use the caller ID-volume (▲ or ▼) button to scroll to the desired language. ENGLISH is the default setting.
4. Press the mute/menu OK button to save your selection. You will hear a confirmation tone and the selected language shows in the display.

Auto Talk

When this function is ON, during an external call, you may lift the handset to answer a call immediately without pressing any buttons. To end a call, put the handset back on the base cradle directly.

From the Initial Setup Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the AUTO TALK sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays > NO YES.
3. Use the caller ID-volume (▲ or ▼) button to scroll to your selection. NO is the default setting.
4. Press the mute/menu OK button to confirm.

Registration

Your packaged handset(s) are pre-registered and ready to use. It is not recommended that a handset be registered again unless absolutely necessary.

From the Initial Setup Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the REGISTRATION sub-menu.
2. Press the mute/menu OK button to enter the menu. The screen displays YES ▶ NO. The default setting is NO.
3. Use the caller ID-volume (▲ or ▼) button to scroll to YES or NO.
4. If you select YES, press the mute/menu OK button. The screen displays HOLD BASE FIND FOR 5 SECONDS, THEN PRESS MENU OK KEY. (Your handset should be held near the base during registration process.)
5. Press and hold the find button on the base unit, the charge/in use indicator flashes. Press the handset mute/menu OK button. The screen displays REGISTERING. The handset screen displays REGISTERED. You may now rename your handset. (Refer to Step & of Handset Name Section)
   NOTE: If you are re-registering the handset through the handset menu; to rename your handset you must go to the Handset Name Section and start from the beginning step.

De-Registration

De-registration cancels registration. During the de-registration process, keep the handset near the base.

From the Initial Setup Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the DEREGISTRATION sub-menu.
2. Press the mute/menu OK button to enter the menu. The screen displays YES ▶ NO. The default setting is NO.
3. Use the caller ID-volume (▲ or ▼) button to scroll to YES or NO.

WARNING: It is not recommended that a handset be de-registered unless absolutely necessary because once a handset is de-registered, that handset's telephone features cannot be used until the handset is re-registered.

1. Select NO, if you do not want to de-register.
2. If you select YES, press the mute/menu OK button and MOVE NEAR BASE displays for seconds, then the screen displays YES NO.
3. Use the caller ID-volume (▲ or ▼) button to scroll to YES or NO.
4. If you select YES, press the mute/menu OK button to confirm. The screen displays DE-REGISTER.... You will hear a confirmation tone. Then the screen displays DEREGISTERED to confirm the handset is deregistered.

NOTE: When you complete the de-registration process, the screen displays HANDSET NEEDS REGISTRATION. To use the handset, you MUST re-register the handset using the Registration process.

Global De-registration

If one or more handsets become lost, you should de-register all handsets to ensure proper system operation.

WARNING: It is not recommended that a handset be de-registered unless absolutely necessary because once a handset is de-registered, that handset's telephone features cannot be used until the handset is re-registered.

1. Disconnect power from the base by pulling the plug out of the back of the unit.
2. Press and hold the find button and while holding the find button reconnect the power.
3. Continue to hold the find button until the charge/in use light flashes rapidly.
4. Release the find button.
5. Press and release the find button on the base once. All handsets are de-registered and the screen displays HANDSET NEEDS REGISTRATION.

Sound Setup

1. Make sure your phone is OFF (not in TALK mode).
2. Press the mute/menu OK button to go to the main menu.
3. Press caller ID-volume (▲ or ▼) button to scroll to SOUND SETUP.
4. Press mute/menu OK button to confirm and you may program the following items: Ringer Tone, Ringer Volume, Key Tone.

Ringer Tone

You may choose from five different ringer tones and five different melodies.

From the Sound Setup Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the RINGER TONE sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays ▶ 1 OF 10. 01 is default setting.
3. Use the caller ID-volume (▲ or ▼) button to scroll to the desired setting (1 through 10). You will hear a sample of the ringer tone/melody you select.
4. Press the mute/menu OK button to save your selection. You will hear a confirmation tone and the selected ringer tone shows in the display.

NOTE: You must have the Ringer Volume set to ON for ring tone to signal an incoming call.

Ringer Volume

From the Sound Setup Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the RINGER VOLUME sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays ▶ RING VOLUME 5.
3. Use the caller ID-volume (▲ or ▼) button to scroll to your selection. LEVEL 5 is the default setting.
4. Press the mute/menu OK button to save your selection. You will hear a confirmation tone and the new volume setting shows in the display.
   NOTE: If you turn the ringer OFF, the ringer off icon shows in the display.

Key Tone

From the Sound Setup Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the KEY TONE sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays > ON OFF.
3. Use caller ID-volume (▲ or ▼) button to scroll to your selection. ON is the default setting.
4. Press the mute/menu OK button to confirm and the key tone setting shows in the display.

Reset Setting

1. Make sure your phone is OFF (not in TALK mode).
2. Press the mute/menu OK button to go to the main menu.
3. Press caller ID-volume (▲ or ▼) button to scroll to RESET SETTINGS.
4. Press mute/menu OK button to confirm and you may program the following items: Voicemail, All Settings.

Voicemail

From the Reset Settings Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the VOICEMAIL sub-menu.
2. Press the mute/menu OK button to enter the menu. The screen displays ▶ YES NO. The default setting is NO.
3. Use the caller ID-volume (▲ or ▼) button to move the cursor to YES or NO. NOTE: If YES is selected, new voicemail icon is cleared from the LCD and the VMWI LED is turned OFF (on ALL handsets, and the charge/in use LED on the base).
4. Press the mute/menu OK button to save your selection. You will hear a confirmation tone.

All Settings

As you become familiar with this system, you may prefer to use the system's original settings. Follow the steps below to return to the factory default settings.

From the Reset Settings Menu:

1. Press the caller ID-volume (▲ or ▼) button to scroll to the ALL SETTINGS sub-menu.
2. Press the mute/menu OK button to enter the menu. The screen displays YES ▶ NO. The default setting is NO.
3. Use the caller ID-volume (▲ or ▼) button to move the cursor to YES or NO. NOTE: If you choose YES all the settings in the programmable menu are returned to factory default setting.
4. Press the mute/menu OK button to save your selection. You will hear a confirmation tone.

Telephone Operation

Visual Indicators

Base

The charge/in use indicator on the base will flash to alert you to an incoming call, during paging, or if you have a message waiting from your service provider. The indicator will remain lit when a handset is in the base charging or when the line is in use.

Handset

The TALK/SPEAKER indicator buttons flash when you receive a call and remain lit during a call.

The keypad and CID will also light when a call is received.

VMWI / Visual Ringer Indicator on Handset

IMPORTANT: In order to use this unit's Voice Mail Waiting Indicator (VMWI) feature, you must subscribe to this service from your phone company.

The VMWI indicator on the top of the handset flashes when you receive a new message from your service provider. Also, it serves as a Visual Ringer function. It will flash when there is an incoming call.

Speakerphone Operation

NOTE: If you are using the speakerphone, remain close to handset so the party you are speaking to can hear you.

If you are using the earpiece and want to switch to the speakerphone, press the TALK/SPEAKER button, press END button to end conversation.

If you are using the speakerphone and want to switch to the earpiece, press the TALK/SPEAKER button again, press END button again to end conversation.

Making a Call

1. Press the TALK/SPEAKER button. Dial the desired number.

- OR -

Dial the number first, then press the TALK/SPEAKER button.

- OR -

Press the caller ID-volume (▲ or ▼) button to select the desired record, then press the TALK/SPEAKER button.

1. When finished, press the END button to hang up.

NOTE: You may enter up to 28 pre-dial digits.

NOTE: If you want to delete the pre-dial number you entered, press the delete/int/conf button until all of the digits are erased.

Answering Calls

1. When the phone rings, pick up the handset and press the TALK/SPEAKER button.
2. When finished, press END button to hang up.

- OR -

If the auto talk mode is selected, pick up the handset from the charge cradle to answer the call immediately.

NOTE: Adjust the handset volume by pressing the caller ID-volume (▲ or ▼) button during a call.

Call Timer

After you press the TALK/SPEAKER button on the handset, the built-in call timer shows on the display and counts the length of time of the call in minutes and seconds.

Auto Standby

If you place the handset in the cradle while the handset is off the hook (during a call), the call is automatically disconnected.

Ringer Volume (Shortcut)

There are two ways to set the ringer volume. One is the traditional way as described in the Programming Functions; Sound Setup; Ringer Volume menus. The other one is this short cut to ringer menu.

1. Make sure the phone is OFF (not in TALK mode).
2. Press the #pause/ringer button to display SET RINGER LEVEL 5.
3. Use the caller ID-volume (▲ or ▼) button to scroll to your selection. LEVEL 5 is the default setting.
4. Press #pause/ringer button again to save and display the new selection for a few seconds.

Flash/Call Waiting

If you subscribe to the combined Call Waiting Caller ID service from your local telephone company, you will receive Caller ID information (if available) on Call Waiting calls. During a phone call, you will hear a beep to indicate another call is waiting on the line and Caller ID information for the waiting call shows on the handset display.

• To connect to the waiting call, press the original call is put on hold.
  flash button on the handset, and your
• To switch between the two calls, press the
  flash button.

Last Number Redial

You may redial a number up to 20 digits long. To quickly redial the last number you dialed:

1. Press the TALK/SPEAKER button.

2. Press the redial/format button.

-OR-

1. Press the redial/format button first, then use the caller ID-volume (▲ or ▼) button to select the desired redial number.

- Press the caller ID-volume (▲) to review the oldest call and scroll toward the most recent calls (higher numbers).

- Press the caller ID-volume (▼) to review the newest call and scroll to older calls (lower numbers).

NOTE: You may choose from the last three numbers that were dialed.

1. Press the TALK/SPEAKER button. The number dials automatically.

If you get a busy signal and want to keep dialing the number, press the redial/format button to quickly redial the number.

Exit

Press the END button to exit a menu function and return to the standby screen.

Page

The page feature helps you locate a misplaced handset. To send and receive pages, all handsets must be registered. If your handset is not registered, follow the instructions in the Registration section of this manual.

Paging from the Base/Group Page

Use the base-only to page all registered handsets at the same time.

1. Press the find button on the base. All handsets beep for two minutes, and each handset screen displays FIND HANDSET.
2. To cancel the page, press the find button on the base, or press the TALK/SPEAKER button or the END button on each handset.

Mute

To have a private, off-line conversation, use the MUTE feature. The party on the telephone line cannot hear you, but you can hear them.

1. Press the mute/menu OK button. The handset display shows MUTE ON.
2. Press the mute/menu OK button to cancel and return to your phone conversation.

Receiver Volume Control

When the handset is ON (in TALK mode) you may adjust the receiver volume by pressing the caller ID-volume (▲ or ▼) button. There are five volume levels to choose from. When the maximum or minimum volume level is reached, the phone beeps twice. VOL 1 is minimum and VOL 5 is maximum.

Do Not Disturb (D-N-D)

This feature allows you to turn off all the handset ringer(s) at once, by pressing one button at the base unit, even though the ringer volume of handset(s) has been preset.

1. In the standby mode, press the do not disturb button on the base.
2. The DND indicator will light and ✗ shows in each handset display.
3. To cancel, press the do not disturb button again.

NOTE: You can press the do not disturb button and activate the function immediately, even when there is incoming call ringing in, or during call screening after the call is taken by the answerer.

Intercom Operation

The intercom feature allows you to have a conversation with another registered handset without tying up the telephone line, allowing you to still receive incoming calls.

Making an Auto Intercom Call

1. Make sure the handset is OFF (not in TALK mode).
2. Press the delete/int/conf button on the handset.
3. Use the touch-tone pad to select the handset you want to page.
4. A long beep is heard and then the two handsets are immediately connected. Receiving handset shall immediately come into the auto intercom mode that both "microphone" and "speaker" of this receiving handset shall be enabled such that the user of receiving handset can freely talk and listen to the conversation.
5. When finished, press the END button or delete/int/conf button on either handset to deactivate the intercom.

Advanced Intercom Features

Receiving an Incoming Call During an Intercom Call

If you receive a telephone call during an intercom call, an incoming call alert tone will be heard (through the earpiece or speaker). If the user wants to answer an incoming call, they must press END to terminate the intercom and receive an incoming ring.

Using Intercom with External Telephone Calls

During a telephone call, you may use the intercom/paging function to page another handset and have an off line, private (two-way) intercom conversation. You may also have a three-way conversation between the external caller and the handsets, or you may transfer the external telephone call to another handset.

NOTE: Before you intercom/page another handset, you must decide whether you want to create a two-way or a three-way conversation.

Two-Way Calling

1. During an external call, press the delete/int/conf button, and use the touch-tone pad to enter the handset number to put an external line on hold. The user may then auto intercom with the paged handset.

NOTE: Both intercom users may speak privately. The external caller will not hear the intercom conversation.

1. When finished, press the END button to end the intercom call, return to the talk mode, and resume your original telephone conversation.

Three-Way Calling

1. During an external call, press the delete/int/conf button. The screen displays LINE ON HOLD EXTENSION?.

2. Use the touch-tone pad to select Handset # to enter into auto intercom call with paged handset.

3. When the receiving handset connects, press the delete/int/conf button on the originating handset to conference with the receiving handset and the external caller. The screen displays CONFERENCE on the originating and receiving handsets.

NOTE: A handset can enter conference mode directly by pressing TALK/SPEAKER on the second handset during a call.

Transferring External Calls to Other Handsets

During an external call, you may transfer the external call to another handset.

1. Press the delete/int/conf button on the originating handset to put an external call on hold, and enter the paged handset number.

2. A long beep is heard and then the two handsets are immediately connected. Receiving handset shall immediately come into the auto intercom mode that both "microphone" and "speaker" of this receiving handset shall be enabled such that the user of receiving handset can freely talk and listen to the conversation.

3. When the receiving handset connects, press the END button on the originating handset to transfer the call.

Caller ID (CID)

IMPORTANT: In order to use this unit's Caller ID features, you must subscribe to either the standard Name/Number Caller ID Service or Call Waiting Caller ID Service. To know who is calling while you are on the phone, you must subscribe to Call Waiting Caller ID Service.

This unit receives and displays information transmitted by your local phone company. This information can include the phone number, date, and time; or the name, phone number, date, and time.

Call Waiting Caller ID

Provided you subscribe to Call Waiting Caller ID service from your phone company; if you receive an incoming call and you are using the GE multi handset system, a beep indicates the presence of a Call Waiting call on the line. The Call Waiting Caller ID information will be displayed and stored in the history of all handsets in the system.

- When you hear the call waiting beep in the handset receiver, press the flash button to put the current call on hold and answer the incoming call. Press the flash button to return to the original call.

Receiving CID Records

When you receive a call, the Caller ID information is transmitted between the first and second ring. The Caller ID information appears on the display while the phone rings, giving you a chance to monitor the information and decide whether or not to answer the call.

Storing CID Records (In CID Memory)

If you are not at home or cannot answer, your telephone's Caller ID memory stores the data for the 40 most recent calls you received so you can see who called while you were unavailable. When the 41st call is received, the oldest Caller ID record (1st call) is automatically deleted.

You may review the stored information at any time. Calls received since your last review show as in the display.

Reviewing CID Records

As calls are received and stored, the display is updated to let you know how many calls have been received. To scroll CID records:

1. Make sure the phone is OFF (not in TALK mode).
2. Press the caller ID-volume (▼) button to review the newest CID record.
3. Press the caller ID-volume (▲) button to review the oldest CID record first.

Dialing a CID Number

1. Make sure the phone is OFF (not in TALK mode).
2. Use the caller ID-volume (▲ or ▼) button to display the desired record.
3. Press the TALK/SPEAKER button. The number dials automatically.

NOTE: Depending on (a) how the incoming caller's phone number is formatted when it is received, and (b) whether or not you previously pre-programmed your local area code into the set up menu, you may need to adjust the format of the incoming caller's stored phone number before making the call, press the redial/format button to adjust the number, and try again.

Available formats include:

Number of digits Explanation Example

Eleven digits long distance code “1” 1-317-888-8888+3-digit area code+7-digit telephone number.
Ten digits 3-digit area code + 317-888-88887-digit telephone number.
Seven digits 7-digit telephone number.	888-8888

Storing CID Records in Internal Memory

You may also store CID information in the phone's internal memory.

NOTE: It is important that you format CID records correctly BEFORE storing in internal memory as you cannot reformat CID records stored in memory.

1. Make sure the phone is OFF (not in TALK mode).
2. Use the caller ID-volume (▼ or ▲) button to scroll to the desired CID record.
3. Press the mute/menu OK button to display ENTER NAME and then follow "ADD RECORDS in Phonebook section" procedures from Step 3 to Step 7 to store the number.

NOTE: Press the END button once to keep the previous setting (making no changes) and return to the menu.

NOTE: If the selected CID record contains any information that is non-numeric, the unit will not allow this record to transfer to the internal user memory. The handset will display UNABLE TO STORE.

Deleting a CID Record

1. Make sure the phone is OFF (not in TALK mode).
2. Use the caller ID-volume (▲ or ▼) button to display the CID record you want to delete.
3. Press the delete/int/conf button. The display shows DELETE CALL ID?
   NOTE: Press the END button to return to the previous screen without deleting any CID records.
4. Press the delete/int/conf button to erase the record showing in the display. The display shows DELETED.

Deleting All CID Records

1. Make sure the phone is OFF (not in TALK mode).
2. Use the caller ID-volume (▲ or ▼) button to display any Caller ID record.
3. Press and hold the delete/int/conf button until the screen displays DELETE ALL?. NOTE: Press the END button to return to the previous screen without deleting any CID records.
4. Press delete/int/conf button to erase all of the current CID records. The display shows DELETED followed by NO CALLS.

Phonebook

Each handset can store up to fifty records in phone book for quick dialing; each record can contain a maximum of 20-digit numbers and 14-character names (including spaces).

Review Records

1. Make sure the phone is OFF (not in TALK mode).
2. Press the mute/menu OK button to go to main menu.
3. Use the caller ID-volume (▲ or ▼) button to scroll to PHONE BOOK.
4. Press the mute/menu OK button to access the phonebook sub-menu.
5. Use the caller ID-volume (▲ or ▼) button to scroll to VIEW RECORDS.
6. Press the mute/menu OK button to confirm, all records are shown in alphabetical order.
7. Press the caller ID-volume (▲ or ▼) button or key in alphabet to view the records and scroll to a record to be dialed out.
8. Press the TALK/SPEAKER button to confirm.

Add Records

From Phonebook Sub-Menu:

1. Use the caller ID-volume ( ▲ or ▼ ) button to scroll to ADD RECORDS.
2. Press the mute/menu OK button to confirm. The screen displays ENTER NAME.
3. Use the touch-tone pad to enter a name (up to 14 characters). More than one letter is stored in each of the number keys. For example, to enter Bill Smith, press the key twice for the letter B. Press the key times for the letter I. Press the 5 key times for the letter L. Press the 5 key times for the second letter L, and press the 1 key to insert a space between the first and last name. Press the 7 key times for the letter S; press the 6 key once for the letter M; press the key times for the letter I; press the 8 key for the letter T; press the key twice for the letter H.

NOTE: If you make a mistake press the delete/int/conf button to backspace and erase the wrong character(s) or number(s).

1. Press the mute/menu OK button again to save your selection. The display shows ENTER NUMBER.

2. Use the touch-tone pad to enter the telephone number (up to 20 digits, including pauses), and press the mute/menu button to confirm and advance SET MELODY sub-menu.

3. Use the caller ID-volume (▲ or ▼) button to select from melody 01 to melody 10 (a testing tone is generated while making melody selection).
4. Press mute/menu OK button to confirm, the records are stored alphabetically in the phone book.

Inserting a Pause in the Dialing Sequence (of a Stored Number)

Press the #pause/ringer button on the handset's touch-tone pad to insert a delay in dialing sequence when a pause is needed to wait for a dial tone (for example, after you dial 9 for an outside line, or to wait for a computer access tone.) Each pause counts as one digit in the dialing sequence.

Edit Records

From Phonebook Sub-Menu:

1. Use the caller ID-volume ( ▲ or ▼ ) button to scroll to EDIT RECORDS.
2. Press the mute/menu OK button to confirm, display will show the records.
3. Use the caller ID-volume (▲ or ▼) button or key in alphabet to move to desired record, press mute/menu OK button to confirm. The screen displays ENTER NAME.
4. Repeat Steps 3 through 7 in "Add Records" section.

Delete Records

From Phonebook Sub-Menu:

1. Use the caller ID-volume ( ▲ or ▼ ) button to scroll to DELETE RECORDS.
2. Press the mute/menu OK button to confirm, display will show the records.
3. Use the caller ID-volume (▲ or ▼) button or key in alphabet to move to desired record, press the delete/int/conf button. The screen displays DELETE?.
4. Press the delete/int/conf button again to confirm.

NOTE: If you don't want to change or delete a record, simply press the END button, or wait for one minute to exit automatically.

Dialing a Number from Internal Memory

1. Make sure the phone is OFF (not in TALK mode).
2. Press the mute/menu OK button to access the phonebook sub-menu.
3. Use the caller ID-volume (▲ or ▼) button to scroll to VIEW RECORDS.
4. Press the mute/menu OK button to confirm
5. Use the caller ID-volume (▲ or ▼) button or key in alphabet to move to the desired number.
6. Press the TALK/SPEAKER buttons, the number dials automatically.

Changing the Battery

CAUTION: To reduce the risk of fire or personal injury, use only the Thomson Inc. approved Model 5-2840 Nickel-metal Hydride battery (Ni-MH), which is compatible with this unit.

1. Make sure the telephone is OFF (not in TALK mode) before you replace battery.
2. Remove the battery compartment door.
3. Disconnect the cord attached to the battery pack and remove the battery pack from the handset.
4. Insert the new battery pack and connect the cord to the jack inside the battery compartment.
5. Put the battery compartment door back on.
6. Place handset in the base to charge. Allow the handset battery to properly charge (for 16 hours) prior to first use or when you install a new battery pack. If you do not properly charge the phone, battery performance will be compromised.

Battery Safety Precautions

• Do not burn, disassemble, mutilate, or puncture. Like other batteries of this type, toxic materials could be released which can cause injury.
• To reduce the risk of fire or personal injury, use only the battery listed in the User's Guide. Nickel-metal Hydride
• Keep batteries out of the reach of children.
• Remove batteries if storing over 30 days.

NOTE: The RBRC seal on the battery used in your Thomson Inc. product indicates that we are participating in a program to collect and recycle the rechargeable battery (or batteries).

For more information go to the RBRC web site at www.rbrc.org or call 1-800-8-BATTERY or contact a local recycling center.

Display Messages

The following messages show the status of the phone, provides Caller ID information, or helps you set up and use your phone.

BLOCKED NUMBER Indicates the person is calling from a number which is blocked from transmission.

CALL SCREENING Indicates you may use the handset to screen calls before answering the call.

CHARGING... Indicates the handset needs to charge for a period of time before it can resume normal function.

DELETE ALL? Prompt asking if you want to erase all CID records.

DELETE CALL ID? Prompt asking if you want to erase the CID record showing on the display.

DELETE? Prompt asking if you want to erase one of the 50 records stored in the phone's memory.

END OF LIST Indicates that there is no additional information in CID memory.

ENTER NAME Prompt telling you to enter the name for one of the 50 memory locations.

ENTER TEL NUMBR Prompt telling you to enter the telephone number for one of the 50 memory locations.

HANDSET NAME Prompt telling you to enter the user name for the registered handset.

HANDSET NEEDS Indicates you must register a non-registered handset REGISTRATION prior to use.

INCOMPLETE DATA Caller information is interrupted during transmission or the phone line is excessively noisy. Indicates no CID information was received, you are not subscribed to CID service, or CID service is not working.

LINE IN USE Displays on handset while the line is in use.

LONG DISTANCE Indicates CID record is from a long distance call.

LOW BATTERY Indicates the battery needs to be charged.

MSG WAITING OFF Indicates voice mail has been retrieved from service provider.

NEW CALL XX XX represents the number of new CID records not reviewed.

NEW VOICE MAIL Indicates voice mail has not been retrieved from service provider.

NO CALLS Indicates there are no CID records in memory.

OUT OF RANGE

May indicate handset is too far away from the base or that the power has been interrupted. Move closer and check connections.

PAGING or Someone pressed the find button on the base or delete/ PAGING FROM int/conf button on the handset

REPT Indicates a repeat call message. Indicates a new call from the same number was received more than once.

ROOM MONITORING.... The audio link between handsets is established.

SEARCHING Indicates handset is searching for the base.

SPKR Indicates the handset is in speakerphone mode.

UNKNOWN NAME/ The incoming call is from an area not serviced by CID CALLER/NUMBER or the CID information was not sent.

Troubleshooting Guide

Caller ID Solutions

No Display

• The battery must be fully charged. Try replacing the battery.
• Make sure that the unit is connected to a non-switched electrical outlet. Disconnect the unit from the wall and plug it in again.
• You must be subscribed to Caller ID service from your local telephone company in order to receive Caller ID records.

Caller ID Error Message

- This message indicates either the presence of noise on the line, or that an invalid message has been sent from the telephone company.

Cordless Phone Solutions

No dial tone

• Check installation:
  Make sure the base power cord is connected to a working electrical outlet.
  Make sure the telephone line cord is connected to the base unit and the wall phone jack.
• Connect another phone to the same modular jack; if the second phone doesn't work, the problem might be with your wiring or local service.
• The handset may be out of range of the base. Move closer to the base.
• Make sure the battery is properly charged (for 16 hours).
• Ensure the battery pack is installed correctly.
• The handset should beep when you press the talk button, and the charge indicator on the base should be lit when the handset rests in the cradle. If not, the battery may need to be charged.
• Place the handset in the base for at least 20 seconds to reset unit.

Handset does not ring

• Make sure the handset ringer programmed to ON.
• Move closer to the base. The handset may be out of range.
• You may have too many extension phones on your line. Try unplugging some phones.
• Check for a dial tone.

You experience static, noise, or fading in and out

• Move closer to base. The handset might be out of range.
• Relocate the base. Make sure base is not plugged into an electrical outlet with another household appliance.
• Charge the battery.

Unit beeps

• Place handset in base for 20 seconds; if it still beeps, charge battery for 16 hours.
• Clean the charging contacts on handset and base with a soft cloth.
  • See solutions for "No dial tone."
• Replace the battery.

Memory Dialing doesn't work

• Make sure you programmed the memory location keys correctly.
  • Did you follow proper dialing sequence?

Unit locks up and there is no communication between the handset and base

- Unplug the power adaptor from the electrical outlet and the back of the base. Remove the handset battery. Wait for 30 seconds and plug the power adaptor back into the base and electrical outlet. Reconnect the battery and charge for 16 hours.

Battery Solutions

If you experience any of the following problems, even after recharging the battery, you may need to replace the battery pack:

• Short talk time
• Poor sound quality.
• Limited Range
• Charge indicator fails to turn on.

Causes of Poor Reception

• Aluminum siding.
• Foil backing on insulation.
• Heating ducts and other metal construction that can shield radio signals.
• You're too close to appliances such as microwaves, stoves, computers, etc.
• Atmospheric conditions, such as strong storms.
• Base is installed in the basement or lower floor of the house.
• Base is plugged into AC outlet with other electronic devices.
• Baby monitor is using the same frequency.
• Handset battery is low.
• You're out of range of the base.

General Product Care

To keep your telephone working and looking good, follow these guidelines:

• Avoid putting the phone near heating appliances and devices that generate electrical noise (0210, motors or fluorescent lamps).
• DO NOT expose to direct sunlight or moisture.
• Avoid dropping the unit and other rough treatment.
• Clean with a soft cloth.
• Never use a strong cleaning agent or abrasive powder because this will damage the finish.
• Retain the original packaging in case you need to ship the phone at a later date.
• Periodically clean the charge contacts on the handset and base with a soft cloth.

Accessory Information

DESCRIPTION MODEL NO.
AC Power adaptor 5-2812
Handset Replacement Battery 5-2840
Belt Clip 5-2829
Accessory Handset with Charge Cradle 5-2830

To place order, have your Visa, MasterCard, or Discover Card ready and call toll-free 1-800-338-0376.

A shipping and handling fee will be charged upon ordering.

We are required by law to collect appropriate sales tax for each individual state, country, and locality to which the merchandise is being sent.

Items are subject to availability.

Warranty Assistance

If trouble is experienced with this equipment, for warranty information, please contact customer service at 1-800-448-0329. If the equipment is causing harm to the telephone network, the telephone company may require that you disconnect the equipment until the problem is resolved.

Any unauthorized repairs, changes or modifications not expressly approved by Thomson Inc. could void the user's authority to operate this product. For instructions on how to obtain a replacement unit, refer to the warranty included in this guide or call customer service at 1-800-448-0329.

Or refer inquiries to:

Thomson Inc.

Manager, Consumer Relations

P O Box 1976

Indianapolis, IN 46206

Attach your sales receipt to this booklet for future reference or jot down the date this product was purchased or received as a gift. This information will be valuable if service should be required during the warranty period.

Purchase Date

Name of Store

Limited Warranty

What your warranty covers:

- Defects in materials or workmanship.

For how long after your purchase:

- One year, from date of purchase. (The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental firm, whichever comes first.)

What we will do:

- Provide you with a new unit. The exchange unit is under warranty for the remainder of the original product's warranty period.

How you get service:

- Properly pack your unit. Include any cables, etc., which were originally provided with the product. We recommend using the original carton and packing materials.

- "Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the product is within the warranty period, must be presented to obtain warranty service." For rental firms, proof of first rental is also required. Also print your name and address and a description of the defect. Send via standard UPS or its equivalent to:

Thomson Inc.

11721 B Alameda Ave.

• Insure your shipment for loss or damage. Thomson Inc. accepts no liability in case of damage or loss.
• A new unit will be shipped to you freight prepaid.

What your warranty does not cover:

• Customer instruction. (Your Owner's Manual provides information regarding operating instructions and user controls. Any additional information, should be obtained from your dealer.)
  • Installation and setup service adjustments.
• Batteries.
• Damage from misuse or neglect.
• Products which have been modified or incorporated into other products.
• Products purchased or serviced outside the USA.
• Acts of nature, such as but not limited to lightning damage.

Product Registration:

- Please register your product on-line at www.ge.com/phones. You may also complete and mail the Product Registration Card if one was received with your unit. Product Registration will make it easier to contact you should it ever be necessary. Registration is not required for warranty coverage.

Limitation of Warranty:

• THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMATION GIVEN BY THOMSON INC., ITS AGENTS, OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.
• REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. THOMSON INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF INDIANA. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.

How state law relates to this warranty:

• Some states do not allow the exclusion nor limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts so the above limitations or exclusions may not apply to you.
• This warranty gives you specific legal rights, and you also may have other rights that vary from state to state.

If you purchased your product outside the USA:

- This warranty does not apply. Contact your dealer for warranty information.

A

Accessory Information 41

Add Records 33

Advanced Intercom Features 28

Alarm Clock 15

All Settings 22

Answering Calls 24

Area Code 17

Auto Standby 25

Auto Talk 18

B

Base 23

Base Layout 10

Base Station 13

Battery Safety Precautions 36

Before You Begin 7

C

Call Timer 24

Call Waiting Caller ID 30

Caller ID (CID) 30

Causes of Poor Reception 40

Changing the Battery 36

D

Date and Time 16

Delete Records 35

Deleting a CID Record 32

Deleting All CID Records 32

De-Registration 19

Dialing a CID Number 31

Dialing a Number from Internal Memory 35

Digital Security System 8

Display Icons 11

Display Messages 37

Do Not Disturb (D-N-D) 27

E

Edit Records 34

Equipment Approval Information 2

Exit 26

F

FCC RF Radiation Exposure Statement 4

Flash/Call Waiting 25

Front View 10

G

General Product Care 41

Global De-registration 20

H

Handset 23

Handset Layout 11

Handset Name 16

Hearing Aid Compatibility (HAC) 4

|

Important Installation Guidelines 9

Information for DECT Product 4

Initial Setup 16

Inserting a Pause in the Dialing Sequence 34

Installation 8

Installing the Handset Battery 12

Installing the Phone 12

Intercom Operation 28

Interference Information 3

Introduction 7

K

Key Tone 21

L

Language 17

Last Number Redial 26

Licensing 4

Limited Warranty 43

M

Making a Call 24

Making an Auto Intercom Call 28

Mute 27

P

Page 26

Paging from the Base/Group Page 26

Parts Checklist 7

Phonebook 33

Programming Functions 14

Programming the Telephone 14

R

Receiver Volume Control 27

Receiving an Incoming Call During an Intercom Call 28

Receiving CID Records 30

Registration 18

Reset Setting 21

Review Records 33

Reviewing CID Records 31

Ringer Tone 20

Ringer Volume 21

Ringer Volume (Shortcut) 25

Room Monitor 14

S

Sound Setup 20

Speakerphone Operation 23

Standby Screen 14

Storing CID Records 31

Storing CID Records in Internal Memory 32

T

Telephone Jack Requirements 7

Telephone Operation 23

Three-Way Calling 29

Tone/Pulse 17

Transferring External Calls to Other Handsets 29

Troubleshooting Guide 38

Two-Way Calling 29

U

Using Intercom with External Telephone Calls 28

V

Visual Indicators 23

VMWI / Visual Ringer Indicator on Handset 23

Voicemail 22

W

Warranty Assistance 42

Visit the GE website at: www.GE.com/phones

Model 28214

00028579 (DOM E)

08-32

Printed in China

Thomson Inc.

101 West 103rd Street

Indianapolis, IN 46290-1102

© 2008 Thomson Inc.

Trademark(s) ® Registered

Marca(s) Registrada(s)
