Product Type	3G Wi-Fi Hotspot Router
Brand	Hamlet
Model	HHTSPT3GM42
Network Support	3G: HSPA+/HSPA/UMTS; 2G: GSM/GPRS/EDGE
3G Frequency	2100 MHz
2G Frequency	850/900/1800/1900 MHz
Data Rates	Download: up to 43.2 Mbps; Upload: up to 5.76 Mbps
Wi-Fi Standard	IEEE 802.11b/g/n, 2.4 GHz
Wi-Fi Encryption	WEP, WPA-PSK, WPA2-PSK
Max Simultaneous Users	10
Micro SD Card Support	Up to 32 GB
Battery Capacity	1500 mAh
Display	OLED
Antenna	Internal
Dimensions	92 x 52 x 17.5 mm
Weight	75 g
Operating System Support	Windows, Mac, Linux, iOS, Android
Ports	Micro USB (charging)
Buttons	ON/OFF, Reset
Default IP Address	192.168.100.1
Default Login Password	hamlet
Default SSID	Hamlet-3G-xxxx (xxxx = last 4 chars of MAC)
Power Source	USB charging (5V) or power adapter
Operating Temperature	0°C to 35°C
Storage Temperature	-10°C to 55°C
Package Contents	Router, Li-ion battery, USB cable, User manual

Frequently Asked Questions - HHTSPT3GM42 Hamlet

I forgot the SSID or Wi-Fi password. What should I do?

Turn on the device, press and hold the Reset button for at least 5 seconds to restore factory default settings. The SSID will revert to Hamlet-3G-xxxx and the Wi-Fi key will be as printed on the router's rear panel.

I cannot connect to the router via Wi-Fi.

Ensure that the wireless card on your device is working properly. Verify that you are entering the correct Wi-Fi password. You may also try resetting the router to factory defaults.

The router does not turn on.

Make sure the battery is correctly installed and fully charged. Connect the router to a power source using the included USB cable or a compatible charger (such as Hamlet XPW220MOB).

The router does not detect the SIM card.

Ensure the SIM card is correctly inserted in its slot with the gold contacts facing down. Also verify that the SIM card is not PIN-locked; if necessary, disable the PIN lock using a mobile phone before inserting it into the router.

I cannot access the internet via the router.

Check that you have sufficient balance or data allowance on your SIM card. Also confirm that your mobile plan is active and that the router is in an area with cellular coverage. Restart the device or reset to factory settings if needed.

How do I reset the router to factory default settings?

With the router turned on, use a paper clip or similar object to press and hold the Reset button for about 5 seconds until the device restarts. All custom settings will be erased.

What is the default IP address and login password for the router?

The default IP address is 192.168.100.1. The default login password is hamlet (case-sensitive).

How can I change the Wi-Fi network name (SSID) or password?

Connect your computer or mobile device to the router via Wi-Fi, open a web browser, and go to http://192.168.100.1. Log in with password hamlet, then navigate to the Wi-Fi settings section to modify the SSID and security key.

What is the battery capacity and how long does it last?

The router has a built-in 1500 mAh rechargeable battery. Battery life varies depending on usage and network conditions but typically provides several hours of operation.

How do I charge the router?

Use the included USB charging cable to connect the router to a computer's USB port or a USB power adapter (such as Hamlet XPW220MOB). The maximum charging voltage is 4.2V. A full charge may take a few hours.

USER MANUAL HHTSPT3GM42 Hamlet

thanks for choosing an Hamlet product. Please carefully follow the instructions for its use and maintenance and, once this item has run its life span, we kindly ask You to dispose of it in an environmentally friendly way, by putting it in the separate bins for electrical/electronic waste, or to bring it back to your retailer who will collect it for free.

We inform You this product is manufactured with materials and components in compliance with RoHS directive 2011/65/EU, RAEE directive 2002/96/EC, 2003/108/EC Italian Legislative Decree 2005/151 and LVD 2006/95/EC, EMC 2004/108/EC, R&TTE 1999/5/EC directives for the following standards:

EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

The complete CE declaration of conformity of the product can be obtained by contacting Hamlet at [e-mail].

The information on the importer for your country are available in the “About Us” section of the Hamlet website at www.hamletcom.com.

Trademarks and changes

All trademarks and company names mentioned in this manual are used for description purpose only and remain property of their respective owners.

The material in this document is for information only and subject to change without notice. Specifications and appearance are subject to change without prior notice.

Safety instructions

• Switch off your device when the device use is prohibited or when the device use may cause interference or danger.
• Switch off your device near medical apparatus. Follow the rules or regulations in hospitals and health care facilities.
• Switch off your device in an aircraft. The device may cause interference to control signals of the aircraft.
• Switch off your device near high-precision electronic devices. The device may affect the performance of these devices.
• Keep your device and its accessories away from children. Do not allow children to use your device without guidance.
• Keep your device away from direct sunlight.
• Keep your device dry and away from liquids.
• Do not use your device with wet hands, which may cause electric shock.
• Do not attempt to disassemble your device or its accessories. Only qualified personnel are allowed to service or repair the device.
• Do not place your device or its accessories in containers with strong electromagnetic field.
• Do not place magnetic storage media near your device. Radiation from the device may erase the information stored on them.
• Do not throw, beat or vibrate your device, which will damage the electron circuit board and performance.
• Keep away from the working device for not less than 20cm.
• Use only approved batteries and chargers to avoid explosion.
• Please observe laws or regulations and respect others' privacy and legal rights when using your device.
• Do not put your device in a high-temperature place.
• Do not place your device where there is danger of explosion, near flammable liquid or gas and explosives.
• It is recommended to use the device only in environments where temperature is between 0°C and 35°C and humidity between 10% and 90%.
• Store the device in environments where temperature is between -10^ and 55^ and humidity between 5% and 95% .

Description

Hamlet 3G Wi-Fi Hotspot allows you to share the 3G Internet connection with up to 10 Wi-Fi devices at the same time. 3G technology provides up to 43.2 Mbps downstream data rate depending on reception and operator. Built-in Micro SD card reader up to 32GB for file storage.

Features

• 3G network: HSPA+/HSPA/UMTS
• 2G network: GSM/GPRS/EDGE
• 3G frequency: 2100MHz
• 2G frequency: 850/900/1800/1900MHz
- Transfer data rates: up to 43.2Mbps (download); up to 5.76Mbps (upload)
• Supporta up to 10 Wi-Fi devices at the same time
• Wi-Fi support: IEEE 802.11b/g/n, 2.4GHz
- Encryption: WEP, WPA-PSK, WPA-PSK2
• Supports Micro SD memory card up to 32GB
- Battery capacity: 1500mAh
- OLED display; Internal antenna
• Dimensions: 92 x 52 x 17.5 mm
- Weight: 75 g
- OS support: Windows, Mac, Linux, iOS, Android

Package content

• 3G Wi-Fi Router
• Li-ion battery
• USB charging cable
• User manuale

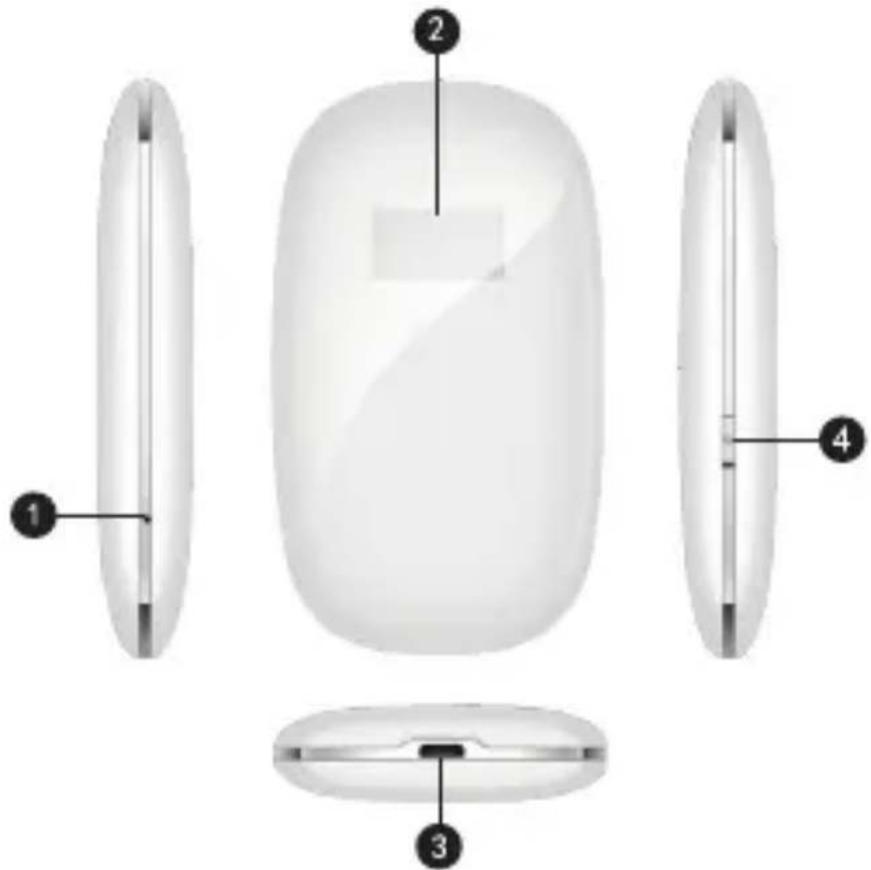

Product overview

1. Reset button
2. OLED display
3. Micro USB port
4. ON/OFF button

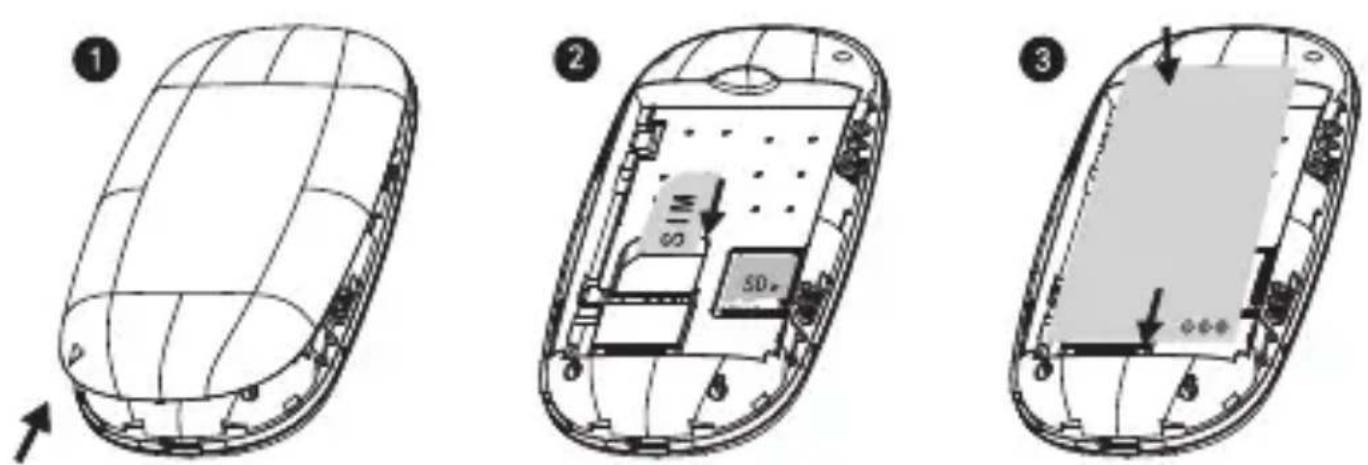

SIM and Micro SD card installation

Ensure that the device is powered off.

Also make sure that the PIN code lock of SIM card is disabled.

1. Open the bottom Router upwards as shown in the picture.
2. Remove the battery and insert the SIM card and the Micro SD card into their slots.
   To insert the Micro SD card, lift the slot's cover up, place the card and move down the slot's cover.
3. Reinsert the battery making sure to respect the direction of the poles.

Charging the battery

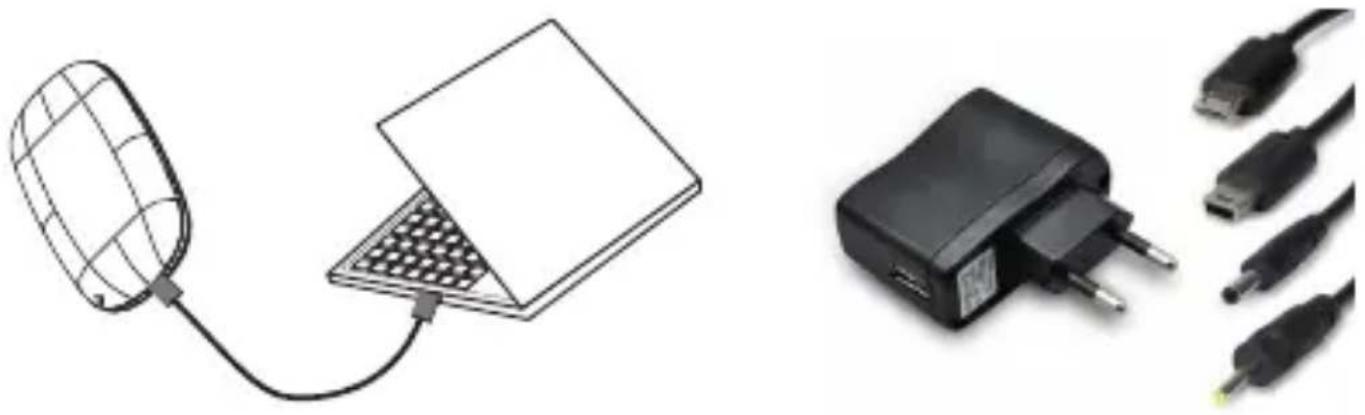

To charge your device, connect the router to the computer's USB port with the USB cable included or use a USB power adapter such as Hamlet XPW220MOB.

Illustration of a laptop connected to a wire mesh device and a black-and-white photo of a charger with three USB cable connectors (no text or symbols)

Maximum charging voltage: 4.2V.

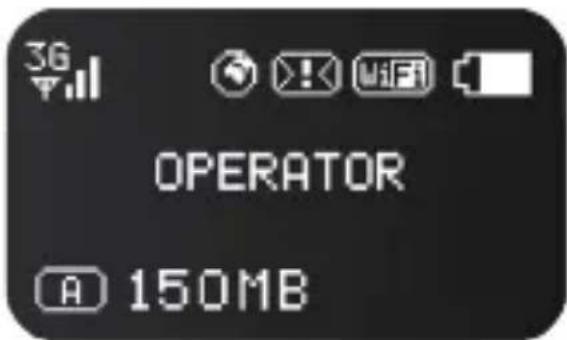

LCD display

In the following tablea is described the meaning of the symbols and information that appears on the display.

Items Status
Signal strength	from weak to strong
Network	2G/3G
Wi-Fi status	no user connectednumber of users connected
Internet connection
SMS new SMS SMS full
Battery level	from empty to full
Network operator Name	of mobile network operator
Connection mode	Auto Manual
Traffic	00:00MB
Roaming Roaming

Default settings

Please refer to the following default settings of the 3G Router. This information along with the Wi-Fi password are also listed on the back of the product and the inside label.

IP address

• IP address: 192.168.100.1

Web interface login

- Password: hamlet

Wi-Fi network name

• SSID: Hamlet-3G-xxxx

Turn ON/OFF the Router

• To turn on the device, press the power ON/OFF button more than 5s until the Hamlet logo appears on the display.
• To turn off the device, press the power ON/OFF button more than 5s until the "Power Off" message appears on the display.

Reset to factory default settings

If you need to reset the device to factory settings, follow these steps:

1. Turn on the device.
2. Use a sharp object such as a paper clip to press and hold the "Reset" button for about 5 seconds.
3. Release the "Reset" button and wait for the router to restart.
4. The factory default settings will be restored so that you can access the router from your Web browser using the factory defaults.

Simple oval shape with a vertical line and a black arrow pointing to its center (no text or symbols)

Important

The reset to factory default settings procedure erase all of the configuration settings saved on the router.

Wi-Fi Connection to the Router

You need to establish a direct connection with the router in order to access the web-based configuration utility.

Once you have configured your router, you will be able to connect to the Internet using the Wi-Fi settings that you have specified in the configuration process.

Before starting the setup process, ensure that the router is powered on and has sufficient battery power.

Also make sure your PC is configured to obtain both IP and DNS server addresses automatically.

Please refer to your system's documentation for instructions on how to do this.

To connect to the router using Wi-Fi, follow these steps.

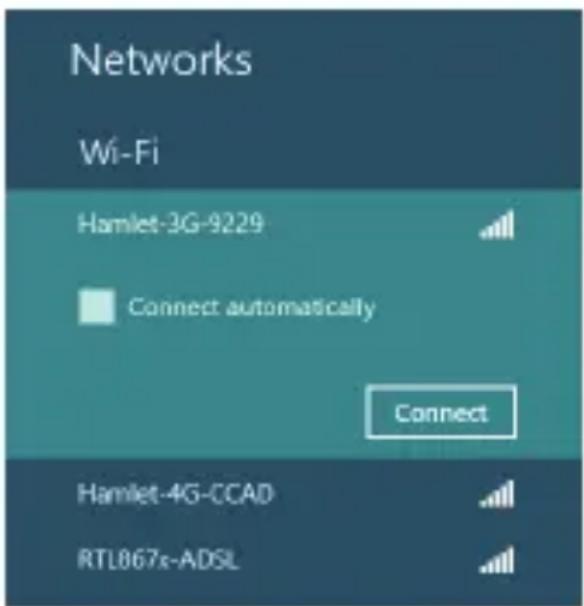

1. Open your operating system's wireless networking utility and scan for available networks to connect to.

The default network name (SSID) of the 3G Router is "Hamlet-3G-xxxx", where "xxxx" represents the last four characters of the router's MAC address.

1. Once you have located this network, click "Connect" button.

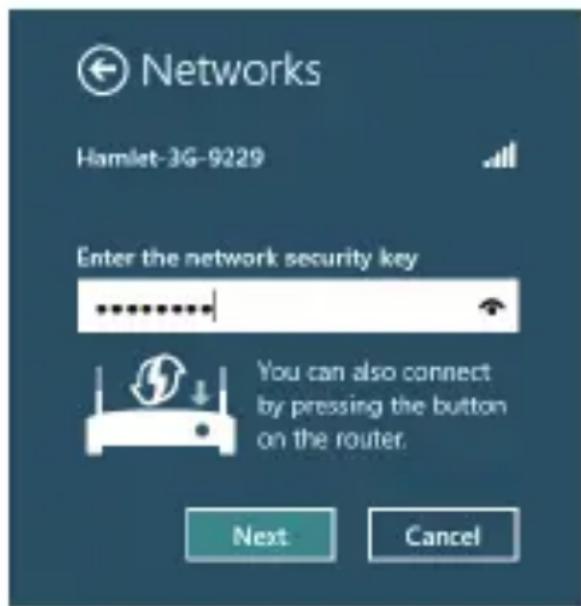

2. You will then be prompted to enter the network security key (Wi-Fi Key) for your router.

The Wi-Fi Key is printed on the rear panel of the router.

1. Enter the security key and click "OK" or "Next".

The screenshots below refer to Windows 8 operating system.

Router configuration

You can change the settings of the router accessing its web configuration interface via an external device such as a computer or a mobile device.

1. Open your web browser, enter http://192.168.100.1 in the address bar and press "Enter".

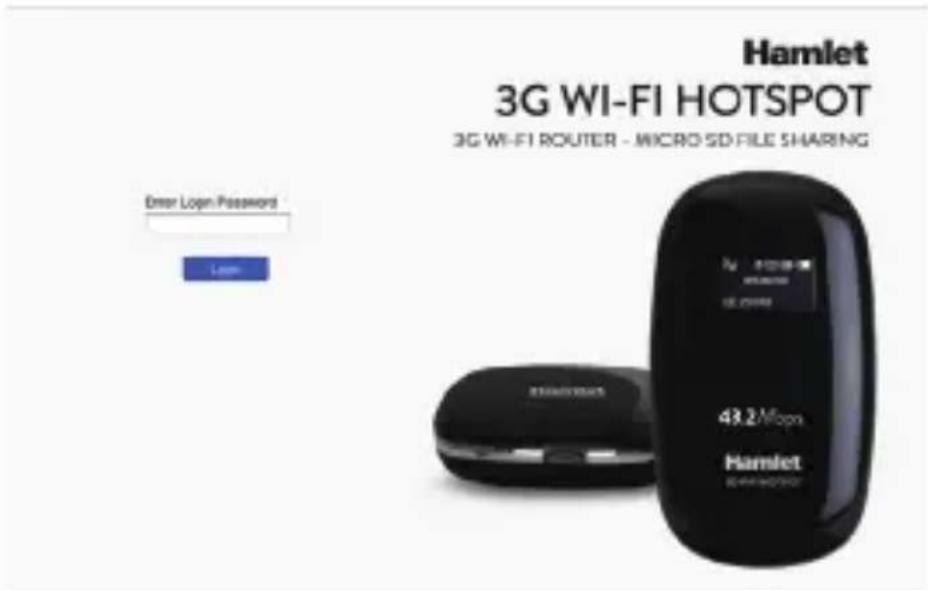

2. The login page to the web configuration will appear.

1. To access the router configuration, enter your password (hamlet) and click the "Login" button.

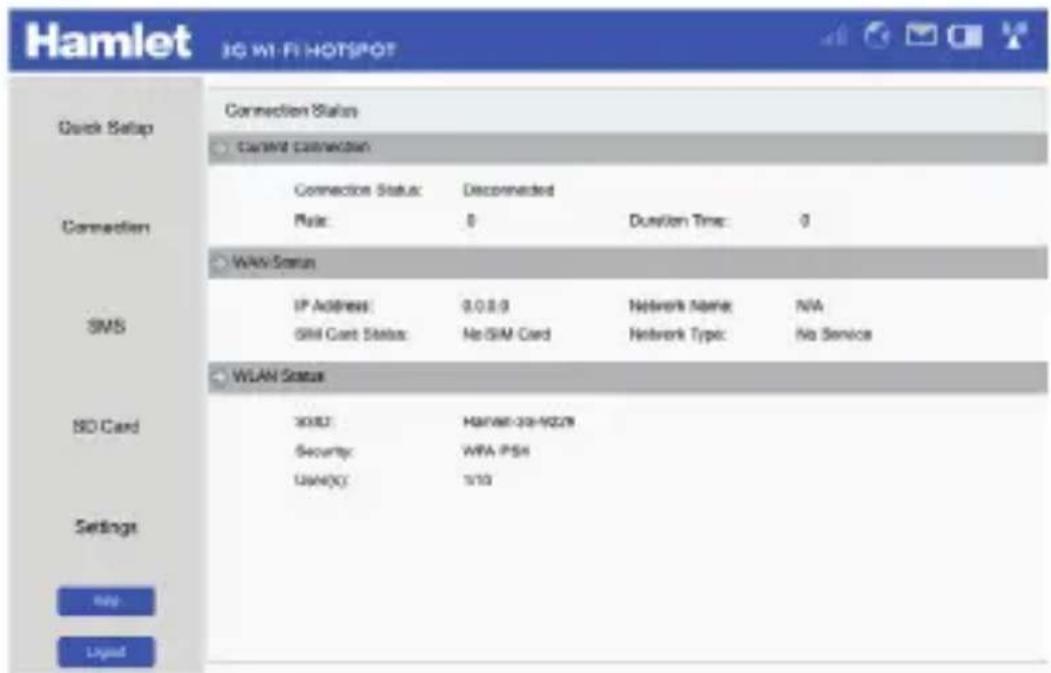

After logging in, you will see the web configuration interface with information on the status of the connection.

The menu on the left allows you to access the different sections of the router's management.

FAQ

Q: Forgot SSID or password.

A: Turn on the device, press the Reset button for at least 5s to restore factory default settings.

Q: You can not connect to the Router via Wi-Fi.

A: Make sure that the wireless card of tablet or other devices is working well, make sure the password is correct.

Q: The Router doesn't turn on.

A: Please make sure that the battery is correctly installed and fully charged.

Q: Can't detect SIM card.

A: Make sure that the SIM Card sia is correctly installed and available.

Q: Can not acces to the Internet.

A: Please make sure you have not exceeded the data limit of your mobile plan and check if there is any balance left in your SIM card.

If the device doesn't work well, please try the following methods.

• Check battery capacity
• Restart the device
• Restore to factory default settings
• Contact local network operator or distributor
