Product Type	LED Television
Screen Size	24.7 inches (62.7 cm)
Resolution	1366 x 768 pixels (HD Ready)
Aspect Ratio	16:9
Backlight Type	LED
Refresh Rate	60 Hz
Dimensions (with stand)	560 x 380 x 170 mm
Dimensions (without stand)	560 x 340 x 70 mm
Weight (with stand)	4.2 kg
Weight (without stand)	3.8 kg
Power Consumption (typical)	35 W
Power Consumption (standby)	< 0.5 W
Power Supply	AC 100-240V, 50/60Hz
Connectivity	HDMI (x2), USB, VGA, Composite AV, RF Input, Headphone Jack
Tuner	ATSC / DVB-T/T2/C (depending on region)
Speakers	2 x 3W
Wall Mount Pattern	VESA 100 x 100 mm
Remote Control	Yes, included (batteries not included)
Key Functions	Channel scan, Volume control, Menu navigation, Input selection, Sleep timer
Cleaning Instructions	Wipe with a soft dry cloth; do not use liquids or abrasive cleaners.
Safety Notes	Do not expose to water or extreme temperatures. Use only the supplied power cord.
Repairability	Contact a qualified technician for repairs. Do not open the casing.
Spare Parts	Remote control and power cord available from NPG support.
Warranty	1 year limited warranty

Frequently Asked Questions - NLD-247B-P NPG

How do I set up my NPG NLD-247B-P TV for the first time?

Connect the power cord, antenna/cable, and turn on the TV. Follow the on-screen setup wizard to select language, scan for channels, and configure network if needed.

Why is there no picture on my TV?

Check that the TV is powered on and the input source is correct. Ensure all cables are securely connected. Try pressing the Source button on the remote to cycle through inputs.

How can I connect external devices like a gaming console or Blu-ray player?

Use an HDMI cable to connect the device to one of the HDMI ports on the TV. Switch the TV input to the corresponding HDMI source using the remote.

What is the maximum resolution of the NPG NLD-247B-P?

The TV supports up to 1366 x 768 pixels (HD Ready). While it can accept higher resolution signals, it will downscale to fit the screen.

The remote control is not working. What should I do?

First, check the batteries and replace them if necessary. Ensure there are no obstructions between the remote and the TV sensor. If problems persist, try resetting the remote by removing batteries and pressing any button for 10 seconds.

How do I clean the TV screen safely?

Turn off the TV and let it cool. Use a soft, dry microfiber cloth to gently wipe the screen in circular motions. Do not use any liquids, cleaners, or paper towels as they may damage the screen.

Can I mount the TV on a wall?

Yes, the TV is VESA compatible (100 x 100 mm). Use a suitable wall mount kit and follow the instructions. Ensure the wall can support the weight (4.2 kg with stand).

Why does the TV turn off by itself?

This may be due to the sleep timer being enabled. Press the Menu button, navigate to Time settings, and check the Sleep Timer option. Also ensure the TV has adequate ventilation to prevent overheating.

How can I improve the TV sound quality?

Go to the Audio menu and adjust the Sound Mode (e.g., Standard, Music, Movie). You can also connect external speakers via the headphone jack or use a soundbar connected via HDMI or optical if available.

Where can I find the user manual for the NPG NLD-247B-P?

The manual is available for free download on notice-facile.com in multiple languages. Visit the product page and select your preferred language to download the PDF.

USER MANUAL NLD-247B-P NPG

LED(backlighting) COLOR TELEVISION

TELEVISIÓN TFT LED

Black NPG monitor with a blank screen and stand (no visible text or symbols on the screen)

NLD247B-P OPERATION MANUAL MANUAL DE USUARIO

Please read this manual carefully before operation. Por favor lea este manual atentamente antes de su uso.

Contents

Warning....2

Safety Instructions....4

Introduction......6

Installing Batteries....6

Cable Installation....7

Remote Control....8

Operation....10

Turning on and off the TV.... 10

No signal....10

Choosing a TV channel....10

Volume adjustment.... 10

Input Source....11

Using the Function....11

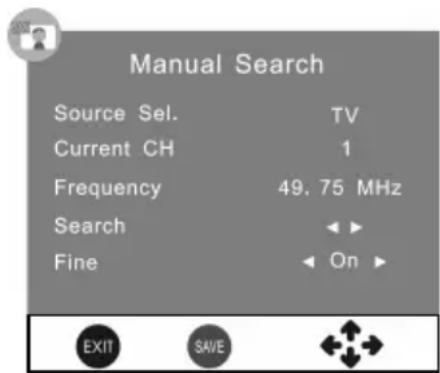

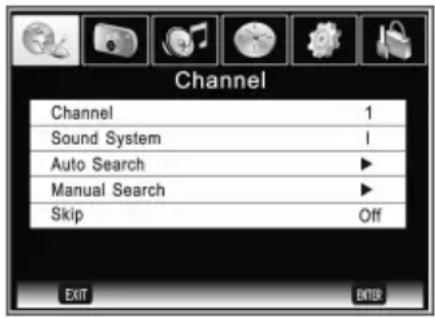

Channel Menu....11

Picture Menu....12

Sound Menu....13

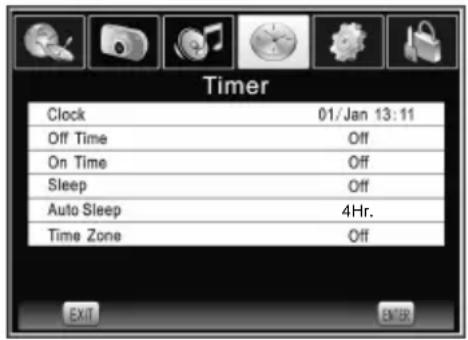

Time Menu....14

Option Menu....14

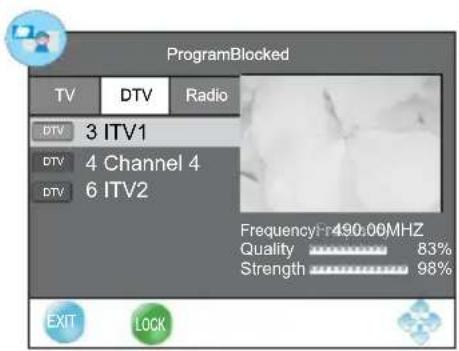

Lock Menu....17

STORAGE....18

TELETEXT....19

Trouble Shooting....20

Maintenance....21

Black triangular warning sign with a white lightning bolt symbol (no text)

Black triangular warning symbol with exclamation mark (no text or numbers)

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER(OR BACK).NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.

REGULATORY INFORMATION

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Warning

CAUTION:

DO not attempt to modify this product in any way without written authorization from suppiler. Unauthorized modification could void the user's authority to operate this product.

It is not recommended to keep a certain still image displayed on the screen for a long time as well as displaying extremely bright images on screen.

WARNING:

To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.

The Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

The Mains plug is used as the disconnect device, and the disconnect device shall remain readily operable.

The product needs electrostatic prevention. Restart the product when fail to start due to the static caused by product terminals such as TV, AV, SCART, HDMI.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

CAUTION connecting the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and its if appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

On Disposal

• The fluorescent lamp used in this product contain a small amount of mercury.
• Do not dispose of this product with general household waste.
• Disposal of this product must be carried out in accordance to the regulations of your local authority.

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
   3.Heed all warnings.
   4.Follow all instructions.

Cartoon illustration of a smiling computer monitor holding a document (no text or symbols on the monitor or background)

5.Do not use this apparatus near water.

Cartoon illustration of a computer monitor with a smiling face and a money bag, symbolizing online shopping or digital finance (no text present)

1. Clean only with a dry cloth.

Cartoon illustration of a smiling man holding a computer monitor with a phone, no text or symbols present

1. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.

Cartoon illustration of a computer monitor with a sad face and waving hands, surrounded by clouds (no text or symbols)

8.Do not install near any heat source such as radiators,heat registers, stoves,or other apparatus(including amplifiers)that produce heat.

Cartoon illustration of a distressed computer monitor with a sad face and waving hands, next to a printer (no text or symbols)

1. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Safety instructions

1. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Cartoon illustration of a computer monitor with an angry face and electrical plug, showing a hand holding the screen and a fuse with lightning bolts (no text or symbols)

1. Only use the attachments/ accessories specified by the manufacturer.

2. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

Symbolic icon of a person pushing a cart inside a circle (no text or symbols)

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

Cartoon illustration of a smiling computer monitor with wind lines and clouds, accompanied by a bridge and power outlet (no text or symbols)

1. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Cartoon illustration of a smiling computer monitor and a worker pointing at a box (no text or symbols)

Note

• If the TV feel cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with TV.
• Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However there have no adverse effect on the monitor's performance.
• Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effect on the screen.

Introduction

Installing Batteries

1

Push down to open the battery cover.

2

Insert two1.5V AAA size batteries in correct polarity.

Don't mix old or used batteries with new ones.

3

Close up the cover until the lock clicks.

NOTE: The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

• Point the remote towards the remote control sensor of the wireless TV and use it within 7 meters.
• Put the used batteries into the recycling bin since it can negatively affect the environment.

Introduction

Cable Installation

- Before the installation and use, please read carefully the relevant content in "Notice for Maintenance and Safety".

1. Take the LED TV from the wrapping package and put it in a drafty and LED place.

Notice:

When you plug or unplay the LED TV, computer or other equipments, you must make sure that the AC power has been already shut down; when unplugging the power cable or signal cable, please hold the plug(the insulated part), do not draw the body of the cable.

1. The RF output terminal can be connected with the RF input port of the TV.
2. The output AV terminal of DVD can be connected with the AV input port of the TV through AV cable.
3. Connect one end of the VGA cable with the VGA port on computer, connect the other end of the VGA cable with the VGA port on the TV, and tighten the bolts clockwise on the each end of VGA cable.

Notice:

While connecting the 15-pin VGA, please do not insert the plug overexertedly, for fear the pin might be broken.

1. Connect one end of the HDMI cable with HDMI output port, connect the other end of the HDMI cable with the HDMI port on the TV.

Notice:

While connecting the HDMI, please aim at carefully, do not insert overexertedly, for fear the pin might be broken.

1. Check and make sure that all AV cables are connected with the corresponding ports correctly.
2. Connect the AC power cable with 100-240V\~ power supply.
3. Connect the other end of the AC power cable with the AC power port on the TV.

Caution: The range of power input for the LED TV is 100-240V\~50/60Hz, do not connect the TV power input port with the AC power out of the above range.

Please hold the insulated part of the plug when you are unplugging the power cable, do not touch directly the metallic part of the cable.

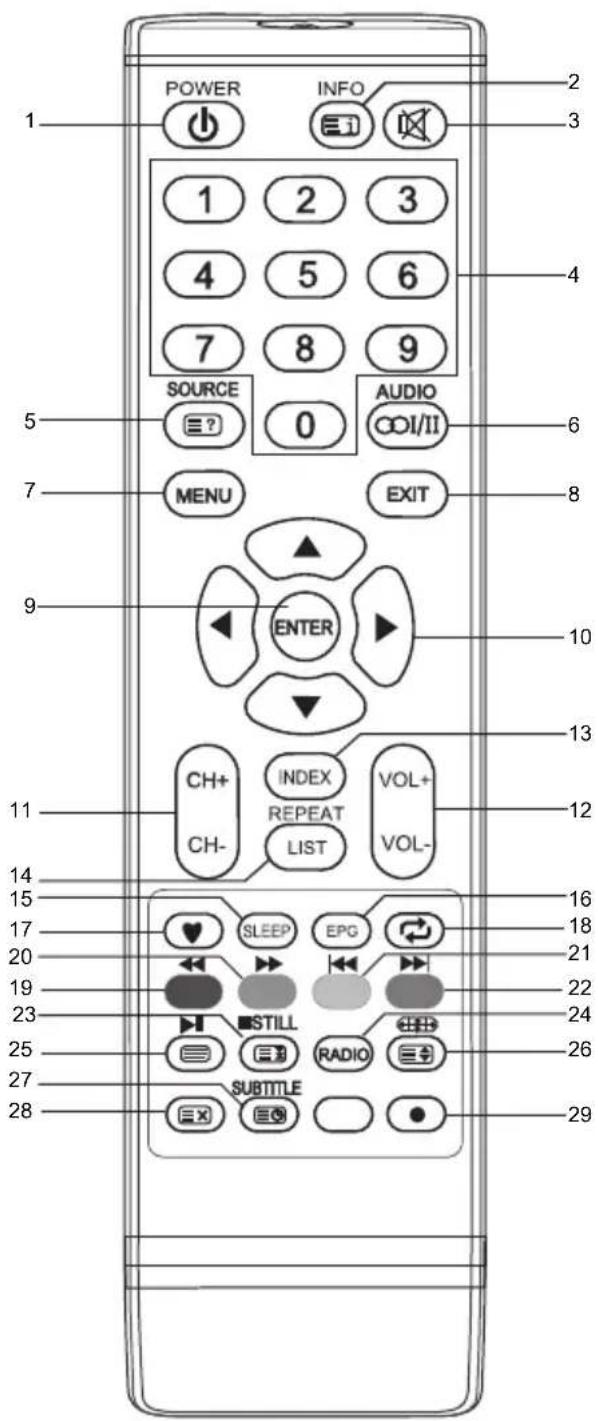

Remote Control

The buttons of the original remote control are as following:

NOTE:

● All pictures in this manual are examples, only for reference, actual product may differ from the pictures.

● The "LED" in this manual refers to LED (backlighting).

1. Power, switch on or off TV set.

2. INFO: Press to display the current program information on the screen.

≡i: Go to the index page.

1. MUTE: Press to mute or restore sound.

2. NUMBER BUTTONS: Choose channels or password importation.

3. SOURCE: Press to select signal source. ☐ : Reveal the hidden information for some teletext pages.

4. AUDIO(∞I/II): The button can be used to switch among NICAM DUAL I, NICAM DUAL II, NICAM DUAL I+II, STEREO, MONO. And switch Audio language in DTV mode.

5. MENU: Press to enter the menu screen for various optional adjustable settings.

6. EXIT: Return the last layer OSD Menu or exit OSD Menu.

7. ENTER: Press to execute the selected item in the menu screen or enter the desired value in any input mode.

8. ←/→/↑/↓: To select the direction.

9. CH+/CH-: Press to select channels in ascending or descending order.

10. VOL+/VOL-: Press to adjust the volume level up or down.

11. INDEX:Press to enter the Recorded list.

12. REPEAT: Press to select the repeat play mode (in Storage mode). LIST: Press to call up the channel list. Press again to exit it.

13. SLEEP: Press to set the sleep timer. When the preset length of time has passed, the TV set enters standby mode.

Remote Control

1. EPG: Electronic Program Guide, use in the DTV mode.
2. ♥ : Switch on/off the favorite programs list.
3. RECALL: Return to last viewed program.
4. Red button: Fast Control Keys.

◀: Fast reverse (in Storage mode; or in DTV playback mode).
20. Green button: Fast Control Keys.
▶: Fast forward (in Storage mode; or in DTV playback mode).
21. Yellow button: Fast Control Keys.
◀: Previous (in Storage mode).
22. Blue button: Fast Control Keys.
▶▶: Next (in Storage mode).
23. ☐: Hold the teletext page on display, press again to release. STILL: Press to hold the picture.
■: Stop (in Storage/DVR mode; or in DTV playback mode).
24. RADIO: Press to interchange the Radio and DTV programs when there is Radio program ( In DTV mode ).
25. ☐ : Enter the teletext, press again for MIX mode, press this button again to exit.
▶Ⅱ: Play / Pause (in Storage mode; or in DTV playback mode/DVR recording mode).
26. ☐: The button can be used to select the size of the screen display.
: Change size of teletext screen in display mode.
27. SUBTITLE: Enter into subtitle mode or subpage.
28. ☐ X: Cancel the teletext but not to exit teletext, press again to exit.
29. Press button to start recording. Recording in use. Press button to zoom the record menu. (in DVR mode).

Operation

Turning on and off the TV

TURN ON LED TV

1. Connect the AC input cable then turn on the power switch of the TV. At this time the TV will enter standby mode.
2. Press ⏻ button on TV or ⏻ button on remote control can turn on LED TV from standby mode.

TURN OFF LED TV

Press ⏻ button or ⏻ button on the remote control to enter standby mode.

No signal

- There is No Signal menu on screen when there is no input signal. In TV/DTV/VGA mode, if there is no signal in five minutes, the LED TV will turn off automatically.

NO SIGNAL

Choosing a TV channel

1. Using the CH+/CH- on the panel of TV or on the remote control.

2. Press CH+ to increase channel number.

3. Press CH - to decrease channel number.

4. Using 0-9 digital buttons

You can select the channel number by pressing 0 to 9. (In TV, DTV mode)

1. Example:

• To select - channel (e.g. Channel 5): Press 5.
- To select -- channel (e.g. Channel 20): Press 2 and 0 in a short time.

Volume adjustment

1. Press VOL+/- to adjust the volume.

1. If you want to switch the sound OFF, press the MUTE.
2. You can release mute by pressing MUTE or VOL+.

Input Source

You can select the input source by pressing the SOURCE button on the remote control. Press 【▲】/【▼】button or Source button to cycle through the input source.

Or you can select input source by pressing TV/AV button on television. [CH+] / [CH-] button is used to cycle through different input sources. You can press TV/AV button to confirm after choose some input source. If you do not confirm the input source within 1 minute, TV will automatically enter into certain source. For example:

NOTE: The picture is just for reference. Please operate with the OSD MENU of concrete TV and refer to the AV terminal board.

Using the Function

Menu overview

Many function settings and adjustments of the LED TV will begin from the menu choosing. All operation can be followed as help bar shows. Press 【MENU】 button to display the main menu; Press MENU button or 【◀】 / 【▶】 button to cycle through the main menu: Channel, Picture, Sound, Timer, Option ,Lock. Press 【▲】 / 【▼】 button to highlight the item to be adjusted.

Press【◀】/【→】button to adjust the submenu or subitem. When you satisfied with your adjustment, press【EXIT】button to exit the main menu.

When an item in MENU is displayed gray, it means that the item is not available or cannot be adjusted.

Channel Menu (In TV, DTV mode)

Press MENU button on the TV set or on the remote control to select the Channel menu. Shown as below:

•Channel

To display the current channel number and press

【←】/【→】button to adjust it.

•Sound System

Four modes to be selected : D/K, I, B /G, L (In TV mode) .

•Auto Search

Select the [→] button to start auto search. Once the progress bar is full, the found channels will be stored and the unit will proceed to the search for TV, DTV, Radio. If you press M ENU button in TV searching, the Auto Searching will skip to DTV searching as the suggestive picture shows.

- Manual Search

Mannul search option allows you to preset programs one by one. The first Source Sel. is TV, the other one is DTV. The display that you are searching program on screen. Press red button to save your choice of program.

Source Sel.: Two modes to select: TV, DTV.

Current CH: To display the current physics channel .number.

Frequency: To display the frequency of the searching program.

Search: To decrease and increase frequency you want. (In TV mode)

Fine: To little adjust the frequency (In TV mode).

After adjustment, the current channel number changes yellow.

NOTE: In DTV mode, when highlighting Current CH or Frequency, the TV begin DTV Manual Search.

- Skip

Skip the current program. When setting the program skip as on, 【CH+/CH-】 button cannot select it. But you can select the skipped program by pressing the number buttons directly. After adjustment, the current channel number changes to red.

Picture Menu

Press MENU button on the TV set or on the remote control to select the Picture menu. Shown as below:

◆Picture mode

Select the Picture mode.

The manufacture's recommendation mode is HOME.

- Contrast / Brightness

Press 【←】/【→】button to adjust the contrast / brightness of the picture.

•Saturation

Press[←]/[→]button to adjust the colour saturation.

- Sharpness

Press【←】/【→】button to adjust the Sharpness level of the picture.

•Tint (NTSC)

Press[←]/[→]button to adjust the tint of the picture.

•Screen (In PC-RGB mode)

Auto Adjust :Press [→] button to adjust the position of the picture automatically.

H Position / V Position : Press 【◀】 / 【▶】 button to adjust the horizontal / vertical position.

Size /Phase:Press【←】/【→】button to adjust the size / phase of picture.

- Advance

ZOOM:Press 【←】/【→】button to select the ZOOM mode.

Colour Temp : Press [←] / [→] button to select the Colour Temp mode.

DNR :Provide the picture with dynamic noise reduction treatment.

Sound Menu

Press MENU button on the TV set or on the remote control to select the Sound menu. Shown as below:

- Sound mode

Select the Sound mode.

•Treble / Bass

Press [←]/[→]button to increase and decrease the level of the high-pitcher / low-pitcher sounds.

•Balance

Press 【←】/【→】button to adjust the audio output between left and right speakers.

•AVL

AVL(Automatic Volume Control) is used to control the volume automatically.

•Surround

Press【◀】/【→】button to switch the surround sound.

Timer Menu

Press MENU button on the TV set or on the remote control to select the Timer menu.

Shown as below:

•Clock

Display the System time gotten from DTV signal stream or set the system time.

-Off Time

Press【→】button to set the time for turning off the TV.

• On Time

Press 【→】 button to set the time for turning on the TV.

•Sleep

Press【◀】/【▶】button to select the Sleep Time you want.

•Auto Sleep

Press [←] / [→] button to select the Auto Sleep mode.

The TV will enter into standby mode automatically when there is no any operation in set time (the set time is 4 hours when leave the factory).☐☐

•Time Zone

Press 【←】/【→】button to select the time one.

Option Menu

Press MENU button on the TV set or on the remote control to select the Option menu. Shown as below:

•Country

Press 【←】/【→】button to select country.

•Language

Press 【←】/【→】button to select OSD language.

-Panel Lock

Press 【←】/【→】button to switch the Panel Lock. When the Panel Lock is set as On, all of the buttons are locked, losing their functions (Press any button for more than 5 seconds to release it). When it is set as Off, the buttons of TV are in normal mode.

•CI Information

Note: The function can only be gotten when CI slot is available.

To watch encrypted programs under DTV mode, please insert CI card.

Operation: Please insert CI card into the PCMCIA slot according to the arrow on the CI card. Notice: Please do not insert or pull out the CI card when power on. Do not insert or pull out the CI card frequently so as to avoid any damages of the TV and the CI card.

CryptoWorks Conditional Access

Main Menu

CryptoWorks

Language

CI-Module

Information Message

Press"OK" to select; Press"EXIT" to return

During initialization of the CI card, please don't operate the TV.

CryptoWorks: Different cards have different information, taking CryptoWorks as a example. Enter this menu to look through the provider information of Cryptoworks.

Language: To set the language of menu.

CI- Module : Enter this menu to set module information and software download. Information Message: To receive the mail information from TV station.

- System

Press [→] button to display the System Information: Software Information and Signal Information (Signal Information only in DTV mode).

-Default

Press [→] button to clear all programs or resume default setting.

- Advance

Audio Language/ Subtitle Language:

Press 【←】/【→】 to set the default Audio Language/the default Subtitle Language.

Hearing Impaired:

When hearing Impaired is ON, the TV screen will give some information to the people whose hearing are impaired when Hearing Impaired is Off, the information will be hidden.

DVR File System (DVR only use for DTV source)

Select Disk

Select the disk used for DVR.

Check DVR File System

Check the file disk, and set the size recording file system.

USB Disk

USB activated or not.

Format

Format USB disk, and create DVR file system.

Time Shift Size

Show the time to do TSR.

Speed

Read and write speed of the storage device.

Max record time

Record time biggest can establish time as 6 hours.

Warning: Make sure you have a backup of your external memory data which you use for recording function (DVR)

Digital program recording

Insert a U disk, select Settings menu under the DVR File System option, and before it you should copy your information. In the USB, in case lose the information. Select check DVR File System option, if not previously formatted USB disk, the system will automatically prompt U disk formatting.

If you choose the greater the capacity, then you can burn more of the time.

◆ Carve-recording begins when Press ● button, and it can recording all the time till press ■ button or the memory is full. Recording in use. Press ● button to zoom the record menu.
◆ In DTV mode, press INDEX button to enter Recorded list, and press RED button or ENTER button, Recorded program in U disk can be deleted or played.
During recording, press ▶ button can execute Timeshift function.

NOTE:

USB disk at least the capacity with 512MB.

When the format tons, notice thurns, will drop all contents deletie save important data, please back up the data before formatting. If USB disk in some virus meeting formats turn failure.

DVR function is only available in DTV.

If the usage contains many ambulation hard drives that divide area, can at DVR File System the menu win election to choose DVR to in response to the disk sign.

If DVR recording system is used all the time, it will exit DVR system automatically. USB memory must be support USB2.0 high-speed sepcification.

EPG ( In DTV mode):

This function let you know the detailed information of the channel, indicating the time of the program playing. From the EPG it is possible to check the program information for the next eight days( If the information is available from the broadcaster).

ENTER: Press to change channel.

INFO: Press to see the detailed information of the current channel.

DATE: Press the yellow button to see the detailed information of the next eight days, and you can press [←] / [→] button to select the concrete date information.

Reminder : Press the blue button to book program.

List(In TV/DTV mode):

Press [→] button to display the List picture. The list of program include TV, DTV, Radio. When press

【↑】/【↓】button to change programs, the signal quality, singal strength, frequency will display on screen.(Only frequency in TV mode.)

DELETE:Press red button to delete the channel.

FAV:Press green button to set the channel as you favorite channel.

MOVE:Press yellow button to move the position of channel.

Lock Menu

Press MENU button on the TV set or on the remote control to select the Lock menu.

Shown as below:

- Lock System

When Lock System is on and the system is locked, we must input the system password at Auto Search, Manual Search, Clear All Programs or List. Press the right number buttons for the password.

The default password is "0000".

※After a password correction has been confirmed, please remember it for entering into the Parent Guide menu, all functions can not be activated until the correct password is entered. If you forget, the super password of "1225" still valid.

Press the number buttons on the remote control to set the new password. When the new password has been input twice, the setting is finished successfully. The TV will go back to previous menu.

- Set Password

Press [→] to see the Set Password submenu. Press the number buttons to enter the password. You can set your private password.

•Program Blocked(In TV,DTV mode)

Press the green button "LOCK" to lock the available program you want. Press the green button again to unlock it.

•Parent Lock (In DTV mode)

Limit the proper age children to watch the program which they can accept.

STORAGE

Connect an USB device. Press the SOURCE button to display the signal source menu, then press [♠] / [♦] button to select the Storage.

Press 【←】/【→】 to select

Press 【ENTER】button to enter into the desired submenu.

Press 【▶】 button to play or pause.

Press【EXIT】button to return.

It can play PHOTO, MUSIC, MOVIE or TEXT files.

Photo Format Support: JPEG, BMP, PNG.

Music Format Support : MP3, AAC.

Movie Format Support: MPEG -1 / MPEG-2/MPEG-4, TS, RM.

Text Format Support: .txt .

NOTE: Special algorithm documents may not be or well be supported by the USB.

Basic operation

1. Play/ Pause

Start playing the selected file of a folder or pause.

1. Stop

Stop the playing files.

1. ←/ Fast Reverse/Fast Forward

Fast Reverse: There are 2/4/8/16 levels of rewind speed.

Fast Forward: There are 2/4/8/16 levels of fast forward speed.

1. 📄/ 📄Previous/Next

You can select the desired files manually in normal condition.

1. REPEAT

Select repeat play mode.

Circulating play for single file.

Circulating play for all file.

No circulating play.

6.【←】/【→】

Page up or page down the files.

1. ZOOM

Press button to zoom Movie Picture.

TELETEXT Operation

Display teletext

1. Select a TV station with a teletext signal.
2. Press the Ⓔ button to enter teletext mode.
3. Press the ☐ button 2nd to enter Mix mode, this function enables you to superimpose the teletext page over the TV program.
4. Press the ☐ button 3rd return or exit to the normal TV/DTV mode.

Page selection

1. Enter the page number (three digits) using the number buttons. If you press a wrong number during input, you must complete the three digit number and then reenter the correct page number.
2. The [↑]/↓ button can be used to select the preceding or following page.

Hold

You can press the button to hold a page, and press it again to release the page.

Index

Press the ☐ button to enter the main index page directly.

Enlarging Text

When a page is displayed, you can double the size of the text to make it easier to read.

1. Press the ⏻ button to enlarge the top half of the page.
2. Press the ⏻ button again to enlarge the bottom half of the page.
3. Press the ⏻ button once more to return to the normal display.

Reveal mode

You can display concealed teletext information(e.g.Answer to puzzles or riddles etc.) by pressing ≡? button. Press ≡? button again to remove the information from the display.

Subpage

Some teletext may contain several sub-pages which are automatically paged in a certain cycle by the TV station.

1. Yon can enter into a certain subpage by pressing the SUBTITLE button directly and select the page number with number buttons. Enter the subpage number (e.g.0003) for the third subpage.
2. Press the button again to exit the subpage mode.
3. Press the button to return to the normal TV mode.

Colour buttons(Red, Green, Yellow, Cyan)

Press these buttons to access directly to the corresponding colour pages displayed at the lower part of the teletext screen.

Trouble Shooting

Before contrast the service technician, perform the following simple checks. If any program still persists, unplug the LED TV and calling for serving.

PROBLEM	POSSIBLE SOLUTION
No sound and picture	- Check whether the main plug has been connected to a wall let.- Check whether you have pressed the POWER button on the front of TV set.- Check the picture contrast and brightness settings.
Normal picture but no sound	- Check the volume.- Sound muted? Press the MUTE button.- Try another channel, the problem may be with the broadcast.- Are the audio cables installed properly?
The remote control does not work	- Check to see if there any object between the product and remote control Causing obstruction.- Are batteries installed with correct polarity(+ to +,- to -).- Correct remote operating mode set: TV, VCR etc.?- Install new batteries
Power is suddenly turned off	- Is the sleep timer set?- Check the power control settings. Power interrupted.- No broadcast on station tuned with auto activated.
Picture appears slowly after switching on	- This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes.
No or poor colour or poor picture	- Adjust the colour in menu option.- Keep a sufficient distance between the product and the VCR.- Try another channel, the problem may be with the broadcast.- Are the VIDEO cables installed properly?- Activate the any function to restore the brightness of the picture.
Horizontal/vertical bars or picture shaking	- Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	- Station or cable product experiencing problems. Tune to another station.- Station signal is weak, reorient antenna to receive weaker station.- Check for sources of possible interference.
Lines or streaks in pictures	- Check the antenna(Change the direction of the antenna).
No output from one of the speaks	- Adjust balance in menu option.
The signal is out of range.	- Adjust resolution, horizontal frequency, or vertical frequency.- Check it whether the signal cable is connected or loose.- Check the input source.
Vertical bar or stripe on back ground&Horizontal Noise&Incorrect position.	- Work the auto configure or adjust clock, phase, or H/V position.
Screen colour is unstable or single colour.	- Check the signal cable.- Reinstall the PC video card.

NOTE: There is a problem in VGA mode (Only VGA mode applied).

Maintenance

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the screen

1. Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then used it to wipe the screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

Extended Absence

If you expect to leave your TV dormant for a long time(such as a vacation), it's a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

-The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc;
- No naked flame sources, such as lighted candles, should be placed on the apparatus;
-Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to protect the environment.
-Don't use the apparatus in tropical climates;
-The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
-Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable. The main plug shall remain readily operable.
-Keep minimum distances(5cm)around the apparatus for sufficient ventilation;( Minimum distance around the apparatus for sufficient ventilation.)

Disposal of old electrical appliances

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Contenido

Advertencia....23

Control Remoto....29

Operaciones.... 31

Black triangular warning sign with a white lightning bolt symbol (no text)

ATENCIÓN

Black triangular warning symbol with exclamation mark (no text or numbers)

ADVERTENCIA:

Cartoon illustration of a smiling computer monitor character holding a document (no text or symbols present)

Cartoon illustration of a computer monitor with a hand holding a document, reacting with a falling fish and a money bag (no text or symbols)

Cartoon illustration of a smiling man holding a computer monitor with a smiley face, next to an electrical outlet (no text or symbols)

Cartoon illustration of a computer monitor with arms and a sad face, surrounded by clouds (no text or symbols)

Cartoon illustration of a distressed computer monitor with a sad face and two hands, next to a printer (no text or symbols)

Cartoon illustration of a computer monitor with an angry face and power plug, showing electrical shock (no text or symbols)

Symbolic icon of a person pushing a cart inside a circle (no text or symbols)

Cartoon illustration of a smiling computer monitor character with arms and legs, surrounded by clouds and a bridge (no text or symbols)

Illustration of a smiling computer monitor and a worker in a hard hat pointing at a toolbox (no text or symbols)

Nota

- Manual Search

Menú de Imagen

•Contrast / Brightness

CryptoWorks Conditional Access

Main Menu

CryptoWorks

Language

CI-Module

Information Message

Press"OK" to select; Press"EXIT" to return

Bloqueo del menú
