RC1805 - Rice cooker BLACK & DECKER - Free user manual and instructions

Product Type	Rice Cooker
Brand	Black & Decker
Model	RC1805
Capacity	Up to 10 cups (uncooked rice)
Power Consumption	700 W
Voltage	230 V
Weight	2.5 kg
Material	Plastic housing, non-stick coated cooking bowl
Functions	Cooking and automatic keep-warm
Controls	Control lever for automatic switch from cook to warm
Indicators	Cook indicator and keep-warm indicator
Accessories Included	Measuring cup, rice spoon, steaming tray, lid
Safety Features	Automatic shut-off, earthed plug, cool-touch handles
Cleaning Instructions	Wipe exterior with damp cloth; do not immerse; hand wash bowl and accessories; no dishwasher
Warranty	24 months (subject to terms)
Intended Use	Household use only
Special Features	Non-stick coating, steam vent, measuring scale inside bowl

Frequently Asked Questions - RC1805 BLACK & DECKER

How do I use the Black & Decker RC1805 rice cooker?

Measure rice using the included measuring cup (up to 10 cups for this model). Wash rice thoroughly under cold water to remove excess starch. Place washed rice in the cooking bowl and add the correct amount of water as per the scale inside the bowl. Insert the cooking bowl, plug in the appliance, and press the control lever to start cooking. The cook indicator will light up and go out when cooking is complete, then the keep-warm indicator will light up automatically.

How much water should I add for a given amount of rice?

Refer to the scale inside the cooking bowl. For the RC1805 model, use the following ratios: 4 cups of rice to 5 cups of water, 6 cups to 7 cups, 8 cups to 9 cups, and 10 cups to 11 cups. Each cup of uncooked rice yields about two bowls of cooked rice.

Can I cook other grains like quinoa or oatmeal in this rice cooker?

The product is designed only for cooking rice. Using it for other grains may cause damage or result in poor cooking. For best results and safety, use only for rice as described in the manual.

How do I clean the rice cooker?

Unplug and let the appliance cool completely. Wipe the exterior with a damp cloth. Wash the cooking bowl, lid, steaming tray, measuring cup, and rice spoon in warm soapy water. Rinse and dry thoroughly. Do not immerse the main unit in water or use abrasive cleaners. Not dishwasher safe.

What does the keep-warm light mean?

The keep-warm indicator lights up automatically when the cooking cycle ends. It means the rice cooker is maintaining a warm temperature to keep the rice ready to serve. The control lever stays in the warm position. For fluffier rice, stir the rice with the rice spoon just after the keep-warm light comes on.

Why doesn't the control lever stay down during cooking?

The control lever automatically switches to the warm mode when cooking is complete. This is normal. If the lever pops up prematurely, the cooking process may have finished. Ensure the cooking bowl is properly fitted and not overloaded. Do not interfere with the lever's automatic action.

Can I use metal utensils with the non-stick bowl?

No. To prevent damaging the non-stick coating, always use the provided plastic rice spoon or rubber/wood utensils. Metal utensils can scratch and ruin the coating.

Is the rice cooker dishwasher safe?

No, the manual explicitly states not to wash any part of the appliance in a dishwasher. Hand washing is recommended for all removable parts.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer or an authorized Black & Decker service centre to avoid a hazard. Do not attempt to repair it yourself. Discontinue use immediately and contact support.

What is the warranty period for this rice cooker?

Black & Decker offers a 24-month guarantee from the date of purchase against defects in materials, workmanship, or lack of conformity, subject to fair wear and tear and proper use. Proof of purchase is required. The guarantee does not cover misuse, neglect, or unauthorized repairs. Contact an authorized repair agent for claims.

USER MANUAL RC1805 BLACK & DECKER

English 3

Italiano 6

Ελληνικά 10

Intended use

Your Black & Decker rice cooker has been designed for cooking rice. This product is intended for household use only.

Important safeguards

• Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personal injury.
• Read this entire manual carefully before using the appliance.
  The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
  ◆ Retain this manual for future reference.

Using your appliance

• Warning! The temperature of accessible surfaces may be high when the appliance is operating.
  ◆ Do not touch hot surfaces.
  ◆ Always take care when using the appliance.
• Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.
• Do not place the appliance on or near heat sources or in a heated oven.
  Do not allow the power supply cord to hang over the edge of your work top or table.
  ◆ Always place the appliance on a level surface with adequate free space on all sides.
• Do no place the appliance below a socket outlet. Do not place the appliance on a wet or slippery surface. Do not place the appliance on or near heat sources or in a heated oven.
• Do not use the appliance near flammable or explosive materials.
  ◆ Do not use the appliance outdoors.
  ◆ Always protect the appliance from water or excessive humidity.
  ◆ Do not move the appliance when in use.
  ◆ Operate the appliance only with dry hands.
  ◆ Do not use the appliance if you have bare feet.
• If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.
• Disconnect the appliance from the power supply when not in use, before fitting or removing parts and before cleaning.
  ◆ Allow the appliance to cool before cleaning.

Safety of others

◆ Never leave the appliance unattended when in use.
- Do not allow children or any person unfamiliar with these instructions to use the appliance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

After use

◆ Remove the plug from the socket and let the appliance cool down before leaving it unattended and before changing, cleaning or inspecting any parts of the appliance.
- When not in use, the appliance should be stored in a dry place.
◆ Children should not have access to stored appliances.

Inspection and repairs

Before use, check the appliance for damaged or defective parts. Check for breakage of parts and any other conditions that may affect its operation.
◆ Do not use the appliance if any part is damaged or defective.
◆ Have any damaged or defective parts repaired or replaced by an authorised repair agent.
◆ Before use, check the power supply cord for signs of damage, ageing and wear.
- Do not use the appliance if the power supply cord or mains plug is damaged or defective.
If the power supply cord or mains plug is damaged or defective it must be repaired by an authorised repair agent in order to avoid a hazard. Do not cut the power supply cord and do not attempt to repair it yourself.
- Never attempt to remove or replace any parts other than those specified in this manual.

Additional safety instructions for rice cookers

• If water has entered the unit allow it to dry thoroughly before using the appliance again.
  ◆ Always ensure that the heating plate and the bottom of the cooking bowl are free from spilled particles before cooking.
• Keep the unit and heating plate clean and free from any foreign particles.
  ◆ Always carry the appliance using the side handles.
• Do not switch the appliance on without having inserted the cooking bowl.
• Do not use the appliance for deep frying food and do not let any part of the rice cooker come into contact with hot oil.
  ◆ Do not obstruct the steam vent with any article.

ENGLISH

- To prevent damaging the non stick coating on the appliance always use the plastic rice spoon or other rubber or wood utensils.

Electrical safety

Before use, check that the mains voltage corresponds to the voltage on the rating plate.

Do not immerse the appliance, power supply cord or plug in water or other liquid.

◆ This product must be earthed.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Extension cables

◆ As the appliance is earthed and of class I construction, only use a 3-core extension cable.
- When using an extension cable make sure it is correctly wired and rated for its use.

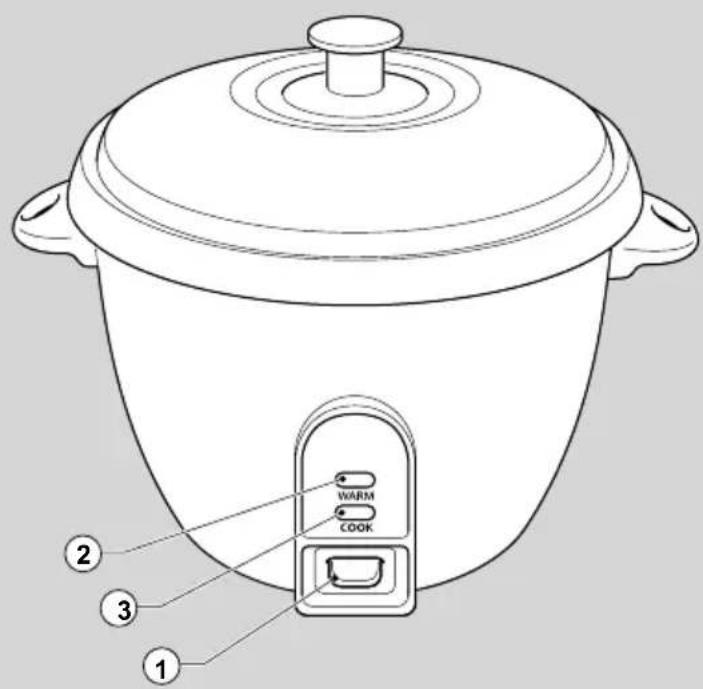

Overview

This appliance includes some or all of the following features.

1. Control lever
2. Keep-warm indicator
3. Cook indicator

Fig. A

1. Rice spoon
2. Measuring cup

Unpacking

◆ Remove all packaging from the appliance.
◆ Wash the cooking bowl, lid, steaming tray, measuring cup and serving spoon in warm sudsy water before first use.

Use

Measuring the rice (fig. A & B)

The measuring cup (5) can be used to measure the rice. Each cup of uncooked rice normally gives two bowls of cooked rice. Do not exceed the quantities indicated on the inside of the cooking bowl (6).

◆ Measure the rice with the measuring cup (5).

Determining the required water quantity (fig. A & B)

The amount of water required is indicated on the scale (7) on the inside of the cooking bowl (6).

◆ Measure the water quantity with the measuring cup (5) according to the table below.

Rice quantity Water quantity

RC1005

1 cup 2 cups

2 cups 3 cups

3 cups 3.5 cups

4 cups 5 cups

RC1805

4 cups 5 cups
6 cups 7 cups
8 cups 9 cups
10 cups 1	1 cups

Cooking rice (fig. B)

Warning!

Do not interfere with the automatic action of the control lever by preventing it from switching to the warm mode.
Exercise caution when handling the appliance as the cooking bowl and accessories get hot during use. These may remain hot for some time after use.
- Steam can escape from the unit when the accessories or lid is removed.
◆ Do not use the cooking bowl to wash the rice.
◆ Measure the rice.
◆ Wash the rice thoroughly under cold running water to remove excess starch.
◆ Put the washed rice into the cooking bowl (6).
- Add the required amount of water.
◆ Put the cooking bowl into the appliance.
- Ensure the cooking bowl is correctly fitted in good contact with the heating plate (8).
◆ Plug the supply cord into a suitable electric supply.

The cook indicator (3) will light up.

◆ Press the control lever (1) to start the cooking process.

The cook indicator will go out when the cooking process is finished. After that the keep-warm indicator (2) will light up automatically.

Note: For the best rice results stir the rice just after the keep-warm indicator comes on. Stirring the rice with he rice spoon allow the steam to escape. This will give fluffier rice.

Cleaning and maintenance

• Warning! Before cleaning and maintenance, remove the plug from the socket and allow the appliance to cool.
  ◆ Do not wash any part of the appliance in a dishwasher.
  ◆ Wipe the exterior with a damp cloth.
  ◆ Do not use scouring pads.
  ◆ If necessary, use a mild detergent to remove spots.

Do not use any abrasive or solvent based cleaner.

Warning! Do not immerse the appliance in water or any other liquid.

Protecting the environment

eparate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

parate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Technical data

RC1005 RC1805

Voltage V 230 230

Power input W 400 700

Weight kg 1.7 2.5

EC declaration of conformity

RC1005 TYPE 1/RC1805 TYPE 1

Black & Decker declares that these products conform to:

73/23/EEC, EN 60335

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

14-1-2009

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆ The product has been used for trade, professional or hire purposes;
◆ The product has been subjected to misuse or neglect;
◆ The product has sustained damage through foreign objects, substances or accidents;
◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Please register at our website www.blackanddecker.co.uk to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk
