DPY 8504 CGM - Tumble dryer Defy - Free user manual and instructions

Product Type	Tumble Dryer
Brand	Defy
Model	DPY 8504 CGM
Capacity	8 kg
Height (Min/Max)	84.6 cm / 86.6 cm
Width	59.5 cm
Depth	60.9 cm
Net Weight (Plastic Front Door)	49 kg
Net Weight (Glass Front Door)	51 kg
Voltage	220-240 V ~ 50 Hz
Energy Consumption (Cotton Cupboard Dry Full Load)	2.47 kWh
Main Programmes	Cottons, Synthetics, Jeans, Mixed, Wool Refresh, Sport, Xpress, Child Care, Daily, Shirts 30 min, Delicates, Freshen Up
Timer Programmes	10-160 min
Auxiliary Functions	Anti-creasing, End Time (up to 24h), Favourite, Dryness Level Adjustment, Audio Warning
Child Lock	Yes
Lint Filter Cleaning Indicator	Yes
Water Tank Full Indicator	Yes
Filter Drawer Cleaning Indicator	Yes
Direct Water Drain Connection	Yes (optional hose provided)
Heated Surface Indicator	Warning symbol on display
Service Life	10 years
Warranty	2 years (South Africa and Sub-Saharan Africa)

Frequently Asked Questions - DPY 8504 CGM Defy

How often should I clean the lint filter?

Clean the lint filter after each drying cycle. A dirty filter increases drying time and energy consumption.

What should I do if the drying process takes too long?

Check if the lint filter or filter drawer is clogged, if the ventilation grids are blocked, or if the laundry was not spun sufficiently. Also clean the dampness sensor 4 times a year.

Can I dry wool items?

Use the Wool Refresh programme to ventilate and soften woolen laundry. This programme does not dry completely; remove items immediately after the programme ends.

How do I activate the child lock?

Press and hold the Child Lock button for 3 seconds. The child lock symbol appears on the display. To deactivate, press and hold again for 3 seconds.

What does the 'Filter Drawer Cleaning' warning mean?

The warning appears every 5 cycles to remind you to clean the filter drawer (sponge and filter cloth) behind the kick plate. Clean it to maintain drying performance.

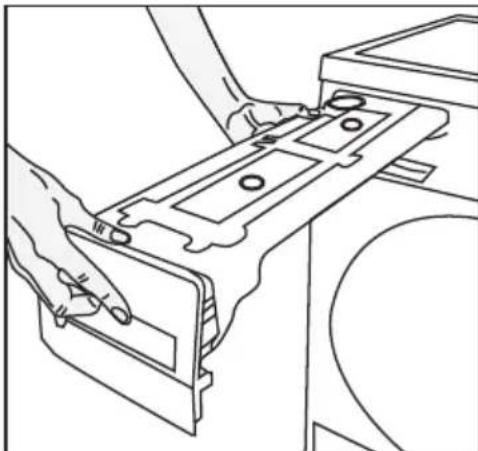

How do I drain the water tank?

After each cycle, pull out the water tank from the drawer, empty the water, and replace it. If using direct drain connection, the tank does not need emptying.

Can I open the door during a programme?

Yes, press Start/Pause to pause, then open the door. Add or remove laundry, close the door, and press Start/Pause again to resume. Frequent opening increases drying time.

What should I not dry in the dryer?

Do not dry items soiled with oil, chemicals, or flammable substances. Also avoid items with rubber foam, metal reinforcements, or unwashed laundry. Check garment labels.

How do I clean the dampness sensor?

Open the door, let the machine cool, then wipe the metal sensor surfaces with a soft cloth dampened with vinegar. Dry them thoroughly. Do not use metal tools.

What is the Anti-creasing function?

After the programme ends, the dryer rotates laundry every 240 seconds to prevent creasing. You can set the duration (30, 60, or 120 minutes) or deactivate it.

USER MANUAL DPY 8504 CGM Defy

Record in the space below the listed information for future reference.

The serial number is found on the serial label located on the inside of the door on the dryer.

SERIAL NUMBER.

DATE OF PURCHASE.

PURCHASED FROM

Please read this user manual first!

Dear Customer,

Thank you for preferring a Defy product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

Explanation of symbols

Throughout this user manual the following symbols are used:

	Important information or useful hints about usage.
	Warning for hazardous situations with regard to life and property.
	Warning against electric shock.
	Warning against hot surfaces.
	Warning against fire hazard.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

1 Important instructions for safety and

environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

• The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone.
• Children of less than 3 years should be kept away unless continuously supervised.
• Adjustable feet should not be removed. The gap between the dryer and the floor should not be reduced with materials such as carpet, wood and tape. This will cause problems with the dryer.
• Always have the installation and repairing procedures carried out by the Authorized Service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
• Never wash the dryer by spraying or pouring water onto it! There is the risk of electric shock!

Important instructions for safety and environment

1.1.1 Electrical safety

Electrical safety instructions should be followed while electrical connection is made during the installation.

• Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with the local regulations.
• The voltage and allowed fuse protection is stated on the type label plate.
• The voltage specified on the type label must be equal to your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation, maintenance, cleaning and repair works.
• Do not touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
• Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.
• Power cable plug must be easily accessible after installation.

Damaged mains cable should be changed notifying the Authorized Service.

If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!

Important instructions for safety and environment

1.1.2 Product safety

	Points to be taken into consideration for fire hazard:Below specified laundry or items must not be dried in the dryer considering fire hazard.Unwashed laundry itemsItems soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.For this reason especially the items containing the above specifiedstains must be washed very well, to do thisuse adequate detergent and choose a high washing temperature.
	Below specified laundry or items must not be dried in the dryer due to the fire hazard:Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads.Clothing cleaned with industrial chemicals.Items such as lighter, match, coins, metal parts, needle etc.may damage the drum set or may lead to functional problems.Therefore check all the laundry that you will load into your dryer.Never stop your dryer beforethe programme completes. If you must do this, remove all laundryquickly and lay them out to dissipate the heat.
	Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends.

Important instructions for safety and environment

- You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

	Underwear that contains metal reinforcements should not be driedin the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying.
	Use softeners and similar products in accordance with the instructions of their manufacturers.
	Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

• Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the tumble dryer

Important instructions for safety and environment

1.2 Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.
• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62cm	60 cm 54	cm 50	cm 49	cm 45	cm 40 cm
54 cm	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Cannot be installed
60 cm	Can be installed	Can be installed	Can be installed	Can be installed	Can be installed	Cannot be installed	Cannot be installed

Important instructions for safety and environment

1.3 Intended use

• Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Use the dryer only for drying laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.

1.4 Child safety

• Packaging materials are dangerous for the children. Keep packaging materials away from children.
• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent the children to tamper with the dryer.

Child-proof lock is on the control panel. (See 5.12 Child lock)

- Keep loading door closed even when the dryer is not in use.

Important instructions for safety and environment

1.5 Compliance with the WEEE regulation and disposing of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other

wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Important instructions for safety and environment

1.7 Technical Specifications

EN

Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 60,9 cm
Capacity (max.) 8 kg**
Net weight (plastic front door usage) 49 kg
Net weight (glass front door usage) 51 kg
Voltage	See type label***Rated power in
Model code

* Min. height: Height with adjustable feet are closed.
Max. height: Height with adjustable feet are opened maximum.
** Dry laundry weight before washing.
*** Type label is located behind the loading door.

	Technical specifications of the dryer are subject to specification without notice to improve the quality of the product.
	Figures in this manual are schematic and may not match the product exactly.
	Values stated on markers on the dryer or in the other published documentation accompanying with the dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

2 Your Dryer

2.1 Package Contents

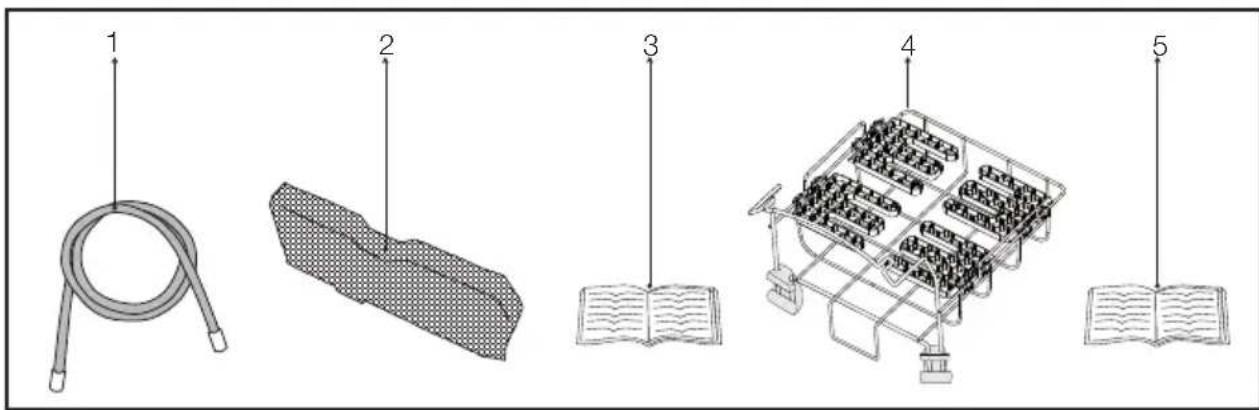

1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*

*It can be supplied with your machine depending on its model.

3 Installation

Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user's manual.(See 3.3 Connecting to the drain and 3.5 Electrical connection) If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

Preparation of the dryer's location as well as the electrical and waste water installations is under customer's responsibility.

Prior to installation, visually check if the dryer has any defects on it. If the drier is damaged, do not have it installed. Damaged products cause risks for your safety.

Let your dryer wait for 12 hours before starting to use it.

3.1 Appropriate installation location

Install the dryer on a stable and level surface.

Dryer is heavy. Do not move it by yourself.

• Operate your dryer in a well ventilated, dust-free environment.
• The gap between the dryer and the surface should not be reduced by the materials such as carpet, wood and tape.
• Do not cover the ventilation grills of the dryer.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Once the dryer is installed, it should stay at the same place where its connections have been made. When installing the dryer, make sure that its rear wall does not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from the edges of other furniture.
• Your dryer can be operated at temperatures between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the dryer will be adversely affected and it can get damaged.
• The rear surface of the tumble dryer shall be placed against a wall.

Do not place the dryer on the power cable.

3.2 Removing the transportation safety assembly

Remove the transportation safety assembly before using the dryer for the first time.

• Open the loading door.
• There is a nylon bag inside the drum that contains a piece of styrofoam. Hold it from its section marked with XX XX.
• Pull the nylon towards yourself and remove the transportation safety assembly.

Diagram of hands installing or adjusting a component inside a large circular device (no text or symbols visible)

Check that no part of the transportation safety assembly remains inside the drum.

3.3 Connecting to the drain

In products equipped with condenser unit, water accumulates in the water tank during the drying cycle. You should drain accumulated water after each drying cycle.

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Connecting the water drain hose

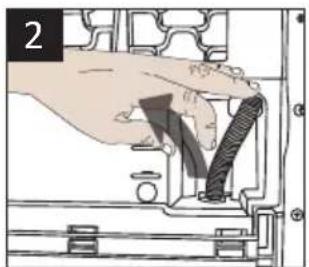

1-2 Pull hose at the behind of the dryer by hand in order to disconnect it from where it is connected. Do not use any tools to remove the hose.

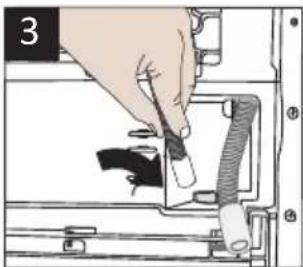

3 Connect one end of the drain hose supplied with the dryer to the connection point from where you removed the hose of the product in previous step.
4 Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

Installation

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand inserting a component into a mechanical housing (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical assembly with a coiled cable and housing (no text or symbols)

	Hose connection should be made in a safe manner. Your drain house will be flooded if the hose comes out of its housing during water discharge.
	Water drain hose should be attached to a height of maximum 80 cm.
	Make sure that the water drain hose is not stepped on and it is not folded between the drain and the machine.

3.4 Adjusting the feet

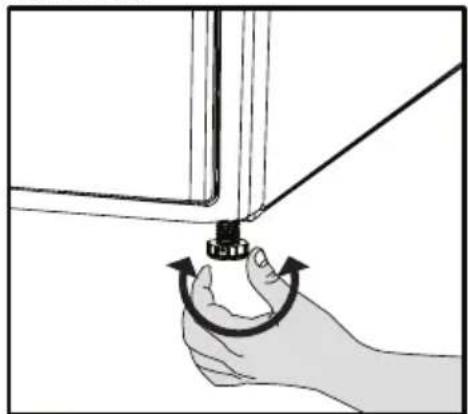

• In order to ensure that the dryer operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet.
• Turn the feet to left or right until the dryer stands level and firmly.

Illustration of a hand holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

Never unscrew the adjustable feet from their housings.

3.5 Electrical connection

For specific instructions for electrical connection required during installation (see 1.1.1 Electrical Safety)

3.6 Transportation of the dryer

Unplug the dryer before transporting it.

Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections.

We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from the front.

3.7 Warnings about sounds

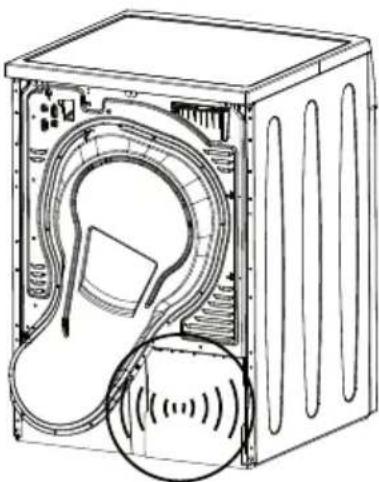

It is normal to hear a metallic noise from the compressor sometimes during operation.

Line drawing of a rectangular device with a circular opening and a magnified inset showing a waveform (no text or symbols)

Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process.

Technical line drawing of a mechanical housing with internal components and a magnified inset showing sound waves (no text or symbols)

4 Preparation

4.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

LAUNDRY DRYING SYMBOLS
	Drying Symbols	Suitable for dryer		No Iron		[SG57]Sensitive / Delicate dry		Do not dry with dryer		Do not dry
	Drying Settings	At any temperature	At high temperature	At medium temperature	At low temperature	Without heating	Hang to dry	Lay to dry	Hang wet to dry	Lay in shadow to dry	Dry-cleanable
IRON	Iron -
	Dry or Steam			Iron at high temperature		Iron at medium temperature		Iron at low temperature		Do not iron	Iron without steam
	Maximum temperature			200 °C 150		°C 110		°C

	Drying Settings		[...]
		At any temperature	At high temperature	At medium temperature	At low temperature	Without heating	Hang to dry	Lay to dry	Hang wet to dry	Lay in shadow to dry	Dry-cleanable

IRON	Iron -
	Dry or Steam	Iron at high temperature	Iron at medium temperature	Iron at low temperature	Do not iron	Iron without steam
	Maximum temperature	200 °C 150	°C 110	°C

4.2 Laundry not suitable for drying in the dryer

Delicate embroidered fabrics, woolen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.

4.3 Preparing laundry for drying

• Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
• Dry garments having metal accessories such as zippers, inside out.
• Fasten the zippers, hooks and buckles and button sheets.

4.4 Things to be done for energy saving

Following information will help you use the dryer in an ecological and energy-efficient manner.

• Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.(See 5.7 Programme selection and consumption table)
• Sort out the laundry depending on their type and thickness. Dry the same type of laundry together. For example thin kitchen towels and table clothes dries earlier than thick bathroom towels.(See 5.7 Programme selection and consumption table)
• Follow the instructions in the user manual for programme selection.
• Do not open the loading door of the machine during drying unless necessary. If you must certainly open the loading door, do not to keep it open for a long time.

Preparation

• Do not add wet laundry while the dryer is in operation
• Clean the lint filter before or after each drying cycle. (See 6. Maintenance and cleaning)
• Clean the filter drawer regularly either when the Filter Drawer Cleaning warning symbol appears or after every 5 drying cycles. (See 6. Maintenance and cleaning)
• Ventilate the room, where the dryer is located, well during drying.

4.5 Correct load capacity

Follow the instructions in the "Programme selection and consumption table". Do not load more than the capacity values stated in the table.

Diagram of a washing machine with internal tissue and ventilation system (no text or labels)

It is not recommended to load the dryer with laundry exceeding the level indicated in the figure. Drying performance will degrade when the machine is overloaded. Furthermore, dryer and the laundry can get damaged.

Following weights are given as examples.

Laundry	Approximate weights (g)*
Cotton quit covers (double) 1500
Cotton quit covers (single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 200
Cotton dresses	500
Dresses	350
Jeans	700
Handkerchiefs (10 pieces)	100
T-Shirts	125

*Dry laundry weight before washing.

5 Operating the product

5.1 Control panel

1. Programme Selection knob
2. Dryness Level Adjustment button
3. Audio Warning Level button
4. Display
5. On /Off/Cancel button
6. Start/Pause button
7. End Time button
8. Favourite button
9. Timer Programmes Selection button
10. Anti-creasing button

5.2 Display symbols

Audio warning symbol

Filter drawer cleaning warning symbol

Filter cleaning warning symbol

Water tank warning symbol

Start / Pause symbol

Smart grid symbol

Steam tank warning symbol

-SSS+ Dryness level

Child lock warning symbol End time symbol

813:813 Remaining time indicator*

Programme progress bar

*Time that appears on display indicates the remaining time until the end of the programme and changes according to the dampness level of the laundry and model of the dryer.

Operating the product

5.3 Preparing the machine

1. Plug in your machine.
2. Place the laundry in the machine.
3. Press the On/Off/Cancel button for 1 second (long).
4. When your machine is operated for the first time, it starts with the declaration programme (wardrobe dryness for cottons.)

Pressing the On/Off/Cancel button does not mean that the programme has started. Press Start / Pause button to start the program.

5.4 Programme selection

1. Decide the appropriate programme from the table below which includes drying levels.
2. Select the desired programme with the Programme Selection knob.

Extra Dry	Only the cotton laundry is dried at normal temperature. Thick and multi layered laundry (towels, linens, jeans and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.
Cupboard Dry	Normal laundry (tablecloths, underwear and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.
Iron Dry	Normal laundry (shirts, dresses and etc.) are dried ready to be ironed.

For further programme details, see "Programme selection and consumption table"..

5.5 Main programmes

Depending on the fabric type, the following main programmes are available.

- Cottons

Dry durable laundry with this programme. Dries at normal temperature. It is recommended to use for your cotton items (bed sheets, quilt covers, towels, bathrobes, etc.).

- Synthetics

Dry less durable laundry with this programme. Recommended for synthetics.

5.6 Additional programmes

For special cases, following additional programmes are available in the machine.

Additional programs may differ according to the features of your machine.

To obtain better results from your dryer, your laundry must be washed at suitable programmes and spun at the recommended spin speeds in the washing machine..

- Jeans

Use this programme to dry your jeans that are spun at high speeds in the washing machine.

- Mixed

Use this programme to dry non-pigmenting synthetic and cotton laundry items together.

- Wool Refresh

You can use this program to ventilate and soften your woolen laundry that can be washed in the washing machine. Do not use this program to dry your laundry completely. Take out your laundry and ventilate them immediately after the program is over.

- Sport

Use this programme to dry together the synthetic and cotton laundry items and the laundry items made of mixed fabrics.

- Xpress

You can use this programme to dry your cotton laundry that you have spun at high speeds in your washing machine. This programme dries 1 kg cotton laundry (3 Shirts / 3 T-shirts) in 49 minutes.

- Child care

This programme is used for baby clothes that bear machine dryable approval on its label.

• Daily

This programme is used to dry cottons and synthetics daily, and lasts for 80 minutes.

- Shirts 30 min.

Use this programme to make 2 shirts ready for ironing in 30 minutes.

There may be a little moisture on the shirts at the end of the programme. We recommend you not to leave the shirts in the dryer.

Operating the product

- Delicates

You can dry your highly delicate laundry (silk blouses, fine underwear, etc.) that are suitable for drying or laundry which is advised to be hand-washed at a lower temperature.

It is recommended to use a cloth bag to avoid certain delicate garments and laundry from getting creased or damaged. Take your laundry immediately out of the dryer and hang them after the programme ends in order to prevent them being creased.

- Freshen Up

Only ventilation is performed for 10 minutes without blowing hot air. You can air the clothes that have been kept at closed environments for a long time and deodorize unpleasant odors thanks to this programme.

- Timer programmes

You can select one of the 10 min., 20 min., 30 min., 40 min., 50 min., 60 min., 80 min., 100 min., 120 min., 140 min. and 160 min. timer programmes to achieve the desired final drying level at low temperatures.

With this programme, the machine dries for the time selected regardless of the dryness level.

5.7 Programme selection and consumption table

EN

Programs Capacity (kg)			Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Drying time (minutes)
Cottons / Coloreds
	Extra dry	8 1000 % 60	190
	Cupboard dry	8 1000 % 60	179
	Iron dry	8 1000 % 60	150
Sports 4 1000 % 60 105
Child care 3 1000 % 60 80
Shirts 30 min. 0.5 1200 % 60 30
Jeans 4 1200 % 50 120
Daily 4 1200 % 50 90
Mixed 4 1000 % 60 115
Xpress 1 1200 % 50 45
Delicates 2 600 % 40 55
Wool Refresh		1.5	600	% 50	8
Synthetics
	Cupboard dry	4 800	% 40 70
	Iron dry	4 800	% 40 55
Energy consumption values
Programs Capacity (kg)			Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cupboard dry for cottons*		8	1000	% 60	2.47
Iron dry for cottons		8 1000 % 60	2.10
Cupboard dry for synthetics		4	800	% 40	0.95
Power consumption of the off-mode for the standart cotton programme at full load, PO (W)					0.5
Power consumption of the left-on mode for the standart cotton programme at full load, PL (W)					1.0

"Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton.

* : Energy Label standard program (EN 61121:2012)

All values given in the table have been fixed according to EN 61121:2012 Standard. These values may deviate from the values in the table according to the laundry type, laundry spin speed, environmental conditions and voltage fluctuations.

Operating the product

5.8 Auxiliary functions

Audio Warning

The machine will give an audio warning when the programme comes to an end. Use the Audio Warning Level button to adjust the sound level.

You can change the sound level either before the programme starts or while the programme is in progress.

Volume level low

Volume level high

Dryness level adjustment selection

### Dryness level adjustment button is used to adjust the required dryness level. Programme duration can change depending on the selection.

You can activate this function only before the programme has started.

Drying level damp

Drying level normal

Drying level extra

Operating the product

Anti-creasing

Anti-creasing programme duration may be changed with the Anti-creasing selection button. You can use Anti-creasing function to prevent laundry from creasing if you will not take the laundry out after the program has come to an end. This programme rotates the laundry in every 240 second for selected time to prevent creasing. Following images identify the level changes.

Anti-creasing 0 minute

Anti-creasing 30 minute

Anti-creasing 60 minute

Anti-creasing 120 minute

Press Anti-creasing button to activate this function.

Anti-creasing symbol will illuminate at the end of the programme if Anti-creasing function is activated.

Favourite selection button

A programme with the set auxiliary function is saved with Favourite selection button. When the product is switched on and off, features of the saved programme is displayed by means of Favourite selection button.

1. Select the programme with the programme button; select the auxiliary functions such as Anti-creasing, Dryness Level etc.

2. Press and hold the Favourite selection button for about 3 seconds. Features of set programme will be saved.

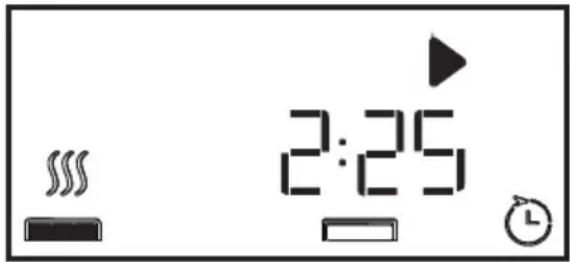

End time

With the End Time function, the end time of the programme may be delayed up to 24 hours. The time on the display is the total of normal drying time and end time.

• Open the loading door and put the laundry in.
• Select the drying program.

Press End Time button to set the desired time delay.

• Press Start/Pause button. Time Delaying starts countdown and the time delaying symbol lights up on the display. The “:” in the middle of the displayed delay time will flash.
• Additional laundry may be loaded / taken out during the End Time period. At the end of the End Time countdown process, End Time symbol disappears, drying process starts and the programme duration is displayed.

Operating the product

If loading door is opened and closed during the End Time duration, the programme will switch to pause mode. End Time function should be resumed with pressing Start/Pause button.

Changing the End time

If you want to change the time during countdown:

• End Time is deactivated when the dryer is switched off and on with On/Off/Cancel button. Restart the dryer and repeat the End Time procedure for the desired time.
• When your dryer is operated for the first time, it starts with the declaration programme (wardrobe dryness for cottons).

Canceling End time function

If you want to cancel the End Time countdown and start the programme immediately:

• End Time is deactivated when the dryer is switched off and on with On/Off/Cancel button.
• Press Start/Pause button to start the programme you have previously selected.

5.9 Warning symbols

Warning symbols may differ according to the model of your machine.

Lint filter cleaning

When the programme is completed, a warning symbol will appear continuously indicating that the filter needs to be cleaned.

For detailed information, see 6 Maintenance and cleaning.

If the filter cleaning symbol flashes continuously, see 7 Troubleshooting.

Draining the water tank

When the programme is completed, a warning symbol will appear continuously to remind that the water tank needs to be drained.

For detailed information, see 6 Maintenance and cleaning.

If the water tank becomes full while the programme is running, the warning symbol will start to flash and the dryer will pause. Drain the water in the water tank and press Start / Pause button to resume the programme. The warning symbol turns off and the programme resumes operating.

Cleaning the filter drawer

Warning symbol flashes to remind that the filter drawer needs to be cleaned.

For detailed information, see 6 Maintenance and cleaning.

Loading door open

This warning symbol Pause appears and programme progress symbol flashes when the loading door of the dryer is open.

Operating the product

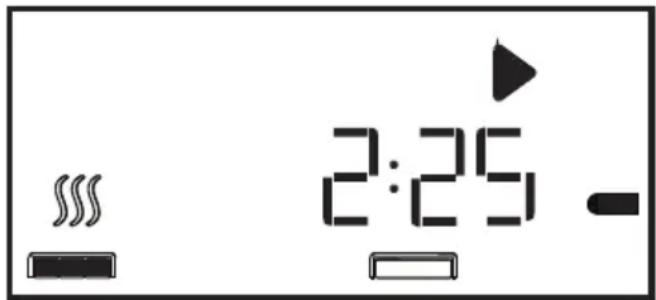

5.10 Starting the programme

Press the Start/Pause button to start the program. Start ▶ symbol will light up to indicate that the programme has started and “:” symbol in the middle of the remaining time will keep flashing. Drying and programme progress bar will be displayed alternately.

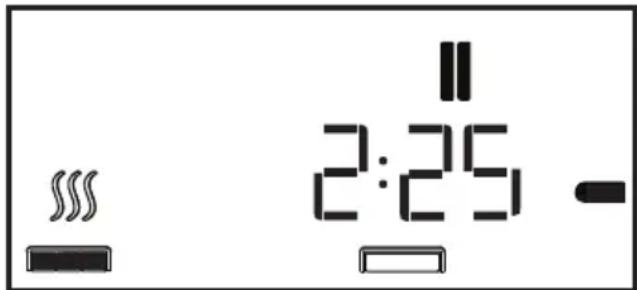

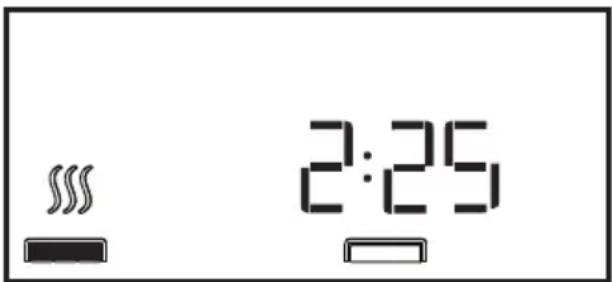

5.11. Progress of programme

5.12 Child Lock

Machine is equipped with a Child Lock which prevents interfering with the current programme flow by pressing any button.

To activate the Child Lock:

• Press and hold Childproof Lock button for 3 seconds.
• Child Lock symbol will appear on the display when the Child Lock is activated.

• All buttons except the On/Off/Cancel and Child Lock button on the control panel are deactivated when the Child Lock is active.
• Display symbols will not change even if the position of Programme Selection knob is changed while the child lock button is active.
• When the programme selection knob is turned and function buttons are pressed Child Lock warning will be displayed.
• To start a new programme after the current programme is over or to interrupt the current programme, the Child Lock should be deactivated.

To deactivate the childproof lock:

• Press and hold Child Lock button for 3 seconds.
• Child Lock is deactivated when the dryer is switched off and on with On/Off/Cancel button.

5.13 Changing the programme after it has started

• After the dryer starts operation, you can change the selected programme and dry your laundry in a different programme.
• Press and hold Start / Pause button for 1 seconds to pause the programme.
• Select desired programme by turning the Programme Selection knob.
• Press the Start/Pause button to start the program.

Adding / removing laundry while the dryer is in operation

• In order to add or take out laundry after the drying programme has started:
• Press the Start/Pause button to switch the dryer to Pause mode. Drying process will pause.
• While in Pause mode, open the loading door, add or take out laundry and close the loading door.
• Press the Start/Pause button to resume the program.

	Any laundry added after the drying process has started may cause the clothes that are already dried in the machine intermingle with wet clothes and the result will be wet laundry after the drying process is over.
	You may repeat laundry adding or removing process as many times as you desire during drying. However, this process will increase the programme time and energy consumption since the drying process will be interrupted repeatedly. Therefore, it is recommended to add laundry before the drying programme has started.

Operating the product

If you select a new programme by turning the Programme Selection knob while your drier is in Pause mode, then the current program is aborted and new programme information is displayed.

Do not touch the inner surface of the drum when adding or taking out laundry while a programme is running. Drum surface and dryer air within is hot.

5.14 Canceling the programme

To cancel the programme after the dryer is started:

• Press and hold Start / Pause button for 1 seconds to pause the programme and turn the programme selection knob.
• Press and hold On / Off / Cancel Button for 3 seconds and the programme will be cancelled.

As the dried laundry will be excessively hot when you cancel the programme while the dryer is running, activate the Refresh programme to cool them down.

5.15 End of programme

When the programme comes to an end Lint filter cleaning and Water tank warning symbols light up in the programme follow-up indicator. To turn off the dryer press On / Off / Cancel button.

2-hour Anti-creasing program will be activated if the laundry is not taken out after the program has come to an end.

Clean the lint filter after each drying. See 6.1 Cleaning lint filter and loading door inner surface.

Drain the water tank after each drying cycle. See 6.3 Draining the water tank.

6 Maintenance and cleaning

Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals.

6.1 Cleaning Lint Filter / Loading Door Inner Surface

Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter.

	Such fiber and lint are generally formed during wearing and washing.
	Always clean the lint filter and the inner surfaces of the loading door after each drying process.
	You can clean the lint filter housing with a vacuum cleaner.

To clean the lint filter:

• Open the loading door.
• Remove the lint filter by pulling it up and open the lint filter.

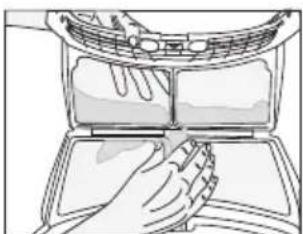

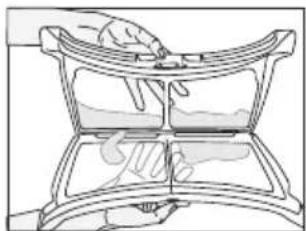

• Clean lint, fiber, and cotton raveling by hand or with a soft piece of cloth.
• Close the lint filter and place it back into its housing.

Technical diagram of a mechanical device with internal components and a red arrow indicating a specific part (no text or symbols present)

Illustration of hands holding a cylindrical object with red arrows indicating rotation or movement (no text or symbols)

Line drawing of a hand pressing down on a curved mechanical component (no text or symbols)

Illustration of hands cleaning a car air conditioner cover (no text or symbols)

- A layer can build up on the filter pores that can cause clogging of the filter after using the dryer for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before reinstalling it.

Line drawing of hands using a tool to clean or wash material inside a container (no text or symbols)

- Clean the entire inner surface of the loading door and loading door gasket with a soft damp cloth.

Line drawing of hands cleaning a circular mechanical component (no text or symbols)

Line drawing of hands cleaning a circular mechanical component (no text or symbols)

6.2 Cleaning the sensor

There are dampness sensors in the dryer that detect whether the laundry is dry or not.

To clean the sensors:

• Open the loading door of the dryer.
• Allow the machine to cool down if it is still hot due to the drying process.
• Wipe the metal surfaces of the sensor with a soft cloth, dampened with vinegar and dry them.

	Clean metal surfaces of the sensors 4 times a year.
	Do not use metal tools when cleaning metal surfaces of the sensors.

Maintenance and cleaning

Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

Line drawing of a hand inserting a small component into a circular device (no text or symbols)

6.3 Draining the water tank

Dampness of the laundry is removed and condensed during drying process and the water that arise accumulates in the water tank. Drain the water tank after each drying cycle.

Condensed water is not drinkable!

Never remove the water tank when the program is running!

If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle. To drain the water tank: Pull the drawer and remove the water tank carefully.

Line drawing of hands installing or adjusting a mechanical component with a tray (no text or symbols)

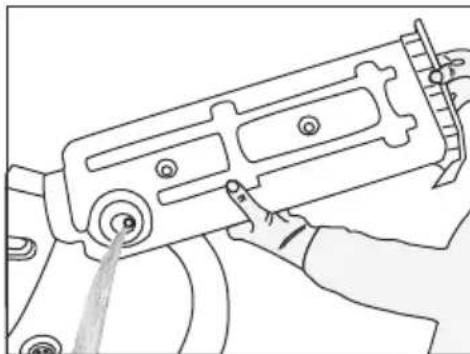

- Drain the water in the tank.

Line drawing of a hand operating a mechanical device with a tool inserted (no text or symbols)

• If there is lint accumulation in the funnel of the water tank, clean it under running water.
• Place the water tank into its seat.

If the direct water draining is used as an option, there is no need to empty the water tank.

6.4 Cleaning the filter drawer

Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Filter Drawer Cleaning warning light will light up maximum at every 5 drying cycles as a reminder. There is a two-level filter in the filter drawer. Te first level is the filter drawer sponge and the second level is the filter cloth.

To clean the filter drawer:

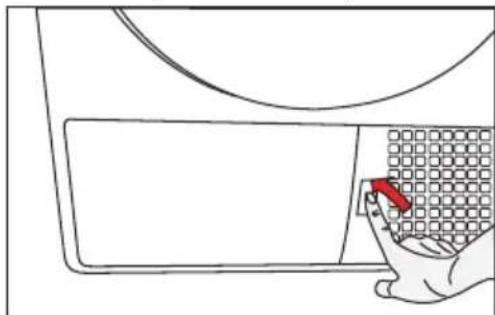

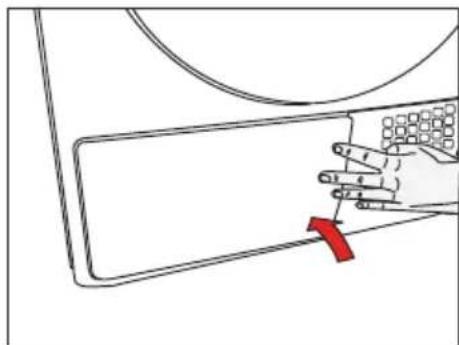

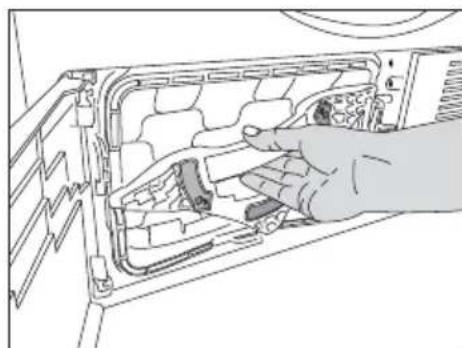

- Press the kick plate button to open the kick plate.

Line drawing of a hand holding a grid-patterned object inside a container (no text or symbols)

- Remove the filter drawer cover by turning it in the direction of arrow.

Line drawing of a hand inserting a component into a vehicle's air vent (no text or symbols)

Maintenance and cleaning

• Pull out the filter drawer.

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

- Open the filter drawer by pressing the red button.

Illustration of a hand holding a device with a scroll, showing a curved arrow indicating rotation (no text or symbols present)

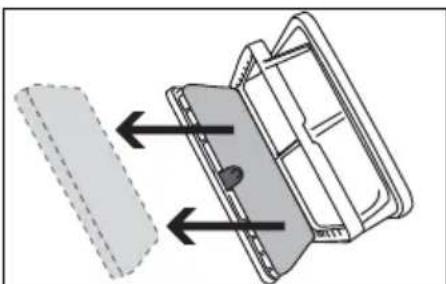

• Take out the filter drawer sponge.

Diagram showing a mechanical component with arrows indicating direction, no text or symbols present

- Clean lint, fiber, and cotton raveling on the filter cloth by hand or with a soft piece of cloth.

- When you notice a layer that may lead clogging on the filter cloth, please clean the layer by washing in warm water. Let the filter cloth dry thoroughly before installing back the filter drawer.

Line drawing of a hand holding an open notebook or folder (no text or symbols visible)

- Wash the filter drawer sponge by hand to remove the fiber and lint on the surface. After washing the sponge, squeeze it by hand and remove the excess water. Well-dry the sponge before storing it.

It is not necessary to clean the sponge if lint and fiber accumulation on it is not significant.

- Place the sponge back into its place.

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

- Close the filter drawer as to lock the red button.

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

- Place the filter drawer back into its place, turn the filter drawer cover in the arrow direction and close it securely.

Hand inserting a component into a device panel (no text or symbols visible)

Maintenance and cleaning

- Close the kick plate cover.

Illustration of a hand pressing down on a device panel with a red arrow indicating the handle (no text or symbols present)

	Drying without the filter drawer sponge in place will damage the machine!
	A dirty lint filter and filter drawer will cause longer drying periods and higher energy consumption.

6.5 Cleaning the evaporator

Clean the lint accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner.

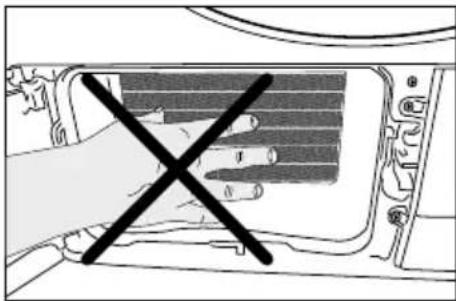

You can also clean by hand provided that you wear protective gloves. Do not attempt to clean with bare hands. Evaporator fins can harm your hand.

7 Troubleshooting

Drying process takes too much time.

• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.
• Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids.
• Ventilation is not sufficient since the room where the machine is installed is very small. >>> Open the door and window of the room to avoid the room temperature increase too much.
• Lime deposit has built up on the dampness sensor. >>> Clean the dampness sensor.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Laundry comes out wet at the end of drying.

After drying, the hot clothes feel damper than their actual dampness level.

• It is likely that the selected programme did not suit the laundry type.>>>Checking the care labels on clothes, select appropriate programme for the laundry type or use timer programmes in addition.
• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
  • Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Dryer does not switch on or the programme does not start. Dryer does not start when it is set.

• It is not plugged in. >>> Make sure that the machine is plugged in.
• The loading door is ajar. >>> Make sure that the loading door is closed securely.
• Programme is not selected or the Start / Pause / Cancel button is not pressed. >>> Make sure that the programme is selected and the machine is not in Pause mode.
• Childproof Lock is activated. >>> Deactivate the Childproof Lock.

Programme is interrupted without any cause.

• Loading door is ajar. >>> Make sure that the loading door is closed securely.
  • There was a power failure. >>> Press Start / Pause / Cancel button to start the programme.
  • Water tank is full. >>> Drain the water tank.

Laundry has shrunk, become felted or deteriorated.

- A programme suitable for the laundry type is not used. >>> Check the garment tag and select a programme suitable for the fabric type.

Drum lighting does not turn on. (On models with lamp)

• Dryer is not switched on with the On / Off button. >>> Make sure that the dryer is switched on.
• Lamp is defective. >>> Call Authorized Service Agent to have the lamp replaced.

End/Anti-creasing symbol is on.

- Anti-releasing programme is activated in order to prevent laundry that has remained in the machine from creasing. >>> Turn off the dryer and take out the laundry.

Troubleshooting

End symbol is on.

• Programme is over. Turn off the dryer and take out the laundry.

Lint Filter Cleaning symbol is on.

• Lint filter is not cleaned. >>> Clean the lint filter.

Lint Filter Cleaning symbol is flashing.

• Filter housing is clogged with lints. >>> Clean the lint filter housing.• A deposit has built up on the lint filter pores that may cause clogging. >>> Wash the lint filter with warm water.• Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.

Water leaks from the loading door

• Lint has accumulated on the inner surfaces of the loading door and on the surfaces of the loading door gasket. >>> Clean the inner surfaces of the loading door and the surfaces of the loading door gasket.

Loading door opens spontaneously.

• Loading door is ajar. >>> Push the loading door to close until you hear a locking sound.

Water Tank warning symbol is on/flashing.

• Water tank is full. >>> Drain the water tank.• Water draining hose is bent. >>> If the product is connected directly to a wastewater drain, check the water drain hose.

Filter Drawer Cleaning warning symbol is flashing.

• Filter drawer is not cleaned. >>> Clean the sponge and the filter cloth in the filter drawer.

If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.

South African Service Agents:

BLOEMFONTEIN

160 Long Street, Hilton, Bloemfontein 9301

Tel: [phone]

[e-mail]

CAPE TOWN

5A Marconi Rd. Montague Gardens, 7441

Tel: [phone]

[e-mail]

DURBAN

35 Intersite Avenue, Umgeni Business Park,

Durban, 4051

Tel: [phone]

[e-mail]

EAST LONDON

16 Bowls Rd. Arcadia, East London, 5201

Tel: [phone]

[e-mail]

JOHANNESBURG

Cnr. Mimetes & Kruger Sts. Denver ext.12

Johannesburg, 2094

Tel: [phone] or 011 621 0300

[e-mail]

POLOKWANE

87 Nelson Mandela Drive, Superbia 0699

Tel: [phone] / 7 / 8 / 9

[e-mail]

PORT ELIZABETH

112 Patterson Road, North End, Port Elizabeth 6001

Tel: [phone]

[e-mail]

PRETORIA

Block A1 Old Mutual Industrial Park,

Cnr. D.F.Malan Drive & Moot Str. Hermanstad, 0082

Tel: [phone]

[e-mail]

Sub-Saharan Africa Service Agents:

ZAMBIA: SOUTHGATE INVESTMENTS LTD

Plot 1606, Sheki Sheki Road

P.O. Box 33681

Lusaka, 10101, Zambia

Tel: [phone]

Fax: [phone]

[e-mail]

NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) LTD

10 Tienie Louw Street, Northern Industrial Area

P.O. Box 21158, Windhoek, Namibia

Tel: [phone]

Fax: [phone]

[e-mail]

ZIMBABWE: TRADECOMAFRICA

Trade Com Africa, 183 Loreley Crescent

Msasa, Harare, Zimbabwe

Tel: [phone]

Cell: [phone]

Cell: [phone]

BOTSWANA: RAY MORGAN AGENCIES

RMA Service Centre, Plot 48, East Gate

Gaborone International Commerce Park

Kgale View, Gaborone

Botswana

Tel: [phone]

Fax: [phone]

Cell: [phone]

[e-mail]; [e-mail]

SWAZILAND: LYNDS DISTRIBUTORS

P.O Box 716, Mbabane, Swaziland, H100

Tel: [phone]

Fax: [phone]

MOZAMBIQUE: COOL WORLD. LDA

This certificate is issued by DEFY APPLIANCES LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.

The Company warrants to the original purchaser that for a period of TWO YEARS from date of purchase the appliance is free from defect under normal domestic use, both in workmanship and material, subject to the following conditions.

1. Repair or replacement of any part of this appliance, found by the Company to be defective, shall be at the election of the Company. The Company reserves the right to effect such service through any of its Service Divisions or Authorised Service Dealers. The cost of such service shall be borne by the Company in full, provided that the appliance is located no further than 50km from a Company Service Centre or an Authorised Service Dealer. Where the appliance is located beyond the 50km radius, the purchaser shall be liable for the standard travelling charges, as determined by the Company.
2. Vitreous enamelware, fuses and lamps are specifically excluded from these warranties. It is an express condition of these warranties that the purchaser takes due care and attention in the use and maintenance of the appliance. Abuse, misuse in conflict with operating instructions, connection to incorrect voltages and subjection to commercial use shall release the Company from its obligations.
3. This warranty shall become void and cease to operate if the appliance is dismantled by, or any repairs to the appliance are effected by any persons not duly authorised by the Company, or if substitute parts not approved by the Company are used in the appliance, or if the serial number of the appliance is removed.
4. The Company shall not be responsible for damages resulting from fire, flood, civil disturbances or any Act of God. The Company shall not, in terms of these warranties be responsible nor held liable for any consequential loss or damage of any kind caused by or due to the failure or malfunction of the appliance.
5. The Company shall not be responsible for transportation or other costs other than those incurred within the provisions of Point 1 of this Certificate.
6. For warranties in the Republic of South Africa and Sub-Saharan Africa, please contact your nearest Defy office. Please refer to the previous page for respective South African service agents and Sub-Saharan Africa service agents.
7. Where service is requested under warranty and no fault or defect can be found by the Company, all costs incurred will be for the purchaser's account.
8. This Certificate as well as your invoice will serve as proof of purchase. For the purpose of warranty, it will be essential to produce this Certificate and invoice. Failure to do so, will render the purchaser liable for service costs.

KEEP THIS CERTIFICATE AND SALES INVOICE AS PROOF OF PURCHASE FOR WARRANTY PURPOSES.
