Product Type	Chest freezer
Model	SF-C11K
Brand	Sanyo
Power Supply	AC 220-240V, 13A dedicated socket
Temperature Control	Knob with positions 1 (weak cold) to 7 (strong cold), typical setting 5
Fast Freeze Function	Set to position 7 for 4-5 hours, then return to original setting
Indicators	Red power indicator, green compressor running indicator
Defrosting Method	Manual; recommended when frost exceeds 5mm
Cleaning Frequency	Every 30-45 days
Cleaning Agent	Neutral soap or mild detergent, no acids or solvents
Interior Material	Non-toxic, odorless ABS plastic with embossed/white coated aluminium sheet
Insulation Material	Hard polyaminoester foam (high-pressure foaming)
Cabinet Construction	Cold-rolled steel with bonderizing and electrostatic painting
Door Lock	Yes, with key
Castors	Yes, for mobility
Leveling Feet	Yes, adjustable screws on bottom
Clearance Required	10cm from back wall, 100cm above top
Installation Location	Level, dry, away from heat sources and direct sunlight
Safety Features	Do not store flammable/explosive items, avoid wet hands, ensure proper grounding
Refrigerant Sound	Water-like sound is normal
Condensation on Exterior	Normal in high humidity; no problem
Power Interruption Protection	Wait 5 minutes before restarting to protect compressor
Net Weight	Not specified

Frequently Asked Questions - SF-C11K SANYO

What should I do if the freezer is not cooling at all?

First, check if the power cord is plugged in and the socket has power. Ensure the circuit breaker is not tripped. If the power indicator lamp is off, there may be a power failure or loose connection. If all seems fine, contact a dealer.

Why is the freezer not cold enough despite running?

Possible reasons: improper installation (e.g., not level, too close to wall), temperature control knob set too low, frequent door openings, overloading with warm food, or the freezer placed in direct sunlight or near a heat source. Adjust settings and improve placement.

What causes loud noise from the freezer?

Loud noise may result from an uneven floor, the freezer vibrating against a wall, or objects behind the unit. Ensure the floor is firm and level, maintain 10cm clearance from the wall, and check for any items that may have fallen behind.

Is condensation on the outside of the freezer a problem?

No, condensation on the exterior (body, door, or gasket) is normal in high humidity, similar to a glass of cold water. Wipe it dry; it does not affect performance or food inside.

Why does the freezer make a water running sound?

That sound is the flow of refrigerant (liquid cooling the freezer). It is normal, not a malfunction.

How do I defrost the freezer?

Unplug the unit and remove all contents. Let frost melt naturally, or place a pan of hot water inside and close the door to speed up. After defrosting, drain water and dry interior with a soft cloth. Never use sharp tools to scrape frost.

How often should I clean the freezer and what products should I use?

Clean every 30-45 days. Unplug first, then use a soft cloth with neutral soapy water or mild detergent. Do not use acids, thinner, gasoline, or benzene. Rinse and dry thoroughly with a soft cloth. Never rinse with water.

What are the safety precautions for using this freezer?

Do not store flammable or explosive items (e.g., benzine, LP gas, alcohol). Avoid storing bottles or cans as they may burst. Do not touch food or metal containers with wet hands. Ensure the power cord is not damaged and the plug is fully inserted. Unplug before cleaning or long absence.

Can I store medicines or chemicals in the freezer?

No, items requiring strict temperature control (medicines, chemicals) should not be stored in a domestic chest freezer. Use only for food freezing.

What should I do if the freezer stops working or smells burning?

If abnormal smell or burning odor occurs, immediately unplug the power cord. Do not continue operation. Contact a dealer or service center for inspection. Never attempt to dismantle or repair yourself.

USER MANUAL SF-C11K SANYO

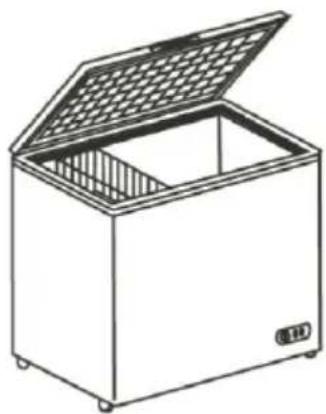

Line drawing of a closed industrial storage unit with lid open, showing internal compartments and wheels (no text or symbols)

Call Center ( Bebas Pulsa ) : 0800-1-003-003

DEPPERINDAG No.0028/1.824.51

Please check the following points when you found the chest freezer is not working properly.

The inside is not cool at all	Check if the power lamp is not on• The Power Plug is unplugged from the socket.• A power failure has happened.• A domestic fuse or a breaker has been out.
The inside is not cool enough	Has the installation properly done?Is the Temperature control in the proper position?Isn't the chest freezer in the direct sunlight?Don't you frequently open-close the foam door?Haven't you stored too much stock at one time?
Loud noise is heard	Is the floor firm enough?Is the chest freezer rattling?Is there enough space between chest freezer and the wall?Isn't there a container or something dropped behind the chest freezer?
There is condensation on outer of the chest freezer	There is a possibility to build up condensation on the body, the door or on the packing, when humidity is quite high.It is the same situation as condensation on a glass with cold water.There is no problem.
Sound like water streaming	It is not a trouble. It is the sound of refrigerant (liquid for cooling the freezer).
Outer of the chest freezer is hot	It may become hot especially in summer or the beginning of the operationIt is because pipes are equipped to prevent the interior from condensation and release the heat.It does not affect the food inside

* Check these points above firstly and if you still have any trouble. Please contact a dealer.

The following conditions are not considered as troubles of the unit:

1. The refrigerating system runs for a long time when the freezer is used for the first time or more articles are put into it.
2. Sound of running water. This is merely the sound of running refrigerants.
3. Condensation is normal when ambient humidity is high. Drops of water appear on the exterior wall of the cabinet.

To freeze is the basic work condition for the freezer. In such conditions, the knob of the thermostat should be placed to the freezing range of "1" \~ "7" (usually set at "5"). Position "1" is in "weak cold" work condition and position "7" is in "strong cold" work condition. If fast

freezing is needed for articles, the knob of the thermostat should be set to the position "7" after the articles are put into the freezer. Turn it to its original position when the articles are frozen. Do not fast-freeze for more than 4\~5 hours or it is not good for the refrigerating system.

Work condition:

A green light and red light are installed on the temperature control panel. The red light is power indicator which lights up when power is on. The green light is on when the compressor is running, or off when compressor is not running. This makes it convenient to determine if there is power or not and if the refrigerating system is working or not.

Reminders During Use

1. Do not put flammable or explosive articles, and corrosive or volatile organic solvents into the freezer So as to prevent accidents and to protect freezer cabinet from corrosion.

Never put in flammable or explosive articles, and corrosive or volatile organic solvents.

1. Temperature of the freezer should not be too high. Articles may be wrapped in a plastic. Its weight is <2kg, and piled with a 15-10mm clearance among them in order to keep convection of the air inside the cabinet and maintain excellent freezing effect.

2. Avoid putting beverage cans and containers in the freezer to prevent breakage.

3. To reduce power consumption, avoid keeping door open for a long time.

4. If the frost on the interior walls is more than 5mm, defrosting should be done.

▶ Method of defrosting

1) Unplug the unit. Take out all contents of the freezer. After the freezer temperature rises, frost will melt or scale off.
2) To speed up defrosting, place a pan of hot water into the unit and close the door. After defrosting, drain the water and then use a soft cloth to dry the interior walls. Plug unit and resume operation.

Note: Never use Sharp utensils to scrape off frosting layers.

In normal using conditions, power interruption should be avoided. Should power be interrupted accidentally, do not put power on for five minutes to avoid damages to compressor.

▶ Care & cleaning

It is suggested that the freezer be cleaned periodically; generally clean it every 30\~45 days. Unplug before cleaning, and use soft cloth with neutral soap water or mid detergent to scrub inside and outside of the cabinet. Do not use acids, chemical thinner, gasoline or benzene for cleaning any parts of the chest freezer. Dry it with a soft cloth. Never use water to rinse the freezer.

1. Pengunci Pintu
2. Keranjang

3. Kaki

4. Pintu (dengan busa)

5. Bodi (dengan busa)
6. Panel Pengontrol

Collection of abstract geometric and symbolic line drawings, including rectangles, a monitor, a sphere, and a lightning bolt (no text or symbols present)

The unit must be level

The chest freezer should be placed on a flat and level surface. Leveling can be obtained by adjusting screws on the bottom of the unit

Proper air circulation

A space of approx 10cm is recommended between the back of the freezer and the wall. Also there should be minimum 100 cm.

free space above the top. These points are necessary for good air circulation and door opening.

Avoid heat source

Do not place the freezer in direct sun light or close to source of heat such as a gas range or an electric cooker.

Avoid moisture and rain

Do not place the freezer close to the sink or wash bowl as these areas have high humidity and may cause condensation on the freezer. Also avoid the rain.

Correct electricity voltage

Make sure that the input voltage is the rated voltage which is specified in the wiring diagram to prevent possible overloading of your domestic power circuits.

To prevent voltage drop in the power going to the chest freezer, plug straight into a wall socket. Do not use any electrical appliance from the same wall socket.

General Information

The refrigerating system for this freezer is mainly composed of fully-closed refrigerating compressor and interior evaporator, properly processed with a good cooling result, it is convenient for use, quiet and saves an electricity.
The hard polyaminoester foam(made from spot high-pressured foaming)is used for the thermal insulation which results in good performance and durability.
The interior door case is non-poisonous and odorless, and formed by easy-to -clean ABS plastic. It is made of a specially treated as: a. embossed aluminium sheet, b. White coating aluminium sheet. It results in a generally good; clean-looking; and durable unit.
The cabinet and door are made of cold-rolled sheets which have been bonderized and electrostatic-painted, is consistent in thickness, corrosion-resistant, flexible and scratch-resistant.

Pemasangan

Unit harus di atur kedatarannya

1. Do not touch the machinery parts (especially a compressor and Pipes) on the back. It may risk you to get burn with heat radiation during operation if you touch them.
2. Do not put your hand(s) under the chest freezer. It may cause you injury by an iron plate underside.
3. Be sure to hold the underside firmly when carrying the chest freezer. The foam door may be detached if you carry the chest freezer by holding metal fittings or the door and it may be slipped from your hands; which may risk of injury.

Forbid

Parts Names

1. Door lock

2. Foam door

3. Basket

4. Foam body

5.Castor

1. Control panel

Your freezer may not confirm with figures illustrated due to product modifications.

1. Hold the Power Plug when you pull it out or plug in. It may damage the Power cord and can cause risk of short circuit or electric shock if you pull the cord to disconnect the power.
2. Be sure not to splash or pour water. It may cause risk of short circuit or electric shock.
3. When chest freezer operates abnormally (burning smell etc), pull out the power plug to disconnect the power and stop the operation. If it keeps operating under the abnormal condition, it can result in electric shock or catching fire.
4. Never dismantle, repair or remodel. It may cause a risk of accidental fire or a malfunction and result in personal injury.
5. Detach the door gasket from the body to prevent children from closing themselves inside the chest freezer. It avoids an accidental enclosure, in case chest freezer is kept until it is collected for recycling.

Caution

1. Never store bottles or cans. The substance freezes and the container can be broken; which cause personal injury.
2. Never store flammable items. It may cause explosion. Never store . Benzine, LP Gas, Alcohol or Adhesives.
3. Never store medicine or chemical material. Items that need strict supervision of temperature cannot be preserved in domestic chest freezer.
4. Do not install the chest freezer in very humid place where it may get wet. It may cause leakage by weakening insulation.
5. Do not touch food or (especially metallic) containers in the chest freezer by wet hand. It may risk you to get cold injury.

Metode Pengoperasian

Warnings & Cautions for Safety

1. Be sure to connect the power plug into proper AC 220-240V socket. This appliance is connecting to AC 220-240V. Improper socket may catch fire or cause an electric shock.
2. Use an over 13A socket by itself. Using the same socket with other appliances may cause heat and catch fire.
3. Wipe off dust and be sure to plug the power plug until the joints into a proper socket-outlet. Dust or loose plugging may cause heat and results in catch fire.
4. Never damage the power cord or use a damaged cord. It may catch fire or cause an electric shock if you stomp on, process, pull, twist or bend the power cord.
5. Do not press chest freezer upon the power plug. Making the power plug transform or scratch may result in causing heat and catch fire.
6. Be sure to disconnect the power plug when cleaning or changing a lightbulb inside. It may cause a risk of electric shock if you change it with the power plug on. Never connect or disconnect the power plug with wet hand; it may cause an electric shock.
7. Be sure to disconnect the Power Plug in case not using chest freezer for a long time. It prevents electric shock, leakage or fire which are caused by weakening insulation.

AC 220-240V socket

Use it's own socket

Ensure to plug until it joints

Unplug from the socket

Thank you very much for purchasing a SANYO Chest Freezer. Please read this manual carefully before using your new freezer, and keep safe for future reference.

Contents

Warnings & Cautions for Safety....1-3

Parts Names....3

General Information....4

Installation....5

Reminders During Use....6

Operation Method 7-8

Electrical Diagram....8

Trouble-shooting....9

Pemecahan Masalah

INSTRUCTION MANUAL SF-C11K

SF-C13K

Chest Freezer SF-C15K

SF-C18K

SF-C21K

SF-C22K

SF-C24K

SF-C27K

SF-C30K

Line drawing of a closed industrial storage unit with open lid and internal compartments (no text or symbols)
