Product Type	Chest Freezer
Brand	Sanyo
Model	SF-C22K
Net Capacity	22 cu. ft. (approx. 623 L)
Dimensions (W x D x H)	60.5 x 74.5 x 89.5 cm
Weight	68 kg
Power Supply	115 V / 60 Hz
Energy Consumption	Approx. 250 kWh/year
Temperature Range	0°F to -10°F (-18°C to -23°C)
Defrost Type	Manual
Shelves / Baskets	1 removable basket
Climate Class	N (16°C to 32°C)
Noise Level	40 dB(A)
Refrigerant	R-600a
Lock	Yes (with key)
Temperature Control	Mechanical dial
Interior Light	No
Wheels	No
Maintenance Tips	Clean interior with mild detergent; check door gaskets regularly; defrost when frost exceeds 1/4 inch.
Safety Notes	Keep ventilation openings clear; do not store flammable materials; unplug before cleaning.
Spare Parts Availability	Contact authorized Sanyo service centers for replacement parts.
Warranty	1 year parts and labor

Frequently Asked Questions - SF-C22K SANYO

How do I set the temperature on my Sanyo SF-C22K freezer?

The temperature is controlled by a mechanical dial located inside the freezer. Turn the dial to a higher number for colder temperatures. Typically, setting it to '4' or '5' is suitable for normal freezing needs. Refer to the user manual for more details.

Why is my freezer making unusual noises?

Freezers naturally make sounds from the compressor and refrigerant flow. However, if you hear rattling or buzzing, check if the freezer is level and not touching walls or other objects. Also, ensure the back is not blocked for proper ventilation. If noise persists, contact Sanyo service.

How often should I defrost the SF-C22K?

Defrost when frost buildup is about 1/4 inch (6 mm) thick. Depending on humidity and usage, this may be every 6 to 12 months. To defrost, unplug the freezer, remove food, and let the ice melt. Do not use sharp tools to scrape ice.

What is the capacity of this freezer?

The Sanyo SF-C22K has a net capacity of approximately 22 cubic feet, which is about 623 liters. This is sufficient for a large household or bulk storage.

How can I save energy with my freezer?

Place the freezer in a cool, well-ventilated area away from direct sunlight and heat sources. Keep the door closed as much as possible and ensure the gasket is clean and sealing properly. Also, allow hot food to cool before storing.

What should I do if the freezer is not cooling sufficiently?

Check if the temperature control is set correctly and that the door is fully closed. Ensure the condenser coils (if accessible) are clean and that there is enough clearance around the freezer for airflow. If it still doesn't cool, the refrigerant may be low; contact a professional.

Can I store the freezer in an unheated garage?

This freezer is designed for indoor use only. Operating in temperatures below 16°C (60°F) may cause the freezer to not maintain proper temperatures. In very cold conditions, food may thaw if the external temperature drops below the set point.

How do I clean the interior?

Unplug the freezer and remove all food. Use a mild detergent mixed with warm water and a soft cloth to wipe the interior. Avoid abrasive cleaners or solvents. Rinse with clean water and dry thoroughly before plugging back in.

Does the SF-C22K have a lock?

Yes, the freezer comes with a lock and key to secure the contents. Keep the key in a safe place, as losing it may require a locksmith to open.

What is the warranty period for this model?

Sanyo typically offers a 1-year warranty on parts and labor for the SF-C22K freezer. Register your product to ensure coverage. For specific terms, refer to the warranty card or contact Sanyo support.

USER MANUAL SF-C22K SANYO

Please check the following points when you found the chest freezer is not working properly.

The inside is not cool at all	Check if the power lamp is not on• The Power Plug is unplugged from the socket.• A power failure has happened.• A domestic fuse or a breaker has been out.
The inside is not cool enough	Has the installation properly done?Is the Temperature control in the proper position?Isn't the chest freezer in the direct sunlight?Don't you frequently open-close the foam door?Haven't you stored too much stock at one time?
Loud noise is heard	Is the floor firm enough?Is the chest freezer rattling?Is there enough space between chest freezer and the wall?Isn't there a container or something dropped behind the chest freezer?
There is condensation on outer of the chest freezer	There is a possibility to build up condensation on the body, the door or on the packing, when humidity is quite high.It is the same situation as condensation on a glass with cold water.There is no problem.
Sound like water streaming	It is not a trouble. It is the sound of refrigerant (liquid for cooling the freezer).
Outer of the chest freezer is hot	It may become hot especially in summer or the beginning of the operationIt is because pipes are equipped to prevent the interior from condensation and release the heat.It does not affect the food inside

* Check these points above firstly and if you still have any trouble. Please contact a dealer.

The following conditions are not considered as troubles of the unit:

1. The refrigerating system runs for a long time when the freezer is used for the first time or more articles are put into it.
2. Sound of running water. This is merely the sound of running refrigerants.
3. Condensation is normal when ambient humidity is high. Drops of water appear on the exterior wall of the cabinet.

To freeze is the basic work condition for the freezer. In such conditions, the knob of the thermostat should be placed to the freezing range of "1" \~ "7" (usually set at "5"). Position "1" is in "weak cold" work condition and position "7" is in "strong cold" work condition. If fast

freezing is needed for articles, the knob of the thermostat should be set to the position "7" after the articles are put into the freezer. Turn it to its original position when the articles are frozen. Do not fast-freeze for more than 4\~5 hours or it is not good for the refrigerating system.

Work condition:

A green light and red light are installed on the temperature control panel. The red light is power indicator which lights up when power is on. The green light is on when the compressor is running, or off when compressor is not running. This makes it convenient to determine if there is power or not and if the refrigerating system is working or not.

Reminders During Use

1. Do not put flammable or explosive articles, and corrosive or volatile organic solvents into the freezer So as to prevent accidents and to protect freezer cabinet from corrosion.

Never put in flammable or explosive articles, and corrosive or volatile organic solvents.

1. Temperature of the freezer should not be too high. Articles may be wrapped in a plastic. Its weight is <2kg, and piled with a 15-10mm clearance among them in order to keep convection of the air inside the cabinet and maintain excellent freezing effect.

2. Avoid putting beverage cans and containers in the freezer to prevent breakage.

3. To reduce power consumption, avoid keeping door open for a long time.

4. If the frost on the interior walls is more than 5mm, defrosting should be done.

▶ Method of defrosting

1) Unplug the unit. Take out all contents of the freezer. After the freezer temperature rises, frost will melt or scale off. 2) To speed up defrosting, place a pan of hot water into the unit and close the door. After defrosting, drain the water and then use a soft cloth to dry the interior walls. Plug unit and resume operation.

Note: Never use Sharp utensils to scrape off frosting layers.

In normal using conditions, power interruption should be avoided. Should power be interrupted accidentally, do not put power on for five minutes to avoid damages to compressor.

▶ Care & cleaning

It is suggested that the freezer be cleaned periodically; generally clean it every 30\~45 days. Unplug before cleaning, and use soft cloth with neutral soap water or mid detergent to scrub inside and outside of the cabinet. Do not use acids, chemical thinner, gasoline or benzene for cleaning any parts of the chest freezer. Dry it with a soft cloth. Never use water to rinse the freezer.

1. Pengunci Pintu

2. Keranjang

3. Kaki

4. Pintu (dengan busa)

5. Bodi (dengan busa)

6. Panel Pengontrol

Illustration of various electrical circuit components and symbols (no text or labels)

The unit must be level

The chest freezer should be placed on a flat and level surface. Leveling can be obtained by adjusting screws on the bottom of the unit

Proper air circulation

A space of approx 10cm is recommended between the back of the freezer and the wall. Also there should be minimum 100 cm.

free space above the top. These points are necessary for good air circulation and door opening.

Avoid heat source

Do not place the freezer in direct sun light or close to source of heat such as a gas range or an electric cooker.

Avoid moisture and rain

Do not place the freezer close to the sink or wash bowl as these areas have high humidity and may cause condensation on the freezer. Also avoid the rain.

Correct electricity voltage

Make sure that the input voltage is the rated voltage which is specified in the wiring diagram to prevent possible overloading of your domestic power circuits.

To prevent voltage drop in the power going to the chest freezer, plug straight into a wall socket. Do not use any electrical appliance from the same wall socket.

General Information

The refrigerating system for this freezer is mainly composed of fully-closed refrigerating compressor and interior evaporator, properly processed with a good cooling result, it is convenient for use, quiet and saves an electricity.
The hard polyaminoester foam(made from spot high-pressured foaming)is used for the thermal insulation which results in good performance and durability.
The interior door case is non-poisonous and odorless, and formed by easy-to -clean ABS plastic. It is made of a specially treated as: a. embossed aluminium sheet, b. White coating aluminium sheet. It results in a generally good; clean-looking; and durable unit.
The cabinet and door are made of cold-rolled sheets which have been bonderized and electrostatic-painted, is consistent in thickness, corrosion-resistant, flexible and scratch-resistant.

Pemasangan

Unit harus di atur kedatarannya

1. Do not touch the machinery parts (especially a compressor and Pipes) on the back. It may risk you to get burn with heat radiation during operation if you touch them.
2. Do not put your hand(s) under the chest freezer. It may cause you injury by an iron plate underside.
3. Be sure to hold the underside firmly when carrying the chest freezer. The foam door may be detached if you carry the chest freezer by holding metal fittings or the door and it may be slipped from your hands; which may risk of injury.

Forbid

Parts Names

1. Door lock

2. Foam door

3. Basket

4. Foam body

5.Castor

1. Control panel

Your freezer may not confirm with figures illustrated due to product modifications.

1. Hold the Power Plug when you pull it out or plug in. It may damage the Power cord and can cause risk of short circuit or electric shock if you pull the cord to disconnect the power.
2. Be sure not to splash or pour water. It may cause risk of short circuit or electric shock.
3. When chest freezer operates abnormally (burning smell etc), pull out the power plug to disconnect the power and stop the operation. If it keeps operating under the abnormal condition, it can result in electric shock or catching fire.
4. Never dismantle, repair or remodel. It may cause a risk of accidental fire or a malfunction and result in personal injury.
5. Detach the door gasket from the body to prevent children from closing themselves inside the chest freezer. It avoids an accidental enclosure, in case chest freezer is kept until it is collected for recycling.

Caution

1. Never store bottles or cans. The substance freezes and the container can be broken; which cause personal injury.
2. Never store flammable items. It may cause explosion. Never store . Benzine, LP Gas, Alcohol or Adhesives.
3. Never store medicine or chemical material. Items that need strict supervision of temperature cannot be preserved in domestic chest freezer.
4. Do not install the chest freezer in very humid place where it may get wet. It may cause leakage by weakening insulation.
5. Do not touch food or (especially metallic) containers in the chest freezer by wet hand. It may risk you to get cold injury.

Metode Pengoperasian

Warnings & Cautions for Safety

1. Be sure to connect the power plug into proper AC 220-240V socket. This appliance is connecting to AC 220-240V. Improper socket may catch fire or cause an electric shock.
2. Use an over 13A socket by itself. Using the same socket with other appliances may cause heat and catch fire.
3. Wipe off dust and be sure to plug the power plug until the joints into a proper socket-outlet. Dust or loose plugging may cause heat and results in catch fire.
4. Never damage the power cord or use a damaged cord. It may catch fire or cause an electric shock if you stomp on, process, pull, twist or bend the power cord.
5. Do not press chest freezer upon the power plug. Making the power plug transform or scratch may result in causing heat and catch fire.
6. Be sure to disconnect the power plug when cleaning or changing a lightbulb inside. It may cause a risk of electric shock if you change it with the power plug on. Never connect or disconnect the power plug with wet hand; it may cause an electric shock.
7. Be sure to disconnect the Power Plug in case not using chest freezer for a long time. It prevents electric shock, leakage or fire which are caused by weakening insulation.

AC 220-240V socket

Use it's own socket

Ensure to plug until it joints

Unplug from the socket

Thank you very much for purchasing a SANYO Chest Freezer. Please read this manual carefully before using your new freezer, and keep safe for future reference.

Contents

Warnings & Cautions for Safety....1-3

Parts Names....3

General Information....4

Installation....5

Reminders During Use....6

Operation Method 7-8

Electrical Diagram....8

Trouble-shooting....9

Pemecahan Masalah

INSTRUCTION MANUAL SF-C11K

SF-C13K

Chest Freezer SF-C15K

SF-C18K

SF-C21K

SF-C22K

SF-C24K

SF-C27K

SF-C30K

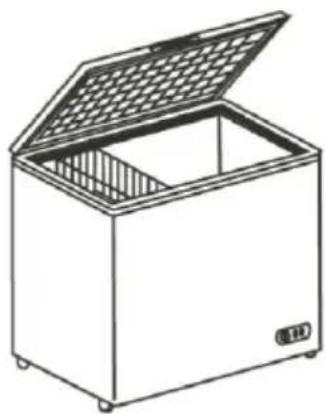

Line drawing of a closed industrial storage unit with open lid and internal compartments (no text or symbols)

Call Center ( Bebas Pulsa ) : 0800-1-003-003
