P1-653 - Car speaker Crunch - Free user manual and instructions

Brand	Crunch
Model	P1-653
Product Type	Car Speaker
Speaker Size	6.5 inches (165 mm)
Speaker Type	2-Way Coaxial
Impedance	4 ohms
Power Handling (RMS)	60 Watts
Power Handling (Peak)	240 Watts
Frequency Response	40 Hz - 20 kHz
Sensitivity	90 dB
Cone Material	Polypropylene
Surround Material	Rubber
Tweeter Type	Piezo or Soft Dome
Mounting Depth	2.2 inches (56 mm)
Cutout Diameter	5.6 inches (142 mm)
Weight per Speaker	1.1 lbs (0.5 kg)
Recommended Amplifier Power	20-100 Watts RMS per channel
Installation	Replacement or new installation in vehicle
Cleaning Instructions	Wipe with a dry, soft cloth; avoid water
Safety Warning	Do not expose to moisture; ensure secure mounting
Parts Included	Speakers, mounting screws, wire connector
Repairability	Not user-serviceable; replace if damaged

Frequently Asked Questions - P1-653 Crunch

What is the size of the Crunch P1-653 speaker?

The speaker is 6.5 inches (165 mm) in diameter, a standard size for most car speaker upgrades.

What is the power handling of this speaker?

The RMS power handling is 60 watts per speaker, with a peak of 240 watts. It works best with an amplifier delivering 20-100 watts RMS per channel.

Is the Crunch P1-653 compatible with my car?

It fits any car with 6.5-inch speaker cutouts. Check the mounting depth (2.2 inches) and cutout diameter (5.6 inches) for compatibility.

How do I wire the Crunch P1-653 speaker?

Connect the positive terminal to the amplifier's positive output and the negative to the negative output. Use the included wire connector for a secure fit.

Can I use these speakers without an amplifier?

Yes, but the speaker's performance will be limited. An amplifier is recommended to achieve the best sound quality and volume.

What type of sound does the P1-653 produce?

It delivers full-range audio with clear highs from the tweeter and punchy bass from the 6.5-inch woofer. Suitable for various music genres.

How do I maintain or clean the speakers?

Wipe the speaker cone and grille with a dry, soft cloth. Do not use water or cleaning agents as they may damage the components.

Are the speakers weather-resistant?

No, they are designed for interior use only. Avoid exposure to moisture, rain, or extreme temperatures.

What is the warranty on Crunch P1-653 speakers?

Crunch typically offers a 1-year limited warranty against defects. Keep your receipt and contact the seller for warranty claims.

Can I replace the tweeter or woofer separately?

No, the speakers are sealed units. If one part fails, the entire speaker must be replaced.

USER MANUAL P1-653 Crunch

Congratulations on your purchase of the new Power One Series speaker system. The Power One speaker series offer superior sonic accuracy, intense high power sound quality with exotic build materials and outstanding good looks.

• Impact Resistant Tweeter Elements
• Neo Mylar Soft Dome Tweeter
  ● Installation hardware Included
  • Silver Alpha-Cellulose Cones
• Spade Speaker Terminals
• Moisture Resistant Rubber Surround
  ● High Mid-Bass Impact
  ● Anti-Resonant Stamped Steel Basket
• Wide Nominal Power Range

As with all high quality car audio products, we recommend professional installation by an authorized Crunch dealer.

Your dealers knowledge and experience can ensure a problem free and cosmetically integrated installation.

If you choose to install the speakers yourself, please read the entire manual very carefully.

SPEAKER LOCATION AND MOUNTING TIPS

THE FIRST STEP IS THOROUGH PLANNING BEFORE THE INSTALLATION BEGINS.

THE SPEAKER SCREW HOLE CONFIGURATION WILL WORK WITH MOST DOMESTIC AND FOREIGN VEHICLES.

FOLLOW THESE INSTRUCTIONS CAREFULLY TO ENSURE PROPER IMAGING AND MAXXIMUM PERFORMANCE.

Factory Speaker Replacement Location and Installation

1. Before you alter the vehicles interior materials, be sure there is adequate room and clearance for the speaker depth to clear the windows and other moving parts. (See speaker measurement page).

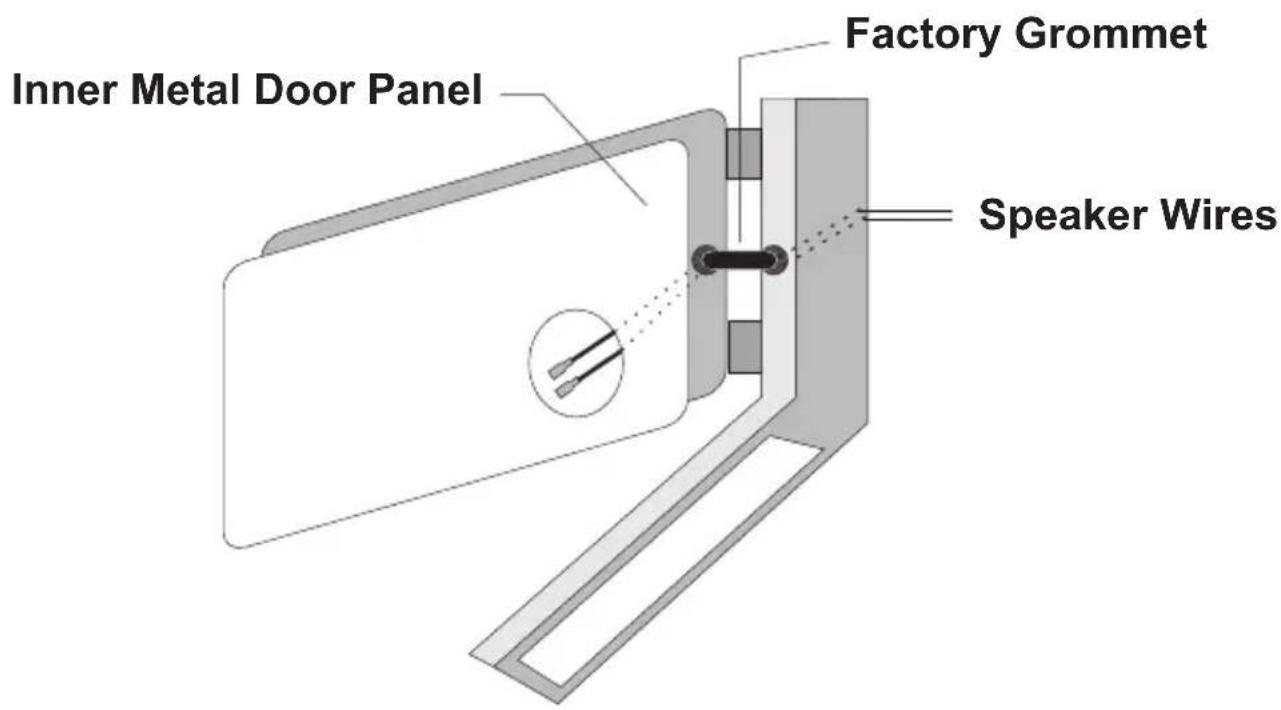

2. If you are using the speaker wires provided in this kit, be sure to route wires through the factory door grommet as shown in the speaker mounting diagram.
3. After securing the speaker and checking clearances, connect the red/black speaker audio wires to the correct speaker + and - spade terminals.

Custom Speaker Location and Installation

1. Follow steps 1-3 above.
2. Use the speaker mounting diagrams and speaker hole cut-out dimensions on the following pages.
3. Always mount the left and right side speakers on the same plane. This means that each speaker should be the same height from the floor and same distance from the firewall. Do not mount one speaker higher, lower, further forward or further behind the other.

COAX & 3-WAY MOUNTING & WIRING PROCEDURES

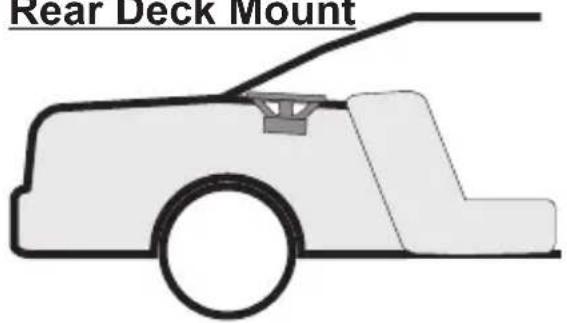

Rear Deck Mount

Door Mount

Wire Connections

COMPONENT MOUNTING PROCEDURES

Door Mount

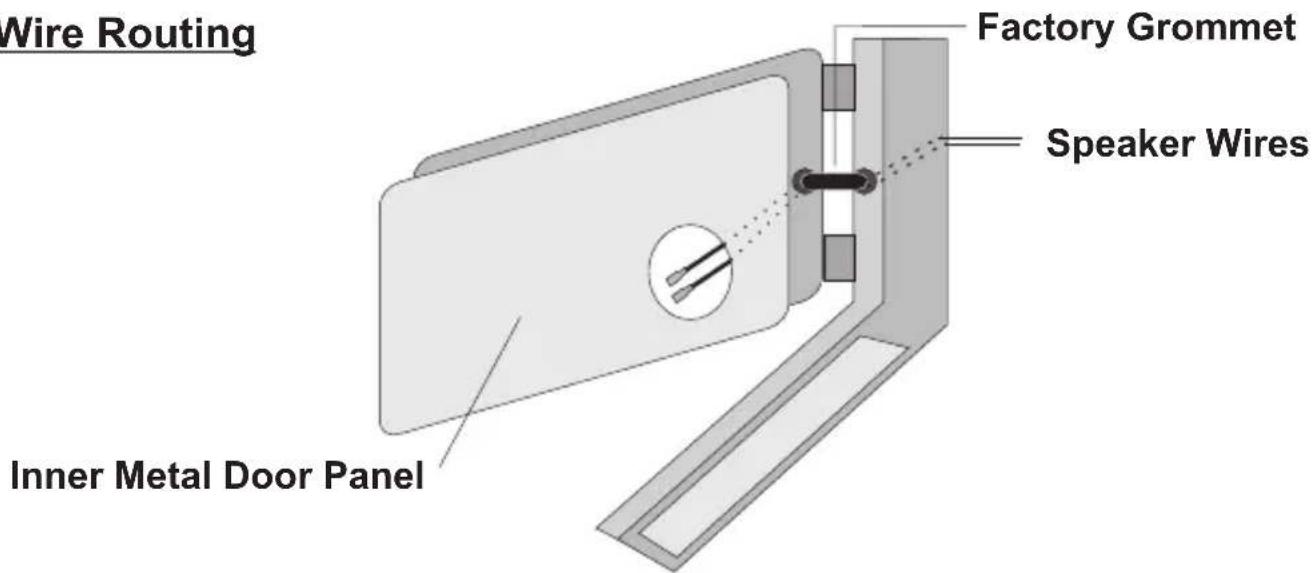

Wire Routing

SPEAKER DIMENSIONS

P1-653 & P1-6.5C

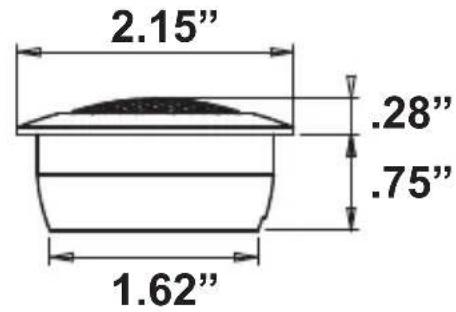

P1-6.5C TWEETER

P1-693

P1-693

CRUNCH
POWER ONE SERIES
SPEAKER SPECIFICATIONS

SPECIFICATIONS	P1-6.5C	P1-653	P1-693
SIZE / TYPE	6.5” Component	6.5” 3-Way	6 x 9” 3-Way
IMPEDANCE	4-Ohms	4-Ohms	4-Ohms
FREQ. RESPONSE	59Hz-20KHz	59Hz-20KHz	46Hz-20KHz
SENSITIVITY / SPL	90dB	89dB	89dB
MOUNTING DEPTH	2.13”	2.13”	3.35”
POWER HANDLING	800 W	800 W	1000 W
RMS POWER	55 W	55 W	70 W

NOTICE: All features subject to change with out notice.

Maxxsonics Limited Warranty

As the manufacturer of Maxxsonics, Autotek, MB Quart, Crunch and Hifonics car audio products, Maxxsonics USA Inc. Warrants to the original consumer purchaser the amplifier to be free from defects in material and workmanship for one (1) Year from date of purchase.

All other parts and accessories of the system are warranted to be free from defects in material and workmanship for one (1) year from date of purchase. Maxxsonics will repair or replace at its option and free of charge during the warranty period, any system component that proves defective in materials and workmanship under normal installation, use and service provided that the product is returned to the authorized Maxxsonics dealer from where it was purchased. A photo copy of the original receipt must accompany the product being returned.

Valid purchase receipts will contain the name and address of the authorized reseller.

Any damage to the product as a result of misuse, abuse, accident, incorrect wiring, improper installation, alteration of date code or bar code labels, revolution, natural disaster, or any sneaky stuff because someone messed up, repair or alteration out side of our factory or authorized service centers and any thing else you have done that you should not have done is not covered.

This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. This warranty is not to be construed as an insurance policy.

Warranty on installation labor, removal, re-installation and freight charges are not the responsibility of Maxxsonics USA Inc.

Warranty products damaged as a result of insufficient or improper packing materials are not covered by this limited warranty and such damaged product will be returned “as is” at the expense of the owner.

MAXXSONICS

Designed and Engineered In the USA

www.maxxsonics.com

Be sure to check us out at www.youtube.com/maxxsonicsusainc

for product reviews and tutorials for getting the most out of your audio system.
