Product Type	Component Car Speaker System
Brand	Crunch
Model	GRP5.2C
Woofer Size	5.25 inches (133 mm)
Tweeter Size	1 inch (25 mm) soft dome
Power Handling (RMS)	60 Watts
Power Handling (Peak)	120 Watts
Impedance	4 Ohms
Frequency Response	65 Hz - 20 kHz
Sensitivity	90 dB @ 1W/1m
Mounting Depth	2.25 inches (57 mm)
Cutout Diameter	4.6 inches (117 mm)
Voice Coil	1 inch (25 mm) high temperature aluminum
Crossover Type	External passive crossover with 12 dB/octave slope
Magnet Type	Strontium
Material	Polypropylene cone with rubber surround
Weight (per speaker)	1.2 lbs (0.54 kg)
Included Accessories	Pair of woofers, tweeters, crossovers, mounting hardware
Maintenance	Wipe with dry cloth; avoid moisture and harsh chemicals
Safety	Do not exceed rated power; ensure proper polarity and secure mounting

Frequently Asked Questions - GRP5.2C Crunch

What is the power handling of the Crunch GRP5.2C speakers?

The Crunch GRP5.2C speakers handle 60 Watts RMS and 120 Watts peak power.

What is the impedance of the GRP5.2C?

The speakers have an impedance of 4 Ohms, compatible with most car amplifiers.

Are the GRP5.2C speakers a component or coaxial type?

They are a component system with separate woofer, tweeter, and external crossover.

What are the mounting dimensions for the GRP5.2C woofer?

The woofer requires a cutout diameter of 4.6 inches (117 mm) and a mounting depth of 2.25 inches (57 mm).

Does the Crunch GRP5.2C come with a crossover?

Yes, it includes an external passive crossover with a 12 dB/octave slope for optimal sound separation.

Can I install the GRP5.2C in a 5.25-inch factory location?

Yes, they are designed as a direct replacement for standard 5.25-inch speakers, but check depth and cutout fitment.

What type of tweeter is used in the GRP5.2C?

The system features a 1-inch soft dome tweeter for smooth high-frequency reproduction.

How should I clean the GRP5.2C speakers?

Clean with a soft dry cloth. Avoid water, solvents, or abrasive cleaners to prevent damage.

What is the frequency response of the GRP5.2C?

The frequency response ranges from 65 Hz to 20 kHz, covering bass to high treble.

Is a warranty provided with the Crunch GRP5.2C?

Crunch offers a 1-year warranty against manufacturing defects. Keep your purchase receipt.

USER MANUAL GRP5.2C Crunch

GRP52CX / GRP62CX / GRP693

GRP5.2C / GRP6.5C

Congratulations on your purchase of the new Crunch GRP Ground Pounder Series speaker system. The GRP speaker series offer superior sonic accuracy, intense high power sound quality with exotic build materials and outstanding good looks.

• Impact Resistant Tweeter Elements
• Neo Mylar Soft Dome Tweeter
  ● Installation hardware Included
  ● External 12dB Passive In-Line Crossover
• Raised T-Yoke
  • Silver Alpha-Cellulose Cones
  ● Tight-Fit Insert Speaker Terminals
  ● Moisture Resistant Rubber Surround
  ● High Mid-Bass Impact
  ● Anti-Resonant Stamped Steel Basket
• Wide Nominal Power Range

As with all high quality car audio products, we recommend professional installation by an authorised Crunch dealer.

Your dealers knowledge and experience can ensure a problem free and cosmetically integrated installation.

If you choose to install the speakers yourself, please read the entire manual very carefully.

SPEAKER LOCATION AND MOUNTING TIPS

THE FIRST STEP IS THOROUGH PLANNING BEFORE THE INSTALLATION BEGINS.

THE SPEAKER SCREW HOLE CONFIGURATION WILL WORK WITH MOST DOMESTIC AND FOREIGN VEHICLES.

FOLLOW THESE INSTRUCTIONS CAREFULLY TO ENSURE PROPER IMAGING AND MAXXIMUM PERFORMANCE.

Factory Speaker Replacement Location and Installation

1. Before you alter the vehicles interior materials, be sure there is adequate room and clearance for the speaker depth to clear the windows and other moving parts. (See speaker measurement page).
2. If you are using the speaker wires provided in this kit, be sure to route wires through the factory door grommet as shown in the speaker mounting diagram.
3. After securing the speaker and checking clearances, connect the red/black speaker audio wires to the correct speaker + and - spade terminals.

Custom Speaker Location and Installation

1. Follow steps 1-5 above.
2. Use the speaker mounting diagrams and speaker hole cut-out dimensions on the following pages.
3. Always mount the left and right side speakers on the same plane. This means that each speaker should be the same height from the floor and same distance from the firewall. Do not mount one speaker higher, lower, further forward or further behind the other.
4. It is always best to keep the tweeter (component speakers) as close to the mid range driver as possible. Typically with-in 12".

The tweeters tend to sound best when aimed towards the rear center of the vehicle.

COMPONENT MOUNTING & WIRING PROCEDURES

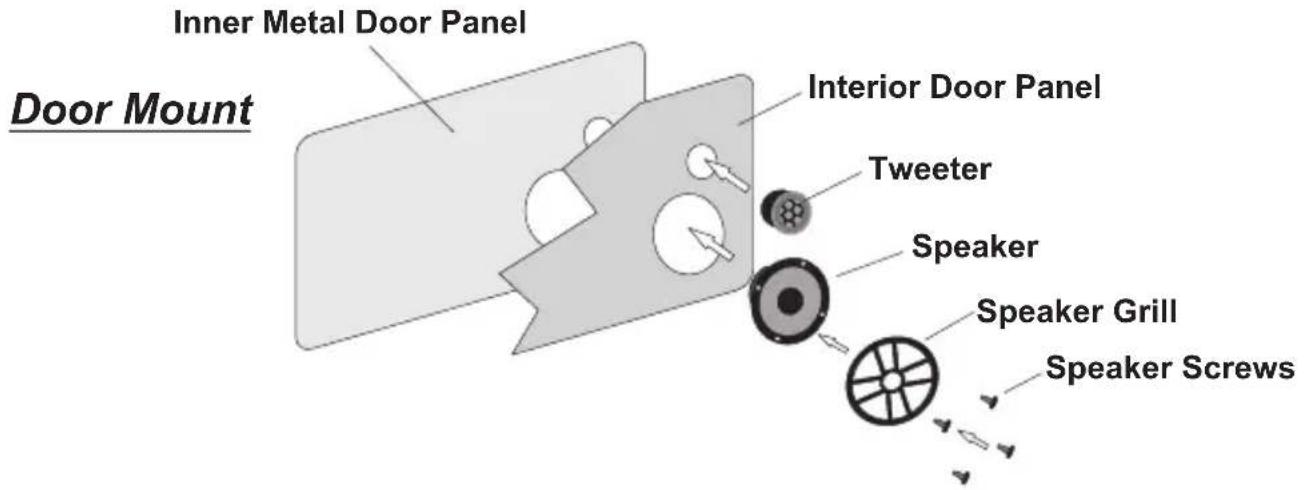

Inner Metal Door Panel Door Mount Interior Door Panel Tweeter Speaker Speaker Grill Speaker Screws

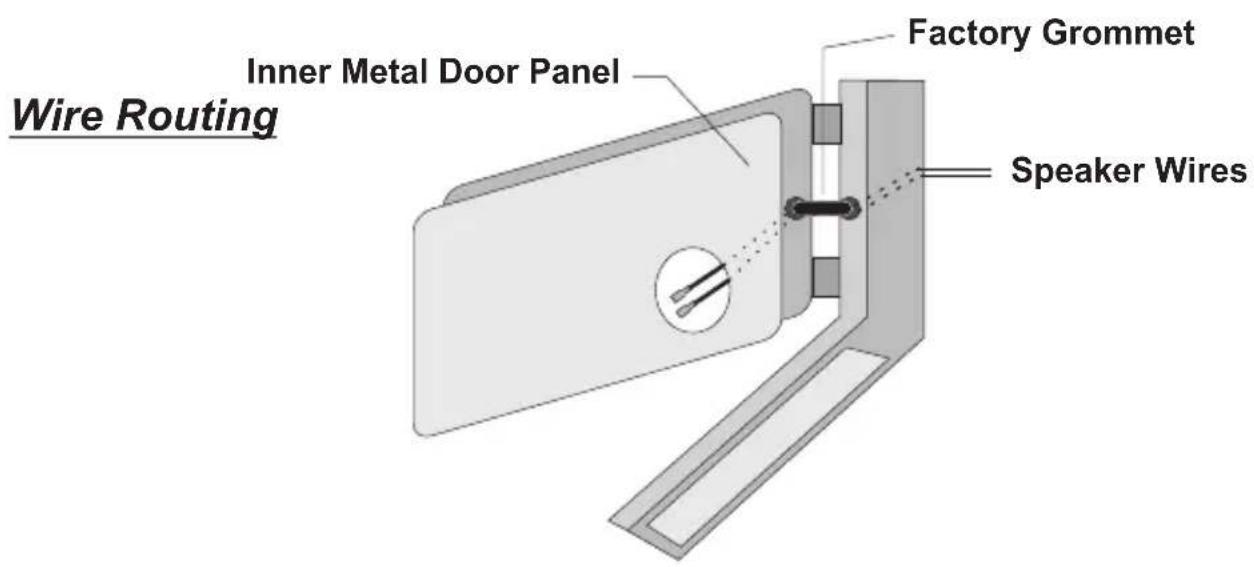

Wire Routing Inner Metal Door Panel Factory Grommet Speaker Wires

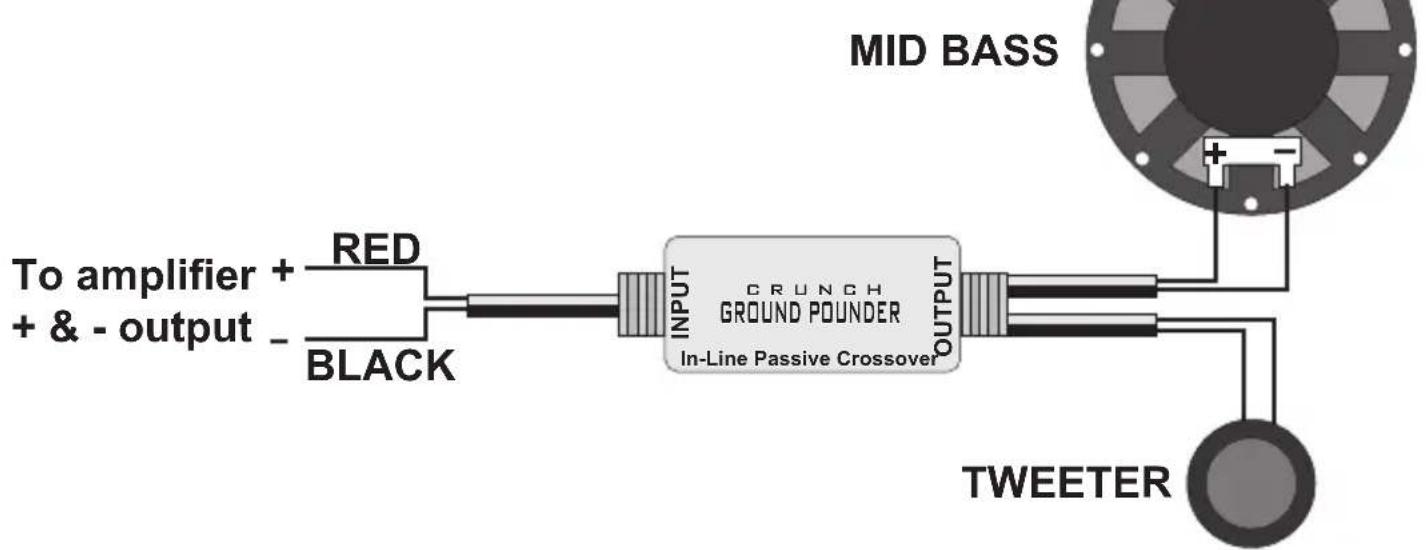

Wire Connections


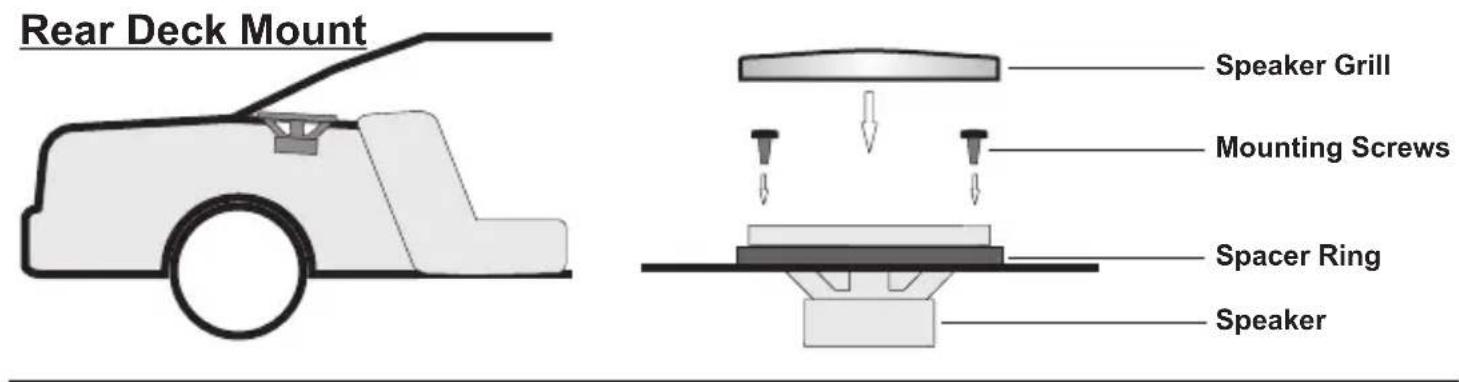

COAX & 3-WAY MOUNTING & WIRING PROCEDURES

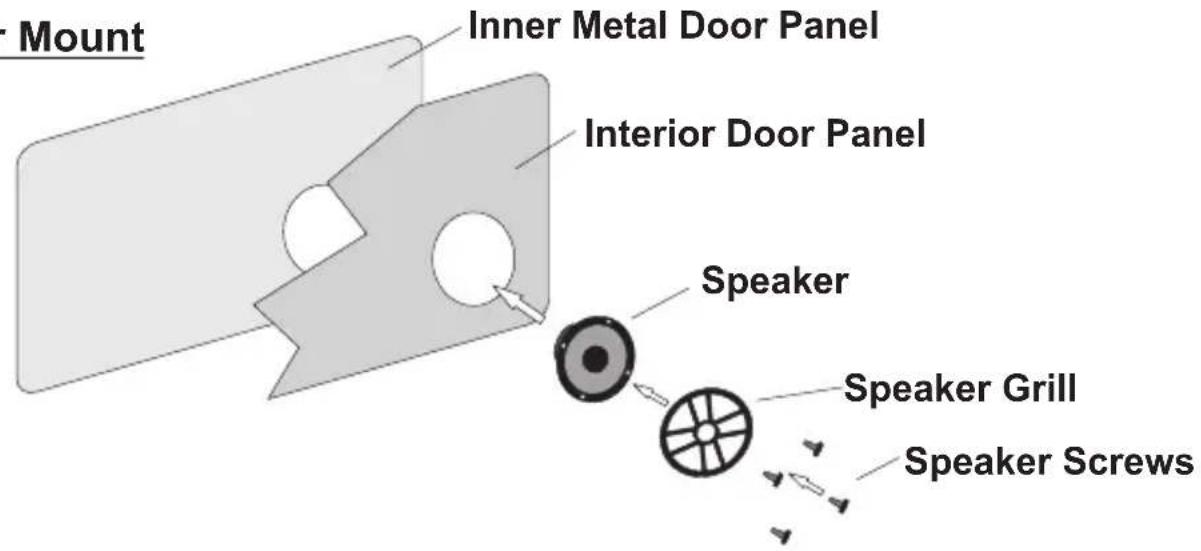

Door Mount

Mount Inner Metal Door Panel Interior Door Panel Speaker Speaker Grill Speaker Screws

Wire Routing

connections Amplifier + Red Black

SPEAKER DIMENSIONS

GRP5.2C / GRP6.2C Tweeter

.47" 1.79"

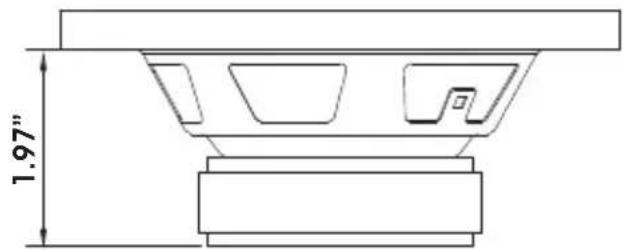

GRP52CX / GRP5.2C

1.97"

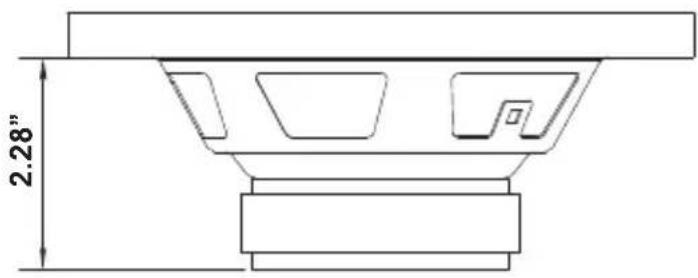

GRP62CX / GRP6.5C

2.28"

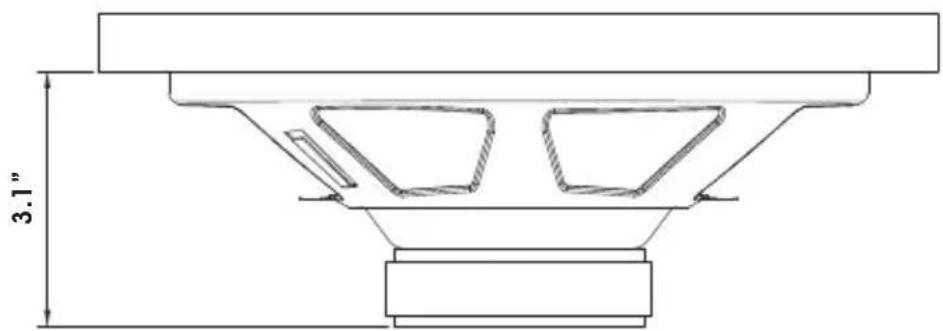

GRP693

3.1"

CRUNCH GRP FULL RANGE SPEAKER SPECIFICATIONS

SPECIFICATIONS	GRP52CX	GRP62CX	GRP693	GRP5.2C	GRP6.5C
SIZE / TYPE	5.25” Coax	6.5” Coax	6 x 9” 3-Way	5.25” Component	6.5” Component
IMPEDANCE	4-Ohms	4-Ohms	4-Ohms	4-Ohms	4-Ohms
FREQ. RESPONSE	64Hz-20kHz	58Hz-20kHz	46Hz-20kHz	64Hz-21kHz	59Hz-21kHz
SENSITIVITY / SPL	88dB	89dB	89dB	89dB	89dB
MOUNTING DEPTH	1.97”/ 50mm	2.28”/ 58mm	3.09”/ 78.5mm	1.97”/ 50mm	2.28”/ 58mm
NOMINAL POWER	2 to 50W	2 to 60W	2 to 80W	2 to 50W	2 to 60W

NOTICE: All features subject to change with out notice.

Maxxsonics Limited Warranty

As the manufacturer of Maxxsonics, Autotek, MB Quart, Crunch and Hifonics car audio products, Maxxsonics USA Inc. Warrants to the original consumer purchaser the amplifier to be free from defects in material and workmanship for one (1) Year from date of purchase.

All other parts and accessories of the system are warranted to be free from defects in material and workmanship for one (1) year from date of purchase. Maxxsonics will repair or replace at its option and free of charge during the warranty period, any system component that proves defective in materials and workmanship under normal installation, use and service provided that the product is returned to the authorized Maxxsonics dealer from where it was purchased. A photo copy of the original receipt must accompany the product being returned.

Valid purchase receipts will contain the name and address of the authorized reseller.

Any damage to the product as a result of misuse, abuse, accident, incorrect wiring, improper installation, alteration of date code or bar code labels, revolution, natural disaster, or any sneaky stuff because someone messed up, repair or alteration out side of our factory or authorized service centers and any thing else you have done that you should not have done is not covered.

This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. This warranty is not to be construed as an insurance policy.

Warranty on installation labor, removal, re-installation and freight charges are not the responsibility of Maxxsonics USA Inc.

Warranty products damaged as a result of insufficient or improper packing materials are not covered by this limited warranty and such damaged product will be returned “as is” at the expense of the owner.

MAXXSONICS

Designed and Engineered In the USA

www.maxxsonics.com
