Product Type	2WD RC Electric Monster Car
Scale	1:10 (approx.)
Dimensions (approx.)	400 x 300 x 200 mm
Weight (approx.)	1.5 kg
Battery (vehicle)	9.6V 800mAh Ni-MH rechargeable
Charging Time	150 minutes
Charger	220V to 9.6V, included
Transmitter Power	2.4GHz, 4x AA batteries (not included)
Drive Type	2WD (rear wheel drive)
Steering	Servo-controlled front wheels
Speed Control	Electronic speed control with forward, brake, and reverse
Functions	Forward, brake, left, right, backward
Recommended Age	8 years and above (with adult supervision)
Maintenance	Remove batteries when not in use; clean with soft cloth; avoid heat sources
Safety Warnings	Do not use on public roads; keep away from water; battery must be charged by adult only
Spare Parts Available	Body, bumpers, arms, chassis, wheels, shock absorbers, steering, transmitter, transmission, screws, motor, battery, charger, receiver
Brand	NINCO DESARROLLOS S.L.
Model Number	NNH93085

Frequently Asked Questions - Parkracer NNH93085 NINCO

How long does it take to charge the battery?

The battery takes approximately 150 minutes to fully charge. Only use the included charger and allow the battery to cool before recharging.

What type of battery does the transmitter use?

The transmitter requires 4 AA batteries (not included). Alkaline batteries are recommended. Do not mix old and new batteries or different types.

What is the operating range?

The operating range is approximately 50-100 meters in open area, depending on interference. The 2.4GHz frequency helps reduce signal interference.

Can I use other batteries or chargers?

No, only use the original 9.6V 800mAh battery and the included charger. Using incompatible equipment may damage the vehicle or cause fire.

Is it suitable for children?

This is a sophisticated hobby product and not a toy. It is intended for ages 8 and above with direct adult supervision. Children under 8 should not operate it.

How do I turn on the car?

First, turn on the transmitter. Then, flip the switch on the car to ON. The LED on the car should light up. Reverse order to turn off.

Why does the car not respond?

Check that both the transmitter and car have charged batteries and are turned on. Ensure the frequency is not conflicting (2.4GHz is auto-pairing). Also check the battery polarity and connections.

Can I buy spare parts?

Yes, spare parts are available under the RAIDER series part numbers (e.g., NH94896 for body, NH94904 for transmitter). See the manual for a complete list.

How to maintain the car?

After use, remove the battery from the car and transmitter. Clean the car with a soft cloth. Store in a cool, dry place away from direct sunlight. Charge the battery every 6 months if not in use.

What should I do if the car runs slower over time?

This usually indicates a low or aging battery. Recharge the battery fully. If the problem persists, replace the battery with a new original 9.6V 800mAh battery.

USER MANUAL Parkracer NNH93085 NINCO

Black and white NINCO sports vehicle with visible branding and tires, no readable text or symbols beyond branding elements.

1/12 2WD RC ELECTRIC MONSTER CAR

MANUAL DEL USUARIO

USER HANDBOOK

MANUAL DO USUARIO

HANDBUCH

MANUEL DE L'UTILISATEUR

MANUALE D'USO

CONTENIDO - CONTENT - CONTEÚDO - INHALT - CONTENU - CONTENUTO

IMPORTANTE - IMPORTANT - IMPORTANTE - WICHTIG - IMPORTANT - IMPORTANTE

Please read carefully the instructions before using the car.

Always use fresh batteries to avoid losing control of the model.

Make sure that no one else is using the same radio frequency as you are using.

Check the neutral throttle trigger position.

Do not run on a public street.

This could cause serious accidents, personal injuries and/or property damages.

Simple line drawing of an electrical outlet connected to a power plug (no text or symbols)

②

150 min.

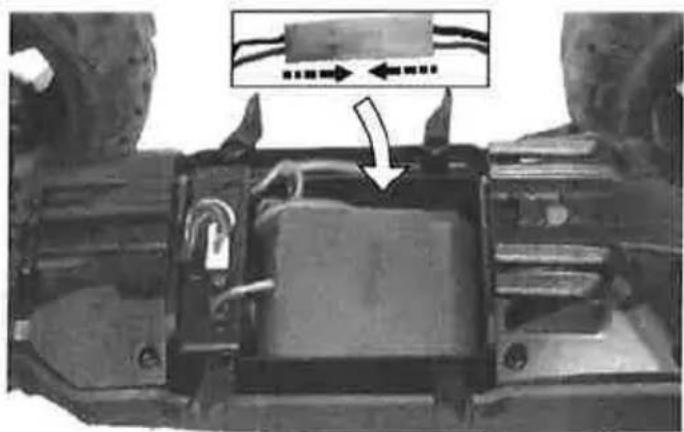

-Open the bottom cover of the car, remove the battery.
-Connect the charger and connect the battery for 150 min.
-Replace the battery and cover.
-To recharge the battery wait until it will be cool.

Mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Close-up of a mechanical component with two white triangular markers pointing to features, no visible text or symbols.

Close-up of a mechanical component with a highlighted internal structure and an inset showing wiring (no text or symbols visible)

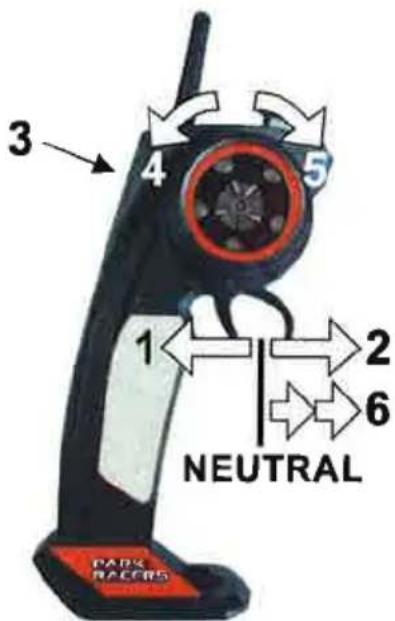

CÓMO JUGAR - HOW TO PLAY - COMO JOGAR - WIE SPIELEN - COMMENT JOUER - COME GIOCARE

TRIM

Close-up of a mechanical component with a circular dial and directional arrows indicating rotation or movement (no text or symbols)

ESP

1. Avance
2. Freno
3. Led&interruptor (ON/OFF)
4. Izquierda
5. Derecha
6. Marcha atrás

PT

1. Forward
2. Brake
3. Led&switch (ON/OFF)
4. Left
5. Right
6. Backward

DE

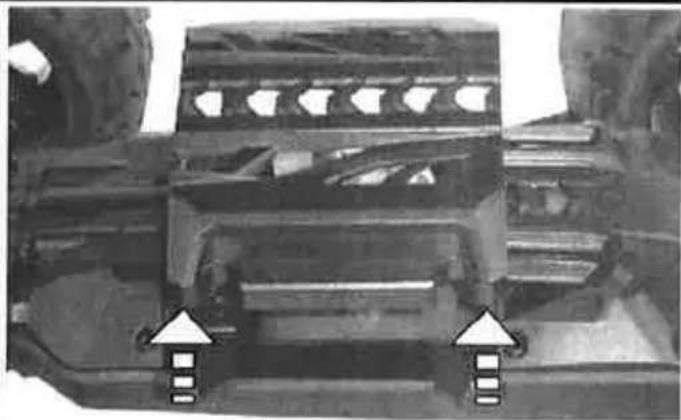

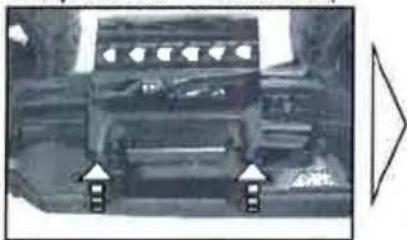

Lift up the cover - Levantar la tapa

Exterior view of a mechanical or architectural component with two directional arrows pointing to features (no visible text or symbols)

Close-up of a device's internal components with a cable inserted, labeled 'ON' (no readable text or symbols beyond the label)

RECAMBIOS · SPARE PARTS · PEÇAS DE REPOSIÇÃO · ERSATZTEILE · PIÈCES DÊTACHÉES · PEZZI DI RICAMBIO

Two stylized racing car frames with visible branding and red accents (no text or symbols)

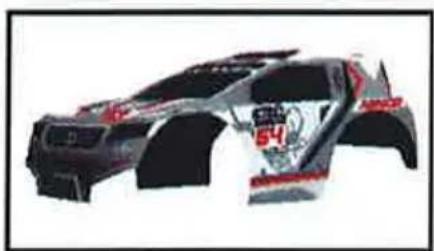

NH94896

CARROCERÍA (RAIDER) / BODY (RAIDER) BODYSHELL (X1)

Two abstract black-and-white shapes resembling architectural or mechanical components (no text or symbols)

NH94897

SOPORTE DEL/TRAS CARROCERÍA (RAIDER) / FRONT/REAR BODY MOUNT (RAIDER) SHELL BRACKET (1+1)

Three black plastic mechanical components with circular holes, shown from top, front, and side views (no text or symbols)

NH94898
SET PARACHOQUES (RAIDER) / BUMPER SET (RAIDER)
Front Bumper (x1)
Rear Bumper (x1)
Fastener rings for bumpers (x2)

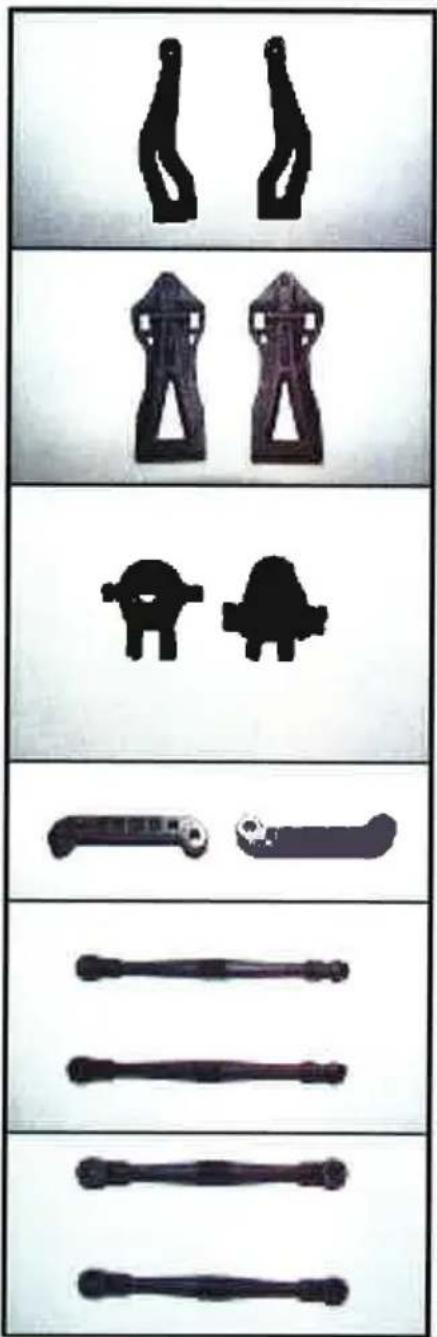

NH94899
SET TRAPECIOS (RAIDER) / ARM SET (RAIDER)
Upper arm (x2), Lower arm (x2) Cup (x2), Arm part (x2)
Front Pole (x2), Back Pole (x2)

Six black-and-white technical illustrations of mechanical components, arranged vertically (no text or symbols visible)

NH94900
SET CHASIS (RAIDER) /
CHASSIS SET (RAIDER)
Fixed part for car head (x1)
Frame (x2)
Chassis (x1), Front Cover (x1),
Back Cover (x1), Battery Cover (x1)

Two black-and-white photo of two large tires, one open showing a metallic rim and the other covered with textured tires (no text or symbols visible)

NH94901
SET RUEDAS (RAIDER) /
WHEEL SET (RAIDER)
Wheel complete (x2)

Two vertical, elongated objects resembling stylized feathers or rods, against a plain background (no text or symbols visible)

NH94902
SET AMORTIGUADORES (RAIDER) / SHOCK ABSORBERS SET
Back damper (x2)

Two black-and-white illustrations: top shows a dark, curved object resembling a hat; bottom shows a sleeping figure with a lamp (no text or symbols)

NH94903
SET DIRECCIÓN (RAIDER) /
STEERING SET (RAIDER)
Pitman arm (x1), Steering Gear (x1)

Silhouette of a person standing on a chair, holding a tool (no text or symbols visible)

NH94904
EMISORA (RAIDER) /

TRANSMITTER (RAIDER)
Controller (x1)

Four-panel image showing mechanical components: a device, three cylindrical parts, two cylindrical pins, and two cylindrical pins (no text or symbols visible)

NH94905
SET TRANSMISIÓN (RAIDER) /
TRANSMISSION SET (RAIDER)
Gear box (x1)
Front drive cup (x2)
Back drive cup (x2)
Transmission shaft (x2)

NH94906
SET TORNILLOS (RAIDER) /
SCREWS SET (RAIDER)
Screw size 2 x15 (x10)
Screw size 2.3x16 (x10)
Round screws size 2.6x20 (x10)
Long screws size 3x31 (x4)
Long screws size 3x36 (x4)

Close-up of a metallic cylindrical device with a red cable extending from its side (no visible text or symbols)

NH94907

MOTOR (RAIDER) / MOTOR (RAIDER)

Motor and gear (x1)

Blue rectangular object with a black cable attached, resembling a sensor or connector (no visible text or symbols)

NH94908

BATERÍA (9,6V 800mAh) (RAIDER) /

BATTERY (9,6V 800mAh) (RAIDER)

Battery 9,6V 800mAh (x1)

Black electrical plug with attached cable, no visible text or symbols

NH94909

CARGADOR 220x9,6V (RAIDER) /

CHARGER 220x9,6V (RAIDER)

Charger (x1)

Close-up of a blue circuit board with wires and connectors, no visible text or symbols

NH94910

RECEPTOR (RAIDER) /

RECEIVER (RAIDER)

2,4Ghz Receiver Board (x1)

1. Not rechargeable batteries must not be chargeable.
2. Take off the batteries from the transmitter before charging
3. Charging process must be done by an adult.
4. Do not mix different batteries or new and old batteries.
5. It is recommended the use of the same type of batteries.
6. Check the correct position and respect the polarity.
7. Take off the old batteries,

MAINTENANCE

1. Take off the batteries from the transmitter if the vehicle has not been used for a long period of time.
2. Clear the surface of the vehicle con a soft cloth.
3. Never leave the vehicle under a direct hot source.

DE

BATTERIE HINWEISE

Hereby, NINCO DESARROLLOS S.L., declares that this Radio Control Equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Warning: Do not manipulate the vehicle electronic equipment

1. Switch off the vehicle and the transmitter when not being in use.
2. Take off the batteries when not being in use.
3. It is recommended the use of alkaline batteries.
4. The vehicle must be always under supervision when operating.
5. Replace the batteries as soon any malfunctioning is detecting.
6. Save this manual for further references.
7. Please follow strictly this manual when operating.
8. The charger has been designed to operate with its own model batteries. Do not use it to charge other kind of batteries

This is a sophisticated hobby product and not a loy. Children under the age of 8 are forbidden. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property. This product in not intended for use by children without direct adult supervision. The product manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, pro to assembly, setup or use, in order to operate correctly and avoid damage or injury.

WEEL At the end of this career's useful life, please remove all the batteries and dispose of them separately. Take electrical appliances to the local collection points for viable electrical and electronic equipment. Other components can be disposed of in domestic refuse. Thank you for your co-operation?

PORTUGUES

Please, read through the whole instruction manual and keep for further reference.

1. Do not dispose of the battery into fire or heat
2. Do not use or leave the battery near a heat source, such as fire or a heater.
3. Do not strike the battery or throw it against a hard surface
4. Do not immerse the battery into water. Keep the battery cool and dry.
5. When recharging the battery, use only the charger designed for that purpose
6. Do not over-discharge the battery
7. Do not connect the battery to an electrical outlet
8. Do not directly solder the battery or pierce it with a nail or other sharp object
9. Do not transport or store the battery together with metal objects such as necklaces, hairpins, etc.
10. Charge the battery every six months
11. Turn off your equipment power switch after use
12. Recycle used batteries after covering the battery terminals with insulation tape or inserting the battery into an individual polybag.

NINCO DESARROLLOS S.L. hereby declares that this radio control system is in accordance with the basic requirements of the corresponding European Directives. The original Declaration of Conformity can be obtained clicking the download area in the following web address: www.ninco.com
