TIBURON - Remote control toy NINCO - Free user manual and instructions

Product Type	Remote Control Toy
Brand	NINCO
Model	TIBURON
Scale	1:16
Dimensions (LxWxH)	30 x 15 x 10 cm
Weight	0.5 kg
Power Source (Car)	4 x AA batteries (not included)
Power Source (Transmitter)	2 x AA batteries (not included)
Battery Type	AA alkaline or rechargeable
Operating Time	Approx. 20-30 minutes
Control Range	Up to 30 meters
Frequency	2.4 GHz
Maximum Speed	Up to 10 km/h
Functions	Forward, reverse, turn left/right
Material	Plastic body, rubber tires
Recommended Age	8+ years
Safety Warnings	Contains small parts; choking hazard. Not suitable for children under 3.
Maintenance	Clean with dry cloth. Avoid exposure to water.
Spare Parts Availability	Contact manufacturer or authorized dealers.
Environmental Notes	Dispose batteries properly. Do not discard as household waste.

Frequently Asked Questions - TIBURON NINCO

How do I install batteries in the car and transmitter?

Open the battery compartment on the underside of the car and insert 4 AA batteries (not included) following the polarity marks. For the transmitter, open the back cover and insert 2 AA batteries.

What type of batteries should I use?

Use AA alkaline or rechargeable NiMH batteries. Do not mix old and new or different types.

How do I pair the transmitter with the car?

The car and transmitter are pre-paired at the factory. If needed, turn on the car first, then the transmitter; they should sync automatically within a few seconds.

The car does not respond to the controller. What should I do?

Check that batteries in both the car and transmitter are inserted correctly and have sufficient charge. Ensure the power switches are in the ON position. Try re-pairing by turning both off and on again.

What is the maximum operating range?

The control range is up to 30 meters in open areas. Walls and obstacles may reduce range.

Can I replace the car's battery with a rechargeable pack?

Yes, you can use rechargeable AA batteries. Alternatively, you may purchase a compatible NiMH battery pack from NINCO. Ensure the voltage matches (4.8V for 4 cells).

Is the TIBURON waterproof?

No, it is not waterproof. Avoid driving through water, mud, or snow as it can damage the electronics. Clean with a dry cloth only.

Why does the car run slowly or stop suddenly?

Low batteries are the most common cause. Replace or recharge the batteries. If the motor or gears are jammed, check for debris or hair wrapped around the wheels.

How should I clean the remote control toy?

Use a soft, dry cloth to wipe the body and wheels. Do not use water, solvents, or abrasive cleaners. For stubborn dirt, slightly dampen the cloth and dry immediately.

Where can I find replacement parts for the TIBURON?

Replacement parts such as wheels, antennas, and battery compartments can be ordered through NINCO's website or authorized dealers. Check the spare parts list in the manual.

USER MANUAL TIBURON NINCO

Illustration of a blue shark with 'SHARK' label and its side profile showing a camera module (no text or symbols on the shark itself)

REQUIRED (NOT INCLUDED)

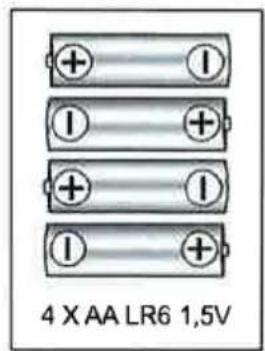

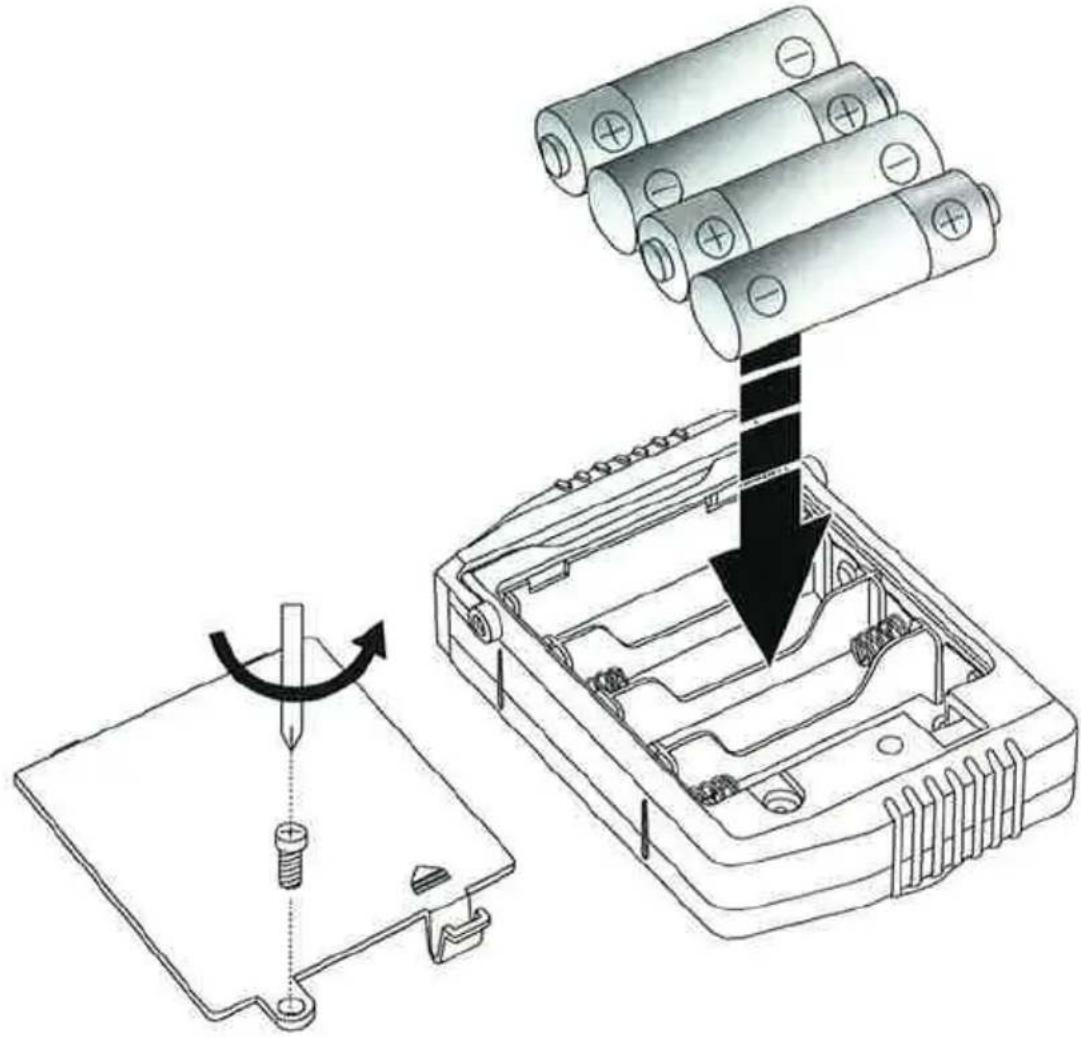

COLOCACIÓN DE LAS PILAS - BATTERIES INSTALLATION - COLOCAÇÃO DAS BATERÍAS - BATTERIE INSTALLATION - INSTALLATION DES PILES - INSTALLAZIONE DELLE BATTERIE

4x1,5v AA

CÓMO JUGAR - HOW TO PLAY - COMO JOGAR - WIE SPIELEN - COMMENT JOUER - COME GIOCARE

Technical line drawing of a mechanical device with circular components and a pointer (no text or symbols)

ON

HBA

Illustration of a shark underwater with a downward arrow indicating impact (no text or symbols)

SUMERGIR - TO SUBMERGE - IMERGIR - TAUCHEN - PLONGER - IMMERGERE

Simple line drawing of a fish head with three arrows pointing outward from the head (no text or symbols)

A - INDICADOR DE FUNCIONAMIENTO - OPERATION INDICATOR - INDICADOR DE FUNCIONAMENTO - BETRIEBSANZEIGE - INDICATEUR DU FONCTIONNEMENT - INDICATIORE OPERAZIONE
B - ADELANTE - FORWARD - AVANÇAR - VORWÄRTS - AVANCER - AVANTI
C -INTERRUPTOR DE ENCENDIDO - POWER SWITCH - INTERRUPTOR DE ALIMENTAÇÃO - ANSCHALTER - COMMUTATEUR D'ALLUMAGE - INTERRUTTORE CORRENTE
D - GIRAR IZQUIERDA - TURN LEFT - GIRAR À ESQUERDA - LINKS - TOURNER À GOUCHE - GIRA SINISTRA
E - GIRAR DERECHA - TURN RIGHT - GIRAR À DIREITA - RECHTS - TOURNER À DROITE - GIRA DESCRA
F -BOTÓN DE DECORACIÓN - DECORATION BUTTON -BOTAO DECORATIVO - DEKORATIVE TASTE - BOUTON DÉCORATIF - PULSANTE DECORATIVO
G - INDICADOR DE CARGA - CHARGING INDICATOR - INDICADOR DE CARGA - LADEANZEIGE - INDICATEUR DE CHARGE - INDICATORE DI CARICAMENTO
H - COLOCAR LA ANTENA - PLACE THE ANTENNA - COLOCAR A ANTENA - PLATZIERUNG DER ANTENNE - PLACER L'ANTENNE - COLLOCARE L'ANTENNA

CARGA - CHARGING - CARGA - LADEN - CHARGE - CARICARE

ESP

Pull the ON/OFF switch of the transmitter to ON position, then open the charging cover beside the transmitter and takeout the charging plug. Insert the charging plug (arrow facing outward) into the charging port of the boat, this time the charging indicator will be ON. It means that is under charging. When the charging indicator is automatically OFF, it means that charging process is finished. After it is fully charged, you can play it for about 6-8 minutes.

DE

1. Not rechargeable batteries must not be chargeable.
2. Take off the batteries from the transmitter before charging.
3. Charging process must be done by an adult
4. Do not mix different batteries or new and old batteries.
5. It is recommended the use of the same type of batteries.
6. Check the correct position and respect the polarity.
7. Take off the old batteries.

MAINTENANCE

1. Take off the batteries from the transmitter if the vehicle has not been used for a long period of time.
2. After each usage, clean and dry the inside of the toy
3. Never leave the vehicle under a direct hot source.

DE

BATTERIE HINWEISE

Control within 3-5m radius.

Do not allow the boat to go outside this control area.

Keep switch OFF after use.

FRESHWATER USE ONLY. ALWAYS AVOID SALT WATER.

FOR YOUR SAFETY, THE TAIL OF THIS MODEL ONLY TURNS IN CONTACT WITH WATER.

WARNUNG

Hereby, NINCO DESARROLLOS S.L., declares that this Radio Control Equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

This is a sophisticated hobby product and not a loy. Children under the age of 6 are forbidden, it must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property. This product in not intended for use by children without direct adult supervision. The product manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or injury.

WEEE. At the end of this device's useful life, please remove all the batteries and dispose of them separately. Take electrical appliances to the local collecson points for waste electrical and electronic equipment. Other components can be disposec of in domestic refuse. Thank you for your co-operation!

PORTUGUES

C ∈

MADE IN CHINA

C € 0359

NINCOCEAN.

is brand of NINCO DESARROLLOS S.L.

Ctra, de l'Hospitalet 32

08940 Cornella Barcelona Spain

CIF B-60307725
