Product Type	Microwave Oven with Grill
Model	CMIC23EGM
Brand	Corbero
Rated Voltage	230 V ~ 50 Hz
Rated Input Power (Microwave)	1250 W
Rated Output Power (Microwave)	800 W
Rated Input Power (Grill)	1000 W
Oven Capacity	23 L
Turntable Diameter	270 mm
External Dimensions (W x D x H)	485 x 410 x 296 mm
Net Weight	Approx. 13 kg
Microwave Power Levels	5 (100%, 80%, 50%, 30%, 10%)
Grill Function	Yes
Combination Cooking	Yes, 2 modes (C-1: 55% microwave + 45% grill; C-2: 36% microwave + 64% grill)
Defrost Methods	By weight (100–2000 g) and by time
Auto Menus	8 presets (Pizza, Potato, Meat, Vegetables, Fish, Pasta, Soup, Porridge)
Child Lock	Yes
Clock Setting	24-hour format
Speedy Cooking	30-second increments up to 95 min
Multi-Stage Cooking	Up to 2 stages (defrost must be first)
Pre-set Function (Delayed Start)	Yes
Cleaning	Wipe interior with damp cloth; clean door seals and accessories with soapy water
Safety Features	Door interlocks, grounding required, auto shut-off if door opened, child lock
Accessories Included	Glass tray, turntable ring assembly, grill rack, instruction manual
Installation Type	Countertop (not built-in)
Disposal	Do not dispose with household waste; follow WEEE guidelines

Frequently Asked Questions - CMIC23EGM CORBERO

How do I set the clock on my Corbero CMIC23EGM microwave?

Press the RELOJ/PREPROG button once. The hour digits will flash. Turn the knob to set the hour (0–23). Press RELOJ/PREPROG again; the minute digits will flash. Turn the knob to set minutes (0–59). Press RELOJ/PREPROG again to confirm. The colon will stop flashing.

What materials are safe to use in this microwave?

Only use utensils labeled microwave-safe. Avoid metal, aluminum foil, metal twist ties, and metal-trimmed dishes. You can test a utensil by placing it with 1 cup of water and microwaving on high for 1 minute. If the utensil becomes hot, do not use it.

How do I clean the microwave?

Unplug the microwave. Wipe the interior with a slightly damp cloth. Clean the door frame, seal, and neighboring parts carefully with a damp cloth when dirty. Wash accessories (glass tray, turntable ring, grill rack) in warm soapy water.

How do I activate and deactivate the child lock?

To activate: In waiting mode, press and hold PARAR/CANCELAR for 3 seconds until a long beep sounds and the display shows C.... To deactivate: Press and hold PARAR/CANCELAR again for 3 seconds until the lock icon disappears.

Why is my microwave not heating?

Check that the power cord is plugged in securely. Ensure the door is fully closed. If the fuse has blown or circuit breaker tripped, replace the fuse or reset the breaker (call a qualified technician). If the outlet is faulty, test with another appliance.

Can I use metal containers or aluminum foil in the microwave?

No. Metal can cause arcing (sparks) and fire. Do not use aluminum trays, metal-trimmed utensils, or twist ties. Transfer food to a microwave-safe dish before cooking.

How do I defrost food by weight?

Press DESCONGELAR POR TIEMPO/PESO once to select weight defrost (dEF1). Turn the knob to set the weight (100–2000 g). Press INICIO/+30 SEG./Ok to start. The oven will automatically determine the defrosting time.

What are the auto menu programs and how do I use them?

The oven has 8 auto menus: A-1 Pizza, A-2 Potato, A-3 Meat, A-4 Vegetables, A-5 Fish, A-6 Pasta, A-7 Soup, A-8 Porridge. Turn the knob to select the desired menu (e.g., A-1), press INICIO/+30 SEG./Ok, then turn the knob to choose the weight. Press start.

How do I use the grill function?

Press GRILL/COMBI once to select grill (G). Press INICIO/+30 SEG./Ok, then turn the knob to set grill time (0:05–95:00). Press start. Halfway through, the oven will beep twice; open the door, turn the food over, close the door, and press INICIO/+30 SEG./Ok to continue.

The glass turntable makes noise during operation. What should I do?

The noise may be due to a dirty roller rest or oven bottom. Unplug the microwave, remove the glass tray and turntable ring, and clean the roller rest and oven floor with a damp cloth. Ensure the turntable ring is properly seated and the glass tray is centered on the shaft.

USER MANUAL CMIC23EGM CORBERO

Exterior view of a modern stainless steel microwave oven (no visible text or symbols on the main body)

Corberō

Horno Microondas

MANUAL DE INSTRUCCIONES MODELO: CMIC23EGM

Line drawing of a plug with two leads (no text or symbols)

FUNCIONAMIENTO

Line drawing of a black electrical outlet plug with two leads (no text or symbols)

LOUÇA

PRECAUÇÃO

Perigo de lesões

Read these instructions carefully before using your microwave oven, And keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURETO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	QMIC23EGM
Rated Voltage:	230V~ 50Hz
Rated Input Power(Microwave):	1250 W
Rated Output Power(Microwave):	800 W
Rated Input Power(Grill):	1000 W
Oven Capacity:	23L
Turntable Diameter:	∅ 270 mm
External Dimensions:	485X410X296 mm
Net Weight:	Approx.13kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.

3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

17. Do not store or use this appliance outdoors.

18. Do not use this oven near water, in a wet basement or near a swimming pool.

19. The temperature of accessible surfaces may be high when the appliance is operating. Keep cord away from heated surface, and do not cover any vents on the oven.

20. Do not let cord hang over edge of table or counter.

21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.

24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

25. Children should be supervised to ensure that they do not play with the appliance.

26. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

27. Appliances are not intended to be operated by means of an external timer or separate remote-control system.

28. The door or the outer surface may get hot when the appliance is operating.
29. The rear surface of appliance shall be placed against a wall.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

Line drawing of a black electrical outlet plug with two leads (no text or symbols)

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Grease-proof paper	Use as a cover to prevent splattering, retain moisture or as a wrap for steaming.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

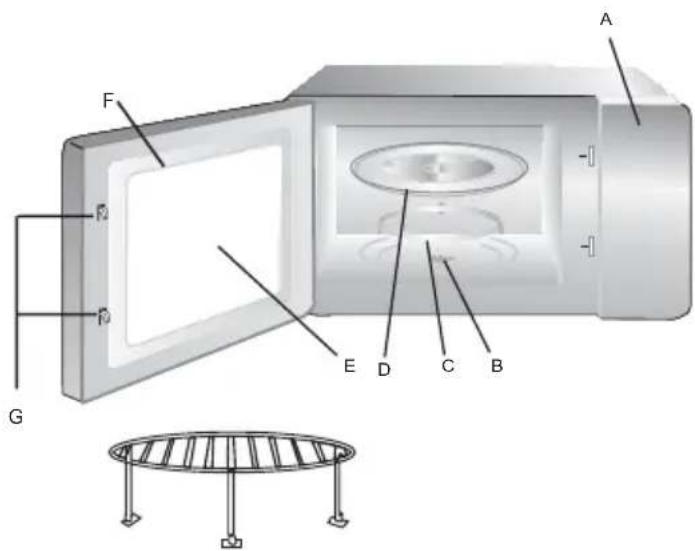

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

Grill Rack( Only for Grill series )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

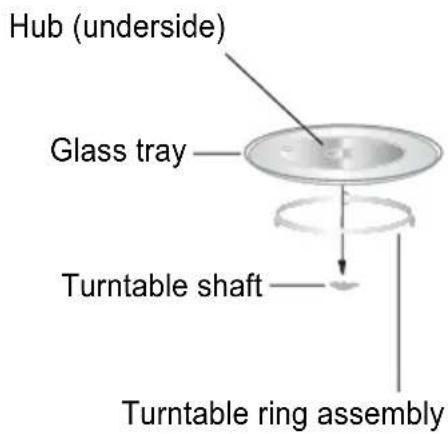

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

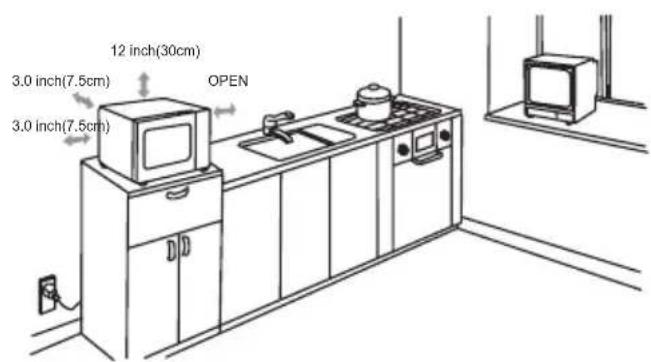

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.

(4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press "ReboJDBERPROGflash;
2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.
3) Press "RELOA/PREDROGures will flash.
4) Turn " 🔥 " to adjust the minute figures, the input time should be within 0--59.
5) Press "RELOURBERROCK setting.":" will flash.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if no oppression in 1 minute, the oven will go back to the previous status automatically.

2. Microwave Cooking

1) Press the "MIGROONDASnd "P100" display.
2) Press "MICROONDAS" for times or turn " " to select the microwave power "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press "INICIOORBEG./Ok
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press "INICOS30SEGQing.

Microwave Power Chart

Microwave Power	100%	80% 50%		30%	10%
Display	P100	P80	P50	P30	P10

3. Grill Cooking

1) Press the "Grey/COMB and "G" display.
2) Press "INICIO/+30 SEG./Ok" to confirm.
3)Turn " 🔍 " to adjust the grill time. (Thetime setting should be 0:05- 95:00.)
4) Press "INICIO/+30 SEG./Ok" to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press" INICIO/+30 SEG./Ok " to continue cooking. If no operation, it will continue working.

1. Combination Cooking

1) Press the "GRILLOMBand "G" display.
2) Press "GRILL/COMBI." for times or turn " " to select the combination power "C-1(55%microwave+45%grill)" and "C-2(36%microwave+64%grill)" will display in order.
3) Press "INICIO+80BEG./Ok
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press "IMICIO/30-SEG/RKng.

1. Speedy Cooking

1) In waiting state, press "INICIO/+30 SEG./Ok" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
2) During the microwave, grill and combination cooking and time defrost process, press "INICIO+30-SEC/Die cooking time.
3) In waiting states, turn " " left to choose the cooking time directly. After choosing the time, press "INICIO/+30 SEG./Ok " to start cooking. The microwave power is 100%.

Note: Under the states of auto menu and weight defrost, cooking time cannot be increased by pressing "IÑICIO/+30 SEG./Ok

1. Defrost By Weight

1) Press "DESOONGELARPORTIEMPO/PESO" bay "dEF1".
2) Turn " " to select the food weight. The range of weight is 100-2000g.
3) Press "INICIO/+30 SEG/OK defrosting.

1. Defrost By Time

1) Press "DESCONGELAR POR TIEMPO/ESplay "dEF2".
2) Turn " 🔍" to select the cooking time.
3) Press "INIC9/100SECT/ORfrosting.

8.Multi-Stage Cooking

Two stages can be maximally set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press "DESCONGELARPORTIEMPOPESO"ay "dEF2";
2) Turn " 🔍 " to adjust the defrost time of 5 minutes;
3) Press" MICROONDAS
4) Turn " 🔍 " to choose 80% microwave power till "P80" display;
5) Press "INICOC80fSEG./Ok
6) Turn " " to adjust the cooking time of 7 minutes;
7) Press "Initiostaosecooling.

9. Pre-set Function

1) Set the clock first. (Consult the instruction of clock setting.)
2) Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset function.

Example: if you want to cook with 80% microwave power for 7 minutes.

a. Press"MICROONDAS

b. Turn " " to choose 80% microwave power till "P80" display;

c. Press "INICIO/e30fSEG./Ok

d. Turn " " to adjust the cooking time of 7 minutes;

After the above steps, please do not press "INICIO/+30 SEG./Ok". Then do as following:

3) Press "RELOD/PREPROGures flash;

4) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.

5) Press "RELOJPREPROG" the minute figures will flash.

6) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.

7) Press "INICIO/+30 SEG./Ok" to finish setting. ":" will light, buzzer will ring twice where, then cooking will start automatically.

Note: clock must be set first. Otherwise, pre-set function will not work.

1. Auto Menu

1) In waiting states, turn " " right to choose the menu from "A-1" to "A-8";
2) Press "INICIO/30fSEG10R menu you choose;
3) Turn " 🔍 " to choose th food weight;
4) Press "Inicio/taotsec/oing;
5) After cooking finish, the buzzer sounds five times.

Auto Menu

Menu	Weight	Display
A-1 Pizza	200 g	200 g
	400 g	400 g
A-2 Patata	200 g	200 g
	400 g	400 g
	600 g	600 g
A-3 Carne	250 g	250 g
	350 g	350 g
	450 g	450 g
A-4 Verduras	200 g	200 g
	300 g	300 g
	400 g	400 g
A-5 Pescado	250 g	250 g
	350g	350g
	450 g	450 g
A-6 Pasta	50g(with 450 cold water)	50g
	100g(with 800 cold water)	100g
A-7 Sopa	200ml	200ml
	400ml	400ml
A-8 Porridge	550g	550g
	1100g	1100g

11. Auto Reheat

1) Press "CALENTAR, and the LED will display "200".
2) Press "CALENTAR times or turn " to choose the weight of food, and "400" or "600" g will be selected.
3) Press 'INICIO/-30 SEGO/OKing.

12. Lock-out Function for Children

Lock: In waiting state, press "PARASCANCEA there will be a long "beep" denoting entering the children-lock state and screen will display "C...".

Lock quitting: In locked state, press "PARAR/CANCELAR" for 3 seconds, there will be a long "beep" denoting that the lock is released.

13. Inquiring Function

1) In cooking states of microwave, grill and combination, press "MICROONDAS", the current power will be displayed for 2-3 seconds.
2) In pre-set state, press "RELOUPREPROGme for delay start cooking. The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.
3) During cooking state, press "RELOJ/PREPROG" to check the current time. It will be displayed for 2-3 seconds.

14 Specification

(1) The buzzer will sound once when turning the knob at the beginning;
(2) "INIClost 30 SEGled to continue cooking if the door is opened during cooking;
(3) Once the cooking programme has been set, "NICIO@30856aOk in 1 minute. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no response.
(5) The buzzer will sound five times to remind you when cooking is finished.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
