Pro 5400s - SSD Drive INTEL - Free user manual and instructions

Product Type	Solid State Drive (SSD)
Brand	Intel
Model	Pro 5400s Series
Capacities Available	120GB, 180GB, 240GB, 360GB, 480GB, 1TB (M.2 and 2.5-inch)
Form Factors	M.2 80mm (up to 3.73mm height) and 2.5-inch (7mm height)
Interface	SATA 6Gb/s (compatible with SATA 3Gb/s)
NAND Flash Memory	16nm Tri-Level Cell (TLC) NAND
Sequential Read Speed	Up to 560 MB/s
Sequential Write Speed	Up to 480 MB/s
Random Read (4KB)	Up to 78K IOPS
Random Write (4KB)	Up to 85K IOPS
Power Consumption (Active)	M.2: 80 mW typical; 2.5-inch: 90 mW typical
Power Consumption (Idle)	M.2: 40 mW typical; 2.5-inch: 50 mW typical
Power Consumption (DevSleep)	M.2: 3 mW; 2.5-inch: 5 mW
Operating Temperature	0°C to 70°C
MTBF (Mean Time Between Failures)	1.6 million hours
Security Features	AES 256-bit self-encryption, TCG Opal 2.0, Microsoft eDrive support
Remote Manageability	Intel® Active Management Technology (AMT) and Intel® vPro™ compatible
Data Erase	Intel® Remote Secure Erase for easy and secure data wiping
Warranty	5 years (backed by Intel)
Weight (M.2)	Up to 7 grams
Weight (2.5-inch)	Up to 68 grams
Software Tools	Intel® SSD Toolbox, Data Migration Software, Pro Administrator Tool

Frequently Asked Questions - Pro 5400s INTEL

What form factors are available for the Intel Pro 5400s SSD?

The Intel Pro 5400s Series is available in M.2 80mm (up to 3.73mm height) and 2.5-inch (7mm height) form factors.

What is the maximum sequential read speed of the Pro 5400s?

The sequential read speed is up to 560 MB/s.

Does the Pro 5400s support hardware encryption?

Yes, it supports AES 256-bit self-encryption and is compliant with TCG Opal 2.0 and Microsoft eDrive.

How can I remotely manage the SSD?

The drive works with Intel® Active Management Technology (AMT) and Intel® vPro™, enabling remote password management and health monitoring.

What is the power consumption in idle mode?

Idle power consumption is 40 mW typical for M.2 and 50 mW typical for 2.5-inch form factors.

What software is available for managing the drive?

Intel provides the SSD Toolbox (with optimizer), Data Migration Software, and Pro Administrator Tool for management and migration.

What is the warranty period for the Intel Pro 5400s?

The drive comes with a 5-year warranty from Intel.

Can I securely erase the drive for repurposing?

Yes, using Intel® Remote Secure Erase, you can wipe all data quickly and securely, even without a functioning OS.

What is the operating temperature range?

The operating temperature is 0°C to 70°C.

Is the Pro 5400s compatible with older SATA interfaces?

Yes, it uses SATA 6Gb/s interface and is backward compatible with SATA 3Gb/s.

USER MANUAL Pro 5400s INTEL

Enterprise-Ready Security and Manageability.

The Intel ^® SSD Pro 5400s Series delivers power efficient performance with enterprise-ready security and manageability.

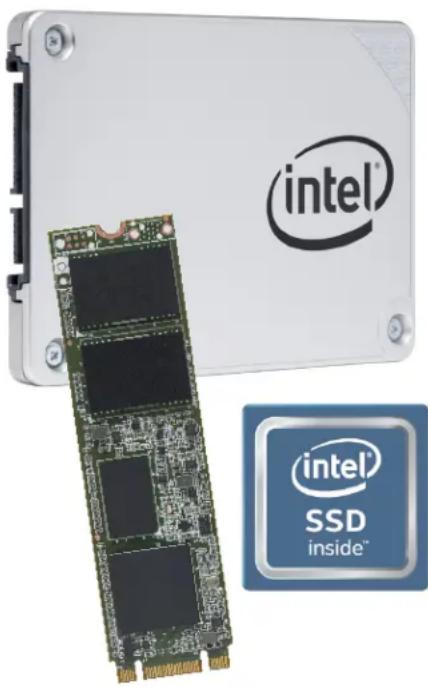

Exterior view of a Intel SSD with an internal circuit board (no text or symbols on the hardware)

Best for Business

In today's demanding business environment, there is a growing need for reliable, high-speed storage partnered with manageable, robust security features. The Intel® Solid State Drive Pro 5400s Series is designed to meet business needs by enabling blazing fast performance and simultaneously upgrading a system's security and manageability profile.

The Intel SSD Pro 5400s Series is available in capacities ranging from 120GB to 1TB in thin 2.5-inch and ultra-sleek M.2 form factors, to support all business client needs.

Support Industry Standards

The Pro 5400s Series delivers support of the Trusted Computing Group's Opal 2.0* protocol and Microsoft* eDrive.

Manage Remotely

Improve IT efficiency were it matters most. The Pro 5400s Series works seamlessly with Intel® Active Management Technology and industry-leading software vendors to enable remote password management and proactively monitor drive health and performance.

Repurpose a Drive Easily

Reduce administrative costs and reinvest your IT time in higher priorities through the use of Pro 5400s Series that support Intel® Remote Secure Erase as your solution of choice.

When a PC is retired or repurposed, information security policies often require data be “wiped” from the drive. Wiping can be difficult and time consuming.

An Intel ^® Remote Secure Erase-based solution provides the IT administrator a way to wipe out all data, allowing for immediate reuse while saving significant administrative time and costs. Unique to this solution is the capability to complete the secure erase independent of a functioning OS while being fully integrated with a familiar IT management console.

Charge Your Device Less Often

The Pro 5400s Series reduces idle consumption by >90% over a typical hard drive disk reducing power consumption from watts to milliwatts. ^1 When coupled with a 6th generation Intel ^® Core ^™ -based platform, the advanced power mode settings reduce power consumption another order of magnitude—from milliwatts to microwatts.

Performance that Matters

The Pro 5400s Series is architected to optimize performance for a 70%/30% 4KB random read/write mixed work load, the most utilized workload across common applications—delivering performance where it matters.

Product Spotlight

• Remote Manageability w/ Intel® vPro™ and Intel® AMT
  • AES 256-bit self-encryption
• Easy and safe data wipe with Intel® Remote Secure Erase
• Low TCO
• Low power consumption
• Capacities up to 1TB
  • Backed by Intel's five year warranty

TECHNICAL SPECIFICATIONS ^1

Model Name Intel Solid State Drive Pro 5400s Series
Capacity (GB)	M.2 - 120, 180, 240, 360, 480, 1000 (1TB is double-sided)2.5-inch - 120, 180, 240, 360, 480, 1000
NAND Flash Memory 16nm NAND Flash Memory Tri-Level Cell (TLC)
Bandwidth	Form Factor	Sequential Read (up to) ^2	Sequential Write (up to) ^2	Random Read (up to) ^2	Random Write (up to) ^3
	M.2 and 2.5-inch	560 MB/s	480 MB/s	78K IOPs	85K IOPs
Interface SATA 6Gb/s, compatible with SATA 3Gb/s
Form Factor, Height and Weight	Form Factor Height/Weight
	M.2 (80mm) Up to 3.73mm / up to 7 grams
	2.5-inch Up to 7mm / up to 68 grams
Life Expectancy ^4	1.6 million hours Mean Time Between Failures (MTBF)
Power Consumption M.2 Active: 80 mW Typical	^5		Idle: 40 mW Typical ^6		DevSleep: 3mW
Power Consumption 2.5-inch Active: 90 mW Typical	^5		Idle: 50 mW Typical ^6		DevSleep: 5mW
Operating Temperature	0°C to 70°C
RoHS Compliance	Meets the requirements of European Union (EU) RoHS Compliance Directives
Software Tools	Intel® Solid State Drive Toolbox with Intel® SSD Optimizer at www.intel.com/go/ssdtoolboxIntel® Data Migration Software at www.intel.com/go/ssdinstallationIntel® SSD Pro Administrator Tool at https://downloadcenter.intel.com/download/24007/Intel-SSD-Pro-Administrator-Tool

For more information, visit www.intel.com/ssd
