USER MANUAL SP-M256 SAMSUNG

Owner's Instructions

The color and the appearance of the product may differ from the illustrations in this manual. The specifications are subject to change without prior notice to improve performance.

MAJOR SAFETY PRECAUTIONS

Before You Start 1-1

Care and Maintenance 1-2

Safety Precautions 1-3

INSTALLATION AND CONNECTION

Package Contents 2-1

Installing the Projector 2-2

Leveling with Adjustable Feet 2-3

Zoom and Focus Adjustment 2-4

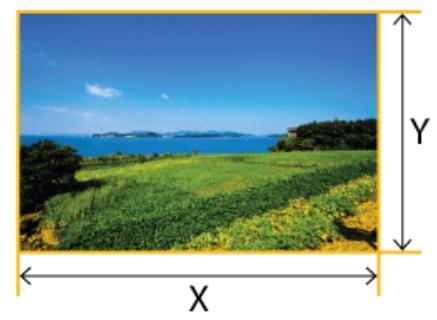

Screen Size and Projection Distance 2-5

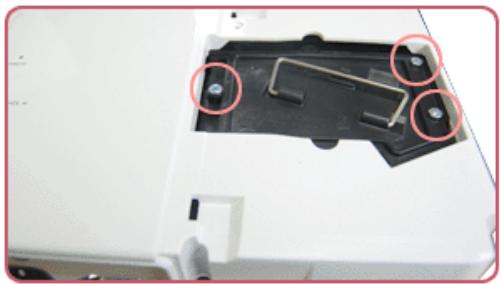

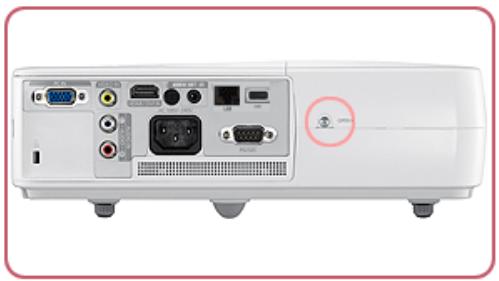

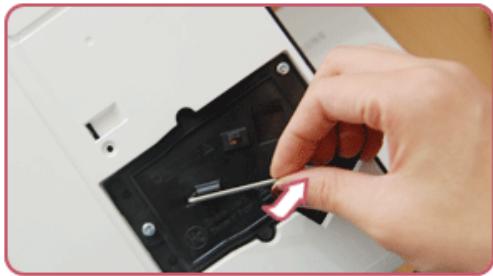

Lamp Replacement 2-6

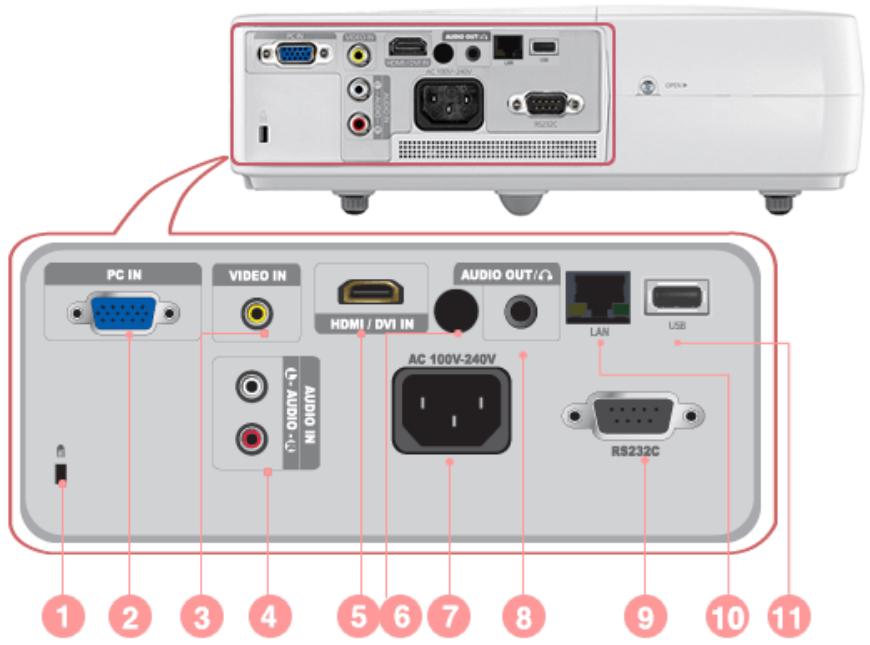

Rear Side 2-7

Supported Display Modes 2-8

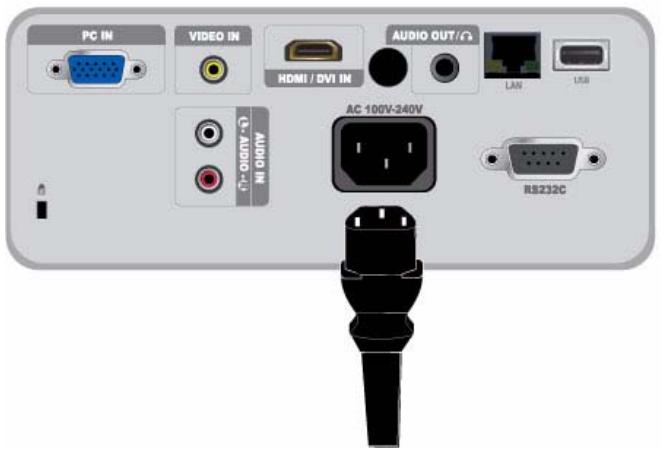

Connecting the Power 2-9

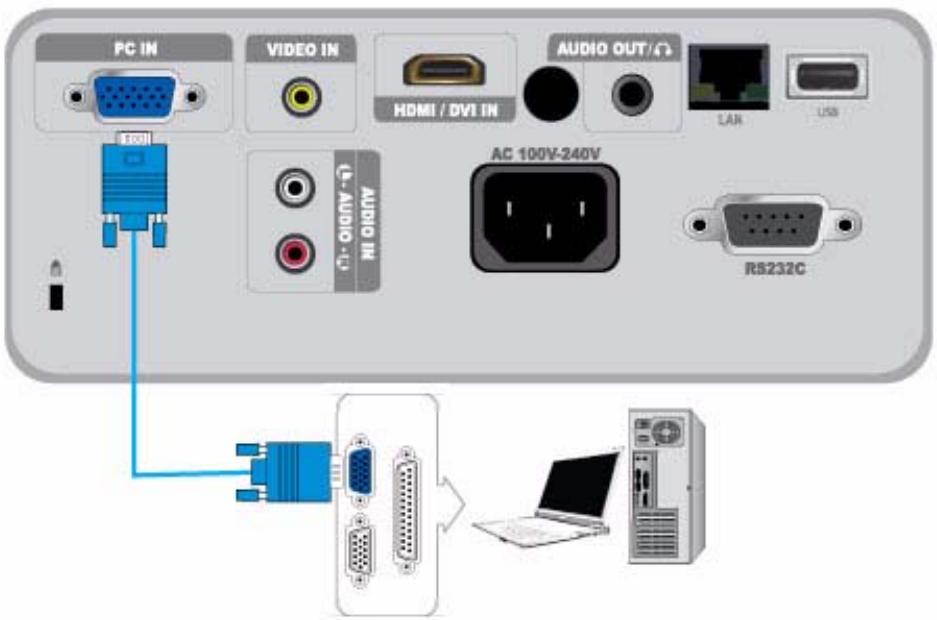

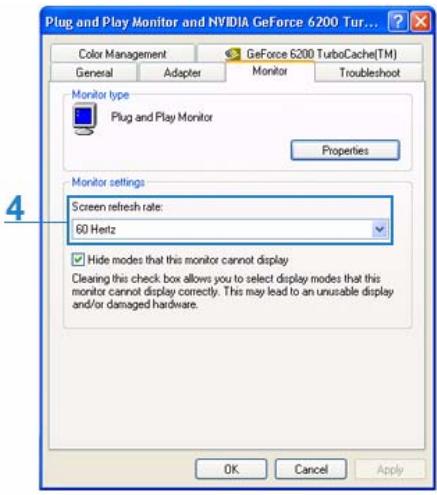

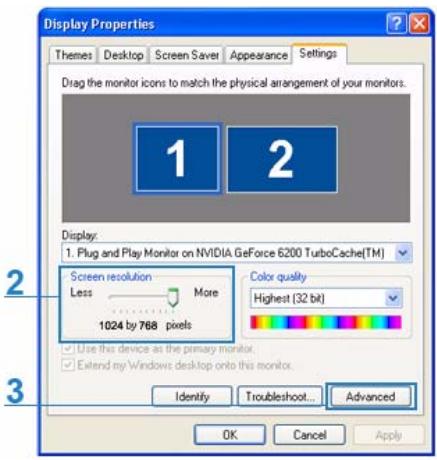

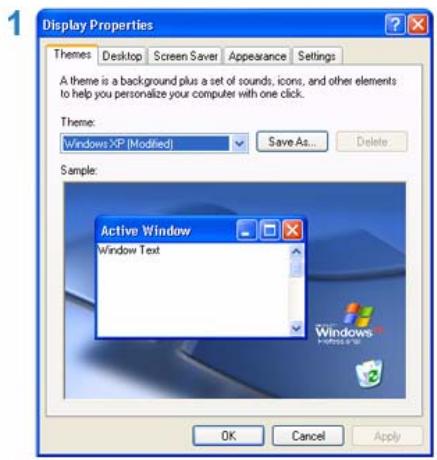

Connecting with a PC and Setting up the PC 2-10

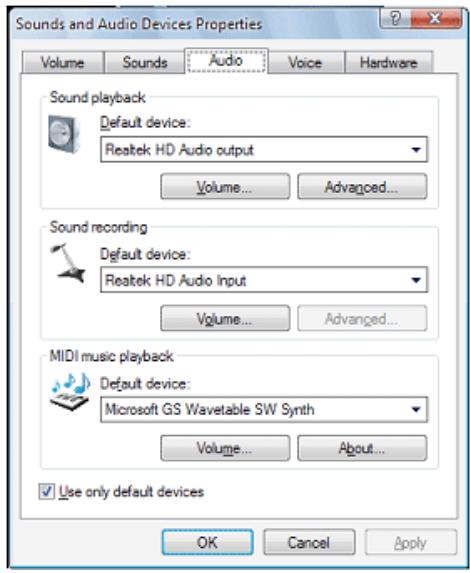

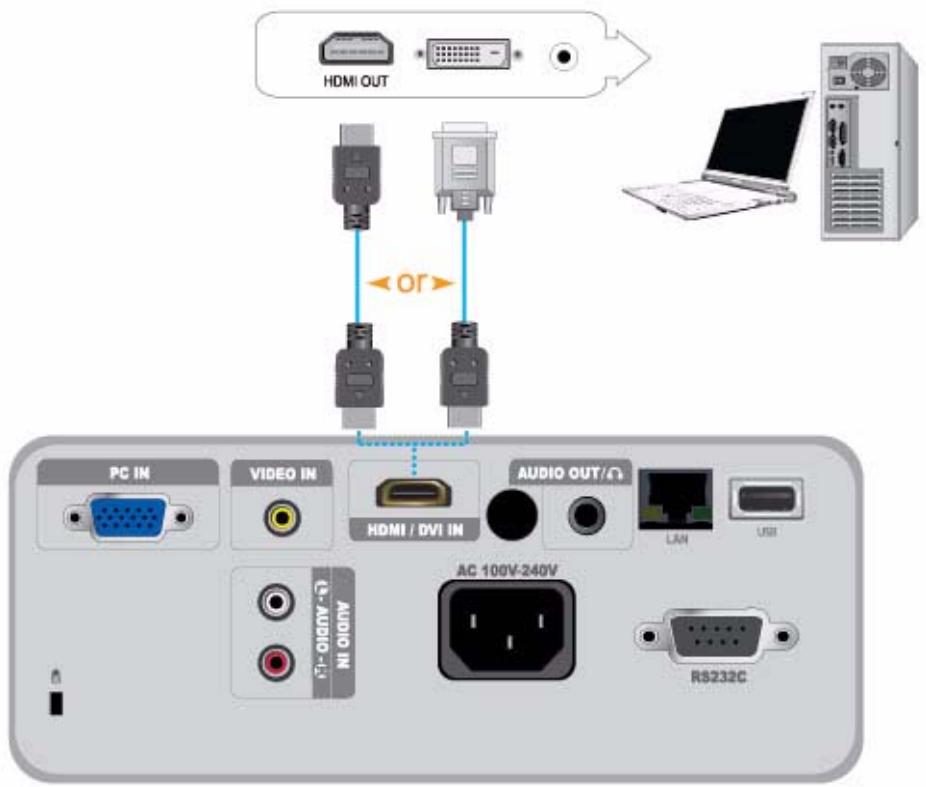

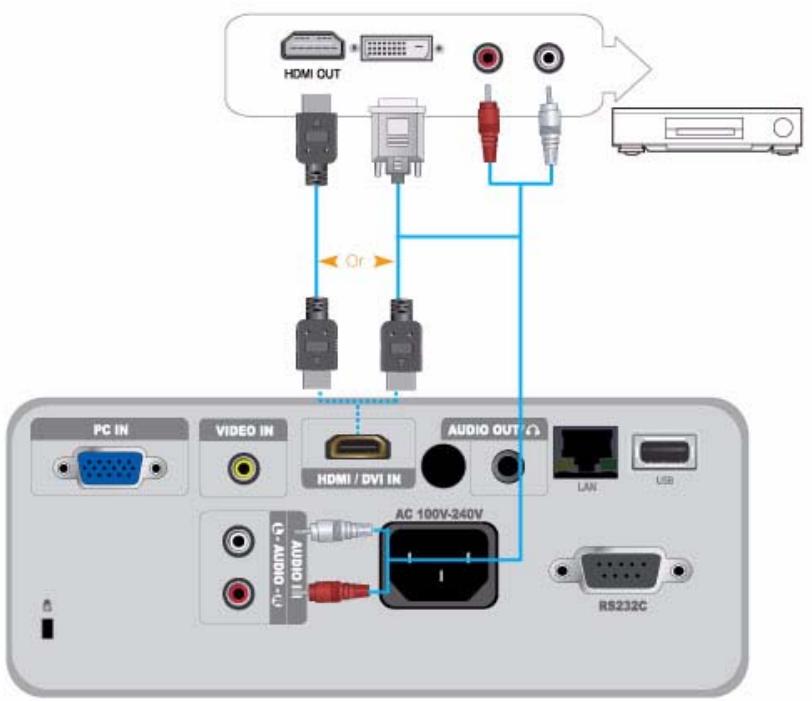

Connecting a PC using an HDMI/DVI cable 2-11

Connecting an HDMI-Compatible Device 2-12

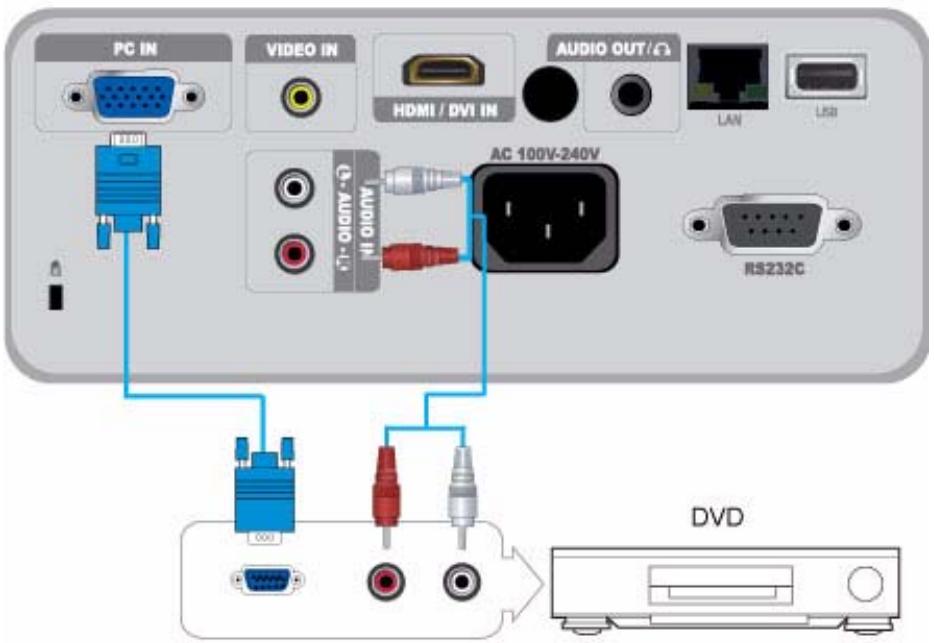

Connecting an AV device using a D-Sub cable 2-13

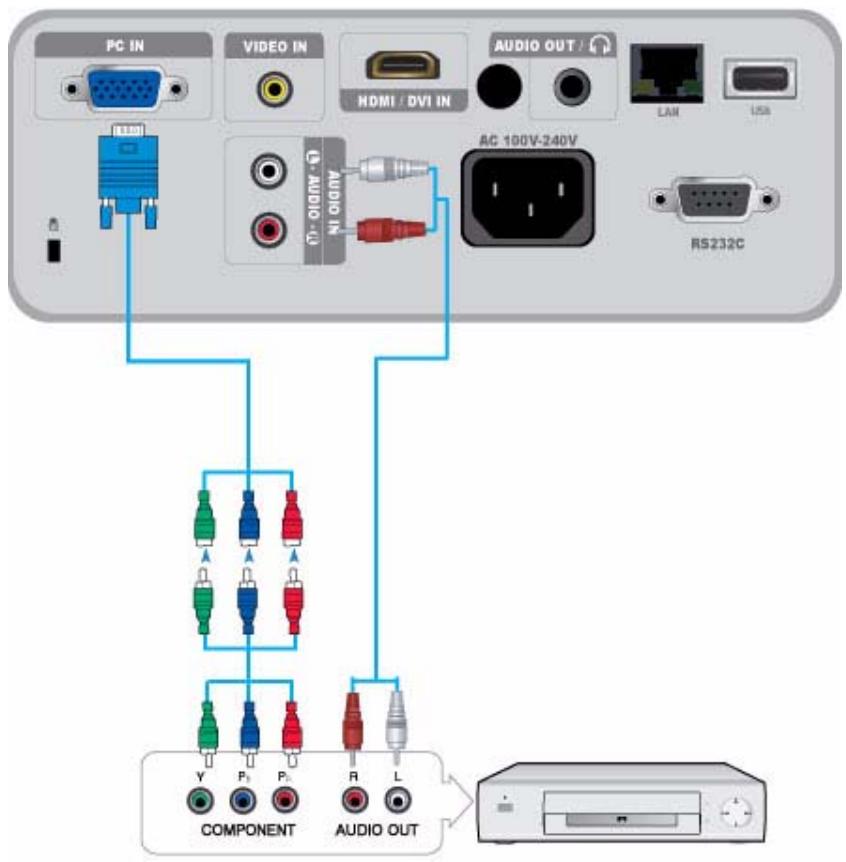

Connecting an AV device with Component output 2-14

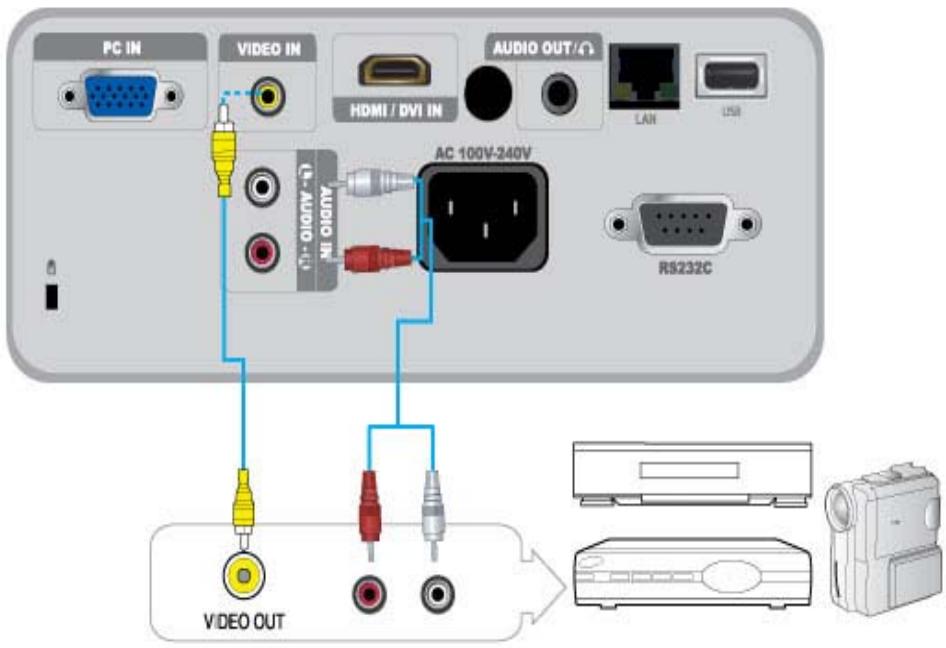

Connecting using a Video cable 2-15

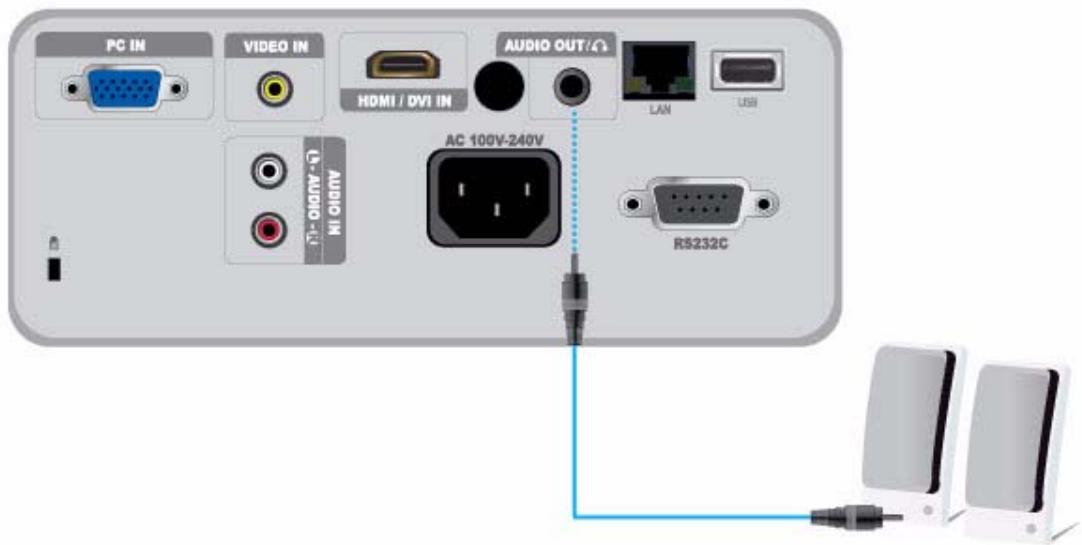

Connecting an External Speaker 2-16

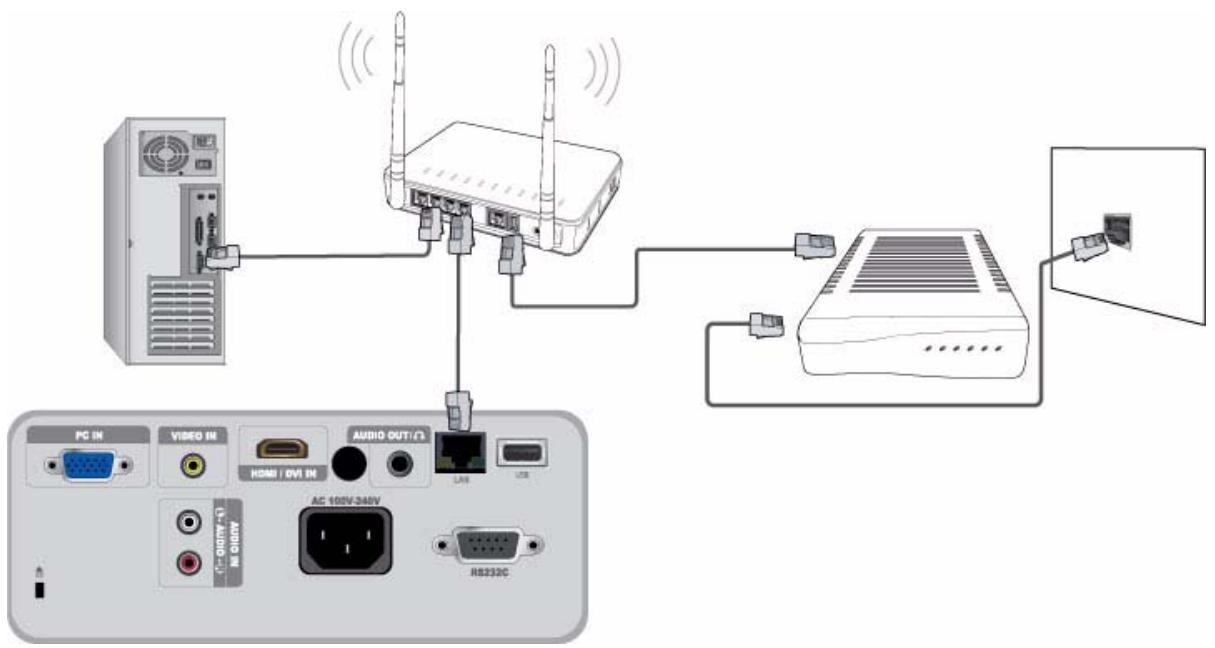

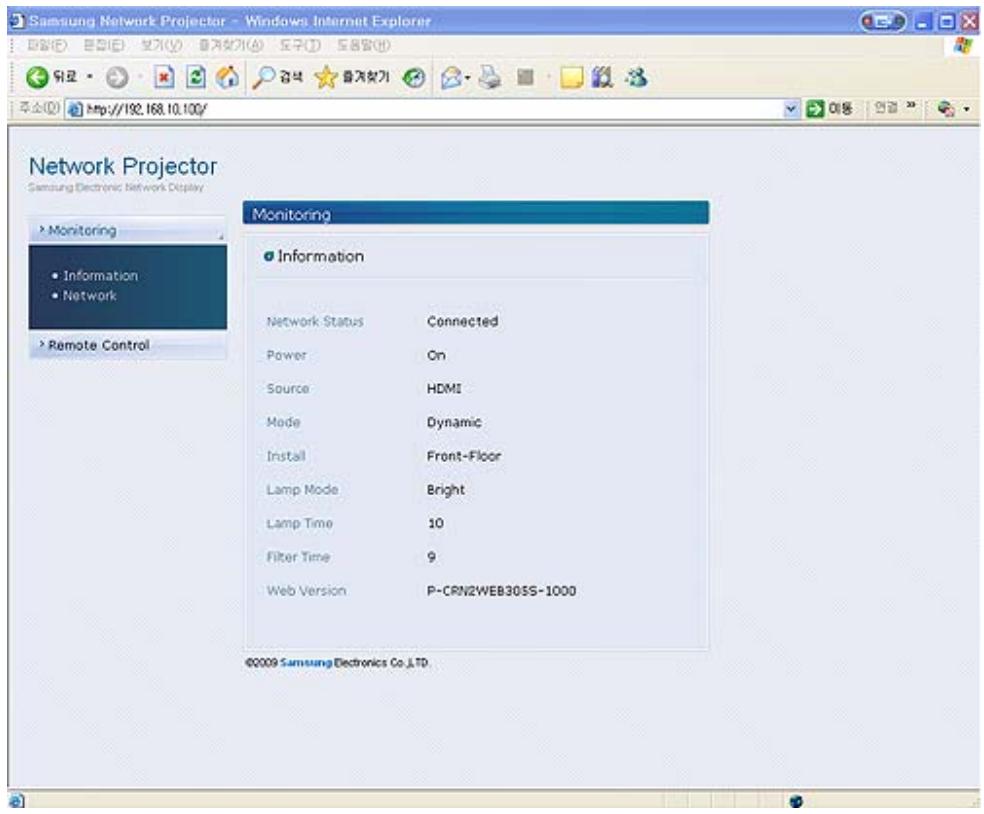

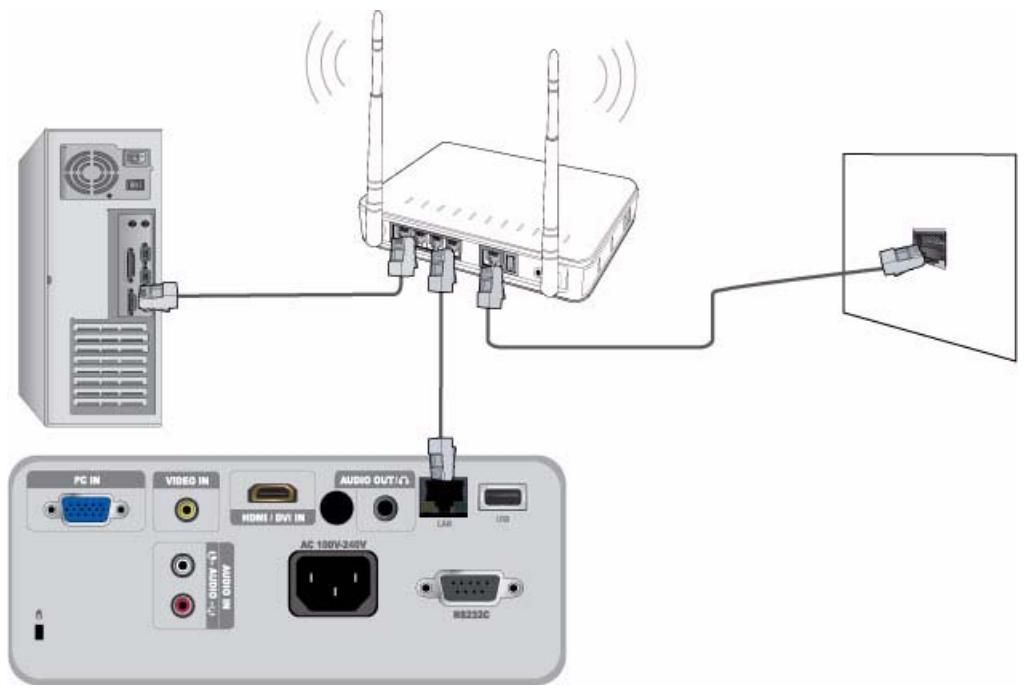

Connecting to a Network 2-17

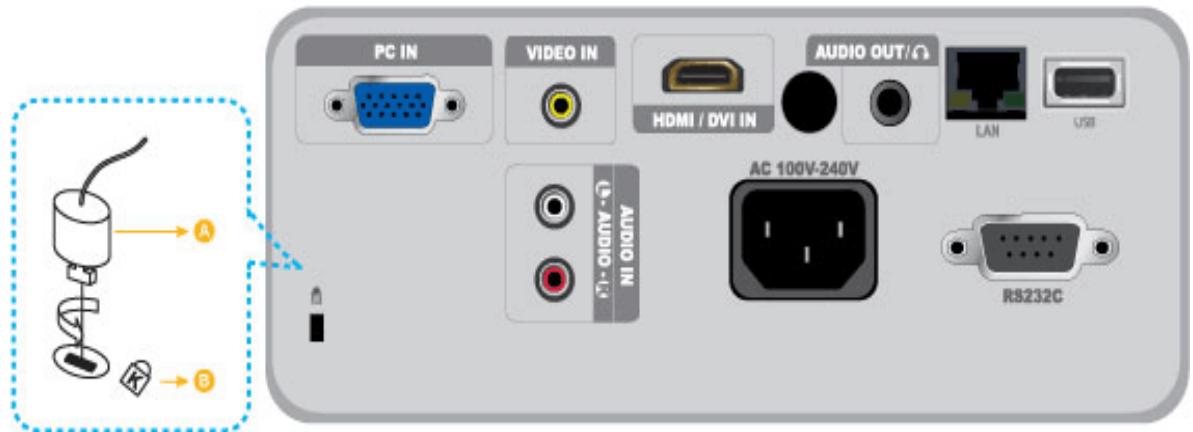

Kensington Lock slot 2-18

USING

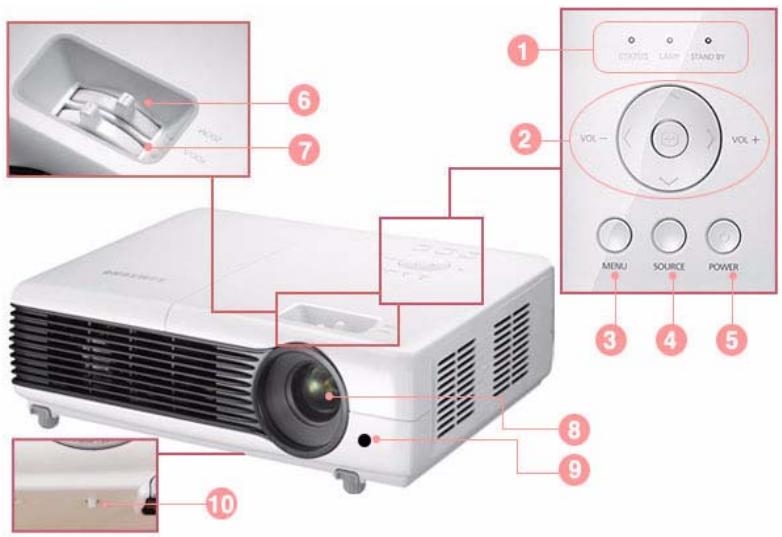

Product Features 3-1

Front, Upper 3-2

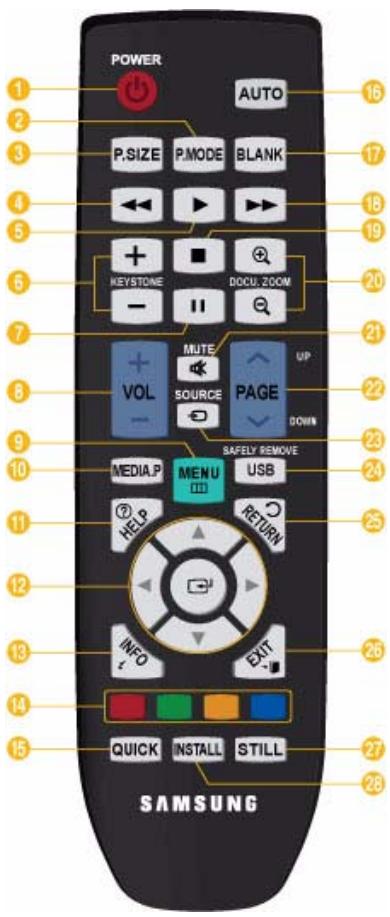

Remote Control 3-3

LED Indications 3-4

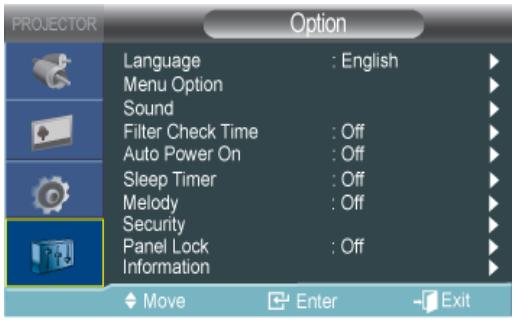

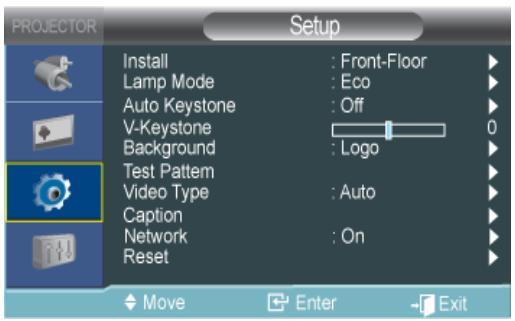

Using the Screen Adjustment Menu (OSD: On Screen Display) .... 3-5

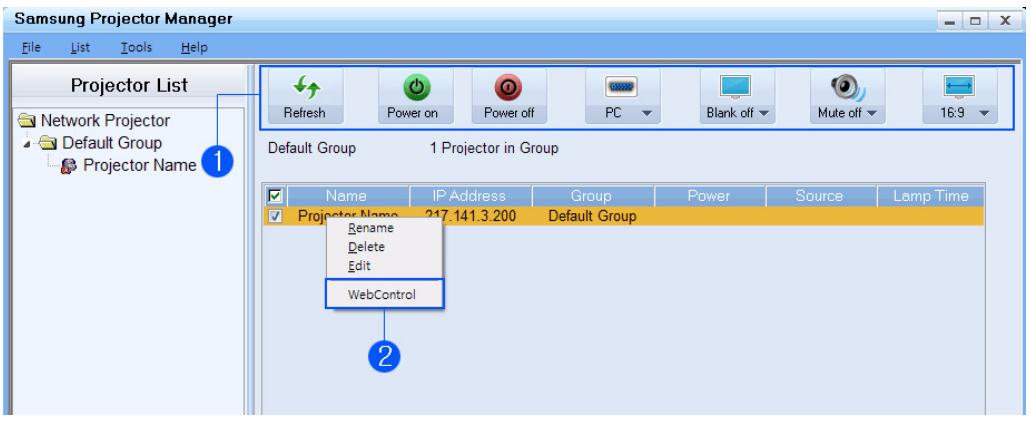

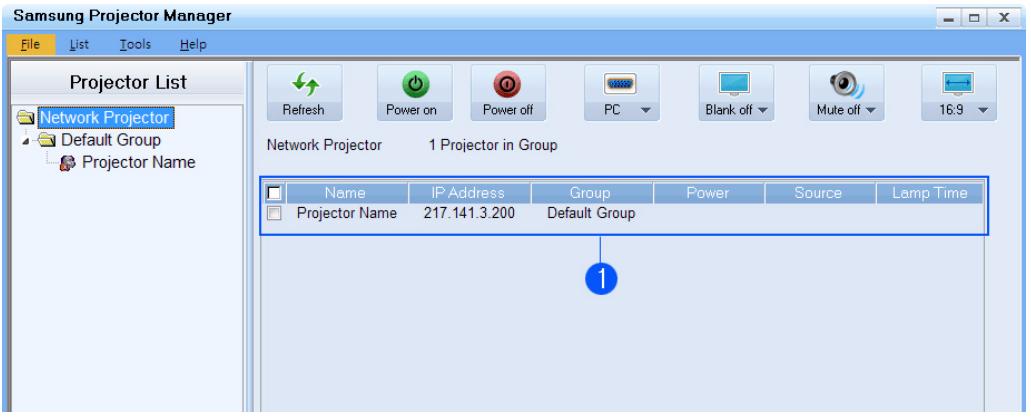

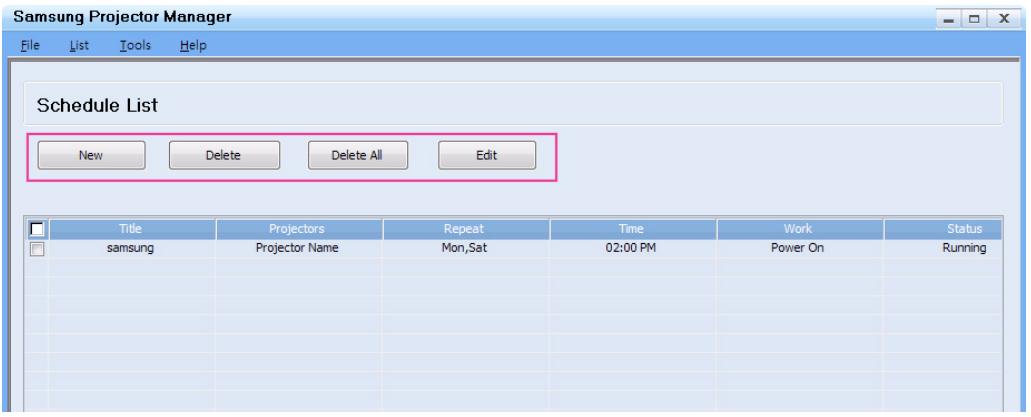

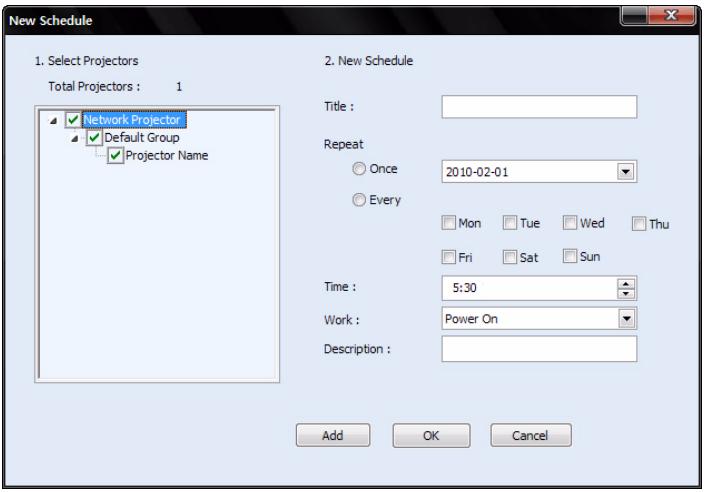

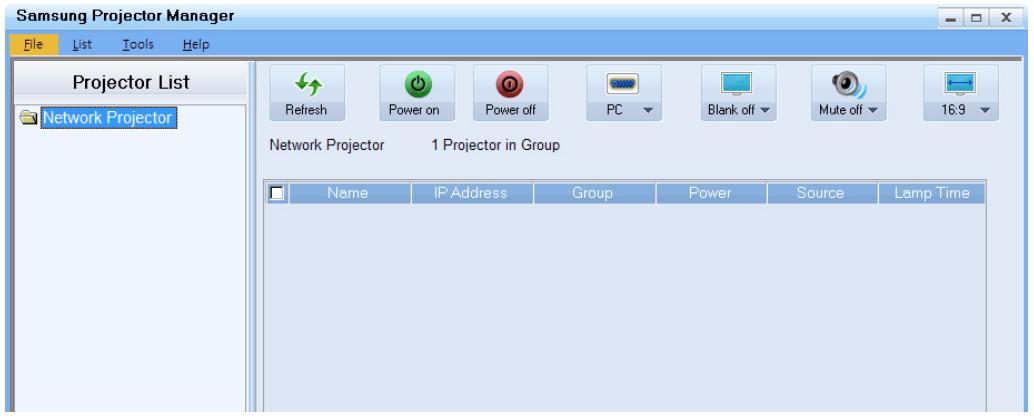

Network Management 3-6

MEDIA PLAY FUNCTION

Connecting a USB Storage Device and Precautions 4-1

Documents 4-2

Photo 4-3

Music 4-4

Movie 4-5

Settings 4-6

Supported File Formats 4-7

TROUBLESHOOTING

Before Requesting Service 5-1

MORE INFORMATION

Specifications 6-1

RS232C Command Table 6-2

Contact SAMSUNG WORLDWIDE 6-3

Correct Disposal - Europe only 6-4

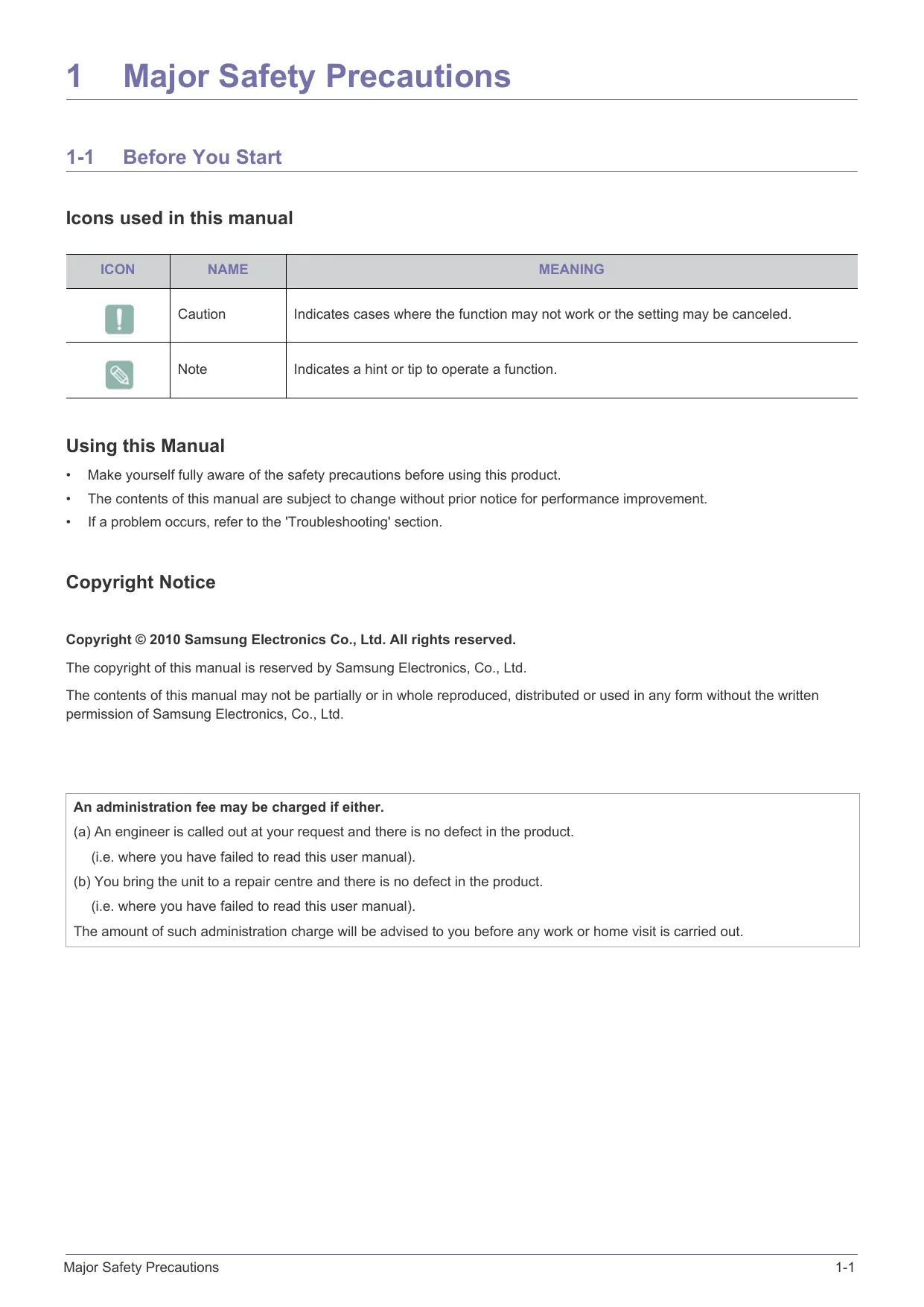

1 Major Safety Precautions

1-1 Before You Start

Icons used in this manual

ICON	NAME	MEANING
	Caution	Indicates cases where the function may not work or the setting may be canceled.
	Note	Indicates a hint or tip to operate a function.

Using this Manual

• Make yourself fully aware of the safety precautions before using this product.
- The contents of this manual are subject to change without prior notice for performance improvement.
• If a problem occurs, refer to the 'Troubleshooting' section.

Copyright Notice

Copyright © 2010 Samsung Electronics Co., Ltd. All rights reserved.

The copyright of this manual is reserved by Samsung Electronics, Co., Ltd.

The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written permission of Samsung Electronics, Co., Ltd.

An administration fee may be charged if either.

(a) An engineer is called out at your request and there is no defect in the product.
(i.e. where you have failed to read this user manual).
(b) You bring the unit to a repair centre and there is no defect in the product.
(i.e. where you have failed to read this user manual).
The amount of such administration charge will be advised to you before any work or home visit is carried out.

Cleaning the Surface and the Lens

Clean the projector using a soft dry cloth.

• Avoid cleaning the product with a flammable substance such as benzene or thinner.
• Avoid scratching the lens with your fingernails or a sharp object. This may result in scratches or damage to the product.
• Avoid cleaning the product with a wet cloth or by directly spraying water onto the product.
  If water enters the product, it may result in fire, electric shock, or a problem with the product.
• A white stain may appear on the surface of the projector if water gets on it.

The appearance and the color may differ depending on the model.

Cleaning Inside the Projector

For cleaning the interior of the projector, contact an authorized Samsung Service Center.

- Contact a Service Center if dust or other substances are inside the projector.

Illustration of a projector with a hand cleaning the front panel (no text or symbols visible)

Illustration of a person looking at a projector with a phone on the screen (no text or symbols visible)

Icons used for safety precautions

ICON	NAME	MEANING
	Warning	Failing to follow the precautions marked with this sign may result in a serious injury or even a fatality.
	Caution	Failing to follow the precautions marked with this sign may result in a personal injury or property damage.

Meaning of Signs

Do not perform.

Must be followed.

Do not disassemble.

The power plug must be unplugged from the wall outlet.

Do not touch.

Must be grounded to prevent electric shock.

Power Related

The following images are for your reference and may differ depending on models and countries.

The appearance and the color may differ depending on models.

Warning

Plug the power plug in firmly.

• Otherwise, it may result in fire.

Avoid connecting multiple electric appliances to a single wall outlet.

- Otherwise, it may result in fire due to overheating of the wall outlet.

Avoid using a damaged power cord or plug or a loose power outlet.

- Otherwise, it may result in electric shock or fire.

Avoid bending or twisting the power cord excessively and avoid placing heavy objects on the cord.

- Otherwise, it may result in electric shock or fire due to a damaged power cord.

Avoid plugging in or unplugging the power supply with wet hands.

- Otherwise, it may result in electric shock.

To move the product, turn the power off and unplug the power cord and any other wires connected to the product.

- Otherwise, it may result in electric shock or fire due to the damaged power cord.

Make sure to connect the power cord to a grounded wall outlet (for insulation class 1 equipment only).

- Otherwise, it may result in electric shock or injury.

Caution

When unplugging the power plug from the wall outlet, make sure to hold the power plug by the plug and not by the cord.

- Failing to do so may result in electric shock or fire.

Do not turn the product on or off by plugging or unplugging the power plug. (Do not use the power plug as a power switch.)

Unplug the power plug before cleaning the product.

- There is a danger of electric shock or fire.

Keep the power cord away from sources of heat.

Connect the power plug to a wall outlet that can be easily reached.

- When a problem occurs with the product, you must unplug the power plug to cut the power off completely. You cannot cut the power off completely using only the power button on the product.

Installation Related

Warning

Avoid installing the product in a location exposed to direct sunlight and installing the product near a heat source such as a fire or heater.

- This may shorten the product life cycle or cause fire.

Avoid installing the product in a badly-ventilated location such as inside a bookshelf or closet.

- Otherwise, it may result in fire due to internal overheating.

When installing the product in a cabinet or shelf, take care so that the front end of the product is completely supported by the cabinet or shelf.

- Failing to do so may result in the product falling and resulting in damage to the product or injury.

• Make sure to use a cabinet or shelf suitable to the size of the product.

When installing the product on a console or shelf, make sure that the front of the product does not protrude out of the console or shelf.

- Otherwise, this may cause the product to fall off and result in a malfunction or injury.

Keep the power cord away from heaters.

- The coating of the power cord may melt and cause electric shock or fire.

When thunder or lighting occurs, unplug the power cord.

- Failing to do so may result in electric shock or fire.

Do not install the product in a location exposed to dust, moisture (sauna), oil, smoke or water (rain drops) and do not install it in a vehicle.

• This may result in electric shock or fire.

Do not install the product in areas with heavy dust.

Caution

Take care not to block the vent with a table cloth or curtain.

- Otherwise, it may result in fire due to internal overheating.

Do not let the product drop while moving it.

- This may result in a problem with the product or injury.

When putting the product down, place it gently.

- Failing to do so may result in a problem with the product or injury.

Do not install the product at a height where children may reach it.

- If a child touches the product, the product may fall and this may result in injury.

Usage Related

Avoid inserting metal objects such as chopsticks, coins or hairpins, or inflammable objects into the product (the vents, ports, etc).

- If water or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center. - Otherwise, it may result in a problem with the product, electric shock or fire.

Do not let children place objects such as toys or cookies on the product.

- If a child tries to reach for any of these objects, the product may fall and cause harm.

Do not disassemble, or attempt to fix or modify the product.

- When the product requires repairs, contact a Service Center.

Do not look directly at the light of the lamp nor project the picture into someone's eyes.

• This is dangerous, especially for children.

Avoid using or placing inflammable spray or objects near the product.

• This may result in an explosion or fire.

When you remove batteries from the remote, be careful that they are not swallowed by children. Keep batteries out of the reach of children.

• If swallowed, see a doctor immediately.

Avoid placing a liquid container such as a vase, flowerpot, beverage, cosmetics or drugs, or a metal object over the product.

- If water or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center. - Otherwise, it may result in a problem with the product, electric shock or fire.

If the product generates a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact a service center.

- Failing to do so may result in electric shock or fire.

If the power plug pin or jack is exposed to dust, water or alien substances, clean it thoroughly.

- There is a danger of electric shock or fire.

When cleaning the product, disconnect the power cord and clean the product with a soft dry cloth.

- Avoid using chemicals such as wax, benzene, alcohol, thinner, mosquito-repellent, fragrance, lubrication or cleansing agent when cleaning the product.

This may result in the exterior being deformed or the print being removed.

When not using the product for a long time, such as leaving your home, unplug the power cord from the wall outlet.

- Otherwise, it may cause dust accumulation and result in fire caused by overheating or a short circuit or result in an electric shock.

If the product is installed in a location where the operating conditions vary considerably, a serious quality problem may occur due to the surrounding environment. In this case, install the product only after consulting our Call Center.

- Places exposed to microscopic dust, chemicals, too high or low temperature, high humidity, such as airports or stations where the product is continuously used for a long time etc..

If you drop the product or the case is damaged, turn the power off and unplug the power cord. Contact a service center.

- Failing to do so may result in fire or electric shock.

Make sure to place your remote control on a table or desk.

- If you step on the remote control, you may fall and hurt yourself or the product may be damaged.

If water or a foreign substance enters the product, turn the product off, unplug the power cord from a wall outlet, and contact a Service Center.

Do not use the product while it indicates a malfunction, such as no sound or no picture.

- Turn the product off immediately, unplug the power cord from a wall outlet, and contact a Service Center.

When a gas leak occurs, do not touch the product or the power plug and ventilate immediately.

- A spark may result in an explosion or fire.

- During a thunder or lighting storm, do not touch the power cord or antenna cable

Do not touch the lens on the product.

• This may cause damage to the lens.

Do not touch any outer part of the product with tools such as a knife or a hammer.

To clean dirt or stains on the front projection lens, use spray or a wet cloth dampened with neutral detergent and water.

Ask a Service Center to clean the interior of the projector at least once per year.

To avoid burning yourself, do not touch the vents or lamp cover while operating or right after turning off the product.

Do not clean the product using water spray or a wet cloth. Avoid using any chemicals such as detergents, industrial or automotive polish, abrasive, wax, benzene, alcohol on any plastic part of the product such as projector case, since this may cause damage.

Do not open any cover on the product.

Do not use any undesignated battery.

- This would prove hazardous because of high-voltage current inside the product.

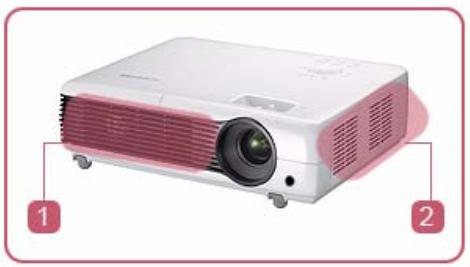

The ventilation hole is hot for some time though the projector is turned off. Keep you hands or body off the ventilation hole.

Be careful not to touch the ventilation hole while the projector is on as hot air comes out.

Be careful to keep your body away from the projector lamp. The lamp is hot.

Do not place objects vulnerable to heat near the projector.

(Children and those who have sensitive skin should be more careful.)

Take care not to lose the lens cover of the product.

The lens cover protects the lens and should be used when the projector is turned off.

• The lens could get damaged.

- To hide the screen while the projector is turned on, use the BLANK feature.

2 Installation and Connection

2-1 Package Contents

• Unpack the product and check if all of the contents listed below have been included.
• Store the packaging box in case you need to move the product at a later date.

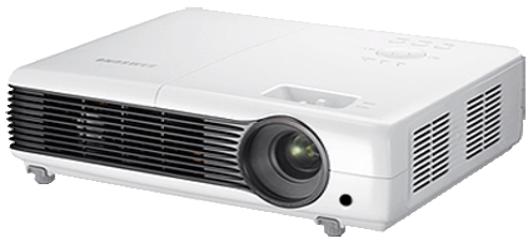

White projector with black ventilation grille and projection lens (no visible text or symbols)

Projector

CONTENTS
Quick Setup Guide	Warranty Card (Not available in all locations)	User Manual	Power Cord
Remote Control / 2 Battery( Not available in all loca-tions)	Cleaning Cloth	D-Sub Cable	Lens cover
4 Screws(For ceiling mount bracket.)	Projector case

A ceiling mount is not included and must be purchased separately. Use the included screws to attach the projector to the ceiling mount bracket.

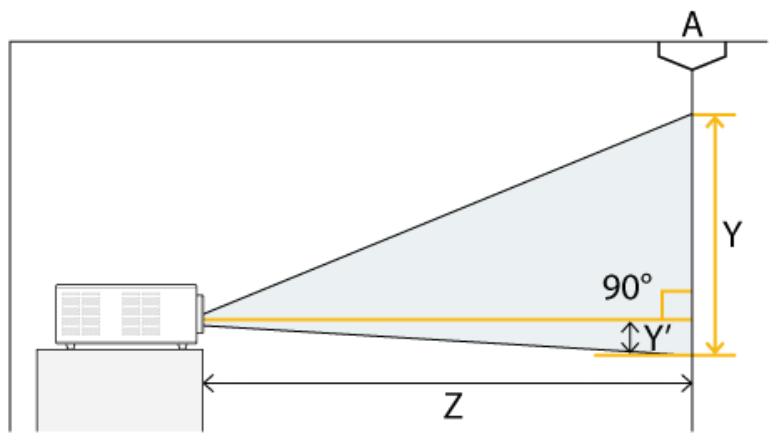

Install the projector so that the beam from the projector is perpendicular to the screen.

• Place the projector so that the lens aims at the center of the screen. If the screen is not vertical, the picture on the screen may not appear rectangular.
• Do not install the screen in bright surroundings. If the surroundings are too bright, the picture on the screen will be washed out and not display clearly.
• When using the projector in bright surroundings, use curtains to block the light.
• You can install the projector in the following locations relative to the screen : / / / . To view the installation position settings, see below.

To adjust the picture when you install the projector behind the screen

2 1

Installing behind a semi-transparent screen.

When you install the projector behind a semi-transparent screen, you can use the menu to adjust the picture so that it displays correctly, depending on where you've located the projector, rear-floor (or low) or rear-ceiling.

1. For rear-floor, press :

Menu > Setup > Install > Rear-Floor

1. For rear-ceiling, press :

Menu > Setup > Install > Rear-Ceiling

To adjust the picture when you install the projector in the front of the screen

2 1

Installing the projector in front of the screen.

When you install the projector in front of a screen, you can use the menu to adjust the picture so that it displays correctly, depending on where you've located the projector, front-floor (or low) or front-ceiling.

1. For front-floor, press :

Menu > Setup > Install > Front-Floor

White projector with black lens and red button, no visible text or symbols

Press the PUSH buttons, as shown, to adjust the legs and level the projector.

The projector can be adjusted to a height of up to 1.18 inches (30mm, about 12°) from the reference point. If is set to , is adjusted automatically. If fine tuning is required after auto-adjustment, use .

FLOWS 1 2

1 Zoom Knob You can adjust the size of the image within the zoom range by manipulating the Zoom Knob.
2 Focus Ring Focus the picture on the screen using the Focus Ring.

The size of your screen determines the distance you set your projector from the screen.

If you do not install your projector at the projection distance specified in the Screen Size and Projection Distance table in Section 2-5, you will not be able to adjust the focus correctly.

A Y 90° Y' Z

Scenic landscape with green fields, distant islands, and blue sky (no text or symbols)

A. Screen / Z. Throw Distance / Y'. Distance from Lens Center to Image Bottom

Install the projector on a flat, even surface and level the projector using the adjustable feet to obtain optimal picture quality. If images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward.

This projector is designed to show images optimally on a 80 \~ 120 inch sized screen.

SCREEN SIZE						THROW DISTANCE				OFFSET
M (DIAGONAL)		X (HORIZONTAL)		Y (VERTICAL)		Z (TELE)		Z (WIDE)		Y'
INCHES	CM	INCHES	CM	INCHES	CM	INCHES	CM	INCHES	CM	INCHES	CM
30	76.2	24	60.9	18	45.7	42.7	108.4	35.5	90.1	2.6	6.3
40	101.6	32	81.3	24	61.0	57.0	144.7	47.4	120.3	3.3	8.4
50	127.0	40	101.6	30	76.2	71.2	180.8	59.2	150.4	4.1	10.5
60	152.4	48	121.9	36	91.4	85.4	217.0	71.0	180.4	5.0	12.6
70	177.8	56	142.2	42	106.7	99.7	253.1	82.9	210.5	5.8	14.7
80	203.2	64	162.6	48	121.9	113.9	289.4	94.7	240.6	6.6	16.8
90	228.6	72	182.9	54	137.2	128.2	325.6	106.6	270.7	7.4	18.9
100	254.0	80	203.2	60	152.4	142.4	361.7	118.4	300.7	8.3	21.0
110	279.4	88	223.5	66	167.6	156.6	397.8	130.2	330.8	9.1	23.1
120	304.8	96	243.8	72	182.9	170.9	434.0	142.1	360.8	9.9	25.2
130	330.2	104	264.2	78	198.1	185.1	470.3	153.9	391.0	10.8	27.3
140	355.6	112	284.5	84	213.4	199.4	506.4	165.8	421.1	11.6	29.4
150	381.0	120	304.8	90	228.6	213.6	542.5	177.6	451.1	12.4	31.5
160	406.4	128	325.1	96	243.8	227.8	578.7	189.4	481.1	13.2	33.6
170	431.8	136	345.4	102	259.1	242.1	614.8	201.3	511.2	14.1	35.7
180	457.2	144	365.8	108	274.3	256.3	651.1	213.1	541.4	14.9	37.8
190	482.6	152	386.1	114	289.6	270.6	687.3	225.0	571.4	15.7	39.9
200	508.0	160	406.4	120	304.8	284.8	723.4	236.8	601.5	16.5	42.0
210	533.4	168	426.7	126	320.0	299.0	759.5	248.6	631.5	17.4	44.1
220	558.8	176	447.0	132	335.3	313.3	795.7	260.5	661.6	18.2	46.2
230	584.2	184	467.4	138	350.5	327.5	832.0	272.3	691.8	19.0	48.3
240	609.6	192	487.7	144	365.8	341.8	868.1	284.2	721.8	19.9	50.4
250	635.0	200	508.0	150	381.0	356.0	904.2	296.0	751.8	20.7	52.5
260	660.4	208	528.3	156	396.2	370.2	940.4	307.8	781.9	21.5	54.6
270	685.8	216	548.6	162	411.5	384.5	976.5	319.7	811.9	22.3	56.7
280	711.2	224	569.0	168	426.7	398.7	1012.8	331.5	842.1	23.2	58.8
290	736.6	232	589.3	174	442.0	413.0	1049.0	343.4	872.2	24.0	60.9
300	762.0	240	609.6	180	457.2	427.2	1085.1	355.2	902.2	24.8	63.0
310	787.4	248	629.9	186	472.4	441.4	1121.2	367.0	932.3	25.6	65.1
320	812.8	256	650.2	192	487.6	455.7	1157.4	378.9	962.3	26.5	67.2
330	838.2	264	670.5	198	502.8	469.9	1193.5	390.7	992.3	27.3	69.3
340	863.6	272	690.8	204	518.0	484.2	1229.6	402.6	1022.4	28.1	71.4
350	889.0	280	711.1	210	533.2	498.4	1265.8	414.4	1052.4	29.0	73.5
360	914.4	288	731.4	216	548.4	512.6	1301.9	426.2	1082.5	29.8	75.6
370	939.8	296	751.7	222	563.6	526.9	1338.0	438.1	1112.5	30.6	77.7
380	965.2	304	772.0	228	578.8	541.1	1374.2	449.9	1142.6	31.4	79.8
390	990.6	312	792.3	234	594.0	555.4	1410.3	461.8	1172.6	32.3	81.9
400	1016.0	320	812.6	240	609.2	569.6	1446.4	473.6	1202.6	33.1	84.0

Cautions on Lamp Replacement

• The projector lamp is an expendable item. For best operating performance, replace the lamp according to the usage time. You can view the lamp usage time in the Information Display (INFO button).
• Replace the lamp with the one specified below only.

Model	SP-M206 / SP-M226	SP-M256 / SP-M275 / SP-M305
Lamp Model Name	DPL3311U	DPL3321U

- For inquiries on lamp purchase, please see 'Contact SAMSUNG WORLDWIDE' in section 6-3.

• Check that the power cord is unplugged before replacing the lamp.
• Because the lamp is a high temperature and high voltage product, wait at least one hour from the time you disconnect the power cord before replacing the lamp.
  • The projector lamp is on the top of the projector.
• Do not leave the old lamp near flammable items or in reach of children. There is a danger of fire, burns, or injury.
• Remove dirt or foreign material around or inside the lamp unit using a proper vacuum device.
• When handling the lamp, avoid touching any part of it except for the handles. If you handle the lamp incorrectly, you can shorten the lamp's lifetime and affect picture quality.
• When you change the lamp, put the projector on a flat surface.
• The projector has been designed so that the projector does not work if the lamp cover is not completely assembled after a lamp replacement. If the projector does not work properly, please check the operating status of the indicator LED.

Lamp contains Mercury. Dispose According to Local, State or Federal Laws.

Lamp Replacement Procedure

• Because the lamp is a high temperature and high voltage product, wait at least one hour from the time that the power cord is disconnected before replacing it.
  • The projector lamp is on the top of the projector.

• Remove the screw shown in the figure below, and then open the cover.

Front view of a white projector with external ports and indicator lights (no visible text or symbols)

1. With the cover open, remove the three (3) screws on the top of the projector as shown in the figure below.

Close-up of a white electronic device's internal component with three red-circled features (no text or symbols visible)

1. To remove the lamp, hold and then pull the lamp handle as shown in the figure below.

Close-up of a hand inserting a small electronic device into a black case (no visible text or symbols)

Install a new lamp in the reverse order of removal.

Replacing and Cleaning the Filter

Precautions when replacing the projector filter:

• The filter is on the side of the projector.
- Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently. Otherwise, its parts may be damaged due to internal heat.
- When you replace the filter, you may release some dust.
- For inquiries on replacement filter purchase, please see 'Contact SAMSUNG WORLDWIDE' in Chapter 6.

To replace or clean the filter, follow these steps:

1. Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently.

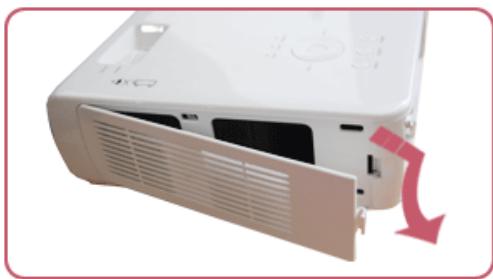

2. Open the filter cover.

White projector with ventilation slots and a red downward arrow indicating airflow (no text or symbols visible)

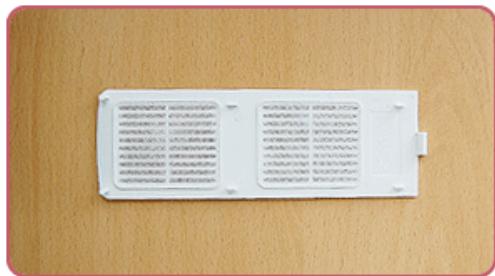

1. Replace or clean the filter.

HANANAISMA KONKOMIKU 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 HANANAISMA KONKOMIKU 100000000000000000000 152438769999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999 HANANAISMA KONKOMIKU 152438769999999999999999999999999999999999999999999999999999999999999999999 HANANAISMA KONKOMIKU 1524387678888888888888888888888888888888888888888888888888888888888888888888 HANANAISMA KONKOMIKU 1524387677777777777777777777777777777777777777777777777777777777777777 HANANAISMA KONKOMIKU 152438766666666666666666666666666666666666666666666666666666666666666666666666666666666 HANANAISMA KONKOMIKU 15243876555555555555555555555555555555555555555555555555555555555555555 HANANAISMA KONKOMIKU 1524387644444444444444444444444444444444444444444444444444444444444 HANANAISMA KONKOMIKU 152438763222222222222222222222222222222222222222222222222 HANANAISMA KONKOMIKU 15243876111111111111111111111111111111111111111111111111 HANANAISMA KONKOMIKU 15243876083333333333333333333333333333333333333333333333333333333333333 HANANAISMA KONKOMIKU 15243876877777777777777777777777777777777777777777777777777 HANANAISMA KONKOMIKU 15243876666666666666666666666666666

• When cleaning the filter, use a small vacuum cleaner designed for computers and small electronics products, or wash it under running water.
  • After washing the filter under running water, make sure to dry it completely. The moisture may cause the filter to corrode.
• If dust cannot be separated from the filter or the filter is torn, it must be replaced.
  • After cleaning or replacing the filter, run -> in the menu.

Ventilation openings

For the location of the ventilation openings, see the picture below:

- Do not block the ventilation openings. Blocking the ventilation openings can cause your projector to overheat and may cause it to fail.

White projector with pink ventilation grille and a camera lens, labeled 1 and 2 (no text or symbols on the device itself)

1 Air outtake vent
2 Air intake vent

PC IN VIDEO IN HDMI / DVI IN AUDIO OUT/IO LAN USB AC 100V-240V RS232C 1 2 3 4 5 6 7 8 9 10 11

ICON	NAME
1	Kensington Lock slot
2	PC IN port
3	VIDEO IN port
4	AUDIO IN (L-AUDIO-R) port
5	HDMI/DVI IN port
6	Remote Control Signal Receiver
7	Power Input port
8	AUDIO OUT/ 🔉 port
9	RS232C port
10	LAN port
11	USB port

2-8-1. PC Timing (D-Sub/HDMI)

FORMAT	RESOLUTION		HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL FREQUENCY (MHZ)
IBM	640 x 350	70Hz	31.469	70.086	25.175
IBM	640 x 480	60Hz	31.469	59.940	25.175
IBM	720 x 400	70Hz	31.469	70.087	28.322
MAC	640 x 480	67Hz	35.000	66.667	30.240
VESA	640 x 480	70Hz	35.000	70.000	28.560
VESA	640 x 480	72Hz	37.861	72.809	31.500
VESA	640 x 480	75Hz	37.500	75.000	31.500
VESA	720 x 576	60Hz	35.910	59.950	32.750
VESA	800 x 600	56Hz	35.156	56.250	36.000
VESA	800 x 600	60Hz	37.879	60.317	40.000
VESA	800 x 600	70Hz	43.750	70.000	45.500
VESA	800 x 600	72Hz	48.077	72.188	50.000
VESA	800 x 600	75Hz	46.875	75.000	49.500
MAC	832 x 624	75Hz	49.726	74.551	57.284
VESA	1024 x 768	60Hz	48.363	60.004	65.000
VESA	1024 x 768	70Hz	56.476	70.069	75.000
VESA	1024 x 768	72Hz	57.672	72.000	78.434
VESA	1024 x 768	75Hz	60.023	75.029	78.750
VESA	1152 x 864	60Hz	53.783	59.959	81.750
VESA	1152 x 864	70Hz	63.000	70.000	96.768
VESA	1152 x 864	72Hz	64.872	72.000	99.643
VESA	1152 x 864	75Hz	67.500	75.000	108.000
MAC	1152 X 870	75Hz	68.681	75.062	100.000
VESA	1280 x 720	60Hz	44.772	59.855	74.500
VESA	1280 x 720	70Hz	52.500	70.000	89.040
VESA	1280 x 720	72Hz	54.072	72.000	91.706
VESA	1280 x 720	75Hz	56.456	74.777	95.750
VESA	1280 x 768	60Hz	47.776	59.870	79.500
VESA	1280 x 768	75Hz	60.289	74.893	102.250
VESA	1280 x 800	60Hz	49.702	59.810	83.500
VESA	1280 x 800	75Hz	62.795	74.934	106.500
VESA	1280 x 960	60Hz	60.000	60.000	108.000
VESA	1280 x 960	70Hz	69.930	70.000	120.839
VESA	1280 x 960	72Hz	72.072	72.000	124.540
VESA	1280 x 960	75Hz	75.231	74.857	130.000
VESA	1280 x 1024	60Hz	63.981	60.020	108.000
VESA	1280 x 1024	70Hz	74.620	70.000	128.943
VESA	1280 x 1024	72Hz	76.824	72.000	132.752
VESA	1280 x 1024	75Hz	79.976	75.025	135.000
VESA	1440 x 900	60Hz	55.935	59.887	106.500
VESA	1440 x 900	75Hz	70.635	74.984	136.750
VESA	1600 x 1200	60Hz	75.000	60.000	162.000
VESA	1680 x 1050 RB	60Hz	64.674	59.883	119.000
VESA	1680 x 1050	60Hz	65.290	59.954	146.250
VESA	1920 x 1080 RB	60Hz	66.587	59.934	138.500
VESA	1920 x 1200 RB	60Hz	74.038	59.950	154.000

All resolutions higher or lower than 1024x768 are converted to 1024x768 by the Scaler chip inside the projector. If the resolution of the signal output by the PC matches the real resolution (1024x768) of the projector, the screen quality is optimal.

2-8-2. AV Timing (D-Sub)

FORMAT	RESOLUTION		SCAN
BT.601 SMPTE 267M	480i	59.94Hz	Interlaced
BT.1358 SMPTE 293M	480p	59.94Hz	Progressive
BT.601	576i	50Hz	Interlaced
BT.1358	576p	50Hz	Progressive
SMPTE 296M	720p	59.94Hz/60Hz	Progressive
	720p	50Hz	Progressive
BT.709 SMPTE 274M	1080i	59.94Hz/60Hz	Interlaced
	1080i	50Hz	Interlaced

2-8-3. AV Timing (HDMI)

FORMAT		RESOLUTION	SCAN	HORIZONTAL FREQUENCY (KHZ)	VERTICAL FREQUENCY (HZ)	PIXEL FREQUENCY (MHZ)
EIA-861	Format1	640 x 480	Progressive	31.469	59.940	25.175
EIA-861	Format1	640 x 480	Progressive	31.500	60.000	25.200
EIA-861	Format2,3	720 x 480	Progressive	31.469	59.940	27.000
EIA-861	Format2,3	720 x 480	Progressive	31.500	60.000	27.027
EIA-861	Format4	1280 x 720	Progressive	44.955	59.939	74.175
EIA-861	Format4	1280 x 720	Progressive	45.000	60.000	74.250
EIA-861	Format5	1920 x 1080	Interlaced	33.716	59.939	74.175
EIA-861	Format5	1920 x 1080	Interlaced	33.750	60.000	74.250
EIA-861	Format16	1920 x 1080	Progressive	67.500	60.000	148.500
EIA-861	Format17,18	720 x 576	Progressive	31.250	50.000	27.000
EIA-861	Format19	1280 x 720	Progressive	37.500	50.000	74.250
EIA-861	Format20	1920 x 1080	Interlaced	28.125	50.000	74.250

2-8-4. AV Timing (VIDEO)

NTSC, NTSC 4.43, PAL, PAL60, PAL-N, PAL-M, SECAM

Your projector supports the standard video formats listed above through its video inputs. No adjustments are necessary.

PC IN VIDEO IN HDMI / DVI IN AUDIO OUT/Ω LAS USB G+ AUDIO IN AC 100V-340V RS232C

1. Plug the power cord into the power terminal on the rear side of the projector.

2-10-1. Setting up the PC Environment

Check the following items before connecting your PC to your projector.

1. Click the right mouse button on the Windows desktop, and then click [Properties]. The dialog appears.

Display Properties Themes: Desktop Screen Saver Appearance Settings A theme is a background plus a set of sounds, icons, and other elements to help you personalize your computer with one click. Theme: Windows XP (Modified) Save As... Delete Sample: Active Window Window Text OK Cancel Apply

1. Click the [Settings] tab, and then set the . The optimal resolution for the projector is 1024 x 768. For other resolutions supported by the projector, see the PC Timing Display Mode table in section 2-8.

You do not have to change the setup.

1. Press the [Advanced] button. Another property window appears.

Display Properties Themes Desktop Screen Saver Appearance Settings Drag the monitor icons to match the physical arrangement of your monitors. 1 2 Display: 1. Plug and Play Monitor on NVIDIA GeForce 6200 TurboCache(TM) Screen resolution More Less More 1024 by 768 pixels Color quality Highest [32 bit] Use this device as the primary monitor. Extend my Windows desktop onto this monitor. Identity Troubleshoot... Advanced OK Cancel Apply

1. Click the [Monitor] tab and set the . For the refresh rate that matches the resolution you've chosen, see the refresh rate (60 Hz, 70 Hz, etc.) next to your selected resolution in the PC Timing Display Mode table in section 2-8.

Setting the refresh rate sets both the vertical and horizontal frequencies.

Plug and Play Monitor and NVIDIA GeForce 6200 Tur... Color Management GeForce 6200 TurboCache(TM) General Adapter Monitor Troubleshoot Monitor type Plug and Play Monitor Properties Monitor settings Screen refresh rate: 60 Hertz Hide modes that this monitor cannot display Clearing this check box allows you to select display modes that this monitor cannot display correctly. This may lead to an unusable display and/or damaged hardware. OK Cancel Apply

1. Click the [OK] button to close the window, and then click the [OK] button on the window to close that window.
2. Shut down the PC and connect it to the projector.

The setup process might vary depending on your type of computer or version of Windows.

(For example, [Properties] appears instead of [Properties (R)] as shown in 1.)

This projector supports 32 bit color quality (per pixel) when it is used as a PC monitor.

Projected images may differ from the images on your monitor depending on the monitor manufacturer or Windows version.

When connecting the projector to a PC, make sure that the PC setup complies with the display settings supported by this projector. If it does not, you may have signal problems.

2-10-2. Connecting with a PC

PC IN VIDEO IN AUDIO OUT/Ω HDMI / DVI IN LAN USB AC 100V-240V AUDIO IN RS232C

Make sure that your PC and projector are turned off.

1. Connect the [PC IN] port on the rear side of the projector to the PC video out (D-sub) port of the PC using a PC video cable.
2. Plug in the power cords of the projector and the PC.

This product supports plug and play. If you use Windows XP, you do not need to set up the driver on your PC.

Using the Projector

1. Turn on the projector, and then press the [SOURCE] button to select .
   If the Mode is not available, make sure the PC video cable is properly connected.
2. Turn on the PC, and then set the PC Environment (screen resolution, etc.) if necessary.
3. Adjust the screen.

2-11-1. Connecting a PC using an HDMI/DVI cable

Make sure that your PC and projector are turned off.

1. Connect the [HDMI/DVI IN] terminal of the projector to the HDMI or DVI terminal of your PC using a HDMI/HDMI or HDMI/DVI cable (Not supplied).

2. If you are connecting to the HDMI terminal of your PC, use an HDMI/HDMI cable (Not supplied).

3. For the supported resolutions and refresh rates, see PC Timing (D-Sub/HDMI) in Section 2-8, "Supported Display Modes".

2-11-2. Configuring the Audio Settings for Your PC

When the projector is connected to the PC via an HDMI cable, you can change the audio settings as follows:

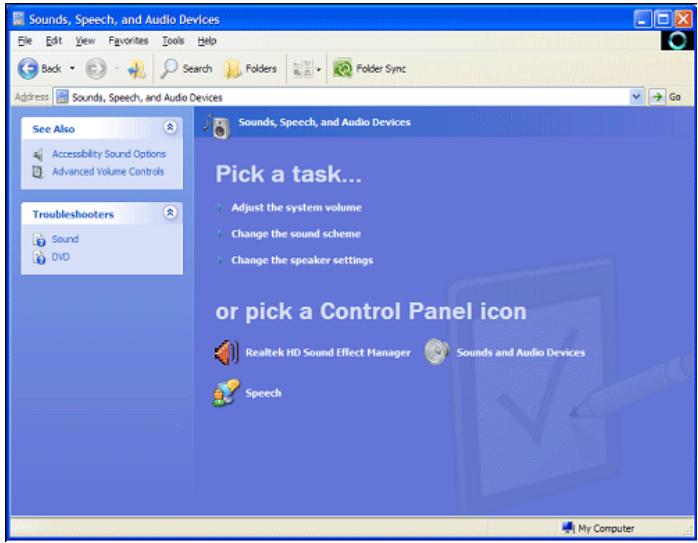

1. In Category View of Windows XP : Go to Control Panel - [Sounds, Speech and Audio Devices], and select .

Sounds, Speech, and Audio Devices File Edit View Favorites Tools Help Back Search Folders Folder Sync Address Sounds, Speech, and Audio Devices Go See Also Accessibility Sound Options Advanced Volume Controls Troubleshooters Sound DVD Sounds, Speech, and Audio Devices Pick a task... Adjust the system volume Change the sound scheme Change the speaker settings or pick a Control Panel icon Realtek HD Sound Effect Manager Sounds and Audio Devices Speech My Computer

In Classic View of Windows XP : Go to Control Panel - [Sound and Audio Devices], and select the

Sounds and Audio Devices Properties Volume Sounds Audio Voice Hardware Sound playback Default device: Realtek HD Audio output Volume... Advanced... Sound recording Default device: Realtek HD Audio Input Volume... Advanced... MIDI music playback Default device: Microsoft GS Wavetable SW Synth Volume... About... Use only default devices OK Cancel Apply

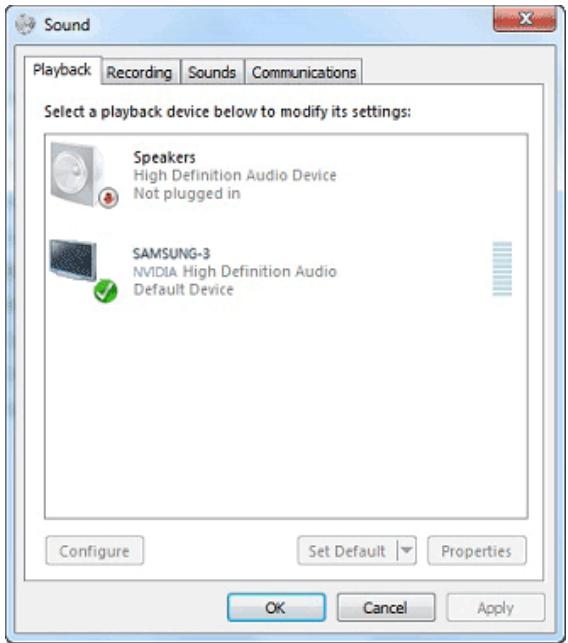

On Windows 7 : Go to Control Panel - [Sound], and select the tab.

Sound Playback Recording Sounds Communications Select a playback device below to modify its settings: Speakers High Definition Audio Device Not plugged in SAMSUNG-3 NVIDIA High Definition Audio Default Device Configure Set Default Properties OK Cancel Apply

1. Specify the default device for sound playback:

You can select the PC speakers or projector speaker.

The aforementioned information may slightly differ from some PCs or versions of Windows.

HDMI OUT Or PC IN VIDEO IN HDMI / DVI IN AUDIO OUT CAN LAN USB Audio IN AC 100V-240V RS232C

Make sure that the AV device and your projector are turned off.

1. Connect the [HDMI/DVI IN] terminal at the back of the projector to the HDMI or HDMI/DVI output terminal of the digital output device using an HDMI/DVI or HDMI/HDMI cable.
2. If you are connecting to the HDMI output terminal on the digital output device, use an HDMI/HDMI cable.
3. For supported input signal formats, resolutions, and frequencies, see AV Timing(HDMI) in Section 2-8, "Supported Display Modes".
4. If you connected using a HDMI/DVI cable, connect the [AUDIO IN (L-AUDIO-R)] terminal on the projector to the Audio out terminal on your digital output device using an audio cable (Not supplied).
5. If you connected with a HDMI/HDMI cable, you do not need an audio cable.

PC IN VIDEO IN AUDIO OUT/Ω HDMI / DVI IN LAN USB AC 100V-240V RS232C DVD

Make sure that the AV device and your projector are turned off.

1. Connect the [PC IN] terminal at the back of the projector to the D-Sub terminal of your AV device using a D-Sub cable.
2. For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-8, "Supported Display Modes".
3. Connect the [AUDIO IN (L-AUDIO-R)] terminal at the back of the projector to the Audio out terminal of your AV device using an audio cable (Not supplied).

PC IN VIDEO IN HDMI / DVI IN AUDIO OUT / LAM USA AC 100V-240V RS232C AUDIO IN COMPONENT AUDIO OUT

Make sure that the AV device and your projector are turned off.

1. Connect the [PC IN] terminal on the back of the projector to the Component terminal on your AV device using a D-Sub to Component cable (Not supplied). This cable has a D-Sub connector on one end and three RCA jacks on the other.

2. For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-8, "Supported Display Modes".

3. Connect the [AUDIO IN (L-AUDIO-R)] terminal on the back of the projector and the Audio out terminal on your AV device using an audio cable (Not supplied).

PC IN VIDEO IN HDMI / DVI IN AUDIO OUT/Ω LAN USB AC 100V-240V RS232C VIDEO OUT

Make sure that the AV device and your projector are turned off.

1. Connect the AV device to the [VIDEO IN] port using a VIDEO cable (not supplied).
2. For supported input signal formats, see AV Timing (VIDEO) in section 2-8, "Supported Display Modes".
3. Connect the [AUDIO IN (L-AUDIO-R)] terminal on the back of the projector and the Audio out terminal on your AV device using an audio cable (Not supplied).

PC IN VIDEO IN HDMI / DVI IN AUDIO OUT/Ω LAN USB AC 100V-240V RS232C VIDEO IN Hi Hi

You can hear sound through an external speaker instead of the internal speakers built into the projector.

1. Obtain an audio cable (Not supplied) suitable for your external speaker.
2. Connect the [AUDIO OUT/Ω] terminal of the projector to the external speaker using an audio cable.

- When using an external speaker, the internal speaker does not operate but you can adjust the volume of the external speaker using the Volume button or the remote control of the projector.

- The [AUDIO OUT/Ω] terminal can output all audio signals.

This product can use network functions. Refer to the following Network connection method.

2-17-1. Connecting to a Dynamic IP (DHCP) Network

You can attach the projector to your network through a modem that uses DHCP (Dynamic Host Configuration Protocol). When you use a DHCP modem, the modem automatically provides the IP address, subnet mask, and gateway values that the projector needs to access the network.

Diagram showing network connection between a router, server, and device with labeled ports and connections

To connect to a DHCP network, follow these steps :

1. Connect the modem cable between the modem port on the wall and the external modem.
2. Connect a LAN cable between the external modem and the wired or wireless IP router.
3. Connect a LAN cable between the [LAN] port on the back of the projector and the wired or wireless IP router.
4. Turn the projector on and press the [MENU] button.
5. Select → → → .
6. The projector automatically acquires the IP address, Subnet mask and Gateway.

• To use the network function, must be set to .

• If the IP address allotment from the DHCP server fails, turn off the external modem for more than 10 seconds, restart the modem, and then retry the connection.
• For instructions on the setup and connection of the external modem and router, refer to the user manual for each product.
• You can connect the LAN cable from the modem directly to the projector, You do not need a router.
• You can not use a manual connection-type ADSL modem because it is not a DHCP-type device. Make sure to use an automatic connection DHCP ADSL modem.

2-17-2. Connecting to a Static IP Network

You can attach the projector to a network that uses a Static IP address, which corresponds to using a dedicated lease line. If your network uses Static IP addresses, you must get the IP address, subnet mask, and gateway values from your Internet Service Provider (ISP), turn on the Network function in the projector's Menu, and then enter the values into the Network function manually.

Diagram showing network connection between a server, wireless router, and audio output port with labeled ports and connections

To connect to a Static IP address network, follow these steps :

1. Connect a LAN cable between the LAN port on the wall and a wired or wireless IP router.
2. Connect a LAN cable between the [LAN] port on the back of the projector and the wired or wireless IP router.
3. Turn on the projector, and then press the [MENU] button.
4. Select → → → .
5. Select and press the [☐] button. Use the ◀/▶ buttons to navigate between each IP Address entry field and the ▲/▼ buttons to enter values.
6. When done entering all the values for IP Address, press the [☐] button and then repeat the steps for Subnet mask and Gateway.
7. When all values have been filled in, press the [MENU] or [RETURN] button to exit the setup menu.

• To use the network function, must be set to .

• If you use a static IP, your ISP will inform you of your IP address, subnet mask and gateway. These values must be entered to complete your network setup. If you do not know your static IP address, consult your network administrator.
• For instructions on the setup and connection of the router, refer to the router's user manual.
• You can connect the LAN cable directly to the projector without using a router.
  • If you use an IP Router which supports the DHCP function, you can set the router to either DHCP or static IP.
• For instructions on the use of a static IP, consult your Internet service provider.

The Kensington Lock slot allows you to lock your projector, providing a sense of security when you use it in a public place. Because the shape and usage of the lock may differ depending on the model and the manufacturer, see the User Manual supplied with the locking device for more information.

PC IN VIDEO IN AUDIO OUT/Ω HDMI / DVI IN LAN USB AC 100V-240V AUDIO IN RS232C

Locking the product

1. Loop the Kensington lock cable around an immovable part of desk or heavy object as directed in the Kensington lock user manual.
2. Insert the locking part of the locking device into the Kensington lock hole in the projector.
3. Insert the Kensington lock key into the locking mechanism and turn it in the locking direction.

You can purchase a locking device from an electronics store or an online shop.

3-1 Product Features

1. An optical engine adopting new LCD technology

• 1024 x 768 resolution.
- 3P-LCD panel.
• SP-M206 : Provides a bright, 2000 ANSI lumen screen.
• SP-M226 : Provides a bright, 2200 ANSI lumen screen.
• SP-M256 : Provides a bright, 2500 ANSI lumen screen.
• SP-M275 : Provides a bright, 2700 ANSI lumen screen.
• SP-M305 : Provides a bright, 3000 ANSI lumen screen.

1. Minimized fan noise

- Minimizes fan noise through optimized internal air flow and the fan installation structure.

1. Multiple input terminals

• Increases the connectivity to peripheral devices such as D-Sub 15P, Video, HDMI(DVI PC signal, supported), etc.

1. Audio Output

• Equipped with an internal 7W (mono) speaker.

1. User adjustments

2. Allows adjustment of each input port.
   • Equipped with an internal Test Pattern that can be used to install and adjust the projector.

3. Compact size, lightweight, and portable.

4. Convenient Network Function

- The projector can be monitored and controlled from a PC using the network function.

1. Multimedia Function

• You can enjoy video, photos, and music, and view documents stored on a USB device, without connecting to a PC.

1. Security Function

• Security password can be set to prevent unauthorized adjustments and access to the projector.

STATUS LAMP STAND BY VOL - VOL + MENU SOURCE POWER 3 4 5 8 9 10

ICON	NAME	DESCRIPTION
1	Indicators	- STAND BY (Blue LED)- LAMP (Blue LED)- STATUS (Green/Red/Yellow LED)Refer to the LED Indications.
2	Move ^V <> / SelectVolume< >vol vol+button	^V <> / ☑: Use to move or to select an item within a menu.< >vol vol- + : Use to adjust the volume.
3	MENU button	Use to display the Menu Screen.
4	SOURCE button	Use to select the external device signal.
5	POWER button	Use to turn the projector on or off.
6	Zoom Knob	Use to enlarge or reduce image size.
7	Focus Ring	Use for Focus Adjustment.
8	Lens
9	Remote Control Signal Receiver
10	Hole for attaching lens cap string

Using your projector with another remote control device nearby may result in improper functioning due to remote control code (frequency) interference.

1 POWER ( ⏻ ) Button Use this button to turn the projector on and off.
2 P.MODE Button Use to select Picture Mode.
3 P.SIZE Button Use to adjust the size of picture screen.
4 Rewind Button Rewind video in mode.
5 Play button Play video in mode.
6 KEYSTONE button Correct a tilted image.
7 Pause button Pause video in mode.
8 VOL (+−) Button Use to control the volume.
9 MENU (☐) Button Use to display the Menu Screen.
10 MEDIA.P Button Go directly to mode. Display the menu items while in mode.
11 HELP Button Display the button information menu at the bottom of the screen when a document is being viewed in mode.
12 Move (▼▲◀▶) / (☐) Buttons Used to move to or select each menu item.
13 INFO Button Use to check source signals, picture setup, PC screen adjustment, and lamp lifespan.
14 Colored buttons (Only available in ) Red : Use to view subtitle while playing a video file. Green : Use to set while playing a photo file. Yellow : Use to set in document view. Blue : Use to move pages using Menu in document view.

POWER AUTO P.SIZE P.MODE BLANK REYSTONE DOCU. ZOOM VOL SOURCE PAGE MUTE UP SAFELY REMOVE MEDIA.P MENU USB HELP RETURN INFO EXT QUICK INSTALL STILL SAMSUNG

15 QUICK Button Use to quickly return to the last menu used.
16 AUTO Button Automatically adjust the screen. (Only enabled in mode.)
17 BLANK Button Use to turn off the screen and sound temporarily. The video and audio will come back on when any button other than the [POWER] button is pressed.
18 Fast forward button Fast forward video in mode.
19 Stop button Stop video in mode.
20 DOCU. ZOOM button Enlarge or reduce a document in the menu under mode.
21 MUTE (OK) Button Press to mute the sound temporarily. Press the MUTE button again or the [VOL] button (+−) when the sound is muted to hear sound again.
22 PAGE Button (^^) Use to move to the previous or next page, one page at a time.
23 SOURCE Button Switch the external input signal.
24 USB SAFELY REMOVE Button Use to remove a [USB] device safely.
25 RETURN (☐) Button Returns to the previous menu.
26 EXIT (→) Button Use to make the Menu Screen disappear.
27 STILL Button Use to see still images.
28 INSTALL Button Use to adjust the image so that it is appropriate for the projector's installation location (In front of the screen and hanging from the ceiling, behind the screen and hanging from the ceiling, etc.)

• Make sure to place your remote control on a table or desk.
- If you step on the remote control, you may fall and hurt yourself or damage the remote.
• You can use the remote control up to a distance of about 32.8 feet (10 m) from the product.

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.

Diagram of a battery pack with open casing and internal components, showing battery arrangement (no text or symbols)

1. Insert two AAA size batteries.
2. Close the cover.

LED Indications

●:Light is On Ⓞ:Light is Blinking ○:Light is Off

STATUS	LAMP	STAND BY	STATUS
○	○	●	If you press the [POWER] button on the remote control or projector, the screen appears within 30 seconds.
○	●	●	The projector is operating normally.
○	○	●	The projector is preparing an operation after the [POWER] button on the projector or the remote control has been pressed.
○	○	○	The [POWER] button has been pressed to turn off the projector, and the cooling system is in operation to cool off the inside of the projector. (Operates for about 3 seconds.)
●	○	●	The cooling fan inside the projector is not operating normally. Refer to Action 1 in Clearing Indicator Problems below.
○	○	●	The lamp cover protecting the lamp unit is not closed properly. Refer to Action 2 in Clearing Indicator Problems below.
○	○	●	The projector has changed to Cooling mode because its internal temperature has increased beyond the maintenance limit.Refer to Action 3 in Clearing Indicator Problems below.
●	○	●	The projector has turned itself off automatically because its internal temperature has increased beyond the maintenance limit. Refer to Action 4 in Clearing Indicator Problems below.
○	○	○	A problem has occurred with the operation of the lamp. Refer to Action 5 below.

Clearing Indicator Problems

CLASSIFICATION	STATE	MEASURES
Action 1	The cooling fan system is not operating normally.	If the symptom remains even after disconnecting and then reconnecting the power cord and turning the projector on again, contact your product provider or our service center.
Action 2	The lamp cover protecting the lamp unit is not properly closed or the sensor system is not operating normally.	Check if the screws on the side of the projector are securely tightened. If they are and the indicators are still lit, contact your product distributor or our service center.
Action 3	The projector has changed to the Cooling mode because the internal temperature of the projector has increased beyond the maintenance limit.	If the internal temperature of the projector has increased beyond the maintenance limit, the projector changes to the Cooling mode before turning off automatically.In Cooling mode, the fan speed is increased and the projector's lamp is changed tomode.Check whether the ventilation hole of the projector is blocked.Check the air filter and clean if blocked.Check whether the surrounding temperature of the projector is higher than the standard temperature range of the projector.Cool the projector sufficiently and operate it again.
Action 4	The internal temperature of the projector has risen higher than the limit, and the projector has turned off automatically.	Check whether the ventilation hole of the projector is blocked.Check the air filter and clean if blocked.Check whether the surrounding temperature of the projector is higher than the standard temperature range of the projector.Cool the projector sufficiently and operate it again.If the same problem occurs continually, contact your product distributor or service center.
Action 5	The lamp has malfunctioned after power turns off abnormally or after the projector is powered on right after turning off.	Turn the power off, wait for a sufficient amount of cooling time and then turn the power on to operate. If the same problem occurs continually, contact a Samsung service center.

This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may produce noise, This does not affect product performance and is part of normal operation.

The Screen Adjustment Menu (OSD: On Screen Display) Structure

To access the Menu, press the Menu button on the product or on the remote. To move in the menu, press the arrow buttons. Menu selections with an arrow on the far right have sub-menus. Press the right arrow button to access the sub-menu. Directions for navigating and selecting items in a menu are at the bottom of each menu screen.

MENU	SUB-MENU
Input	Source List	Edit Name
Picture	Mode	Size	Position	Digital NR	Black Level
	Overscan	Film Mode	PC	Zoom
Setup	Install	Lamp Mode	Auto Keystone	V-Keystone	Background
	Test Pattern	Video Type	Caption	Network	Reset
Option	Language	Menu Option	Sound	Filter Check Time	Auto Power On
	Sleep Timer	Melody	Security	Panel Lock	Information

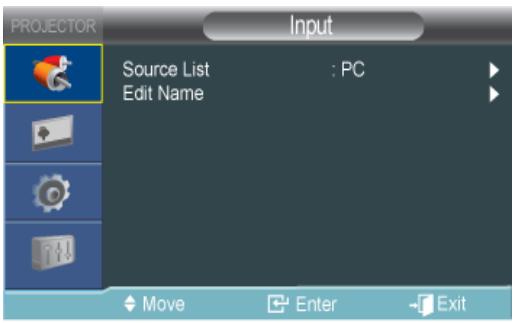

3-5-1. Input

Projector Input Source List : PC Edit Name Move Enter Exit

MENU	DESCRIPTION
Source List	You can select a device connected to the projector to display.·-<HDMI>-<Media Play>
Edit Name	You can edit the names of devices connected to the projector.·-<Cable STB>-<PVR STB>-<Game>-<Camcorder>-<DVI Devices>-<IPTV>-<Blu-ray>-<HD DVD>-<DMA>

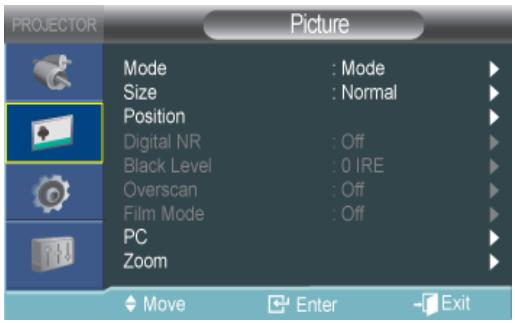

3-5-2. Picture

PROJECTOR Picture Mode : Mode Size : Normal Position Digital NR : Off Black Level : 0 IRE Overscan : Off Film Mode : Off PC Zoom Move Enter Exit

MENU	DESCRIPTION
Mode	Select a screen mode to match the environment, the kind of images you are projecting, or select a customized mode you have created based on your requirements.
	• : Selects the picture for increased definition in a bright room.• : Selects the picture for the optimum display in a normal environment.• : This mode is suitable for presentations.• : This mode is suitable for text work.• : This mode is suitable for viewing a movie.• : This picture mode is optimized for playing games.Inmode, the text in still pictures will appear unnatural.: This is a customized mode you create using the→function.Theandmodes are only enabled when the input signal is PC Timing(D-Sub/HDMI) or. : Used to adjust the contrast between the object and the background.: Used to adjust the brightness of the entire picture.: Used to adjust the sharpness of the picture.is disabled when the input signal is PC Timing(D-Sub/HDMI) or. : Used to adjust color lighter or darker.is disabled when the input signal is PC Timing(D-Sub/HDMI) or.: Used to obtain more natural color by enhancing the amount of green or red in images.is disabled when the input signal is PC Timing (D-Sub/HDMI), AV Timing(VIDEO)'s PAL and SECAM signal, ormodes: The tone of the color can be changed. Factory defaults:, ,You can select the color temperature for the items below according to your preferences.,: Adjusts the color temperature of the White level.,: Adjusts the color temperature of the Black level.-: Changes the brightness characteristic for each color tone of an image. The larger (+) the value, the greater the contrast of the bright and dark parts. The smaller (-) the value, the darker the dark parts. Adjustable range: -3 to +3: You can save the status of a screen you adjusted according to your preferences using the→OSD: Restores the mode settings to the factory defaults.
Size	Using this function, you select a screen size.andare disabled when the input signal is PC Timing(D-Sub/HDMI) or.-<16:9>
Position	Using this function, you can adjust the screen position if it is not aligned.To adjust, select the direction you want to move the screen, and then press the arrow button pointing in that direction repeatedly.This function does not work inmode.
Digital NR	If dotted lines appear in an image or the screen shakes, enabling Digital NR (Noise Reduction) can improve the quality of the picture.When the input signal is a PC Timing (D-Sub/HDMI) signal,does not operate.
Black Level	If the black level is unsuitable for the input signal, the dark parts of an image may look unclear or dim. Using this function, you can select a black level that can improve the visibility of the dark parts.Thecan only be set for the [AV], 480i and 576i in AV Timing (D-Sub), and RGB signals in the [HDMI] input.For [AV], and the 480i and 576i signals of AV Timing (D-Sub).<0 IRE>: Sets the black level to <0 IRE>.<7.5 IRE>: Sets the black level to <7.5 IRE>.For the RGB signal ofmode.: Used in a normal environment.: Used when the dark parts of an image are too bright.
Overscan	Using this function, you can cut off edge of the a picture when unnecessary information or images appear on the edge of the picture-----------.Disabled inandmodes.Overscan is supported only when the input signal is an AV Timing (D-Sub) or AV Timing (HDMI) signal.Ifis turned off, unnecessary extra parts at the edges of an image may be shown. In this case, turnon.
Film Mode	Using this function, you can set the display mode so that it is optimized for playing movies.-->is only be supported for the [AV], 480i and 576i of AV Timing (D-Sub) signals.This function does not work inmode.
PC	For PC signals, the four PC functions eliminate or reduce noise that can cause unstable screen quality, such as screen shaking. If the noise is not removed using Fine Adjustment, adjust the frequency to the maximum and then perform Fine Adjustment again.These functions are only enabled for the PC Timing (D-Sub/HDMI) input of the D-Sub terminal.Refer to PC Timing (D-Sub/HDMI): Used to adjust the frequency and phase of PC screen automatically.: Used to adjust the frequency when vertical lines appear on the PC screen.: Used to fine tune the PC screen.: Using this function, you can reset the PC menu settings to the factory default settings.
Zoom	You can magnify the screen to a size you want.-->This function is only enabled when the input signal is a PC Timing (D-Sub/HDMI) signal.

Projector Setup Install : Front-Floor Lamp Mode : Eco Auto Keystone : Off V-Keystone Background : Logo Test Pattern Video Type : Auto Caption Network : On Reset Move Enter Exit

MENU	DESCRIPTION
Install	To tailor the picture to the installation location, (for example, behind a semi-transparent screen, hanging from the ceiling), you can invert the projected images vertically / horizontally.: Normal Image: Horizontal/Vertical Reversed Image: Horizontally Reversed Image: Vertically Reversed Image
Lamp Mode	Using this function, you can set the image brightness by adjusting the amount of light generated by the lamp.: This mode is optimized for screens smaller than 100 inches.This mode decreases the lamp brightness and power consumption in order to extend the lamp lifetime and reduce noise and power consumption.: This mode maximizes the lamp brightness when the ambient illumination is bright. As the brightness of the lamp increases, the lamp lifetime may be reduced and the noise and power consumption may increase.
Auto Keystone	If video scenes are distorted or tilted, you can compensate for this by setting thefunction toso that thefunction automatically starts.-<On>
V-Keystone	If video scenes are distorted or tilted, you can compensate for this using the vertical Keystone function.The sound output of your projector is temporarily stopped while the keystone is being changed.Keystone does not compensate for distortion in the On Screen Display (OSD) menu.
Background	You can select an image or screen which will appear when there is no signal from the external device connected to the projector.-<Blue>-<Black>The recommended resolution for a picture to be set as the user logo is 600x300.
Test Pattern	A default test pattern built into the projector. You can use it as a reference picture to optimize the installation of the projector and to optimize images.: You can check whether the picture is distorted or not.: You can reference and display picture format sizes such as 1.33 : 1 or 1.78 : 1.
MENU	DESCRIPTION
Video Type	If the screen quality is abnormal as a result of the projector not identifying the input signal type automatically inormode, Video Type lets you manually set the input signal.This function does not work inmode.Inmode, the menu is only enabled for AV Timing (D-Sub) input signals. For separate H/V sync, it is only enabled for a 1280 x 720p 59.94Hz/60Hz signal.-<RGB(PC)>--<RGB(AV)>--<YPbPr(AV)>Inmode,is only enabled for the 640x480p 59.94Hz/60 Hz and 1280x720p 59.94Hz/60 Hz signals.-<Auto>-<PC>-<AV>
	Usage		Color,Sharpness,Tint	PC menu	zoom
	RGB(PC)	When connecting the RGB output of a PC to the D-Sub terminal	Disabled	Enabled	Enabled
	RGB(AV)	When connecting the RGB output of an AV device (STB, DVD, etc...) to the D-Sub terminal	Enabled	Disabled	Disabled
	YPbPr(AV)	When connecting the YPbPr output of an AV device (STB, DVD, etc...) to the D-Sub terminal	Enabled	Disabled	Disabled
	PC	When connecting a PC to the HDMI terminal	Disabled	Disabled	Enabled
	AV	When connecting an AV device (STB, DVD, etc...) to the HDMI terminal	Enabled	Disabled	Disabled
	Auto	Auto settings	-	-	-
Caption	Thefunction is supported when the external analog signal from the Video input contains subtitles.::-<On>::-<Text>:<1>-<2>:<1>-<2>Activated only inMode.Depending on the external signal, a change to the channel orsettings may be required.Eachandcontains different information.<2>carries additional information to supplement information contained in<1>. (e.g. If English subtitles are provided on<1>, Spanish subtitles will be provided on<2>.)
MENU	DESCRIPTION
Network	By connecting a LAN cable between the PC and projector, you can use the following supplementary functions on your PC.On your PC, you can check the projector's condition (lifespan of the lamp, operation error, temperature) and remotely control the projector's power On/Off, brightness, and sound On/Off .: -
	• : Automatically allots the IP address, Subnet mask and Gateway.• : Allows you to manually enter the IP address, Subnet mask and Gateway manually.After pressing the [☐] button to enter values, change the values using the ▲/▼ buttons and move using the ◀/► buttons. Once the values are filled in, press the[☐] button.: Allows you to enter the server PC's IP address.To use the network function, must be set to. If the network connection fails, enter the IP address of the server PC under.
Reset	Using this function, you can reset various settings to the factory default settings: Changes the settings to the factory defaults.: Resets the filter time.: The following functions are activated only when the projector fails to enter themode due to amode error.Activated only inMode.When the projector is turned off during a firmware update, use this function to continue the update.-Under normal usage, update by selecting→→in themenu.When theoperation suddenly freezes, use this function to restart.-

3-5-4. Option

PROJECTOR Option Language : English Menu Option Sound Filter Check Time : Off Auto Power On : Off Sleep Timer : Off Melody : Off Security Panel Lock : Off Information Move Enter Exit

MENU	DESCRIPTION
Language	Using this function, you can select the language used for the menu screen.
Menu Option	: You can move Menu Position up/down/left/right.: You can set the translucency of the menu.-: : You can set the display time of the menu.-<5 sec>-<10 sec>-<30 sec>-<60 sec>-<90 sec>-<120 sec>-<Stay On>
Sound	The projector comes with an internal 7W (mono) speaker. Use the settings below to tailor the sound as desired.-<100Hz>-<300Hz>-<1kHz>-<3kHz>-<10kHz>
Filter Check Time	Sets the check period for the filter. (Unit: hours):-<100>-<200>-<400>-<800>If the filter usage time is larger than the filter check period, the filter check message is displayed for 1 minute whenever the projector is turned on.Filter check message: "-".
Auto Power On	With Auto Power On, if power is supplied to the projector, it turns on automatically without your pressing the Power button.-
Sleep Timer	With Sleep Timer on, if there is no input signal for the specified time, the projector turns off automatically.(There must be no button input from the remote control or the top of the projector for the specified time)-<10 min>-<20 min>-<30 min>This function does not work inmode.
Melody	Set so that a melody plays when the Projector is turned on or off.- - -
Security	To deter theft, you can set a password that users must enter when the projector powers on. When you set a password, the projector will not work without it.-: Enter your current password and set the protection function to off.-: Enter a new password and set the protection function to on.-: Change your current password.Use the displayed number keys to enter or change the password.If you forgot your password, contact a Samsung Service Center.
Panel Lock	You can disable the buttons on the projector body so that the projector can only be operated by the remote control.-
Information	You can check external source signals, picture setup, and PC picture adjustment.

3-6-1. Management using the Web Browser

The Web Browser lets you monitor and control one projector from a PC without installing any software. Before you can use the Web Browser, you must connect your projector to your local area network. For directions explaining how to connect to a network, see section 2-17, Connecting to a Network.

To control multiple projectors from a single PC, install and run Samsung Projector Manager.

For information about Samsung Projector Manager, go to 3-6-2.

Check the network connection between the PC and projector before connecting the Web Browser. If the network connection has failed, the Web browser window may not be available for use.

• To use the Web Browser, your PC must meet the following minimum system requirement :

• RAM: More than 10MB
• Hard Disk capacity: More than 10MB
• Display resolution: More than 640 x 480
• Supported OS : Microsoft Windows XP, Windows Vista

- Web browser : Microsoft Internet Explorer 6 or later version, Netscape Navigator 9 or later version, Mozilla Firefox 3.0.x or later version, Google Chrome.

1. Connecting

- Enter the projector's IP address into the web browser address bar.

Find the projector's IP address by pressing the [MENU] button and selecting -> -> .

• The Network Projector window appears. For information about control items in the Network Projector window, refer to the items under Section 3-5, Using the Screen Adjustment Menu.
• Some functions listed in 'Using the Screen Adjustment Menu' cannot be used in the web browser because of limitations in remote control by the network.

Samsung Network Projector - Windows Internet Explorer http://192.168.10.100/ Network Projector Samsung Electronic Network Display Monitoring • Information • Network • Remote Control Monitoring • Information Network Status Connected Power On Source HDMI Mode Dynamic Install Front-Floor Lamp Mode Bright Lamp Time 10 Filter Time 9 Web Version P-CRN2WEB305S-1000 ©2009 Samsung Electronics Co., Ltd.

3-6-2. Projector Management using PC Software

You can monitor and control more than one projector using Samsung Projector Manager.

When installing or using Samsung Projector Manager in PC, you must log in as Administrator.

If you log in using your personal login, that login must have full administrator privileges.

• To use Samsung Projector Manager, your PC must meet the following minimum system requirement :

• RAM: More than 10MB
• Hard Disk capacity: More than 10MB
• Display resolution: More than 640 x 480
• Supported OS : Microsoft Windows XP, Windows Vista

1. Installing the Samsung Projector Manager

2. Click 'Samsung Projector Manager' on the CD supplied.
   • Install according to the instructions displayed on the PC screen.

3. Running the Samsung Projector Manager

When the installation of Samsung Projector Manager and the network setup for the projector have been completed, the Samsung Projector Manager will be available for use.

- Click Start > Samsung Projector > Samsung Projector Manager

• The window appears.

Samsung Projector Manager File List Tools Help Projector List Network Projector Refresh Power on Power off PC Blank off Mute off 16:9 Network Projector 1 Projector in Group Name IP Address Group Power Source Lamp Time

1. Using the Samsung Projector Manager

• Projector Grouping and Registering

• To browse projectors connected to the PC automatically, press → .

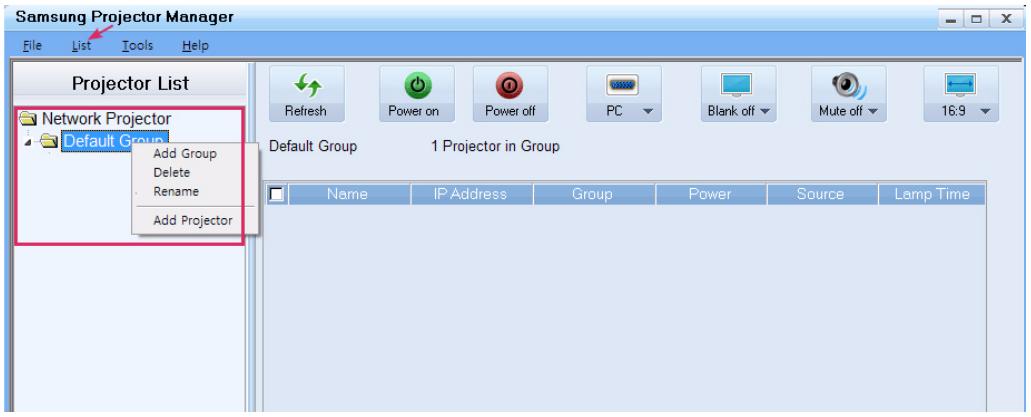

• To group or directly register the projectors, select →, right-click over under

, and then select .

Samsung Projector Manager File List Tools Help Projector List Network Projector Default Group Add Group Delete Rename Add Projector Refresh Power on Power off PC Blank off Mute off 16:9 Default Group 1 Projector in Group Name IP Address Group Power Source Lamp Time

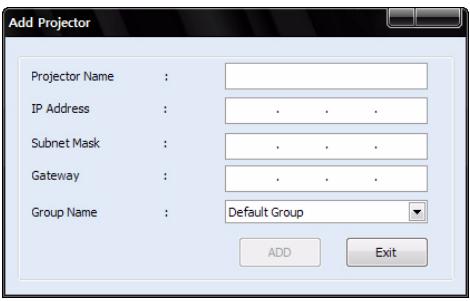

Add Projector Projector Name : IP Address : . . . Subnet Mask : . . . Gateway : . . . Group Name : Default Group ADD Exit

- Specify the , and to register, and then press .

• Any group whose name is not specified will automatically be named . To remove and / or rename a registered projector, right-click and then select and / or respectively.
• If a projector is not displayed on the after registration, check if the network connection and the network settings are properly configured. See section 2-17, Connecting to a Network and section 3-5-3, → for information and instructions.
• To save or load the registered projector's information, select →.

- Projector Management

- You can check a projector's lamp condition, temperature, operation, errors, etc in real time.

Samsung Projector Manager File List Tools Help Projector List Network Projector Default Group Projector Name Refresh Power on Power off PC Blank off Mute off 16:9 Network Projector 1 Projector in Group Name IP Address Group Power Source Lamp Time Projector Name 217.141.3.200 Default Group 1

1 : You can view a projector's Name, IP Address, Group, Power On/Off status, LAMP lifespan, operation errors (represented by icons), etc. in real time.

Samsung Projector Manager displays icons that indicate a projector's status. The icons are listed in the tables below. If the icons indicate a problem with your projector, see "Clearing Indicator Problems" in section 3-4, LED Indications.

Warning and Error status icons

ICONS	STATUS	STATE	ACTION
	Error	The lamp cover protecting the lamp unit is not properly closed.	Refer to Action 2 in Clearing Indicator Problems.
	Error	The lamp is not operating normally.	Refer to Action 5 in Clearing Indicator Problems.
	Error	The lamp has reached the end of its life.	The lamp needs to be replaced.
	Error	The cooling fan 1 is not operating normally.	Refer to Action 1 in Clearing Indicator Problems.
	Error	The cooling fan 2 is not operating normally.
	Error	The cooling fan 3 is not operating normally.
	Error	The cooling fan 4 is not operating normally.
	Error	The cooling fan 5 is not operating normally.
	Error	The cooling fan 6 is not operating normally.
	Warning	The internal temperature of the projector has risen higher than the limit.	Refer to Action 4 in Clearing Indicator Problems.
	Error	The internal temperature of the projector has risen higher than the limit.	Refer to Action 4 in Clearing Indicator Problems.
[gyz2]	ErrorWarning	The internal temperature of the projector has risen higher than the limit.The air filter has reached the end of its life.	Refer to Action 4 in Clearing Indicator Problems.The air filter needs to be replaced.
	Warning	The air filter has been blocked by dust.	The air filter needs to be cleaned.
	Error	The air filter has been blocked by dust.	The air filter needs to be cleaned.

Temperature Level Status Icons

ICONS	STATUS	STATE	ACTION
	Temperature status	The projector's internal temperature is normal.(standby mode)	None. It's normal.
	Temperature status	The projector's internal temperature is normal.(low)	None. It's normal.
	Temperature status	The projector's internal temperature is normal.(medium)	None. It's normal.
	Temperature status	The projector's internal temperature is normal.(little bit high)	None. It's normal.
	Temperature status	The projector's internal temperature is higher than the limit.	Refer to Action 3 in Clearing Indicator Problems.
	Temperature status	The projector's internal temperature is too high. The projector is turned off automatically.	Refer to Action 4 in Clearing Indicator Problems.

• Managing the Projectors

Samsung Projector Manager File List Tools Help Projector List Network Projector Default Group Projector Name 1 Refresh Power on Power off PC Blank off Mute off 16:9 Default Group 1 Projector in Group Name IP Address Group Power Source Lamp Time Projector Name Rename Default Group Delete Edit WebControl

1 : Using the icons in the (only applicable to 'V'-marked projectors in the monitoring window)

(Refresh): Updates the status of the projector.

(Power On): Turns on the power of the projector.

(Power Off): Turns off the power of the projector.

(Switch Source): Selects a source from HDMI, S-VIDEO, AV, PC, MP.

(Blank Off/Blank On): Turns the screen of the projector on or off.

(Mute Off/Mute On): Mutes the sound of a projector on/off.

(Adjust Aspect Ratio): Adjusts the aspect ratio of the projector to either 16:9 or 4:3.

• If the connected source does not have the feature, is not available in the Source list.
• If the projector does not have an [S-VIDEO IN] terminal, the source is unusable.

2 : Connecting the Web browser from Samsung Projector Manager

By connecting to the Web Browser in Samsung Projector Manager, you can use more diverse functions. To perform the Web browser connection, select a Projector to connect to, and then right-click to select .

• If the Web browser connection fails, check whether the network connection (see section 2-17, Connecting to a Network) and network settings (see 3-5-3, Setup > Network) are correctly configured.
• Operating one projector using both Samsung Projector Manager and the Web browser at the same time may cause a slowdown in PC operation or an error.

• Using the Function

Using the function, you can manage your projectors more efficiently.

If you select →, the following window appears.

Samsung Projector Manager File List Tools Help Schedule List New Delete Delete All Edit Title Projectors Repeat Time Work Status samsung Projector Name Mon,Sat 02:00 PM Power On Running

The screen has four buttons:

• : Adds a projector to make a Schedule for.
• : Deletes the Schedule for a selected projector.
• : Deletes the Schedule for all of the projectors.
• : Edits the Schedule for a selected projector.

• Registering a New Schedule

To register a new schedule, follow these steps:

1. Press the button. The New Schedule screen appears.

New Schedule 1. Select Projectors Total Projectors : 1 Network Projector Default Group Projector Name 2. New Schedule Title : Repeat Once 2010-02-01 Every Mon Tue Wed Thu Fri Sat Sun Time : 5:30 Work : Power On Description : Add OK Cancel

1. Select the projectors to apply the new schedule to from the field. When you select a projector, a check mark appears in the check box to its left.
2. Set the ,
