S601R - Megaphone AmpliVox - Free user manual and instructions

Product Type	Megaphone
Brand	AmpliVox
Model	S601R
Color	Black with gray accents
Material	High-impact ABS plastic
Dimensions (approx.)	9.5 x 6 x 8 inches (24 x 15 x 20 cm)
Weight	1.5 lbs (0.68 kg) without batteries
Power Source	6 x C batteries (not included)
Output Power	20 Watts RMS
Sound Range	Up to 600 yards (550 meters)
Built-in Siren	Yes, with on/off control
Volume Control	Adjustable
Microphone	Built-in, noise-canceling
Usage	Public address, crowd control, sports events
Cleaning	Wipe with a damp cloth; avoid solvents
Safety Precautions	Do not use near water; avoid direct ear exposure
Spare Parts Availability	Contact AmpliVox for replacement parts
Repairability	Repairs should be done by qualified personnel only
Warranty	1 year limited warranty
Manufacturer	AmpliVox Sound Systems

Frequently Asked Questions - S601R AmpliVox

How do I turn on the S601R megaphone?

Slide the power switch to the ON position. The device will emit a short tone to indicate it is ready. Adjust the volume knob as needed.

What type of batteries does the S601R require?

The megaphone uses 6 x C batteries (alkaline recommended). Ensure correct polarity when inserting. Do not mix old and new batteries.

How far can the sound reach?

Under optimal conditions, the S601R can project sound up to 600 yards (550 meters). Actual range may vary based on environmental noise and weather.

Can I use the megaphone while it is charging?

The S601R does not have a built-in rechargeable battery. It operates solely on disposable batteries. There is no charging capability.

How do I activate the siren?

Press the siren button located on the handle. The siren will sound continuously until you press the button again to turn it off. Use only when necessary to avoid disturbing others.

Is the S601R weather-resistant?

The megaphone is designed for outdoor use but is not fully waterproof. Avoid exposing it to rain or excessive moisture. Store in a dry place.

How do I clean the megaphone?

Wipe the exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Keep the microphone grille free of dust.

What should I do if the sound is distorted?

First, check the battery level; weak batteries can cause distortion. Also, ensure the volume is not set too high. If problems persist, inspect the microphone for blockages.

Can I attach a tripod or mount?

The S601R has a standard 1/4-inch thread on the bottom for mounting on a tripod or speaker stand. This allows hands-free operation.

Where can I find spare parts or repair service?

Contact AmpliVox customer service or visit their official website for authorized repair centers. Spare parts such as handles and grilles may be ordered directly.

USER MANUAL S601R AmpliVox

Thank you for purchasing

AmpliVox S601R MITY-MEG 15 Watt MEGAPHONE

We encourage you to visit our website www.ampli.com to register your product for its warranty coverage, sign up to receive our newsletter, download our catalog, and learn more about the complete line of AmpliVox audio visual products, including portable PA systems, and lecterns.

OPERATING INSTRUCTIONS

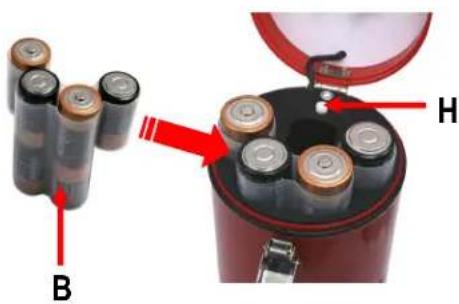

• Batteries: Locate battery compartment latch on top of megaphone (A). Open and insert 6 "C" size batteries (not included) into the battery sleeve (B). Follow battery diagram on sleeve for battery direction. Close megaphone.
• Battery Status: The megaphone has 3 LED's LOW, MID, HIGH, (C) that will tell you the current strength of the battery. Note: Drained batteries do not give sufficient sound volume. Replace the batteries when LOW LED lights when trigger is squeezed. Remove batteries when not in use for a long time.
• Talk: Make sure that the switch (D) is in the Off / Talk position. Place mouth about one inch from microphone (E), squeeze trigger (F) and speak. To increase volume, rotate volume control (G) left to right.

When you have a fresh set of batteries you may get "feedback" when talking. To eliminate feedback you need to turn down the gain. Locate the gain control (H) in the battery compartment. Turn until you do not hear any feedback. Less gain, turn counter clockwise. More gain, turn clockwise.

• Siren: To activate Siren, move switch (D) to the right. Siren will be heard. There is no control of the volume.
• Whistle: To activate Whistle, move switch (D) to the left. Whistle will be heard. There is no control of the volume.
• Property Label: Located on the bottom of the bell. Use marking pen to write ownership name on megaphone.

WHY USE RECHARGEABLE BATTERIES?

Save Money—While rechargeable batteries cost more initially, they can be reused hundreds of times and last for years.

Protect the Environment—Conserve Resources

The corrosive materials and heavy metals in batteries can impair human health and the environment. Rechargeable batteries use greatly reduces the quantity of batteries manufactured, used and discarded.

• Rechargeable Battery Pack is available for this model: Optional S1402 Lithium-ion battery pack with built-in wall charger. Replaces the 6 "C" size batteries.
• A fully charged battery will provide 8 hours of typical operation, defined as speaking 35% of the time at mid volume, and over one year of standby / idle time

Available only from AmpliVox Resellers or AmpliVox Portable Sound Systems

IF YOU HAVE ANY QUESTIONS OR PROBLEMS PLEASE CALL OUR CUSTOMER SERVICE DEPARTMENT AT 1-800-267-5486

WARRANTY

Limited One (1) Year Warranty

AmpliVox warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period of one (1) year from the date of purchase (ÊWarranty PeriodÊ).

During the Warranty Period, AmpliVox will repair or replace (at AmpliVox discretion) this product or any defective parts (ÊWarranty ServiceÊ).

Repair or replacement under the terms of this warranty does not give right to any extension or a new beginning of the period of warranty.

CLAIMS UNDER THE WARRANTY

To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Return Authorization number (RA#). After receiving RA #, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of protection. You will bear the cost of shipping the product to AmpliVox. If the product is covered by the warranty, AmpliVox will bear the cost of shipping product back to you after the completion of service under this warranty.

Return shipping will be charged to you for products not covered by the warranty or requiring no warranty repair.

The following information must be presented to obtain Warranty Service: (a) the RA# must be clearly and legibility marked on the outside of shipping carton, (b) proof of purchase, which clearly indicates the name and address of the seller, the date of purchase and the product type, which is evidence that this product is within the Warranty Period. Please further include (c) your return address, (d) daytime telephone number, and (e) reason for return.

LIMITATION OF WARRANTY

This warranty is only valid for the original purchaser and will automatically terminate prior to expiration if this product is sold or otherwise transferred to another party. The warranty provided by AmpliVox in this statement applies only to products purchased for use, and not for resale. It does not apply to open box purchases, which are sold Êas isE and without any warranty. Specifically exempt from warranty are limited-life consumable components subject to normal wear and tear, such as microphone windscreens, ear cushions, modular plugs, ear tips, decorative finishes, batteries, and other accessories. This warranty is invalid if the factory-applied serial number, date code label, or product label has been altered or removed from this product. This warranty does not cover cosmetic damage or damage due to misuse, abuse, negligence, Acts of Nature, accident, disassembling or modification of, or to any part of, the product. This warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than AmpliVox. Any unauthorized repairs will void this warranty.

Repairs or replacements as provided under this warranty are the exclusive remedy of the consumer.

Amplivox shall not be liable for any incidental or consequential damages for breach of any express or implied warranty on this product except to the extent prohibited by law, this warranty is exclusive and in lieu of all other express and implied warranties what so ever, including but not limited to the warranty of merchantability and fitness for a practical purpose.

NOTE! This warranty gives you specific legal rights. You may have other rights which vary from location to location. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or implied warranties, so the above exclusions may not apply to you. This warranty does not affect your legal (statutory) rights under your applicable national or local laws.

Dispose of the product according to local standards and regulations
