TA2074B - Car kit Scosche - Free user manual and instructions

Product Type	Car Stereo Installation Dash Kit
Brand	Scosche
Model	TA2074B
Compatible Vehicles	Select Ford models (e.g., Focus 2012-2018, Fusion 2013-2016)
Material	ABS Plastic, Painted Black
Dimensions (Faceplate)	7.0 x 4.5 inches (178 x 114 mm)
Weight	0.5 lbs (227 g)
Power Supply	None (passive adapter)
Main Function	Mount aftermarket single-DIN or double-DIN stereo
Included Components	Radio housing, storage pocket, mounting brackets, screws
Installation Type	No cutting required, direct fit
Color	Black
Certifications	ISO 9001
Maintenance	Wipe with dry cloth; avoid solvents
Safety	Ensure proper fitment to avoid radio movement
Spare Parts Availability	Contact Scosche for replacement screws or brackets
Repairability	Not repairable; replace unit if damaged
Manufacturer	Scosche Industries
Country of Origin	China

Frequently Asked Questions - TA2074B Scosche

Is the Scosche TA2074B compatible with all Ford models?

No, it is specifically designed for select Ford vehicles such as the Focus (2012-2018) and Fusion (2013-2016). Check compatibility with your exact year and model before purchasing.

Does the kit fit double-DIN radios?

Yes, the TA2074B supports both single-DIN and double-DIN aftermarket stereos. It includes a storage pocket for single-DIN installations.

What tools are required for installation?

Basic hand tools such as a panel removal tool, screwdrivers (Phillips and flathead), and possibly a socket set for factory bolts. No special tools are needed.

Does the kit include wiring harness or antenna adapter?

No, the TA2074B is only a dash kit. You will need separate wiring harness and antenna adapter for your specific Ford vehicle to complete the installation.

Can I install this without professional help?

Yes, installation is straightforward for DIY enthusiasts. Follow the included manual and vehicle-specific guides. The kit is designed for a direct fit without cutting.

What is the color of the kit?

The kit is painted black to match most factory dashboards. The texture is smooth with a matte finish.

Does the kit come with a warranty?

Scosche offers a limited lifetime warranty against defects in material and workmanship. Contact Scosche for warranty claims.

Can I install a navigation unit with this kit?

Yes, as long as the navigation unit is a standard double-DIN size. The kit provides a secure mounting frame for aftermarket units.

How do I clean the dash kit?

Use a soft dry cloth to remove dust and fingerprints. Avoid abrasive cleaners or solvents that may damage the plastic.

What should I do if a screw is missing?

Contact Scosche customer service for replacement screws. Provide your model number (TA2074B) and the missing part. Alternatively, standard M4 screws may work.

USER MANUAL TA2074B Scosche

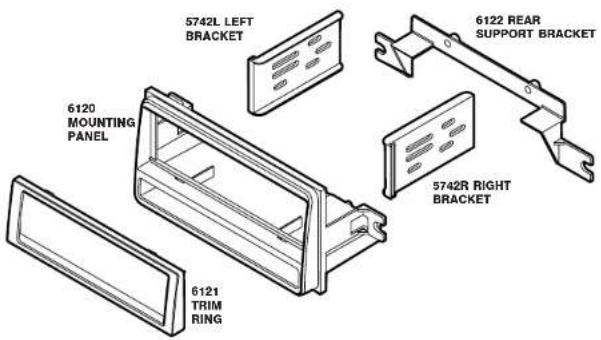

1. Align the two (2) screw hole locations to the matching locations on pocket. When aligned, slide the bracket together. Screw the two (2) supplied screws to screw locations.

MOUNTING THE RADIO

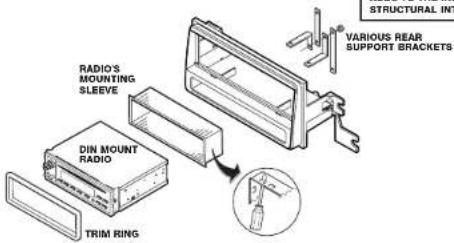

DIN MOUNT

1. Slide DIN sleeve into kit from front.
2. Bend tabs to secure DIN sleeve to panel.
3. Slide radio into DIN sleeve until sanps into place.

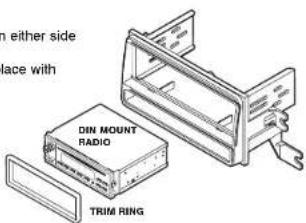

ISO MOUNT

1. Slide left and right brackets into slots found on either side of the kit.
2. Slide radio into ISO brackets and screw into place with radio supplied screws.

2007 TOYOTA FJ CRUISER

Radio Removal

1. Extract one Phillips Screw located on each trim bezel that runs along the left and right side of the radio.
2. Extract one Phillips Screw located on each side of panel that surrounds the factory radio. Unsnap, disconnect and remove.
3. Extract four 10mm bolts securing factory radio. Lift away disconnect and remove.

SCOSCHE

TA2074B

IN-DASH DIN RADIO INSTALLATION KIT FOR 2007 TOYOTA FJ CRUISER

INTRODUCTION / PRELIMINARY

This premium installation kit is for 2007 Toyota FJ Cruiser vehicles. Included are all the parts you need to mount your car stereo/cassette or CD player into your vehicle's dash. Refer to the individual instruction in this manual to remove your vehicle's factory radio and assemble the kit.

CAUTION:

DISCONNECT YOUR VEHICLES NEGATIVE BATTERY TERMINAL BEFORE THE INSTALLATION TO HELP PREVENT ELECTRICAL DAMAGE. WE RECOMMEND THE USE OF A VOLT/ONN METER OVER A TEST LIGHT TO CHECK WIRING. A TEST LIGHT OR GROUNDED WIRE PROBE CAN CAUSE DAMAGE TO THE VEHICLE'S COMPUTER AND/OR DIAGNOSTIC SYSTEMS. AVOID ALL FACTORY AIRBAG WIRING - AIRBAGS CAN ACCIDENTALLY DEPLOY CAUSING SERIOUS INJURY OR DEATH.

NOTES:

• See your vehicle's instructions for any special tools your installation might require.
- Read all instructions accompanying your car stereo/cassette player for proper wiring and mounting instructions.

FACTORY WIRING CODES

For Factory Wiring Codes go to: www.scosche-cars.com

CAR STEREO CONNECTORS

PROVIDE EASY CONNECTION OF YOUR CAN STEREO TO FACTORY WIRING HARNESS.

LIABILITY DISCLAIMER

This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire harness codes and information pertaining to installation of this kit (TA2074B) in 2007 Toyota FJ Cruiser Kit Vehicles. Socsche Industries, Inc. can not be held responsible for discrepancies/inconsistences that may occur due to the automobile manufacturing changes or options, or damage that may occur in the automobile during the installation of components while using this booklet.

If you have any further questions, call our toll free technical help line at: 1-800-621-3695x3 © 2006 SCOSCHE INDUSTRIES. INC. SI 07/06 - TA2074B (300000)
