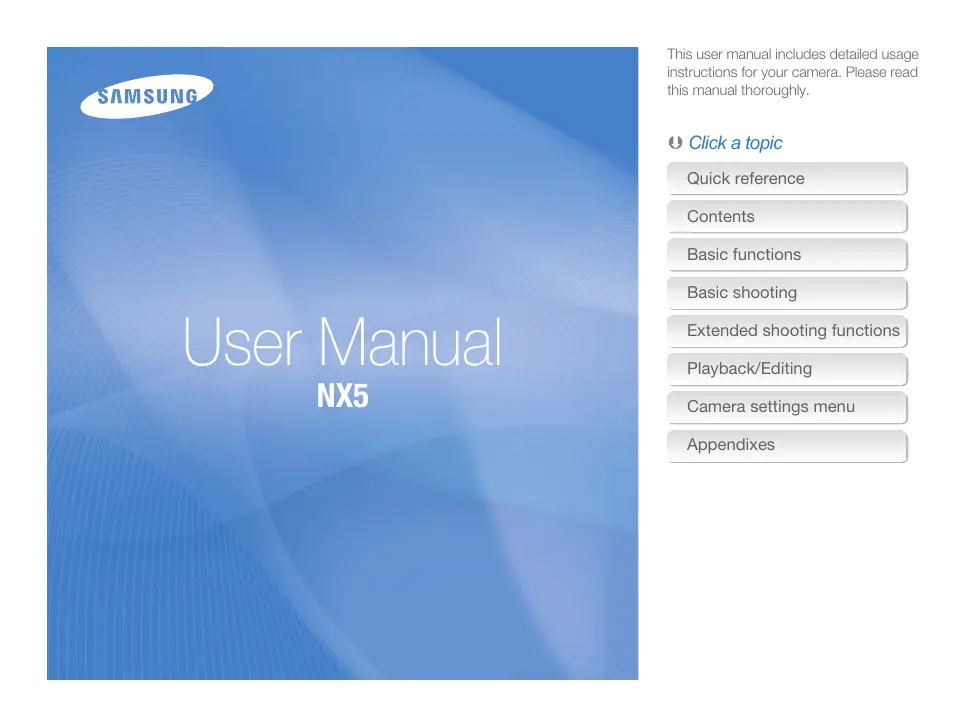

USER MANUAL NX5 SAMSUNG

This user manual includes detailed usage instructions for your camera. Please read this manual thoroughiy.

Health and safety information

Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak

performance of your camera.

Waming=— situations that could cause injury to m _ vourself or others

Caution— situations that could cause damage to &e your camera or other equipment

Note—notes, usage tips, or additional information

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles,

or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause ‘choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as wel.

Prevent damage to subjects’ eyesight

Do not use the flash in close proximity (closer than

1 m3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

+ Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.

+ Never dispose of batteries in a fire. Follow al local regulations when disposing of used batteries.

+ Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Enr Handie and store your camera carefully and sensibly

+ Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

+ Do not expose the camera to direct sunlight or high temperatures for an extended period of time. Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera's intemal components.

+ Avoïd using or storing your camera in dusty, dirty, humid, or poorty-ventlated areas to prevent damage to moving paris and intemal components.

+ Remove the batteries from your camera when storing it for an extended period of time. Installed batteries may leak or corrode over time and cause serious damage to your camera.

+ Protect your camera from sand and dirt when using it on beaches or in other Similar areas.

+ Protect your camera from impact, shock, bending, or press ofheawy goods when You connect ether cable or power code. Ît may damage your camera or cable or cause by electric shock or fre.

+ Exercise caution when connecting cables or adaptors and instaling batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperl installng batteries and memory cards can damage ports, connectors, and accessories.

+ Do not insert foreign objects into any of your camera's compariments, slots, or access points. Damage due to improper use may not be Govered by your warranty.

+ Do not use broken power cord, plug, or wall-outlet. It may cause by electric shock or fire.

Protect batteries, chargers, and memory cards from damage

+ Avoïd exposing batteries or memory cards to very cold or very hot temperatures (below 0° C/32° F or above 40° C/104° F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.

+ Prevent batteries from making contact with metal objects, as this can create a Connection between the + and terminals of your battery and lead to

temporary or permanent battery damage.

* Prevent memory cards from making contact with liquids, dir, or foreign substances. f dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

+ Tum off the camera when inserting or removing the memory card.

+ Do not bend, drop, or subject memory cards to heaw impact or pressure.

+ Do not use memory cards that have been formattedl by other cameras or by a computer. Reformat the memory card with your camera.

+ Never use a damaged charger, battery, or memory card.

Use only Samsung-approved accessories

Using incompatible accessories may damage your camera, cause injury, or void your warranty.

Protect your camera's lens + Do not expose the lens to direct sunlight, as this may discolor the image sensor or cause it to malfunction

Protect your lens from fingerprints and scratches. Clean your lens with a soft, clean, debris-free lens cloth.

F4 important usage information

Allow only qualified personnel to service your camera

Do not allow unqualfied personnel to service the camera or attempt to service the camera yourself. Any damage that results from unqualfied sendice is not covered by your warranty.

Ensure maximum battery and charger life + Overcharging batteries may shorten battery life. After

charging is finished, disconnect the cable from your camera.

+ Over time, unused batteries wil discharge and must be recharged before use.

+ Disconnect chargers from power sources when not in use.

+ Use batteries only for their intended purpose.

Exercise caution when using the camera in humid environments

When transferring the camera from a cold environment to a warm and humid one, condensation can form on the delicate electronic cireuïtry and memory card. In this situation, wait for at least 1 hour until all moisture has evaporated before using the camera.

Check that the camera is operating properly before use The manufacturer takes no responsibility for any.

loss of îles or damage that may result from camera malfunction or improper use.

Copyright information

+ Microsoft Windows and the Windows logo are registered trademarks of the Microsoft Corporation.

+ HDMI, the HDMI logo and the term “High Definition Multimedia Interface" are trademarks or registered trademarks of HDMI Licencing LLC.

+ Camera specifications or contents of this manual may be changed without prior notice due to upgrade of camera functions.

+ For Open Source License information, refer to the “OpenSourcelnfo.pdf” in the provided CD-ROM.

Organization of the user manual

Learn about your camera's layout, icons, and basic functions for shooting,

Learn how to take a photo by selecting a mode and how to record a video.

Extended shooting functions

Learn about the options you can set in shooting mode. By using the shooting options, you can enjoy more customized pictures and movies,

Learn how to play back photos, videos, and edit photos or videos. Also, learn how to ‘connect your camera to your computer, photo: printer, TV, or HDTV.

Camera settings menu

The camera use environment can be set to a desired state by using the setup menu.

Refer to settings, error messages, specifications, and maintenance tips.

Indications used in this manual

Shooting mode Marking

Smart Auto Gur Program P Aperture Priority A Shutter Speed Priority. s Manual M it E Portrait a Landscape a Scene SCENE Movie #

Shooting mode explanation shown next to the title

This shows that the functions explained can only be selected from within the shooting mode. In the case

ofhe SCENE mode, this corresponds to only part of the scene.

Ex) Adjusting exposure (brightness)

Adiustnathe exposure (biginess) Program), Core "4

ee A (Averture priority),

S (Shutter priority}, € (Night,

The diagram below illustrates the shooting mode dial on the camera body.

To select a shooting mode, you rotate the dial until the mode you want Ines up with the hash mark on the camera.

‘The diagram below shows the status has been changed 10 (@Sfarr).

Currently selected shooting

Directional Keys in the User's Manual When explaining the steps needed for navigating the

menu, the up, down, left and right directional arrows are shown below.

(AMI Ex) Executing the ‘Play* mode ‘The user can check saved pictures and movies. 1 Press [[G]] + Show most recently saved files. 2. Checkthe following pictures sequentially by using [>].

Menu display used in this manual Icons used in this manual

D EL C2 GG: 1: d1 d2 0:

Additional information about the function

Safety wamings and precautions

{1 pgicates a camera button, for exemple: IShutter] represents the shutter button

Shooting 14@) |Shootng Si | Seting 14) | Seting Si

Shooting 22 Usersetup(äi Seting 2) ()._|Shows the reference page Display when selecting a menu or option within Menu display of the movie shooting mode the step — _ |Example: Select Shooting 1 () — Quality. {represents select Shooting 1 (M1), and ihen M2 M: LL: 1 D2 D: Quality *__ [Comment explaining symbols Shooting 1(@84} | Shooting 31883) Shooting 22) Abbreviations used in this manual 2 Songe image quai of movie fe AAF (Auto Focus) Auto focus 1 Setthe mode dial to hf. BKT (Bracketing) Bracketing 2 Press [MENU]. DPOF Digital Print Order Format) [Printing order mark 3 Select Shootingt (84) — Quality. EV (Exposure Value) Exposure value Oplical image 4 Select a desired image quality. OIS (Optical Image Stabilzation) (stabilzation ISO {International Standard for color | conti negative film) ol WB (Wnite Balance) Wiite balance

Expressions used in this manual

Pressing the shutter

+ Haïf-press [Shutter]: press the shutter halfway down

+ Press [Shutterj: press the shutter allthe way doun

Subject, background, and composition

+ Subject: the main object of a scene, such as a person, animal, or stil life + Background: the objects around the subject

+ Composition: the combination of a subject and background

Background Composition

Exposure (Brightness)

‘The amount of light that enters your camera determines the exposure. You can alter the exposure with shutter speed, aperture value, and ISO speed. By altering the exposure, your photos wil be darker or lighter.

Overexposure (too bright)

! raking photos at night or in \e dar

+ Œmode »>45 + Flash setting options 255 + ISO speed setting 259

A Taking photos of people

3 Taking action photos

+ smode »42 + Goninuous, Burst shooting »73

Taking photos of text, insects, or flowers

+ Gi mode — Close-up shot »39 + Usingthe Wnite Balance »>68

Adjusting the exposure brightness)

+ Adjusting exposure »66

.#l Applying a different effect

+ Picture Wizard 275 + Photo Style 288

£ Reducing camera shake

+ Oprical Image Stablization (DIS) »35

Vewing fles by category in Smart Album à 81

Deleting al les on the memory card > 83

Viewing îles as a side show » 84

Viewing fles on a TV or HDTV >

Connecting your camera to a computer > 83

Adjusting sound and volume » 105

Adjusting the brighiness ofthe display à 105

Changing the display language » 106

Settng the date and time

Formatting the memory card

Unpacking.. ie and rol of each part Diopter adusiment di/eye-cup/Stalus lamp 16 Description for each part of the lens. 17

Preparations before shooting . Charging the battery. Instaling the battery.

Instaling the memory card

Mounting/dismounting the lens. 21

Connecting the strap… 22 Tuming on the power and initilization

Option/menu selection method Using the dial Using [Fn] …

Setting the display and sound Changing the display type. Settng user display Settng the sound. Settng the screen display.

Simple picture-taking method

Tips for getting a clearer photo.

Holding your camera correct. 82 Image stabiization … 82 Half-pressing the shutter button … 82 Getting your subject in focus. 88

Setting the automatic/manual focus function... Zooming.… Optical mage Stablzation (OIS) Using the OIS in the menu option Depth preview …. _

Extended shooting functions.

Setting the resolution and quality …… SEHHg à FESOIUÉON Settng the image quality of the picture….…….. 52 Settng the quality Of MOVIE... 52 NOÏSE FEAUGHON mm

Using the timer function . SEHHING EE LIT UNCHON.. nn

Taking a picture in a dark place. . Using the f1a8h POP DUHON 55

SEtHIng Ne HaSh OPHON nn 55 Using the r@di-8ye fix FUNCON nn 56 st Curtain, nd GUrIN 56 Adjusting the amount of flash light... 57

Using an external flash unit (purchased separatel) . 58 Adjusting the ISO sensitivity. Focusing methods … . Changing the Focusing methods... 60

PAF PONEY 60 Using the AF assist ght 6 ChaNgINg the FOGUS TEA... 6 Settng the focus of the selected area... 62 Setting the MF ASSist..…. 6

NOTA FAC ASHEGHO ee 64

Brighiness and color adjustment of picture. Adjusting the exposure (brightness).…….…. Exposure adjustment……… Changing the brightness measurement method.… Setting the white balance …. Color space. Smart range

Changing the shooting method Successie shoafing method and timer Setup. Detailed bracket setup ……

Special effect/photo retouching Picture wizard

Play (picture/movie). Viewing pictures in the play mode View fles in the smart album by category... 81 Converting into the thumbnail view... 81 Fie protection. Deleting a fil ENlargement/"édUCHION 84 View a movie .

Camera maintenanc: ou it CIEAING YOU CAMEFL. mm rmmnnnnnn at ADOUL MEMONY GAS. 112 ABOUT HE DAHHEMY.nennnnnnnn 113

Before contacting a service center. 115

Camera specifications. .118

Lens specifications.. Accessories (optional items) Index.

Learn about your camera's layout, icons, and basic functions for Shooting.

Unpacking … Title and role of each part Preparations before shooting Tuming on the power and initilization Option/menu selection method Setting the display and sound... Simple picture-taking method. Tips for getting a clearer photo

Check your produet box for the following items.

eye-cup, Hot-shoe USB cable Battery Strap cover included)

Quick Start Manual ©"2r9er/AC power cable

‘The actual components or optional parts may difir from the ilustrations above. For information about optional items, see ‘Accessories (optional items)" (p. 123)

Software installation CD (including user's manual)

Title and role of each part

Mode dial (p. 5) Drive mode button (p. 73) Green button‘

Shutter button (p. 7)

The folowing setup values are inalzed the button () is pushed once in he standby state for shooting.

Program shift / Detalled selup o picture wird / Fine tuning of white balance / Golor Temp. seting vale / Agustng he colors of screen menu / Timer / Flash EV / When selecing or setting A, shit he changed focus area Lo the center /Brackting sup

Hot-shoe cover (p. 58) Hot-shoe (p. 58)

Diopter adjustment dial (p. 16)

Built-in flash (p.55) Flash button (p.55) Strap holder (p.22)

Lens removal button (p. 21)

Function(Fn) button (p. 27) Direction key (p. 5) Memory card cover Delete/Picture wizard button (p. 82)

Playback Battery chamber button (p. 78) _ cover (p. 19)

(- Use of se of eye sensor slot

This product wil automatically convert to EVF when the users try to use the view-înder (EVF) by operating the eye sensor in Auto Select mode and all the information will be shown on the viewr- finder. Do not cover the eye sensor with your hands or materials.

Diopter adjustment dial/Eye-cup/

Evesight adjustment dial

Use of Diopter adjustment dial His possible to adjust the viewinder appropriate for the eyesight of user.

Hthe image is not shown cleariy through the viewnder, move the eyesight adjustment dial in the leftright direction to have a clear view.

When the camera is shipped, ‘he eyecup is attached ta the viewnder, Push the Eye-cup up as shown in the figure for removal.

In the case of saving a picture or

Shooting a movie, this Shows the

operating status of the camera by

bnkng the status incicator lamp

+ Blinking: When saving photos, recording movies, being read by a computer or printer.

+ Steady: When there is no data transfer or when connecting to a computer or printer is complete.

Title and role of eacf

Description for each part of the lens

Lens mount connecting point Zoom ring Lens hood Mount N Ÿ = Lens mount C2 le connecting Lens } pois AFIN suitoh (p.34) OIS suitch 4.35) Focus ring (p.33) ISAMSUNG 18-55mm F3.5-5.6 OIS]

When purchasing the lens separatel, please contact a Samsung service center to ver the compatibiity of the camera an lens. This information in this user manual is base on the SAMSUNG 18-55mm F3.5-5.6 OIS lens. Please reler to the lens user manuel or more information about the lens.

Preparations before shooting

Charging the battery

Please charge the battery fully before using this product

Please make the connections as in the following figure.

Charger Color of charge lamp Charging status + To remove the battery from the charger, ft sgh in Red Charging the direction of the errou. + Please use designated charger or batteries for proper Green Fuly charged Tumed off, or Yellow Charging error

use, SAMSUNG is not responsible for any accident that may oceur from using a product other than designatec.

Preparations before shooting

Installing the battery

Open by pushing in the direction of the arrow

Close by Pushing down in the direction ofthe arrow.

Wen taking out the battery, pui dou slightiy on the Iock lever, You can then remove the battery.

the direction of (Z] + Toremove tie memoy card, push te card sig in metal terminal, £7) ie drecton of nsetn.

you can insert + Please do not remove the memory card or battery the memory ll the status indicator lamp s binkng. may

cause loss of data of product damage. card.

rations before shooting

Mounting/dismounting the lens

Please remove the lens mount cover and body cap prior to the installation of lens.

After matching the lens mount index (red) of camera: body with the point (red) of lens mount, join the lens by turning the lens clockwise until i clicks. When removing the lens, tum the lens counter clockuise while holding dou the lens dismount button.

Before mounting the lens

Lens mount connecting point

Dismounting the lens

+ Mounting or dismounting the lens while the camera is powered off is desirable to ensure the stable operation of he lens.

+ SAMSUNG is not responsible for any accident, damage, or trouble caused by using other company lens.

+ The body cap protects the product from scratches or dust when you transport it.

+ Change lenses in a clean, low dust environment. Foreign paricles inside the body or lens of the camera can cause the camera to malfunction. When mounting the lens, please do not touch the inner part of the camera with your finger. Dust or foreign particles inside the camera can affect image quality or cause the camera to malfunction.

Preparations before shooting

Connecting the strap Connecting the strap to the camera body so you can carry the camera easily.

Turning on the power and initialization

When tuning the power on/off, please set the power 1. Press [W] to select Language, and then switch to ON/OFF. press [2.

When you turn on the camera for the fi rst time, the

camera may ask you to set the language and date. 2 Press [A/V/4/B] to select a language, and then press [M].

CÉRATES The screen appears in the language you selected.

4 Press [A/W/4] to set the date, and then press

5 Press [Y] to select Time Zone and then press [%.

Select a desired world time zone by pressing [4/2].

7 To set daylght saving time, press [A]. Press [A] again to disable.

8 Press [X] to save.

9 Press [W] to select Time, and then press Cl.

10 Set desired time by pressing [A/W/4B], and then press [#]

11. Press [MENU] to finish setting,

Tuming on the power and initialization

Al the details shown on the view finder will appear identically on the display. By using the Ive view function, the user can take a picture convenientiÿ without having ta look through the viewfinder. The icons shown on the screen are for when the OIS and AF/MF switches on the lens are in use.

Icons 1 @ information display © shooting option displayter) B— rc @ [Sroingmoce Mu [52 æ Movie shooting mode Œ [Movie eve © [Focus checkng @_|mage ua $ Flash Œ_|Movie quality 15 [Snutterspeed Focus area A F5 |Aperture value & [Fash 'Adjusted value of 0 [Fashignt agusiment

lexposue a (Coirspace AELAAFL seting A Een Fosbeno ds à os Bateyinomain Mecs Deplysno-hsaton #4 Lu of memory card Fer (Waming of camera 2, [wnacu She na asser © Shooting option displayrsno Focus ndcator om Timor AE mod Hstogam Vie balance Gr display (Wite balance agustment CS LA Te display shows the icons for the current selected option. Mesnycen

Option/menu selection method

After pressing [MENU], you can select an option or menu by pressing [A/W] or [A]

1 Press [MENU] in the Shooting mode.

2. You can select a desired option or menu by pressing [A/V/4/R] or [A].

OK button, AF/MEF setting, Menu navigation (A)

Seting Selection AF Metering White balance method setting, Menu setting, navigation (>) Menu navigation (@

ISO seting, Menu navigation (W)

3 To save a selected option or menu, press [%]

Retum to the previous screen

To return to the previous menu screen, press [MENU]

“The user can reur t te state of shoofig by pressing

The user may change the menu setting's value by either using the dial or move the menu screen to a desired direction. For example when taking a picture in the: shutter speed priority mode, this allows you to quickly adjust the desired shutter speed.

Example. Using the dial in the S mode

1 Set the Mode dial to S.

2 Adjust the shutter speed by tuning the dial + The camera sets aperture value automatically according to the shutter speed you set.

By pressing the [Fri] function button, you can easily access major functions such as Quality, Size, AF area, Flash, Color Space, Smart Range, and OS.

Example. Flash setting in the P mode

Set the Mode dial to P.

2. Press the [Fn] button on the body of camera.

Set the flash intensity using the [4/2] or dial

+ You can adjust the intensity of the flash by 42 levels.

Displays the | level of flash

CCNIERRS Align your subject in the frame and half- press [Shutter] to focus.

Press [Shutter] to take a photo.

Setting the display and sound

Leam how to change basic display and sound settings according to your preferences.

Changing the display type Viewing the function descriptions of menu You can select the icons and options the camera 1_Inthe Shooting mode, press [MENU]. displays in the Shooting and Play modes by selecting a .

Display Type. 2° Select a menu option.

+ Press and hold [DISP]. The function descriptions of the menu appears on the screen.

Press [DISP] repeatecly.

Display al the shooting information except for User Display setting values.

Display al the shooting modes set by user. (p.29) Hide al the information except for shooting mode, shutter speed, aperure value, exposure, number of available shots, and battery information.

Display ihe shooïing meta information.

Display the RGB histogram, current} selected Histogram option, and date set.

Display shutter speed, aperture value, SO, fie in play, and total number of fles saved.

1 Press [MENU] in the shooting mode.

Ahistogram is a graph that shows the brightness distribution of picture. This represents a dark picture ifthe graph is inclned to the left and if the graph is leaning to the right, this represents a bright picture, The height of graph is related to the color information and the graph gets higher if a specific color is distributed more.

A isufcenteposure A Baancedexposur _À Excessie exposure

Gr P AS M @ Q as SCENE You can set the sound the camera makes when you

1 In Shooting or Playback mode, press IMENUI].

2 Select Setting2(#2) — Sound — System Volume — an option

The camera makes no sound vuhen you press [%]

The camera makes à signal sound when you press []

3. Press [MENU] to return to the previous mode.

Setting the display and sound

Setting the screen display

Eux P AS M € Q 4 SCENE The screen display can be set according to the users convenience.

1 In Shooting or Playback mode, press [MENU].

2 Select Setting3 (É3) — Display Select 3 Select a desired option.

(Convert between Main Display and EVF by

Auto Select LE ensor

(The soreen will be shown only through

EF Simple picture-taking method

Using the Smart Auto mode, you can take a picture easily with minimum setup.

1 Rotate the mode dial to (arr. 3 Half-press [Shutter] to focus.

2 Align your subject in the frame. Allthe details shown on the view finder will : Greon: Foous s sat. + Red: Focus is not set. appear identically on the display. 4 Press [Shutter] to take a photo.

(7) * Prs2se ete to the Tips for geting a clearer photo” (. 32) o take a clear picture.

Press [I] to see the saved images on the

LL tor getting a clearer photo

Holding your camera correctly

Please make sure that your hand, hair, and strap do not intertere with *_the lens or flash

+ To avoid the biurring effect of camera shake, set the optical Image Stabilzation (OIS) function. (p.85)

Half-pressing the shutter button

In order to check in advance whether the focus of composition is set appropriately, please use the half-shutter function. you press the shutter halt- Way down, the focus and exposure wil be adjusted automatically.

green, take the picture by pressing the IShutten.

Hfred, either change the composition or adjust the focus again since the focus is not correctiy set.

speed and aperture value being set.

Getting your subject in focus

Under the following circumstances, it may be difficult to get your subject in focus: + Wien te or contrast is not clear {When someone is wearng clothes sniar in color to he backçrounc) + Wien te subject front of a song backignt + Wen ie subject generates strong reflet Ignt + Wen Here: a hotizontly repeated ine patte {window bind, et) + Wen te subjects notiocated in the center + Wen there a flat rite wal behind the subject hih does not have specific pattems. + Wien ere: a festmoning subject. + Wen te subject is t00 Giose to the camera. =

Please try to use the focus lock function. Adhust ie focus by using the ha-shuter function where the camera can focus ess. Men, spy press the [Shutter] button fer moring the camera to a desrec composition, Keep presang and hokäng don ne hal-ahuttr nt You act rmêke à photo shot.

Under the hal-shutter state, press the [AEL] button of the camera to fx the exposure value and fous information at the same time according to the setting. To cancel the function, press the [AEL] button once more. (. 77)

Using the manual focus

I the auto foous function does not operate normally due to the environmental factors, your can set the lens to Manual Focus (MF) and adijust the focus manually. When the lens’ focus method is set to Manuel Focus (MF), this function helps focus the subject by expanding the screen automatically. Kthe focus is adjusted by using the expanded image, the focus can be adjusted more accurately.(p. 68)

GP * seine IAF/MFI control suite on the lens 10 É7) switch tne camera to manual focus. Ifthe lens dossn't have an AFIMF sich, you may be able Lo select Manual Focus in 1h AF mode menu ‘The availablty of this option fers, depending on the lens you ae using. Wen you adjust he focus manual, the picture may appear blured i you don't set Ihe focus aceuraley. Take piclures afler seting ihe focus aceurateh, + When using the manual focus function, ie AF Area is not avale 10 use. +_Inthe movie shooling mode, you can not set he focus by using the expanded image.

Setting the automatic/manual focus function

You can set the camera to adiust focus automatically or manually by using the AF/MF switch on the side of the lens. 1 Using automatic focus Set the AF/MF switch of the lens to AF. The focus adjusts automatically when you press the shutter button half way down.

2 Using manual focus Set the AF/MF switch of the lens to MF. You can adjust the focus manually by turning the focus ring.

Using the zoom ring, you can enlarge (telephoto angle) or reduce (ide ange] the size of an image by changing the focal length value of the camera lens, Adjust the image to the desired size, and then take a picture. 1 Checkthe focus, and then tum the zoom ring tothe leftight. ‘The focal length of the lens changes and the subject appears enlarged or reduced. 2 Haïf-press [Shutter] to focus.

3. Press [Shutter] to take a photo.

(7) Sorveiers mode do nathaetre AFAE such Pense “consider this when purchasing a lens. (p.60)

(See en range sign jouzoom nor À) ut, we recommenciyou aqustie focus again porto tékng pire.

Optical Image Stabilization (OIS)

Use the optical image stablization (OIS) function when: taking pictures to minimize camera shake and improve focus.

A Belore apphing OS A After apphing OS Using the OIS switch of lens

‘The OIS function can be used only in the case that the lens in use has the OIS function.

To use this function, please set [OIS] to ON.

Using the OIS in the menu option

After setting the OIS switch, select the OIS function in

CR n) QA * 25 turton may rot no in re long

stations: 1 In Shooting mode, press [MENU]. ST RE d 2 Select Shooting3 (Gas/M$:) — OIS — When a big vibration ocours beyond tn range of hasta stébizaton

. - When the shutter speed is 100 slow due to a EU Mode 1 The OIS function is applied only when “circumstance like night shooting

pressing the shulter in ful or hall. = Minen ne battery capaciy not aufcient

Minen you ar shong a ose-up shot

SJ Mode 2 |The OIS function is akways applied. Wen you use 2 pod, planse cable the OS

function since the image can be shaken due to the vibration of OIS function.

Ifthe cameras struck or dropped wie you are

tking a picture, the display can be impaired. 1 this

occurs, tum the camera off and then on, and the camera should operate normal again.

Since the battery consumption can increase along

with the use of OIS function, ts recommended to

use the function on needecl.

+ To set he OIS function by using the menu, set LOIS] oflens to ON, This function may not operate depending on the lens model.

+ The function can be set direct by pressing [Fn] in the shooting mode.

Depth preview MY FL When you are not using the depth preview function, you can only see the subject through the camera in the condition of the maximum aperture (minimum f-number in the shooting mode.

Use the Depth of Field Preview function before taking a picture to view the depth of field of the scene as it looks with

the lens set to its current f-stop number.

1 Press the [Depth Preview] in the Shooting mode.

2 You can check the depth of field result actually taken through the display and viewinder.

(A 224 ve unes oatuton tent byuangtre Key Mapping menu pion. p.77)

What is the depth of field?

When you focus on a specific subject, there is a range in which objects closer and further away are al in focus. This focused range is called the depth of field.

The wider the wide-angle lens, the higher the aperture value, the greater the depth of field.

For example, the apeture stop, f 11 is higher than f 2.8.

Current position of the subject

dome — es — tn À 2m — 1.

A. This refr to an appropriate range of focus when the depth of fil is deep.

Current position of the subject

A This refer to an appropriate range of focus when the depth of field is shallow.

Learn how to take a photo by selecting a mode and how to record a video.

Using the Smart Auto mode. Using the Program mode.

Using the Aperture Priority, Shutter Priority, or Manual mode

Using the Night/Portrait/Landscapee mode Using the Scene mode. Recording a Movie

Using the Smart Auto mode

The smart auto mode allows taking pictures under an optimized condition since the camera recognizes various photographing conditions automatically. Therefore, even a beginner can use the camera easily.

1° Rotate the mode dial to Ganr.

2. Align your subject in the frame.

+ The camera automatically detects the type

Nature shot such as forest and leaves

of scene and displays the corresponding

Glose-up shot for the subject with various colors

scene icon in the display.

Ciose-up portrait shot

(With the camera on a tripod, a shot of a subject that does not move for a period of time.

Shot of fast moving subject or subject that moves frequentiy.

|__ The camera EN displays the scene icon corresponding to the scene it 14) detects.

[Outdoor landscape shot Highiy right background shot Night landscape shot

Outdoor portrait shot at night

Backight landscape shot without a man Portrait shot under backight Portrait shot

Ciose-up shot Ciose-up character shot

el Cl ü La] Le] E] ]

+ Iihe camera does not detecta type of sceng; it takes pilures win the bas setings of the M moe.

Even fi detcts a face, he camera may not select portrait mode because of the arletation and brghiness of ie face

+ The camera may not recognize a scene because of acverse photograph conctions such as bad gg, camera shake, and subject distance.

The camera may not recognize the @ mode, even ittne camera on a Ipod, dependg on the movement of the subject.

3 Half-press [Shutter] to focus. 4 Press [Shutter] to take a photo.

Using the Program mode

Inthe program mode, the camera automatical} adjusts the shutter speed and aperture value to maintain the correct

exposure. 1 Rotate the mode dial to P.

+ For a list of options, refer to “Extended shooting functions."{p. 50)

3 Align your subject in the frame and half- press [Shutter] to focus.

4 Press [Shutter] to take a photo.

What is the program shift method?

Hthis function is used, desired shutter speed and aperture value can be selected while maintaining the same brightness. The shutter speed and aperture value are changed as in the following rules.

The avallable aperture numbers for exposure setting is different depending on the lens model.

Dial d Changing the exposure value

Left Decreased shutter speed + increased aperture

Right |1"0reased shulter speed + decreased aperture

Using the Aperture Priority, Shutter Priority, or Manual mode

By using the aperture value of adjusting light volume and shutter speed, you can take pictures of desired exposure. As for the shooting modes that allows adjusting the aperture value and shutter speed, there are the aperture priority

mode, shutter speed priority mode, and manual mode.

Using the Aperture Priority mode

The Aperture Priority mode lets you to set the aperture value manualy while the camera automatically selects

an appropriate shutter speed. 1 Rotate the Mode dial to A.

2 Rotate the dial to adjust the aperture value.

CELTELE La D 0 ERP |

+ Fora ist of options, refer to “Extended shooting functions."{p. 50)

4 Align your subject in the frame and half- press [Shutter] to focus.

5 Press [Shutter] to take a photo.

The aperture value of a lens can be adjusted to control the amount of light reaching the image sensor. When opening the aperture (reduce the aperture value), objects closer and further away than the focused subject will be out of focus. When closing the aperture (increase the aperture value), the range in focus expands forward and backward.

A increased aperture A Reduced aperture value (narrower opening) value (wicier opening)

Using the Shutter Priority mode

The Shutter Priority mode lets you set the shutter speed manual while the camera automaticaly selects an appropriate aperture value.

1 Rotate the Mode dial to S.

2 Rotate the dial to adjust the shutter speed

+ Foralist of options, refer to “Extended shooting functions."{p. 50)

4 Align your subject in the frame and half- press [Shutter] to focus.

5 Press [Shutter] to take a photo

Shutter speed is the length of time the shutter is open. You can creat many interesting effects by adjusting the shutter speed. A low shutter speed blurs motion on the image. You can feel the speed in the picture when the low shutter speed is used for a shot.

A fast shutter speed is essential for capturing the: movement. À faster shutter speed froze the subject in its movement.

A Slow shutter speed A Fast shutter speed

perture Priority, Shutter Priority, or Manual mode

Using the Manual mode

In the manual mode, you can take pictures by setting various shot options directly including the shutter speed and aperture value.

1 Rotate the Mode dial to M. 2 Rotate the dial to adjust the shutter speed

3 Rotate the dial to adjust the aperture value while press and hold the [EM].

4 Set desired shooting options.

+ Foralist of options, refer to “Extended shooting functions."(p. 50)

5 Align your subject in the frame and half- press [Shutter] to focus.

6 Press [Shutter] to take a photo.

A * 9e P Program, S GnuterProthor À Wperure Prof) modes, when a vel appears in red, is outside the range of values that produces good pictures. P mode: Shutte speed and aperure vae can appear in red. S$ mode: Shutter speed can appear in red. ‘A mode: Aperure value can appear in red The camera can not set he ISO speed automatcaly

in the M {manual mode

Using the bulb exposure

By using the bulb exposure, you can set the shutter speed as long as you want:

1° Rotate the Mode dial to M 2 Rotate the dial and set the shutter speed to Bulb. + Bulb exposure indication appears next to the shutter speed of 30"{seconds)

ΠEu El Es s 1 CE 5: C1 # Lu vou_JE

3 To adjust the aperture value, press and hold the [EV] while rotating the dial.

4 Align your subject in the frame and half- press [Shutter] to focus.

5 Press [Shutter] to take a photo + The exposure time continues until you finish holding the [Shutter]. Press and hold the [Shutter] for desired time. As soon as you finish holding the [Shutter], the shooting is complete.

+ To improve mage stabiy in the Bub Exposure mode, we recommend you use a relable ipod or huter release (purchasec|separate)

Wih long exposure, te time the camera takes Lo save images gets longer as well Th is not à problem with {he product and you do not nee to replace the better.

Before using Bu Exposure to take long exposures, we recommend you fuly charging he battery.

+ Men you use Buib Exposur to take long exposures, visual noise can occur. To control visual noise, we recommend you tum the Noise Reduction function on. Tne Noise Reduction function operates uen the shutter exposure exceeds 1 seconds.

+ When you use Buib Exposure, he Sucoesshe Shooting functions unavailable.

+ When ou use Buib Exposure, you can not set the ISO Speed 10 AUTO.

Using the Night/Portrait/Landscape mode

Using the night mode

Night mode provides the optimal exposure settings for dark or night time environmentts.

1 Rotate the Mode dial to @t.

2 Align your subject in the frame and half- press [Shutter] to focus.

3 Press [Shutter] to take a photo. (Gen vou use 1gnt mode, we recommended you

also use a tripod, shutter release, or Timer function {purchased separatel) to minimize camera shake.

Using the portrait mode

In Portrait mode, the camera automatically sets optimal portrait shot settings.

1 Rotate the Mode dial to Q.

2 Align your subject in the frame and half- press [Shutter] to focus.

3. Press [Shutter] to take a photo.

(A ‘"e porat mode, ne focus area automaticay set to the face as is set to the Face Detection AF mode automaticaly.

Using the landscape mode

Landscape mode provides the optimal exposure and focus settings for natural landscapes.

1 Rotate the mode dial to As.

2 Align your subject in the frame and half- press [Shutter] to focus.

3. Press [Shutter] to take a photo.

GA "2 lansscape mode, the camera adjute shuiter speed automatically according to the aperture value. We recommend you use a tipod in case the camera selects a slow shutter speed setting.

Using the Scene mode

Since an appropriate option is set in advance by the scene, the shot can be taken conveniently by selecting a scene appropriate for the situation.

1 Rotate the Mode dial to SCENE.

Press [MENU] to select a scene. You can select a desired scene.

For the Beauty Shot mode, see “Using the Beauty Shot mode."

3 Align your subject in the frame and half- press [Shutter] to focus.

4 Press [Shutter] to take a photo. GG “posa he came et ny ma ane ace

di set to SCENE, you can drecly select a desired scene by pressing [Fr].

Using the Beauty Shot mode scene In the beauty shot mode, you can take pictures with

options that make faces appear smooth and blemish-

1 Rotate the Mode dial to SCENE.

3 Select Shootingi (GS) — SCENE — Beauty Shot

4 Select Shooting3 (@:) — Face Tone.

Select a higher setting to make skin tone appear lighter.

Select a higher setting to make skin tone appear lighter.

8 Align your subject in the frame and half- press [Shutter] to focus.

9 Press [Shutter] to take a photo.

In the Beauty Shot mode, AF area is set 10 Face Detection AF or Self-Portrait AF.

In the movie shooting mode, you can shoot videos in High Defnition quality (1280x720). You can continue recording movies up to 25 minutes. The recorded video is saved as an H.264 (MPEG-4.AVC) file:

Rotate the Mode dial to 9.

Select Shooting1 (@4) — Quality. Set options.

Select Shooting3 (@s) — Voice.

Select whether to record sound.

NO GR & ND Press [Shutter] to start recording.

8 Press [Shutter] again to stop recording.

Move frame speed is fixed at 30 fps (80 frames/sec} Wnil shooting a mov push the [Depth Preview] button once to actvate the AF function and once gain to cancel the function. Tis function may not Wok depending on the lens You are using

ÎThe aperture value is adjustedl

P Program lautomaticaly.

(Set the aperture value by using the

À Aperture Priority. cal before taking the movie

To fade out the screen

You can make the movie screen darker or brighter graduall in recording by using the fader function.

1 In Shooting mode, press [MENU] 2 Select Shooting3 (@s) — Fader.

DA Of |Faderfinctonnotused

L' Scene gradualyfades in when recording start. D Gr PEER recording

mt 1n-Out T2 f2cr functions appled at ihe stat and'end

LAN * Wen vou use he Fader function, itmay takes longer 0 save images.

Use the wind noise removal function to remove some surrounding noise in addition to the wind noise.

1° Inthe Shooting mode, press [MENU].

2 Select Shooting3 (882) — Wind Cut — an option.

Pause while recording a movie

By using the pause function, you can shoot only desired scenes into one fl without generating several movie fes.

To pause during the recording, press [AK]

+ To continue on recording, press [K] again.

H264 (MPEG-4 part AVC} is te latest ide cocing format established in 2003 colaboratwel by ISO-ÈC and ITU-T. Since this forme uses a high compression rate, more data can be saved in less memory space.

When using a low writing memory card, your movies recording can be imerupled because the card can not process data at the rate he video ls being shot. his occurs, replace he car wi à faster memory card or reduce the image size.

A you have the Image stabler option on when shoolng a movie, the camera may record the image stablzer sound

Wen he size of a move fle exceeds 4GB, ine camera automaticalÿystops recording. fs oocurs, continue the move by starting a new move fi.

When fommatting a memory card, ahways format using {his camera. you format on another camera or a PG, you can cause a change in he capacity of the card or make incompatible your camera.

A you remave ie camera ns ul recoring a mou, ne recording vd be interupled. Do not change tn lens il recording.

Wnde you shoot a movie, the camera can record

ne sounds of the 200m mechanism working ani

ne sound the camera makes when you press he buttons.

A au change the shooting angle of ne camera sudderly while shooting a move, he camera may not be abl Lo record images accuraleÿ. We recommenci ushg a ipod when shooting a move, I ts way, You can mirimize camera shake:

Inthe Mo Shooting mode, the camera supports on the Mu AF function, You can not use any alner focus area setting funatons, such as Face Detection AF.

Extended shooting functions

Learn about the options you can set in shooting mode. By using the shooting options, you can enjoy more customized pictures and movies.

Setting the resolution and quality. Using the timer function Taking a picture in the dark place … Focusing methods Face detection … Brightness and color adjustment of picture .… Changing the shooting method Special effect/photo retouching Key Mapping …

Setting the resolution and quality

You can also set the Resolution function by pressing [Fri] in the shooting mode.

Setting a resolution és P À SM € @ a SCENE 1 pe 500 x 1688 | When outputtng to HDTV (16:2) (16) | or printing A4 size prints. To capture the high level of detail and excellent image quality in your picture or video, it is a good idea to [20 x 1080 | When outputting to HDTV (16:9) set the resolution to the highest setting. The main (16:2) _|or printing AS size prints. drawback is that the file size becomes relatively big. Setting video resolution Setting picture resolution 1 Press [MENU] in the Video Shooting 1 In Shooting mode, press [MENU]. mode.

2 Select Shooting 1 (@1) — Photo Size — 2 Select Shooting 1 (@B1) — Movie Size — an option. an option.

1280 re When outputting to HDTV (isplay ratio) A (69 |renouputina to sam 45822 3056 |For printing photos on At size 640 9 When outputing to normal TV (2) prints. Eu sou 57222592 | For printing photos on A2 size D 4, [Monet (2) prints. au 2008 2000 | For printing photos on A3 sie (62) prints. 220% 1280 |For printing photos on A5 size (2) prints. FE “59222584 |\inen ouputtng to HDTV (169) (16:2) … lorprinting A1 size prints. [a 972 x 2176 | When outputing to HDTV (16:2) (6:9) [or printing A3 size prints.

You can also set the Quality function by pressing [Fn] in the shooting mode.

Setting the image quality of a picture

PAS M € Q as SCENE The camera saves pictures in either in the JPEG or RAW format.

The compression ratio is reduced as the image quality gets better. I is necessary to increase the fle size to have a better quality picture.

1 In Shooting mode, press [MENU].

2 Select Shooting 1 (6) — Quality — an option.

ξ_ SuperFine | Set to super fine quality

Fine | Set to fine quality

Normal | Set to normal quality

me E9 RAW |Saveinthe RAW fl fommat

æ SFineraur |S2ve Super-fine image and RAW file at the same time

Save fe image and RAW/ fl at the same time

Save normal image and RAW file at he same time

+ The camera saves RAW fil format images without data loss and orlyin the 14M [4622 x 3056) photo Size. Although settings for white balance, contrast, salurtion, and sharpness, ec. re not reflected in the image, they ar saved as information. 1 you war o save he RAW data into an mage fl lormat such as JPEG or IF, use he provided sofwre {SAMSUNG RAW Convert, RAW es have an “SRI extension. (For example: "SAM_ 9989 SR)

Setting the quality of a movie # The camera saves movies in normal or high quality. 1_Inthe Shooting mode, press [MENU].

2 Select Shooting (64) — Quality — an option.

ER Normal | Set normal quality

Έ Ha |Sethigh quality

Noise reduction PASM This function can be set to reduce the noise in pictures.

1 Inthe Shooting mode, press [MENU].

2 Select User setup (81) — Noise Reduction — an option.

This function reduces noise that High ISO NR | may occur when ou set a high- speed ISO (3200).

This function reduces noise when you set the camera for a long

Long Term _ | exposure (over 1 seconds). IE NR requires additional processing time equal to the shutter speed you used to take the picture.

Wen the Noise reduction function is disabled, there might be a noise in the recorded picture.

Using the timer function

The function can be set directly by pressing [Ca] in the shooting mode. Setting the timer function

Ga P A S M € Q as SCENE

1° Inthe Shooting mode, press [MENU].

2 Select Shooting 2 (Gi) — Drive.

3 Press [Fn] after selecting Timer.

4 Select the operation time by rotating the dial or pressing [4 / D].

+ You can select the timer setting from 2 - 30 seconds.

Back EL 5 The shot is taken automatically after the

time being set has passed by pressing [Shutter].

QG) "2 carc2'ine set timer tuncion, press [QI one more time, or press [Shutter].

Taking a picture in a dark place

The function can be set directy by pressing [Fn] in the shooting mode.

Using the flash popup button Pasm The flash operates when you pop-up the built-in flash by pressing the flash button. When the flash is closed, it will not burst out the light and the Garr. SCENE. €. and Q modes support automatic popup and flash light.

1 Inthe Shooting mode, press [&].

2 Align your subject in the frame and half- press [Shutter] to focus.

3 Press [Shutter] to take a photo.

+ Even if you have opened the flash using the ‘Flash' button, the flash wil not work if you have the Flash Option in the menu set to Of.

Setting the flash option

Gr P AS M € Q SCENE Ha picture is taken in a dark place, the picture may appear to be dark since the light source is not sufficient. Press [&] to pop up the flash

1 Inthe Shooting mode, press [MENU]. 2 Select Shooting 2 (Ga) — Flash — an option.

& Off |The flash ight doesn't operate.

The camera automañcaly aus tre brghiness afin Smart Flash | of the flesh according to the amount of ghin the Suroundng endronment.

&f Auto | The flashlght operates automaticaly in the dark place.

The fesh lg opertes auomalcaly and © Auto#ed | reents the red-eye efect

The flash operates whenever you take a picture. & Fillin | Thebrighiness ofthe flashis automaticaly controle.

Lin Reg | The fash opettes ihenever you take a pilure Æ Fin Red | 9 prevents the rec oye efect.

215 1 curan [PS as perles immediately are sut

opens. s$ nd Curtain | The flash operates just before ne shutter closes.

(FA * ou can lake a bete pure fie subjects Ê) ‘” iocated within the operational range of the flash. (Fléler Lo Ine Guide Number n Specication) + You can set the auto lesh option or external flashes on the NX-seres models only. +_The flash options available dr, depending on 1he shooting modes.

Using the red-eye fix function

PAS M € Q SCENE When you take a portrait using the flash, the bright burst of light can cause the red-eye effect. To prevent

the red eye effect, set the flash option to Auto+Red or Fill-in Red.

+ Wnen you set ihe red-eye fix function, the camera prevents red-eye by emitting a prelminary flash prior to the brighter flash it ‘emits when capturng the image.

Wen the subject is moving or is far away from the camera at the time of the prelminary flash, the function may not function well.

1st Curtain, 2nd Curtain PAsMe

The following images were obtained by taking the pictures of straight-moving subject along with the respective options of 1st Curtain and 2nd Curtain. In case of using the 1st Curtain flash function, the front part of action is remained clearly since the flash will burst light immediately upon shutter opening. Since the flash bursts the light at a later time when having used the 2nd Curtain option, the picture expresses the last image of the subject clear.

A Use of early 18t Curtain option option

A Use of 2nd Curtain

picture in a dark place

Adjusting the amount of flash light

PAS M € Q SCENE When setting a fl ash option, you can adjust the brightness of the flash.

1° Inthe Shooting mode, press [MENU]. 2 Select Shooting 2 (62) — Flash.

3. Press the [Fn] button after selecting a desired item.

4 Adjust the brightness of the fl ash by rotating the dial or pressing [4 / D].

+ You can adjust f ash brighiness by 42 levels.

Display the level of flash light adjustment

I the subject is to0 close, the ISO sensitity Is High, or the exposure value is too large or small, the acjustment effect wi be reduced.

‘The Flash Brghtness Acjustment function is not available in some shooting modes.

Ian external f ash unit has a flash control function, the light control value of the external flash is applied when you connect it ta the camera.

Hthe distance from the subject is quite close: when taking images by using the buit-in flash, part of'he images may appear dark as the lens. is interfered with the flash light. Please check the distance between camera and subject when taking pictures. The distance interfered with flash light may vary by the type of lens in use.

I youve installed a lens hood, the hood can block light from the bui-in flash. Please remove the lens hood when using the buit-in flash,

Taking a picture in a

Using an external flash unit (purchased separately)

You can use the A-TTL auto fl ash mode when you attach an extemal fl ash unit (SEF20A or SEF42A| to the camera.

This section of the user manual was prepared based on the model SEF20A flash.

For more details about the external f ash units, see the flash units user's manual.

1. Install the external fi ash after removing the hot shoe cover. 2 Tum on the external fl ash.

+ The burst mode of external flash is set to the TTL auto mode.

3 Make sure the extemal flash is fully charged, and then start shooting.

The flash modes available are determined by the camera lens or camera exposure mode you are using. 1 Smart Flash Mode + The camera automatically adusts the brightness of the flash according to amount of light in the surrounding environment. 2 Auto + The flash operates automatically in dim or dark light. 3 Auto + Red + The flash operates automatically in dim or dark light and prevents the red-eye effect. 4 Filin + The flash operates vihenever you take a picture andit brighiness is controlled automaticalWy. 5 Fil-in Red + Always operates the flash light, and prevents the red-eye effect. 6 1st Curain + The flash operates immediately after the shutter opens. 7 2nd Curtain + The flash operates just before the shutter closes. @ + Onfya fl ash device manufactured for the NX series

autoratcaly acjusts the bnghtness of the fash. To icons, please use he flash

using the fi ash onby afer you charge the battery fly. Han extemal flash unit has a flash control function, the Rght control value of he external flash is applied when you connect it to the camera.

Adjusting the ISO sensitivity PASM The ISO sensitivity, as the film sensitivity established by the intemational standards organization (SO), represents the degree of reaction when camera receives light. Since it reacts more sensitively with greater ISO value, a natural shot can be obtained in à dark place by raising the ISO value. This reduces the degree of camera shaking with faster shutter speed.

1 Inthe Shooting mode, press [MENU].

2 Select Shooting 1 (Œ) — ISO — an option.

The higher the ISO speed you select, the more visual noise you may get.

Wen he noise reduction function is used, the

noise caused by the high-sensitive [S0(3200)

‘The available ISO setting options may citer

‘depending on the Shooting mode.

You can set the ISO directly by pressing [ISO] in

Changing the Focusing methods

PAS M SCENE You can select a focusing method appropriate to the subject you are photographing.

1 Inthe Shooting mode, press [MENU].

2 Select Shooting 2 (62/82) — AF Mode — an option.

(Wen you press [shutter] half way Single AF dou, the focus fixes in one position (When you hold the [shutter] half-way Ba corn down, the focus acjusts continually as he subject changes position. je Manual [Adjust the focus manual by tuming Focus _|the focus ring

(FA * urine has an LAFIME] sc you can sttre É7) ‘| iens to MF and agust ie iocus manual, + Mihere is no AFIME such on he lens, vou can Sul to manual focus by slectng Manual Focus in ne AF mode menu he selctable option may der accoring o the lens ue.

Wen acjusting the focus manualy, the picture may appear bluredif you don't set the focus accuratel. Please take a piclur after seting Îhe focus accurale. b.32.

You can also set {he AF/ME function direct} by pressing [AF-MF] on top of the directional button wil in Shooling mode,

AF Priority PASM When you use the AF foousing function, the AF Priority function prevents the shutter from f ring if the focus is not approprately set

1° Inthe Shooting mode, press [MENU].

2 Select Shooting 2 (632) — AF Priority — an option.

Off |Camera takes a shot regardiess of the focus.

ÎThe camera takes a shot only ifthe focus is set (correctiy when you press the shutter button. Even ifthe focus is set correctiy when you press the shutter half way, the camera wil not take the shot the focus is not set corectiy when you press the shutter button fuly.

77 EE wi AF Prior on, he Gonlinuous and ne Burst (7 shot options let ne shutter fre whether tne focus is set corectÿy or nat.

Using the AF assist light

Gun P AS M € Q as SCENE The auto focus functions more accurately in dark places when the AF assist light is on.

1 Inthe Shooting mode, press [MENU]. 2 Select User setup (81) — AF Lamp.

of AAF assist light not used o AF assist light turns on when light n is not sufficient.

Changing the focus area

PASM € Q as SCENE The AF Area function changes the positions of the foous area or areas and can give you clearer, sharper pictures.

1° Inthe Shooting mode, press [MENU].

2 Select Shooting 2 (Gi) — AF Area — an option.

(A Seisoion |Sets the focus appropriate for an AF area you have selected.

Displays a green rectangle in al Muïti AF _ |the Face places where focus is set

| Shows the areas that ine focus is Detection AE” |correctÿ set in the display.

ma Set (Menthe sound eflectis heardatthe porrai ar | 1e of sel shot, you can check ne position of the subject's face.

77» "The avaable options may cer by Shooting E) mode.

+ Wnen you set ihe AF/MF switch on the lens to MF, you can not change the AF area using the Shooting menu.

+ Wnen you select the Multi AF function, the AF areas that are in focus appear in green.

You can select this function direct by pressing

{Fn] in the Shooting mode.

Setting the focus of the selected area

PAS M @ as SCENE Inthe shooting composition, a shot may be taken by setting the focus to the area desired by user.

1 Inthe Shooting mode, press [MENU].

2 Select Shooting 2 (62) — AF Area — Selection AF.

3 Press [MENU] to retum to the previous mode

4_Inthe Shooting mode, press [X]

5 Press [A/W/4/R] to move the focus area

6 Adjust the size of focus area by using the dial

7 Align your subject in the frame and half- press [Shutter] to focus.

8 Press [Shutter] to take a photo.

Setting the MF Assist

Güur P AS M G@ Q as SCENE When the lens’ focus method is set to Manual Focus (MF), this function helps focus the subject by expending the screen automatically.

1 Setthe focus method to Manual Focus. 2 Select Shooting 2 (632) 3 Select a desired option.

off [Po not eniarge the subject on screen went is in Manuel focus mode.

On |Erarge the subject on screen ihen you adjust the focus in Manual focus mode.

When you use the Face Detection AF function, you can set the focus around a persons face when taking a portrait shot, This function can also be useful when shooting a sel-portrait.

Normal face detection PAS M a SCENE When you use the Face Detection AF option, the camera sets the auto fous based on the faces in the frame.

When the shooting composition is set, the camera automatically detects as many as 10 faces and sets the focus and exposure.

1_Inthe Shooting mode, press [MENU].

shown by white for the closest face and by gray for the rest of faces.

Face detection may not be effective when. = The subject is too far away

= _Thelight is too bright or dark

= The subject is not facing the camera

= When part of the face is hidden by an object Ike sunglasses.

Part of the subjects face is hidden by

sunglasses or similar objects

‘The subject makes a large facial expression

= The light or backight on the subject's face is not uniform

Depending on the Picture Wizard option, the

camera may not recognize he subjects face

‘The options available may differ depending on

‘This function is not available if you have selected!

such options as Manual Focus and Selection AE.

‘The face detection function works faster when the camera is closer to the subject.

When you use 1he Face Detection AF option, the white focus area is automatically set to focus.

Self-portrait face detection

PAS M Q SCENE With Self-Portrait AF on, the camera chirps rapidiy when your face is in focus.

1 Inthe Shooting mode, press [MENU].

2 Select Shooting 2 (62) — AF Area — Self-Portrait AF.

3. Press [Shutter] i having an info sound of shooting.

Check he foeus of the subject in Shooting mode

Brightness and color adjustment of picture

Adjusting the exposure (brightness)

PAS € Q a SCENE ‘The images can be taken bright ar dark according to the amount of ight. In this case, appropriate adustment can

be made by controling the amount of ight entered into the lens.

Apphng- A A Apphing + 1 Check the accurate focus of subject in the shooting mode

2 To adijust the exposure value, hold down the [8] button, and then rotate the dial.

+ The adjustment value of exposure can be checked from the viewfinder and display.

3 Press the [Shutter] button to take a picture.

Q) * ‘er ing ans angine exposure value bang set, I may be excessive bright or dark according to the shooting environment. Please take a picture by acjustng the exposure value appropriate for the shoofing environment. When it is dificut to Judge an appropriate value of exposure, please set the detailed setting of AE BKT (successive shots of exposure increase/decrease). This takes 2 pictures successive, ncluding one step darker one and ne step brighter one (p. 73).

The camera displays the exposure warning in red for

each step beyond tne +3 range. Strdr apours HT 2 |KGrrsias ur dote tot op

PASM € Q as SCENE You can set the size of the exposure adijustment. 1_Inthe Shooting mode, press [MENU].

2 Select User setup (81) — EV Step — an option.

1/3. | Change the exposure level by 1/3 step.

172. | Change the exposure level by 1/2 step.

Changing the brightness measurement method PAS M æ

the composition of image is set, the camera measures the amount of light. At this time, the brightness and overall mood of the picture may vary depending on how the measurement is made.

1 Inthe Shooting mode, press [MENU].

2 Select Shooting 3 (62:/88s) — Metering — an option.

+ Calculate the amount oflight in the

This is suitable when taking a portrait

spot shot where there is a strong backight. + When the subject is not located in the

center of the display, the subject can

appear to be too bright or too dark.

This calculates the amount of light

in the center portion of the shot and

averages the result over the entire Œcenter- | image.

weighted |» This is suitable when the area of the subject is large when compared to the overall composition of the picture. Calouiate the amount ofight in mutiple Œ) Muiti areas.

+_Suitable for normal pictures.

(77 Te unction can be set direct by pressing (EE2] in the shooting mode.

Setting the white balance Pas Mæ Different light sources wil affect the resulting color of your picture. To take a picture with colors close to what is seen with our own eyes, please select the white balance appropriate for the light source or manually adjust the color temperature desired.

In case of a light source that is difficult to take in to effect, the shot can be taken by adjusting the white balance manual according to the picture-taking situation.

The camera automaticaly selects the

mm AuoWB | pimal white balance setings.

4% Oayight | For shooting outdoors on a clear day.

@ Coudy | Forshootngoutdoors ona budy dy. Dayight. fuorescentlamp, sutebe rot especialy for the white fuorescent Ight

with he color temperature af about 4200K Dayight, fuorescent lamp, suitable Fluorescent | especialy far the dayght fuorescent

NW | ighting with the color temperature of about 5,000

Dayight, fuorescent lamp, suitable Fluorescent | especialy for the dayight-ke fluorescent

Daylght | ghting with the color temperature of about

6:500K For shooëng under helogen lamps and standard, ncandesoent bubs.

K° Color Temp. | To setthe color temperature manuah,

("= iuncon can be set direct by pressing BJ in the shooting mode.

Brightnes: ent of picture

Fine adjustment of the white balance 1 Inthe Shooting mode, press [MENU].

2 Select Shooting 1 (61/21) — White Balance.

+ M: Magenta + B:Bue

4 Adjust a desired white balance by using the dial or [A/W/4/»]

5 Press [A] to save.

Ithe shot is taken after setting the composition of white paper, filed in full frame, an appropriate white balance value is set according to the measured light source.

1° Inthe Shooting mode, press [MENU]

2 Select Shooting 1 (631/@81) — White Balance.

3. Select Custom Set, and then press [Fn]

4 After setting the composition to show only the white paper, press [Shutter].

Adjusting the color temperature What is color temperature?

You can change the white balance by adjusting the

Color temperature refers to the temperature that has color temperature.

expressed the color change of light in the absolute temperature (K). This can express cold sense with the

1 Inthe Shooting mode, press [MENU]. rising color temperature and warm sense with the falling 2 Select Shooting 1 (6881) — White Solor lemperalure

Balance. 10,000 K Ciear sky

4 Set the color temperature by rotating the 5000K— —Dayight

30004 Halogen lamp 2,000 K Candle light

5 Press [A] to save.

Brghiness and color adjustment of picture

Color space @ur PAS M @ Q as SCENE You can set the color space the camera uses.

1 Press [MENU] in the shooting mode.

2 Select Shooting 1 (65) — — an option.

sr Set the color space to RGB.

Adobe RGB Set ihe color space to Adobe RGB,

(7 * | Wrenyousete cor space to Adobe RCE, ne, F7 ‘camera save picture es nine” SAMOGOC PC: format

You can setthe Color Space function directly by pressing [Fr] in the Shooting mode.

What is color space?

The image In/Output devices such as digital

camera, monitor and printer hold different ranges of reproducing each color.

The possible range of color reproduction is referred to as color space. Several standards of color space are fixed for each device. This camera support SRGB and Adobe RGB. sRGB is diversely used in the devices like computer. I is recommended to use SRGB for regular images. SRGB standards for International standard of color space established by the IEC {international Electrotechnical Commission

This is defined from color space for PC monitors and is also used as the standard color space for Exif. Adobe RGB is the color space recommended by Adobe Systems, Inc. for commercial printing and

has wider range of color reproduction than SRGB. Adobe RGB covers most of the color range so colors only available when printed are not lost when editing images from a computer. When image is opened by non-compatible software, the colors look lighter.

Smart range PASM Smart Range automatically corrects for the loss of bright detail that can ocour due to shading differences in the picture

() * en youtum on Smart Range, you cannot select the ISO 100 option.

+ The Smart range function is not avalable in some shooting modes, and it may automatically operate while you use the @ and #; shooting options.

+ You can set the Smart Range function directly by pressing [Fn] in the Shooting mode.

Changing the shooting method

1 can be diffcu to take a picture of a fast moving object, a quick facial expression, or the rapid motion of a person. In this case, please select the successive shooting option appropriate for the situation

Successive shooting method and timer setup

Πsinge | Taeone photo shotuheneuer you press thestuter.

@ continuous [12 0 svocssi le press ado MINUOUS | dy the she, possible to take 3 shots per second

You can select the successive shooting option appropriate for the situation.

2 Select Shooting 2 (632) — Drive — an option.

You can can set this option directly by pressing the [ca] in he Shooting mode.

© Timor [PSS Peter butn ame cames es pidure in 2 to 30 seconds.

Wien yaupress te shutle, he camera KES AE BKT | consecutive shots: the anginal, one a step darker, andone a step ge.

When the shuttr is pressed he camera vil take Œ w8ëkr | 3 consecuive shots, the original and 2 more vitn cferent vhite balance setting.

Wien the shuflr is pressed, the camera wi take @ P Wiz kr | 3 consecutive shots: al three wi have cferent picture var setings.

Q * gps mar atertpenang on Srcotng mode,

+ The WB BKT and P Wiz BKT functions cornet the

image after you take he shot.

Hyou set he photo qualty Lo the RAW format, you can

ot use the brackelng options (VB EKT, P Wiz BKT).

+" When you select he Burst shoong opln, you cannot seiect ne image se, and the image queity is edat

147276. Also, when You are shoong using he Burst

‘plon, the camera can ke longer ta save tne images.

With the Burst shooting cpion, Îhe camera can not

{he Burst shoolng oplon sn use.

“Ts product suppons Burst Shooting mode which takes

Up to 20 shot per second, The images taken in Burst

“Shooting can be saved wi a fl bi endrge se.

Changing the shooting mett

Detailed bracket setup PAsM The details for the exposure, white balance and picture wizard of bracket shot can be set.

1 Press [MENU] in the shooting mode.

2 Select Shooting 3 (63s) — BKT Set — an option.

3 Select the detailed options.

When using the exposure BKT function, this alows setting the image shot sequence and exposure interval.

BKT Order: Set the shooling orders BKT Area: Set ne exposure steps

When using the picture wizard BKT. function, this allows setting the shot order.

Special effect/photo retouching

Picture Wizard PASMa In the Shooting mode, press [MENU]

The Picture Wizard function lets you select various 2 Select Shooting 1 (1) — Picture

looks and emotional moodbs for your pictures. Wizard — an option:

Là Le 3 Adjust the detailed items of picture wizard that were selected by using [A/W/4/R] + You can control the color, saturation,

sharpness and contrast. Landscape Forest 4 Set to a desired value. 4

+ _The option can be set directly by pressing the Le] button o camera in he snooing mode,

Custom picture wizard setup

You can choose the customize options and then save images in 3 different ways.

1 Inthe Shooting mode, press [MENU].

2 Select Shooting 1 (Œr) — Picture Wizard — Custom — an option:

3 Adjust the Picture Wizard value by using [A/V/4»]

You can control the color, saturation, sharpness, and contrast.

4 Set to a desired value.

Setting Key Mapping Pasna What is AEL function The auto exposure lock (AEL) and auto focus lock (AFL) Te funotlon of camera button can ba changed. functions of the camera are the functions that maintain the 1 Inthe Shooting mode, press [MENU]. setings unti the shooting is complete by remembering he exposure value and focus when pushing the [AEL] butlon of 2 Select User setup (81) — Key Mapping camera. — an option. Reaction of the hal-shutter release when the AEL button ee Naucan choose among is set to the following status. «+ |satings orne AL] buton: 3) |=" AËL, which executes the auto Status of AEL setting AP5tion of he hal-shutter © | exposure lock function in 2 |. AFL, which executes the auto AËL Auto focus AEL focus lock function. = AEL + AFL, which executes the ÊRE ÉRRERES auto exposure and focus lock AELHAFL None functions together.

You can chose between 1wo settings

or the Depth Previewr button:

= One-Touch \WB which executes the Custom White Balance function.

+ Optical Preview which executes the Depth of Field Preview function for the current aperture value.

(G * ne shooting a move, push ie Depth Preview] button once to activate 1he AF function and once again to cancel the function.

+ Refer to the “Depth Preview" function. (p. 37) The function of AEL button cannot be changed in the (manual) mode.

Learn how to play back and edit photosWideos. Also, learn how to connect your camera to your computer, photo printer, TV, or HDTV.

Play (picture/movie) Picture editing Viewing files on a TV or HDTV. Transferring files to your computer

Using the Samsung RAW Converter Printing photos with a photo printer (PictBridge)

Play (picture/movie)

Viewing pictures in the play mode Photo playback information screens You can view saved pictures and movies. The display information appears by pressing [ISP] in

+ Shows most recently saved file.

2 View the pictures sequentially using CO].

+ When the playback screen is selected more than once, the last shown picture or movie is selected to be shown during playback.

Fille that includes development info

Protected fll inicator

Meta value of picture

Fle playing/total no. of fles stored/battery information

| | Î en want — 3 am > DT ot nm EE À © tan L PE Li Ÿ Eur 3 8 2 Poe jrs = 0 fus) Shot image 1 | Volume control display RGB histogram 2 |Protected file Shooting mode, metering, flash, white balance, 3 |Fieno. picture wizard, focal length 4 | Meta value of movie Shutter speed, aperture value, ISO, selected file/total number of files/ battery information 5 |Fast forward 6 | Total play time of selected fie 7 | Current piaytime 8 |Rewind

View files in the smart album by category

The files can be classified and shown by the fle, date (day), date (week), and type.

1 In Playback mode, press [QI] 2 Press [MENU]. 3 Select a desired playback method.

«wi s Fier PTE Type Classify by the saved fle form Date Classify by date recorded. Weck Classify by week recorded.

4 You can view items by turning the dial or pressing [4/2].

5. Press [A] to retum to the previous function.

Wien you start Smart Album or change the filter method, ne time it takes for the camera to classify and display les depends on the number of fles saved. Please wait a until Smart Album appears.

Converting to the thumbnail view

Since several files can be shown on one display, files. can be searched quickly.

To have a thumbnail view of 9 images, press [Q)] two times, or press [Qi] three times to have a thumbnail view of 20 images.

{Press [@] to cancel)

File protection You can protect files from accidental deletion.

1 Press [AEL] in the play mode. 2 Ga appears on the display.

3 Press [AEL] to cancel.

Deleting a file Files can be selected and deleted in the play mode.

The function can be set by pressing [MENU] in the playback mode.

Deleting one picture

You can delete only one picture by selecting a desired le.

1 After selecting the file to be deleted in the play mode, press [4]

2 From the popup window, select Yes.

Deleting selected file After selecting the flle to be deleted in the play mode, press [4]

2° From the popup window, select Multiple Delete.

3 After selecting a flle to be deleted, press Ci + To cancel your selection, press [K] again.

From the popup window, select Yes.

Al the fies saved in the memory card can be deleted at once.

1 In Playback mode, press [MENU]. 2 Select Playback [II] — Delete — AI

3 From the popup window, select Yes.

Show the pictures taken in the vertical frame by rotating them automatically while in playing

1 In Playback mode, press [MENU].

2 Select Playback [FI] —+ Auto Rotate — on

GG ie pot sois taken uen he dreion fire camera was aimed at he bottom, the direction of the image can be different in the playback mod.

This informs the excessively bright part from the image taken.

2 Select Playback [1] — High Light — On.

Enlargement/reduction

A picture can be enlarged when searching in play mode.

Press [@)] to enlarge. (Press [QI] to reduce) ———— Magnified part

Magniication The maximum

magnification may der by resolution)

Move enlargement Snnan " Press [A/W/4/]

‘Trim the enlarged | Press the [Fn] button to select a image portion of the image to be cut.

Pictures can be shown in a slide show by applying various effects and music.

1. In Playback mode, press [MENU] — [)].

2 Select a desired option + To play without selecting an option, go to

step 4. Select ie pictures you want in tne side show. + Al: haude althe saved pictures in the Slide show. Images | +. Date: Indude pictures taken on a specife date in the side show. + Select : Select pictures and see theminthe Side show + Select ihe transition effects between pictures Effect 9 |e In order not to use the changing ertect select Ine off option. Interval _| + Select the scene changing time Music |Execute tne background music

3 Set to a desired option. View a movie : . While a movie is being played back, you are able to 4° Select Slide Show — Play. select and cut a desired part of the scene. + To play the slide show repeatediy, please

select te repeat option 1 After selecting a desired movie in the play

Volume control _ | Turn the cial to the leftright

You can capture a frame of the movie as a picture while playing back the movie.

1 Press [%] in the play mode. 2 Press [%] while playing a movie.

3 Press [Y] in the pause state.

‘The resolution of the captured image is the same as the movie resolution.

‘The captured file is saved as a separate fle under a new fle name.

Cutting part of a mor 1 Press [%] in the play mode.

2 Select the start point to cut by pressing [&] — [©] while playing a movie.

3 Select the end point of cutting by pressing ÉRMO

4 From the popup window, press Yes.

GA * Te cuifiei saved by using a aierent le name.

Pictures can be edited in various ways by using the edit menu. The function can be set directly by pressing [Fr] in the shooting mode.

Changing the resolution Rotating

1 After selecting a desired picture in the play 1 After selecting a desired picture in the play mode, press [MENU] mode, press [MENU]

2 Select Image Edit — Resize. 2 Select Image Edit — Rotate.

3 Select desired image resolution. 3 Select a desired rotation state + The edited fll is saved by using the different file name.

Depending on the size of the picture, when your rotate the original, the new fle may be smaller compared to the onginal

The resolution to be changed wil be limited according to the resolution of original picture.

Red-eye fix 1 After selecting a desired picture in the play mode, press [MENU].

2 Select Playback [[E]] — Image Edit — Red-eye Fix.

Adjusting the backlight 1 After selecting a desired picture in the play mode, press [MENU].

2 Select Playback [[]] — Image Edit — Backlight.

Selecting picture style allows you to express various.

moods of emotion in your picture.

1 After selecting a desired picture in the play mode, press [MENU].

D Select Playback [[#]] — Image Edit — Photo Style Selector.

3 Set to a desired option:

Face retouching 1 After selecting a desired picture in the play mode, press [MENU].

2° Select Playback [[5]] — Image Edit — Face Retouch. 3 Set to a desired option.

+ The level of face retouch gets better as the value becomes larger.

Setting the print info (DPOF)

The size and number of copies to be printed can be designated for the picture

Since the designated information is saved in the MISC: folder of memory card, it is convenient to print the designated sie and number of copies while using the pictures of designated info simply by taking the memory card to a digital printing shop.

(GA 7e piniint you enter canon be used trie igtal printer or igtal picture printing shop that

supports the digital print orlr format DPOF)

For pictures with a wide resolution, the le and

right portion of ine image may not be printed.

Wen placing print order, identify the wide

resolution pictures.

The DPOF option is not available for RAW

formattedl images and he movie fes.

Press [MENU] — Playback [[#1] — DPOF — Standard in the playback mode.

Select a desired option

Select |Printing selected pictures

Reset … |Initalzing the standard print option

When having made the selections, press

[Fn] after selecting the picture and

number of copies to be printed by using

+ When having selected all, press [A/V] to select the number of copies to be printed and then, press [K].

Select [MENU] — DPOF — SIZE in the playback mode.

Select desired print size according to the

Select picture. an |Seiect the print size of allthe pictures saved in the memory card Reset | Initalzing the print size option

When having selected the select option, select the picture to be printed and press [Fn] after selecting the print size by using

+ When having selected al, press [A/W] and select the print size. Then, select the

print size and press [M].

1. Press [MENU] —- Playback [[5]] —+ DPOF — Index in the playback mode.

2 From the popup window, press Yes.

QG "= sesorate print size can ony be appel onto the DPOF1.1 compatible printer.

Viewing files on a TV or HDTV Play back photos or videos by connecting your camera to a TV using the provided A/V cable.

Viewing files on a regular TV (FA * Qnsome Ts, dl nas ma oœur or pat fan 1 Select a video signal output according to DETERIE TEE © + Images may not appear centered on the TV screen your country or region. (p. 108) CEE NE * You cannot capture photos or ide while the 2 Connect the TV and the camera using the qe AN cable.

3 Make sure the TV and camera are turned on and select the video output mode of TV.

4 View the videos and pictures using the buttons of camera body.

Viewing files on an HDTV

1 Select a video signal output according to your country or region. (p. 108)

2. In Shooting or Playback mode, select [MENU] — Setting 3 (#,) — HDMI Size — an option.

3 Connect the HDTV and the camera using the HDMI cable.

Q "2°" "Vend HDMI cables are connecte at ine same time, the HDMI cable has he highest piori. We recommend you disconnect the AV cable for better playback.

4° Make sure the HDTV and camera are turned on and select the HDMI mode of TV.

+ The HDTV screen shows the same display ofthe camera.

5. View the videos and pictures using the buttons of camera body.

QG * "re" usn9 ne HDM cable, ne user can connect the camera to an HDTV using the

Anynet+(CEC) method. The Anynet+{CEC)

functions allows you to control connected

devices using the TV remote control.

In the case that the HDTV supports

Anynet+(CEC), the power of the TV is

automaticaly turned on when used in conjunction:

+ Wnen connected to an HDTV by an HDMI cable, the camera can not take a pictures or movies.

+ Wnen connected to an HDTV, some playback functions may not be avalable.

Transferring files to your computer

LAN * iso may not pro comect on some Transfer fles by connecting your camera to your PC.

Computers, even when the computer meets he

Installing programs ELLES + Ifyour computer does not meet the requirements, Hardware and software requirements videos may nat play correct ri may take longer 10 edit videos. quirement + instal DireciX 0c or above before you use he program. CPU Intel Pentium 4 3.2GHz or higher + You must use Windows XPASta/7 or Mac OS 10.4 Ram GB ormore 2 GE or mor recommended) later 1o connect ie camera as a removable dk. os Windows XP SP2Mista/7 _ + Using a sel-assembled PO or a PC and OS tnt are Hard disk | 250 MB or more (1 GB or more UN PT so ne ner capacity __ | recommended) ‘+ The programs may not work proper on 64-bit + USB por Edition of Windows XP, Vista and 7. + CD-ROM dive others |* 1024 x 768 pixels, 16-bit color display Programs contained on the CD compatible monitor (82-bit color Pen FE display recommendec) + Microsoft Direct X 9.0c or later Intell-studio Ecit photos and videos Samsung RAW Convert RAW filles into the Converter desired fie format.

Transfering les to your computer

1° Insert the installation CD in a compatible CD- ROM drive.

2 When the setup screen is displayed, click Samsung Digital Camera Installer 10 start installation.

DS Samsung Digital Camera

3 Select programs to install, and follow the onscreen instructions.

4 Ciick Exit to complete the installation, and then restart your computer.

Transferring files to your PC When you connect the camera to your PC, the PC recognizes the camera as a removable drive.

1 Connect your camera to your PC with the USB cable.

‘You must plug the end of the cable with tne correct connection pluginto your camera. ne cable à reverse, may damage your fl. The manufacturer is not responsible fer anyloss of data.

+ In the popup window, select Computer.

On your PG, select My Computer —

Removable Disk —» DCIM — °XXXPHOTO," or select *XXX_MMDD* folder.

Select the files you want, and then drag or save them to your PC.

LAN * line Folder Type & set to Date, te older name appears as "200€ MMDD." For example, if shot at January 181, he folder name appears as "1010101."

Disconnecting the camera (for Windows XP) ‘The way to disconnect ihe USB cable for Windows 2000 and Vista is similar.

1 Itthe status lamp on your camera is blinking, it means the data transfer is in progress. Please wait until the status lamp stops blinking.

2 Click Lo] on the tool bar at the bottom right of your PC screen.

3 Click the pop-up message.

Remove the USB cable.

When you connect the camera to a Macintosh ‘computer, the computer recognizes the camera automatically. You can transfer flls direct from the camera to the computer without instaling any programs.

(7) eco 104 ter spores.

1 Connect your camera to a Macintosh computer with the USB cable.

A venengneusgele, me ave omechre pue ne ae he USE ls on came nd cout.

+ Ifthe cable is reversed, it may damage your les. The. manufacturer is not responsible for any loss of data.

+ Please use on the accessories that SAMSUNG provides. The manufacturer takes no responsibity for any loss of fes or damage that may result from the use of other manufacturers product.

Turn on the camera. +_ In the popup window, select Computer.

Double-click the removable disk icon.

Transfer photos or videos to the computer.

Using Intelli-studio

Once you have installed the Intell-studio on your PC, the Intelli-studio starts automatically when a camera is connected with your PC. If the Intelli-studio does not start after you have connected the camera to your PC, double-click the Intelli-studio icon on your Windows desktop.

The Intelli-studio allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube. For details, select [Menu — Help] in the program.

(A : Yes canot ect ls direct on ne camera. Translr le 19 a fl on your computer or eitng. + You cannot copy fles in your computer to the camera. Intel-stuio support the folowing formats:

- Videos: AVIMJPEG), MP4 (Video: H.264, Audio: AAC), WMV AMV 7/8/9) - Photos: JPG, GIF, BMP, PNG, TIFF.

Icon Description 1 Open menus 2 Display fles in the selected folder 3 Change to the Photo edit mode 4 |Change to the Video edit mode Change to the Sharing mode (You can 5 send fles by emal or upload fles to websites, such as Fickr or YouTube.) 6 Enlarge or reduce the thumbnails in the ist 7 Select a fle type & | Viewfies of the selected folder on your ‘computer 9 Show or hide fles of the connected camera 0 |Viewfies ofihe selected folder onthe camera 41 |Viewfies as thumbnaïs, in Smart Album, or on a map 12 | Browse folders in the connected device 13 | Browse folders in your computer 14 | Move to the previous or next folder 45 (Print fles, view fles on a map, store fies

in My Folder, or register faces

Transferring files using Intelli-studio

Inteli-studio wil start automatically when you connect the camera to your computer with the USB cable.

1 Connect the camera to your computer with the USB cable.

2 Tumonthe camera. +_The computer recognizes the camera automatically.

F7) ire camera alto onnect, a pop-up window appear. f) Sakct Computer

3 Select a folder on your computer to save new fes.

+_ If your camera has no new files, the pop-up window for saving new fles will not appear. 4 Select Yes. + New fles wil be transferred to the computer.

For\indows Vista, select Run Installer.exe from the AuioPlay vindont

Using the Samsung RAW Converter

Using the Samsung RAW Converter, you can develop RAW files after editing them as you Ike. You can also edit JPEG or TIFF files in the same way you edit the RAW fles. This software is only compatible with Windows XP, Vista and 7

— Samsung RAW Converter — Samsung RAW Converter]

+ Image edit functions are listed below.

® Image editing tools {Exposure bias]:_ Compensates the exposure

value. [White balance]: Adjusts the white balance value. [Color] Adjusts the color of the image. [one] Changes the color tone.

ISharpness/ Noise reduction]: Adjusts the sharpness.

[Development]: Previewing is available for the final output.

& Highlight controller

Adjusts the saturation and highlights of the selected image.

Displays the color layers of the selected image. > Preview window

Displays the selected image.

GA * 10e He menu te Sameung RAM Converter for further information You can download the Samsung RAW Converter

program for Macintosh from he Samsung website.

Correcting the exposure

The main feature of the Samsung RAW Converter is that you can keep the best quality of the images as. you make changes to the RAW files while editing. After making changes to the brighiness or contrast, you can still obtain the same result no matter which you change first. The following images show how you can change the exposure on an image using the Samsung RAW Converter.

You can adjust the exposure by using the menu: option as shown in the picture below.

Menu option for adjusting the exposure.

A Original image A Changed image P Mode, Aperture: after corecting the

128, exposure. Shutter Speed

1/15sec, ISO = 100 You can see the results of the exposure adjustment in the histograms below

A Changed image after correcting the exposure

Handling the JPEG/TIFF files as you edit RAW files

Using the Samsung RAW Converter, you can edit JPEG/TIFF fils in the same way you edit RAW fles. You can adjust the white balance, sharpness, and reducing the noise is also available. The following images show how to change the contrast on a TIFF image using the Samsung RAW Converter.

You can adjust the contrast by using the menu option as shown in the picture.

Menu option for adjusting the contrast

A Original image P Mode, Aperure: = 8, Shutter Speed: 1/15sec, ISO = 100

A Changed image ater correcting the contrast

Saving the RAW files in JPEG or TIFF format

You can save the RAW files in JPEG or TIFF format using the Samsung RAW Converter

Choose the image you want to edit, and then select [Fle(F}] — (Development...

2. Select the type of file as JPEG or TIFF and then click [Save(S)] - The selected file is saved as JPEG or TIFF format.

Printing photos with a photo printer (PictBridge)

Print photos with a PictBridge-compatible printer by connecting your camera directly to the printer.

1° With the printer on, connect your camera to the Configuring print settings

printer with a USB cable

Ca 2 Tum on your camera.

+ Select Printer in the popup window. | Si DEAD NET Images QiERE or al photos. 77 * liyour prnler has he mass storage feature, you : F5) een Eee Size |Specify the size of the print. menu. Layout _ |Create thumbnaï prints.

Type |Select the type of paper.

3 Press [@R] to select a photo. Qualty _ |Setthe printing qualty.

+ Press [MENU] to set printing options. IMENUI PES Date |Set to print the date.

w 4° Press [fl to print. File Name |Set to print the name of the file.

Reset |Reset the print options.

(7 Sos opions a not supported by some prints.

1 Press [MENU] in the shooting or play mode.

4 Press [MENU] to retum to the previous mode.

: Defaut vale You can set the camera use environment using the setup menu. System Volume | (off, Low, Medium*, High) AF Sound | Sats the sound he camera makes in AF mode on or off. (Off, On*) Button Sound | Sets the sound he camera makes when you press buttons on or off. (Off, On‘) Display * Deutvaue Language | Select the language the camera shows on the display. Adjust the display brightness, auto brightness setting, or display color. Display Brightness: You can adjust the display brightness using the [A/Y] to one of five Display Adjust |P'ighiness levels. ‘Splay AdUSE l'Auto Brightness: Adjust the brighiness of screen. Display Color: Depending on whether the user uses the screen or the viewfinder, the display color can be adjusted by using the [A/W/4/)] Display Save | Sets the display off time. (Off, 0.5min*, 1min, 8min, 5min, 10min) Quickviewr [TPS allows setting the quick view (view immediately upon a shoi time.

Normal setup 1(41 ) * Defaut value

‘This formats the memory card (deleting all the files including protected fes). (Yes, No’ (GA re" can cccur using a card omatedby aniher brand f ame, memory card reader or computer: Please use the card ter formatting it from {he camera.

This resets the setup menu and shooting options. (The date, time, language, and video output value are kept.) (Yes, No*)

‘This sets the method of designating flename.

Date :MMDDX0X.JPGISRGB)/_ MDDX00X.JPG{Adobe RGB, Jan. - Sep.}/ _ADDX0X.JPG{Adobe RGB, indicating À for Oct, B for Nov, C for Dec} For example, the image taken by setting Jan 01 sRGB is saved in “0101000 jpg"

This sets the method of designating flle number. (Series*, Reset)

+_ The folder name that has taken pictures for the first time becomes 100PHOTO and the flename wil be SAM_0001 (when the color space is RGB)

The flename number is increased by 1 in the range of SAM_0001- SAM_9999.

File name numbers are increased by 1 from SAM_0001 to SAM_9999.

Folder numbers are increased by 1 from 100PHOTO to 999PHOTO.

The maximum number of les that can be saved in one folder is 9990.

File names are assigned according to DCF (Design rule for Camera File system) specifications.

I you change a file name (for example, on a computer) the camera wil not be able to play the file.

This sets the power tumed off automatically if not being used for a while. (0.5 5min, 10min, 30min)

PET | (7 + Mecamerartans ie pont une seing ven ou rélce e at + Power Save may not ok fine camera is connected 10 a computer, TV, or printer, playing a sil show or mai This sets the date and time. Date & | (Type, Date, Time Zone, Time, Imprint) Time

+ Onfy1he date is shown on he lower right side ofthe picture in pay. + When pinting a picture, the date may not be printed appropriate} from certain manufacturer or printer mod.

Auto Select" : Convert between Main Display and EVF by eye sensor Main Display : The screen wil be shown oniy through Main Display

EVF : The screen wil be shown only through EVF Video Out

Select the video output signal appropriate for your country when connecting the camera to an external video device such as a monitor or TV.

NTSC" : US, Canada, Japan, Korea, Taiwan, Mexico, etc.

PAL (supporting only the BDGHI method) : Australia, Austria, Belgium, China, Holland, Finland, Germany, England, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thaïland, Norway, etc.

When you connect the camera to an HDTV that supports Anynet+ (HDMI-CEC), you can control the play function of the camera with the TV remote controller (p. 91).

On! : You can control the play function of camera with the TV remote controller.

Off : You can NOT control the play function of camera with the TV remote controler.

‘The resolution on an HDTV can be changed when using an HDMI cable. {in case of NTSC method : Auto”, 1080i, 720p, 480p) {in case of PAL method : Auto*, 1080, 720p, 576p) Iihe connected HDTV does not support the selected resolution, you select, the camera sets he resolution one level lower.

Displays the firmware version of the camera body and lens, and upgrades the firmware. Body Firmware: Upgrades the firmware of the camera body. Lens Firmware: Upgrades the firmware of the lens.

(GA : a c2n connioed mare upgrades rom wa samsungimagig ak or wa samsung com.

You can not run a frmwsare upgrade without a fuly charged {ne battery. Recharge Ine battery fuly before

running a fimware upgrade or attach Ihe adapior lo provide pour (optional. Aer upgrading the fimware, the user customized options are reset to the defaut value. (The date, lime, language, and video ouput values are kept}

Refer to error messages, specifications, and maintenance tips.

Lens specifications . Accessories (optional items) Index

When the following error messages appear, try these remedies.

Card Error |* Tum off your camera, and then turn it on again.

+ Remove your memory card, and then insert it again.

Format your memory card. (p. 106)

Gard Locked _ |Uniock the memory card.

DCF Full Error |Fie names do not match the DCF standard. Transfer the fles on the memory card to your computer and format the card. (p. 106)

Fil Error Delete the damaged fe or contact a service center.

Low Battery |insert a charged battery or recharge the battery.

Memory Full |Delete unnecessary files or insert a new memory card.

No Image File |Take photos or insert a memory card that has

(Check whether dust or foreign substances between Lens contacts and Lens mount index. Remove either dust or foreign substances if dirt or foreign substances are appeared. Please be care for avoid getting dirt foreign substances inside the camera.

Error 00 Tum off the camera, remove the lens, and then mount the lens again. Eror 01/02 |Tum off ne camera, remove the battery, and then

Cleaning your camera

Camera lens and display Use a blower brush to remove dust and wipe the lens gentiy with a soft cloth. any dust remains, apply lens cleaning liquid to a piece of lens cleaning paper and wipe genty.

‘About dust in the image sensor

Depending on the different shooting conditions,

dust may appear in the photo images because

the image sensor can be exposed to the extemal environment. This is not a problem of the product, and the exposure to dust can oceur in everyday

use of camera, When using the dust blower, do not insert the blower through the lens mount, the camera may malfunction. In that case, please contact to the service center.

Wipe gentiy with a soft, dry cloth,

+ Never use benzene, thinners, or alcohol to clean the device. These solutions can damage the camera or cause it to malfunction.

Memory cards you can use You can use SD (Secure Digital and SDHC (Secure Digital High Capacity) memory cards.

Wiite-protect switch

You can prevent fles from being deleted by using the write-protect switch on the SD or SDHC card. Slide the switch down to lock or slide it up to unlock. Lock the card to prevent deletions. Unlock the card when shooting.

Memory city ‘The memory capacity may vary depending on the Scenes you shoot or the shooting conditions. These capacities are based on a 1GB SD card:

AE e lale rss) But | 08 [ane | 520 5 fs

The time avallble for recording may dffer if you use the 20m. Several movies were recorded in succession to determine the total recording time.

About the battery Battery life Use only Samsung-approved batteries. ox. 200 min/Approx. 400 Battery specifications Photos nu ERP Mode BP1810 Videos Approx. 180 min

Type Lithium-ion battery

Cell capacity CON Voltage TAN Charging time approx. 150 min

(When fully discharged)

The figures aboue are measured by Sameung's standards and may difer depending on actual usage.

The shooting time may change depending on the shooting environment and shot intervals.

+ Severalideos were recorded in succession to determine the total recording time.

_Ifthe charging indicator ght does not ight, make sure that the battery is inserted correct.

_Hfthe indicator ight binks in red or does not iluminate, reconnect the adaptor cable, or remove the battery and insert it again.

+ Hfyou charge the battery when ts war, he indicator ght may tum orange. Charging vil start when the battery cools down.

When using he battery please keep the following guidelines.

Falure to folow these guidielne may cause excessive heat, fre, or explosion.

Hthe battery is bulging or distorted, contact a Samsung senice center. may present a physical danger.

I may present physical dangers

Use only the recommended battery charger.

Do not place the product close 10 any high temperature source.

Do not insert the product into a microwave.

Do not place the product inside a car during the summer. Do not place the product in a hot, humidl environment. Do not place the camera on a carpet, comforter, or electronic mattress for a long time.

Do not leave the product tumed on where there is tie or no air Grcultion.

Do not let accessories Ike necklaces, coins, keys, watches, etc., come in contact with Ihe battery chamber.

Use Arvanced Lithium Batteries with a guarantee from the manufacturing company

Do not disassemble the battery or perlorate the battery with a pin.

Do no subject the battery or camera to high pressure. Do not drop or strike the camera or battery, or subject either to rough handling or sudden shocks.

Do not expose he battery or camera to temperatures over 60°C (140°F) degree.

Do not expose he product to water or huridity. Battery shal not be exposed to excessive heal such as Sunshine, fire or the like.

Follow the disposal instructions and proper dispose of the used battery.

Do not dispose of the battery by throwing it in a fre. Disposal instructions may differ depending on your country or specific region.

Follow the disposal instructions of your country, state, etc.

Guideline of recharging the battery. Do not recharge the battery using a method that difers from the method detalled in this users manual Faure to follow these instruction may cause a fire or explosion

Before contacting a service center

I you are having trouble with your camera, try these troubleshooting procedures before contacting a service center. If you have attempted the troubleshooting solution and are stil having problems with your device, contact your local dealer or authorized Samsung service center.

Cannot tum on the camera

+ Make sure that the battery is inserted. + Make sure that the battery is inserted correct. + Charge the battery.

The power tums off suddenly

+ Charge the battery. + Your camera may be in Power save mode. (p. 107)

+ The power automatically tums of to preven the camera from malfunctoning in the case that the unit overheats.

The camera is losing battery power quickly

The battery may lose power more quick in low temperatures [below 0° C). Keep the battery warm by putting it into your pocket.

+ Using the flash or recording videos depletes 1he battery quick. Recharge if needed.

The abiity of a Lithium battery to hold a charge clmishes over time. I your battery looses its charge rapidly on a regular basis, purchase a new battery.

There is no space on Ihe memory card. Delete unnecessary fles or insert a new card. Format the memory card. (p. 106)

The memory card is defective. Get a new memory card.

The memory card is locked. Unlock the card. (p. 112)

Make sure that the camera is switched on.

Make sure that the battery is inserted correcti.

When you use the AF Priority function, you cannot take a picture without adijusting

the focus on the subject correctiy. Disable the AF Priority function, or set the focus acourately.

Remove the battery, and then insert it again.

‘The flash does not work

+ The flash option may be set to Off. (p. 55) +_You cannot use the flash in the & mode, or some scEME modes.

The flash fes unexpectediy

The flash may fre due to static electrcity. This is not a malfunction of the camera.

The date and time are incorrect

Set the date and time in the Setting2 (>) menu.

The display or buttons do not work

Remove the battery, and then insert it again.

The memory card has an error

‘The memory card has not been reset. Format the card. (p. 106)

Cannot play back files

I you change the name of a file, your camera may not be able to play the fle (the name of the fle should meet the DCF standard). I you encounter this situation, play back les on jour computer.

*_Ifthe subjectis out of focus, the photo may be blury. Make a change to he shooting condition.

_Ifthe cameras shaken wie shooting, the photo may be blury. Use a tripod to avoid camera shake.

+ Make sure that the lens is clean. f not, clean the lens. (p. 111)

The colors in the photo do not match the actual scene

‘An incorrect white balance can create unrealitic color. Select the proper white balance option to suit the light source. (p. 68)

The photo is too bright

Your photo is overexposed.

+ Adjust the exposure value. (p. 66)

+ Adjust the aperture value orthe shutter speed. (p. 41) Turn off the flash. (p. 55)

_Adjust the ISO speed. (p. 59)

The photo is too dark

Your photo is underexposed.

+ Adjust the exposure value.

+ Adjust the aperture value or the shutter speed. + Turn on the flash

+_Adjust the ISO speed

The photo is distorted

‘The wide-angle lens may distort the image. This is a normal feature of the wide-ange lens.

The TV does not display your photos

+ Make sure that the camera is correctly connected to the TV with the A/V and HDMI cable.

+ Make sure that your memory card contains photos.

Your computer does not recognize your camera

+ Make sure that the USB cable is connected correct. + Make sure that your camera is switched on. + Make sure that you are using a supported operating system.

Your computer disconnects the camera while transferring files:

‘The file transmission may be inteupted by static electrioity. Disconnect the USB cable, and then connect it again.

Camera specifications

Image [Type CMOS Focusing |Type Contrast AF Sensor Sensor size |23.4x15.6mm Focusing point | Selection : point (Free _ selection) Efecive Pxel _|Approx. 14.6 Mega-pixels VE Nat tspoints, Total Pixel |Approx. 18.1 Mega-pxels Close Up 35points Color Filter RGB primary color fiter : Max Lens Mount Samsung NX Mount Vox Snae AE Contnuous AE Usable Lens Samsung Lenses . ME SOS Image |Type Lens Shi (depends on : Stablization Lens) SE = assist lamp cer Es er [Type ronicall controle Display Type LCD \vertical-run focal plane Sze 3.0" shutter Resolution |QVGA (320240) Approx Speed ‘Auto:1/4000sec. - B0sec. 230K dots Manual-1/4000sec. - Live view Field of view : Approx. 98% en (SV or 1/2EV Viswinder Type EVF Bubb (Limit time : 8 min) Resolution |QVGA Class (300X220) Exposure |Metering TTL 247 (19x18) Block ‘Approx. 201K dots equiv. (System segment Field of View |Approx. 98% Metering : uit, Center- Magnification | Approx. 0.83x (APS-C, weighted, Spot (50m, 1m) Metering range : EVO - 18 Eyepoint —_jAbout i7mm (S0100-20mm F2.0) Diopter ‘Approx 4.0 +1.0m° (Compensation [28 EV (1/2EV, 1/8EV step) /Adjustment /AE Lock /AEL button IS Equivalent |Auto, 100, 200, 400, 800,

1600, 8200 (1EV step)

Camera specffications

Drive Mode |Modes Single, Continuous, Burst, Flash Type TTL Auto Pop-up flash SSeltimer, Bracket (AE, WB, Modes Smart Flash, Auto, Auto + Continuous [JPEG : Sfps up to 10shots, FR eee dun, Burst mode : 30fps, 1% Curtain, 2°* Curtain, OFF ‘S0shots by À released RAW : Sfps up to Sshots Guide Number |11 (at IS 100) Bracket Auto Exposure Bracket Angle of View |28mm wide-angle ((+8EV), White Balance |Coverage {Equivalent to 36mm) Bracket (+3step), Picture (Sync. Speed [Less than 1/180sec. Wizard Bracket (Selectable Flash F2 +2EV (O.5EV step) (modes) Seltimer [2-30sec. (isec. step) Oomperseron (18ec. step) Extemal Flash |Samsung Extemal Flash Remote Wired : SRONXOT (Optionai) available (SEF42A, controller SEF20A) (optional) Synchro Hot Shos (Flash attachment) Wie Modes ‘Auto, Dayight, Cloucy, Balance Fluorescent (W, N, D), ‘Tungsten, Flash, Custom, KManua) Micro Each 7steps in Amber / adjustment __ |Blue / Green / Magenta axis Picture [Modes Standard, id, Portrait, Wizard Landscape, Forest, Retro, Cool, Caim, Classic, Custom (1-3) Parameter —|Contrast, Sharpness,

Saturation, Color tone

Camera specffications

Shooting |Modes Smart Auto, Program, Movie Format MP4 (H.264) ‘Shutter Priority AE, Aperture ie: Priority AE, Manual, Night, [Compression |Mouis :H.264 . Sound Portrait, Landscape, Scene, Movie N Movie Cip With Audio or without Audio Scene Mode _|Beauty shot, Children, Fa patron pis (Close Up, Text, Sunset, Daun, Backight, Freworks, Image se |1280x720, 640480, Beach & Snow 320x240 Image Size JPEG (3:2}: Frame rate Soïps Éaroen (Sound Mono Sound OM (20082000) Move Ecing Su mage Capture, Time 2M (1920x1280). rimming À. AM (14724976) image Pay [fype Single mage, Thumbnails Ro Meg only (8/9/20 images), Slide Show, Movie 12M (4592x2584), EM (38722176), Highight ‘Available (SM (30081688). Waming 2M (1020x1080) Ediing Red eye fx, Back light RAW: 14M (4592x3056) comp., Photo Style Selector, Quality Super fine , Fine, Normal ponze, Rotete. Face RAW Format _|SRW Photo Style |Soft, Viid, Forest, Autumn, Color Space _|sRGB, Adobe RGB (Sdlector Misty, Gloomy, Classic

External memory card(optional: SD card {up to 4GB guaranteed), SDHC card (up to 8GB ‘guaranteed

measured under the (Samsung standard

Direct Printing PictBridge Interface [Digital Output [USB 2.0 (HI-SPEED) (Connector Video output _ |NTSC, PAL (user selectable) HDMI 1.8 : (10801, 720P, S76P / A80P) External Yes Release DG power put DC 9.0, 1.5A (100 - 240V) (connector Power Rechargeable battery : Source BP1810 (1800mAh) Charger: BC1310 Type |AC Adaptor : ADONXO {Optiana) *’Included battery may vary depending on sales region Physical Di 123x87x89.8mm Specifica- DD) {excluding the projecting tion parts of the camera] 848g (without batteries and Weight ra Operating [0 - 40°C Temperature Operating [5 - 85% Humidity Sotware | aopicaton Mel stucio, Samsung RAW

= Specifications are subject la change without prior notice Alltrademarks are the property of their respective owners:

Lens Name SAMSUNG 30mm F2 RE RIRE Focal Length or no LA LS DR CA ve

Hlements in Groups 6 elements in 5 groups 42 elements in 9 groups DE Dcpatonens

(f Aspherica lens nauded) | (1 Asphercal lens node | PA Angle of View 50.2° 75.0 28.7 314-807 F2 (Min. F2), (Number of | F3.5- 5.6 (Min. F22), F4 = 5.6 (Min. F2) (Number

Aperture Blades : 7 , Gicular Aperture | (Number of Blades: 7, | of Blades: 7, Circular Diaphragn) Gircular Aperture Diaphragm) | Aperture Diaphragmn)

Mount Type Samsung NX Mount Samsung NX Mount Samsung NX Mount

Optical mage Stabilzer [No Yes Yes

Minimum Focus Distance | 0.25m - 28m - > 0.98m -

Maximum Magniication | Approx. 0.16% Approx. 0.22X Approx. 0.2X Lans Hood Optional included included

Fier Se 43mm 58mm 52mm

Max. Diameter x Length _| 61.5 x 21.5mm 63 x65.1mm 70 x 100.5mm

Operating Temperature | 0 - 40°C 0-40C 0-40°C Operating Humidty |5-85% S-85% 5-85%

en roma ir yine mode

Accessories (optional items)

Make better pictures with a 30mm, 18-55mm, or 50-200mm lens made exclusively for the Samsung NX-series camera.

In this camera, the memory cards such as SD (Secure Digital) and SDHC (Secure Digital High Capacity) may be used.

The camera can be connected to an extemal device by using an AW cable:

This product minimizes the possible shaking of camera when taking pictures by using a tripod or taking pictures at a low shutter speed.

The power needed in the camera can be supplied by connecting to a power socket using this adaptor.

Straps can be purchased separately.

Camera bag can be purchased separately.

Optional flters can be purchased and attached to the lens.

Optional flash(SEF20A or SEF42A) can be purchased for your various shooting experience.

You can view high-qualty and uncompressed photos or videos on an HDMI (High Definition Muïimedia Interface) using the optional HDMI cable.

Battery pack can be purchased separately.

‘Te image of components or optional parts can ciffer from that of actual products. Please refer to {he user's manual of the optional items.

A Camera specifications 118 H Adjusting exposure 5 D Half-shutter 32

Automatic focus 34 HDTV 92

Aperture priority mode 41 Direction keys 5 HDMI Size 108

Aperture value 41 Diopter adjustment dial 16

AE Priority 60 penay pe, 28 !

AF assist light 61 epth of field 37

AEEKT 79 Depth Preview 37 ISO sensitivity 59

AEL function _ 77 Deleting a file 82 Icons 25

Continuous AF_ 60 File protection 82 M Center-weighted metering 67 Face retouching 88 Mounting/dismounting the lens 21

Color temperature 70 Format_ 106 Manuel focus 33

Color space 71 File name 106 Manuel mode 43

Changing the shooting method 73 Filenumber 106 MuliAF 61

Continuous shooting 73 Folder type 106 MF Assist 63

Camera maintenance 111 Firmware update 108

N Resolution 51 T Red-eye reduction 56 Night mode 45 Rotatiig 87 Title and role of each part 14 Noise reduction 53 Red-eye fix 88 Turning on the power 23 o Regular TV 91 7e 2,

Slide show 84 1st Curtain 58

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

{Applicable in the European Union and other European mm © vi soparate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take Ihese items for environmental safe recyciing. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Planet First represents Samsung Electronics* commitment to the sustainable development and social responsibiity through eco-driven business

Roi | compliant D and management activities.

Correct disposal of batteries in this product

{applicable in the European Union and other European countries with separate battery retu systems)

This marking on the battery, manual or packaging indicates that

the batteries in this product should not be disposed of with other household waste at the end of their working fe. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. I batteries are not propeny disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery retum system.

This Class [BJ digital apparatus complies with Canadian ICES-008

Please refer to the warranty that came with your product or visit our website http:/\www.samsungimaging.com for after-sales service or inquiries.
