W415 - Projector OPTOMA - Free user manual and instructions

Product Type	DLP Projector
Brand	OPTOMA
Model	W415
Native Resolution	WXGA (1280 x 800)
Aspect Ratio	16:10 (supported 4:3, 16:9, LBX)
Brightness	Not specified
Contrast	Not specified
Display Technology	DLP
Keystone Correction	Vertical ±30°
Optical Zoom	Yes, manual
Lens Shift	Vertical (WXGA: +7% / -4.5%; 1080p: +9% / -5%)
3D Function	Yes (DLP Link, IR, formats SBS, top-bottom, frame sequential)
Video Inputs	VGA1, VGA2, HDMI, DisplayPort, S-Video, Composite Video, YPbPr
Outputs	VGA-OUT, AUDIO OUT, 12V OUT
Other Connections	RS232, RJ45, USB (service), Kensington lock
Network	LAN (remote control, Crestron, Extron, PJLink, AMX)
Power Supply	Mains plug, power cord included
Lamp	Replaceable (model not specified)
Security	Password, keypad lock, Kensington lock, clock security
Built-in Speaker	Yes (can be disabled)
Maintenance and Cleaning	Clean with a dry cloth, do not obstruct ventilation openings
Included Accessories	Power cord (1.8 m), VGA cable, remote control with batteries, user guide, warranty card, quick start card, WEEE card
Operating Temperature	5°C to 40°C
Relative Humidity	10% to 85% (non-condensing)

Frequently Asked Questions - W415 OPTOMA

How do I connect my laptop to the W415 projector?

Use the included VGA cable to connect the projector's VGA1-IN port to your computer's VGA port. If your computer has an HDMI output, use an HDMI cable (not included). After connecting, turn on the projector, then press the appropriate Fn key on your computer to switch the display (e.g., Fn+F4 or Fn+F8 depending on the model). The projector will automatically detect the source.

Why is the projected image upside down?

Go to the OSD menu: Menu > Projection. Select the mode corresponding to your installation: Front Desktop (standard), Rear Desktop (rear projection), Front Ceiling (ceiling projection), or Rear Ceiling. Adjust according to your setup.

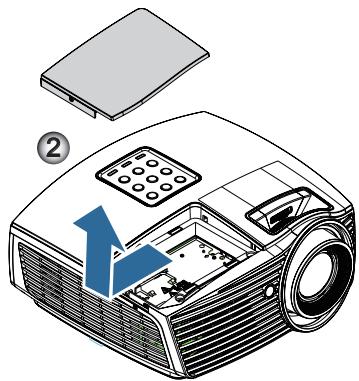

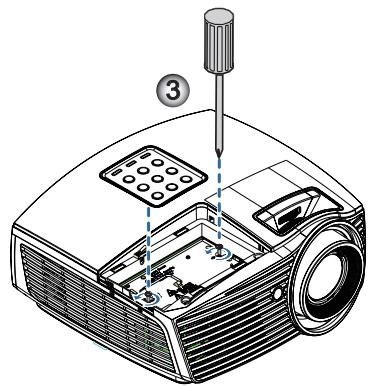

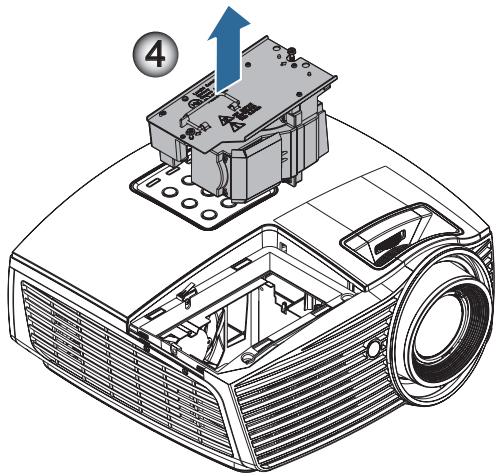

How do I replace the projector lamp?

Turn off the projector and unplug the power cord. Wait at least 30 minutes for the lamp to cool down. Remove the screw from the lamp compartment cover, then the cover. Unscrew the two screws of the lamp module, grasp the handle, and remove the module. Insert the new lamp module (align it correctly), screw back, replace the cover and screw. Reconnect, turn on, and reset the lamp counter via Menu > Options > Lamp Settings > Lamp Reset.

What should I do if the remote control does not work?

Check that the batteries are installed correctly and in good condition. Make sure there are no obstacles between the remote control and the projector. Stay within 7 meters of the projector and within an angle of ±15° relative to the IR receiver. If the problem persists, check that the IR function is enabled in Options > Remote Settings > IR Function.

How do I use the network function to control the projector remotely?

Connect an RJ45 cable between the projector and your network. In the OSD menu, go to Menu > Network > LAN Settings. Configure the IP address (DHCP or manual). From a web browser, enter the projector's IP address to access the control interface. The projector supports Crestron, Extron, PJLink, and AMX.

How do I enable or disable the security password?

Go to Menu > Security > Security Settings. Set to On to require the password at power on (default password: 12345). To change the password, use Change Password in the same menu. To disable, set to Off.

The image is too small or too large, how do I adjust the size?

Use the zoom ring on the lens to enlarge or reduce the image. You can also move the projector forward or backward. In the OSD menu, go to Display > Format and choose the appropriate format (4:3, 16:9, 16:10, LBX, Native, Auto). Also use the digital zoom via Display > Zoom.

How do I correct keystone distortion?

In the OSD menu, go to Display > V Keystone. Adjust with the ◀ or ▶ keys to compensate for vertical distortion. The manual correction ranges from -30° to +30°. If the projector is tilted, this function allows you to straighten the image.

How do I display 3D content on this projector?

Ensure the source is sending a compatible 3D signal. Play a 3D source (e.g., HDMI 1.4a). In the OSD menu, go to Display > 3D. Set 3D Mode to DLP Link or IR according to your glasses. Choose 3D Format (Auto, SBS, Top and Bottom, Frame Sequential). Wear 3D glasses synchronized with the projector.

What regular maintenance is required for the projector?

Clean the casing with a dry, soft cloth. Do not use abrasive cleaners. Ensure the ventilation openings are not obstructed to avoid overheating. Replace the lamp when the warning message appears (approximately at end of life). Periodically check the connection cables. For extended use, unplug the device.

USER MANUAL W415 OPTOMA

Options | Remote Settings....47

Options | Avancé....48

Options | Paramètres Lampe 50

LAN_RJ45 52

- + - Annexes 62

Dépannage 62

Image 62

Autres....63

Commandes Telnet....78

Commandes AMX Device Discovery....78

Commandes PJLink™ prises en charge 79

Trademarks 81

Illustration of a projector with a circular lens beside it (no text or symbols)

Line drawing of a bundled cable with two connectors and three power plugs (no text or symbols)

Line drawing of a briefcase with open lid and internal bands (no text or symbols)

Mallette de transport

Documentation :

Technical illustration of a car air vent assembly with mounting holes and a magnified inset showing the component (no text or symbols present)

Ajuster la position verticale de l'image

Options | Remote Settings

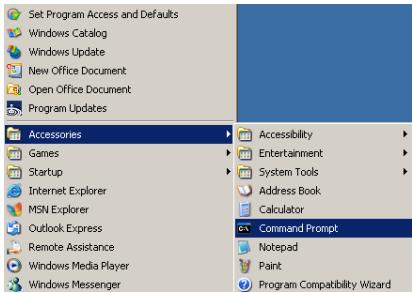

1. Démarrer => Tous les programmes => Accessoires => Invite de commandes.

? Etats LED

Lamp is approaching the end of its useful life

Illustration of a projector with a screwdriver inserted, labeled with number 1 (no text or symbols on the device itself)

SEND to emulate Remote

~XX140 10	7E 30 30 31 34 30 20 31 30 0D	Up
~XX140 11	7E 30 30 31 34 30 20 31 31 0D	Left
~XX140 12	7E 30 30 31 34 30 20 31 32 0D	Enter (for projection MENU)
~XX140 13	7E 30 30 31 34 30 20 31 33 0D	Right
~XX140 14	7E 30 30 31 34 30 20 31 34 0D	Down
~XX140 15	7E 30 30 31 34 30 20 31 35 0D	Keystone +
~XX140 16	7E 30 30 31 34 30 20 31 36 0D	Keystone –
~XX140 17	7E 30 30 31 34 30 20 31 37 0D	Volume –
~XX140 18	7E 30 30 31 34 30 20 31 38 0D	Volume +
~XX140 19	7E 30 30 31 34 30 20 31 39 0D	Brightness
~XX140 20	7E 30 30 31 34 30 20 32 30 0D	Menu
~XX140 21	7E 30 30 31 34 30 20 32 31 0D	Zoom
~XX140 28	7E 30 30 31 34 30 20 32 38 0D	Contrast
~XX140 47	7E 30 30 31 34 30 20 34 37 0D	Source

SEND from projector automatically

232 ASCII Code HEX Code	Function	Projector Return	Description
when Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open		INFOn	n : 0/1/2/3/4/6/7/8/ = Standby/Warming/Cooling/Out of Range /Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open

READ from projector

232 ASCII Code	HEX Code	Function	Projector Return	Description
~XX121 1	7E 30 30 31 32 31 20 31 0D	Input Source Commands	OKn	n: 0/2/3/4/5/7/15 = None/VGA1/VGA2/Video/S-Video/HDMI/ DisplayPort
~XX122 1	7E 30 30 31 32 32 20 31 0D	Software Version	OKddd	dddd: FW version
~XX123 1	7E 30 30 31 32 33 20 31 0D	Display Mode	OKn	n : 0/1/2/3/4/5/6/7/8/ None/Presentation/Bright/Movie/sRGB/ User/Blackboard/DICOM SIM./3D
~XX124 1	7E 30 30 31 32 34 20 31 0D	Power State	OKn	n : 0/1 = Off/On
~XX125 1	7E 30 30 31 32 35 20 31 0D	Brightness	OKn
~XX126 1	7E 30 30 31 32 36 20 31 0D	Contrast	OKn
~XX127 1	7E 30 30 31 32 37 20 31 0D	Format	OKn	n: 1/2/3/5/6/7 = 4:3/16:9/16:10/LBX/Native/AUTO *16:9 or 16:10 depend on Screen Type setting
~XX128 1	7E 30 30 31 32 38 20 31 0D	Color Temperature	OKn	n :3/0/1/2 = Warm/Standard/Cool/Cold
~XX129 1	7E 30 30 31 32 39 20 31 0D	Projection Mode	OKn	n : 0/1/2/3 = Front-Desktop/ Rear-esktop/ Front-Ceiling/ Rear-Ceiling
~XX150 1	7E 30 30 31 35 30 20 31 0D	Information	OKabbbbccdddde	a : 0/1 = Off/On bbbb: LampHour cc: source 00/02/03/04/05/07/08/15 = None/VGA1/VGA2/Video/S-Video/HDMI /DisplayPort dddd: FW version e : Display mode 0/1/2/3/4/5/6/7/8/ None/Presentation/Bright/Movie/sRGB/ User/Blackboard/ DICOM SIM /3D
~XX151 1	7E 30 30 31 35 31 20 31 0D	Model name	OKn	n:1/2=W415/EH415
~XX108 1	7E 30 30 31 30 38 20 31 0D	Lamp Hours	OKbbbb	bbbb: LampHour
~XX108 2	7E 30 30 31 30 38 20 31 0D	Cumulative Lamp Hours	OKbbbb	bbbb: (5 digits) Total Lamp Hours
~XX87 1	7E 30 30 38 37 20 31 0D	Network Status	Okn	n=0/1 Disconnected/Connected
~XX87 3	7E 30 30 38 37 20 33 0D	IP Address	Okaaa_bbb_ccc_ddd

Commandes Telnet

Command	Description	Remark (Parameter)
Device-UUID	MAC address (Hex value without‘::’ separator)	12 digits
Device-SKDClass	The Duet DeviceSdk class name	VideoProjector
Device-Make	Maker name	MakerPXLW
Device-Model	Model name	Projector
Config-URL	Device's IP addressLAN IP address is shown up if LAN IP address is valid.Wireless LAN IP address is shown up if Wireless LAN IP address is valid.	http://xxx.xxx.xxx.xxx/index.html
Revision	The revision must follow a major.minor.micro scheme. The revision is only increased if the command protocol is modified.	1.0.0

Command	Description	Remark (Parameter)
POWR	Power control	0 = Standby
		1 = Power on
POWR?	Inquiry about the power state	0 = Standby
		1 = Power on
		2 = Cooling down
		3 = Warming up
INPT	INPT Input switching	11 = VGA1

Command	Description	Remark (Parameter)
INPT?	Inquiry about input switching	12 = VGA2
		13 = Component
		14 = BNC
		21 = VIDEO
		22 = S-VIDEO
		31 = HDMI 1
		32 = HDMI 2
AVMT	Mute control	30 = Video and audio mute disable
AVMT?	Inquiry about the mute state	31 = Video and audio mute enable
ERST?	Inquiry about the error state	1st byte: Fan error, 0 or 2
		2nd byte: Lamp error, 0 to 2
		3rd byte: Temperature error, 0 or 2
		4th byte: Cover open error, 0 or 2
		5th byte: Filter error, 0 or 2
		6th byte: Other error, 0 or 2
		0 to 2 mean as follows:0 = No error detected, 1 = Warning,2 = Error
LAMP?	Inquiry about the lamp state	1st value (1 to 5 digits):Cumulative LAMP operating time (This item shows a lamp operating time (hour) calculated based on that LAMP MODE is LOW.)
		2nd value: 0 = Lamp off, 1 = Lamp on
INST?	Inquiry about the available inputs	The following value is returned.“11 12 21 22 31 32”
NAME?	Inquiry about the projector name	The projector name set on the NETWORK menu or the ProjectorViewSetup window is returned
INF1?	Inquiry about the manufacturer name	“Optoma” is returned.
INF2?	Inquiry about the model name	“EH7700” is returned.
INF0?	Inquiry about other information	No other information is available. No parameter is returned.
CLSS?	Inquiry about the class information	“1” is returned.

Trademarks

▶ DLP is trademarks of Texas Instruments.
IBM is a trademark or registered trademark of International Business Machines Corporation.
Macintosh, Mac OS X, iMac, and PowerBook are trademarks of Apple Inc., registered in the U.S. and other countries.
Microsoft, Windows, Windows Vista, Internet Explorer and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
▶ AMX Device Discovery

The projector is monitored and controlled by the control system of AMX.

Crestron RoomView Connected™

The projector is monitored and controlled by the control system and software of Crestron Electronics, Inc.

PJLink™

PJLink trademark is a trademark applied for registration or is already registered in Japan, the United States of America and other countries and areas.

This projector supports standard protocol PJLink™ for projector control and you can control and monitor projector's operations using the same application among projectors of different models and different manufacturers.

Other product and company names mentioned in this user's manual may be the trademarks or registered trademarks of their respective holders.
About Crestron RoomView Connected™

Electronics, Inc. to facilitate configuration of the control system of Crestron and its target devices.

For details, see the website of Crestron Electronics, Inc.

URL http://www.crestron.com

URL http://www.crestron.com/getroomview/
