Brand	Curtis
Model	FR100
Product Type	Refrigerator
Energy Source	AC 220-240V, 50Hz
Total Capacity	100 Liters
Refrigerator Capacity	85 Liters
Freezer Capacity	15 Liters
Dimensions (H x W x D)	84.5 x 47.5 x 50.5 cm
Weight	24 kg
Climate Class	N-ST (16°C to 38°C)
Energy Consumption	0.35 kWh/24h
Noise Level	42 dB(A)
Defrost Type	Manual defrost
Temperature Control	Thermostat dial (1-7)
Refrigerant	R600a (Isobutane)
Adjustable Shelves	2 glass shelves
Door Storage	3 door balconies (1 for bottles)
Crisper Drawer	1 vegetable drawer
Freezer Features	Ice cube tray, 1 freezer shelf
Interior Light	LED light
Leveling Legs	2 front adjustable feet
Door Reversibility	Yes, door swing reversible
Maintenance & Cleaning	Clean with mild soap and water; defrost and clean condenser yearly
Safety Features	Stabilizer required; keep ventilation grille unobstructed
Spare Parts Availability	Contact Curtis service for thermostats, shelves, door bins

Frequently Asked Questions - FR100 CURTIS

How do I adjust the temperature on my Curtis FR100 refrigerator?

Turn the thermostat dial inside the refrigerator compartment. The higher the number (1-7), the colder the temperature. Set to 3-4 for normal use.

How often should I defrost the freezer?

Defrost the freezer when ice builds up to about 5 mm (0.2 inches). This typically occurs every 3-6 months. Unplug the unit, remove food, and let ice melt.

Why is my refrigerator not cooling properly?

Check if the thermostat is set correctly, the door seal is intact, and the condenser coils (at the back) are clean. Also ensure there is adequate ventilation around the unit.

Can I reverse the door opening direction?

Yes, the door on the FR100 is reversible. Follow the instructions in the manual to swap the hinges. You will need a screwdriver and possibly a helper.

How do I clean the interior?

Unplug the refrigerator. Remove all shelves and drawers. Wash the interior with a mixture of warm water and mild dish soap. Rinse with clean water and dry thoroughly before plugging back in.

What is the recommended temperature for the refrigerator?

The ideal refrigerator temperature is between 3°C and 5°C (37°F-41°F). Adjust the dial accordingly. Use a thermometer to verify.

Why is my refrigerator making unusual noises?

>Normal sounds include a humming compressor, occasional clicking from the thermostat, and gurgling from refrigerant flow. Loud vibrations may mean the unit is not level or objects are touching the back.

How much energy does the FR100 consume?

The Curtis FR100 consumes approximately 0.35 kWh per 24 hours, which is about 128 kWh per year. Actual consumption depends on usage and room temperature.

Where can I get spare parts for my Curtis FR100?

Contact Curtis customer service or an authorized dealer. Common spare parts include thermostat, door gasket, shelves, and light bulb. Have your model number ready.

Can I install the refrigerator in a garage or outdoors?

The FR100 is designed for indoor use only. The climate class N-ST allows operation from 16°C to 38°C (61°F-100°F). Avoid freezing temperatures.

USER MANUAL FR100 CURTIS

OPERATING INSTRUCTIONS

More Than Cool™

FR100L

Please read this manual carefully before using the refrigerator

NAME OF PARTS 1
CORRECTLY POSITIONING 2
CAUTIONS 5
MAINTENANCE 6
TROUBLE SHOOTING 7
DOOR REVERSAL INSTRUCTIONS

Simple line drawing of a rectangular appliance with two side handles (no text or symbols)

Igloo™ and the Igloo logo are trademarks of Igloo Products Corp. used by C.I Ltd. under license.

1.Name of parts

① Ice Cube Tray
② Temperature Control Knob(rear)
③ Drip Tray
④ Removable Shelf
⑤ Freezer Compartment
⑥ Dairy Rack
⑦ Bottle Rack
⑧ Adjustable Legs

2. Correctly positioning

Well Ventilating

There is need of good ventilation around the refrigerator for easy dissipation of heat, high efficiency of refrigeration and low power consumption. For this purpose, sufficient clear space should be needed around the refrigerator, its back is at least 100mm away from the wall, its sides at least have a space of 100mm separately and the height from over its top is not less than 200mm. A clear space should be left to open its doors to 160°

Power Supply

The refrigerator is only applied with power supply of single phase alternating current of 115V/60Hz. If fluctuation of voltage in the district user is of so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. automatic voltage regulator to the refrigerator. The refrigerator must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

Power Line Cord

The cord should be neither lengthened nor folded into coil during operation. Moreover, it is forbidden that cord is kept close onto the compressor at the back of the refrigerator, the surface temperature of which is quite high when operating. Touching with it would deactivate the insulation or cause leakage for electricity.

Cartoon illustration of a smiling smartphone character with a thought bubble showing a device (no text or symbols present)

2. Correctly positioning

Protection from Moisture

Avoiding placing the refrigerator in a place where heavy moisture is present so as to minimize possibility of rusty for its metal parts. Still more, the refrigerator is forbidden to be directly sprayed by water, otherwise, poor insulation and current leakage would occur.

Cartoon illustration of a smiling document character with arms and legs, holding a magnifying glass (no text or symbols)

Protection from Heat

The refrigerator should be far away from any heat source or direct sunshine.

Fixing Stable

Floor on which refrigerator will be placed must be flat and solid. It should not be laid on any soft material such as foam plastic, etc. If the refrigerator is not on the same level, adjust the screws suitably. The refrigerator should not be placed near anything which may echo.

2. Correctly positioning

Keep Away from Danger

It is inadvisable that the refrigerator is placed near any volatilizable or combustibles such as gas, petrol, alcohol, lacquer and banana oil, etc. The above-mentioned objects can not be stored in the refrigerator.

Cartoon illustration of a smiling rectangular character holding a smartphone and a small object (no text or symbols)

Moving

When fixed or moved, the refrigerator can not be set horizontally or declined to more than 45° or upside-down.

Cartoon illustration of a person carrying a large rectangular object with arms and legs, no text or symbols present.

3.Cautions

★ Water contained in food or getting into air inside the refrigerator by opening doors may form a layer of frost inside, it will weaken the refrigerator when the frost is thick, while it is more than 2mm thick, you should defrost.
★ Defrosting in freezer chamber is operated manually. Before defrosting, take the food, the ice tray and the shelf out into the cold storing chamber temporarily then set the knob of the temperature regulator to position "0" (where the compressor will stop working) and leave the door open until ice and frost dissolve thoroughly deposited at the bottom of the freezer chamber, wipe off the water with soft cloth. In the case of speeding up the defrosting, you may put a bowl of warm water (about 50°C) into the freezer chamber, and be sure to set the knob of the temperature regulator to original position after defrosting.
★ It's inadvisable to heat the freezer chamber directly with hot water or hair dryer while defrosting to prevent deformation of the inner case.
It's also inadvisable to scrape of ice and frost or separate food from the containers which have been congealed together with the food with sharp tool or wooden bars, so as not to damage the inner casing or the surface of the evaporator.
★ If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

4. Maintenance

★ The refrigerator should be cleaned and maintained once a month.
★ When performing maintenance, make absolutely sure that the power plug is first disconnected from the power outlet.
★ Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth. If they are too dirty, scrub them with neutral detergent, and then clean them with water and dry them with clean cloth. After this, a small quantify of glass wax is recommended to polish the refrigerator surface with a flannelette.
For cleaning, don't use hot water, diluent, petrol, alcohol, kerosene, washing powder, cleanser, alkalinous detergent, acid, Chemical cloth, etc. So as not to damage the lacquer coat and plastics. It is forbidden than the refrigerators directly sprayed with water. Otherwise, it would cause rusty or weaken the insulation.
★ Be careful to upkeep the sealing rubber bars of the doors. They should always be cleaned.
★ If the plastic parts in refrigerator remain contaminated for a long time by oil (animal or vegetable), they will be easy aged and possibly cracked. The drain pan gets dirty very easily if it is not cleaned regularly. bad odours will be produced, get into the habit of cleaning this pan regularly.

5. Troubleshooting

1. When the refrigerator does not work.
   Check if there is a power failure.
   Check if the power plug is plugged into the power outlet.
   Check that the fuse has not blown.
2. When the refrigerator is cooling excessively.
   The temperature control dial may be set too high.
   If you place foodstuffs containing a lot of moisture directly under the cool air outlets, they will freeze easily. This does not indicate a malfunction.
3. When the refrigerator is not cooling sufficiently.
   The food may be packed too tightly together which will block the flow of cool air.
   You may have put something hot or a lot of foodstuffs into the refrigerator.
   The door may not have been closed properly.
   The door gaskets may be damaged
   The refrigerator may not be ventilated.
   There may be insufficient clearance between the refrigerator and the surfaces immediately both sides and above.
   The temperature control dial may not be set properly.

5. Troubleshooting

1. When the defrosting water overflows inside the refrigerator and onto the floor. Check that the drain pipe and the drain hose are not clogged. Check that the drain pan is housed properly.
2. When the refrigerator's cabinet front heats up. In order to safeguard against condensation, there is an anti condensation, pipe which heats up the cabinet front when running actuated. A warm cabinet front does not indicate a malfunction.
3. When condensation form on the outside of the refrigerator. Condensation may form on the outside when the humidity is high such as during a wet season. This is the same result as the condensation formed when chilled water is poured into a glass. It does not, therefore, indicate a failure, wipe dry with a dry cloth.
4. When you hear a sound like water flowing. A sound like water flowing is the refrigerant flowing. It does not indicate a malfunction.
5. When the cabinet's side panel heats up. The side panel of the cabinet will heat up when the door is opened or closed frequently. when starting the unit and when the unit operates in summer with high ambient outside temperature. In such case, do not touch the panel, it results from the dissipation of the heat from inside the cabinet, and it does not mean that something is wrong with the refrigerator.

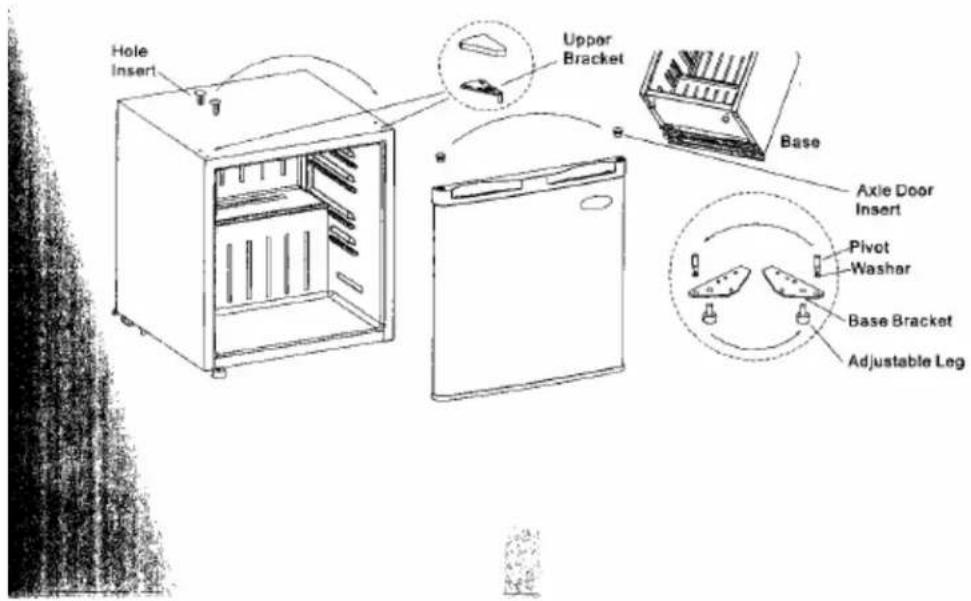

6. Door Reversal Instructions

Your refrigerator is built with a reversible door. You have the choice of either opening it from the left or the right side. In order to reverse the opening direction of your door, please follow these simple instructions.

Mode d'emploi

More Than Cool"

FR100L

Simple line drawing of a rectangular cabinet or refrigerator with no text, numbers, or symbols.

Cartoon illustration of a smiling document character with arms and legs, holding a paper airplane (no text or symbols)

Contre la chaleur

Cartoon illustration of a smiling document character holding a pen and bottle (no text or symbols)

Déplacement

Cartoon illustration of a character holding a rectangular object with arms and legs, no text or symbols present

3.Avertissements

Black-and-white photo of a tree with dense foliage and no visible text or symbols

5.Dépannage
