Product Type	LCD Monitor
Model	S1721XSH-BK
Display Diagonal	17 inches (43 cm)
Native Resolution	1280 x 1024 (SXGA)
Brightness	350 cd/m²
Contrast Ratio	1000:1
Response Time	8 ms (gray-to-gray)
Viewing Angles	160° horizontal / 160° vertical
Video Inputs	DVI-D, D-Sub 15-pin
USB Hub	2-port USB 2.0
Built-in Speaker	No
VESA Mount	100 x 100 mm
Height Adjustment	Yes (with stand)
Tilt Angle	30° up, 5° down
Swivel	Yes
Dimensions (with stand)	367 x 523 x 209 mm
Weight (with stand)	6.2 kg
Power Consumption (typical)	38 W
Power Consumption (standby)	< 1 W
Power Input	AC 100-240 V, 50/60 Hz
Security Slot	Kensington lock compatible
Energy Star Certified	Yes
Key Features	Auto EcoView, DUE (Digital Uniformity Equalizer), Fine Contrast Mode
Cleaning Instructions	Wipe gently with a soft, dry cloth; use mild detergent if needed; avoid abrasive cleaners
Spare Parts / Repairability	Replacement power supply, stand, and control board available; service manual provided by Eizo
Safety	Complies with TÜV/GS, CE, FCC Class B; mercury-free backlight

Frequently Asked Questions - S1721XSH-BK EIZO

How do I adjust the screen resolution?

Go to your computer's display settings and select the native resolution of 1280 x 1024 for best image quality.

Can I connect my laptop via USB?

The USB ports are for connecting peripherals like a mouse or keyboard, not for video. Use the DVI-D or D-Sub cable for video input.

How do I clean the screen safely?

Turn off the monitor and unplug it. Use a soft, lint-free cloth slightly dampened with water or a mild detergent. Never spray liquid directly onto the screen.

What is the Auto EcoView feature?

Auto EcoView is a sensor that adjusts the screen brightness automatically based on ambient light, reducing power consumption and eye strain.

How do I access the OSD menu?

Press any of the buttons on the front bezel (typically the Menu button) to open the On-Screen Display. Use the arrow keys to navigate.

Does this monitor support VESA mount?

Yes, it has a 100 x 100 mm VESA mounting pattern. You can attach it to a compatible arm or bracket.

What should I do if there is no signal?

Check that the video cable is securely connected to both the monitor and computer. Ensure the computer is powered on and the correct input source is selected (DVI or analog).

How can I save power when idle?

Enable the Power Save mode in the OSD or adjust the computer's power settings to turn off the display after a period of inactivity. The monitor automatically enters standby (<1W).

What is the warranty period?

Eizo typically offers a 5-year warranty on standard LCD monitors, including the S1721 series. Check your region for specific terms.

Can I use this monitor for medical imaging?

The S1721XSH-BK is a general-purpose professional monitor. For medical-grade use, consider Eizo's RadiForce series with DICOM calibration.

USER MANUAL S1721XSH-BK EIZO

Please read PRECAUTIONS, this User's Manual and Setup Guide (separate volume) carefully to familiarize yourself with safe and effective usage.

• Please read to the Setup Guide for basic information ranging from connection of the monitor to a PC to using the monitor.
• The latest User's Manual is available for download from our site: http://www.eizo.com

[Location of the Caution Statements]

Ex. Height adjustable Stand

As an ENERGY STAR® Partner, EIZO NANAO CORPORATION has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This product has acquired TCO standard that relates to safety, ergonomics, environment and so forth of office equipment. For overview of the TCO, refer to our website. http://www.cizo.com

Product specification may vary with sales areas. Confirm the specification in the manual written in language of the region of purchase.

Copyright© 2010 EIZO NANAO CORPORATION All rights reserved.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION. EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION's receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

Mac OS is registered trademark of Apple Inc. VGA is a registered trademark of International Business Machines Corporation. Windows and Windows Vista are registered trademarks of Microsoft Corporation in the United States and other countries. ENERGY STAR is a U.S. registered mark. VESA is a registered trademark or a trademark of Video Electronics Standards Association in the United States and other countries. EIZO ScreenSlicer is a trademark of EIZO NANAO CORPORATION. EIZO, EIZO Logo, FlexScan and ScreenManager are registered trademarks of EIZO NANAO CORPORATION in Japan and other countries.

Notice for this monitor

This product is suited to creating documents, viewing multimedia content, and other general purposes.

This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications.

This product may not be covered by warranty for uses other than those described in this manual.

The specifications noted in this manual are only applicable for power cords and signal cables specified by us.

Use optional products manufactured or specified by us with this product.

As it takes about 30 minutes for the performance of electrical parts to stabilize, adjust the monitor 30 minutes or more after the monitor power has been turned on.

In order to suppress the luminosity change by long-term use and to maintain the stable luminosity, use of a monitor in lower brightness is recommended.

When the screen image is changed after displaying the same image for extended periods of time, an afterimage may appear. Use the screen saver or power save function to avoid displaying the same image for extended periods of time.

Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. (Refer to “Cleaning” (page 4))

The LCD panel is manufactured using high-precision technology. However, missing pixels or lit pixels may appear on the LCD panel, this is not malfunction.

Percentage of effective pixels : 99.9994% or higher.

The backlight of the LCD panel has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer.

Do not press on the panel or edge of the frame strongly, as this may result in the display malfunction, such as the interference patterns, etc. If pressure is continually applied to the LCD panel, it may deteriorate or damage your LCD panel. (If the pressure marks remain on the LCD panel, leave the monitor with a white or black screen. The symptom may disappear.)

Do not scratch or press on the panel with any sharp objects, such as a pencil or pen as this may result in damage to the panel. Do not attempt to brush with tissues as this may scratch the LCD panel.

When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur inside and outside the monitor. In that case, do not turn the monitor on and wait until dew condensation disappears, otherwise it may cause some damages to the monitor.

Cleaning

Attention

- Never use any solvents or chemicals, such as thinner, benzene, wax, alcohol, and abrasive cleaner, which may damage the cabinet or LCD panel.

NOTE

- Optional ScreenCleaner is recommended for cleaning the panel surface.

[LCD Panel]

• Clean the LCD panel with a soft cloth such as cotton cloth or lens cleaning paper.
• Remove persistent stains gently with a cloth dampened with a little water, and then clean the LCD panel again with a dry cloth for better finishing.

[Cabinet]

Clean the cabinet with a soft cloth dampened with little mild detergent.

To use the monitor comfortably

• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor according to the environmental conditions.
• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

CONTENTS

Cover 1

Notice for this monitor 3:

CONTENTS 5

Chapter 1 Features and Overview ...... 6

1-1 Features 6

1-2 Buttons and Indicators 7

1-3 Functions and Basic Operation 8

Chapter 2 Settings and Adjustments ...... 10

2-1 Set a Sync-on-Green Signal 10

2-2 Setting Screen Resolution 10

Compatible Resolutions/Frequencies 10

Setting Resolution ......11

2-3 Utility Disk 12

- Disk contents and software overview .... 12

• To use ScreenManager Pro for LCD/EIZO ScreenSlicer 12

2-4 Screen Adjustment 13

Digital Input 13

Analog Input 13

2-5 Color Adjustment 16

- To select the display mode (FineContrast mode) 16

• To perform advanced adjustments ..... 16

- Adjustment items in each mode 16

• To set/adjust color 17

2-6 Turning off the monitor automatically [Off Timer] 18

2-7 Setting Adjustment Menu Position [Menu Position] 18

2-8 Setting Power Indicator ON/OFF [Power Indicator] 18

2-9 Displaying Monitor Information [Information] 18

2-10 Setting Language [Language] 19

2-11 Setting On/Off for the automatic brightness adjustment function [Auto EcoView] 19

2-12 Displaying the level of power saving by EcoView Index 19

2-13 Locking Buttons 19

- To lock adjustments/settings in the Adjustment menu 19

2-14 Enabling/Disabling DDC/CI communication 20

2-15 Setting EIZO logo display ON/OFF 20

2-16 Resuming the Default Setting [Reset] 20

• To reset color adjustment values ..... 20

- To reset all adjustments to the factory default settings 20

Chapter 3 Connecting Cables 21

3-1 Connecting Multiple PCs to the Monitor ..... 21

• To switch the input signal 21

• To set input signal selection [Input Signal] ..... 21

Chapter 4 Troubleshooting 22

Chapter 5 Reference 24

5-1 How to Attach the Optional Arm 24

5-2 Power Saving Mode 25

5-3 Specifications 26

5-4 Glossary 34

5-5 Preset Timing 36

FCC Declaration of Conformity 37

Chapter 1 Features and Overview

Thank you very much for choosing an EIZO color LCD monitor.

1-1 Features

• Applicable to the resolution of 1280 × 1024
- Stereo speakers
• Power saving function
Suppressing the power consumption* reduces the carbon dioxide emissions. This product is equipped with various power saving functions.

- Auto EcoView function

The sensor on the front side of the monitor detects the environmental brightness to adjust the screen brightness automatically and comfortably.

Excessively high brightness may lead a damage to the natural environment as well as to your eyes. Suppressing the excessively high brightness will be helpful to reduce the power consumption and the damage to your eyes.

“2-11 Setting On/Off for the automatic brightness adjustment function [Auto EcoView]” (page 19)

- EcoView Index function

This indicator shows the power saving ratio, power reduction and CO2 reduction as a result of the brightness of the monitor. You can realize the power consumption reduction by taking consideration in the ratio of power saving.

"2-12 Displaying the level of power saving by EcoView Index" (page 19)

• FineContrast function to allow the best mode for screen display

• Features Paper mode showing a view when printed onto paper “• To select the display mode (FineContrast mode)” (page 16)

• Portrait/Landscape display available (For height adjustable stand and EZ-UP stand only)

• The software “ScreenManager Pro for LCD (DDC/CI)” to adjust the screen using the mouse and keyboard is included
  "2-3 Utility Disk" (page 12)

\* Reference values:

S1701-X Maximum power consumption : 35W

(Luminance Max., at default settings)

Standard power consumption: 19W (100VAC, Luminance 120cd/m², at default settings)

Standard power consumption: 18W (200VAC, Luminance 120cd/m², at default settings)

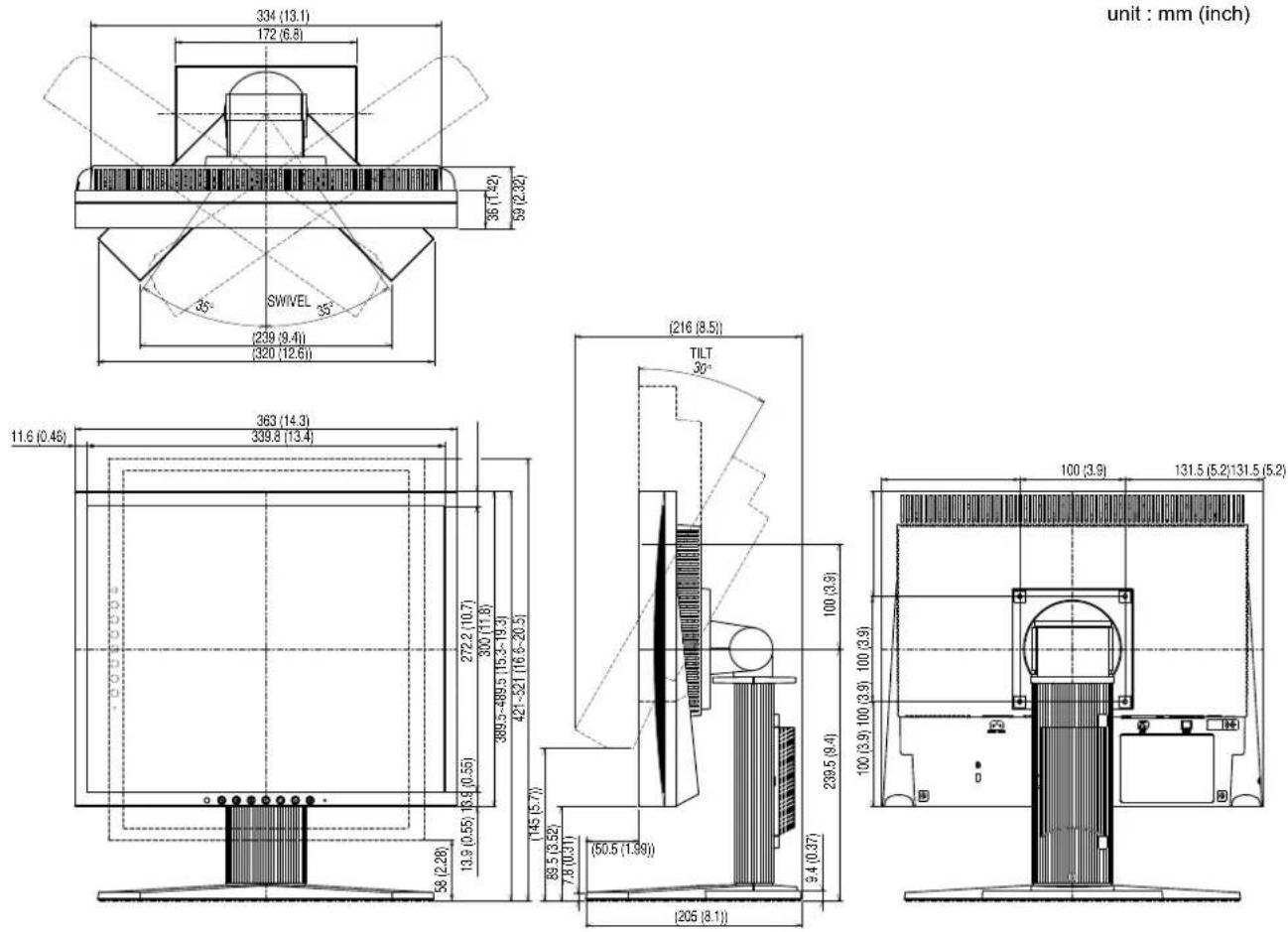

-S1721-X

Maximum power consumption : 35W

(Luminance Max., at default settings)

Standard power consumption: 19W (100VAC, Luminance 120cd/m², at default settings)

Standard power consumption: 19W (200VAC, Luminance 120cd/m², at default settings)

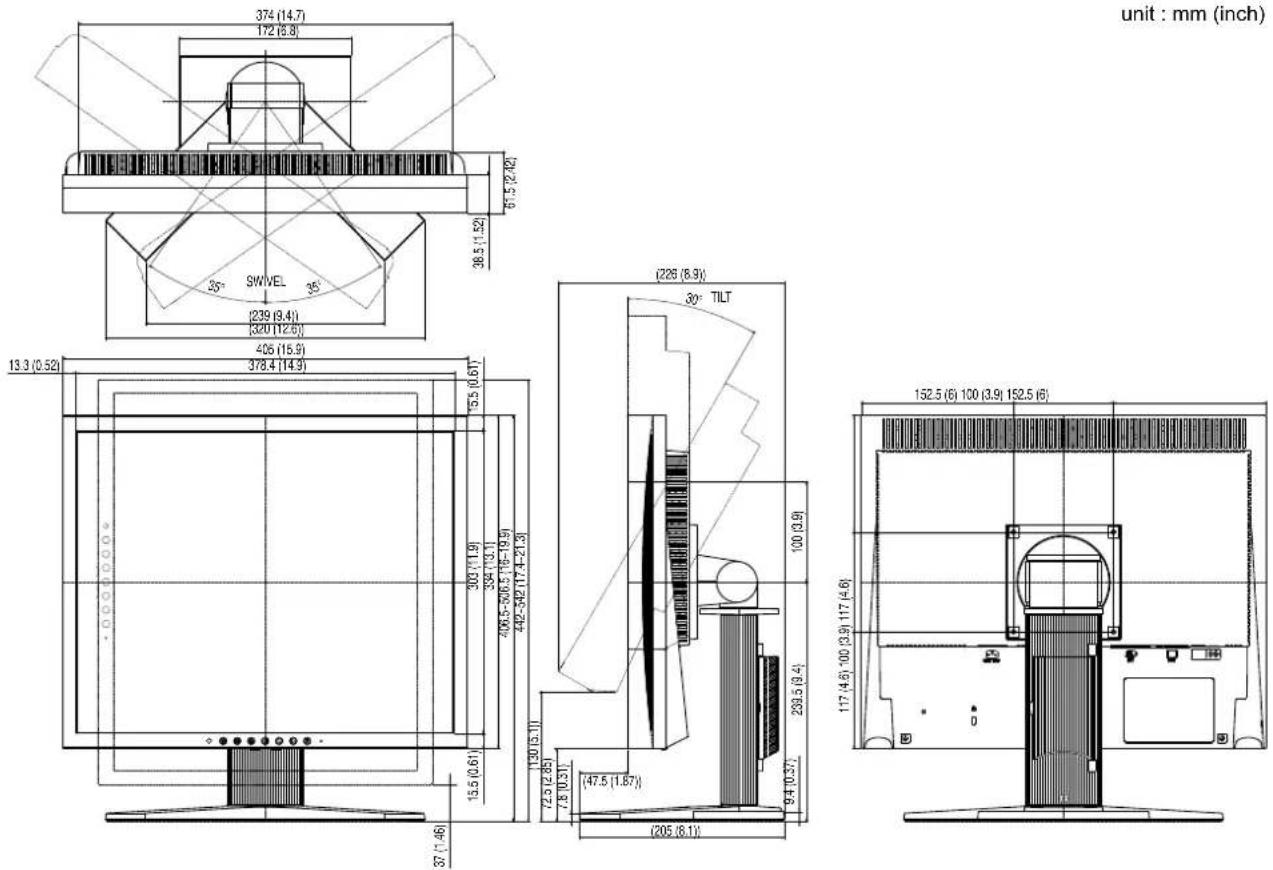

-S1921-X

Maximum power consumption : 37W

(Luminance Max., at default settings)

Standard power consumption: 22W (100VAC, Luminance 120cd/m², at default settings)

Standard power consumption: 22W (200VAC, Luminance 120cd/m², at default settings)

NOTE

• For using the monitor with “Portrait” position, the graphics board supporting portrait display is required. When placing the monitor in a “Portrait” position, settings of your graphics board need to be changed. Refer to the manual of the graphics board for details. http://www.eizo.com

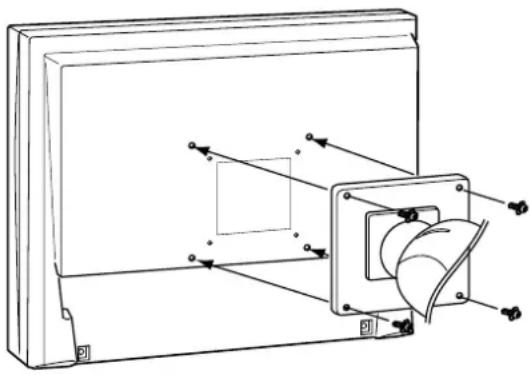

- An optional arm (or an optional stand) can be attached by removing the stand section. (Refer to “5-1 How to Attach the Optional Arm” (page 24))

1-2 Buttons and Indicators

Ex. Height adjustable Stand

Adjustment menu (*ScreenManager®)

1	Sensor	The sensor detects ambient brightness. Auto EcoView function (page 19)
2	EcoView button	Displays the setting menu of Auto EcoView and EcoView Index (page 19).
3	Volume control button Displays	the volume adjustment menu (page 8).

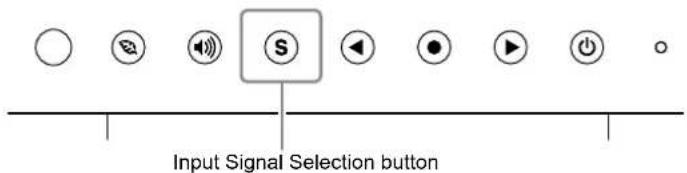

4	Input Signal Selection button	Switches input signals for display.
5	Control buttons (Left, Right)	• Displays the brightness adjustment window (page 8). • Chooses an adjustment item or increases/decreases adjusted values for advanced adjustments using the Adjustment menu (page 9).
6	Enter button Displays the Adjustment menu, determines an item on the menu screen, and saves values adjusted.
7	Power button Turns the power on or off.
8	Power indicator Indicates monitor's operation status. Blue: Operating Orange: Power saving Off: Power off
9	Security lock slot Complies with Kensington's MicroSaver security system.
10	Stand	Used to adjust the angle of the monitor screen.
11	Power connector	Connects the power cord.
12	Input signal connectors	Left: DVI-D connector/Right: D-Sub mini 15-pin connector.
13	Stereo mini jack	Connects the stereo mini jack cable.
14	Cable holder	Covers the monitor cables.
15	Speaker	Outputs audio source.
16	Headphone jack	Connects the headphones.

* ScreenManager ^® is an EIZO's nickname of the Adjustment menu. See page 9 for how to use.

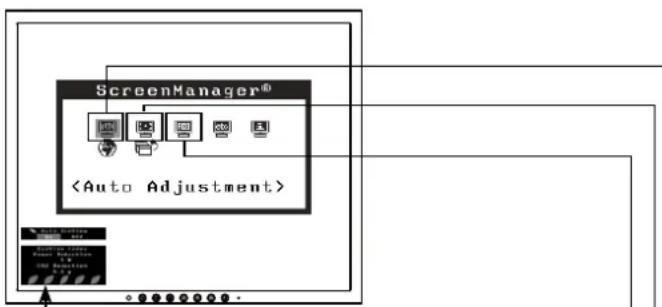

1-3 Functions and Basic Operation

To adjust the screen and color

Main menu (Refer to page 9 for operation)

- The Adjustment menu and the EcoView menu cannot be displayed at the same time.

EcoView menu

- Setting On/Off for the automatic brightness adjustment function [Auto EcoView] ...... see

1 Press
2 Change "On" and "Off" with
- Displaying the level of power saving by EcoView Index ...... see page 19

Press to display the level of power saving mode.

(for analog signal input only)
1 Screen Adjustment (Automatic Adjustment)

page 13

• To adjust flickering and position [Screen] ...... see page 13
• To adjust color gradation automatically [Range] ...... see page 15

2 Screen Adjustment (Advanced Adjustment)

[Adjustment menu]
[At analog signal input] [At digital signal input]

page 14

• To eliminate vertical bars [Clock*] ... see page 14
• To remove flickering or blurring [Phase*] ...... see page 14
• To correct screen position [Hor. Position*] ...... see page 15 [Ver. Position*] ...... see page 15
• To modify blurred characters/lines [Smoothing] ....see page 15
  * Items marked with * can be adjusted with analog input.

Brightness Adjustment

Press ◀ or ▶ to adjust brightness.

Volume Adjustment

1

Press

2

Press

to adjust volume.

Color Adjustment

page 16

• To select the display mode (FineContrast mode) .... see page 16

- "Brightness," "Contrast," "Temperature," and "Gain" can be set for each mode (Custom/ EyeCare/Paper/Text/sRGB). Settable functions vary with the display mode.

Resumption of Default Setting

- To reset color adjustment values [Reset] ...... see page 20

To make useful settings/adjustments

Adjustment menu (Refer to below for operation)

    G["Information"] --> H["Displaying monitor information [Information"]]
    I["Language"] --> J["Setting Language [Language"]]

    K["Setting Input Signal"] --> L["To set input signal selection [Input Signal"] ...... see page 21]
    K --> M["Off Timer Setting<br>Turning off the monitor automatically [Off Timer"] ...... see page 18]
    K --> N["Setting Adjustment Menu Position"]
    K --> O["Power Indicator Setting<br>Setting Power Indicator ON/OFF [Power Indicator"] ...... see page 18]
    K --> P["Resumption of Default Setting"]

    Q["Language"] --> R["Set a Sync-on-Green Signal [SoG"] ...... see page 10]
    Q --> S["Locking Buttons [Adjustment Lock"] ...... see page 19]
    Q --> T["Enabling/Disabling DDC/CI communication [DDC/CI"] ...... see page 20]
    Q --> U["Setting EIZO logo display ON/OFF ...... see page 20"]

Basic operation of Adjustment menu

[Displaying Adjustment menu and selecting function]

(1) Press●. The main menu appears.
(2) Select a function with ◀ or ▶ and press . The sub menu appears.
(3) Select a function with ◀ or , and press . The ● adjustment/setting menu appears.
(4) Adjust the selected item with ◀ or , and press . The ●etting is saved.

[Exiting Adjustment menu]

(1) Choose from the sub menu and press
(2) Choose from the main menu and press

NOTE

- The Adjustment menu can also be exited by pressing ☐ twice quickly.

Chapter 2 Settings and Adjustments

2-1 Set a Sync-on-Green Signal

When inputting a sync-on-green signal, the [SoG] setting for the monitor must be changed in advance according to the procedure below (for analog signal).

(1) Press ⏻ to turn off the monitor.
(2) Press ⏻ holding 📋 down to turn on the monitor.
(3) Select with ◀ or , and press .

2-2 Setting Screen Resolution

Compatible Resolutions/Frequencies

The monitor supports the following resolutions.

Analog Input

Resolution Frequency		Dot Clock
640 × 480 (VGA, VESA)	~75 Hz	135 MHz (Max.)
720 × 400 (VGA TEXT)	70 Hz
800 × 600 (VESA)	~75 Hz
1024 × 768 (VESA)	~75 Hz
1152 × 864 (VESA)	75 Hz
1280 × 960 (VESA)	60 Hz
* 1280 × 1024 (VESA)	~75 Hz

Digital Input

Resolution Frequency		Dot Clock
640 × 480 (VGA)	60 Hz	108 MHz (Max.)
720 × 400 (VGA TEXT)	70 Hz
800 × 600 (VESA)	60 Hz
1024 × 768 (VESA)	60 Hz
* 1280 × 1024 (VESA)	60 Hz

A graphics board in conformance with VESA standard is required.

* Recommended resolution (Set this resolution)

Setting Resolution

When you connect the monitor to the PC and find that the resolution is improper, or when you want to change the resolution, follow the procedure below.

- Windows 7

1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click "Screen resolution".
3. On the "Screen Resolution" dialog, select the monitor.
4. Click "Resolution" to select the desired resolution.
5. Click the [OK] button.
6. When a confirmation dialog is displayed, click [Keep changes].

- Windows Vista

1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click "Personalize".
3. On the "Personalization" window, click "Display Settings".
4. On the “Display Settings” dialog, select the “Monitor” tab and select desired resolution in the “Resolution” field.
5. Click the [OK] button.
6. When a confirmation dialog is displayed, click [Yes].

- Windows XP

1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click "Properties".
3. When the “Display Properties” dialog is displayed, click the “Settings” tab and select desired resolution for “Screen resolution” under “Display”.
4. Click the [OK] button to close the dialog.

Mac OS X

1. Select "System Preferences" from the Apple menu.
2. When the "System Preferences" dialog is displayed, click "Displays" for "Hardware".
3. On the displayed dialog, select the "Display" tab and select desired resolution in the "Resolutions" field.
4. Your selection will be reflected immediately. When you are satisfied with the selected resolution, close the window.

2-3 Utility Disk

An “EIZO LCD Utility Disk” (CD-ROM) is supplied with the monitor. The following table shows the disk contents and the overview of the application software programs.

- Disk contents and software overview

The disk includes software programs for adjustment, and User's Manual. Refer to "Readme.txt" file on the disk for software startup procedures or file access procedures.

Item Overview OS
A “Readme.txt” file
Screen adjustment pattern files Used	when adjusting the image of the analog signal input manually.
ScreenManager Pro for LCD (DDC/CI)	A software for adjusting the screen using the mouse and keyboard.	Windows XP/Vista/7
EIZO ScreenSlicer A software that divides a screen and lays out multiple windows efficiently.		Windows XP/Vista/7
User’s Manual of this monitor (PDF file)

• To use ScreenManager Pro for LCD/EIZO ScreenSlicer

For the installation and use of ScreenManager Pro for LCD/EIZO ScreenSlicer, refer to the respective User's Manual on the disc.

2-4 Screen Adjustment

Digital Input

When digital signals are input, images are displayed correctly based on the preset data of the monitor, but if characters and/or lines appear blurred, go to step 6 “• To modify blurred characters/lines [Smoothing]” (page 15). When performing more advanced adjustment, see “2-5 Color Adjustment” (page 16) and subsequent pages.

Analog Input

The monitor screen adjustment is used to suppress flickering of the screen or adjust screen position and screen size correctly according to the PC to be used. To use the monitor comfortably, adjust the screen when the monitor is set up for the first time or when the settings of the PC in use are updated.

The Self Adjust function works when all of the following conditions are satisfied.

• When a signal is input into the monitor for the first time or when the resolution or Vertical/Horizontal Frequency not displayed before is set
• When signals with the vertical resolution over 480 arc input

If the screen is not displayed correctly even after performing the Self Adjust operation, adjust the screen according to the procedures on the following pages to use the monitor comfortably.

[Adjustment Procedure]

1 Perform the auto adjustment.

- To adjust flickering, screen position, and screen size automatically [Screen]

(1) Choose from the menu, and press

The menu appears.

(2) Select "Execute" with ◀ or ▶ and press . ●

Flickering, screen position, and screen size are corrected by the auto-adjustment function.

If the screen is not displayed correctly even after adjusting in step 1 above, perform the adjustments according to the procedures on the following pages. When the screen is displayed correctly, go to step 5 “• To adjust color gradation automatically [Range]” (page 15).

2 Prepare the display pattern for the analog display adjustment.

Load the “EIZO LCD Utility Disk” to your PC, and then open the “Screen adjustment pattern files”.

Attention

- Wait 30 minutes or more from monitor power on before starting adjustments. (Allow the monitor to warm up for at least 30 minutes before making adjustments.)

Attention

• This function works correctly when an image is fully displayed over the display area. It does not work properly when an image is displayed only on a part of the screen (DOS prompt window, for example) or when a black background (wallpaper, etc.) is in use.
• This function does not work correctly with some graphics boards.

NOTE

- For details and instructions on opening the “Screen adjustment pattern files”, refer to the “Readme.txt” file.

3

Perform the auto adjustment again with the analog screen adjustment pattern displayed.

- To adjust flickering, screen position, and screen size automatically [Screen]

(1) Display Pattern 1 of the "Screen adjustment pattern files" in full screen on the monitor.

(2) Choose from the menu, and press

The menu appears.

(3) Select "Execute" with ◀ or , and press .

Flickering, screen position, and screen size are corrected by the auto-adjustment function.

If the screen is not displayed correctly even after adjusting in step 3 above, perform the adjustments according to the procedures on the following pages. When the screen is displayed correctly, go to step 5 “• To adjust color gradation automatically [Range]” (page 15).

4

Perform advanced adjustments for the following using the menu of the Adjustment menu.

Adjust the clock, phase and position, in this order.

• To eliminate vertical bars [Clock]

(1) Choose from the menu, and press Ⓑ. The menu appears.
(2) Adjust the clock with or , and press . The adjustment is completed.

• To remove flickering or blurring [Phase]

Adjustable range: 0 to 63

(1) Choose from the menu, and press Ⓑ. The menu appears.
(2) Adjust the phase with or, and press. The adjustment is completed.

NOTE

• Press the control button slowly so as not to miss the adjustment point.
• When blurring, flickering or bars appear on the screen after adjustment, proceed to “• To remove flickering or blurring [Phase]” (page 14) to remove flickering or blurring.

Attention

- Flickering or blurring may not be eliminated depending on your PC or graphics board.

NOTE

- When vertical bars appear on the screen after adjustment, go back to “• To eliminate vertical bars [Clock]” (page 14). (Clock → Phase → Position)

• To correct screen position [Hor. Position], [Ver. Position]

(1) Choose and or from the menu, and press Ⓞ.

The or menu appears.

(2) Adjust the position with ☑ to display the image properly in the display area of the monitor.

The adjustment is completed.

5

Adjust the color gradation.

• To adjust color gradation automatically [Range]

Every color gradation (0 to 255) can be displayed by adjusting the signal output level.

(1) Display Pattern 2 in full screen on the monitor using the "Screen adjustment pattern files".

(2) Choose from the menu, and press Ⓞ.

(3) Select "Execute" with ◀ or ▶ and press . ● The output range is adjusted automatically.

(4) Close the Pattern 2.

6

Modify blurred characters or lines.

• To modify blurred characters/lines [Smoothing]

When a image is displayed with a resolution other than the recommendation, the characters or lines of the displayed image may be blurred.

Adjustable range: 1 to 5

(1) Choose from the menu, and press The menu appears.

(2) Adjust the characters/lines with ◀ or , and press . The adjustment is completed.

NOTE

- Since the number of pixels and the pixel positions are fixed on the LCD monitor, only one position is provided to display images correctly. The position adjustment is made to shift an image to the correct position.

2-5 Color Adjustment

• To select the display mode (FineContrast mode)

This function allows you to select the best display mode for monitor brightness, etc.

FineContrast mode

Mode Purpose
Custom Available for making desired setting.
EyeCare	Allows the brightness to be set lower than possible with other modes.
Paper	Reduce the contrast and color temperature to view the result when printed on paper.
Text	Suitable for displaying texts for word processing or spreadsheets.
sRGB	Suitable for color matching with sRGB compatible peripherals.

(1) Choose from the Adjustment menu, and press
(2) Choose from the menu, and press The menu appears.
(3) Select the mode with ◀ or , and press . The setting completes.

• To perform advanced adjustments

Independent setting and saving of color adjustment are available for each FineContrast mode.

- Adjustment items in each mode

According to the FineContrast mode selected, the adjustable function differs. √: Adjustment available -: Invalid for adjustment

Icon Function		FineContrast mode
		Custom EyeCare		Paper Text sRGB
	Brightness	√	√	√√√
	Contrast	√	-	-√-
	Temperature	√	√	-√-
	Gain	√	√	-- -
	Reset	√	√	√√√

NOTE

• “ScreenManager Pro for LCD” allows you to select the FineContrast mode automatically according to the application used.
  (Refer to "Chapter 3 Auto FineContrast" on the User's Manual for "ScreenManager Pro for LCD".)

Attention

• Wait 30 minutes or more from monitor power on before starting adjustments.
• Perform the range adjustment first when adjusting color for analog input signals.
  (Refer to “• To adjust color gradation automatically [Range]” (page 15).)
• The same image may be seen in different colors on multiple monitors due to their monitor-specific characteristics. Make fine color adjustment visually when matching colors on multiple monitors.

Menu Description Adjustment range
Brightness[17W6]	To adjust the full screen brightness as desired	0 to 100%
	NOTEYou can also adjust the brightness by pressingbutton while the adjustment menu is not displayed. Pressafter adjustment.
Contrast	To adjust the contrast of the image	0 to 100%
	NOTEIn the contrast of 50%, every color gradation is displayed.When adjusting the monitor, it is recommended to perform the brightness adjustment which may not lose the gradation characteristics, prior to the contrast adjustment. Perform the contrast adjustment in the following cases.- When you feel the image is dark even if the brightness is set to 100%. (Set the contrast to higher than 50%).- When you feel the image is bright even if the brightness is set to 0%. (Set the contrast to lower than 50%).
Temperature[K44A]	To select a color temperature	Off, 5000K, 6500K, 9300K
	NOTESetting the value to “Off” presents the natural color of the panel.The values shown in the Kelvin (K) are available only as reference.
Gain[02T4]	To adjust red, green, and blue to a desired color tone respectively	0 to 100%Adjust the respective brightness of red/green/blue to make a desired color tone. Display an image with white or gray background for adjustment.
	AttentionThis function does not enable to display every color gradation.NOTEValues shown in percentage are available only as reference.When using thesetting, thesetting is set to “Off”.The gain value may change depending on the value of the color temperature.
Reset	To reset the color settings of the selected FineContrast mode to the default settings

- To set/adjust color

(1) Choose from the Adjustment menu, and press ●.
(2) Select a desired function from the menu, and press ●

The selected function menu appears.

(3) Adjust the selected item with ◀ or , and press .

The adjustment is completed.

NOTE

- Using the “ScreenManager Pro for LCD” allows you to perform the color adjustment by using the mouse and keyboard of your PC. The adjusted status can be registered as a color data and restore the data later. (Refer to “Chapter 4 Color Adjustment” on the User’s Manual for “ScreenManager Pro for LCD”).

2-6 Turning off the monitor automatically [Off Timer]

This function allows you to switch the setting to turn off the monitor automatically after a specified time has passed at the power saving mode.

Adjustable range: Disable, Enable (0, 1, 2, 3, 5, 10, 15, 20, 25, 30, 45 min, 1-5h)

(1) Choose from the Adjustment menu, and press Ⓞ.
(2) Choose from the menu, and press The menu appears.

(3) Select "Enable" or "Disable" with ◀ or . ◄ When selecting "Enable", set a monitor Off time with or ◀

(4) Press The setting is completed.

2-7 Setting Adjustment Menu Position [Menu Position]

Adjust the menu position using the following procedure.

(1) Choose from the Adjustment menu, and press ●.
(2) Choose

from the menu, and press The menu appears.
(3) Select a menu position with ◀ or , and press . The setting is completed.

2-8 Setting Power Indicator ON/OFF [Power Indicator]

This function allows you to set the power indicator (blue) ON/OFF in the monitor ON condition.

(1) Choose from the Adjustment menu, and press ●.
(2) Choose from the menu, and press The menu appears.
(3) Select "Enable" or "Disable" with ☑ or , and press . The setting is completed.

2-9 Displaying Monitor Information [Information]

This function allows you to display the input signal status, current resolution and model name.

Information 1/3 : Input signal status, resolution and H/V frequency Information 2/3 : Enable/Disable setting for DDC/CI, On/Off setting for SoG (Sync-on-Green)

Information 3/3 : Model name, serial number and usage time

(1) Choose from the Adjustment menu, and press ●. The menu appears.
(2) Then, press Ⓞ to check settings, etc.

NOTE

- The usage time is not always "0" when you purchase the monitor due to factory inspection.

2-10 Setting Language [Language]

This function allows you to select a language for the adjustment menu or displaying message.

Selectable languages

English/German/French/Spanish/Italian/Swedish/Simplified Chinese/Traditional Chinese/Japanese

(1) Choose menu from the Adjustment menu, and press ●. The menu appears.

(2) Choose a language with ◀ or , and press . The setting is completed.

2-11 Setting On/Off for the automatic brightness adjustment function [Auto EcoView]

The sensor on the front side of the monitor detects the environmental brightness to adjust the screen brightness automatically and comfortably by using the Auto EcoView function.

(1) Press

The menu appears.

(2) Select "On" or "Off" with ⏻, and press . The setting is completed.

2-12 Displaying the level of power saving by EcoView Index

This indicator shows the power saving ratio, power reduction and CO2 reduction as a result of the brightness of the monitor.

(1) Press

The EcoView Index menu appears.

The power saving ratio comes to high as the indicator level meter lights towards right.

2-13 Locking Buttons

This function allows you to lock to prevent changing the adjusted/set status.

- To lock adjustments/settings in the Adjustment menu

(1) Press ☐ to turn off the monitor.

(2) Press holding down to turn on the monitor.

The Lock/Unlock setting is toggled by performing the operation in step 2.

NOTE

- Be careful not to block the sensor on the lower side of the monitor when using the Auto EcoView function.

NOTE

Power reduction: the backlight's reduction of electricity consumption as a result of the adjusted brightness value CO2 reduction: converted from the "Power reduction" value, this is an estimate of the quantity of CO2 emissions reduced when using the monitor for 1 hour.

* The numeric value is a result of a calculation based on a default value (0.000555 t -CO2/kWh) determined by a ministerial ordinance (2006, Ministry of Economy, Trade and Industry, Ministry of Environment, civil code article 3) and may differ depending on country and year.

2-14 Enabling/Disabling DDC/CI communication

This function allows you to enable/disable the DDC/CI communication.

(1) Press ⏻ to turn off the monitor.
(2) Press holding down to turn on the monitor.

The Enable/Disable setting is toggled by performing the operation in step 2.

2-15 Setting EIZO logo display ON/OFF

The EIZO logo appears on the display when turning on the monitor. This function allows you to display, or not, the EIZO logo.

(1) Press ⏻ to turn off the monitor.
(2) Press ⏻ holding ⏻ down to turn on the monitor.

The EIZO logo display setting is toggled by performing the operation in step 2.

2-16 Resuming the Default Setting [Reset]

There are two types of Reset. One is to reset the color adjustment only to the default settings, and the other is to reset all the settings to the default settings.

• To reset color adjustment values

Only the adjustment values in the current FineContrast mode will revert to the default settings (factory settings).

(1) Choose from the Adjustment menu, and press Ⓞ.
(2) Choose from the menu and press
(3) Select with ◀ or , and press .

The color adjustment values revert to the default settings.

- To reset all adjustments to the factory default settings

Reset all adjustments to the factory default settings.

(1) Choose from the Adjustment menu, and press ●.
(2) Choose from the menu, and press
(3) Select with ◀ or , and press .

All setting values revert to the default settings.

NOTE

- You can check the DDC/CI setting in the menu.

Attention

• After resetting, you cannot undo the operation.

NOTE

- For default settings, refer to “Main default settings (factory settings)” (page 29).

Chapter 3 Connecting Cables

3-1 Connecting Multiple PCs to the Monitor

Multiple PCs can be connected to the DVI-D, D-Sub mini 15 pin connector on the back of the monitor to switch the display.

Connection examples

• To switch the input signal

Switch the input signal with SInput signal switches each time is pressed. When the signal is switched, the active signal type (Analog or Digital) appears at the top right corner of the screen for three seconds.

• To set input signal selection [Input Signal]

Setting Function

Auto When a PC is turned off or enters the powersaving mode, the monitor automatically displays another signal.

Manual The monitor detects only the PC’s signals currently displaying automatically. Select an active input signal with S.

[Procedure]

(1) Choose from the Adjustment menu, and press ●.
(2) Choose from the menu, and press ⚙ The menu appears.
(3) Select "Auto" or "Manual" with ◀ or , and press . The setting is completed.

NOTE

- When "Auto" is selected for , the monitor's power-saving function works only when the two PCs are in the power-saving mode.

Chapter 4 Troubleshooting

If a problem still remains after applying the suggested remedies, contact your local dealer.

• No-picture problems See No.1 - No.2.
• Imaging problems (digital input) See No.6 - No.11.
• Imaging problems (analog input) See No.3 - No.11.
• Other problems See No.12 - No.14.

Problems Possible cause and remedy
1. No picture• Power indicator does not light.	• Check whether the power cord is connected correctly. If the problem persists, turn off the monitor, and then turn it on again a few minutes later.• Press Ⓑ
• Power indicator is lighting blue. • Set each adjusting value in, and to higher level. (page 17)	• Power indicator is lighting orange. • Switch the input signal with S.• Operate the mouse or keyboard.• Turn on the PC.
2. The message below appears. This message appears when the signal is not input correctly even when the monitor functions properly.
• This message appears when no signal is input. Example:	• The message shown left may appear, because some PCs do not output the signal soon after power-on.• Check whether the PC is turned on.• Check whether the signal cable is connected properly.• Switch the input signal with S.• When inputting a sync-on-green signal, the [SoG] setting for the monitor must be changed in advance (for analog signal). (page 10)
• The message below shows that the input signal is out of the specified frequency range. (Such signal frequency is displayed in red.) Example:	• Check whether the signal setting of your PC matches the resolution and the vertical frequency settings for the monitor. (page 10)• Reboot the PC.• Select an appropriate display mode using the graphics board's utility software. Refer to the manual of the graphics board for details.fD : Dot Clock (Displayed only when the digital signal inputs)fH : Horizontal FrequencyfV : Vertical Frequency
3. Display position is incorrect.	• Adjust image position so that it is displayed properly within the display area using theandadjustment.• If the problem persists, use the graphics board's utility software if available to change the display position.
4. Vertical bars appear on the screen or a part of the image is flickering.	• Adjust using (page 14)
5. Whole screen is flickering or blurring.	• Adjust using (page 14)
6. Characters are blurred.• Check whether the signal setting of your PC matches the resolution and the vertical frequency settings for the monitor. (page 10)• Adjust using. (page 15)
7. The screen is too bright or too dark.	• Adjust usingor.(The LCD monitor backlight has a fixed life span. When the screen becomes dark or begins to flicker, contact your local dealer.)• Turn on the Auto EcoView function. (page 19) The monitor detects the environmental brightness to adjust the screen brightness automatically.
8. Afterimages appear.• Afterimages are particular to LCD monitors. Avoid displaying the same image for a long time.• Use the screen saver or power save function to avoid displaying the same image for extended periods of time.
9. Green/red/blue/white dots or defective dots remain on the screen.	• This is due to LCD panel characteristics and is not a failure.
10. Interference patterns or pressure marks remain on the screen.	• Leave the monitor with a white or black screen. The symptom may disappear.
11. The display image is appeared in lengthwise.	• Check whether the kind of cables connected with the monitor and the PC. (Re-connect the monitor and cables correctly by referring to the Setup Guide.)
12. The adjustment menu does not appear.	• Check whether the operation lock function works. (page 19)
13. The auto-adjustment function does not work correctly.	• This function does not work when digital signal is input.• This function works correctly when an image is fully displayed over the display area.It does not work properly when an image is displayed only on a part of the screen (DOS prompt window, for example) or when a black background (wallpaper, etc.) is in use.This function does not work correctly with some graphics boards.
14. No audio output• Check whether the mini jack cable is correctly.• Check whether volume is set to “0”.• Check the settings of the PC and the audio playback software.

Chapter 5 Reference

5-1 How to Attach the Optional Arm

An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the corresponding optional arm (or optional stand).

http://www.cizo.com

[Attaching]

1 Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.
2 Remove the stand. (Prepare a screwdriver.)

Unscrew the four screws securing the unit and the stand with the screwdriver.

3 Attach the monitor to the arm or stand.

Secure the monitor to the arm or stand using the screws specified in the user's manual of the arm or stand.

Technical line drawing of a mechanical assembly with no visible text or symbols

Attention

• When attaching an arm or stand, follow the instructions of their user's manual.

• When using another manufacturer's arm or stand, confirm the following in advance and select one conforming to the VESA standard. Use M4 × 12 mm screws supplied with the monitor.

• Clearance between the screw holes: 100 mm × 100 mm
  – Thickness of plate: 2.6 mm

• Strong enough to support weight of the monitor unit (except the stand) and attachments such as cables.

- When using an arm or stand, attach it to meet the following tilt angles of the monitor.

• Up 60 degrees, down 45 degrees (horizontal display)

• Up 45 degrees, down 45 degrees (vertical display, 90 degrees clockwise)

• Connect the cables after attaching an arm or a stand.

• If you need to remove the EZ-UP stand, turn the panel on the monitor to the left and right a little to appear the four screws positioned under the stand. Then unscrew the four screws.

5-2 Power Saving Mode

Analog input

This monitor complices with the VESA DPMS standard.

[Power Saving System]

PC Monitor			Power Indicator
Operating Operating Blue
Power saving STA	ND-BY SUSPENDED OFF	Power saving Orange

Digital input

This monitor complies with the DVI DMPM standard.

[Power Saving System]

The monitor enters the power saving mode in five seconds in connection with the PC setting.

PC Monitor	Power Indicator
Operating Operating Blue
Power saving Power saving Orange

Attention

• Unplugging the power cord completely shuts off power supply to the monitor.
• Power consumption varies even when the stereo mini jack cable is connected.

5-3 Specifications

S1701-X

LCD Panel 17-inch (43 cm) TFT color LCD with hard coating Viewing angle: Horizontal 160°, Vertical 160° (CR: 10 or more)
Dot Pitch 0.264 mm
Horizontal Scan Frequency Analog: 31 -		80 kHzDigital: 31 - 64 kHz
Vertical Scan Frequency Analog: 50 - 75 Hz (Non-interlace)Digital: 59 - 61 Hz, (VGA Text: 69 - 71 Hz) (Non-interlace)
Resolution 1280 dots × 1024 lines
Max. Dot Clock Analog: 135 MHz		Digital: 108 MHz
Max. Display Colors Approx. 16.77 million colors (1064.33 million colors/10bit LUT)
Display Area (H × V) 337.9 mm × 270.3 mm
Power Supply 100 - 120 VAC ±10% 50/60 Hz, 0.65 A200 - 240 VAC ±10% 50/60 Hz, 0.4 A
Power Consumption	Screen Display On 38W or less (Speaker working)35W or less (Speaker not working)
	Power saving mode 0.6W or less (0.5W typ.) (for single signal input, when stereo mini jack cable is not connected, [Input Signal] : "Auto", [SoG] : "Off")
	Power button Off 0.5W or less
Input Signal Connectors DVI-D connector, D-sub mini 15-pin connector
Analog Input Signal (Sync)		Separate, TTL, Positive/NegativeSync on Green, 0.3Vp-p, Negative
Analog Input Signal (Video)		Analog, Positive (0.7Vp-p/75Ω)
Digital Signal Transmission System TMDS (Single Link)
Video Signal Memory		Analog Signal: 26
Audio output		Speaker output: 0.5 W + 0.5 W (8 Ω, THD+N: 10% or less)Headphone output: 2mW + 2mW (32 Ω, THD+N: 3% or less)
Line input		Input impedance 47 kΩ (typ.)Input level: 1.0 Vrms (Max.)
Plug & Play		VESA DDC 2B/EDID structure 1.3

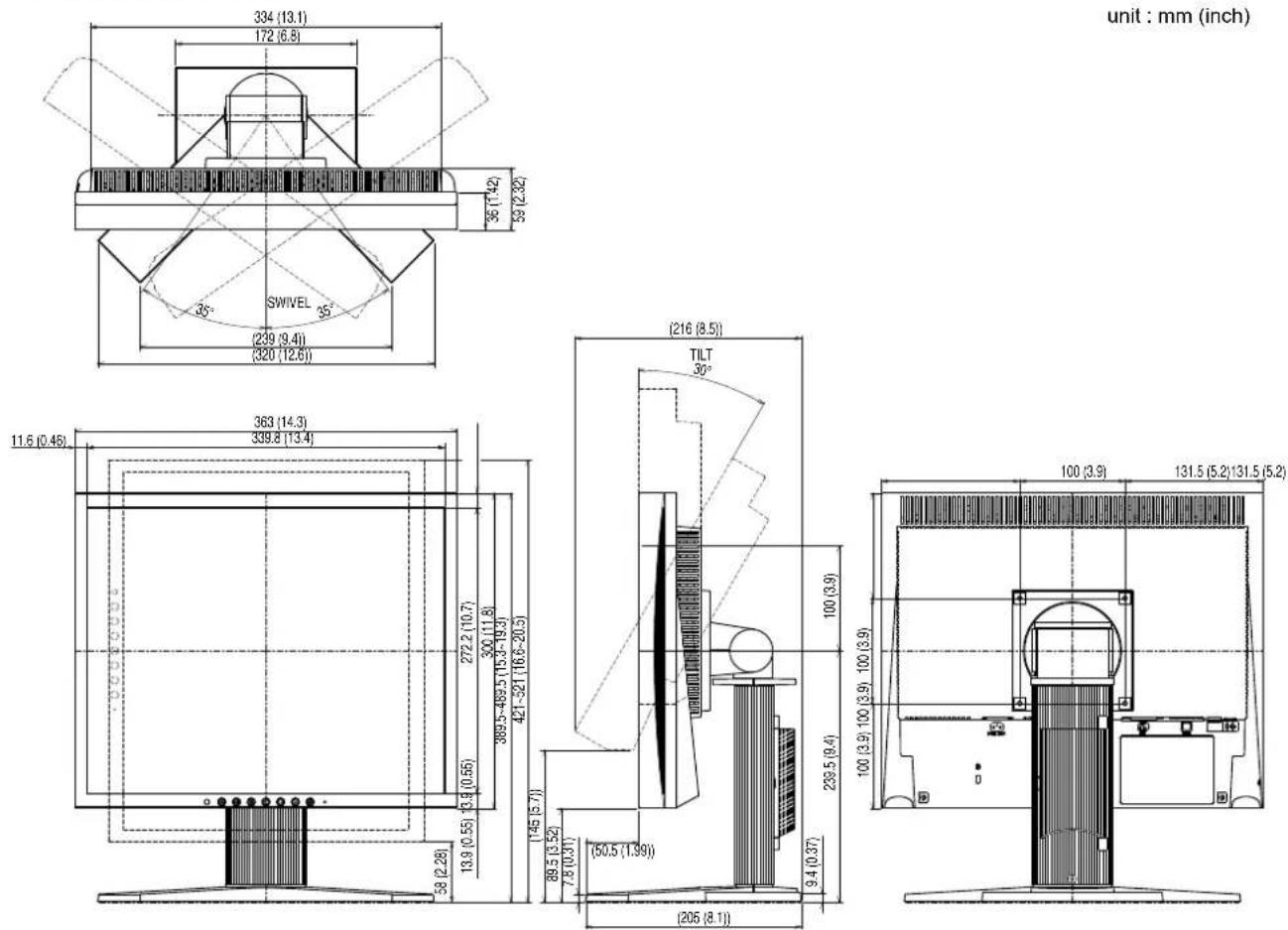

Dimensions (Width) × (Height) × (Depth)	Main unit (including Tilt Stand)	363 mm (14.3 inch) × 382 mm (15 inch) × 188 mm (7.4 inch)
	Main unit (including Height adjustable Stand)	363 mm (14.3 inch) × 389.5 - 489.5 mm (15.3 - 19.3 inch) × 205 mm (8.1 inch)
	Main unit (without stand)	363mm (14.3 inch) × 300 mm (11.8 inch) × 59 mm (2.32 inch)
Mass	Main unit (including Tilt Stand)	Approx. 4.7 kg (10.4 lbs)
	Main unit (including Height adjustable Stand)	Approx. 5.9 kg (13 lbs)
	Main unit (without stand)	Approx. 3.9 kg (8.6 lbs)
Movable range	Tilt Stand Tilt: 30° Up, 5°	Down
	Height adjustable Stand	Tilt: 30° Up, 0° DownSwivel: 35° Right, 35° LeftAdjustable height: 100 mm (3.9 inch)Rotation: 90° (clockwise)
Environmental Conditions	Temperature Operating	temperature: 5 °C - 35 °C (41 °F - 95 °F)Storage temperature: -20 °C - 60 °C (-4 °F - 140 °F)
	Humidity Operating humidity	20% - 80% R.H. (no condensation)Storage humidity: 10% - 80% R.H. (no condensation)
	Pressure Operating: 700 to 1,060 hPaStorage: 200 to 1,060 hPa

S1721-X

LCD Panel 17-inch (43 cm) TFT color LCD with hard coatingViewing angle: Horizontal 178°, Vertical 178° (CR: 10 or more)
Dot Pitch 0.264 mm
Horizontal Scan Frequency Analog: 31 -		80 kHzDigital: 31 - 64 kHz
Vertical Scan Frequency Analog: 50 - 75		Hz (Non-interlace)Digital: 59 - 61 Hz, (VGA Text: 69 - 71 Hz) (Non-interlace)
Resolution 1280 dots × 1024 lines
Max. Dot Clock Analog: 135 MHz		Digital: 108 MHz
Max. Display Colors Approx. 16.77 million colors (1064.33 million colors/10bit LUT)
Display Area (H × V) 337.9 mm × 270.3		mm
Power Supply		100 - 120 VAC ±10% 50/60 Hz, 0.65 A200 - 240 VAC ±10% 50/60 Hz, 0.4 A
Power Consumption	Screen Display On	38W or less (Speaker working)35W or less (Speaker not working)
	Power saving mode	0.6W or less (0.5W typ.) (for single signal input, when stereo mini jack cable is not connected, [Input Signal] : “Auto”, [SoG] : “Off”)
	Power button Off	0.5W or less
Input Signal Connectors		DVI-D connector, D-sub mini 15-pin connector
Analog Input Signal (Sync)		Separate, TTL, Positive/NegativeSync on Green, 0.3Vp-p, Negative
Analog Input Signal (Video)		Analog, Positive (0.7Vp-p/75Ω)
Digital Signal Transmission System		TMDS (Single Link)
Video Signal Memory		Analog Signal: 26
Audio output		Speaker output: 0.5 W + 0.5 W (8 Ω, THD+N: 10% or less)Headphone output: 2mW + 2mW (32 Ω, THD+N: 3% or less)
Line input		Input impedance 47 kΩ (typ.)Input level: 1.0 Vrms (Max.)
Plug & Play		VESA DDC 2B/EDID structure 1.3
Dimensions (Width) × (Height) × (Depth)	Main unit (including Height adjustable Stand)	363 mm (14.3 inch) × 389.5 - 489.5 mm (15.3 - 19.3 inch) × 205 mm (8.1 inch)
	Main unit (without stand)	363mm (14.3 inch) × 300 mm (11.8 inch) × 59 mm (2.32 inch)
Mass	Main unit(including Heightadjustable Stand)	Approx. 5.9 kg (13 lbs)
	Main unit(without stand)	Approx. 3.9 kg (8.6 lbs)
Movable range	Height adjustableStand	Tilt: 30° Up, 0° DownSwivel: 35° Right, 35° LeftAdjustable height: 100 mm (3.9 inch)Rotation: 90° (clockwise)
Environmental Conditions	Temperature Operating	temperature: 5 °C - 35 °C (41 °F - 95 °F)Storage temperature: -20 °C - 60 °C (-4 °F - 140 °F)
	Humidity Operating humidity	humidity: 20% - 80% R.H. (no condensation)Storage humidity: 10% - 80% R.H. (no condensation)
	Pressure Operating: 70	to 1,060 hPaStorage: 200 to 1,060 hPa

S1921-X

LCD Panel 19-inch (48 cm) TFT color LCD with hard coatingViewing angle: Horizontal 178°, Vertical 178° (CR: 10 or more)
Dot Pitch 0.294 mm
Horizontal Scan Frequency Analog: 31 -		80 kHzDigital: 31 - 64 kHz
Vertical Scan Frequency Analog: 50 - 75		Hz (Non-interlace)Digital: 59 - 61 Hz, (VGA Text: 69 - 71 Hz) (Non-interlace)
Resolution 1280 dots × 1024 lines
Max. Dot Clock Analog: 135 MHz		Digital: 108 MHz
Max. Display Colors Approx. 16.77 million colors (1064.33 million colors/10bit LUT)
Display Area (H × V) 376.3 mm × 301.0 mm
Power Supply 100 - 120 VAC ±10% 50/60 Hz, 0.7 A200 - 240 VAC ±10% 50/60 Hz, 0.4 A
Power Consumption	Screen Display On	40W or less (Speaker working)37W or less (Speaker not working)
	Power saving mode	0.6W or less (0.5W typ.) (for single signal input, when stereo mini jack cable is not connected, [Input Signal] : “Auto”, [SoG] : “Off”)
	Power button Off	0.5W or less
Input Signal Connectors		DVI-D connector, D-sub mini 15-pin connector
Analog Input Signal (Sync)		Separate, TTL, Positive/NegativeSync on Green, 0.3Vp-p, Negative
Analog Input Signal (Video)		Analog, Positive (0.7Vp-p/75Ω)
Digital Signal Transmission System		TMDS (Single Link)
Video Signal Memory		Analog Signal: 26
Audio output		Speaker output: 0.5 W + 0.5 W (8 Ω, THD+N: 10% or less)Headphone output: 2mW + 2mW (32 Ω, THD+N: 3% or less)
Line input		Input impedance 47 kΩ (typ.)Input level: 1.0 Vrms (Max.)
Plug & Play		VESA DDC 2B/EDID structure 1.3
Dimensions (Width) × (Height) × (Depth)	Main unit (including Height adjustable Stand)	405 mm (15.9 inch) × 406.5 - 506.5 mm (16 - 19.9 inch) × 205 mm (8.1 inch)
	Main unit (including EZ-UP stand)	405 mm (15.9 inch) × 347.7 - 507 mm (13.7 - 20 inch) × 246.8 - 277.6 mm (9.7 - 10.9 inch)
	Main unit (without stand)	405 mm (15.9 inch) × 334 mm (13.1 inch) × 61.5 mm (2.42 inch)
Mass	Main unit (including Height adjustable Stand)	Approx. 7.2 kg (15.9 lbs)
	Main unit (including EZ-UP stand)	Approx. 8.8 kg (19.4 lbs)
	Main unit (without stand)	Approx. 5.2 kg (11.5 lbs)
Movable range	Height adjustable Stand	Tilt: 30° Up, 0° DownSwivel: 35° Right, 35° LeftAdjustable height: 100 mm (3.9 inch)Rotation: 90° (clockwise)
	EZ-UP stand Tilt: 25° Up	Up, 0° DownSwivel: 172° Right, 172° LeftAdjustable height: 154 mm (6.1 inch) (Tilt : 0°)Rotation: -10° - 92° (clockwise)
Environmental Conditions	Temperature Operating	temperature: 5 °C - 35 °C (41 °F - 95 °F)Storage temperature: -20 °C - 60 °C (-4 °F - 140 °F)
	Humidity Operating humidity	20% - 80% R.H. (no condensation)Storage humidity: 10% - 80% R.H. (no condensation)
	Pressure Operating: 70 to 1,060 hPaStorage: 200 to 1,060 hPa

Main default settings (factory settings)

Auto EcoView On
Smoothing 3
FineContrast Mode Custom
Input Signal Auto
Off Timer Disable
Language English

Outside Dimensions

S1701-X

• Height adjustable Stand

S1721-X

• Height adjustable Stand

unit : mm (inch)

S1921-X

• Height adjustable Stand

unit : mm (inch)

- EZ-UP stand
unit : mm (inch)

Connector Pin Assignment

- DVI-D connector

Pin No.	Signal	Pin No.	Signal	Pin No.	Signal
1 TMDS Data 2-9 TMDS Data1-17		TMDS Data 0-
2 TMDS Data 2+10 TMDS Data1+		18 TMDS Data 0+
3 TMDS Data2/4 Shield 11 TMDS Data1/3 Shield
4 NC* 12 NC* 20 NC*
5 NC* 13 NC* 21 NC*
6 DDC Clock (SCL) 14 +5V Power			22 TMDS Clock shield
7 DDC Data (SDA)		15 Ground (return for +5V, Hsync and Vsync)		23 TMDS Clock+
8 NC* 16 Hot Plug Detect		24 TMDS Clock-

(NC*: No Connection)

Pin No.	Signal	Pin No.	Signal	Pin No.	Signal
1 Red video		6 Red video ground 11 Ground
2 Green video		7 Green video ground	12 Data (SDA)
3 Blue video		8 Blue video ground	13 HSync
4 Ground		9 NC* 14 V.Sync
5 NC* 10 Ground		15 Clock (SCL)

(NC*: No Connection)

Option List

Cleaning Kit

EIZO ScreenCleaner

For the latest information about the accessories, refer to our web site.

http://www.eizo.com

5-4 Glossary

Clock

The analog input monitor needs to reproduce a clock of the same frequency as the dot clock of the graphics system in use, when the analog input signal is converted to a digital signal for image display.

This is called clock adjustment. If the clock pulse is not set correctly, some vertical bars appear on the screen.

DDC/CI (Display Data Channel/Command Interface)

VESA provides the standardization for the interactive communication of the setting information, etc. between a PC and the monitor.

DVI (Digital Visual Interface)

DVI is a digital interface standard. DVI allows direct transmission of the PC's digital data without loss.

This adopts the TMDS transmission system and DVI connectors. There are two types of DVI connectors. One is a DVI-D connector for digital signal input only. The other is a DVI-I connector for both digital and analog signal inputs.

DVI DMPM (DVI Digital Monitor Power Management)

DVI DMPM is a digital interface power-saving function. The “Monitor ON (operating mode)” and “Active Off (power-saving mode)” are indispensable for DVI DMPM as the monitor’s power mode.

Gain

This is used to adjust each color parameter for red, green and blue. An LCD monitor displays the color by the light passing through the panel color filter. Red, green and blue are the three primary colors. All the colors on the screen are displayed by combining these three colors. The color tone can be changed by adjusting the light intensity (volume) passing through each color's filter.

Phase

Phase means the sampling timing to convert the analog input signal to a digital signal. Phase adjustment is made to adjust the timing. It is recommended that phase adjustment be made after the clock is adjusted correctly.

Range Adjustment

Range adjustment controls the signal output levels to display every color gradation. It is recommended that range adjustment be made before color adjustment.

Resolution

The LCD panel consists of numerous pixels of specified size, which are illuminated to form images. The display panel of this monitor consists of 1280 horizontal pixels and 1024 vertical pixels. At a resolution of 1280 x 1024, images are displayed as a full screen (1:1).

sRGB (Standard RGB)

International standard for “color reproduction and color space” among peripheral devices (such as monitors, printers, digital cameras, scanners). sRGB allows Internet users to closely match colors as a simple color matching means for the Internet use.

Sync-on-Green

A composite horizontal and vertical signal sync for the green signal in RGB. Typically, monitors use 5 signals, one for red, green and blue, and one for each horizontal and vertical sync. Sync-on-green monitors utilize three connections, one for red, one for blue and two synced horizontal and vertical signals that are counted as one green video signal.

Temperature

Color temperature is a method to measure the white color tone, generally indicated in degrees Kelvin. The screen becomes reddish at a low temperature, and bluish at a high temperature, like the flame temperature.

5000K: Slightly reddish white

6500K: Warm white like paper white

9300K: Slightly bluish white

TMDS (Transition Minimized Differential Signaling)

A signal transmission system for digital interface.

VESA DPMS (Video Electronics Standards Association - Display Power Management Signaling)

VESA provides the standardization of signals from PC (graphics board) for power saving of PC monitors. DPMS defines the signal status between PC and monitor.

5-5 Preset Timing

The following table shows factory preset video timing (for analog signal only).

Mode Dot clock			Frequency	Polarity
			Horizontal: kHzVertical: Hz
VGA 640×480@60Hz 25.2 MHz	MHz	Horizontal 31.47 Negative
		Vertical 59.94 Negative
VGA TEXT 720×400@70Hz	28.3 MHz	Horizontal 31.47 Negative
		Vertical 70.09 Positive
VESA 640×480@75Hz 31.5 MHz	MHz	Horizontal 37.50 Negative
		Vertical 75.00 Negative
VESA 800×600@60Hz 40.0 MHz	MHz	Horizontal 37.88 Positive
		Vertical 60.32 Positive
VESA 800×600@75Hz 49.5 MHz	MHz	Horizontal 46.88 Positive
		Vertical 75.00 Positive
VESA 1024×768@60Hz 65.0 MHz	MHz	Horizontal 48.36 Negative
		Vertical 60.00 Negative
VESA 1024×768@75Hz 78.8 MHz	MHz	Horizontal 60.02 Positive
		Vertical 75.03 Positive
VESA 1152×864@75Hz 108.0 MHz	0 MHz	Horizontal 67.50 Positive
		Vertical 75.00 Positive
VESA 1280×960@60Hz 108.0 MHz	0 MHz	Horizontal 60.00 Positive
		Vertical 60.00 Positive
VESA 1280×1024@60Hz 108.0 MHz	0 MHz	Horizontal 63.98 Positive
		Vertical 60.02 Positive
VESA 1280×1024@75Hz 135.0 MHz	0 MHz	Horizontal 79.98 Positive
		Vertical 75.03 Positive

Attention

• Display position may be deviated depending on the PC connected, which may require screen adjustment using Adjustment menu.
• If a signal other than those listed in the table is input, adjust the screen using the Adjustment menu. However, screen display may still be incorrect even after the adjustment.
• When interlace signals are used, the screen cannot be displayed correctly even after screen adjustment using the Adjustment menu.

For U.S.A., Canada, etc. (rated 100-120 Vac) Only
FCC Declaration of Conformity
We, the Responsible Party EIZO NANAO TECHNOLOGIES INC.
	5710 Warland Drive, Cypress, CA 90630
	Phone: [phone]
declare that the product Trade name: EIZO
	Model: FlexScan S1701/S1721/S1921
is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.* Reorient or relocate the receiving antenna.* Increase the separation between the equipment and receiver.* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.* Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NoteUse the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.- AC Cord- Shielded Signal Cable (enclosed)
Canadian NoticeThis Class B digital apparatus complies with Canadian ICES-003.Cct appareil numérique de le classe B est conforme à la norme NMB-003 du Canada.

EIZO NANAO CORPORATION (hereinafter referred to as "EIZO") and distributors authorized by EIZO (hereinafter referred to as the "Distributors") warrant, subject to and in accordance with the terms of this limited warranty (hereinafter referred to as the "Warranty"), to the original purchaser (hereinafter referred to as the "Original Purchaser") who purchased the product specified in this document (hereinafter referred to as the "Product") from EIZO or Distributors, that EIZO and Distributors shall, at their sole discretion, either repair or replace the Product at no charge if the Original Purchaser becomes aware within the Warranty Period (defined below) that the Product malfunctions or is damaged in the course of normal use of the Product in accordance with the description in the instruction manual attached to the Product (hereinafter referred to as the "User's Manual").

The period of this Warranty is limited to (i) five (5) years from the date of purchase of the Product; or, limited to the expiration of (ii) 30,000 hours of its use of the Product (hereinafter referred to as the "Warranty Period"); provided, however, that the Warranty Period for the LCD panel of the Product is limited to three (3) years from the date of purchase of the Product. EIZO and Distributors shall bear no liability or obligation with regard to the Product in relation to the Original Purchaser or any third parties other than as provided under this Warranty.

EIZO and Distributors will cease to hold or store any parts of the Product upon expiration of seven (7) years after the production of such parts is discontinued. In repairing the monitor, EIZO and Distributors will use renewal parts which comply with our QC standards.

The Warranty is valid only in the countries or territories where the Distributors are located. The Warranty does not restrict any legal rights of the Original Purchaser.

Notwithstanding any other provision of this Warranty, EIZO and Distributors shall have no obligation under this Warranty whatsoever in any of the cases as set forth below:

(a) Any defect of the Product caused by freight damage, modification, alteration, abuse, misuse, accident, incorrect installation, disaster, faulty maintenance and/or improper repair by third party other than EIZO and Distributors;
(b) Any incompatibility of the Product due to possible technical innovations and/or regulations;
(c) Any deterioration of display performance caused by the deterioration of expendable parts such as the LCD panel and/or backlight, etc. (e.g. changes in brightness, changes in brightness uniformity, changes in color, changes in color uniformity, defects in pixels including burnt pixels, etc.);
(d) Any defect of the Product caused by external equipment;
(e) Any defect of the Product on which the original serial number has been altered or removed;
(f) Any normal deterioration of the product, particularly that of consumables, accessories, and/or attachments (e.g. buttons, rotating parts, cables, User's Manual, etc.); and
(g) Any deformation, discoloration, and/or warp of the exterior of the product including that of the surface of the LCD panel.

To obtain service under the Warranty, the Original Purchaser must deliver the Product, freight prepaid, in its original package or other adequate package affording an equal degree of protection, assuming the risk of damage and/or loss in transit, to the local Distributor. The Original Purchaser must present proof of purchase of the Product and the date of such purchase when requesting services under the Warranty.

The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period.

EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR.

EIZO AND DISTRIBUTORS MAKE NO FURTHER WARRANTIES, EXPRESSED OR IMPLIED, WITH RESPECT TO THE PRODUCT AND ITS QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE. IN NO EVENT SHALL EIZO OR DISTRIBUTORS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHER DAMAGE WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFIT, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT OR IN ANY CONNECTION WITH THE PRODUCT, WHETHER BASED ON CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE, EVEN IF EIZO OR DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS EXCLUSION ALSO INCLUDES ANY LIABILITY WHICH MAY ARISE OUT OF THIRD PARTY CLAIMS AGAINST THE ORIGINAL PURCHASER. THE ESSENCE OF THIS PROVISION IS TO LIMIT THE POTENTIAL LIABILITY OF EIZO AND DISTRIBUTORS ARISING OUT OF THIS LIMITED WARRANTY AND/OR SALES.

BEGRENZTE GARANTIE
