iB40 - Headphones IHOME - Free user manual and instructions

Product Type	Studio Monitor Style Stereo Headphones
Brand	iHome
Model	iB40
Connectivity	Wired (3.5mm plug)
Included Adapter	6.3mm headphone plug adapter
Controls	In-Line Volume Control
Ear Cup Adjustment	Adjustable up/down for comfort
Left/Right Marking	Yes (marked 'L' and 'R')
Warranty Period	1 year from original purchase
Service Fee (with proof of purchase)	$5.00
Service Fee (without proof of purchase)	$10.00
Manufacturer	SDI Technologies Inc.
Country of Warranty	United States of America
Customer Support	1-800-288-2792 or www.ihomeaudio.com

Frequently Asked Questions - iB40 IHOME

How do I identify left and right ear cups?

The ear cups are marked with 'L' for left and 'R' for right. When worn properly, the cable with in-line volume control will be on your left side.

What devices can I use these headphones with?

These headphones have a 3.5mm plug, compatible with most music players, smartphones, tablets, and computers with a standard headphone jack.

How do I use the in-line volume control?

Start with the volume set to low, then gradually increase to a comfortable level. For best sound, set your device volume to halfway and adjust with the in-line control.

What is the 6.3mm adapter for?

The supplied 6.3mm adapter lets you connect the headphones to older stereo receivers or equipment with a larger headphone jack.

What should I do if I hear sound from only one side?

Ensure the headphone plug is fully inserted into your device's jack. A partial connection can cause mono sound.

How can I protect my hearing while using these headphones?

Always start listening at low volume and avoid prolonged high-volume use. Do not use headphones in situations where you need to hear warning sounds.

Can I use these headphones while driving or biking?

No. These studio monitor headphones block outside noise, including warning sounds, making them unsafe for driving, biking, or any activity requiring full awareness of surroundings.

How do I clean the headphones?

Wipe the ear cups and headband with a soft, dry cloth. Avoid using liquids or chemicals, and do not submerge in water.

What is covered under the warranty?

The 1-year warranty covers defects in workmanship and materials under normal use. It does not cover misuse, modification, or damage from excessive heat.

How do I get service for my headphones?

Return the product to the store of purchase first. If needed, pack it securely with proof of purchase and a $5 fee ($10 without proof), and ship prepaid and insured to: Consumer Repair Department, SDI Technologies Inc., 1330 Goodyear Drive, El Paso, TX 79936-6420.

USER MANUAL iB40 IHOME

Studio Monitor Style Stereo Headphones with In-Line Volume Control

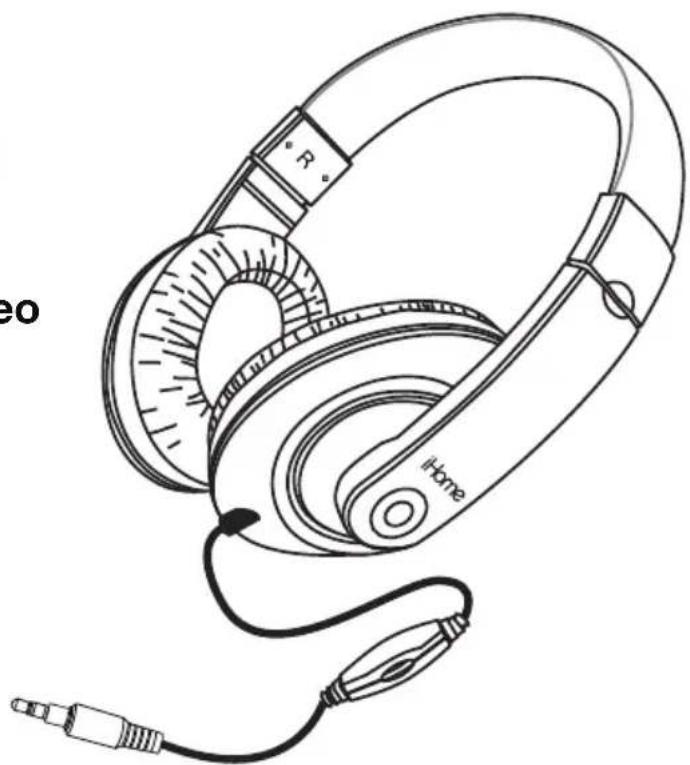

Line drawing of an outdoor headphones with attached audio cable (no text or symbols)

Using Your iHome Headphones

The ear cups are marked "L" and "R". When worn properly the headphone cable with in-line volume control will be on your left side. The two ear cups may be adjusted up or down for most comfortable fit.

Connect the headphone plug to the headphone jack of your music player. Be sure that the plug is fully inserted into the jack. If the plug is not fully inserted you may only hear sound from one side of the headphones.

Diagram of a mechanical component with two directional arrows indicating movement or force (no text or symbols present)

If you are using this headphone with an older stereo receiver that has a larger size headphone jack, attach the supplied 6.3mm headphone plug adapter to the 3.5mm headphone plug.

Diagram showing a cable being inserted into a two-pin connector, with an arrow indicating the insertion process (no text or symbols present)

To protect your hearing, always start listening with the In-Line Volume Control set to a low level and gradually increase the volume to a comfortable listening level.

Note: You may have to adjust the volume control on your music player as well as the In-Line Volume Control on your headphones to find the most satisfactory sound level. If one control is set too low and the other is set too high, the sound may be distorted. Try setting the volume control on your music player halfway between the Min and Max settings, and then use the In-Line Volume Control on your iHome headphones to make final adjustments.

IMPORTANT! Listening at high volume for long periods of time can result in long-term hearing damage. For your safety, do not use headphones if they would prevent you from hearing warning sounds, such as while driving a car or motorcycle, riding a bike, etc. Remember that studio monitor style headphones such as the iB40 may block outside noise, including warning sounds. Always be aware of your surroundings and do not use these headphones in situations that require you to hear warning sounds.

iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI Technologies), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of 1 year from the date of original purchase.

Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased. Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, SDI Technologies will repair or, at its discretion, replace this product without charge (except for a \5.00 charge for handling, packing, return UPS/postage, and insurance). This decision is subject to verification of the defect or malfunction upon delivery of this product to the Factory Service Center listed below. The product must include proof of purchase, including date of purchase. The fee for service without proof of purchase is \10.00.

Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or defective batteries are the most common cause of problems encountered.

If service is still required:

1. Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box.
2. Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty period.
3. Enclose a check or money order payable to the order of SDI Technologies, for the sum of \5.00 (\10.00 without proof of purchase).
4. Send the unit prepaid and insured, to the Factory Service Center listed below.

Consumer Repair Department

SDI Technologies Inc.

1330 Goodyear Drive

El Paso, TX 79936-6420

Disclaimer of Warranty

NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD's or tape cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.

This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original purchaser. In no event will SDI Technologies or any of its affiliates, contractors, resellers, their officers, directors, shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual, exemplary or punitive damages. (Some states do not allow limitations on implied warranties or exclusion of consequential damages, so these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Your acknowledgement and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SDI Technologies product.

© 2010 SDI Technologies, Inc. All rights reserved

Questions? Visit www.ihomeaudio.com or call 1-800-288-2792 Toll Free.
